  1. CloudBroker Platform Hands-onPart 1: Resource Definition Zoltán Farkas MTA SZTAKI LPDS zoltan.farkas@sztaki.mta.hu

  2. Outline • Log in to the CloudBroker Platform • Set up new: • Resource • Instance Type • Storage • Region

  3. Targeted audience Mostly system administrators Required knowledge: General concept about cloud systems

  4. Outline of the setup OpenNebula Cloud @LPDS http://cfe2.lpds.sztaki.hu:4567/ Proxy host @LPDS jfe.lpds.sztaki.hu CloudBroker Platform https://platform.cloudbroker.com/ Rados S3 @LPDS https://s3.lpds.sztaki.hu/

  5. User Account information OpenNebula, Rados S3 and CloudBroker access information is available at http://goo.gl/rf1E2 Log in to https://platform.cloudbroker.com/

  6. CloudBroker Platform Web Interface Most important menus: How to perform actions on entities:

  7. Configure Resource in CloudBroker I. Log in through https://platform.cloudbroker.com/ (use your assigned username and password from http://goo.gl/rf1E2) Click „Resources” -> „New” „Resource type” should be „OpenNebula” Enter specifier as „SummerSchoolXY” (XY should be the numbers in your OpenNebula username, e.g. 25 in case of „summerschool25”) „Access key ID” should be your SZTAKI Cloud username followed by „@partners.sztaki.hu” (e.g. summerschool25@partners.sztaki.hu) „Secret access key” should be your Password’s SHA1 hash Click on „Expert Options”

  8. Configure Resoruce in CloudBroker II. After clicking on „Expert Options”: Set „Maximum nodes” to 1 Set „API URL” to „http://cfe2.lpds.sztaki.hu:4567/” Click on the „Proxy Server Enabled” icon, and set proxy access details: „Proxy hostname”: set to „193.224.70.205” „Proxy username”: set to „cloudbroker” „Proxy password”: leave empty „Proxy private key”: upload file from http://goo.gl/ecj3H Click „Save”

  9. Configure Instance Type in CloudBroker Click „Instance types” -> „New” Set „Human readable name” to „SummerSchoolXY” (XY = your user ID, so e.g. „SummerSchool25”) Select the „Resource” as defined earlier Set „Architecture” to „x86_64” Set „CPUs” to 1, „CPU cores” to 1, „Memory [GB]” to 1, and „API name” to „m1.small” Click „Expert options” Set „Maximum nodes” Click „Save”

  10. Configure Storage in CloudBroker Click „Storages” -> „New” Storage type: Rados S3 „Identifier string” should be your SZTAKI Cloud username „Secret string” should be your password’s SHA1 hash „URL” should be „https://s3.lpds.sztaki.hu” Click „Expert Options” Set „Specifier” to „SummerSchoolXY” (XY = user ID) Click „Save”

  11. Activate some entities now In order to be able to use entities, they have to be activated Activate the followings: Storage Instance Type

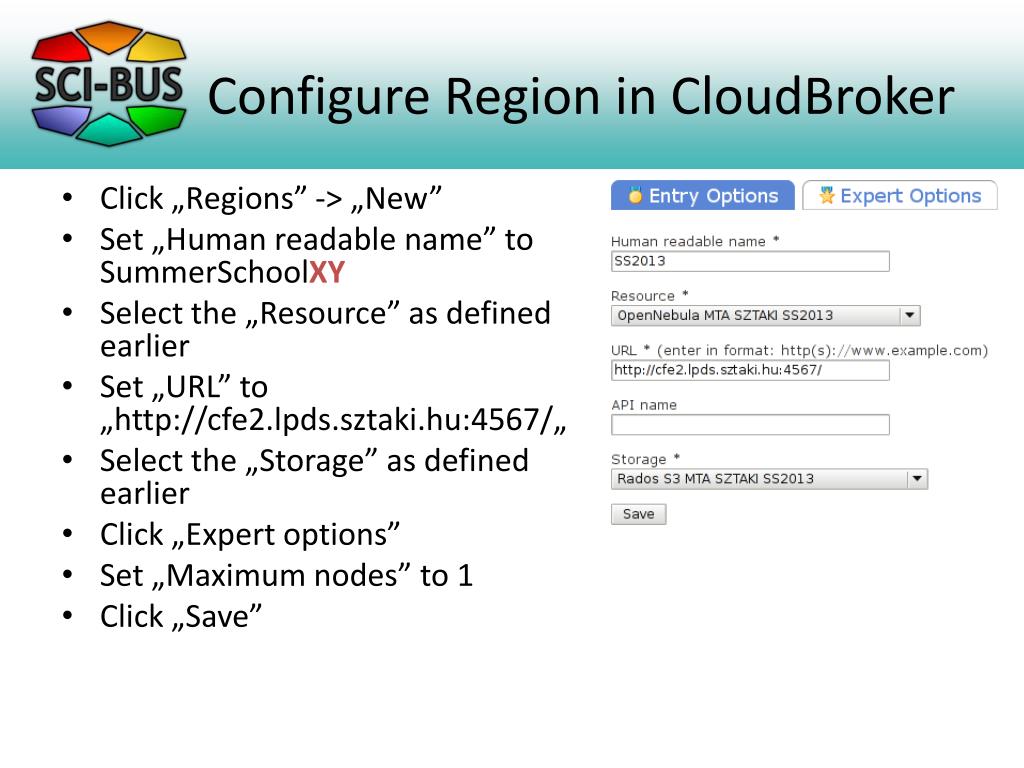

  12. Configure Region in CloudBroker Click „Regions” -> „New” Set „Human readable name” to SummerSchoolXY Select the „Resource” as defined earlier Set „URL” to „http://cfe2.lpds.sztaki.hu:4567/„ Select the „Storage” as defined earlier Click „Expert options” Set „Maximum nodes” to 1 Click „Save”

  13. Final step Now, activate the resource!

  14. Status At this point, we have a new Resource defined that is connected to a specific account within LPDS’s OpenNebula cloud Next step: set up new Software for the AutoDock and Wrapper applications based on the LPDS OpenNebula cloud VM image
