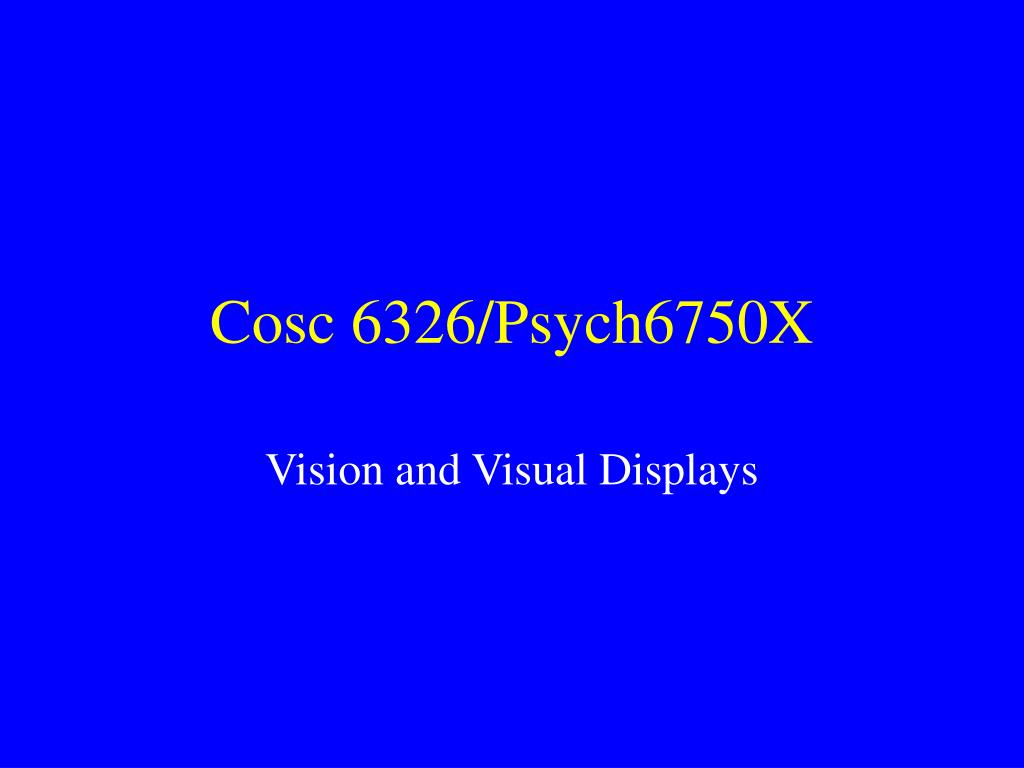

  1. Cosc 6326/Psych6750X Vision and Visual Displays

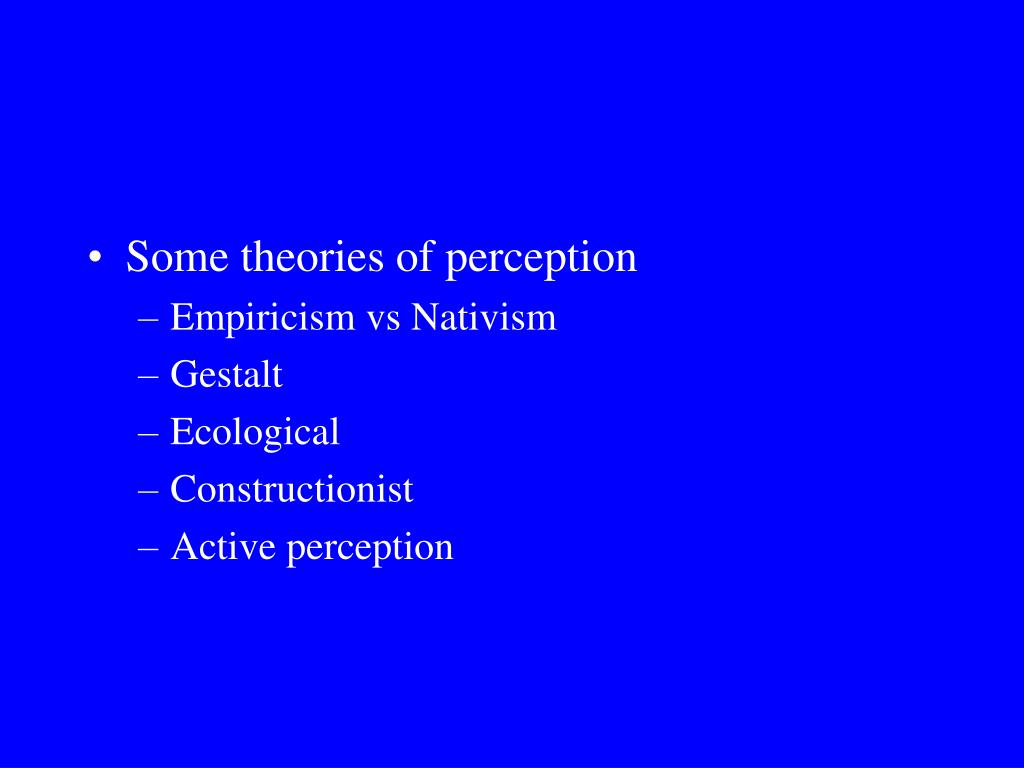

  2. Some theories of perception • Empiricism vs Nativism • Gestalt • Ecological • Constructionist • Active perception

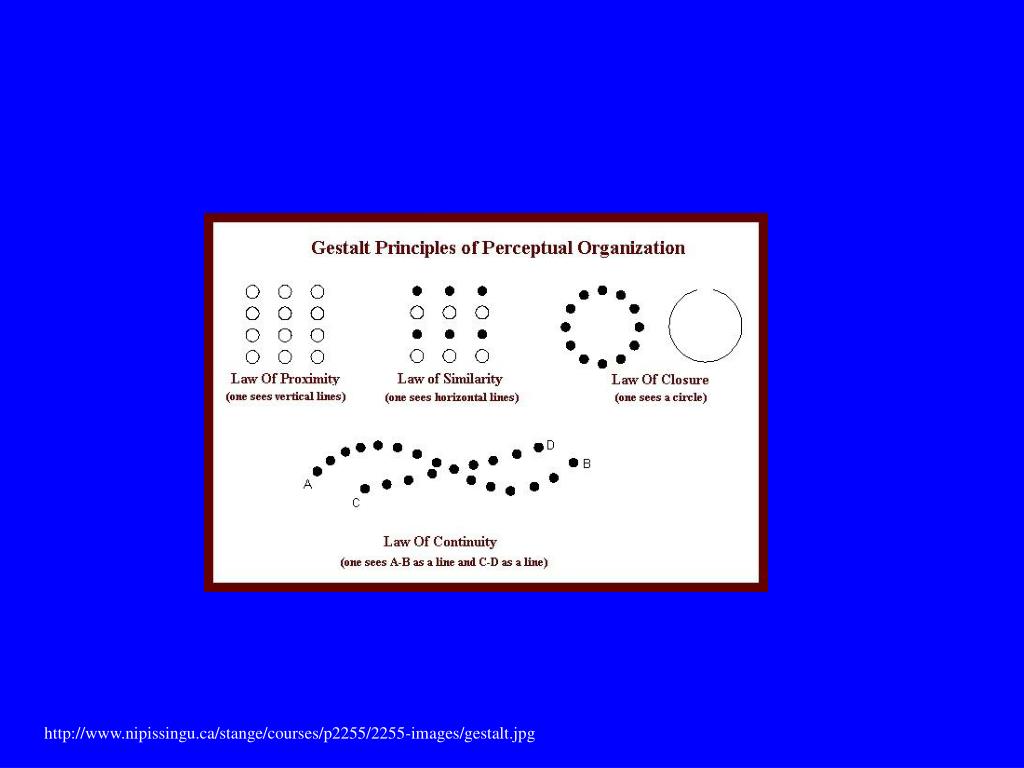

  3. http://www.nipissingu.ca/stange/courses/p2255/2255-images/gestalt.jpghttp://www.nipissingu.ca/stange/courses/p2255/2255-images/gestalt.jpg

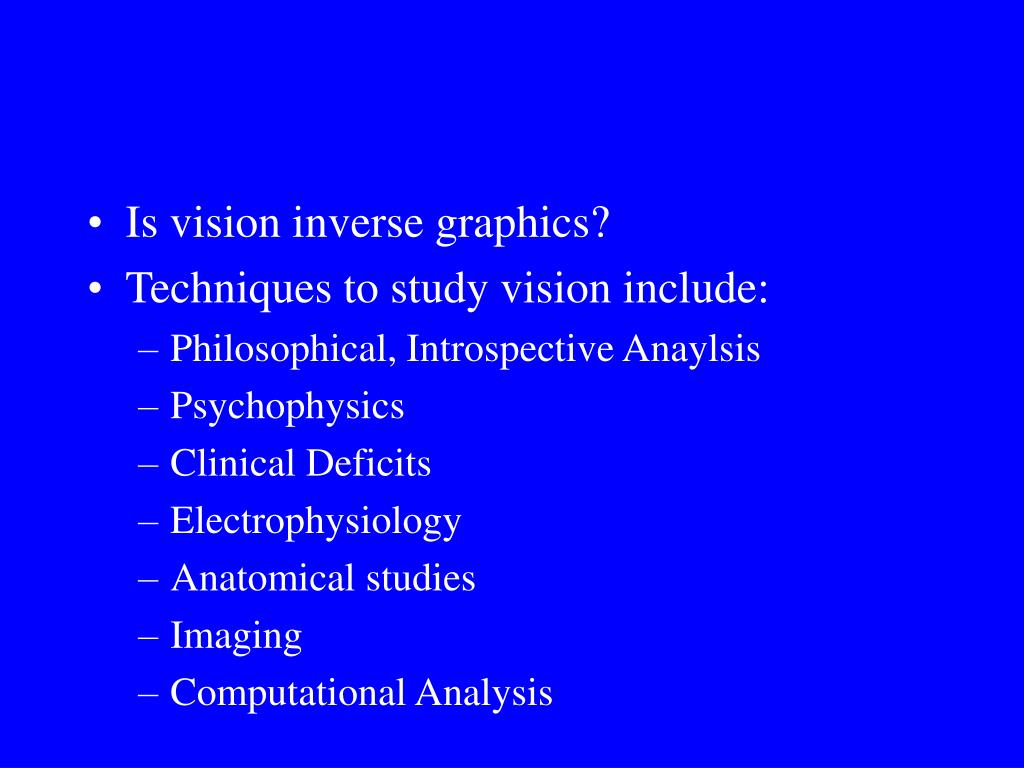

  4. Is vision inverse graphics? • Techniques to study vision include: • Philosophical, Introspective Anaylsis • Psychophysics • Clinical Deficits • Electrophysiology • Anatomical studies • Imaging • Computational Analysis

  5. Levels of Processing • Early vision • low level processing related to extracting image and surface properties such as luminance changes, depth and motion • Intermediate-level vision • Grouping operations, smoothing, cue integration, computation of shape, colour, contour

  6. High-level vision • task based: object recognition, relations between objects, selection for manipulation/navigation

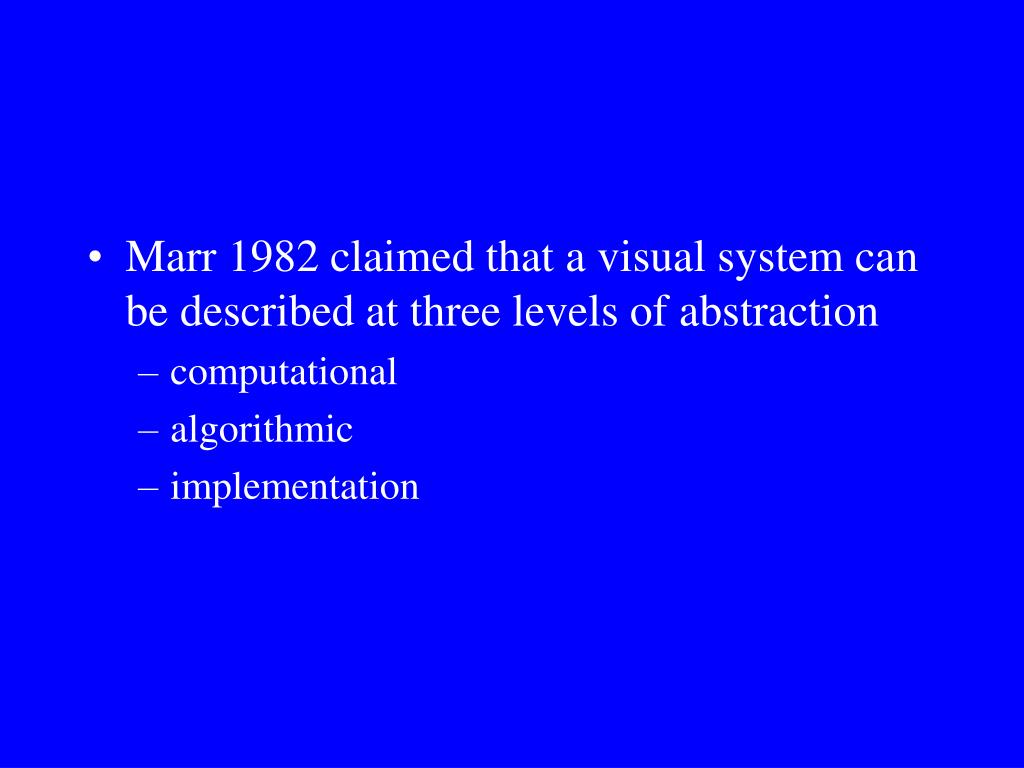

  7. Marr 1982 claimed that a visual system can be described at three levels of abstraction • computational • algorithmic • implementation

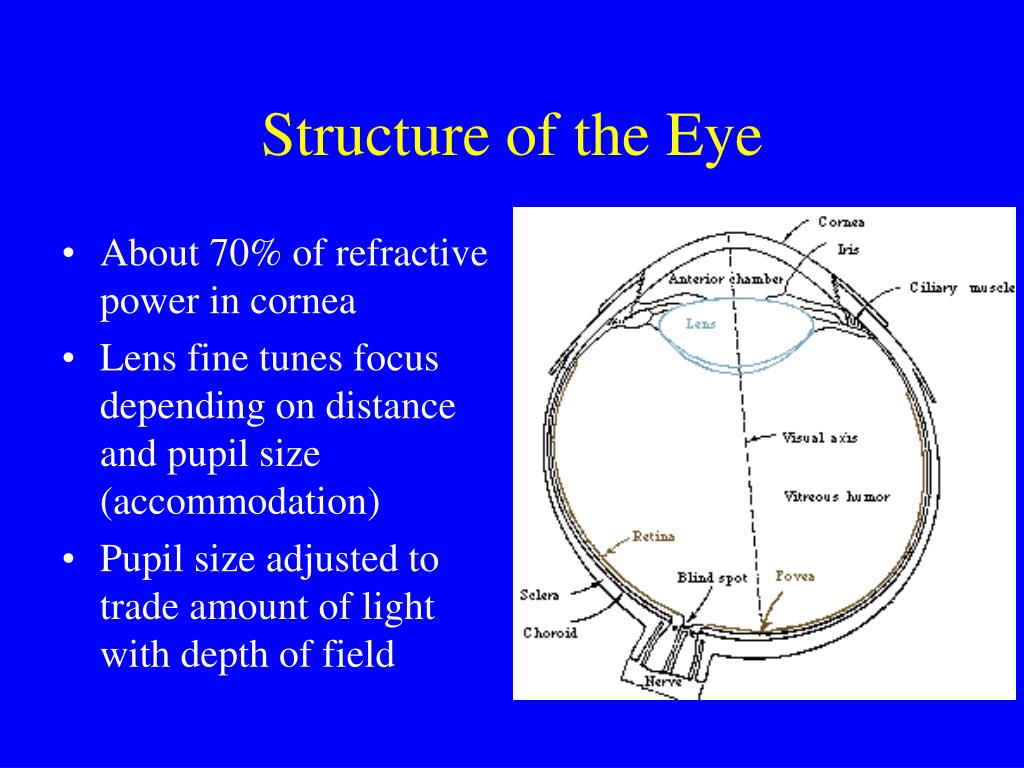

  8. Structure of the Eye • About 70% of refractive power in cornea • Lens fine tunes focus depending on distance and pupil size (accommodation) • Pupil size adjusted to trade amount of light with depth of field

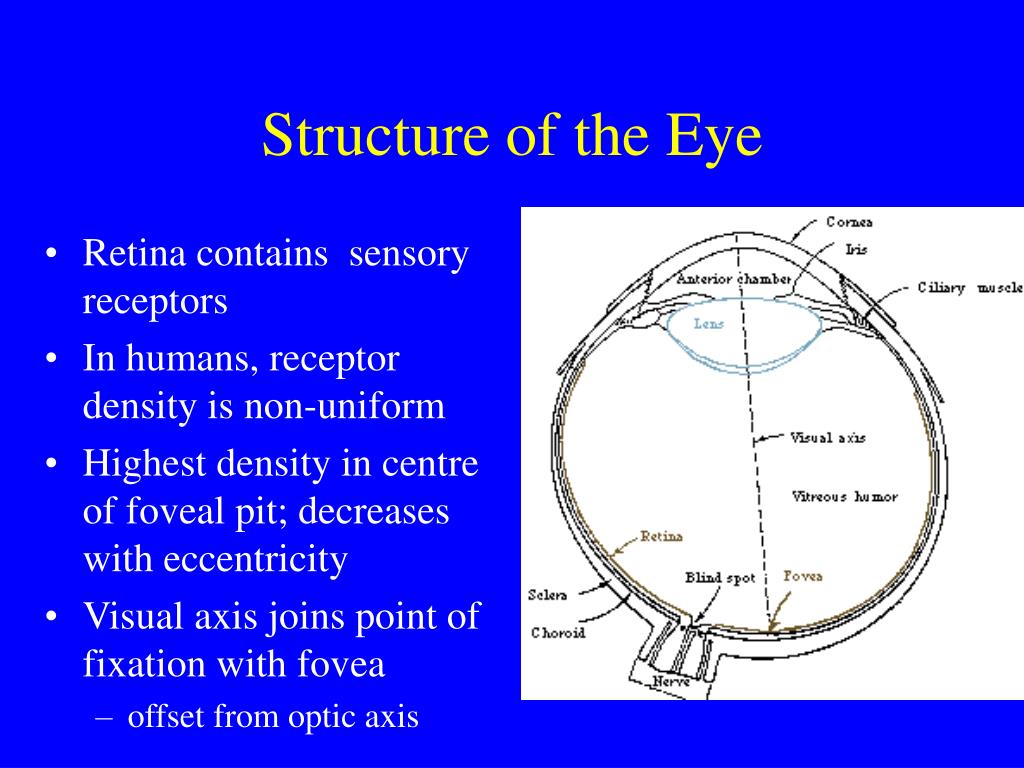

  9. Structure of the Eye • Retina contains sensory receptors • In humans, receptor density is non-uniform • Highest density in centre of foveal pit; decreases with eccentricity • Visual axis joins point of fixation with fovea • offset from optic axis

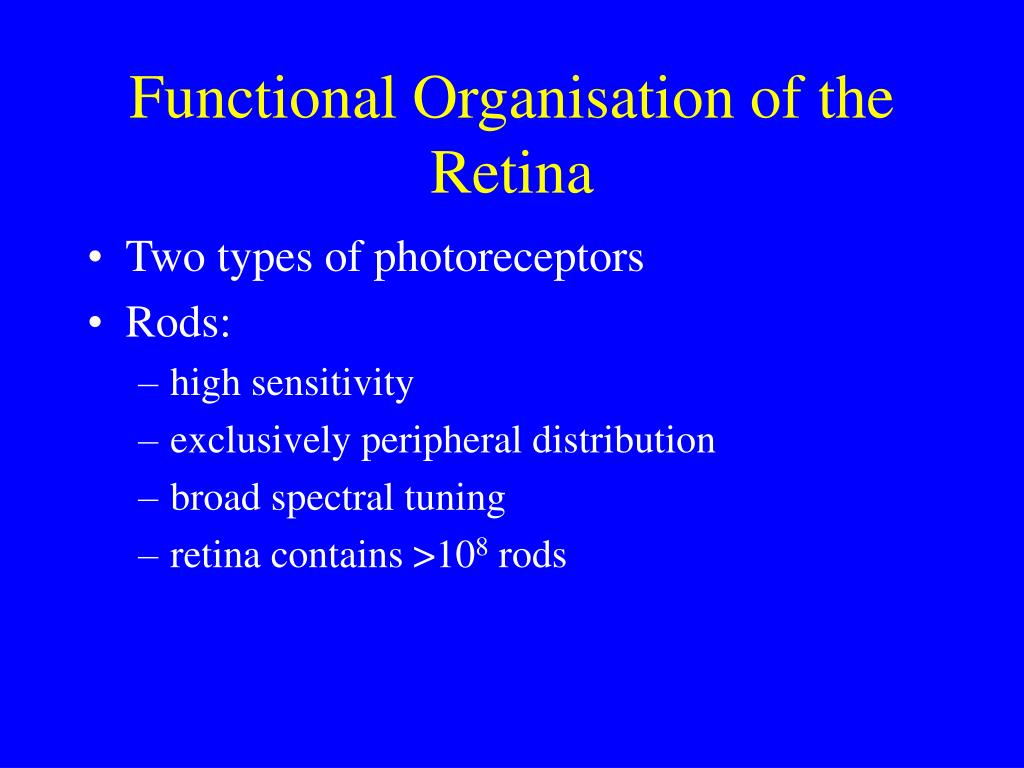

  10. Functional Organisation of the Retina • Two types of photoreceptors • Rods: • high sensitivity • exclusively peripheral distribution • broad spectral tuning • retina contains >108 rods

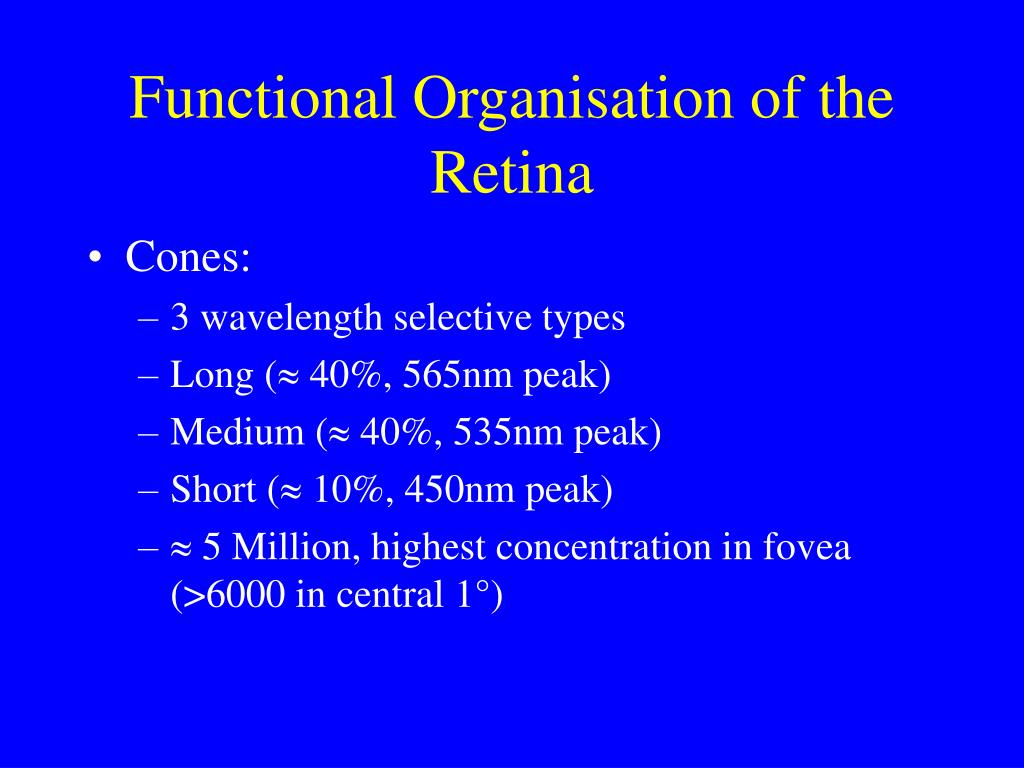

  11. Functional Organisation of the Retina • Cones: • 3 wavelength selective types • Long ( 40%, 565nm peak) • Medium ( 40%, 535nm peak) • Short ( 10%, 450nm peak) •  5 Million, highest concentration in fovea (>6000 in central 1°)

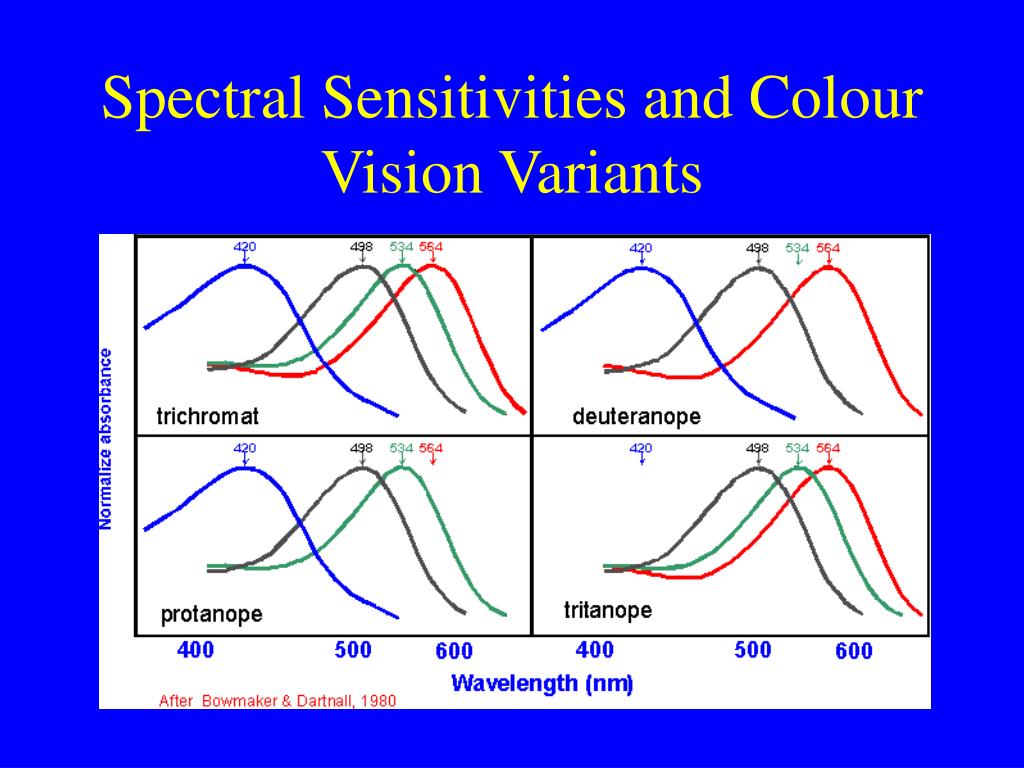

  12. Spectral Sensitivities and Colour Vision Variants

  13. Limits on Vision • Spectral sensitivity • 400-700 nm range • 3 cone types • Precise discrimination but no resolution • Sensitivity to intensity • Sensitivity to spatial variation • Sensitivity to temporal variation • Field of view • …

  14. Limits on sensitivity to intensity • Phototopic range • day time vision, colour sensitivity, high resolution, cone-mediated • Scotopic • low light vision, achromatic, rod-mediated, more sensitive but low spatial resolution • Mesatopic • transition range (e.g. moonlight)

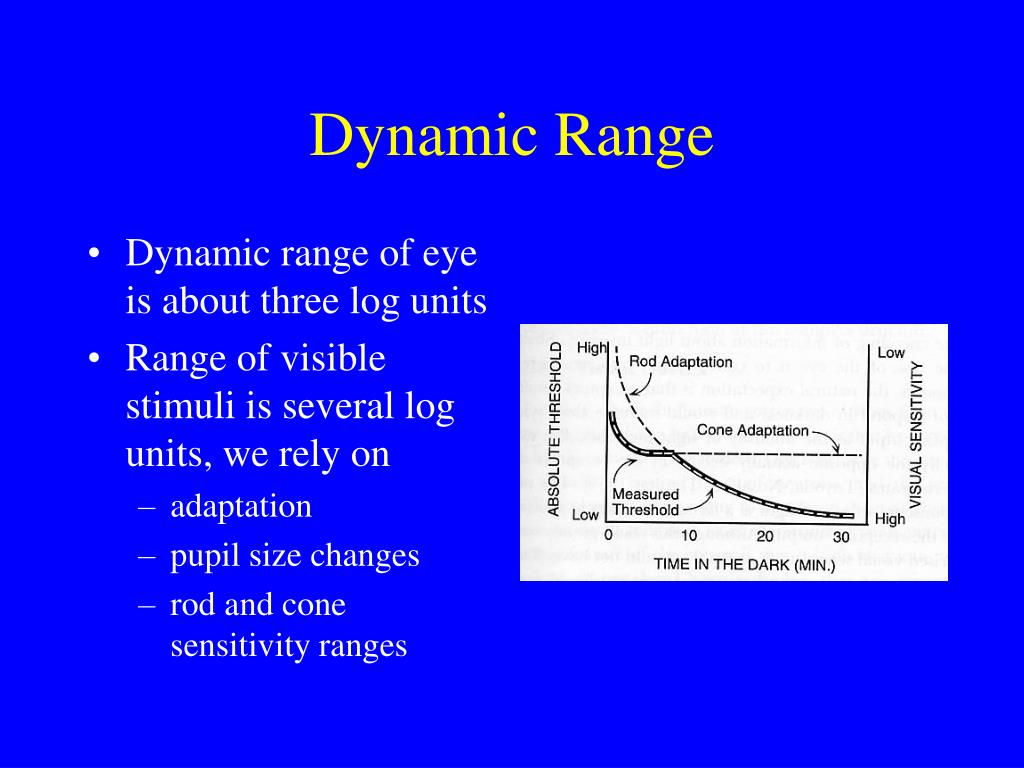

  15. Dynamic Range • Dynamic range of eye is about three log units • Range of visible stimuli is several log units, we rely on • adaptation • pupil size changes • rod and cone sensitivity ranges

  16. Dynamic Range • Dynamic range of most displays is limited to a small fraction of natural range (100:1 versus up to 10,000:1 in a natural scene) • Issues are both display capability and image generation • Tone mapping is one technique that uses non-linear luminance mapping to distort image & increase range of visibility • Some true HDR displays in development (including one at York)

  17. Tone Mapping Larson, Siggraph 1997

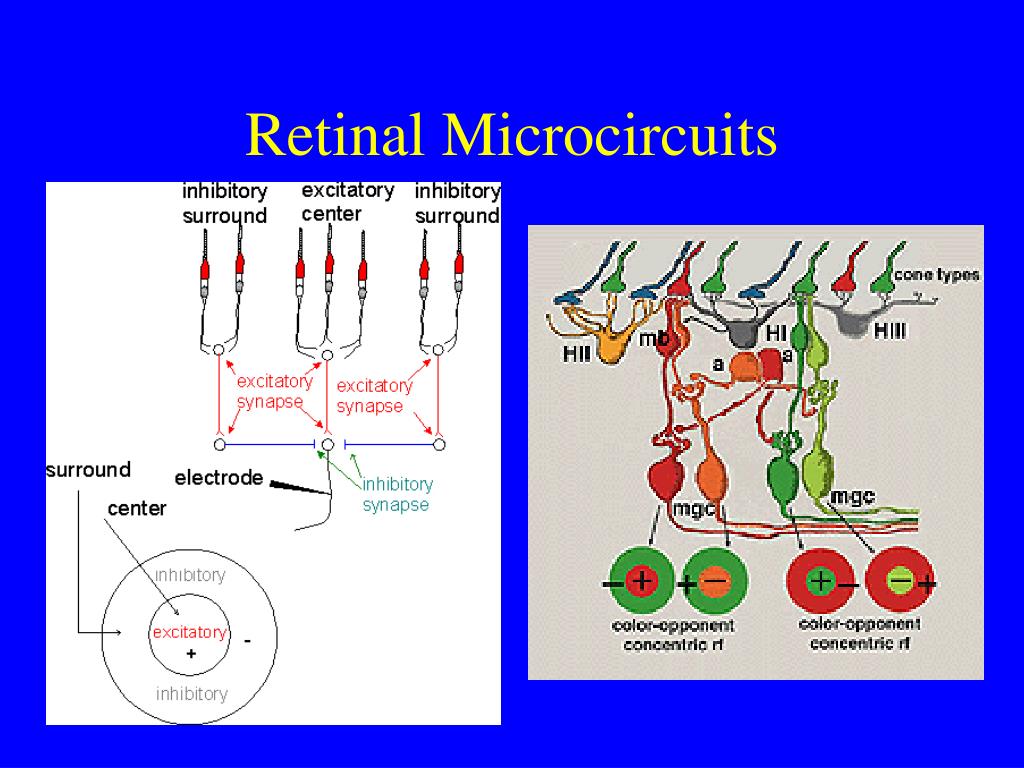

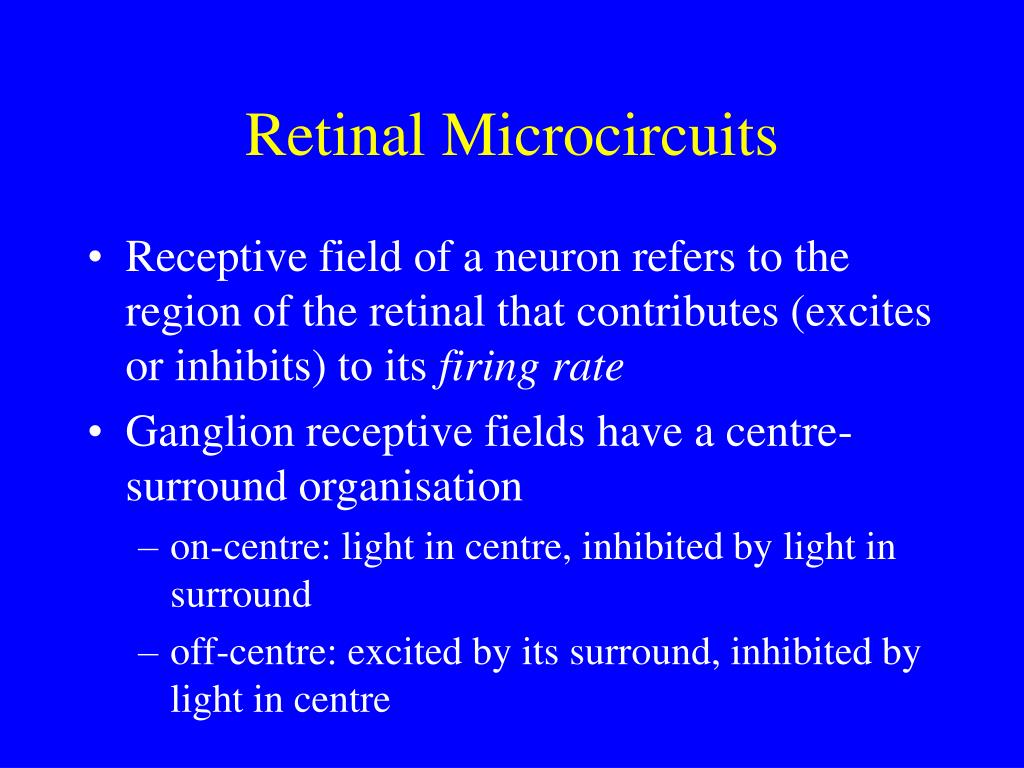

  18. Retinal Microcircuits • Receptive field of a neuron refers to the region of the retinal that contributes (excites or inhibits) to its firing rate • Ganglion receptive fields have a centre-surround organisation • on-centre: light in centre, inhibited by light in surround • off-centre: excited by its surround, inhibited by light in centre

  19. Retinal Microcircuits

  20. from Palmer 1999

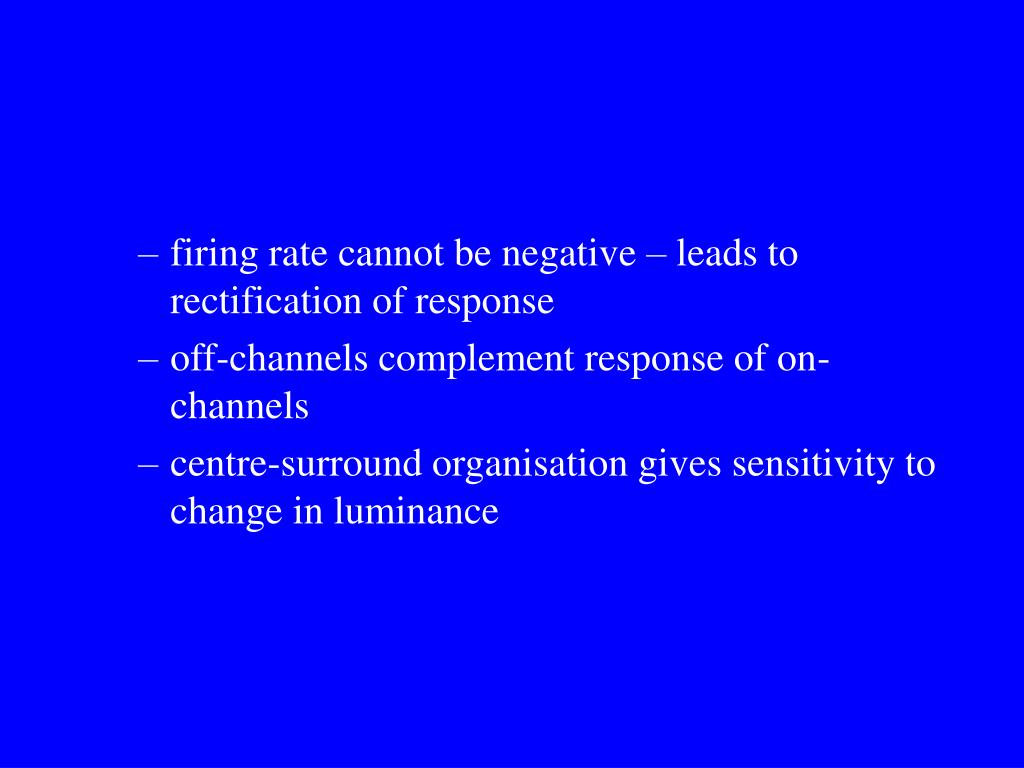

  21. firing rate cannot be negative – leads to rectification of response • off-channels complement response of on-channels • centre-surround organisation gives sensitivity to change in luminance

  22. http://www.cnl.salk.edu/~thomas/coce.html

  23. Contrast dependent processing occurs at higher levels of the brain as well

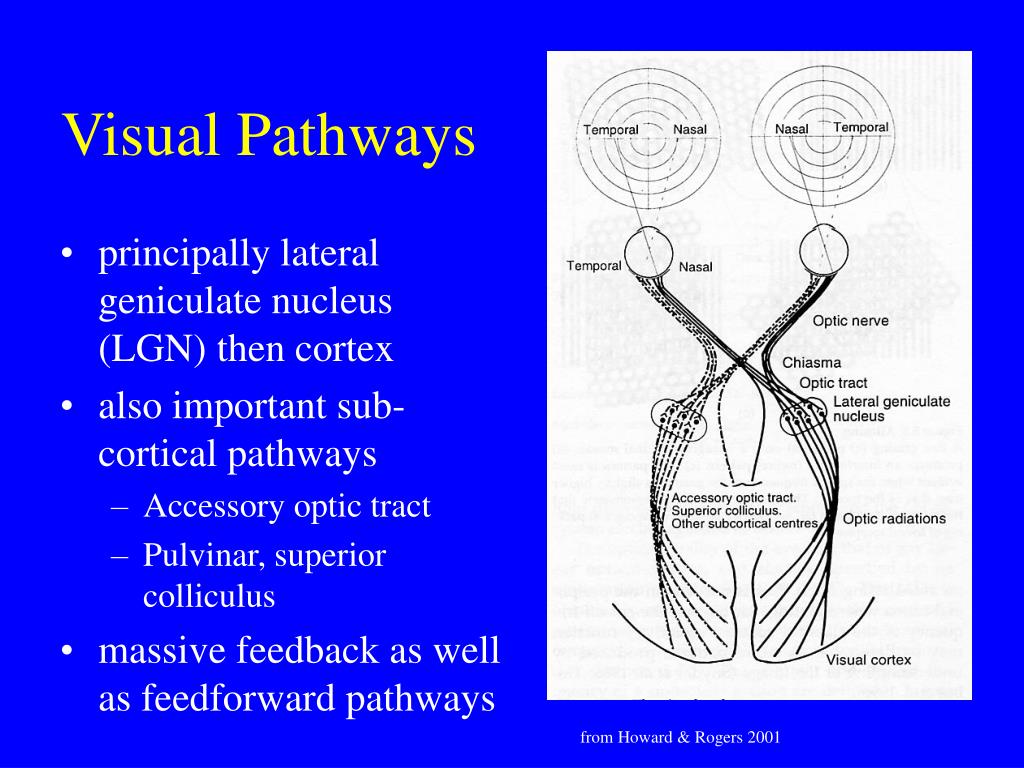

  24. Visual Pathways • principally lateral geniculate nucleus (LGN) then cortex • also important sub-cortical pathways • Accessory optic tract • Pulvinar, superior colliculus • massive feedback as well as feedforward pathways from Howard & Rogers 2001

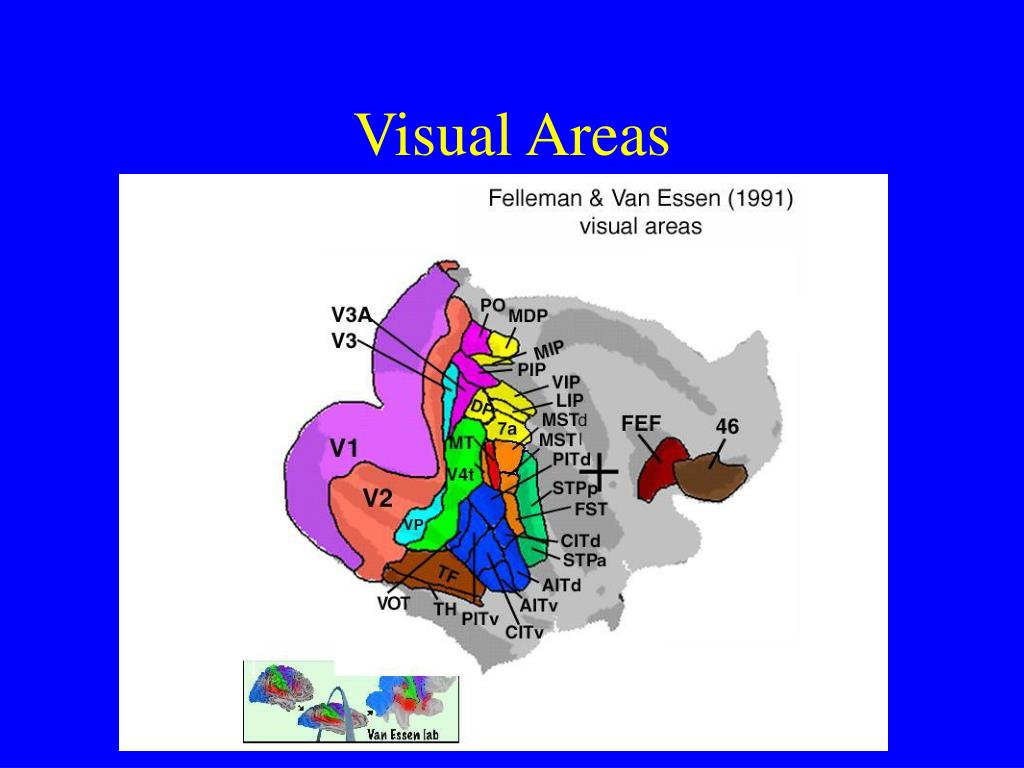

  25. Visual Areas

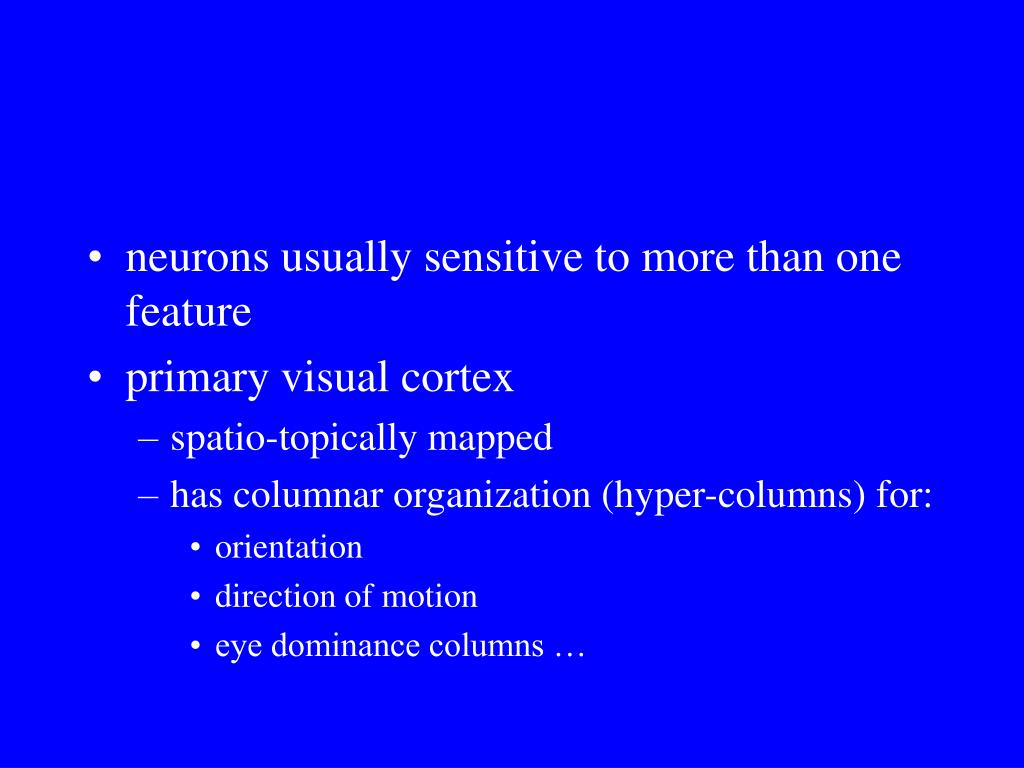

  26. neurons usually sensitive to more than one feature • primary visual cortex • spatio-topically mapped • has columnar organization (hyper-columns) for: • orientation • direction of motion • eye dominance columns …

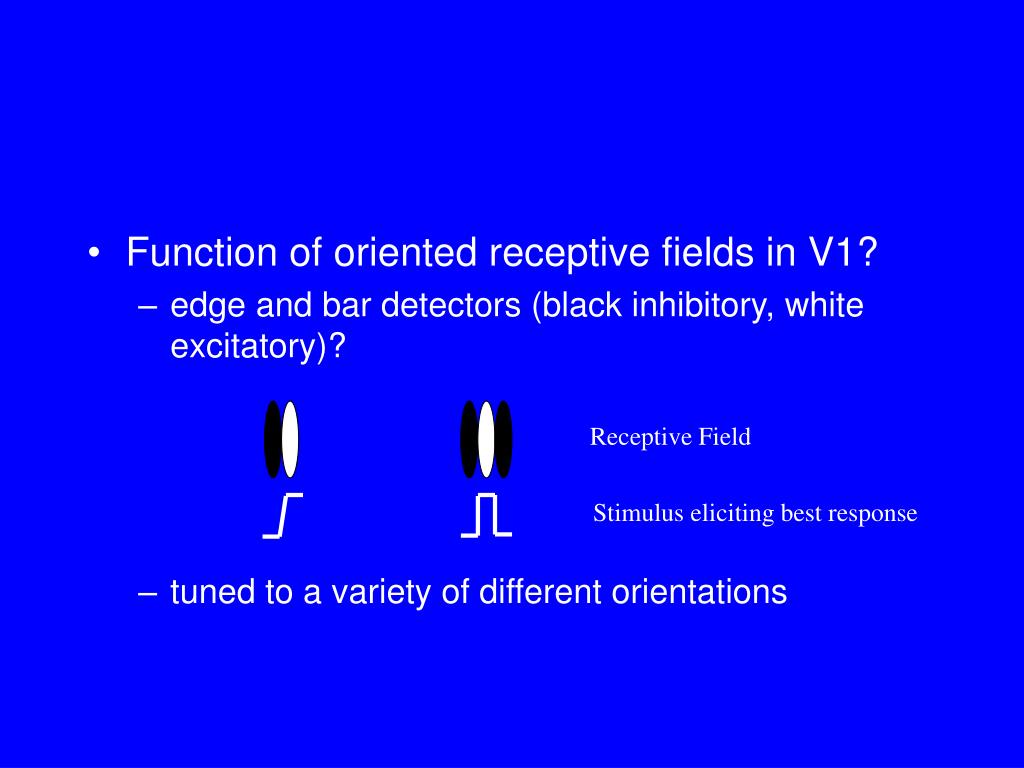

  27. Function of oriented receptive fields in V1? • edge and bar detectors (black inhibitory, white excitatory)? • tuned to a variety of different orientations Receptive Field Stimulus eliciting best response

  28. Fourier analysis of image (Blakemore and Campbell)? Need to combine responses of receptors with similar receptive fields distributed over visual field • spatial-temporal filtering

  29. Visual areas believed to be specialised for features, e.g. • V1: oriented edges, colour • MST, MT: motion, optic flow • V4: colour, form • IT: objects • We’ll have time to look at only a small set of the functions vision supports

  30. 2 pathways hypothesis (seminar last Wednesday) • parasol ganglion cells project to magnocellular layers of LGN • high contrast sensitivity, larger receptive fields, insensitive to colour, short latency, sensitive to luminance changes • presumed to form input to a motion and depth pathway (to MT, MST …)

  31. midget ganglion cells project to parvocellular layers of LGN • colour opponent cells, less contrast sensitivity, colour sensitive, high spatial resolution, low temporal resolution • specialised pathways for form and colour (V4, IT …) • Livingston and Hubel (1988) have suggested there may be 4 physiologically distinct pathways: colour, binocular vision, motion and form

  32. Rolls and Deco 2002

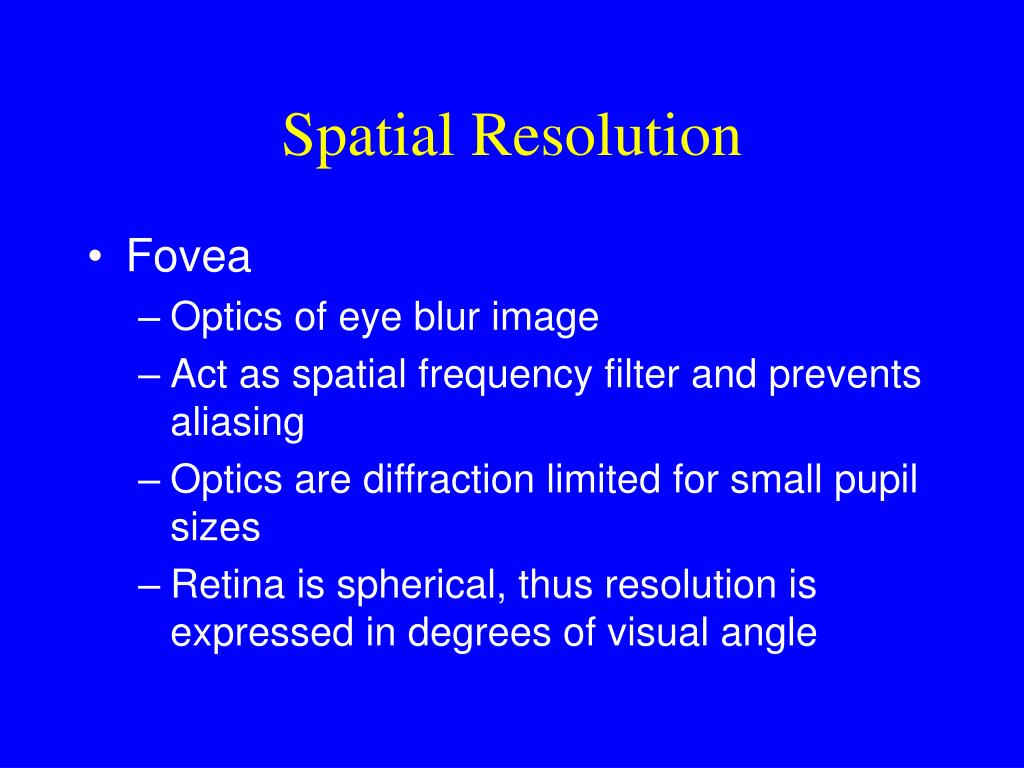

  33. Spatial Resolution • Fovea • Optics of eye blur image • Act as spatial frequency filter and prevents aliasing • Optics are diffraction limited for small pupil sizes • Retina is spherical, thus resolution is expressed in degrees of visual angle

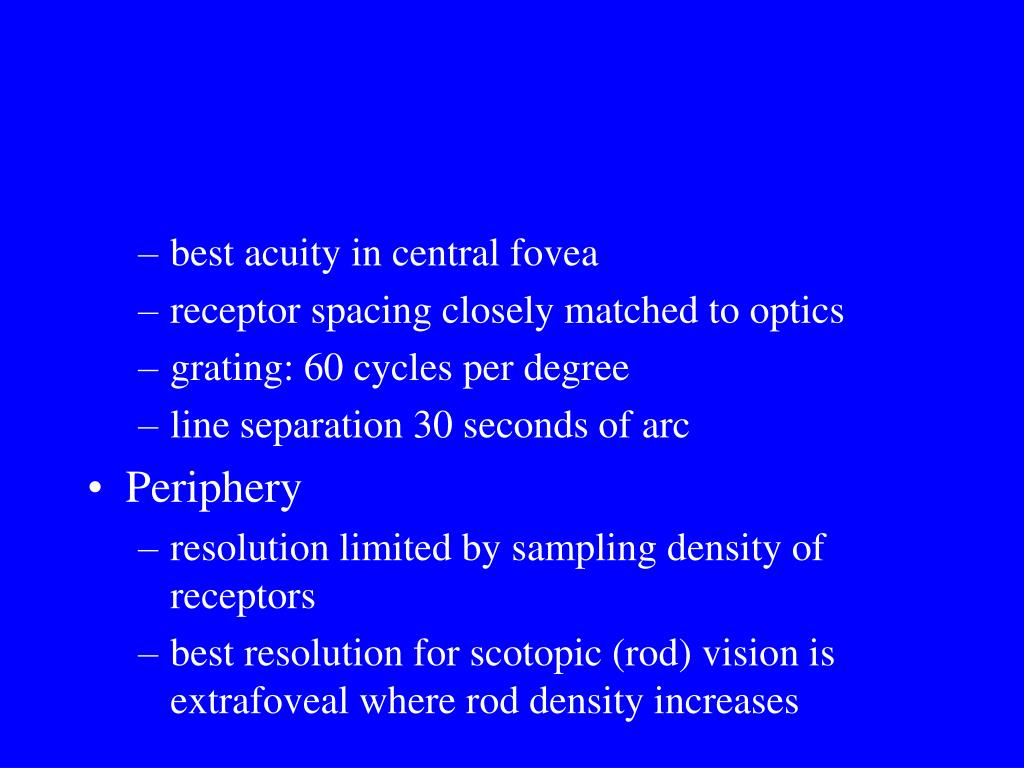

  34. best acuity in central fovea • receptor spacing closely matched to optics • grating: 60 cycles per degree • line separation 30 seconds of arc • Periphery • resolution limited by sampling density of receptors • best resolution for scotopic (rod) vision is extrafoveal where rod density increases

  35. Contrast Sensitivity Function • important caveat - acuity is for high contrast patterns under ideal conditions • contrast required for an object to be visible depends on the pattern • sensitivity falls at high and low spatial frequencies

  36. Display Resolution • resolution of displays usually measured in pixels/display or pixels/cm • e.g. 30 cm wide, 1024x768 pixel display (30 pixels per cm) would needs to be located at away for pixel pitch to subtend 30 seconds of arc • effective resolution typically less than pixel pitch

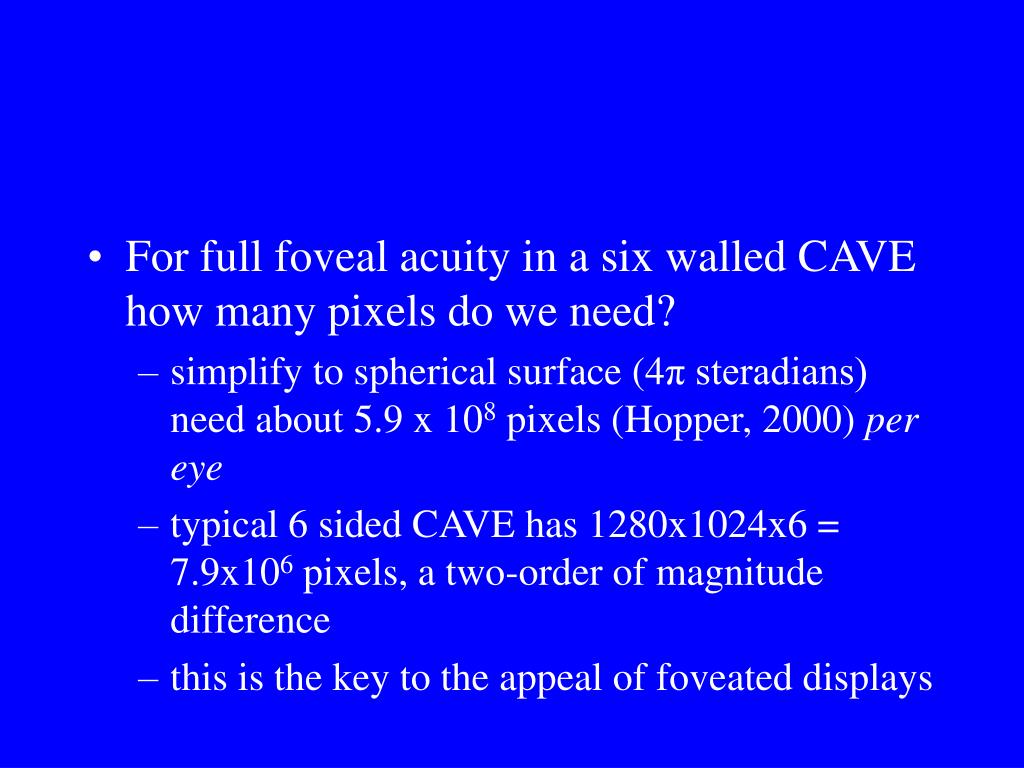

  37. For full foveal acuity in a six walled CAVE how many pixels do we need? • simplify to spherical surface (4π steradians) need about 5.9 x 108 pixels (Hopper, 2000) per eye • typical 6 sided CAVE has 1280x1024x6 = 7.9x106 pixels, a two-order of magnitude difference • this is the key to the appeal of foveated displays

  38. Field of View • each has a visual field extending approx 56° nasally and 95° temporally – 190° total visual field • extended to 290° with eye movements and nearly 360° with head movement • portion seen by both eyes is up to 114° horizontally and 125° vertically

  39. Field of view, resolution trade-offs for displays • Instantaneous field of view (FOV) of a display is angle subtended by the image at the eye • In HMDs FOV is restricted by size of the display and optical aberrations/distortions, which increase with eyepiece FOV • typical values 20-100° horizontal FOV

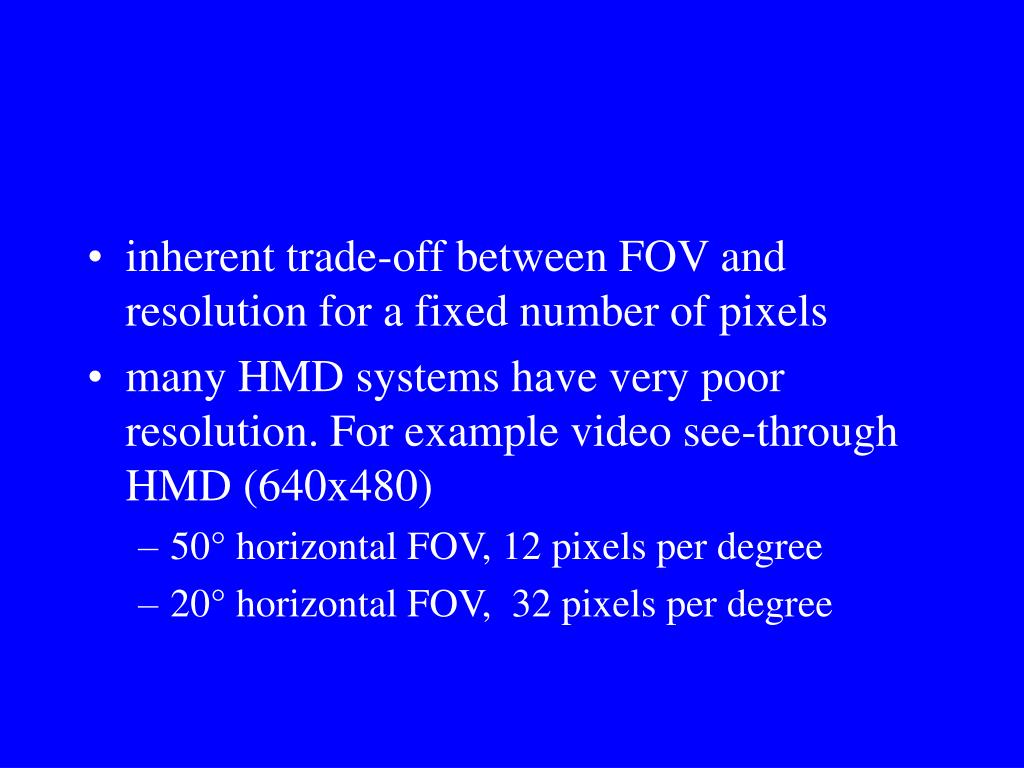

  40. inherent trade-off between FOV and resolution for a fixed number of pixels • many HMD systems have very poor resolution. For example video see-through HMD (640x480) • 50° horizontal FOV, 12 pixels per degree • 20° horizontal FOV, 32 pixels per degree

  41. large FOV easier in optical see-through HMDs (at least for see-through portion) • tiling of multiple sub-displays has been proposed for large FOV HMDS • resolution/FOV tradeoff also limits large format projection displays and tiling has been also used

  42. Hyperacuities • Hyperacuity (Westheimer & McKee paper) • ability to discriminate relations between features that are finer than the resolving power of the visual system or even photoreceptor spacing • e.g. vernier acuity. Which line is higher? Foveal threshold is on the order of 1-5 seconds of arc • implies interpolation (& population coding)

  43. other hyperacuities • stereopsis • curvature • bisection • orientation • even colour discrimination (three wavelengths detected but can discriminate millions of colours)

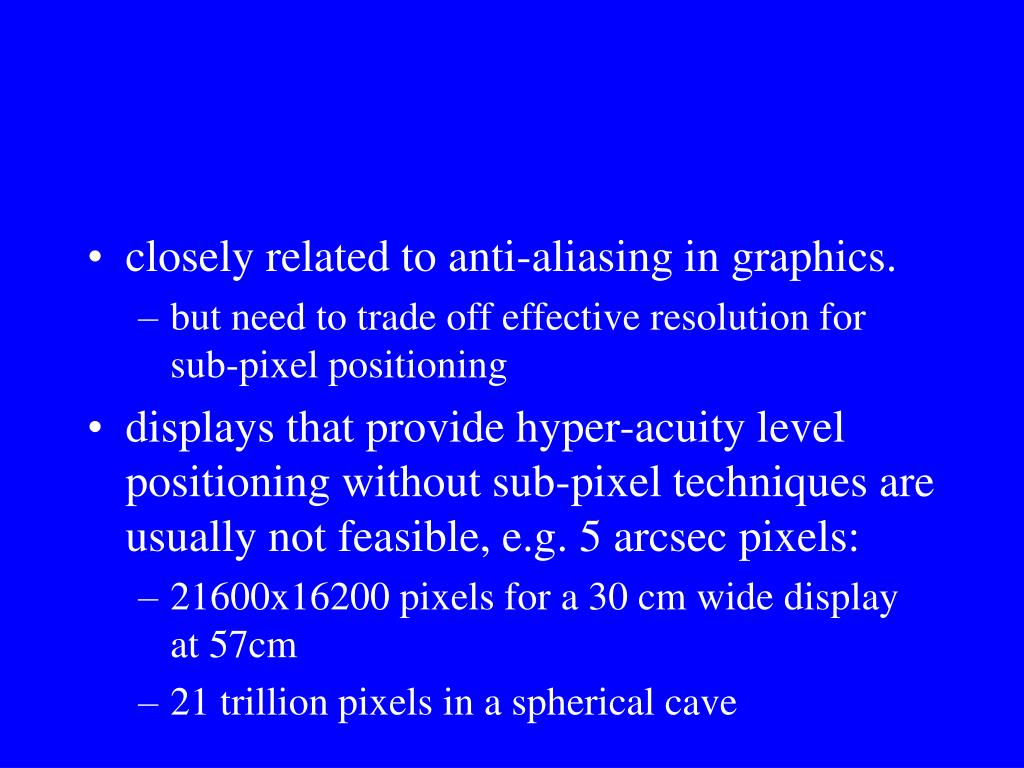

  44. closely related to anti-aliasing in graphics. • but need to trade off effective resolution for sub-pixel positioning • displays that provide hyper-acuity level positioning without sub-pixel techniques are usually not feasible, e.g. 5 arcsec pixels: • 21600x16200 pixels for a 30 cm wide display at 57cm • 21 trillion pixels in a spherical cave
