  1. CSCE 747 Software Testing and Quality Assurance Lecture 09-Integration and System Testing

  2. Last Time • Structural Testing WrapUp • Ch 11, pp 169-177 Today • Integration & System Testing Part III • Levels of Testing Ch 12, pp181-1 Jorgensen, Paul C. Software Testing A Craftsman Approach

  3. Levels of Testing • Unit Tests Jorgensen, Paul C. Software Testing A Craftsman Approach

  4. Waterfall Life Cycle Jorgensen, Paul C. Software Testing A Craftsman Approach

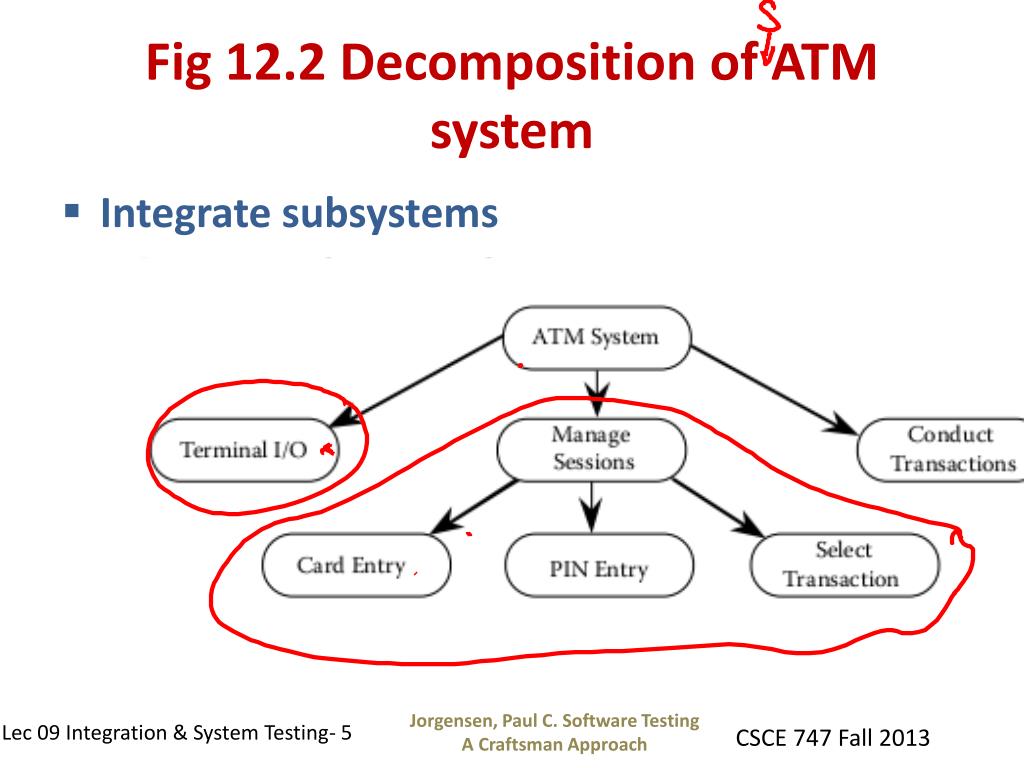

  5. Fig 12.2 Decomposition of ATM system • Integrate subsystems Jorgensen, Paul C. Software Testing A Craftsman Approach

  6. Functional decompositionSculpting analogy • Functional decomposition • Can only be done well when we understand the final system • Sculpting analogy • Marble sculpture • Wax Sculpture • Clay - pottery Jorgensen, Paul C. Software Testing A Craftsman Approach

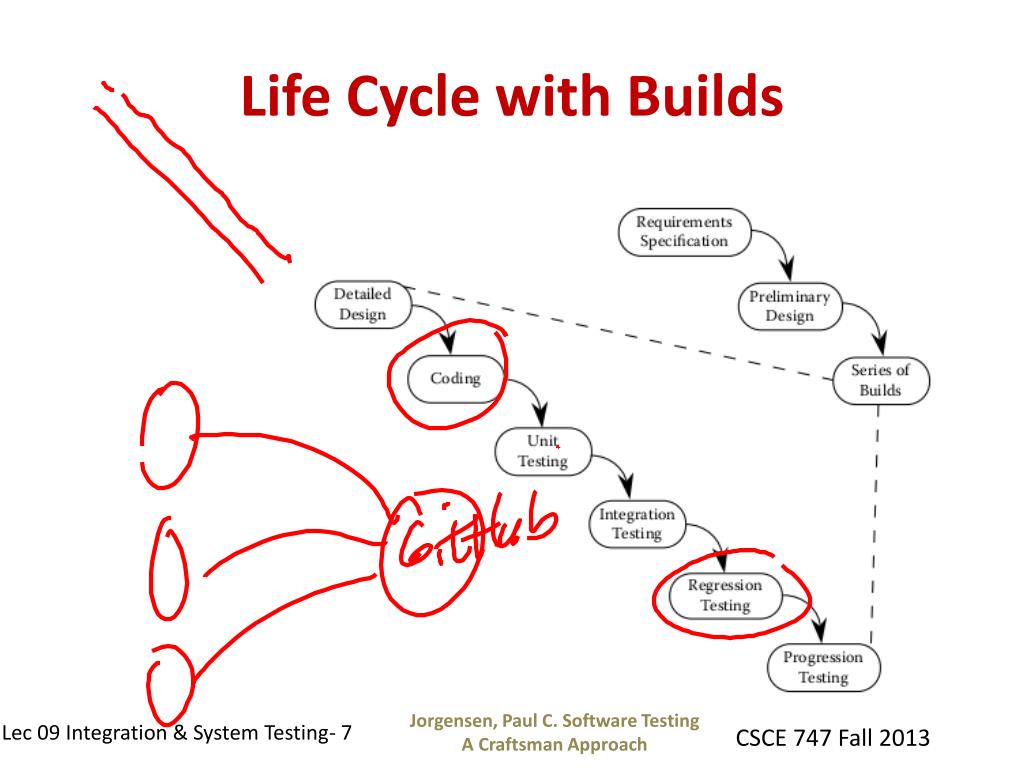

  7. Life Cycle with Builds Jorgensen, Paul C. Software Testing A Craftsman Approach

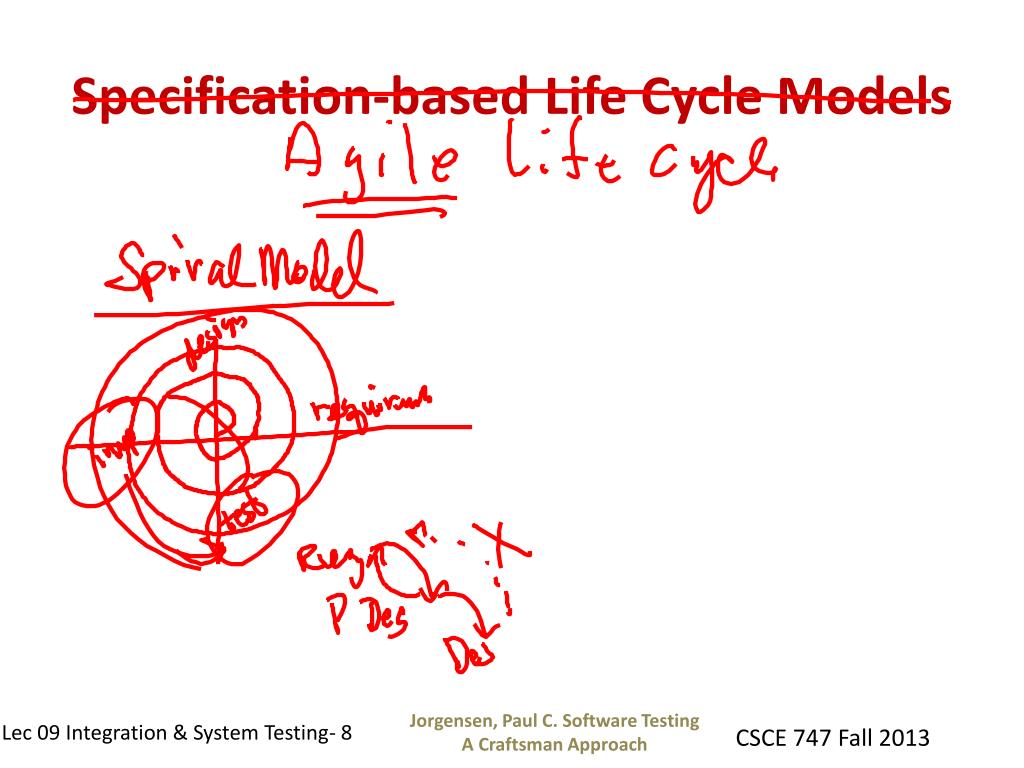

  8. Specification-based Life Cycle Models Jorgensen, Paul C. Software Testing A Craftsman Approach

  9. Rapid Prototyping life cycle Jorgensen, Paul C. Software Testing A Craftsman Approach

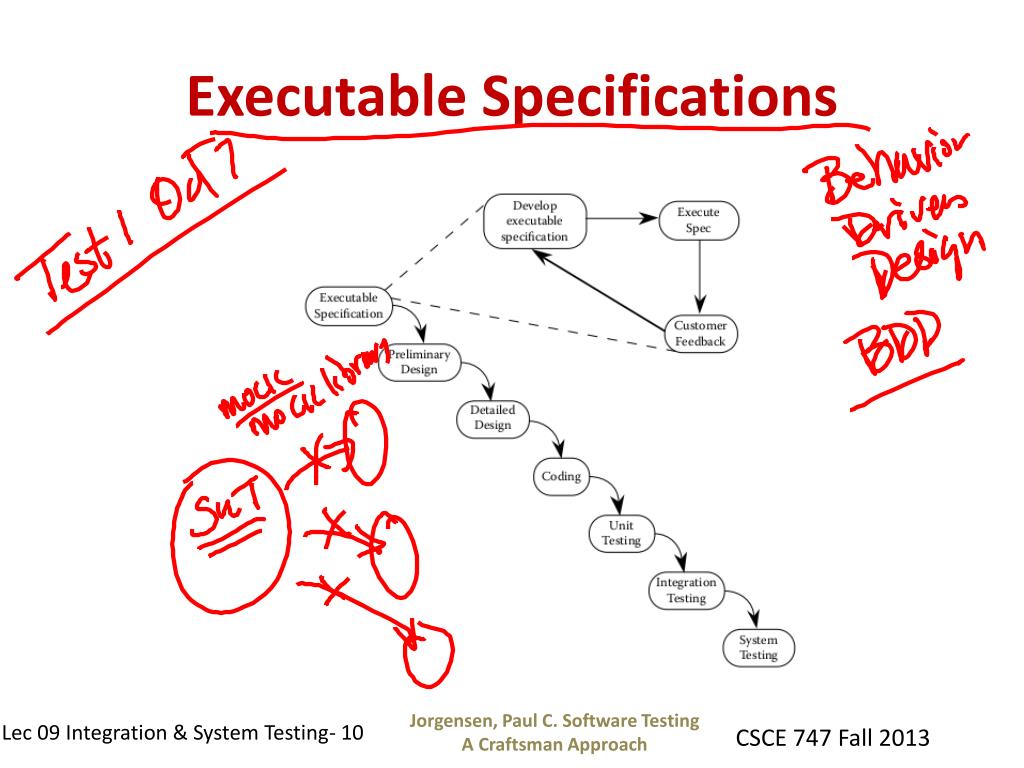

  10. Executable Specifications Jorgensen, Paul C. Software Testing A Craftsman Approach

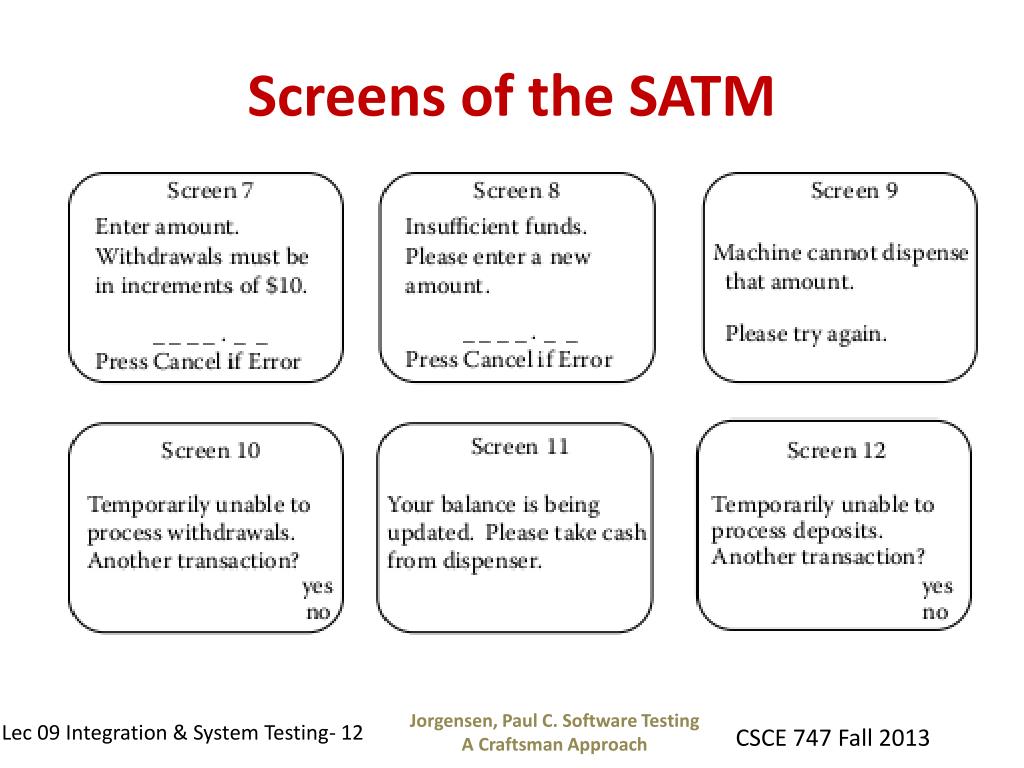

  11. Screens of the SATM Jorgensen, Paul C. Software Testing A Craftsman Approach

  12. Screens of the SATM Jorgensen, Paul C. Software Testing A Craftsman Approach

  13. Screens of the SATM Jorgensen, Paul C. Software Testing A Craftsman Approach

  14. SATM Interface Jorgensen, Paul C. Software Testing A Craftsman Approach

  15. SATM: Screen 1Welcome/Enter PIN Jorgensen, Paul C. Software Testing A Craftsman Approach

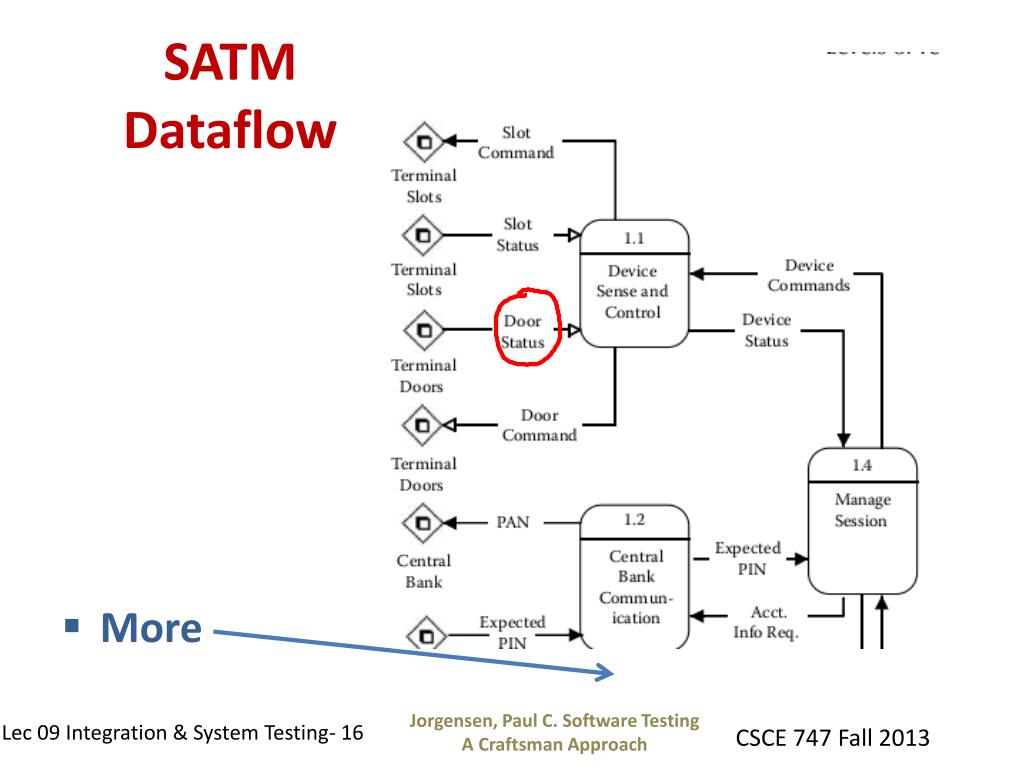

  16. SATMDataflow • More Jorgensen, Paul C. Software Testing A Craftsman Approach

  17. Jorgensen, Paul C. Software Testing A Craftsman Approach

  18. ER Model of the SATM Jorgensen, Paul C. Software Testing A Craftsman Approach

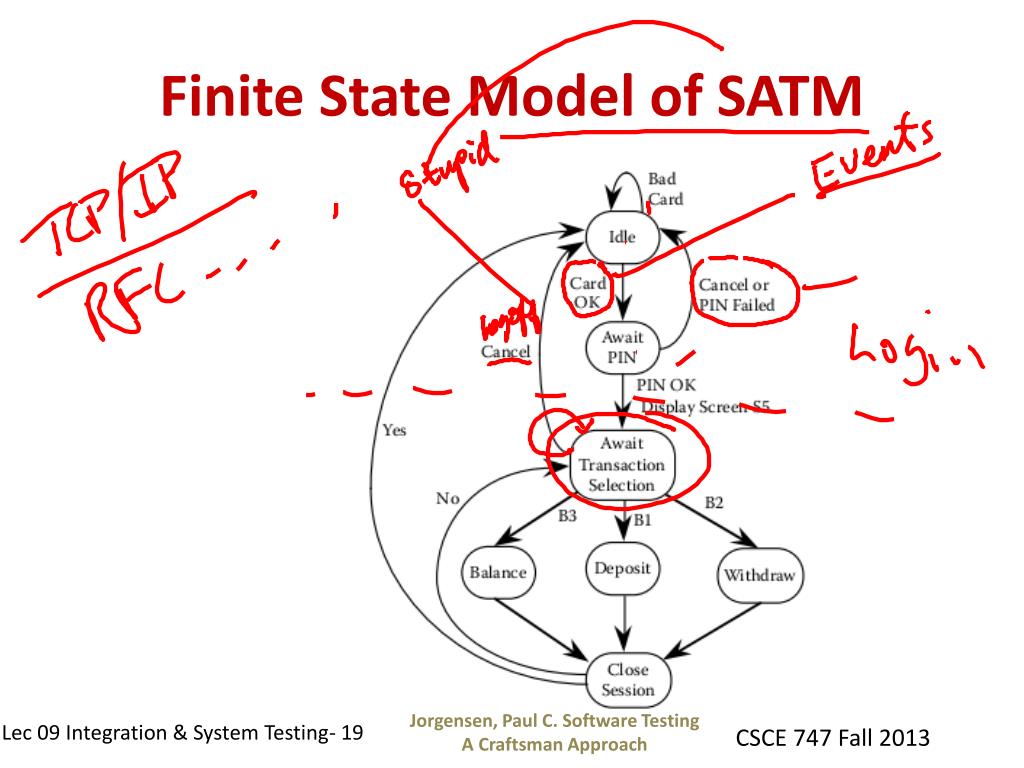

  19. Finite State Model of SATM Jorgensen, Paul C. Software Testing A Craftsman Approach

  20. FS Model of SATM: PIN-entry Jorgensen, Paul C. Software Testing A Craftsman Approach

  21. Functional Decomposition Jorgensen, Paul C. Software Testing A Craftsman Approach

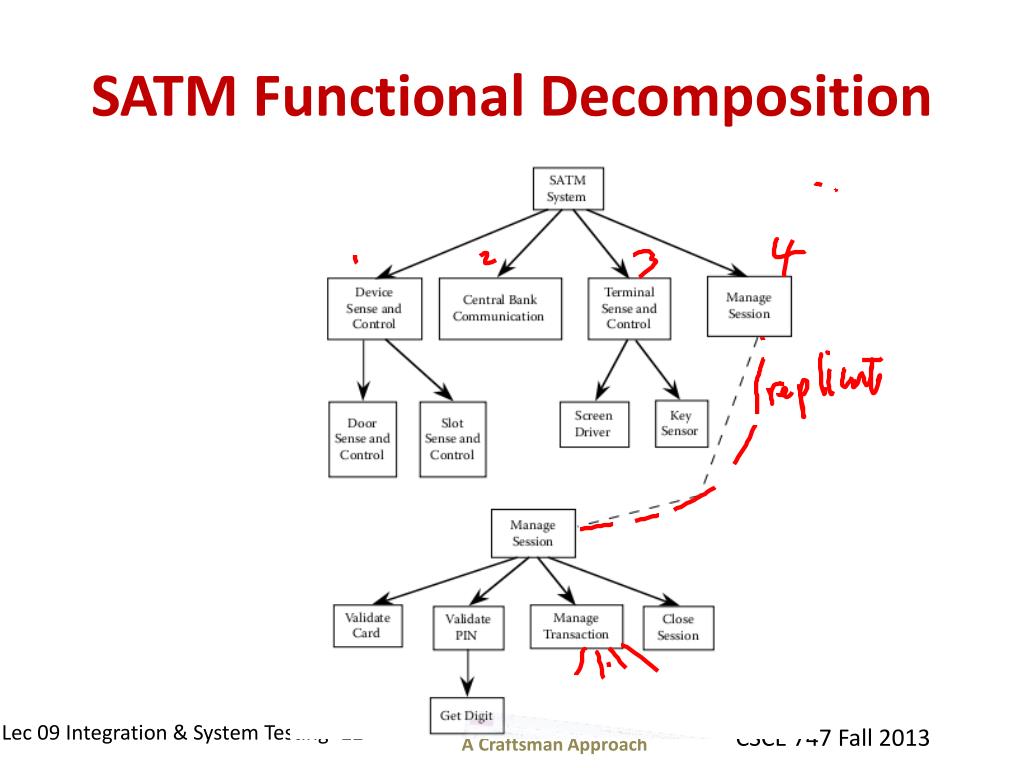

  22. SATM Functional Decomposition Jorgensen, Paul C. Software Testing A Craftsman Approach

  23. Jorgensen, Paul C. Software Testing A Craftsman Approach

  24. Jorgensen, Paul C. Software Testing A Craftsman Approach

  25. Jorgensen, Paul C. Software Testing A Craftsman Approach

  26. Jorgensen, Paul C. Software Testing A Craftsman Approach

  27. Jorgensen, Paul C. Software Testing A Craftsman Approach

  28. Jorgensen, Paul C. Software Testing A Craftsman Approach

  29. Jorgensen, Paul C. Software Testing A Craftsman Approach

  30. Jorgensen, Paul C. Software Testing A Craftsman Approach

  31. Jorgensen, Paul C. Software Testing A Craftsman Approach

  32. Jorgensen, Paul C. Software Testing A Craftsman Approach

  33. Jorgensen, Paul C. Software Testing A Craftsman Approach

  34. Jorgensen, Paul C. Software Testing A Craftsman Approach

  35. Jorgensen, Paul C. Software Testing A Craftsman Approach

  36. Jorgensen, Paul C. Software Testing A Craftsman Approach

  37. Jorgensen, Paul C. Software Testing A Craftsman Approach

  38. Jorgensen, Paul C. Software Testing A Craftsman Approach
