1. Support vector machine LING 572 Fei Xia Week 7: 2/19-2/21/08 TexPoint fonts used in EMF. Read the TexPoint manual before you delete this box.: A

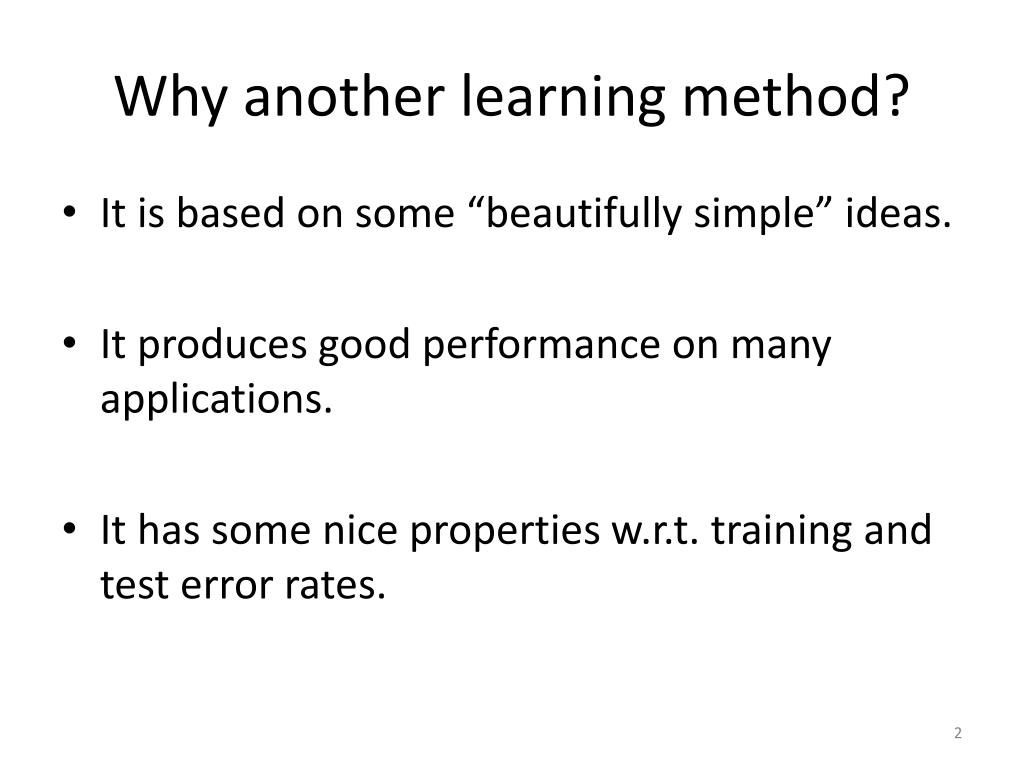

2. Why another learning method? • It is based on some “beautifully simple” ideas. • It produces good performance on many applications. • It has some nice properties w.r.t. training and test error rates.

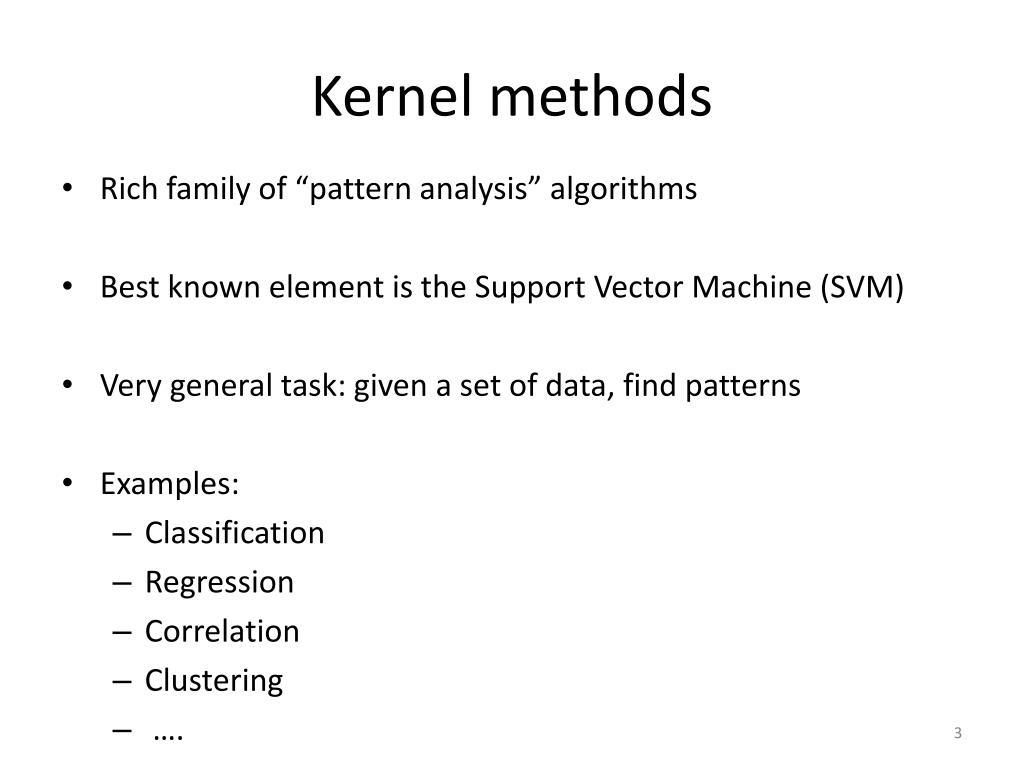

3. Kernel methods • Rich family of “pattern analysis” algorithms • Best known element is the Support Vector Machine (SVM) • Very general task: given a set of data, find patterns • Examples: • Classification • Regression • Correlation • Clustering • ….

4. History of SVM • Linear classifier: 1962 • Use a hyperplane to separate examples • Choose the hyperplane that maximizes the minimal margin • Kernel trick: 1992

5. History of SVM (cont) • Soft margin: 1995 • To deal with non-separable data or noise • Transductive SVM: 1999 • To take advantage of unlabeled data

6. Main ideas • Use a hyperplane to separate the examples. • Among all the hyperplanes, choose the one with the maximum margin. • Maximizing the margin is the same as minimizing ||w|| subject to some constraints.

7. Main ideas (cont) • For the data set that are not linear separable, map the data to a higher dimensional space and separate them there by a hyperplane. • The Kernel trick allows the mapping to be “done” efficiently. • Soft margin deals with noise and/or inseparable data set.

8. Outline • Linear SVM • Maximizing the margin • Soft margin • Nonlinear SVM • Kernel trick • Using SVM

9. Papers • (Scholkopf, 2000) • Sections 3, 4, and 7 • (Hearst et al., 1998)

10. Linear SVM

11. The setting • Input: x 2 X • Output: y 2 Y, Y = {-1, +1} • Training set: S = {(x1, y1), …, (xi, yi)} • Goal: Find a function y = f(x) that fits the data: f: X ! R

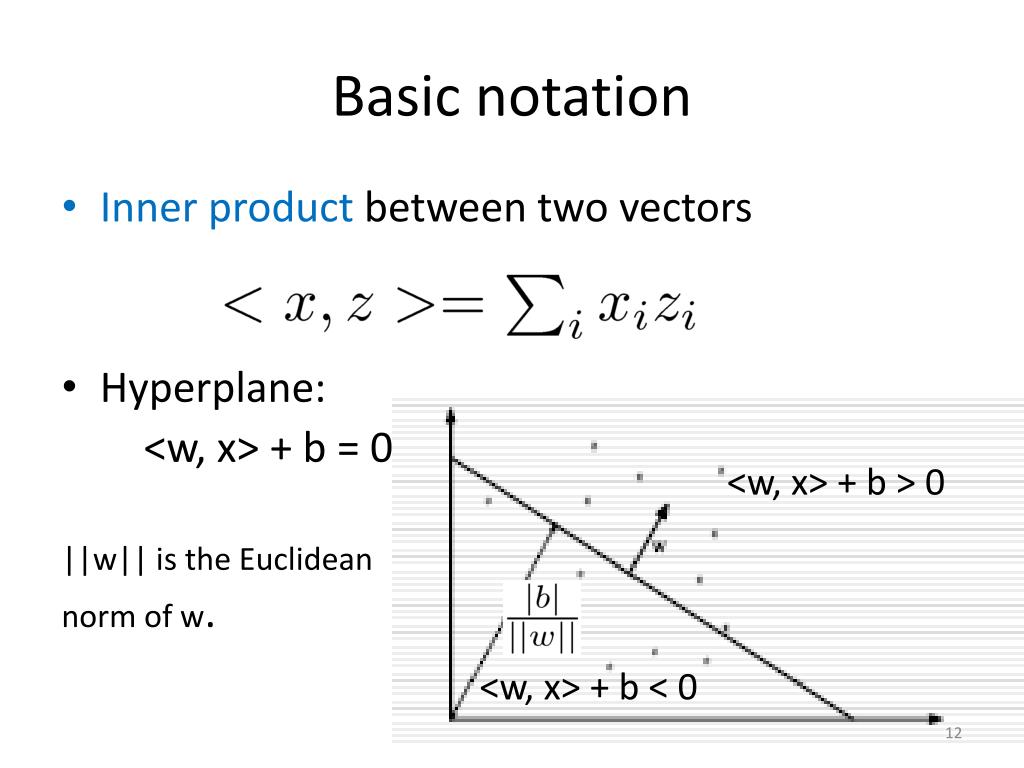

12. Basic notation • Inner product between two vectors • Hyperplane: <w, x> + b = 0 ||w|| is the Euclidean norm of w. <w, x> + b > 0 <w, x> + b < 0

13. An example of hyperplane: <w,x> + b = 0 x2 (0,1) x1 (2,0) x1 + 2 x2 – 2 = 0 w=(1,2), b=-2 10x1 + 20 x2 – 20 = 0 w=(10,20), b=-20

14. Finding a hyperplane • Given the training instances, we want to find hyperplanes that separate them. • If there are more than one hyperplane, SVM chooses the one with the maximum margin.

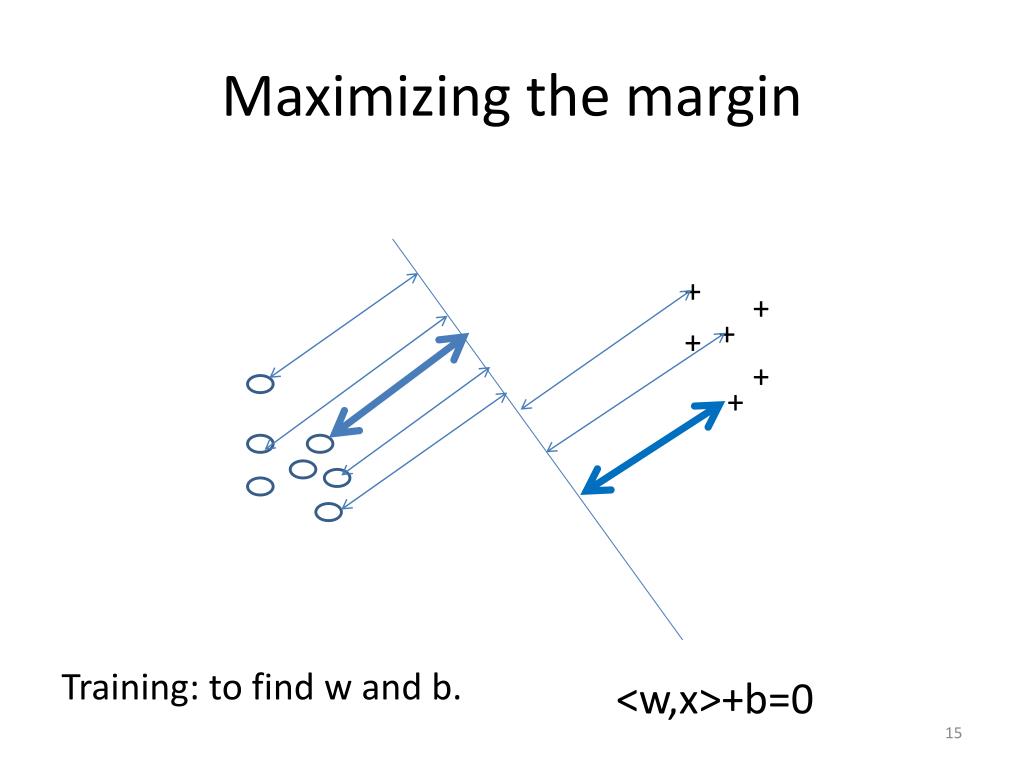

15. Maximizing the margin + + + + + + Training: to find w and b. <w,x>+b=0

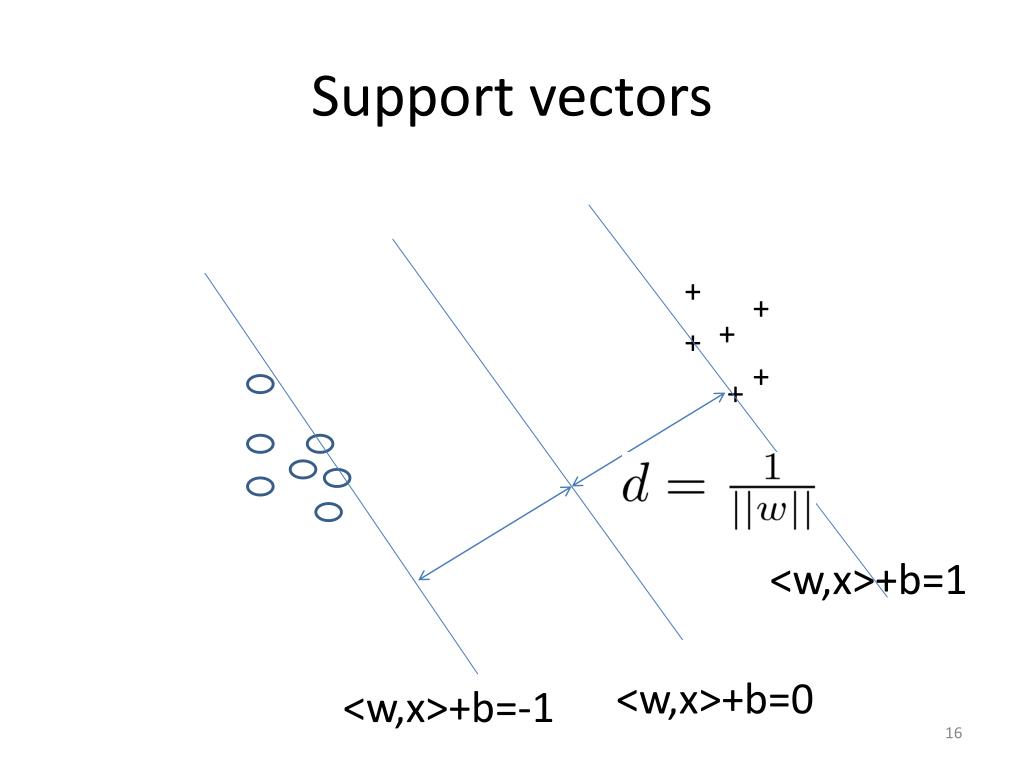

16. Support vectors + + + + + + <w,x>+b=1 <w,x>+b=0 <w,x>+b=-1

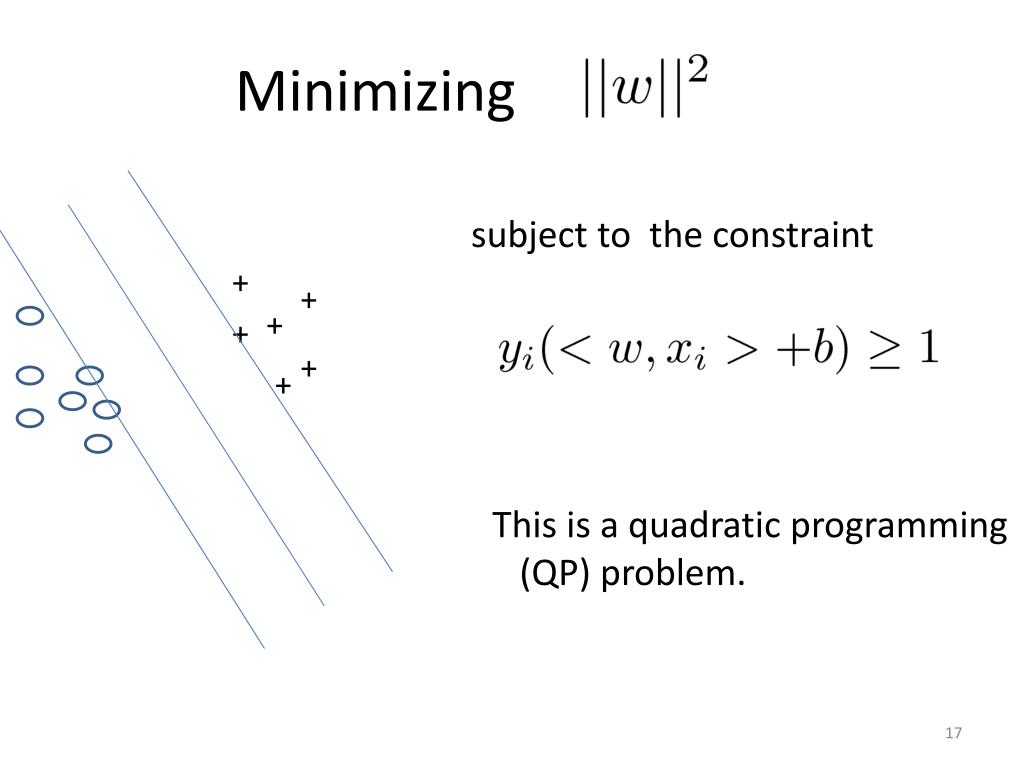

17. Minimizing subject to the constraint + + + + + + This is a quadratic programming (QP) problem.

18. Lagrangian

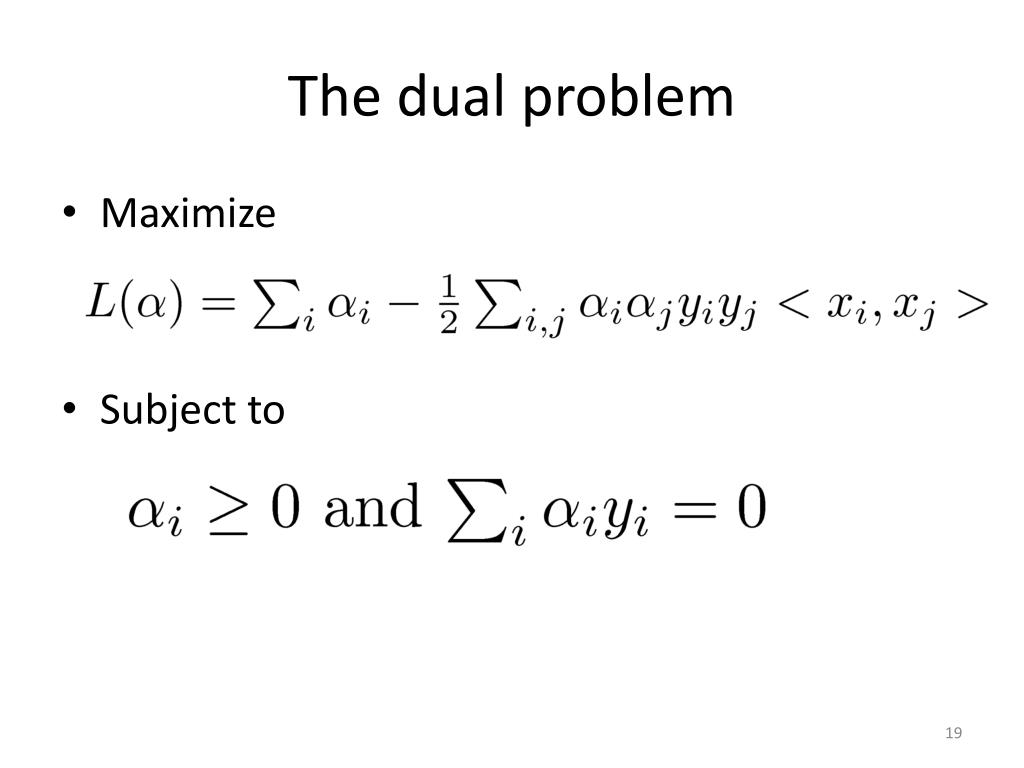

19. The dual problem • Maximize • Subject to

20. Finding the solution • This is a Quadratic Programming (QP) problem. • The function is convex and there is no local minima. • Solvable in polynomial time.

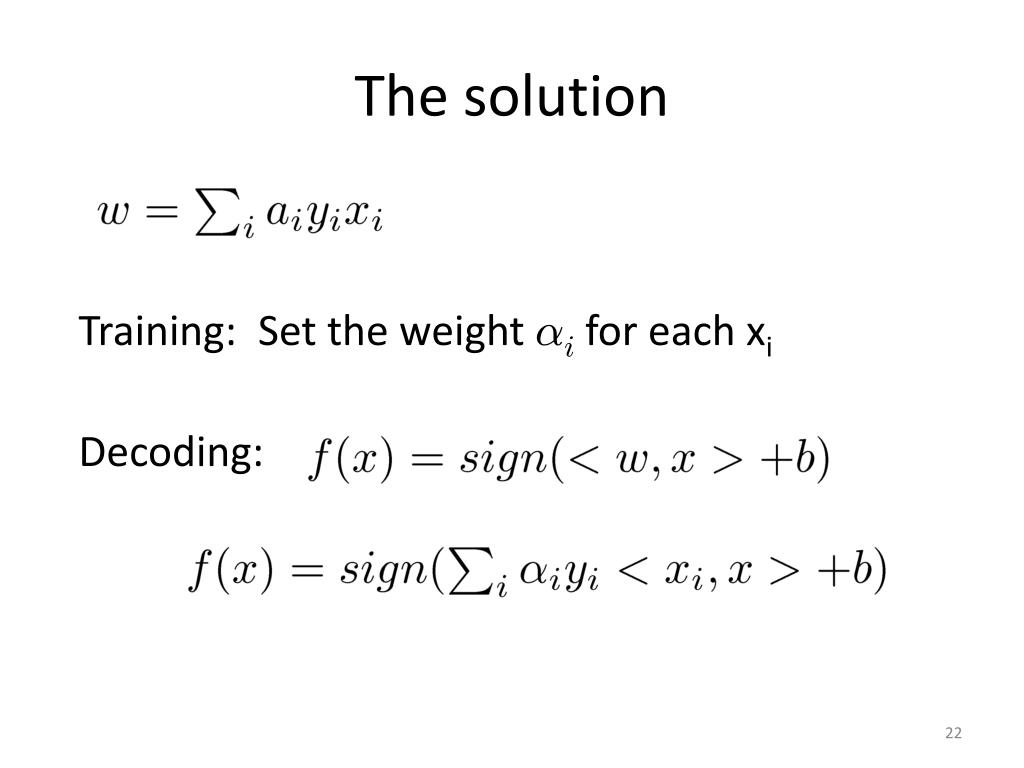

22. The solution Training: Set the weight ®i for each xi Decoding:

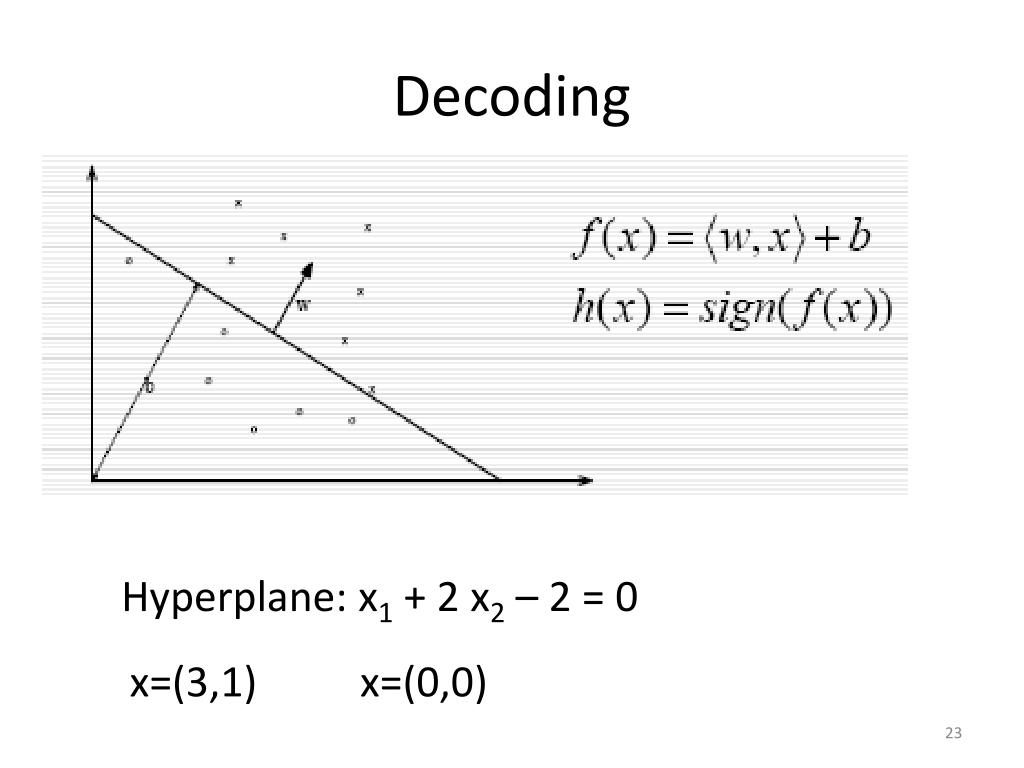

23. Decoding Hyperplane: x1 + 2 x2 – 2 = 0 x=(3,1) x=(0,0)

24. Soft margin

25. The highlight • Problem: Some data set is not separable or there are mislabeled examples. • Idea: split the data as cleanly as possible, while maximizing the distance to the nearest cleanly split examples. • Mathematically, introduce the slack variables

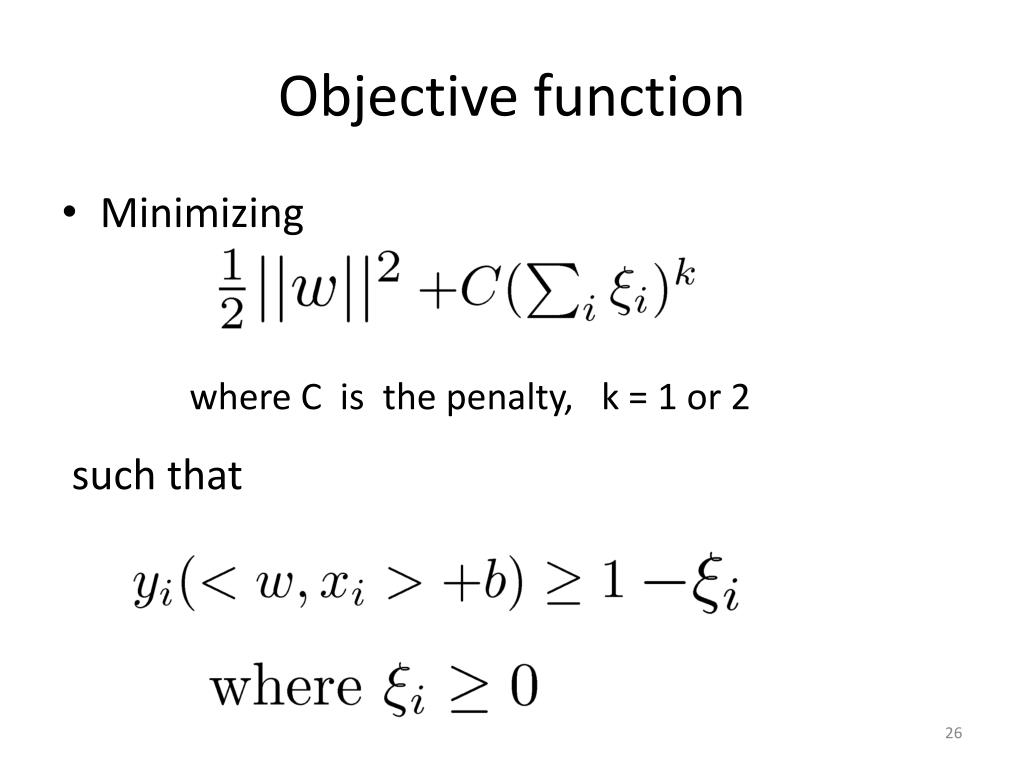

26. Objective function • Minimizing such that where C is the penalty, k = 1 or 2

27. The dual problem • Maximize • Subject to

28. Non-linear SVM

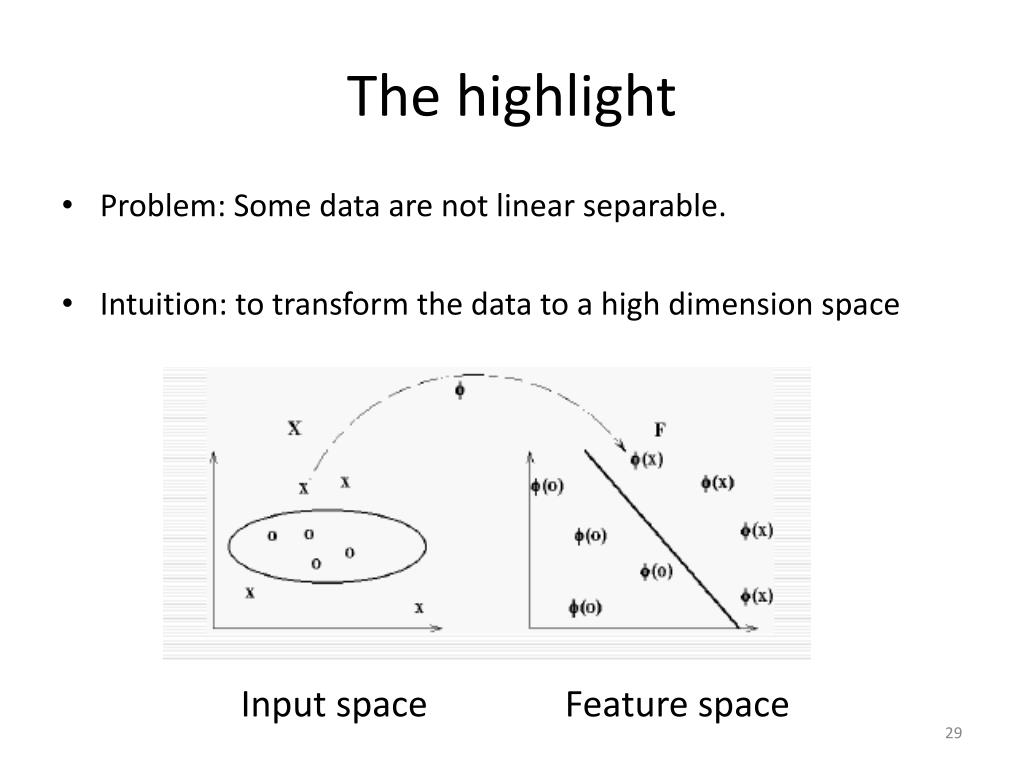

29. The highlight • Problem: Some data are not linear separable. • Intuition: to transform the data to a high dimension space Input space Feature space

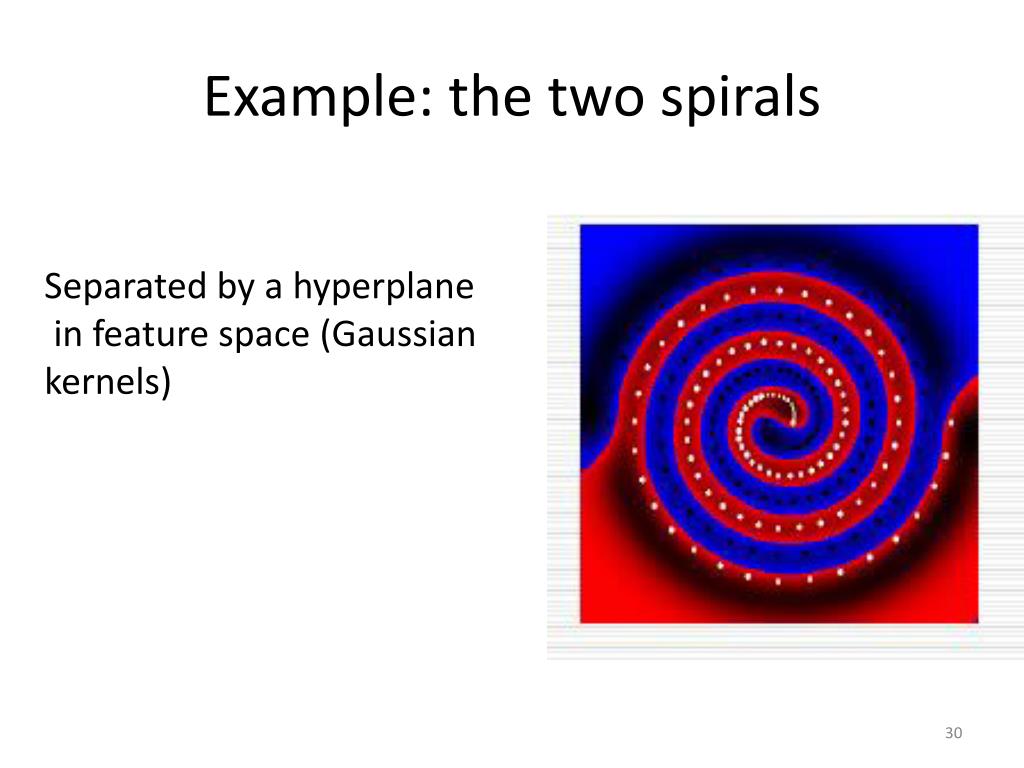

30. Example: the two spirals Separated by a hyperplane in feature space (Gaussian kernels)

31. Learning a non-linear SVM: • Define Á • Calculate Á(x) for each training example • Find a linear SVM in the feature space. • Problem: • Feature space can be high dimensional or even have infinite dimensions. • Calculating Á(x) is very inefficient and even impossible.

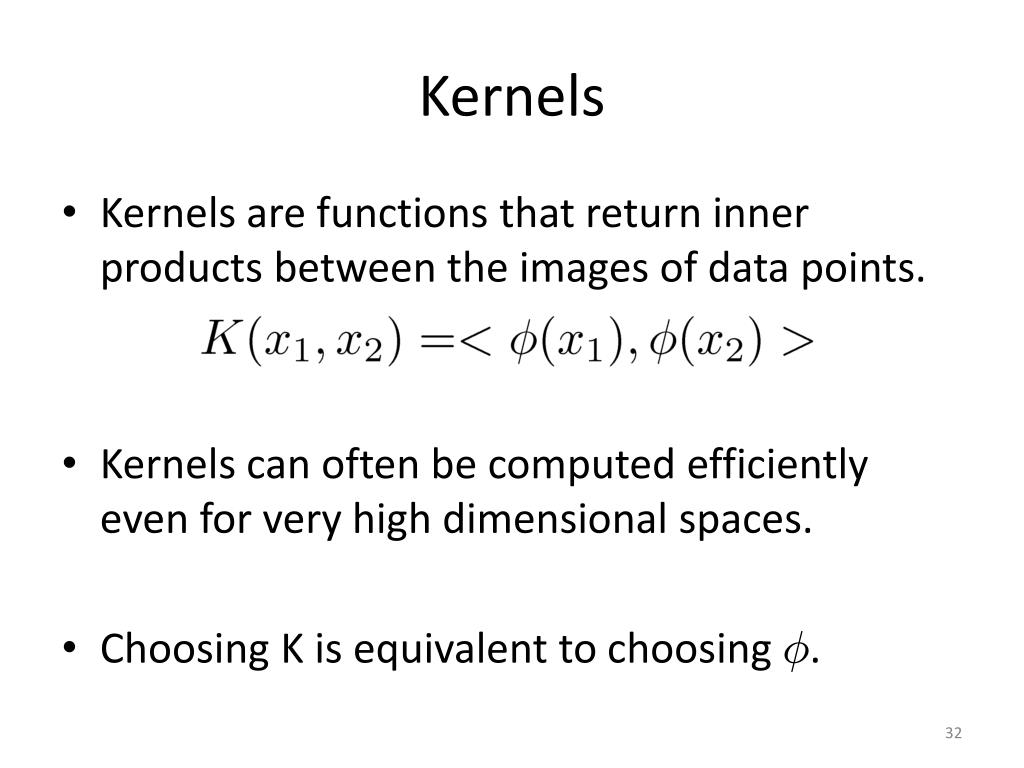

32. Kernels • Kernels are functions that return inner products between the images of data points. • Kernels can often be computed efficiently even for very high dimensional spaces. • Choosing K is equivalent to choosing Á.

33. The kernel trick • No need to know what Á is and what the feature space is. • No need to map the data to the feature space. • Define a kernel function k, and replace the dot produce <x,z> with a kernel function k(x,z) in both training and testing.

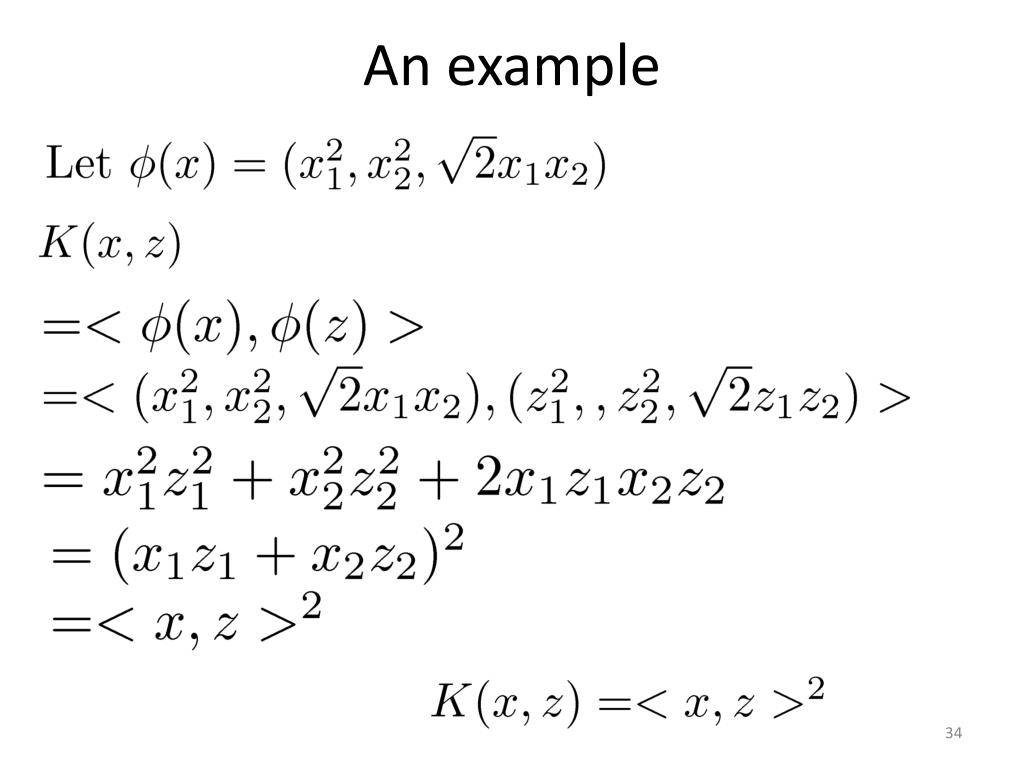

34. An example

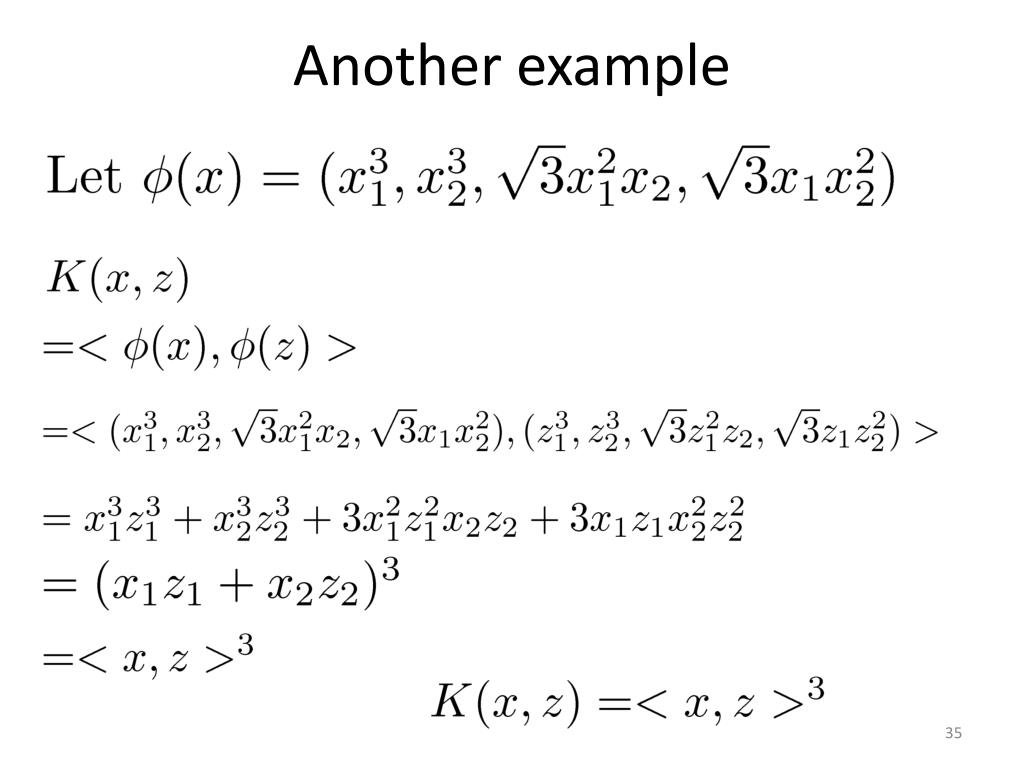

35. Another example

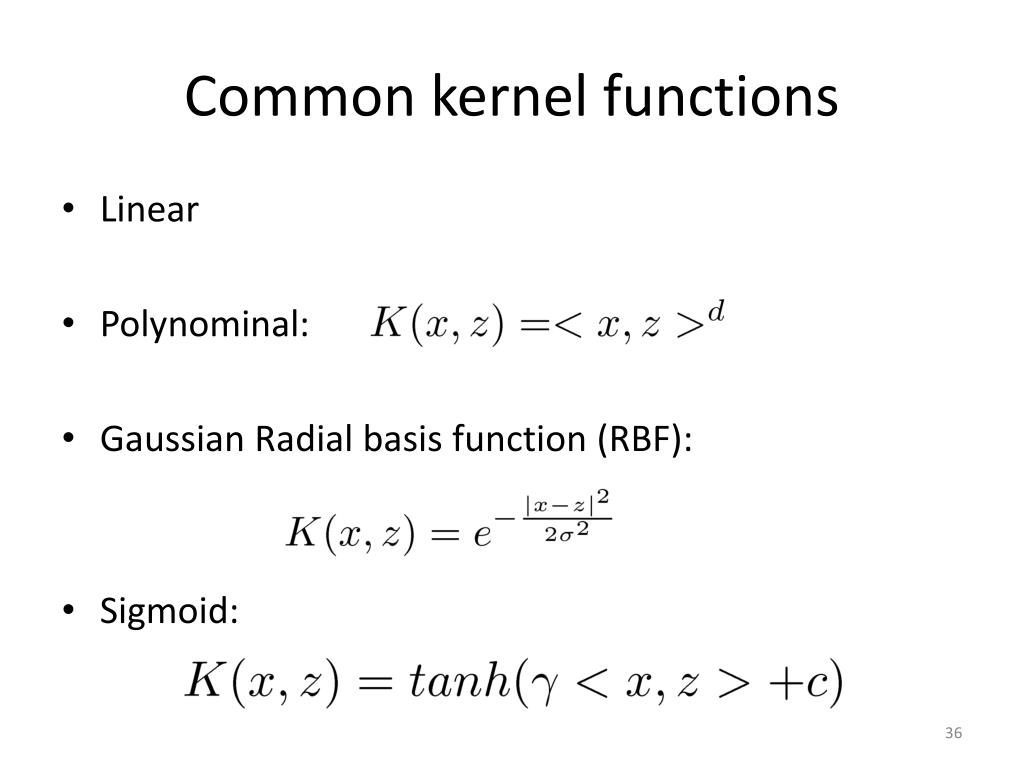

36. Common kernel functions • Linear • Polynominal: • Gaussian Radial basis function (RBF): • Sigmoid:

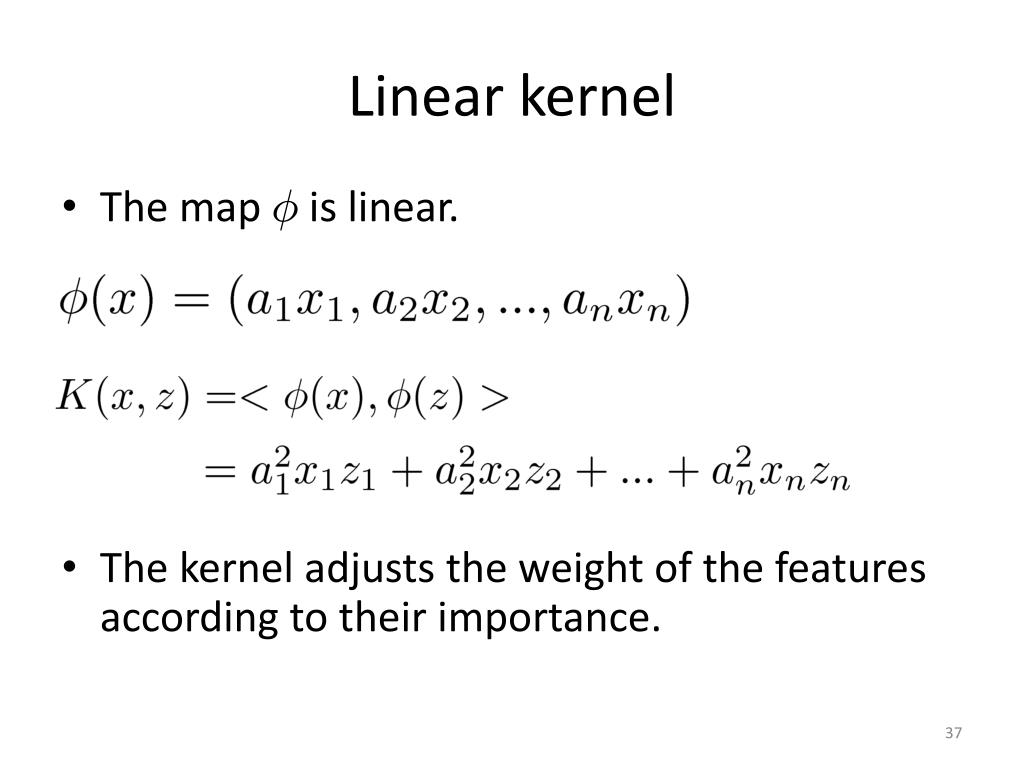

37. Linear kernel • The map Á is linear. • The kernel adjusts the weight of the features according to their importance.

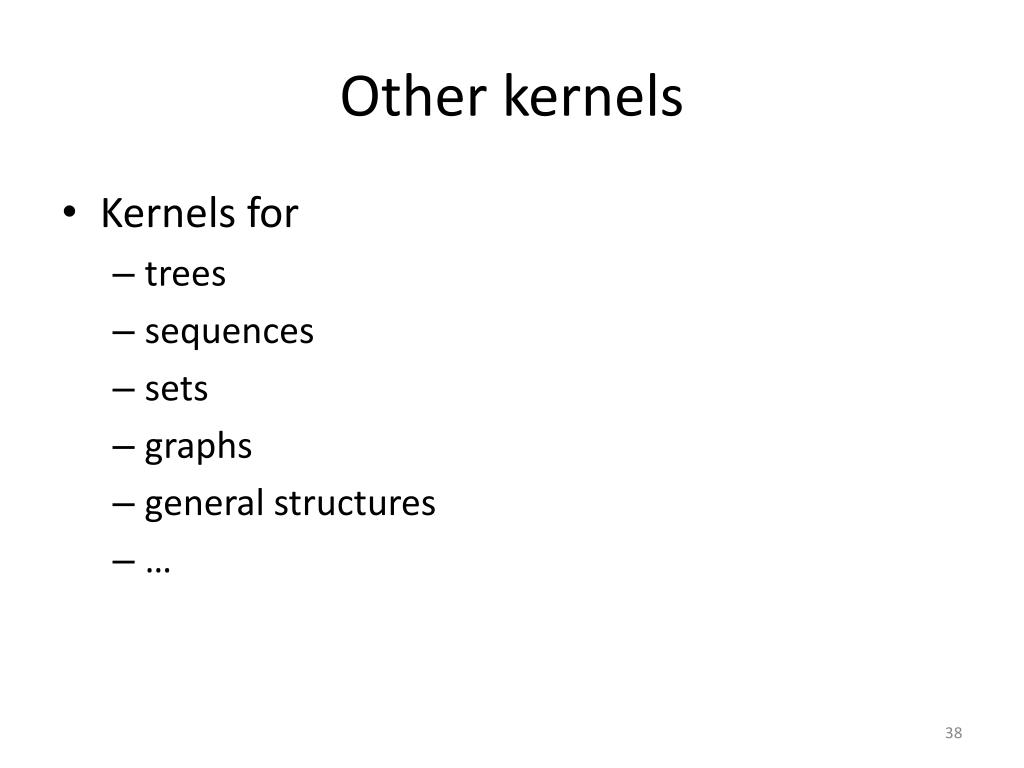

38. Other kernels • Kernels for • trees • sequences • sets • graphs • general structures • …

39. Making kernels • The set of kernels is closed under some operations. For instance, if K1 and K2 are kernels, so are the following: • K1+K2 • cK1 and cK2 for c > 0 • cK1 +dK2 for c> 0 and d>0 • One can make complicated kernels from simples ones

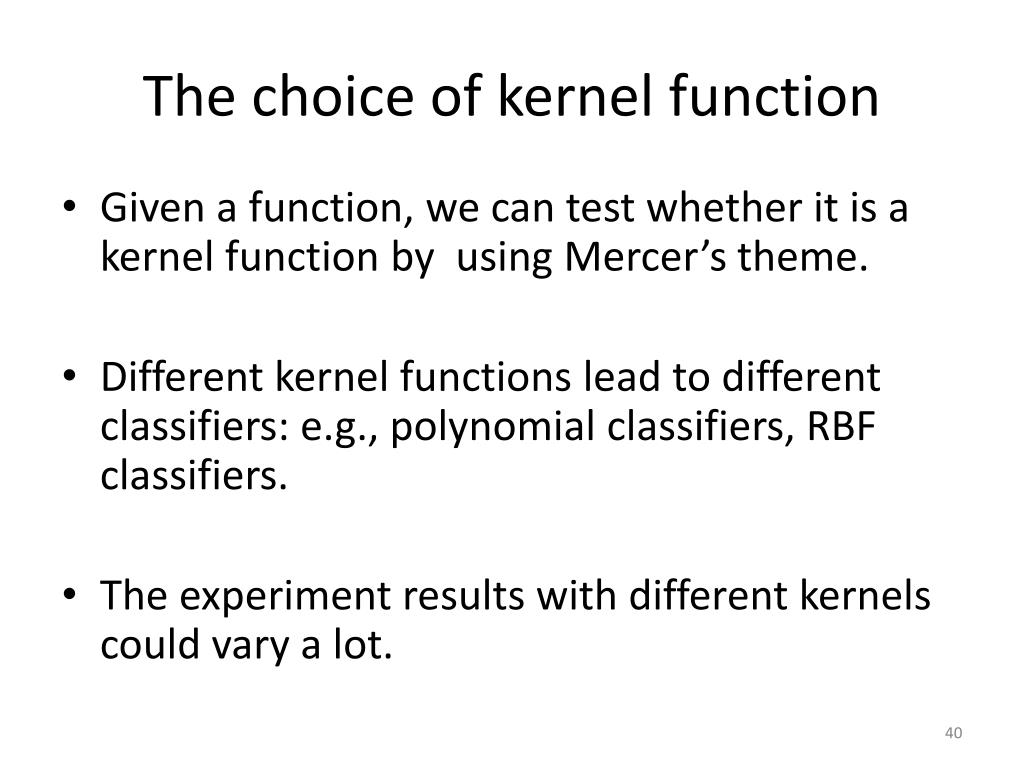

40. The choice of kernel function • Given a function, we can test whether it is a kernel function by using Mercer’s theme. • Different kernel functions lead to different classifiers: e.g., polynomial classifiers, RBF classifiers. • The experiment results with different kernels could vary a lot.

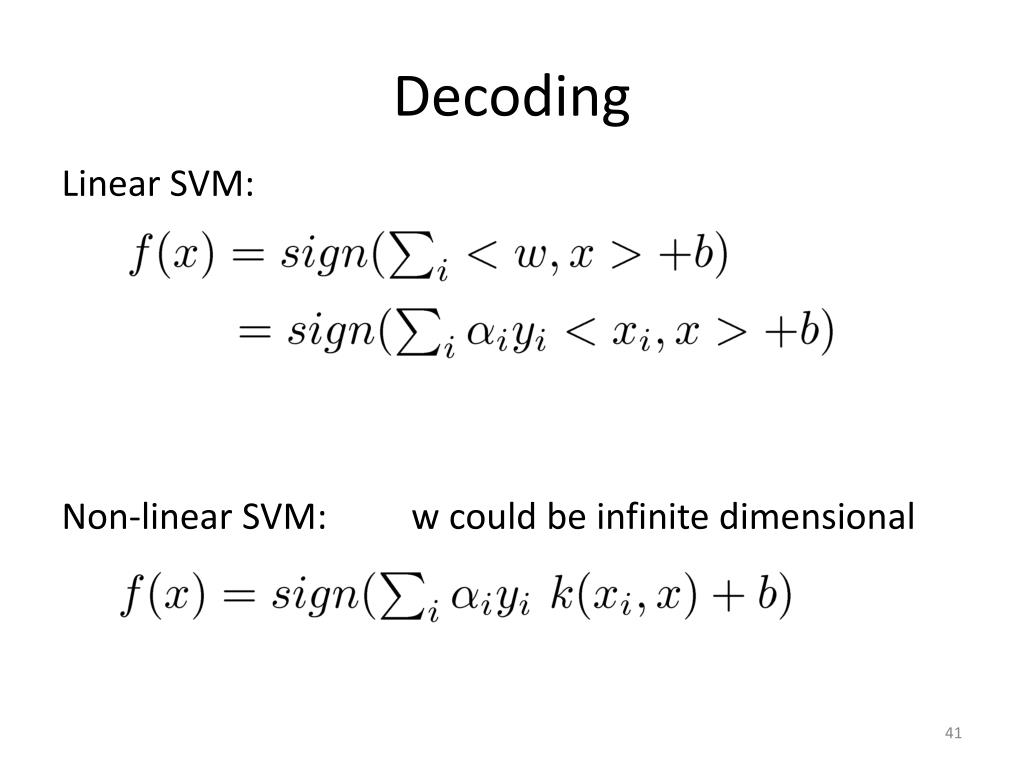

41. Decoding Linear SVM: Non-linear SVM: w could be infinite dimensional

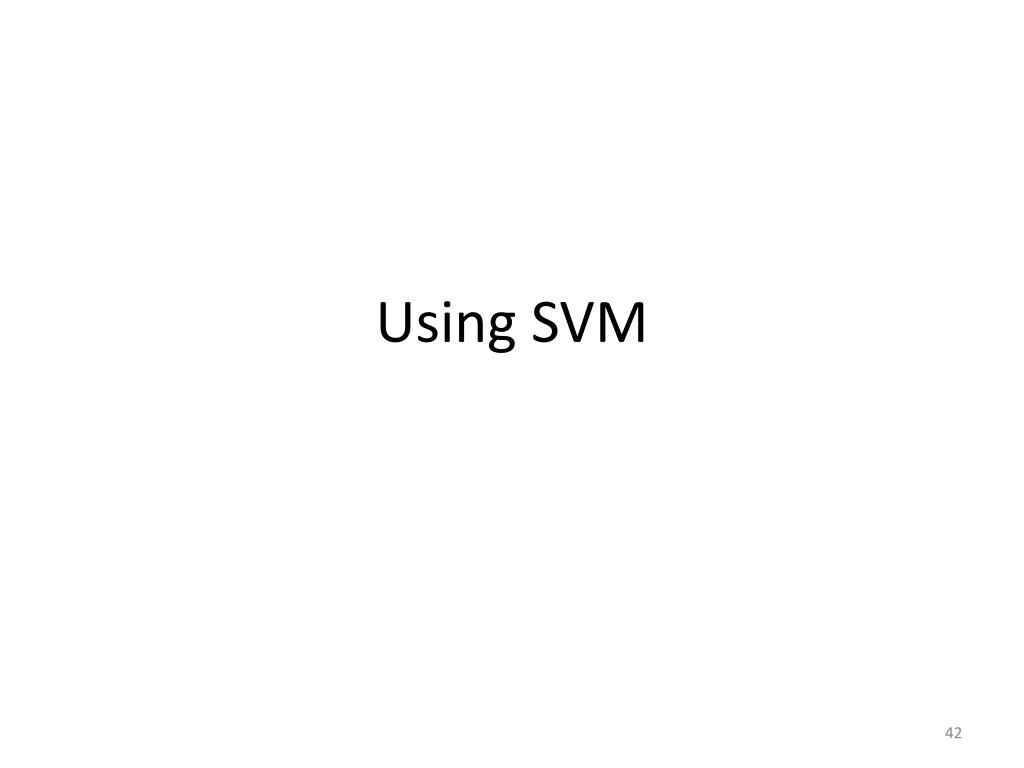

42. Using SVM

43. Steps • Define features in the input space • Scale the data before training/test • Choose a kernel function • Tune parameters using cross-validation

44. Scaling the data • To avoid features with larger variance to dominate those with smaller variance. • Scale each feature to the range [-1,+1] or [0,1]. • [0,1] is faster than [-1,1]

45. Summary • Find the hyperplane that maximizes the margin. • Introduce soft margin to deal with noisy data • Implicitly map the data to a higher dimensional space. • The kernel trick allows easy computation of the dot product in the feature space.

46. More info • Website: www.kernel-machines.org • Textbook (2000): www.support-vector.net • Tutorials: http://www.svms.org/tutorials/ • Workshops at NIPS

47. Hw8

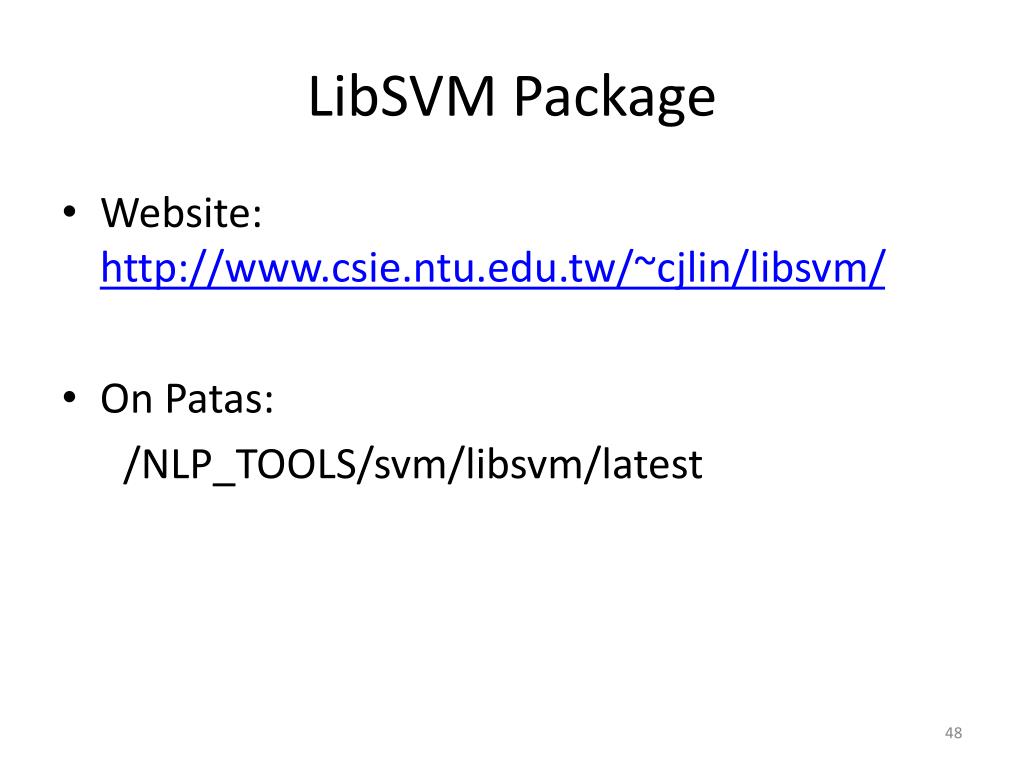

48. LibSVM Package • Website: http://www.csie.ntu.edu.tw/~cjlin/libsvm/ • On Patas: /NLP_TOOLS/svm/libsvm/latest

49. Hw8 • Q1: Learn to use the package • Q2: Write a SVM decoder • Q3: Incorporate the decoder into the beam search code

50. Additional slides
