1. Advanced Unix Chapter 14

2. Network Tools • There are many, many network tools that come with a standard Linux installation. • They can be used for network troubleshooting, for cause network trouble and for detecting the same. • Chapter 14 discusses a few of them

3. Network Tools • The netstat command is one such tool • It will show you the number of tcp/udp connections and the services that are listening on your system • Demo netstat

4. Network Tools • One tool often overlooked by the book is lsof • lsof or "list open files" is one of the systems administrator's number one tools • You trace what processes are using which services as well as which files are open and by which processes • Demo lsof

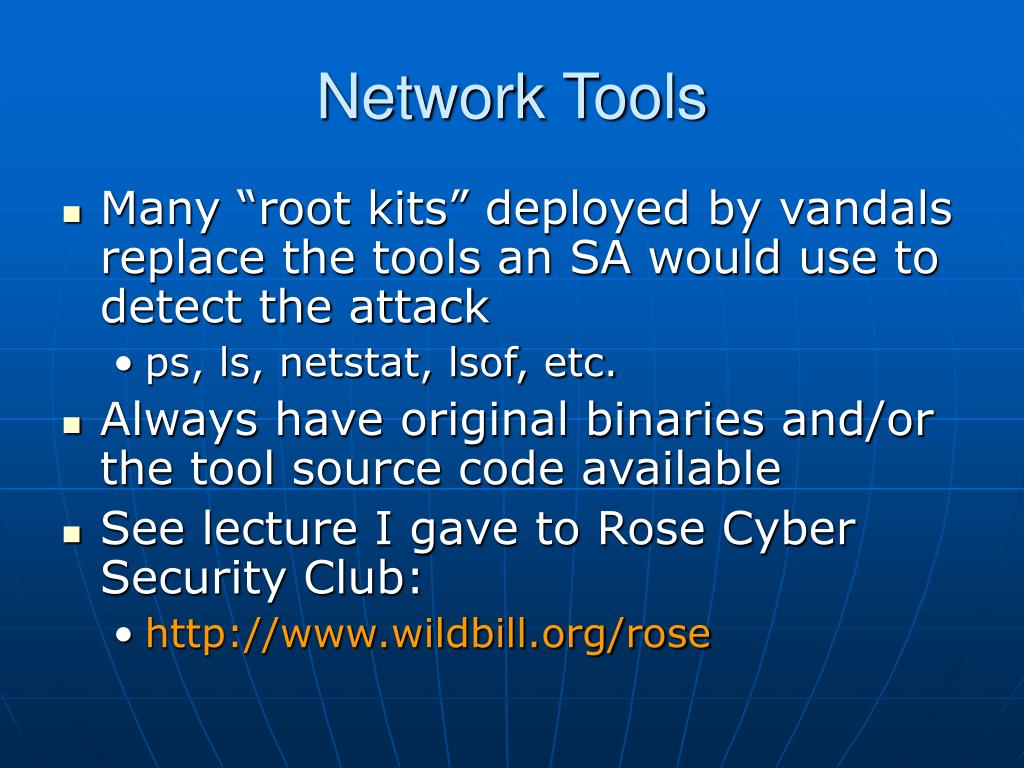

5. Network Tools • Many “root kits” deployed by vandals replace the tools an SA would use to detect the attack • ps, ls, netstat, lsof, etc. • Always have original binaries and/or the tool source code available • See lecture I gave to Rose Cyber Security Club: • http://www.wildbill.org/rose

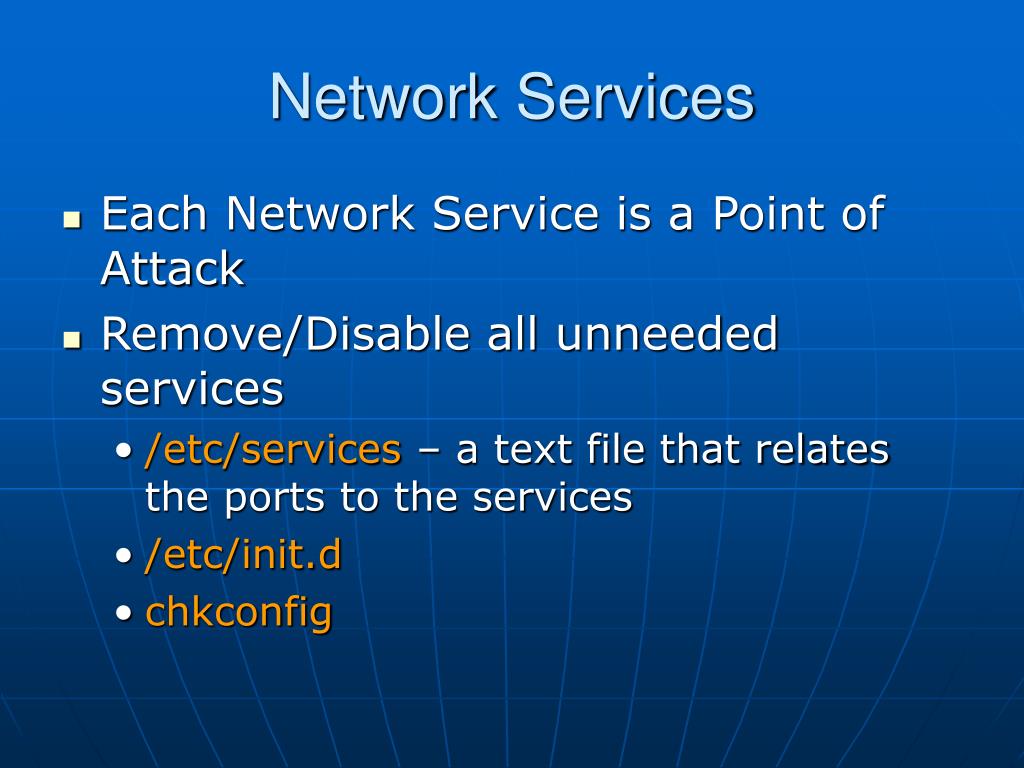

6. Network Services • Each Network Service is a Point of Attack • Remove/Disable all unneeded services • /etc/services – a text file that relates the ports to the services • /etc/init.d • chkconfig

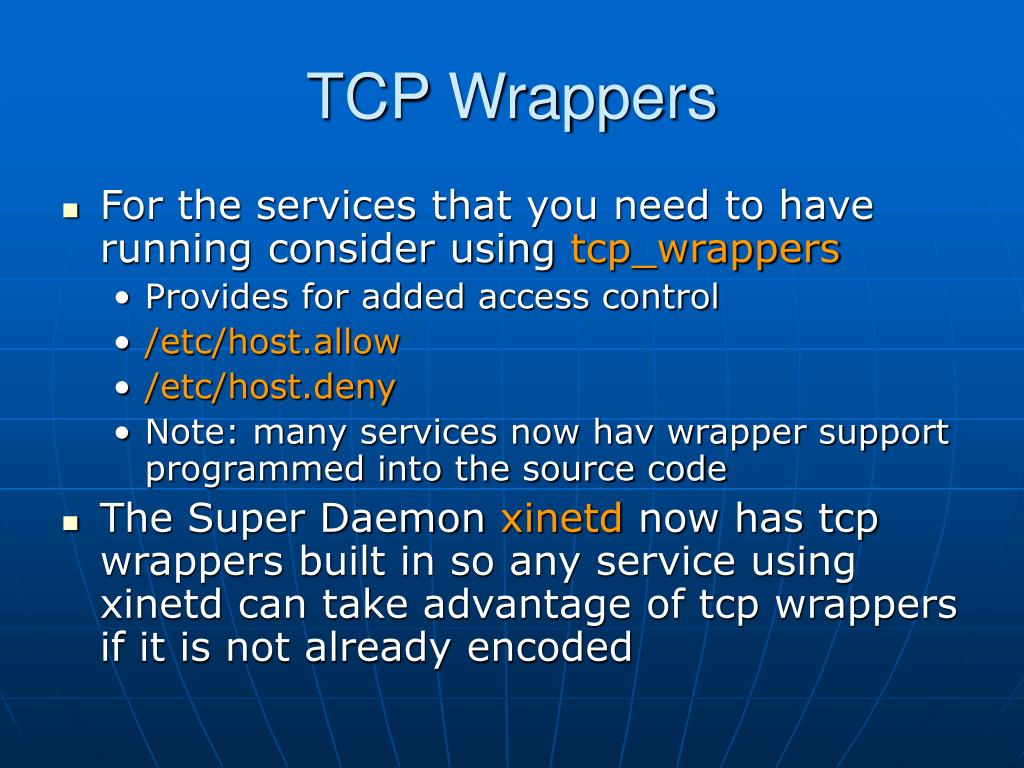

7. TCP Wrappers • For the services that you need to have running consider using tcp_wrappers • Provides for added access control • /etc/host.allow • /etc/host.deny • Note: many services now hav wrapper support programmed into the source code • The Super Daemon xinetd now has tcp wrappers built in so any service using xinetd can take advantage of tcp wrappers if it is not already encoded

8. TCP Wrappers • Other services also use tcp wrappers such as “Very Secure FTP” • vsftpd FTP server • Controlled in the vsftpd configuration file • Access to rsync can be controlled by TCP Wrappers via xinetd

9. TCP Wrappers • Uses two files to define the access to the services • /etc/hosts.allow • /etc/hosts.deny • You can create a deny-by-default to all services that use tcp wrappers • Don’t be misled into thinking this can secure you server 100% • Understand that not all services can or do use tcp wrappers • tcp wrappers is not a Firewall but an access control process

10. TCP Wrappers • Good Example in the book • Demo: tcp wrappers • hosts.allow • hosts.deny

11. Firewalls • Several types of Firewalls: • Packet filter • Iptables – layer 2 network • Stateful filter • Cisco PIX – layer 3 and 4 • Stateful inspection • Checkpoint Firewall-1 • Application proxy • Sidewinder – layers 5 thru 7 • Good reference for firewalls: http://www.interhack.net/pubs/fwfaq/

12. Introduction to iptables • 3rd generation firewall on Linux • Supports basic packet filtering as well as connection state tracking • For our needs for this course, we will use simple/basic packet filtering

13. Iptables • iptables is a filtering firewall • Comes standard as part of Linux • Older versions of Linux have ipchains • FC comes with a relatively good initial configuration • Use chkconfig check to see if your iptables is configured to start on boot chkconfig --list iptables

14. Iptables • If is not then enabled it via the following command: chkconfig –levels 235 iptables on • To start iptables enter: /etc/init.d/iptables start Or service iptables start

15. Introduction to iptables # Sample firewall – incomplete… do not use. For discussion only IPTABLES=/sbin/iptables ANY=“0.0.0.0/0” ETHIP=“10.10.1.1” ADMINNOC=“10.10.1.250” # Flush chains $IPTABLES --flush # Set default policies $IPTABLES -P INPUT ACCEPT $IPTABLES -P OUTPUT ACCEPT $IPTABLES -P FORWARD ACCEPT # Allow SSH from admin NOC $IPTABLES -A INPUT -p tcp -s $ADMINNOC --sport 1024:65534 --dport 22 -j ACCEPT $IPTABLES -A OUTPUT -p tcp -d $ADMINNOC -sport 22 --dport 1024:65534 -j ACCEPT # Allow Web access $IPTABLES -A INPUT -p tcp --dport 80 -j ACCEPT # Allows secure web access $IPTABLES -A INPUT -p tcp --dport 443 -j ACCEPT $IPTABLES -A INPUT -j DROP

16. Dropping vs Rejecting Packets • Rejecting packets COULD resource starve your system • Dropping packets could cause network diagnostic hell for the other end if you don’t respond ‘nicely’ • Dana’s Law: It is better to DROP packets and buy your favorite network admin a beer than to REJECT and have alarms go off at 2 in the morning during a DoS, waking you up.

17. Iptables • Many ways to implement iptables • Demo Shorewall • See: http://www.linuxguruz.com/iptables/ • IPTables Packet Filtering HOWTO:http://netfilter.org/documentation/HOWTO/packet-filtering-HOWTO.html

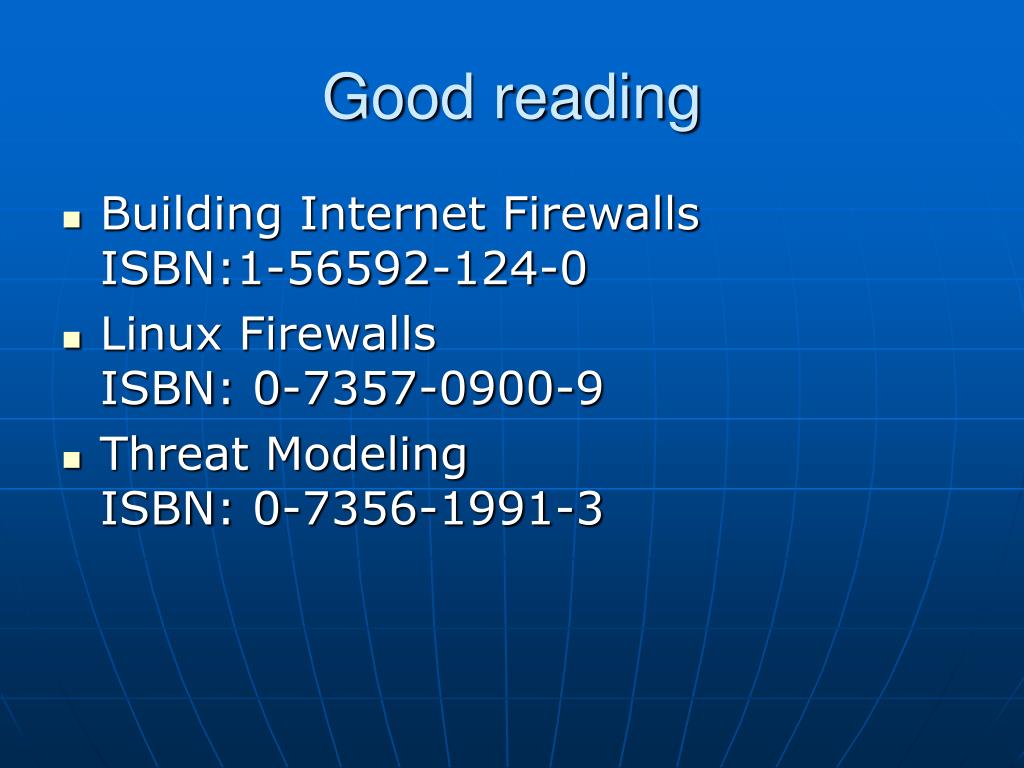

18. Good reading • Building Internet FirewallsISBN:1-56592-124-0 • Linux FirewallsISBN: 0-7357-0900-9 • Threat ModelingISBN: 0-7356-1991-3

19. Iptables • To be continued next class…
