OffPiste QoSaware Routing Protocol By Yigal Eliaspur
Problem Background • The main challenge in QoS routing is to be able to respond to online requests with • Reasonable response time • Minimal network overhead (Messages, Memory Processing time). • Minimal probability of blocking (requests failure). • A typical request is to reserve a certain resource along a path from a transaction source to a transaction destination. • The resource may be an additive resource (e.g. delay) or/and a nonadditive resource (e.g. bandwidth). • The request may be applied to Unicast or Multicast traffic.
Available Solutions • The solutions today can be partitioned to three broad classes: • Source routing algorithms • Transforms a distributed problem into a centralized one. • Maintaining a complete global state in each node of dynamics network resources. • Distributed routing algorithms • The path computation is distributed among the intermediate nodes between the source and the destination. • Single path search – usually assumes global state in each node. • Multi path search (flooding) – uses only local state in each node. • Hierarchical routing algorithms • Each node maintains only a partial global state • To cope with the scalability problem of global state in large internetworks.
Related Work • Our OPsAR protocol (OffPiste QoSaware Routing) can be classified to the Multi path, distributed routing algorithms family. • Others works related to this family are: • Selective flooding – multi path search will be done only on pre-computed routes. • Ticket based probing - Every probing (search) message is supposed to carry at least one ticket, and thus the total number of tickets limit the multi path search. • QMRP and S-QMRP (Scalable - Distributed QoS Multicast Routing Protocol): • The unicast route towards the destination is checked first. • If that failed selective scanning mechanism is applied. • The scanning is controlled by Maximum Branching Degree and Maximum Branching Level parameters. • QOSMic - best suited to a multicast environment, since it looks for a point on a multicast tree to ``hook'' on the new receiver.
The OPsAR Protocol • Our main motivation of OPsAR is to improve tradeoff between the overhead of the protocol and the success ratio it produces. • In OPsAR, a node keeps track of recent QoS messages to learn about resource availability to and from various target points. • The learning is reflected in the node's ``knowledgestate''. • Efficient path selection is been done by leveraging on the knowledgestate at the nodes. • The OPsAR protocol is built of 3 main stages: • Try Phase – in which a single path search and reservation is applied from the transaction source to the transaction destination. • Scan Phase – in which a multi path search without reservation is applied from the transaction destination back to the source. • Try 2 Phase – in which the scan phase results are evaluated and the best candidate path is reserved from the transaction source to the destination.

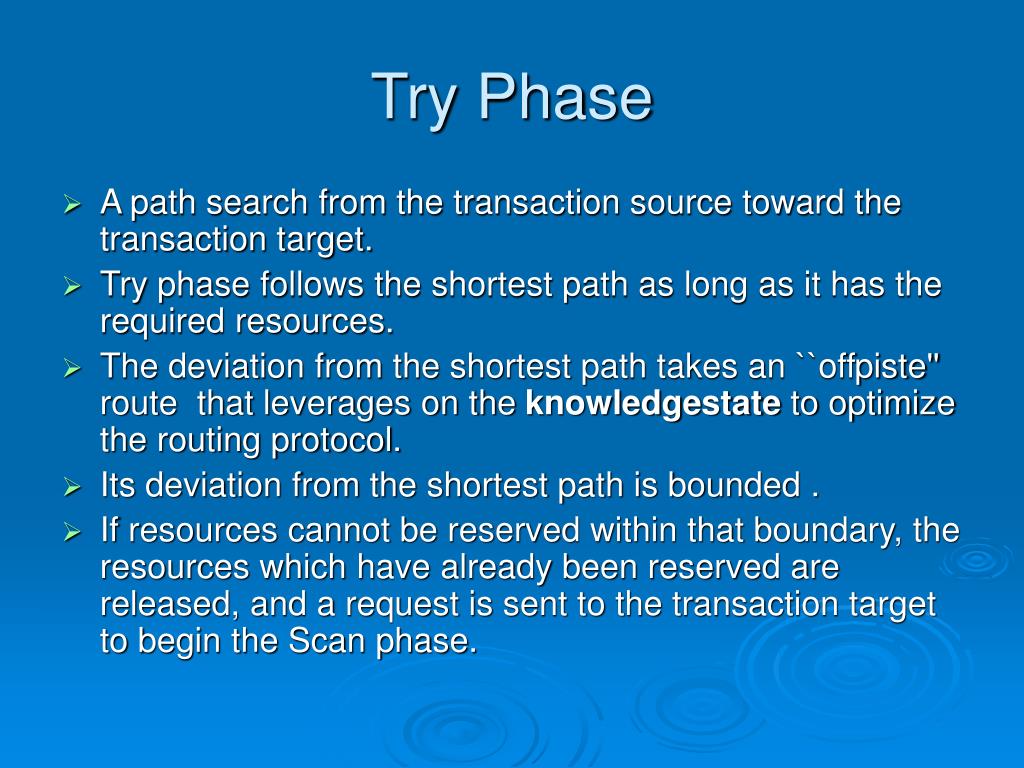

Try Phase • A path search from the transaction source toward the transaction target. • Try phase follows the shortest path as long as it has the required resources. • The deviation from the shortest path takes an ``offpiste'' route that leverages on the knowledgestate to optimize the routing protocol. • Its deviation from the shortest path is bounded . • If resources cannot be reserved within that boundary, the resources which have already been reserved are released, and a request is sent to the transaction target to begin the Scan phase.
Scan Phase • The scan process is based on limited BreadthFirstSearch (BFS) from the transaction target toward the transaction source. • We neither reserve resources in the Scan phase nor keep any state that relates to the specific scan. • As in the Try Phase the scanning process takes advantage of the knowledgestate to optimize the search. • The branching limitation is done by: • Ticketing scheme to bound the total number of paths. • Maximum branching degree (MBD) at each node in order to increase the variety of potential paths to traverse. • Off-piste counter to limit the distance from the shortest path, similar to the Try phase. • Branch is terminated during the scanning process if: • Offpiste limit is reached and the unicast route does not have the resources. • Or when no outgoing link has the requested resources.
Try 2 Phase • If the transactionsource receives several successful scan messages, it initiates the Try 2 phase. • It chooses the ``best'' route from the successful scan messages and asks to reserve the resources along that path. • If reservation failure along the explicit route is detected, • The OPsAR tries to route the reservation request message to the transactiondestination using alternative routes that the offpiste mechanism offers. • If that fails a nack message is returned to the transaction source indicating the need to choose another explicit route from the previous scan result.
Knowledge State - definition • Each node maintains • A local state in which it holds its links' status and the resource availability on them. • A bounded list of records • <target nodes, outgoinglink> • For each record the resources availability is maintained with respect to that outgoing link : • Max BW toward the targetnode. • Max BW from the targetnode. • This information is updated occasionally and is marked to identify the time of its last update. • This time is used for aging mechanism.
Knowledge State - usage • Any OPsAR protocol message traversing a node is used to update the knowledgestate (KS). • Each OPsAR protocol message includes the following relevant fields: • Max BW To Origin • Max BW From Origin • There are three main operation the KS is involve with: • KS record creation/update • J • J • OPsAR message fields update • J • Routing decision • The choice is made according to the resource availability along the various links toward the target, and according to how recent that information is. • This is Based on three levels of outgoing links (neighbors) maintained per target node: • Fresh • Stale • Old
Simulation Model • NS2 simulator • PowerLaw network topology • As the node degree increases, the number of nodes with that degree decreases exponentially. • Used the topology generator described in Osnat’s work (On the tomography of networks and multicast trees) • The generator was extended to support BW allocation. • The bandwidth on the links was uniformly distributed from {10,34,45,100} Mb/s. • In order to make sure that the congestion would first occur in the core network we reassigned the bandwidth of the endpoints to 1000Mb. • We also conducted tests with hierarchical bandwidth assignment chosen from {10Mb,100Mb,1G,10G} bits per second. • This backbone / metro type of over provisioning BW allocation showed almost no congestion for BW reservation requests. • Therefore, the topologies simulated were only large edge networks and ISP like networks.
Simulation Basis • 600 nodes was used. • Transaction endpoints were chosen out of 120 edge nodes. • Most of the graphs are the result of 10,000 transactions performed on six different generated topologies. • We ran each simulation on 5 different protocol types: • Traditional RSVP - Allocates the QoS requirement along the unicast route toward the transaction destination; • SQMRP* - Is S-QMRP adaptation to unicast routing • Basically it’s the same as OPsAR but without KS and Off-Piste counter support. • SQMRP*D – Is S-QMRP* with Off-Piste counter support. • OPsAR • OPT - Implemented as a BFS which finds the shortest path that fulfills the bandwidth QoS requirements. • Message overhead;

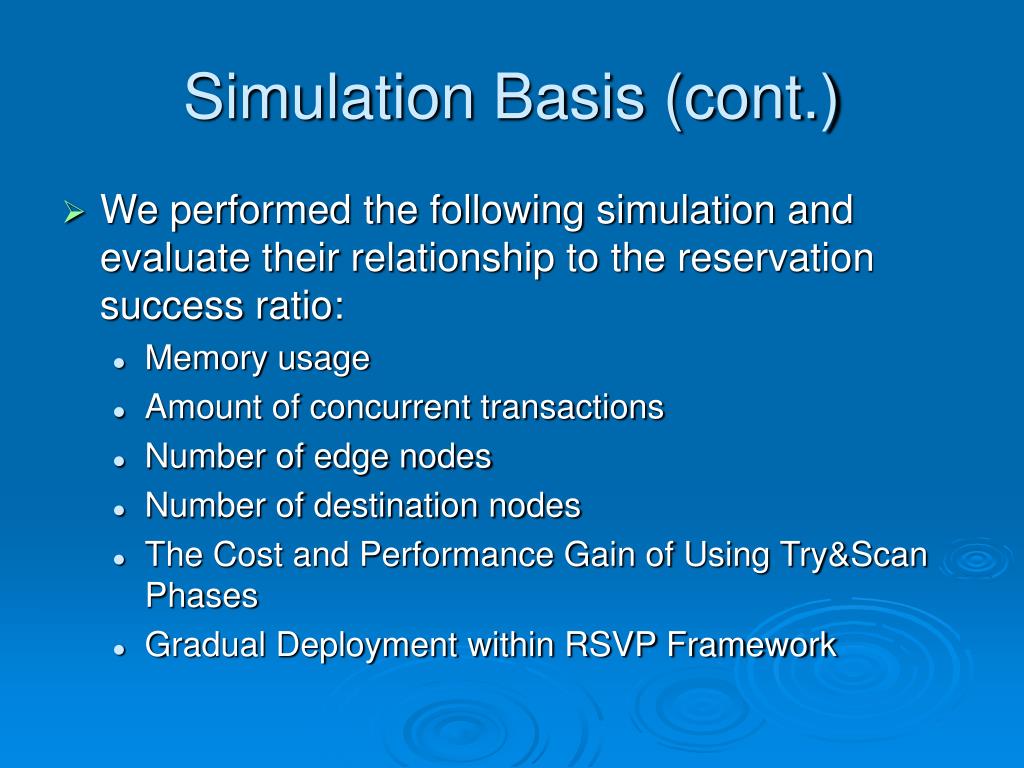

Simulation Basis (cont.) • We performed the following simulation and evaluate their relationship to the reservation success ratio: • Memory usage • Amount of concurrent transactions • Number of edge nodes • Number of destination nodes • The Cost and Performance Gain of Using Try&Scan Phases • Gradual Deployment within RSVP Framework
Memory Usage vs. Success Ratio (cont.) • The amount of memory sufficient to achieve about 85% of success ratio is very reasonable. • The memory is theoretically bounded by • The out degree of a core node (or by the aged out threshold which is 9 in our case) • Times the number of possible transactiondestination nodes. • In the largest simulation done this theoretical number was 160KB. • The average memory consumption was about 10% of the theoretical bound. • Where 60KB was limit - the actual bound set in the simulation code.

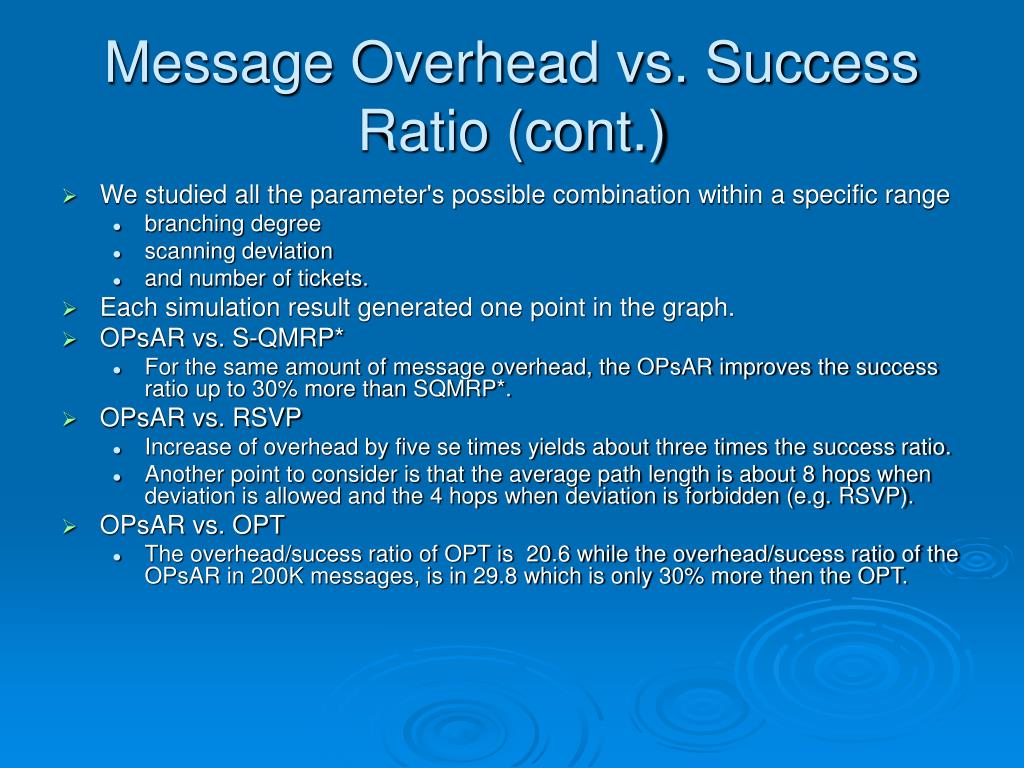

Message Overhead vs. Success Ratio (cont.) • We studied all the parameter's possible combination within a specific range • branching degree • scanning deviation • and number of tickets. • Each simulation result generated one point in the graph. • OPsAR vs. S-QMRP* • For the same amount of message overhead, the OPsAR improves the success ratio up to 30% more than SQMRP*. • OPsAR vs. RSVP • Increase of overhead by five se times yields about three times the success ratio. • Another point to consider is that the average path length is about 8 hops when deviation is allowed and the 4 hops when deviation is forbidden (e.g. RSVP). • OPsAR vs. OPT • The overhead/sucess ratio of OPT is 20.6 while the overhead/sucess ratio of the OPsAR in 200K messages, is in 29.8 which is only 30% more then the OPT.

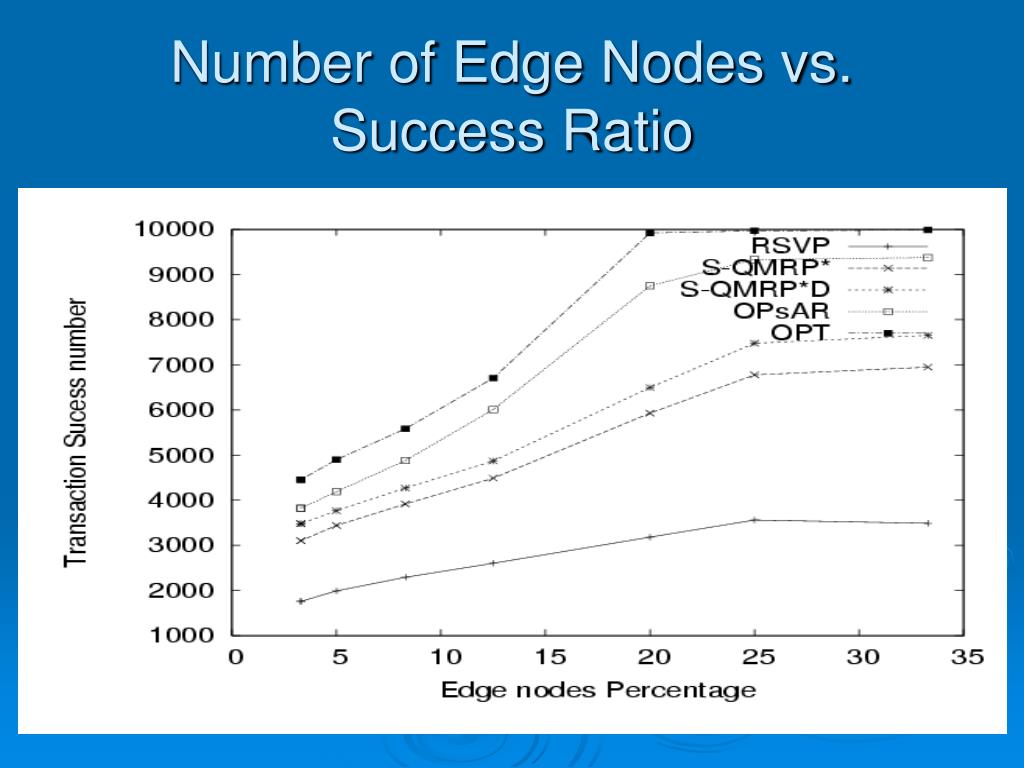

Number of Destinations Nodes vs. Success Ratio (cont.) • We ran the simulation with a constant number of 25% edge nodes (as opposed to the 20% we usually used). • The number of candidate destination nodes varied from 1% up to the whole set of edge nodes (25%). • The candidate set of source nodes was always the whole set of edge nodes. • Only the links from those destination nodes were assigned a bandwidth capacity of 1000Mb.
The Cost and Performance Gain of Using Try&Scan Phases (cont.) • Scan Phase uses extra time and messages over Try Phase. • Our simulations showed that the time to complete a Try followed by a Scan is three times the time it takes to complete the Try phase alone.

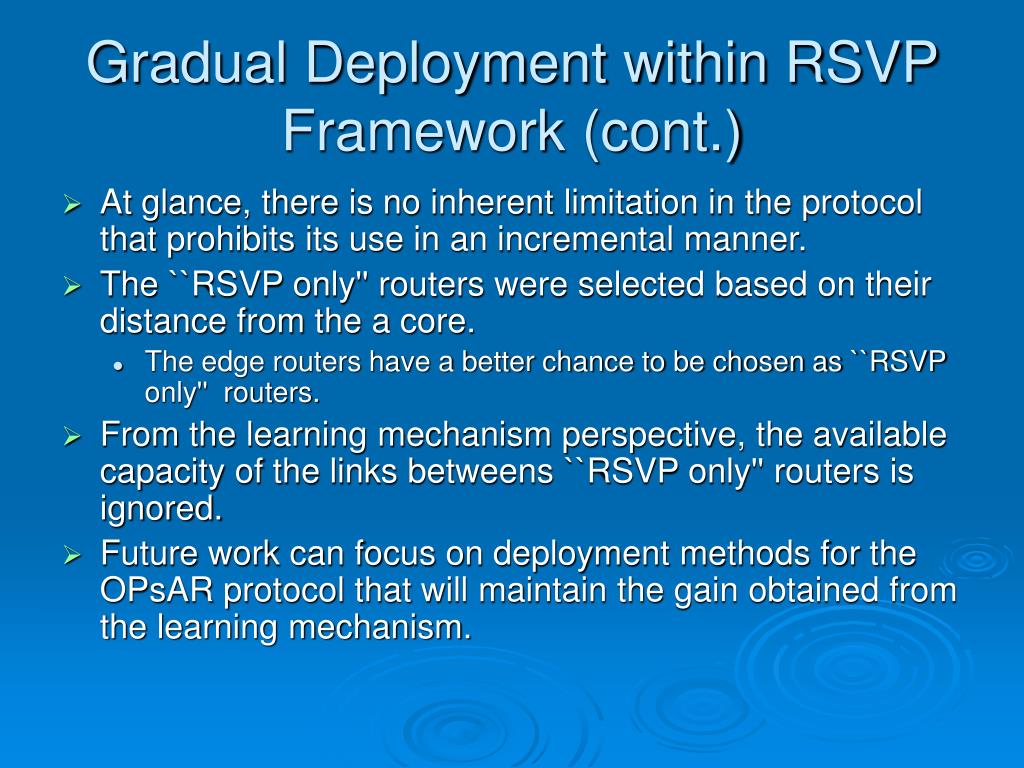

Gradual Deployment within RSVP Framework (cont.) • At glance, there is no inherent limitation in the protocol that prohibits its use in an incremental manner. • The ``RSVP only'' routers were selected based on their distance from the a core. • The edge routers have a better chance to be chosen as ``RSVP only'' routers. • From the learning mechanism perspective, the available capacity of the links betweens ``RSVP only'' routers is ignored. • Future work can focus on deployment methods for the OPsAR protocol that will maintain the gain obtained from the learning mechanism.
Future Work • Machine learning improving • The overall scheme of our protocol is an intelligent the choice of routes from a full BreadthFirstSearch algorithm (BFS). • Future on research can focus on improving the educated choice of routes while limiting the overhead in memory. • We expect to find ways to use machine learning techniques to achieve that goal. • KS Aggregations • Save in memory by aggregating the information, using techniques like longest prefix matching on transactions destination. • Packet losses, link/node failures • Should be relatively easy using timers and retries for messages, and using soft state reservation. • Additive resources • Handling additive resources, like delay, requires minor changes d to the protocols presented. • Tuning the KS parameters • Linear increasing the fresh neighbor group did not increase the performance and sometimes cause it to be degraded. • Increasing the age out threshold – does not improved the performance either even though it increase the total memory requirements. • Further research must be conducted in order to explore the interdependencies among the various variables of OPsAR, and to automatically learn and choose the optimal values, possibly l using machine learning techniques.
