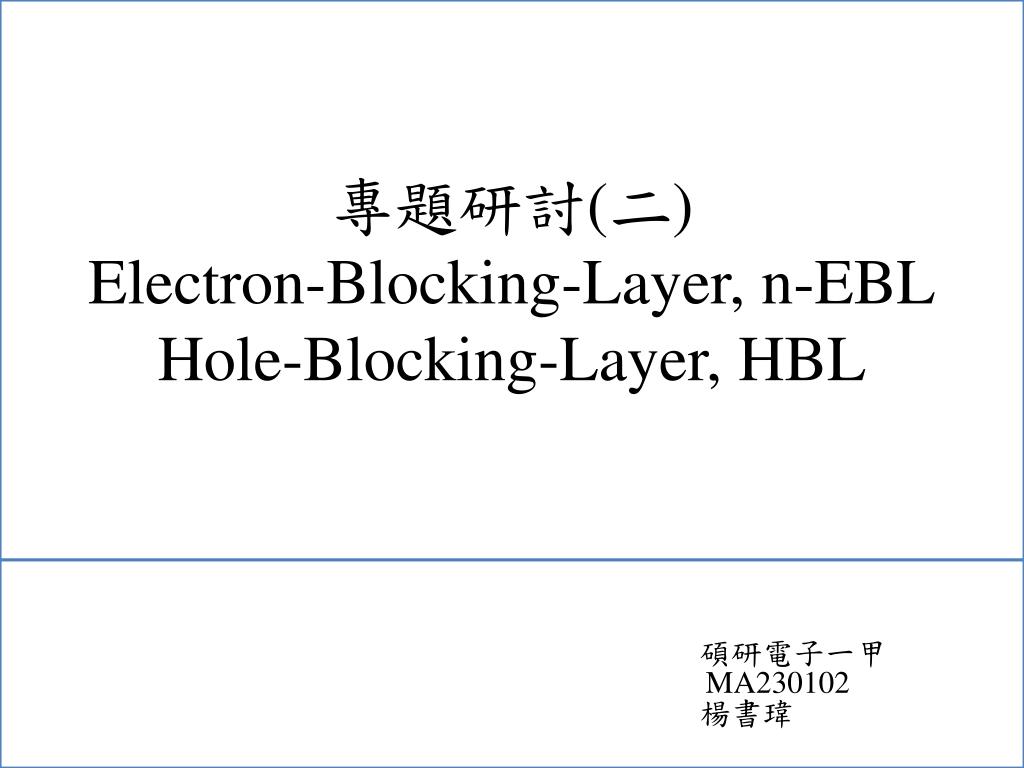

  1. 專題研討(二)Electron-Blocking-Layer, n-EBLHole-Blocking-Layer, HBL                   碩研電子一甲MA230102               楊書瑋

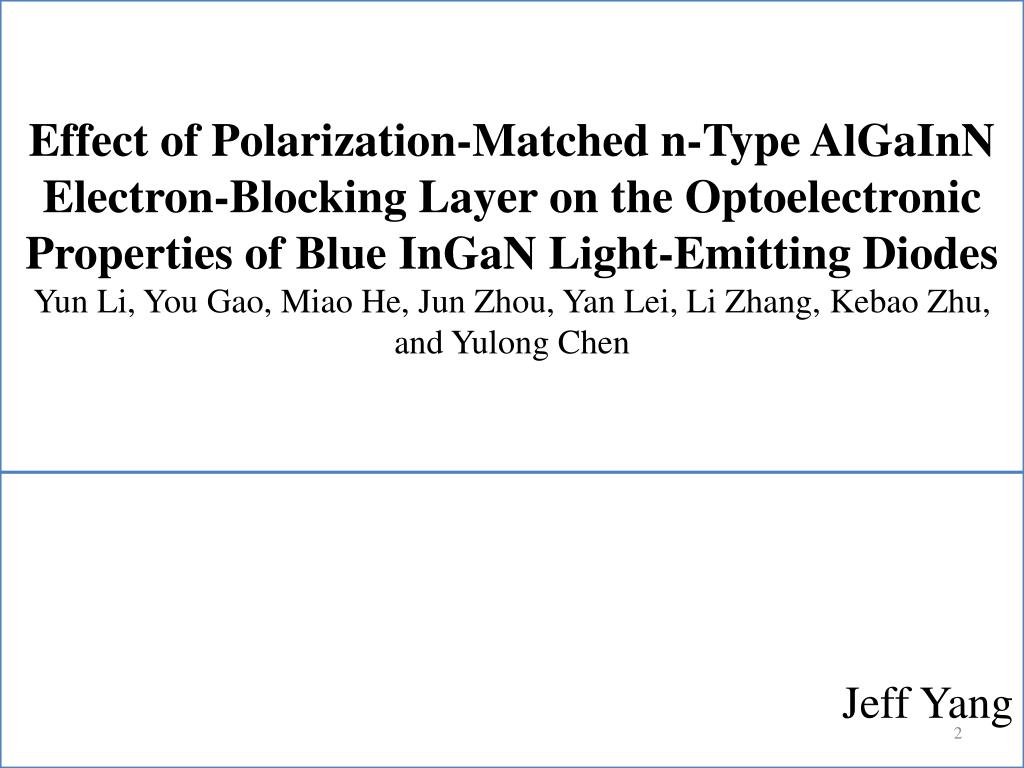

  2. Effect of Polarization-Matched n-Type AlGaInN Electron-Blocking Layer on the Optoelectronic Properties of Blue InGaN Light-Emitting DiodesYun Li, You Gao, Miao He, Jun Zhou, Yan Lei, Li Zhang, Kebao Zhu, and Yulong Chen Jeff Yang

  3. Outline • Introduction • Experiment • Result and Discussion • Conclusion

  4. Introduction • Conventional p-type electron- blocking layer (EBL) can be used a solution to reduce the electron leakage current. However, the p-type EBL also impeded the injection of holes into the active region. • In this paper, we study the performances of blue InGaN LEDs by using a polarization-matched n-type AlGaInN(N-AlGaInN) EBL to replace p-AlGaInNEBL, p-AlGaInNEBL and n-AlGaNEBL in the active region.

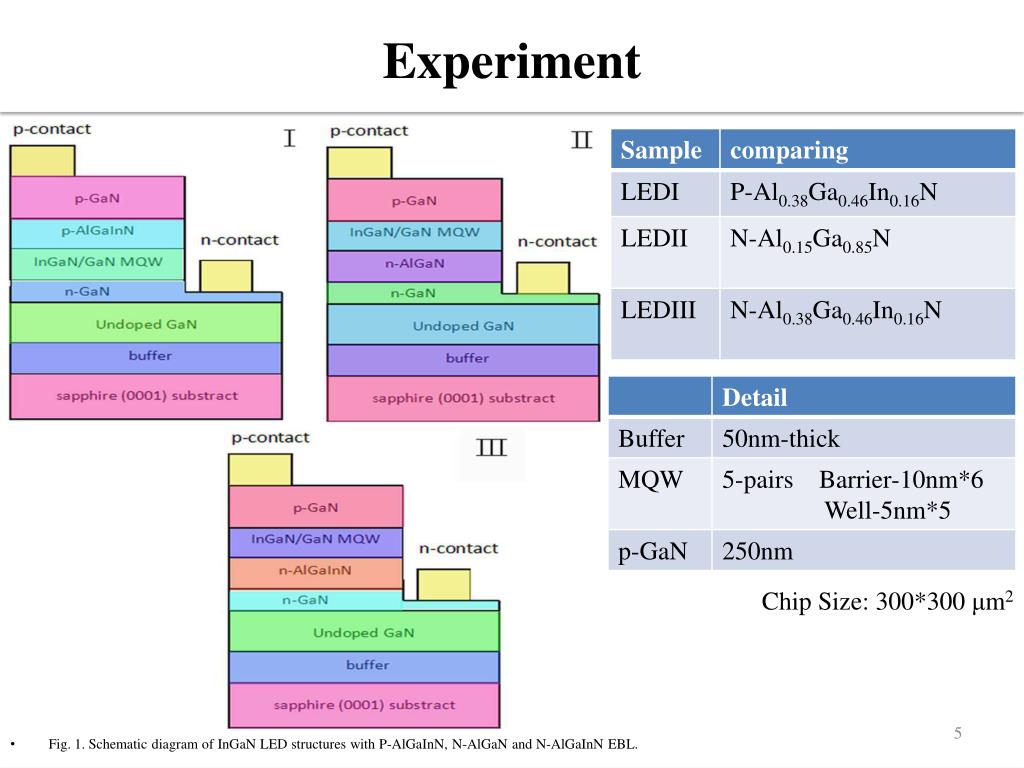

  5. Experiment Chip Size: 300*300 μm2 • Fig. 1. Schematic diagram of InGaN LED structures with P-AlGaInN, N-AlGaNand N-AlGaInN EBL.

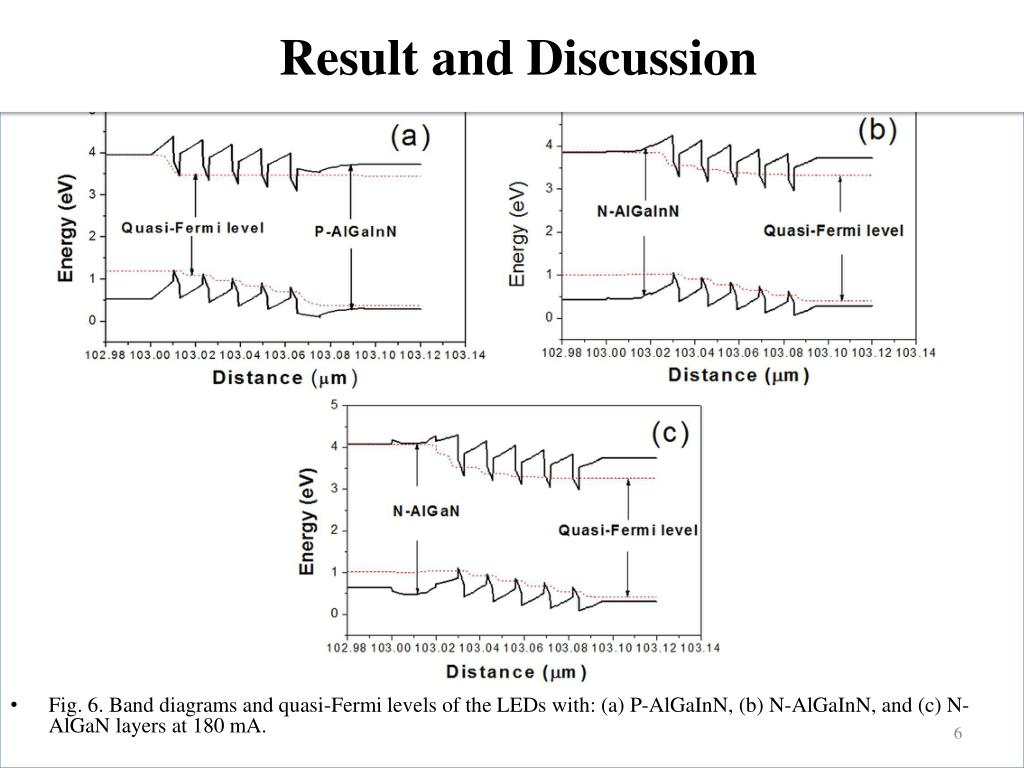

  6. Result and Discussion • Fig. 6. Band diagrams and quasi-Fermi levels of the LEDs with: (a) P-AlGaInN, (b) N-AlGaInN, and (c) N-AlGaN layers at 180 mA.

  7. Fig. 4. (a) Electron and (b) hole concentrations of the LEDs with P-AlGaInN, N-AlGaInNand P-AlGaN EBLs at 180 mA.

  8. Conclusion • The simulation results show that the N-AlGaInN EBL is a best candidate the concentration of electrons and holes within the active region of the LEDs with a N-AlGaInNEBL are more uniform, and the electron leakage current is also dramaticlly reduced.

  9. Jeff Yang

  10. Outline • Introduction • Experiment • Result and Discussion • Conclusion

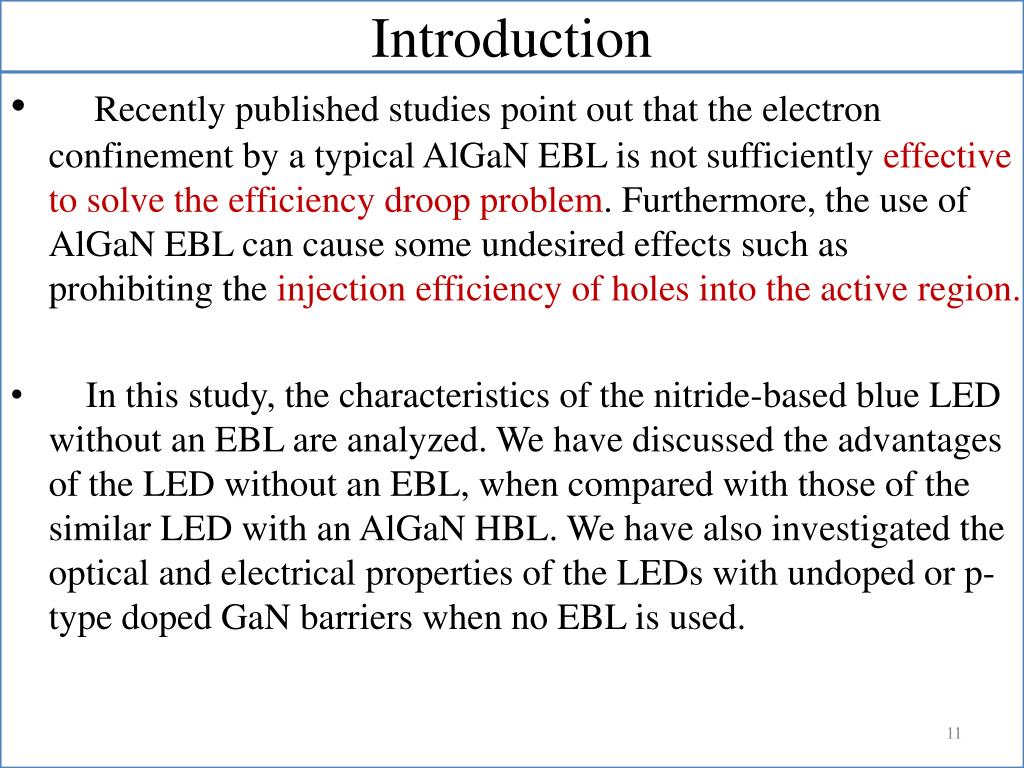

  11. Introduction • Recently published studies point out that the electron confinement by a typical AlGaN EBL is not sufficiently effective to solve the efficiency droop problem. Furthermore, the use of AlGaN EBL can cause some undesired effects such as prohibiting the injection efficiency of holes into the active region. • In this study, the characteristics of the nitride-based blue LED without an EBL are analyzed. We have discussed the advantages of the LED without an EBL, when compared with those of the similar LED with an AlGaN HBL. We have also investigated the optical and electrical properties of the LEDs with undoped or p-type doped GaN barriers when no EBL is used.

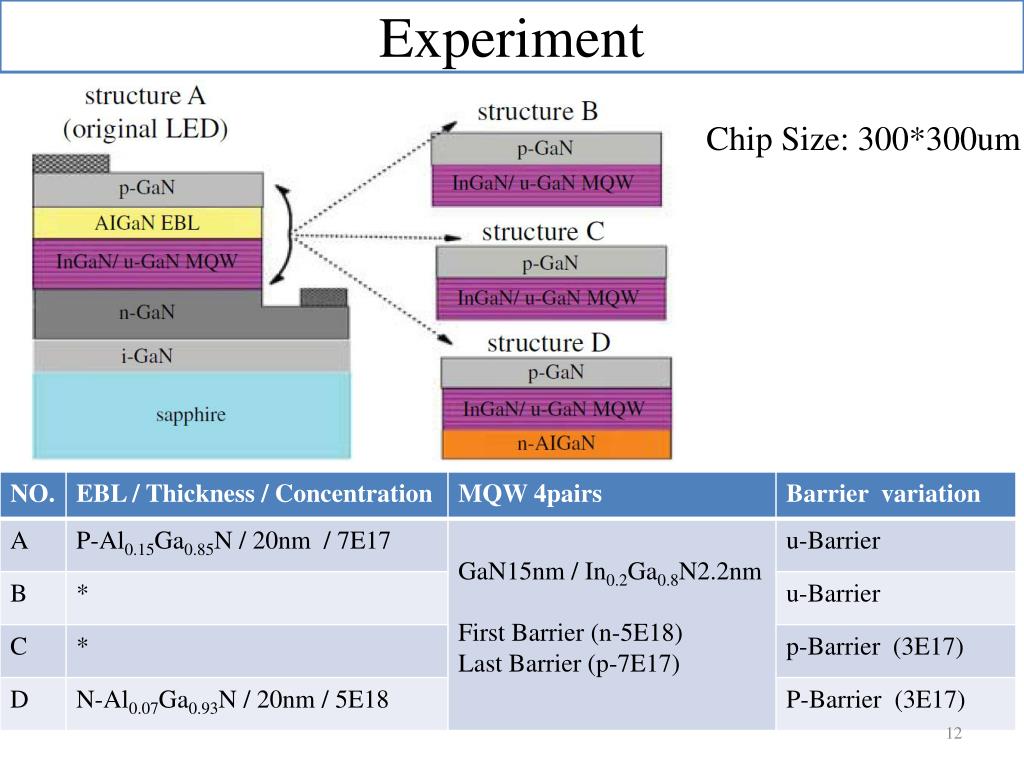

  12. Experiment Chip Size: 300*300um

  13. Fig. 3. Energy band diagrams of u-GaN barrier LEDs (a) with an AlGaN EBL and (b) without an EBL at 150 mA.

  14. Fig. 5. (a) Hole and (b) electron concentrations of the non-EBL p-GaN barrier LEDs with and without a HBL around the active region at 150 mA.

  15. Fig. 6. (a) EL spectra at 150 mA and (b) IQE versus injection current for the LEDs of the four structures.

  16. Conclusion • The use of the p-type barriers can effectively suppress the spillover of electrons out of the active region, as well as increase the hole concentration. The insertion of the HBL can enhance the hole confinement. the efficiency droop of the new structure is markedly improved.
