  1. StorageReadyNAS & ReadyDATA

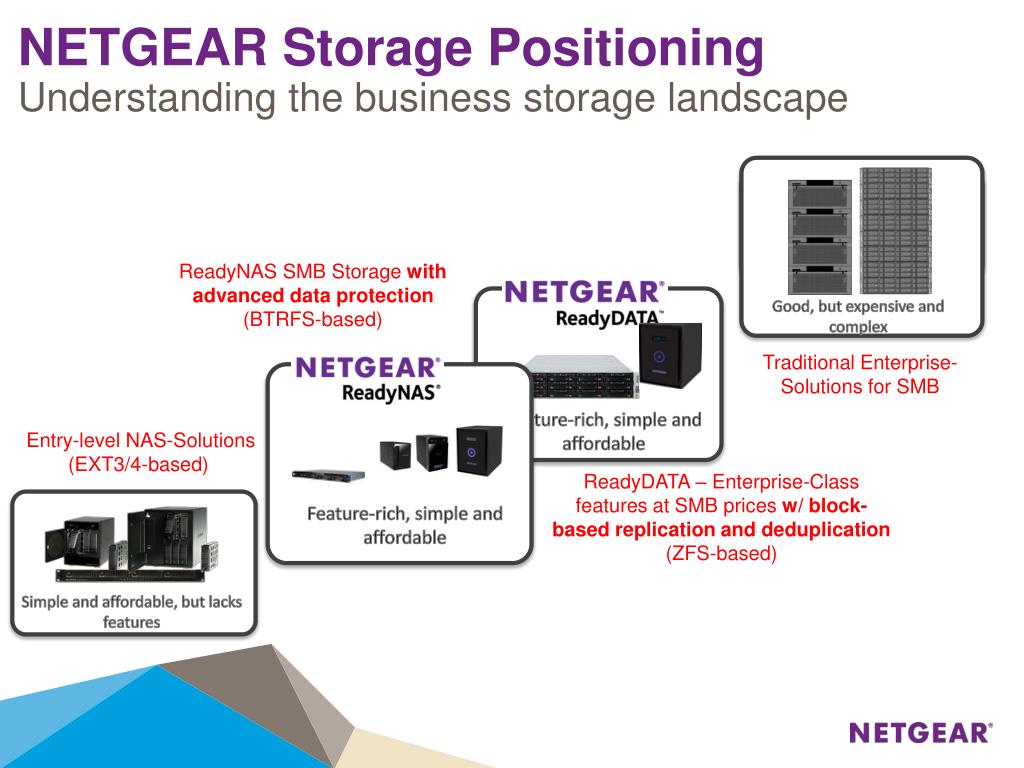

  2. NETGEAR Storage PositioningUnderstanding the business storage landscape ReadyNAS SMB Storage with advanced data protection(BTRFS-based) Good, but expensive and complex Advanced, Costly & Complex Traditional Enterprise-Solutions for SMB Entry-level NAS-Solutions (EXT3/4-based) Feature-rich, simple and affordable ReadyDATA – Enterprise-Class features at SMB prices w/ block-based replication and deduplication (ZFS-based) Feature-rich, simple and affordable Simple and affordable, but lacks features

  3. NETGEAR Unified Storage for SMB Broad portfolio for every storage need! Feature / Performance ROBO / Small Business Home Office Consumer Mid-Range ReadyDATA 5200 ReadyNAS4220 ReadyNAS 3220 ReadyNAS 2120 ReadyDATA516 Enterprise-Class Features ReadyNAS 716X ReadyNAS 516 ReadyNAS 316 ReadyNAS 314 ReadyNAS 104 ReadyNAS 312 ReadyNAS 102 ReadyNAS OS 6.x ReadyDATA OS 1.x ZFS-based BTRFS-based Home-based user Small business(5 -75 users) SMB (75-200 users) ME ( 100+ users)

  4. ReadyNAS is “Storage Made Easy” Understanding the NETGEAR difference • Less expensive to buy and manage • Lower upfront cost and all inclusive feature set • Lower long-term cost of management • Less complex to buy, deploy and manage • All inclusive and 5 yr warranty means no surprises • Easy management means no additional staff/consultants • All the latest technology (ReadyNAS) • Continuous data protection (snapshots, AV, etc.) • Storage efficiency (instant expansion) • Easy off-site (cloud-managed replication) • Easy access (ReadyCLOUD) NETGEAR CONFIDENTIAL

  5. ReadyNAS OS 6 FeaturesIndustry’s leading data protection platform • Cloud-based discovery, setup, and management • Your own private cloud solution • Real-Time Antivirus • No subscription. • Scans files as they are written to the device • Unified storage platform • Support NAS & SAN protocols • Thin Provisioned • Compression • RAID 0, 1, 5, 6, 10 plus X-RAID (auto expansion) • Multiple vdev concatenation

  6. ReadyNAS OS 6 FeaturesIndustry’s leading data protection platform • Replication • No additional licensing required • Disaster recovery solution: send data to another ReadyNAS • No port forwarding/firewall rules to adjust • Unlimited Snapshots • Automatic continuous data protection w/ no performance impact • Instantly restore to any point in time, restore files to any previous versions • Clone file systems • Only available from enterprise class vendors • Instantly create or destroy Footer use for Presentation Title or footnotes

  7. ReadyNAS OS 6 FeaturesIndustry’s leading data protection platform • Self-service ITthrough file restoration from Windows w/ snapshot data • 256-bit encryption and real-time anti-virus based on signatures & heuristic algorithms w/ no subscription cost • Instant and thin provisioning with immediate protection • Remote backup/restore for Apple Mac • Ever growing selection of business Apps (75+) • ReadyDROP file synchronization

  8. ReadyNAS Desktop Solution Tiers Media File Server Virtualization Backup/DR ReadyNAS 716 900 MB/sec Multi-server 500+ ReadyNAS 516 230 MB/sec Multi-server 250+ ReadyNAS 312/314/316 50+ 150 MB/sec ReadyNAS 102/104 5+ 90 MB/sec NETGEAR Proprietary and Confidential

  9. ReadyNAS Rackmount Solution Tiers File Server Virtualization Backup/DR ReadyNAS 4220 900 MB/sec Multi-server 500+ ReadyNAS 3220 350 MB/sec Multi-server 250+ ReadyNAS 2120 110 MB/sec 25+ NETGEAR Proprietary and Confidential

  10. Available Now ReadyNAS Surveillance Updated Application v1.4 / v1.1 • New Features & Enhancements • Default password changed to ‘admin’ and ‘password’ • Support generic de-wrap fisheye lens • Support multi-camera viewing on non-IE browsers • Support updated camera support list • Support for TCP/IP Point of Sales system integration • Increase maximum camera count (hard limits) • Version 1.4 • X86 based devices • ReadyNAS 300, 500, 700, 3220, 4220 • Version 1.1 • ARM based devices • ReadyNAS 100, 2120 Footer use for Presentation Title or footnotes

  11. ReadyNAS Emulator/Sandboxwww.netgear.com/rnsandbox Footer use for Presentation Title or footnotes

  12. ReadyCLOUDAs a Dropbox Replacement • Share files between multiple users • User can be granted access to multiple shares • Each share can have a different group of users • Limitations • Only cloud-accessed file sharing • No Sync’ing • No share via link • Tested for workgroup sized environments (~25) Footer use for Presentation Title or footnotes

  13. ReadyDATA Updates

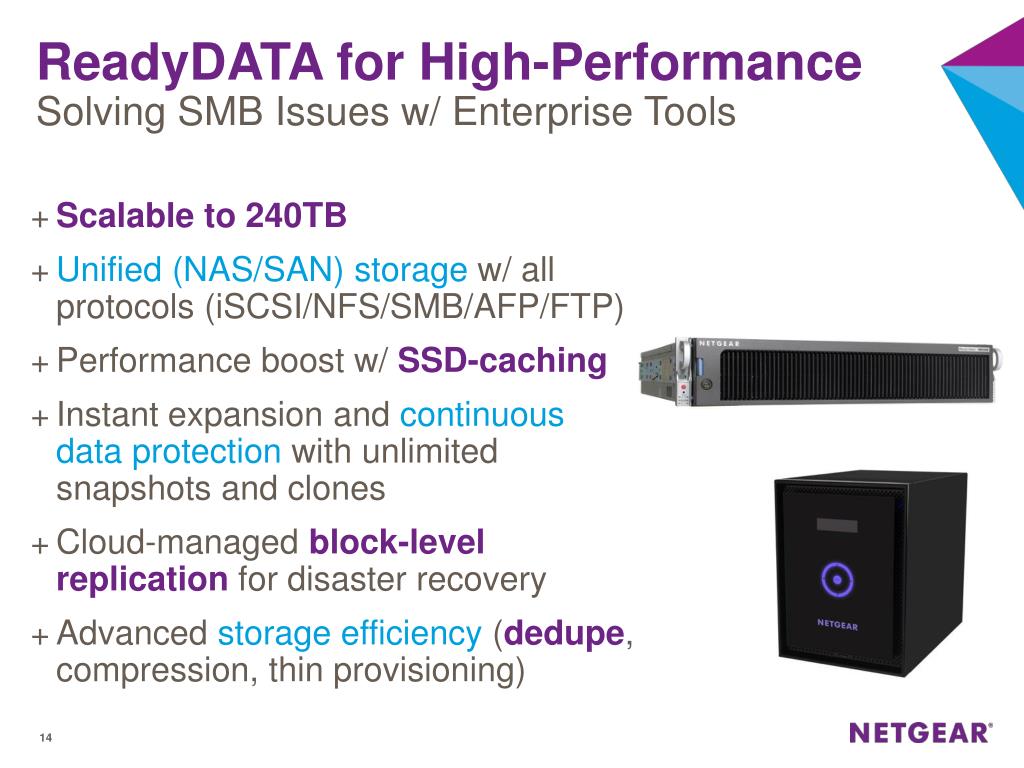

  14. ReadyDATA for High-PerformanceSolving SMB Issues w/ Enterprise Tools • Scalable to 240TB • Unified (NAS/SAN) storage w/ all protocols (iSCSI/NFS/SMB/AFP/FTP) • Performance boost w/ SSD-caching • Instant expansion and continuous data protection with unlimited snapshots and clones • Cloud-managed block-level replicationfor disaster recovery • Advanced storage efficiency (dedupe, compression, thin provisioning)

  15. ReadyDATA Protection: Edge to CoreCentrally managed storage improves efficiency… • Central office w/ 3 remote offices • Dedicated IT staff at HQ w/ RD5200 • RD516 file share deployed at ROBO set to continuous snapshots • All data replicated back to HQ • Content (files) deleted @ROBO? • At HQ, Admin checks replicated snapshots from RD516 now residing on local RD5200 • Admin recovers PPT from a past snapshot and problem is solved without need for a visit to the remote office.

  16. ReadyDATA 516 Updates • ReadyData 516 received third place recognition for best product of the year by Storage Magazine • Competed in Data Backup Hardware category • Competitors included Oracle, Quantum, HP, Riverbed • http://searchstorage.techtarget.com/essentialguide/Best-data-storage-products-2013-Products-of-the-Year#guideCategory2 • Storage Magazine selected ReadyDATA over big IT names like Oracle– share with your partners! NETGEAR Confidential

  17. Product Awards • ReadyDATA Wins Editor's Choice from InfoWorld • Perhaps the strongest external recognition yet for ReadyDATA was just posted by InfoWorld • “ReadyDATA delivers… features normally seen only on high-end products.” • Find ways to work this endorsement into your ReadyDATA sales efforts • http://www.infoworld.com/d/data-center/review-netgears-readydata-makes-splash-flash-237805 • ReadyDATA 5200 deemed "the Most Competitive Storage Device" by CCIDNET in China NETGEAR Confidential

  18. Failback Replication • Problem: The biggest challenge to face once you failover to a DR location is the getting your data back to it’s original location • Solution: Failback replication allows an IT admin to quickly and easily replicate data back to the primary location when it comes back online by only sending new blocks that have been created while the business used the offsite location. Production Location Disaster Recovery Location internet ReadyDATA 5200 ReadyDATA 5200 Footer use for Presentation Title or footnotes

  19. Failback Replication ReadyDATA 5200 ReadyDATA 5200 Production Location Disaster Recovery Location Replication internet In this solution we have some users accessing data on a primary ReadyDATA that is configured with hourly snapshot protection and replication to a DR Location. The ReadyDATA 5200s could be hosting files, VMs, databases, iSCSI LUNs, or even backup Images etc … Footer use for Presentation Title or footnotes

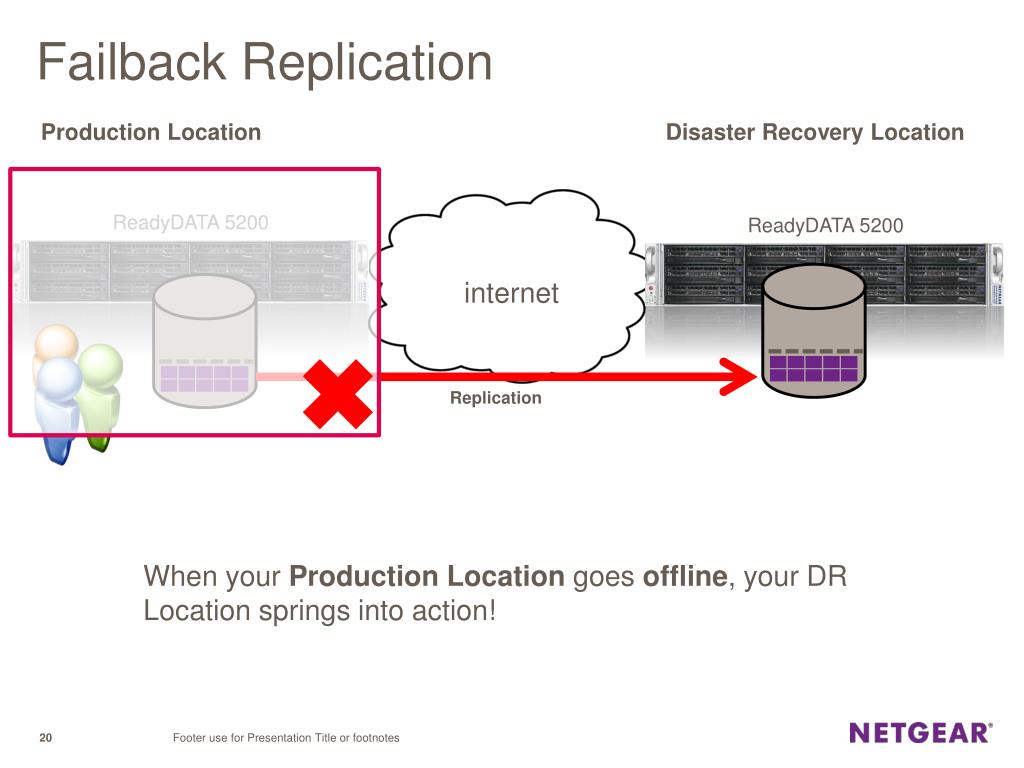

  20. Failback Replication ReadyDATA 5200 ReadyDATA 5200 Production Location Disaster Recovery Location Replication internet When your Production Location goes offline, your DR Location springs into action! Footer use for Presentation Title or footnotes

  21. Failback Replication ReadyDATA 5200 ReadyDATA 5200 Production Location Disaster Recovery Location internet The administrator makes the data in DR Location available for everyone. This is a fast process as data doesn’t need to be restored. Users start to access and create new data. Footer use for Presentation Title or footnotes

  22. Failback Replication ReadyDATA 5200 ReadyDATA 5200 Production Location Disaster Recovery Location internet At some point the Production site comes online, but is now out of date Footer use for Presentation Title or footnotes

  23. Failback Replication ReadyDATA 5200 ReadyDATA 5200 Production Location Disaster Recovery Location Failback Replication internet Now we can configure a new replication job (Failback Replication) to send any changed data from the DR site back to the original location. Footer use for Presentation Title or footnotes

  24. Failback Replication ReadyDATA 5200 ReadyDATA 5200 Production Location Disaster Recovery Location Failback Replication internet We then get our user to start using the primary site again when it’s convenient and remove the “Failback” Replication Job. Footer use for Presentation Title or footnotes

  25. Failback Replication ReadyDATA 5200 ReadyDATA 5200 Production Location Disaster Recovery Location Replication internet Finally, we recreate the original replication job, without the need to send any new data! … At this point we have failed back from DR and the Primary site is protected once more. Footer use for Presentation Title or footnotes

  26. Storage Made Easy NETGEAR Proprietary and Confidential

  27. Marketing Updates • New NTGR ReadyNAS Linkedin group • http://www.linkedin.com/company/netgear-readynas • Please join and participate in the conversation • Next Generation File Systems • http://arstechnica.com/information-technology/2014/01/bitrot-and-atomic-cows-inside-next-gen-filesystems/1/ • Take away: BTRFS is the place to be. All innovation going forward will be found on BTRFS • More awards “Best in Test” RN314 in Sweden Datormagazin • RN716 Anandtech Product Review • "All in all, the Netgear ReadyNAS 716 is an impressive and revolutionary product."

  28. ReadyNAS Desktop

  29. ReadyNAS Rackmount There is no expansion chassis available for RN3220/RN4220.

  30. The Winning Team: NETGEAR 10GE Switching und Storagethe most affordable 10GE Solution in the market Footer use for Presentation Title or footnotes

  31. Target the Correct Series for 10 GE Storage
