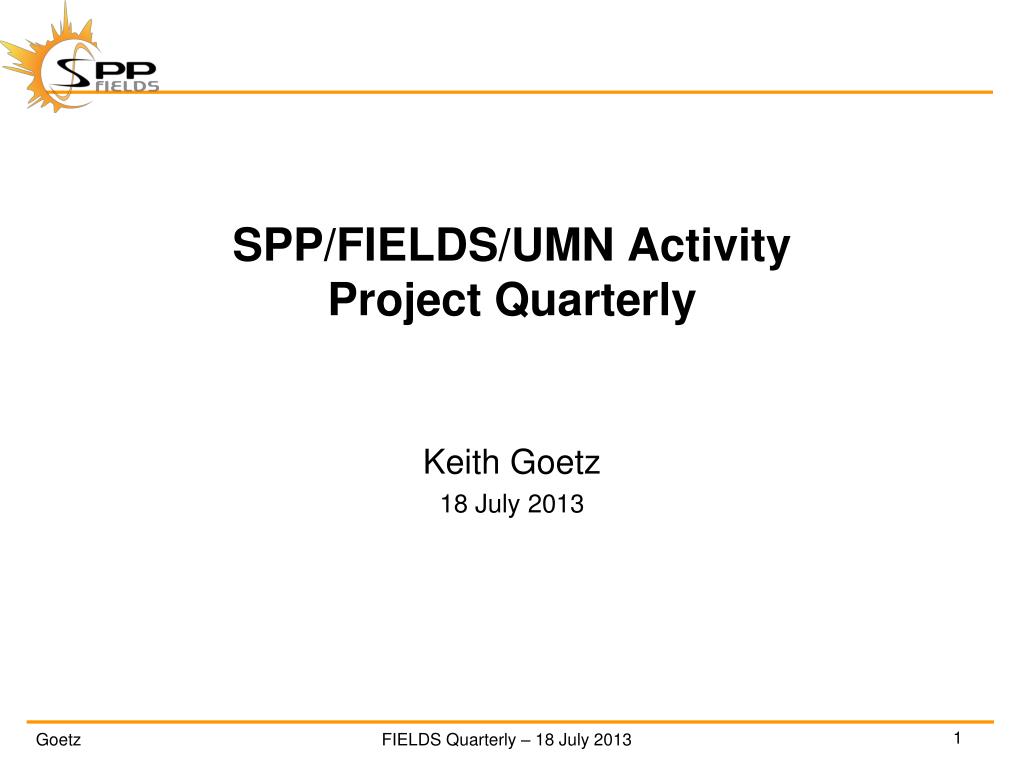

  1. SPP/FIELDS/UMN ActivityProject Quarterly Keith Goetz 18 July 2013

  2. UMN Activity • Preliminary designs are moving along • Breadboarding is advanced • Parts identification is moving along • PEM obtained and in up-screening process (starting with a DPA) • Embraced the FPGA daughter board concept • Redundancy/Reliability trade issues resolved • FIELDS now separated into two halves • FIELDS1/DCB and FIELDS2/TDS • No single point FIELDS failure • UMN split single LNPS into two pieces • UMN added a S/C interface to the TDS • Systems Engineering has moved to UMN

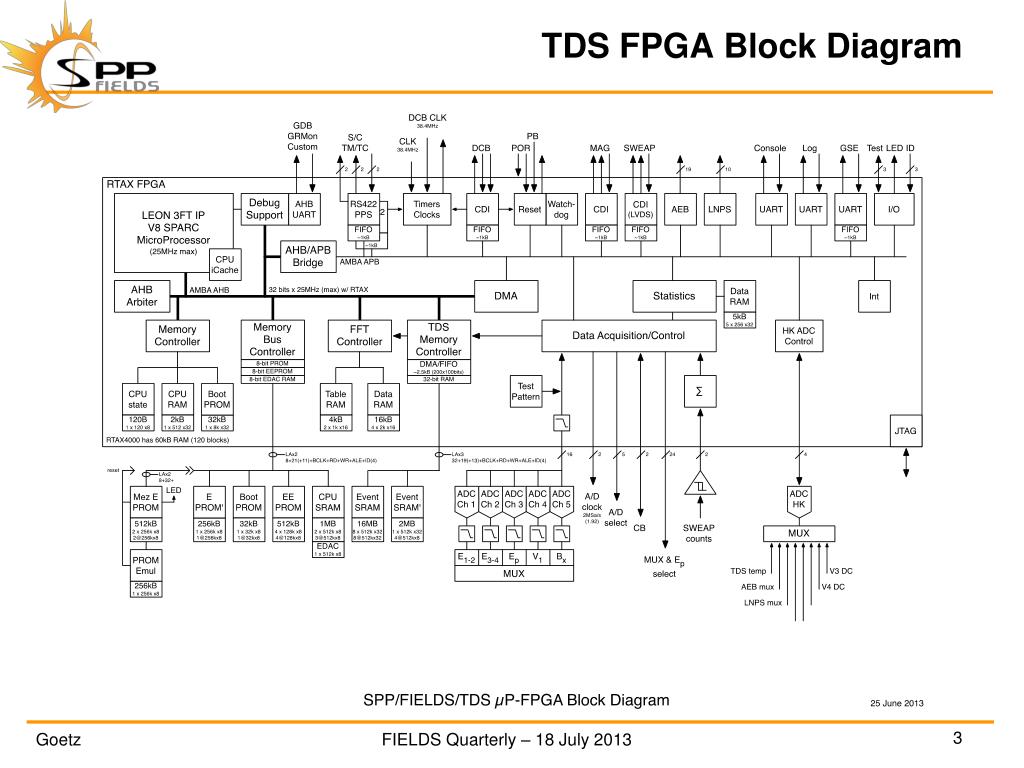

  3. TDS FPGA Block Diagram

  4. UMN Activity TDS BB2 – being populated FPGA daughter board outlline ProASIC3000 flash-based FPGA (in BGA) LNPS BB1 demonstration
