Information Flow and Covert Channels

1. Information Flow and Covert Channels November, 2006

2. Objectives • Understand information flow principles • Understand how information flows can be identified • Understand the purpose of modeling information access • Understand covert channels and how to prevent them

3. Why Model? • What is an information security model? Why use one? • “A security policy is a statement that partitions the states of the system into a set of authorized, or secure, states and a set of unauthorized, or nonsecure, states” Bishop, pg. 95 • “A security mechanism is an entity or procedure that enforces some part of the security policy.” Bishop, pg. 98 • “A security model is a model that represents a particular policy or set of policies.” Bishop, pg. 99 Excerpts from Computer Security by Matt Bishop

4. Examples • Security Policy – e.g. Those described for use in the military • Security Model – e.g. Bell La Padula Model • Security Mechanism – e.g. Virtual memory (page tables) that support access protection checking or Tagging mechanism that tags all variables with security access information

5. Why Formal Models? • Regulations are generally descriptive rather than prescriptive, so they don’t tell you how to implement • Systems must be secure • security must be demonstrable --> proofs • therefore, formal security models • For “real systems” this is not easy to do.

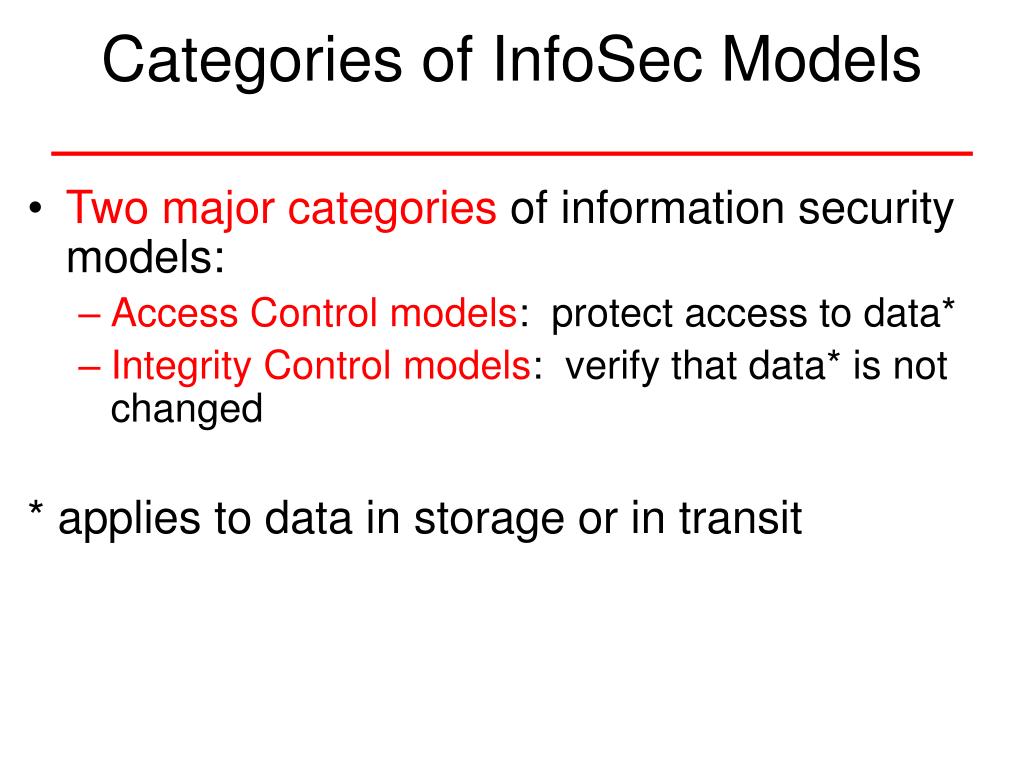

6. Categories of InfoSec Models • Two major categories of information security models: • Access Control models: protect access to data* • Integrity Control models: verify that data* is not changed * applies to data in storage or in transit

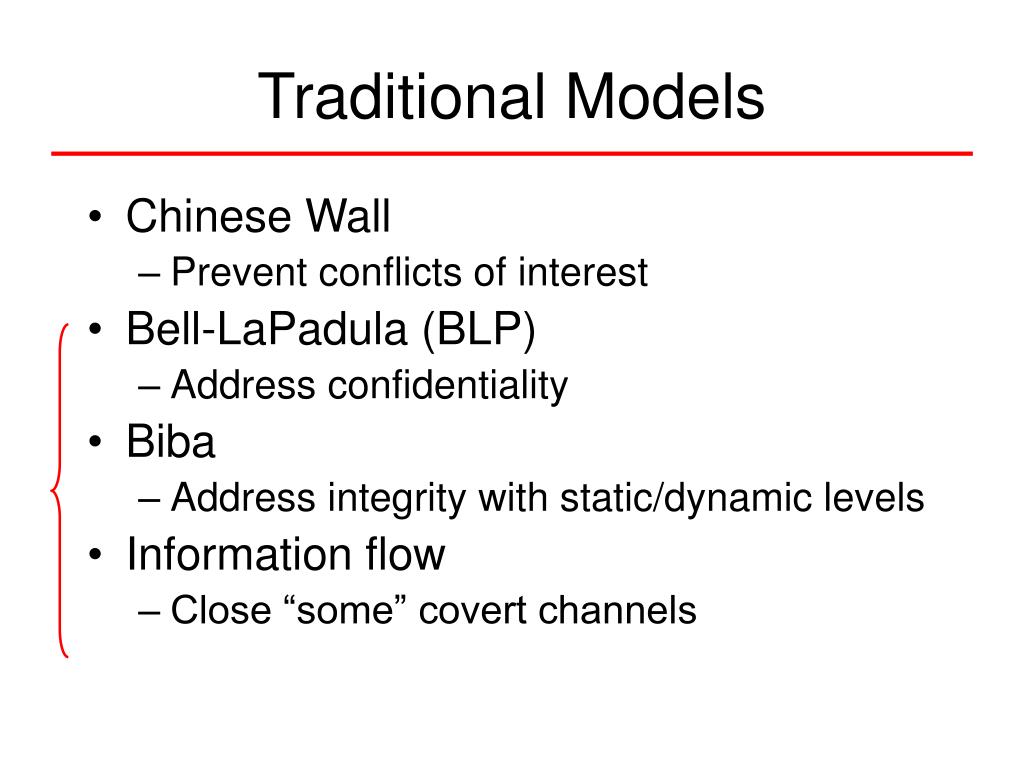

7. Traditional Models • Chinese Wall • Prevent conflicts of interest • Bell-LaPadula (BLP) • Address confidentiality • Biba • Address integrity with static/dynamic levels • Information flow • Close “some” covert channels

8. Bell-LaPadula Security Model The Bell-LaPadula (BLP) model is about information confidentiality, and this model formally represents the long tradition of attitudes about the flow of information concerning national secrets. .

9. Bell – LaPadula - Details • Earliest formal model • Each user subject and information objecthas a fixed security class – labels • Use the notation ≤ to indicate dominance • Simple Security (ss) property: the no read-up property • A subject s has read access to an object iff the class of the subject C(s) is greater than or equal to the class of the object C(o) • i.e. Subjects can read Objects iff C(o) ≤ C(s)

10. Access Control: Bell-LaPadula Subjects Objects Top Secret Top Secret Read OK Read OK Secret Secret Read OK Unclassified Unclassified

11. Access Control: Bell-LaPadula Subjects Objects Top Secret Top Secret Read Forbidden Secret Secret Read OK Read OK Unclassified Unclassified

12. Access Control: Bell-LaPadula Subjects Objects Top Secret Top Secret Secret Secret Read Forbidden Read Forbidden Unclassified Unclassified Read OK

13. Bell - LaPadula (2) • *property (star): the no write-down property • While a subject has read access to object O, the subject can only write to object P ifC(O) ≤ C (P) • Leads to concentration of irrelevant detail at upper levels • Discretionary Security (ds) property If discretionary policies are in place, accesses are further limited to this access matrix • Although all users in the personnel department can read all [personnel] documents, the personnel manager would expect to limit the readers of some documents, e.g. file for the Prez !

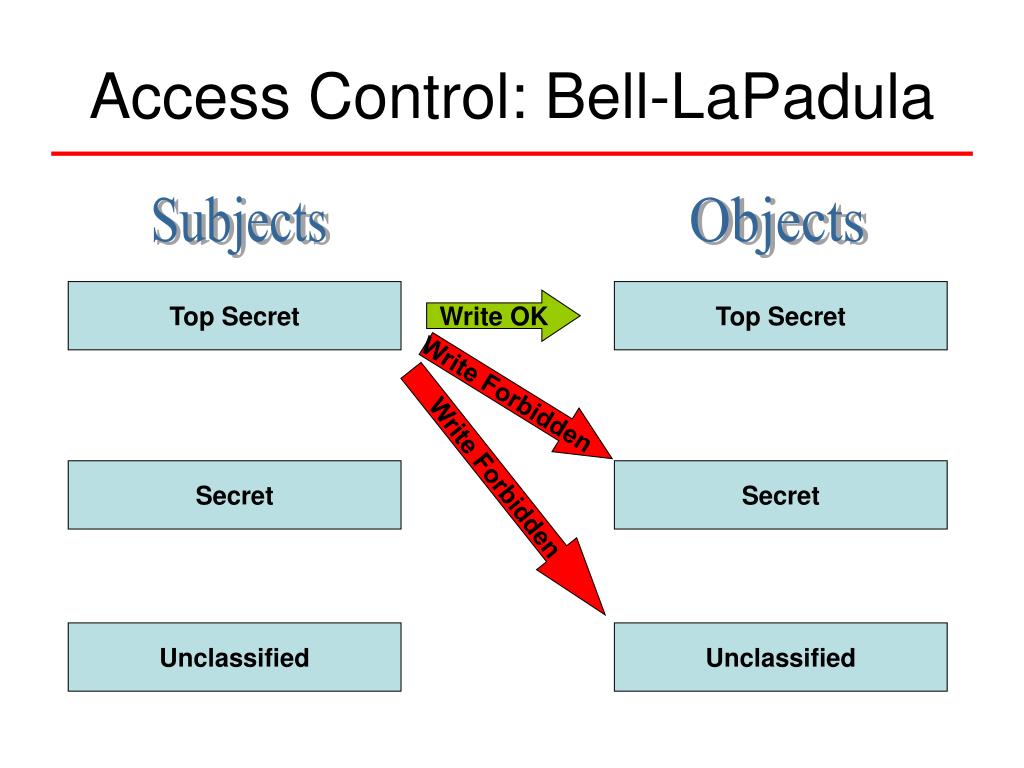

14. Access Control: Bell-LaPadula Subjects Objects Top Secret Top Secret Write OK Write Forbidden Secret Secret Write Forbidden Unclassified Unclassified

15. Access Control: Bell-LaPadula Subjects Objects Top Secret Top Secret Write OK Secret Secret Write OK Write Forbidden Unclassified Unclassified

16. Access Control: Bell-LaPadula Subjects Objects Top Secret Top Secret Secret Secret Write OK Write OK Unclassified Unclassified Write OK

17. Security Models - Biba • Based on the Cold War experiences, information integrityis also important, and the Biba model, complementary to Bell-LaPadula, is based on the flow of information where preserving integrity is critical. • The “dual” of Bell-LaPadula

18. Integrity Control: Biba • Designed to preserve integrity, not limit access • Three fundamental concepts: • Simple Integrity Property – no read down • Star Integrity Property (*) – no write up • No execute up

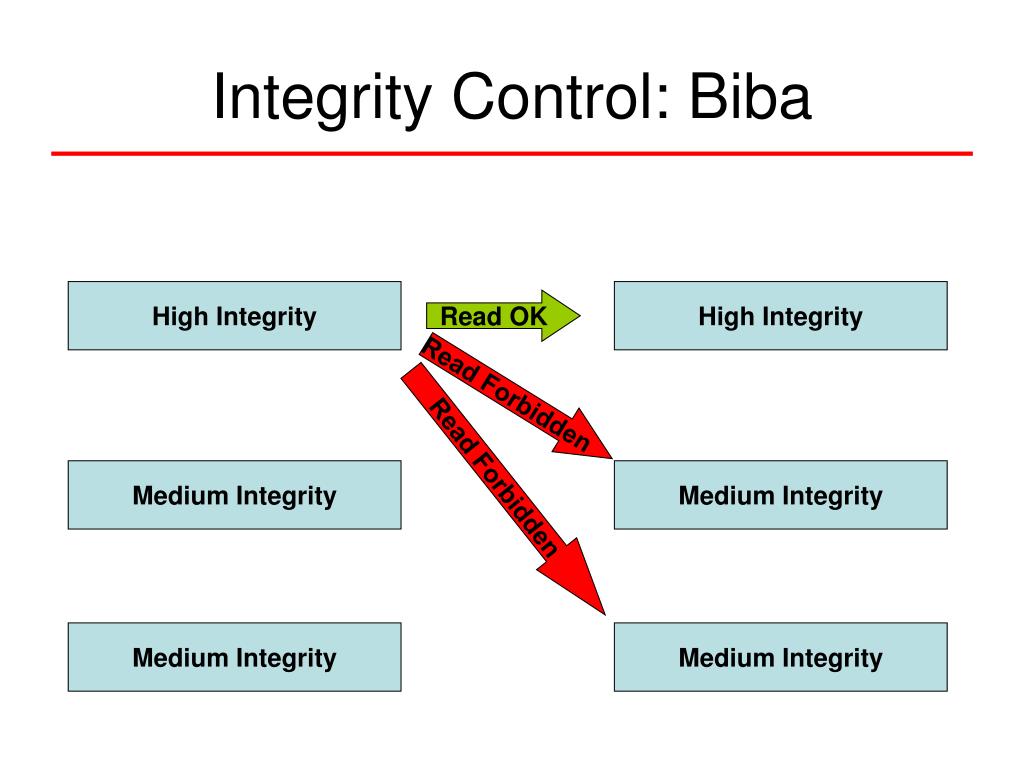

19. Integrity Control: Biba High Integrity High Integrity Read OK Read Forbidden Medium Integrity Medium Integrity Read Forbidden Medium Integrity Medium Integrity

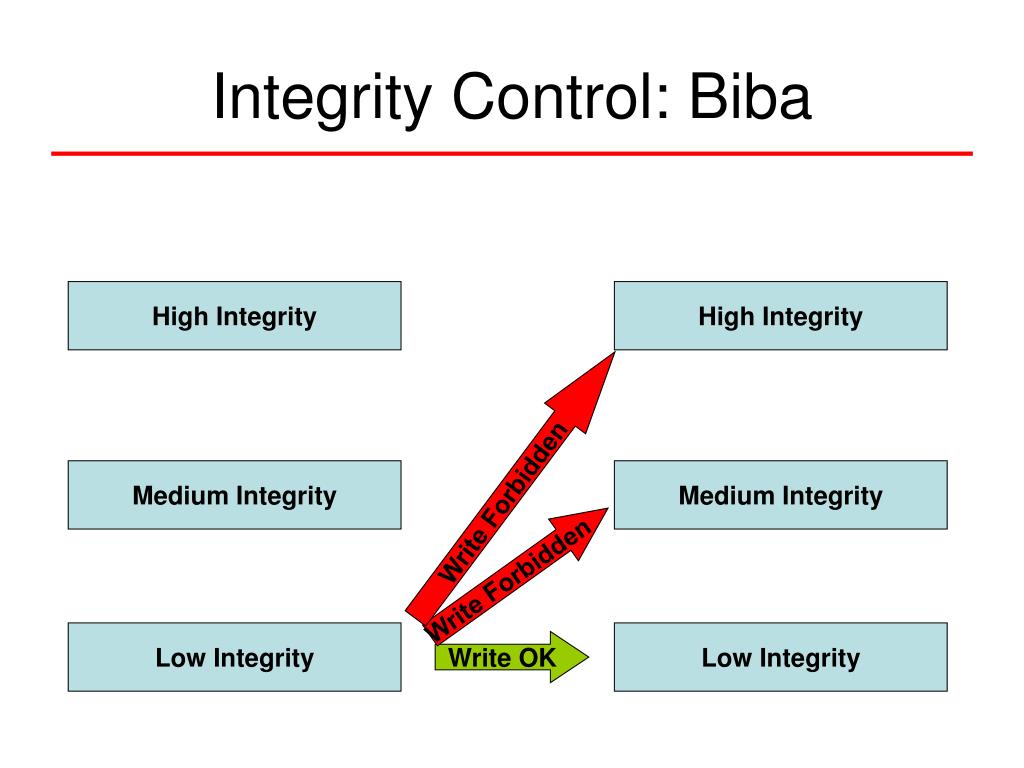

20. Integrity Control: Biba High Integrity High Integrity Write Forbidden Medium Integrity Medium Integrity Write Forbidden Low Integrity Low Integrity Write OK

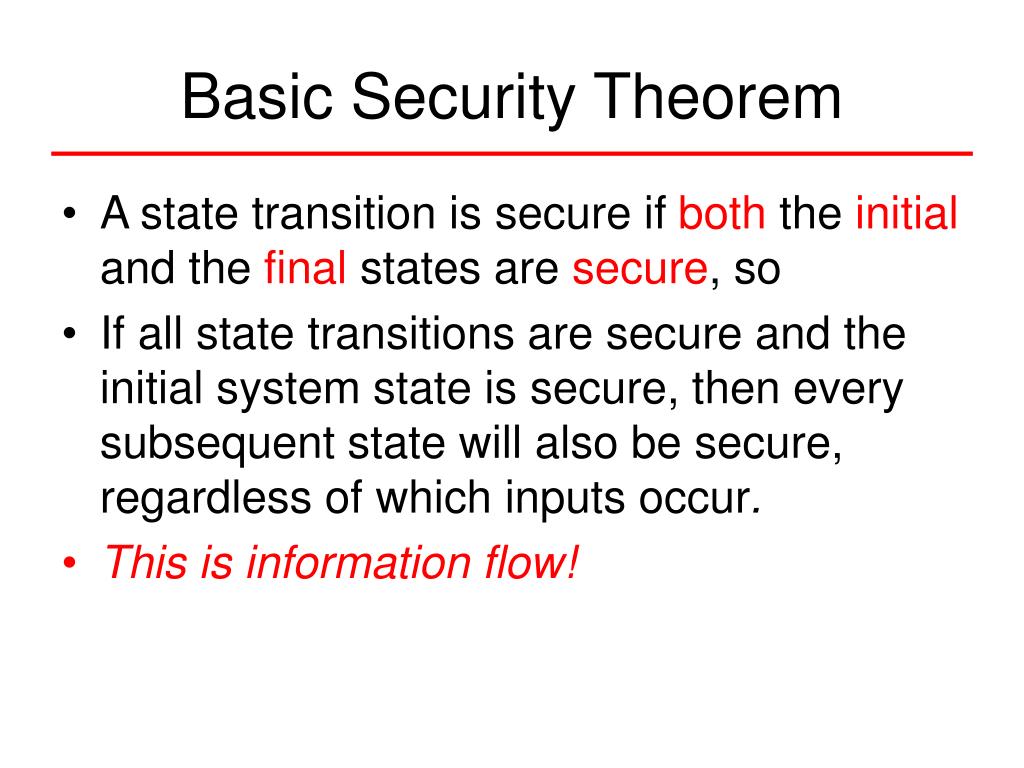

21. Basic Security Theorem • A state transition is secure if both the initial and the final states are secure, so • If all state transitions are secure and the initial system state is secure, then every subsequent state will also be secure, regardless of which inputs occur. • This is information flow!

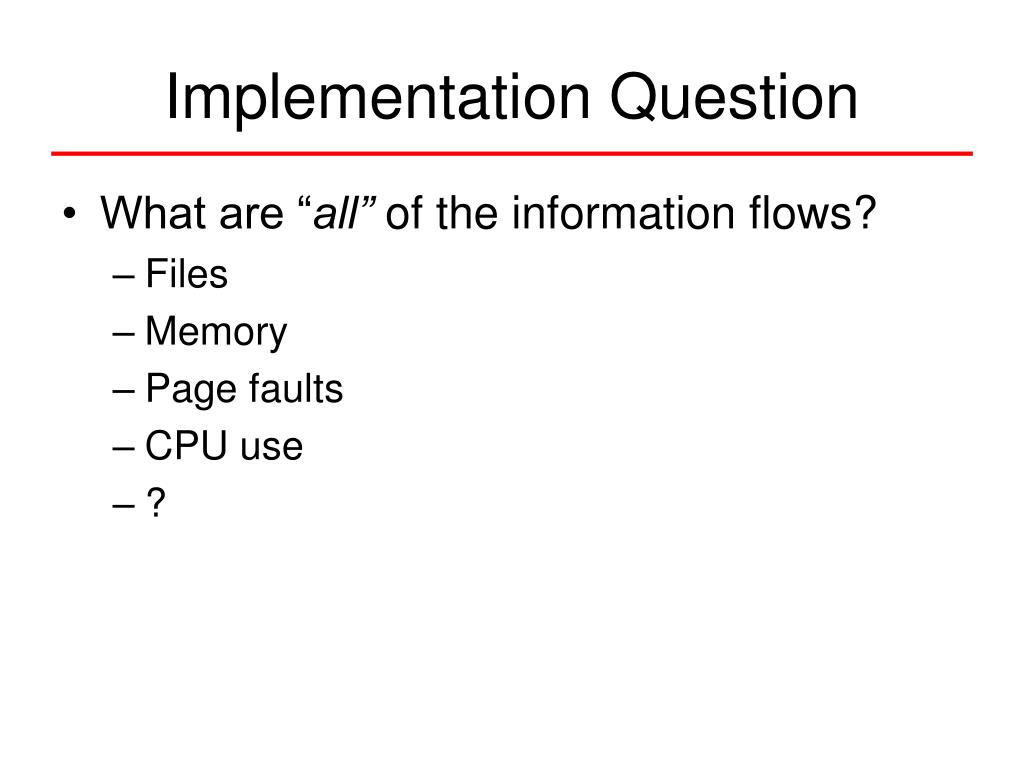

22. Implementation Question • What are “all” of the information flows? • Files • Memory • Page faults • CPU use • ?

23. Information Flow • Information Flow: transmission of information from one “place” to another. Absolute or probabilistic. • How does this relate to confidentiality policy? • Confidentiality: What subjects can see what objects. So, confidentiality specifies what is allowed. • Flow: Controls what subjects actually see. So, information flow describes how policy is enforced.

24. Information Flow • Next: How do we measure/capture flow? • Entropy-based analysis • Change in entropy  flow • Confinement • “Cells” where information does not leave • Language/compiler based mechanisms? • Guards

25. What is Entropy? • Idea: Entropy captures uncertainty • If there is complete uncertainty, is there an information flow?

26. Information Flow – Informal • What do we mean by information flow? • y = x; // what do we know before & after assignment? • y = x/z; • A command sequence c causes a flow of information from x to y if the value of y after the commands allows one to deduce information about the value of x before the commands executed. • tmp = x; • y = tmp; • Transitive

27. Information Flow – Informal • Consider a conditional statement • if x == 1 then y = 0 else y = 1 • what do we know before & after execution? • What about: if x == 1 then y = 0 • No explicit assignment to y in one case • This is called implicit information flow

28. Information Flow Models • Two categories of information flows • explicit – opn’s causing flow are independent of value of x, e.g. assignment operation, x=y • implicit - conditional assignment • (if x then y=z) • Components • Lattice of security levels (L, £) • Set of labeled objects • Security policy

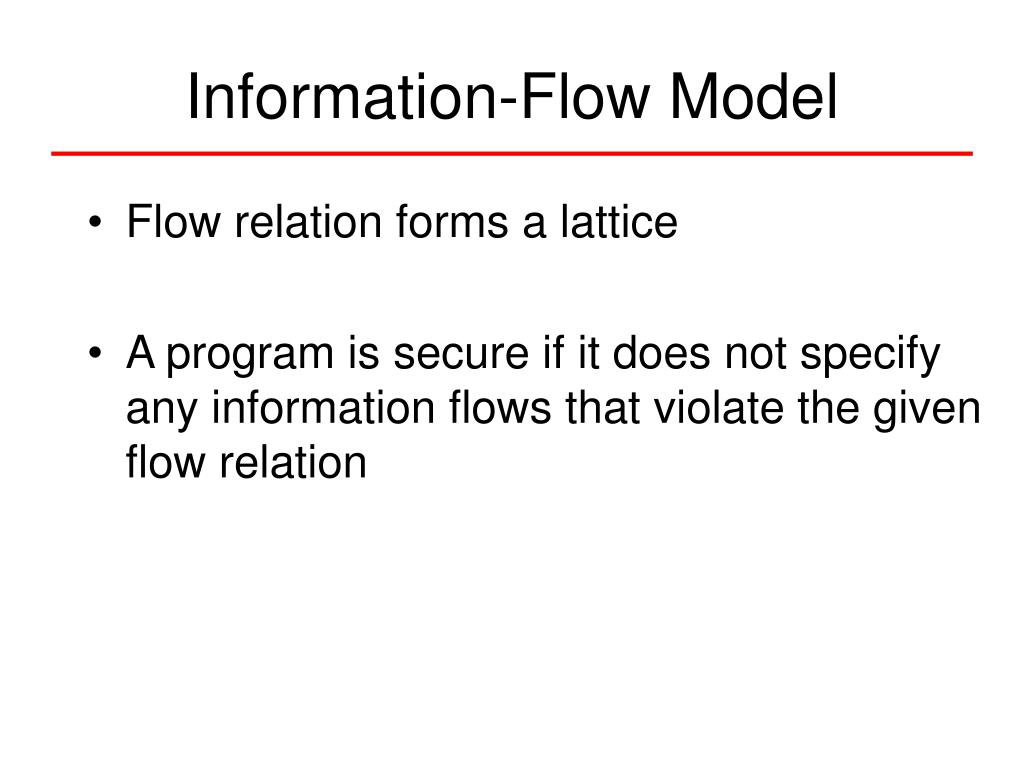

29. Information-Flow Model • Flow relation forms a lattice • A program is secure if it does not specify any information flows that violate the given flow relation

30. Security Levels • Linear • Top secret • Secret • Confidential • Unclassified • Lattice • Security level • Compartment

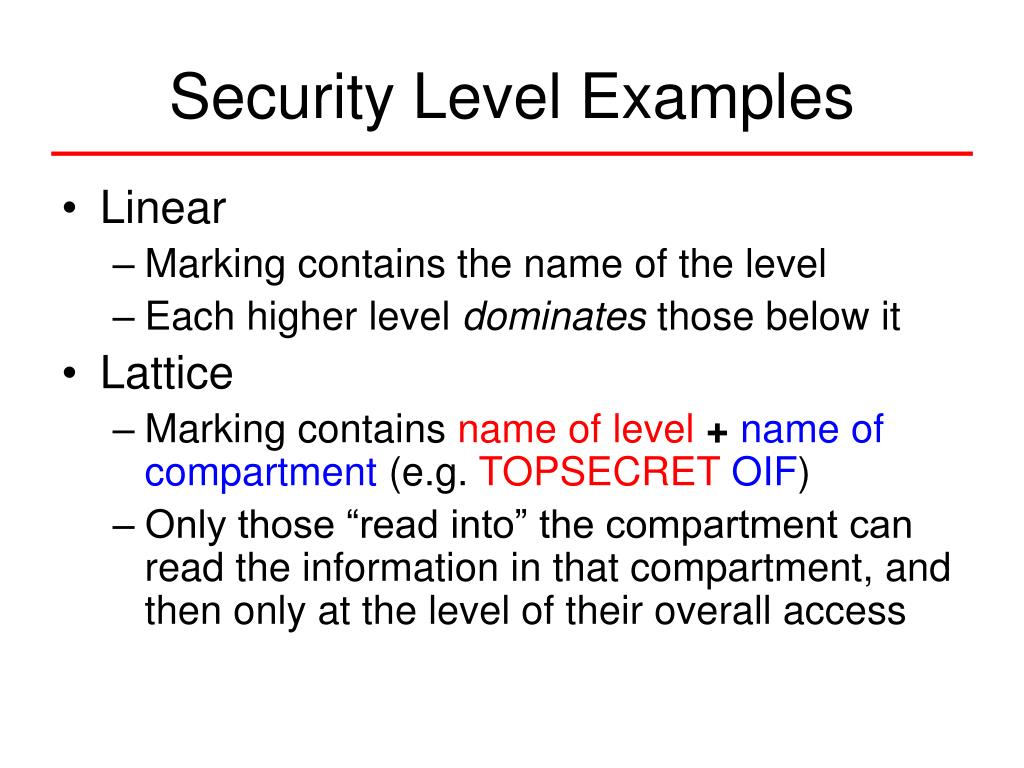

31. Security Level Examples • Linear • Marking contains the name of the level • Each higher level dominates those below it • Lattice • Marking contains name of level+name of compartment (e.g. TOPSECRETOIF) • Only those “read into” the compartment can read the information in that compartment, and then only at the level of their overall access

32. Who Can Read What? • In a linear system? • In a lattice system?

33. Universally bounded lattice • What is a universally bounded lattice? • “a structure consisting of a finite partially ordered set together with least upper and greatest lower bound operators on the set.” • So, what is a partially ordered set?

34. What’s a Partial Ordering? • Partial ordering £ on a set L is a relation where: • for all a  L, a£ a holds (reflexive) • for all a,b,c  L, if a £ b, b £ c, then a £ c (transitive) • for all a,b L, if a £ b, b £ a, then a = b (antisymmetric)

35. Universally Bounded Lattice • So, what are least upper and greatest lower bounds? • Suppose <= is the dominates relation. C is an upper bound of A and B if A <= C and B <= C. C is a least upper bound of A and B if for any upper bound D of A and B, C <= D. Lower bounds and greatest lower bounds work the same way. • See next example using Bell-LaPadula Model

36. B-LP Security Level Lattice • S is the set of all security levels • Suppose the classifications are T, S, U • Suppose the categories are NATO and SIOP. Then the possible category sets are • {}, {NATO}, {SIOP}, {NATO, SIOP} • Then S = [ (T, {}), (T,{NATO}), (T,{SIOP}), (T,{NATO,SIOP}), (S, {}), (S,{NATO}), (S,{SIOP}), (S,{NATO,SIOP}), (U, {}) ]. • R dominates, as described for B-LP • Convince yourself that the dominates relation is reflexive, antisymmetric and transitive.

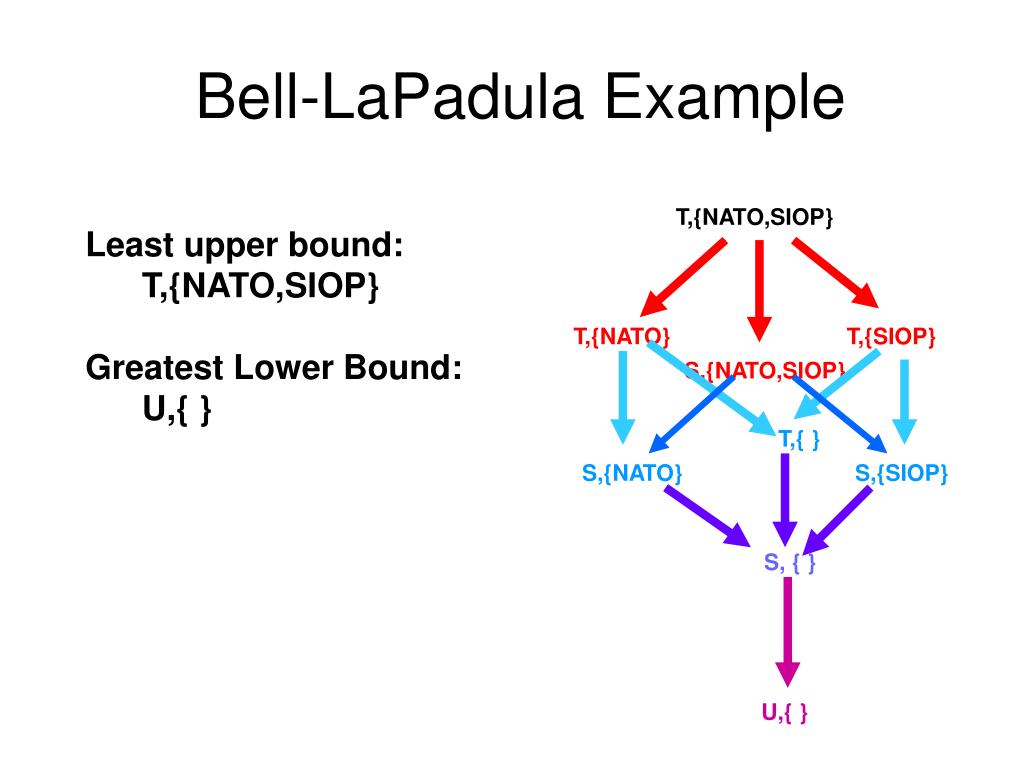

37. T,{NATO} T,{SIOP} S,{NATO,SIOP} T,{ } S,{NATO} Bell-LaPadula Example T,{NATO,SIOP} Least upper bound: T,{NATO,SIOP} Greatest Lower Bound: U,{ } S,{SIOP} S, { } U,{ }

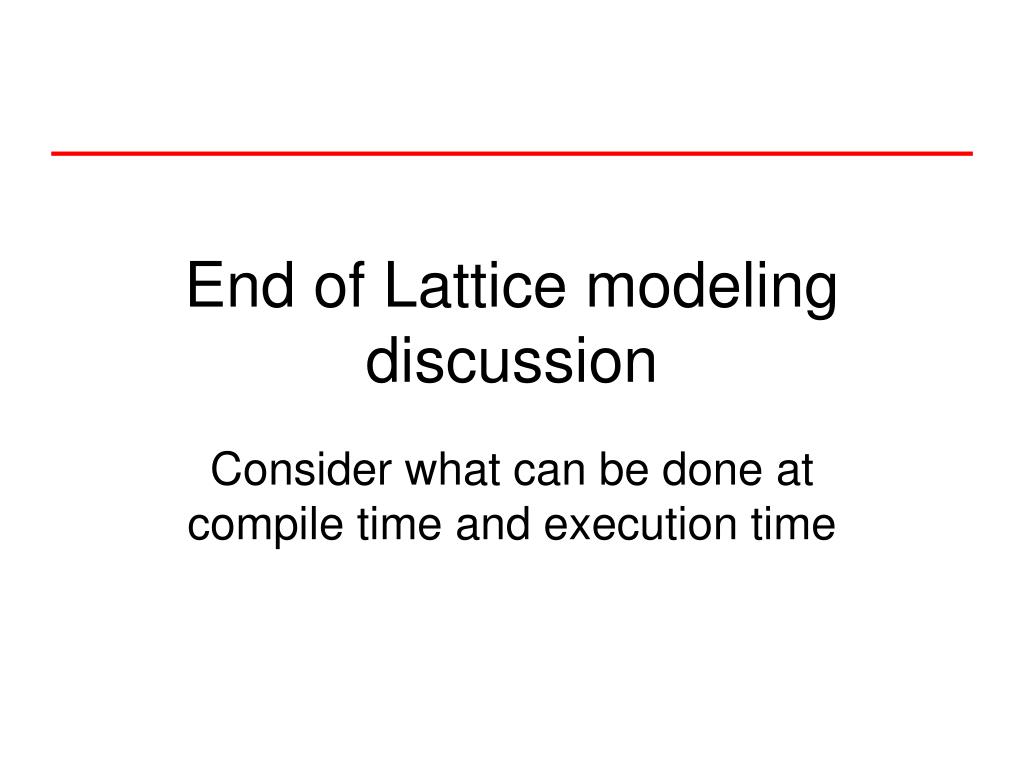

38. End of Lattice modeling discussion Consider what can be done at compile time and execution time

39. Recognizing Information Flows • Compiler-based • Verifies that information flows throughout a program are authorized. Determines if a program could violate a flow policy. • Execution-based • Prevents information flows that violate policy. • Both analyze code • Execution-based typically requires tracking the security level of the PC as the program executes.

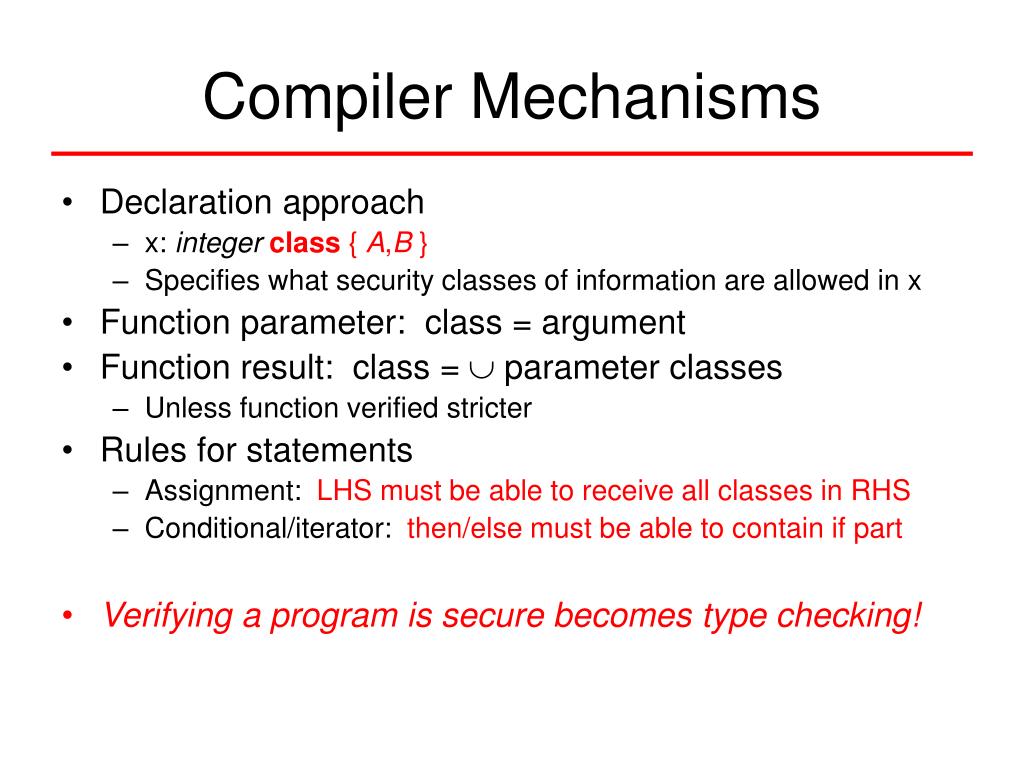

40. Compiler Mechanisms • Declaration approach • x: integerclass { A,B } • Specifies what security classes of information are allowed in x • Function parameter: class = argument • Function result: class =  parameter classes • Unless function verified stricter • Rules for statements • Assignment: LHS must be able to receive all classes in RHS • Conditional/iterator: then/else must be able to contain if part • Verifying a program is secure becomes type checking!

41. Examples • Assignments: • x = w+y+z; • lub{w,y,z} £ x • Compound Statements: begin x = y+z; a = b+c –x end lub{y,z} £ x and lub{b,c,x} £ a

42. Compiler-Based Mechanisms int sum (int x class{x}) { int out class{x, out}; out = out + x; } What is required for this to be a secure flow? x£out and out£ out

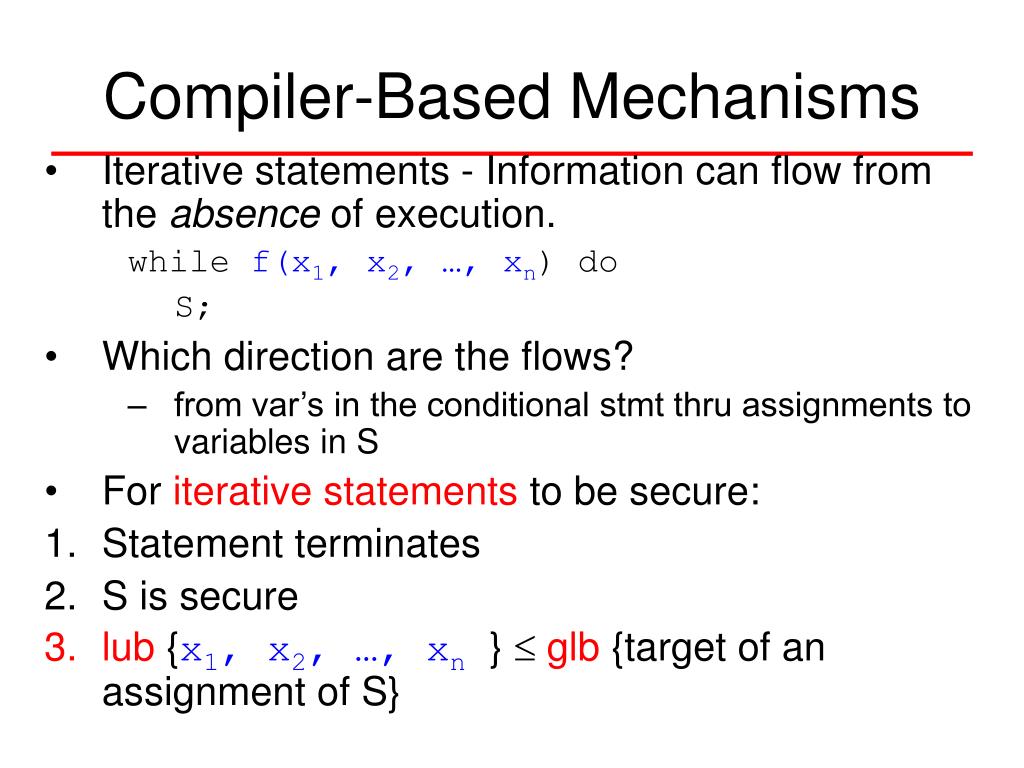

43. Compiler-Based Mechanisms • Iterative statements - Information can flow from the absence of execution. while f(x1, x2, …, xn) do S; • Which direction are the flows? • from var’s in the conditional stmt thru assignments to variables in S • For iterative statements to be secure: • Statement terminates • S is secure • lub {x1, x2, …, xn} £glb {target of an assignment of S}

44. Execution Mechanisms • Problem with compiler-based mechanisms • May be too strict • Valid executions not allowed • Solution: run-time checking • Difficulty: implicit flows • if x=1 then y:=0; • When x:=2, does information flow to y? • Solution: Data mark machine • Tag variables • Tag Program Counter • Any branching statement affects PC security level • Affect ends when “non-branched” execution resumes

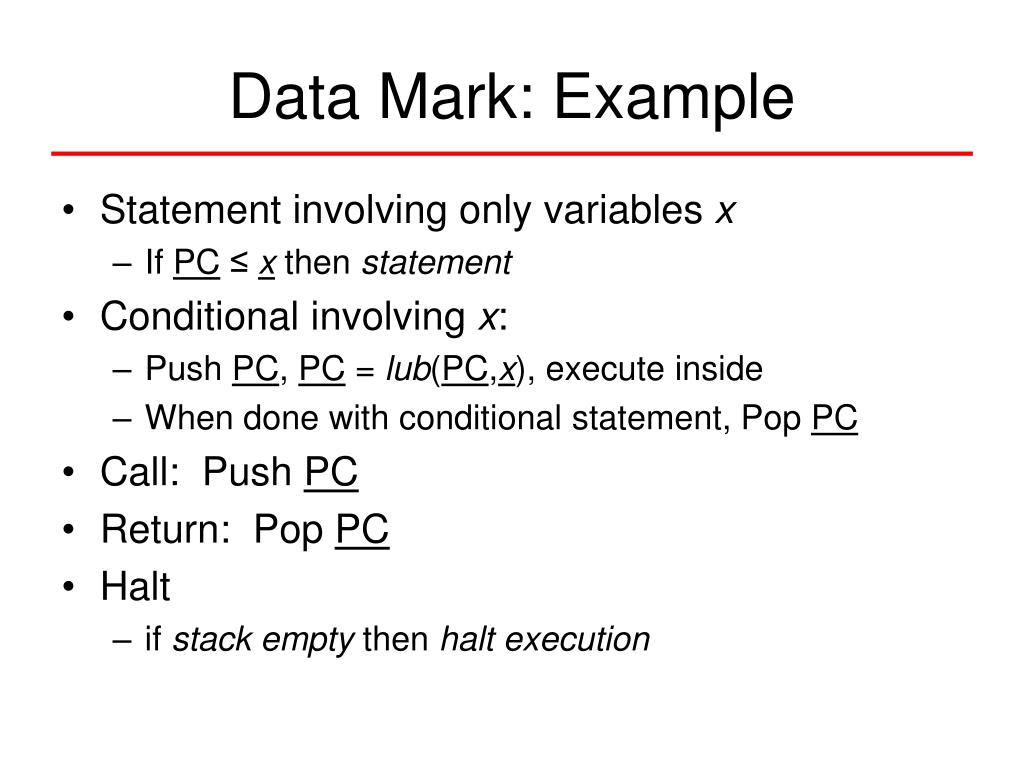

45. Data Mark: Example • Statement involving only variables x • If PC≤ x then statement • Conditional involving x: • Push PC, PC = lub(PC,x), execute inside • When done with conditional statement, Pop PC • Call: Push PC • Return: Pop PC • Halt • if stack empty then halt execution

46. Covert Channels • Covert channels are found in everyday life • Name some!

47. Covert Channels • A path of communication that was not designed to be used for communication • An information flow that is not controlled by a security mechanism • Can occur by allowing low-level subjects to see names, results of comparisons, etc. of high-level objects • Difficult to find, difficult to control, critical to success

48. Covert Channels • Program that leaks confidential information intentionally via secret channels. • Not that hard to leak a small amount of data • A 64 bit shared key is quite small! • Example channels • Adjust the formatting of output: use the “\t” character for “1” and 8 spaces for “0” • Vary timing behavior based on key

49. Definition of convert channel • Definition 1 : A communication channel is covert if it is neither designed nor intended to transfer information at all • Definition 2 : A communication channel is covert if it is based on transmission by storage into variables thatdescribe resource states • Definition 3 : Those channels that are a result of resource allocation policies and resource management implementation • Definition 4 : Those that use entitiesnot normally viewed as data objects to transfer information from one subject to another • Definition 5 : Given a non-discretionary security policy model M and its interpretation I(M) in an operating system, any potential communication between two subjects I(S1) and I(S2) of I(M) is covert if and only if any communication between the corresponding subjects S1 and S2 of the model M is illegal in M.

50. Covert Channels Result From • Transfer unauthorized information • Do not violate access control and other security mechanisms • Available almost anytime • Result from following conditions • Design oversight during system or network implementation • Incorrect implementation or operation of the access control mechanism • Existence of a shared resource between the sender and the receiver • The ability to implant and hide a Trojan horse Legitimate information flow Unauthorized information flow Sender Receiver information encoding information decoding
