Run Time Type Identification (RTTI)

Run Time Type Identification (RTTI) • Always exists in OOP: a prerequisite for dynamic binding • Accessible to programmer? (this is what one usually means by RTTI) • Not necessarily in static type systems • Almost everything can be done without it! • Almost always in dynamic type systems • Without it, it is impossible to be sure that an object will recognize a message!

class typeinfo {public:virtual ~typeinfo(void);booloperator==(const typeinfo&) const;booloperator!=(const typeinfo&) const; bool before(const typeinfo&) const; const char *name(void) const;private: typeinfo(const typeinfo&); typeinfo& operator= (const typeinfo&); //.. Implementation dependent fields}; class Base { ...}; void f(Base *p){const typeinfo& a = typeid(p); // Type information for Base *const typeinfo& a = typeid(*p); // Actual run time type of *p} No RTTI in early versions of the language.

RTTI Example #include <iostream.h> #include <typeinfo.h> class Base { public: Base():hide(0){} void mutate(int i){ hide = i;} virtual void print()const {cout << "hide in Base = " << hide << endl;} private: int hide; }; class One: public Base { public: One():Base(),data(0) {} void mutate(int i){ data = i;} void print()const {cout << "data in One = "<< data << endl;} void newfunc() {cout << "Hi\n";} private: int data; };

RTTI Example int main () { Base* bptr; One* derived; One o1; bptr = &o1; derived = dynamic_cast<One*>(bptr); derived->print();derived->newfunc(); cout << typeid(bptr).name() << endl << typeid(*bptr).name() << endl; if (typeid(*bptr) == typeid(One)) cout << "type bprt & derived same" << endl; cout << typeid(bptr).name(); cout << " before " << typeid(o1).name() << ": " << (typeid(bptr).before(typeid(o1)) ? true : false) << endl; }

More about casting operators class Car { }; class SpecialCar : public Car { }; void fun (SpecialCar *psc); main() { const SpecialCar sc; update (&sc) ; // error update (const_cast<SpecialCar*>(&sc)) ; // fine! - C style : (SpecialCar*)&sc Car *pc = new SpecialCar; update(const_cast<SpecialCar*>(pc)); // error ! This not the const_cast purpose ! update(dynamic_cast<SpecialCar*>(pc)); // OK if pc is really points // to this one

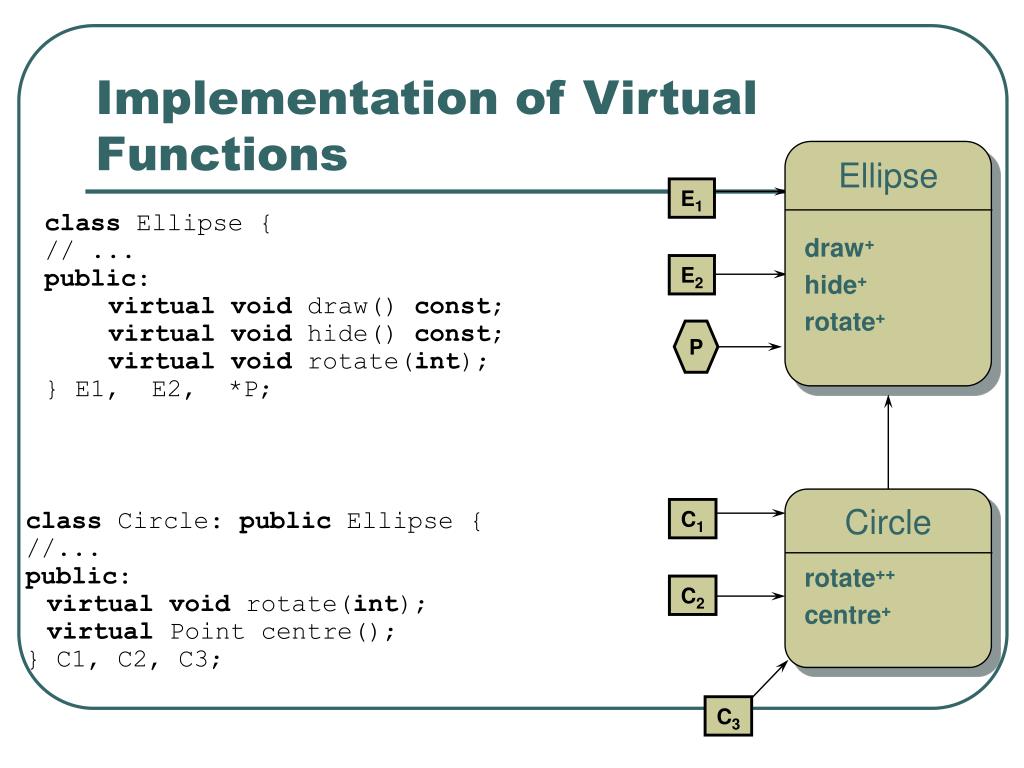

Ellipse draw+ hide+ rotate+ Circle rotate++ centre+ Implementation of Virtual Functions E1 • class Ellipse { • // ... • public: • virtualvoid draw() const; • virtualvoid hide() const; • virtualvoid rotate(int); • } E1, E2, *P; E2 P • class Circle: public Ellipse { • //... • public: • virtual void rotate(int); • virtual Point centre(); • } C1, C2, C3; C1 C2 C3

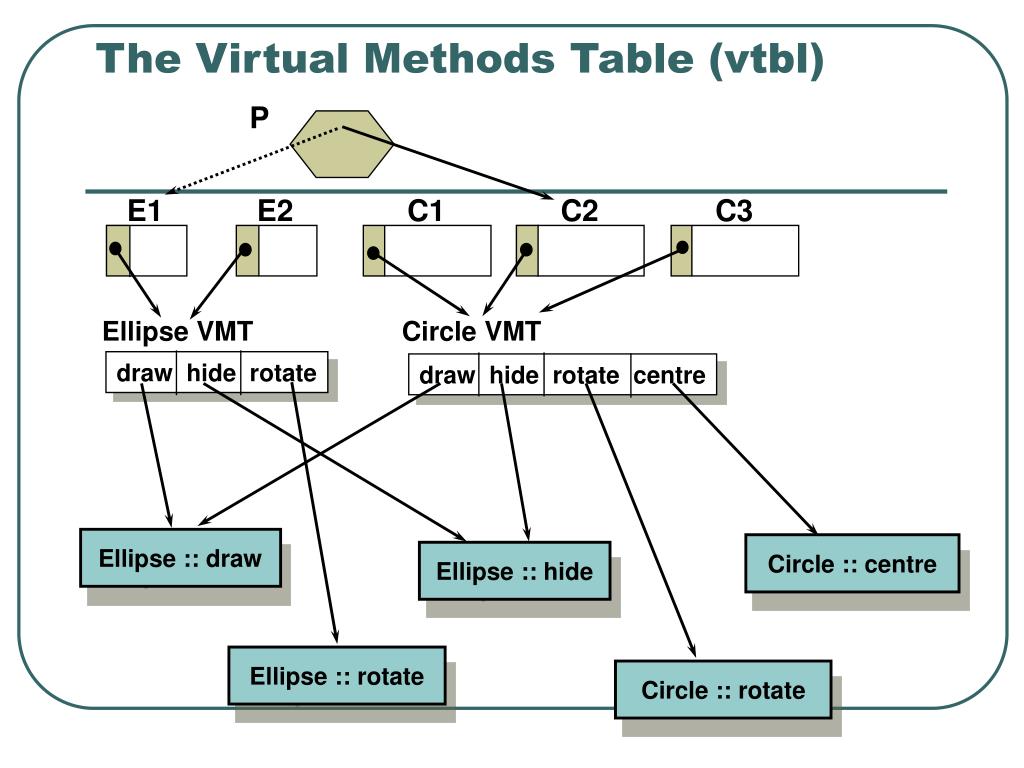

E1 E2 C1 C2 C3 Ellipse VMT Circle VMT draw hide rotate draw hide rotate centre The Virtual Methods Table (vtbl) P Ellipse :: draw Circle :: centre Ellipse :: hide Ellipse :: rotate Circle :: rotate

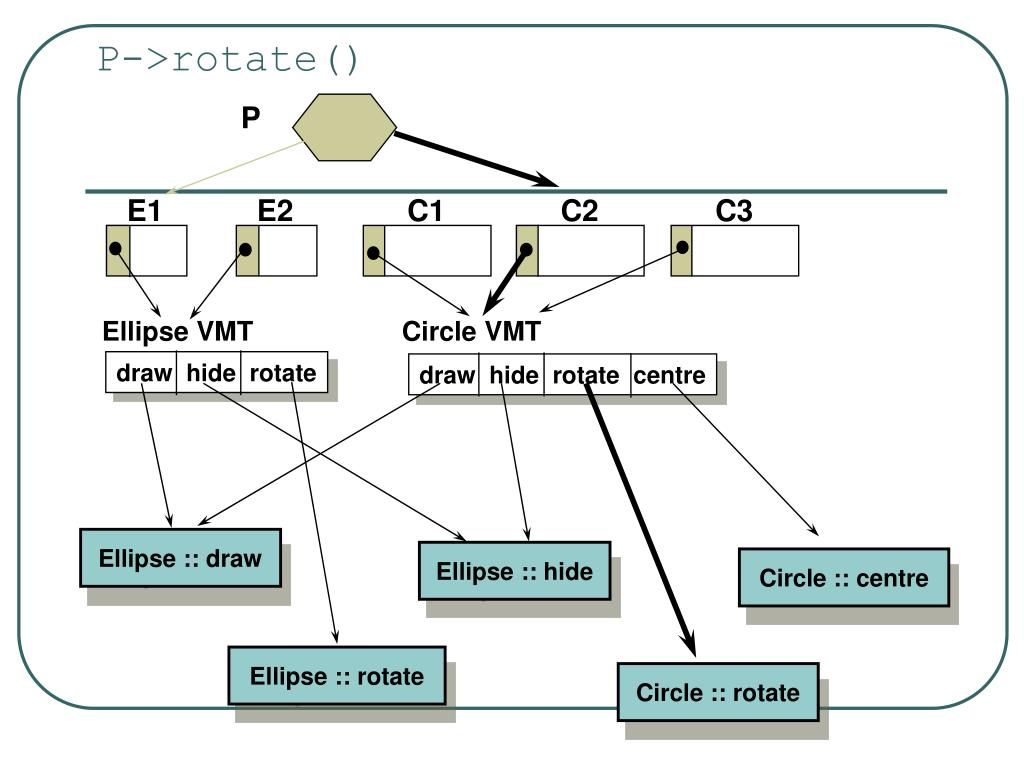

E1 E2 C1 C2 C3 Ellipse VMT Circle VMT draw hide rotate draw hide rotate centre P->rotate() P Ellipse :: draw Ellipse :: hide Circle :: centre Ellipse :: rotate Circle :: rotate

Object Oriented ProgramminginC++ Chapter 8 Templates

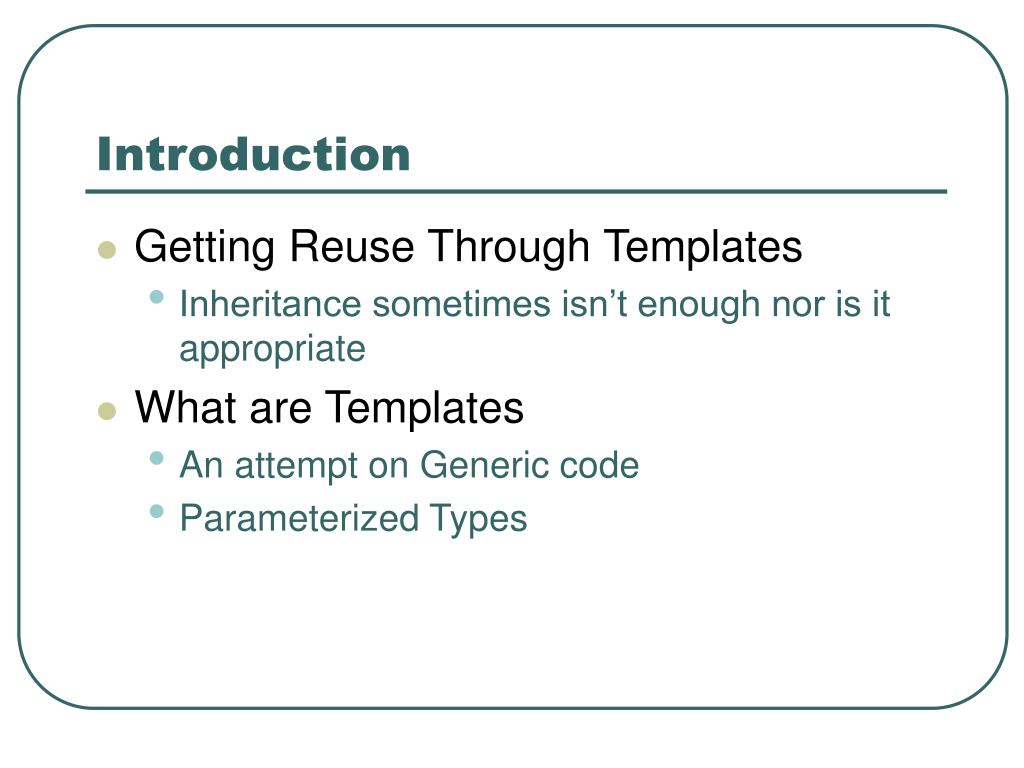

Introduction • Getting Reuse Through Templates • Inheritance sometimes isn’t enough nor is it appropriate • What are Templates • An attempt on Generic code • Parameterized Types

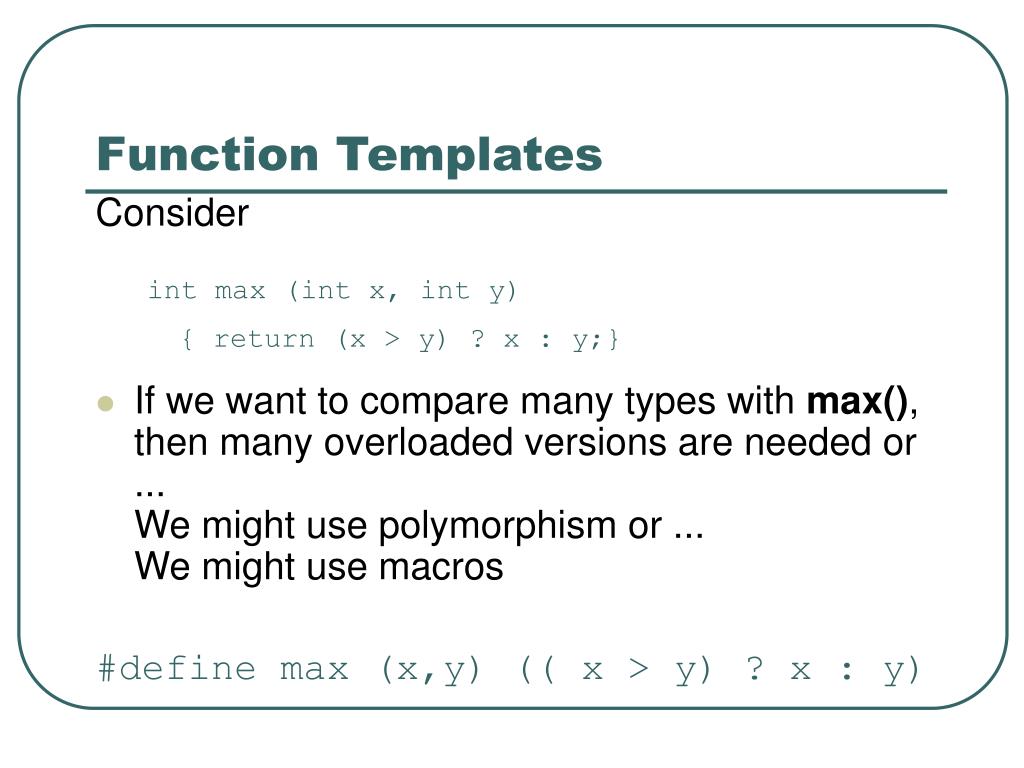

Function Templates Consider int max (int x, int y) { return (x > y) ? x : y;} • If we want to compare many types with max(), then many overloaded versions are needed or ...We might use polymorphism or ...We might use macros #define max (x,y) (( x > y) ? x : y)

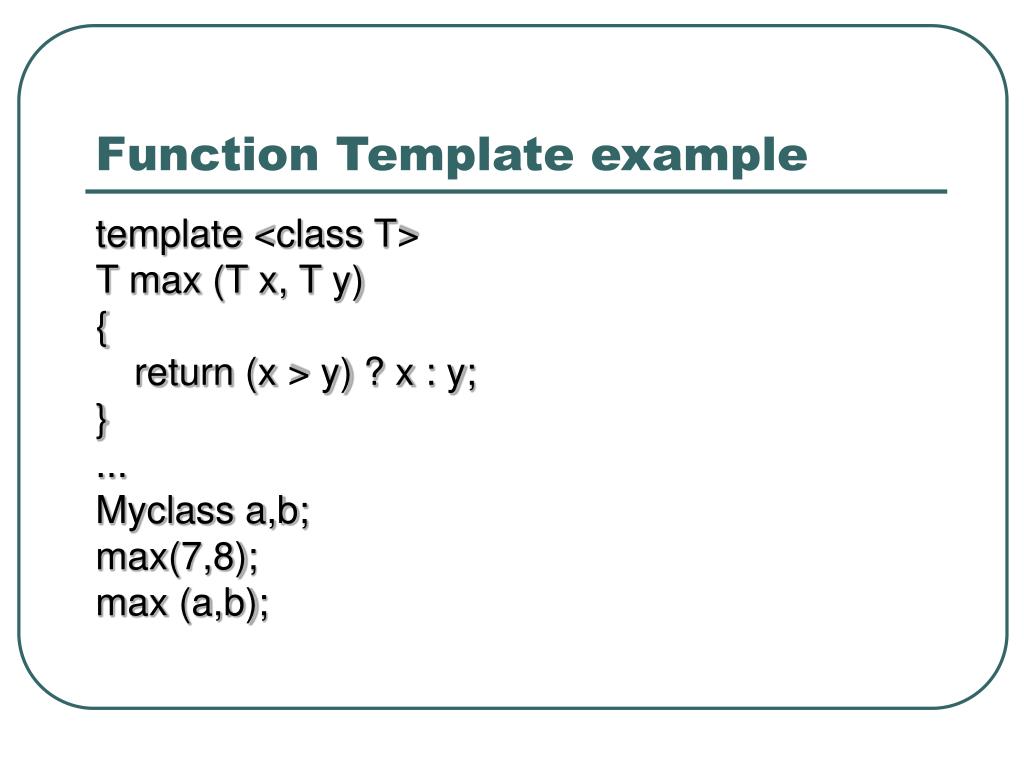

Function Template example template <class T> T max (T x, T y) { return (x > y) ? x : y; } ... Myclass a,b; max(7,8); max (a,b);

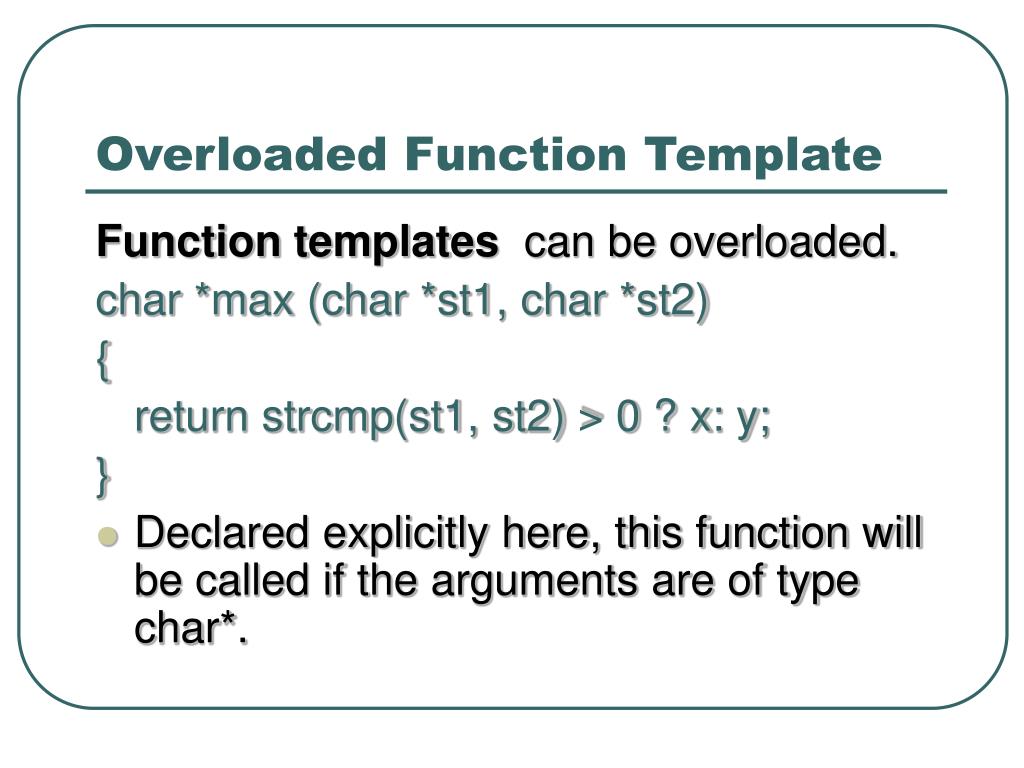

Overloaded Function Template Function templates can be overloaded. char *max (char *st1, char *st2) { return strcmp(st1, st2) > 0 ? x: y; } • Declared explicitly here, this function will be called if the arguments are of type char*.

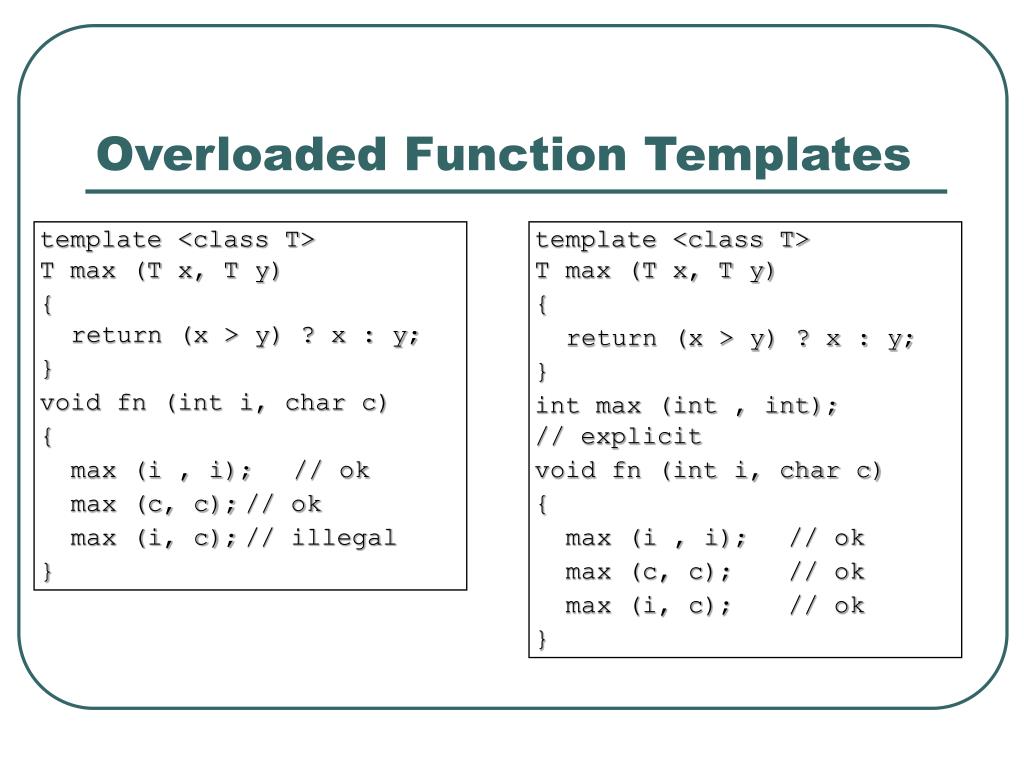

Overloaded Function Templates template <class T> T max (T x, T y) { return (x > y) ? x : y; } int max (int , int); // explicit void fn (int i, char c) { max (i , i); // ok max (c, c); // ok max (i, c); // ok } template <class T> T max (T x, T y) { return (x > y) ? x : y; } void fn (int i, char c) { max (i , i); // ok max (c, c); // ok max (i, c); // illegal }

Another example template <class T> T max( T a[], int size) { int index = 0; for(int i=1; i<size; ++i) if( a[i] > a[index] ) index = i; return a[index]; }

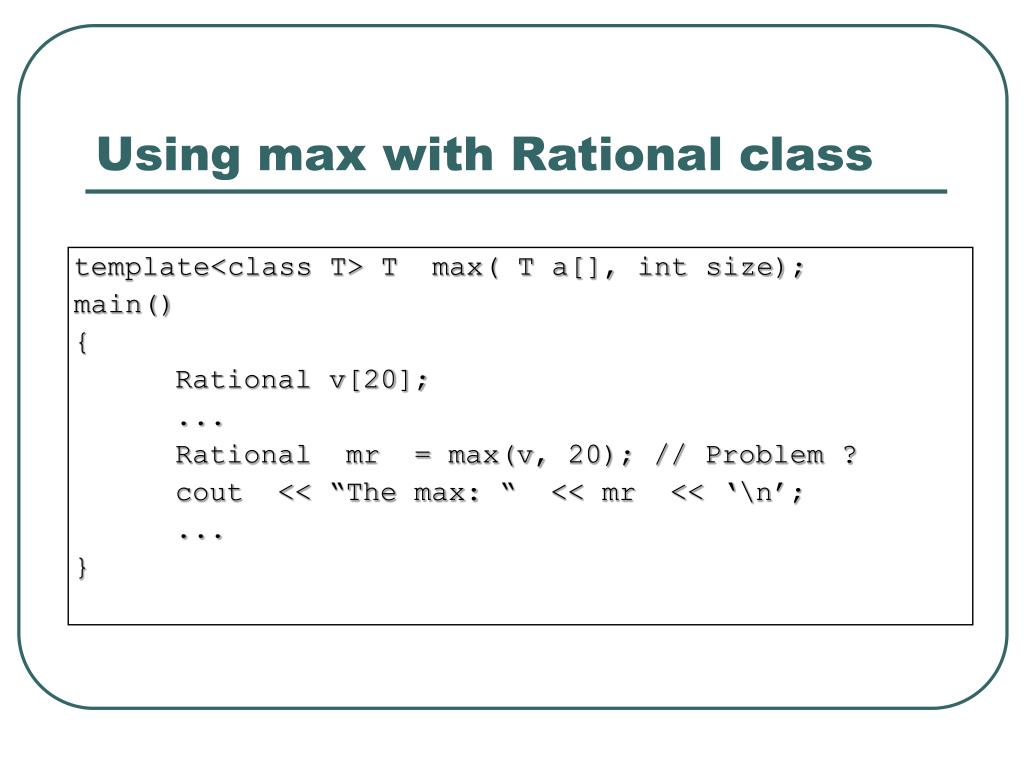

Using max with Rational class template<class T> T max( T a[], int size); main() { Rational v[20]; ... Rational mr = max(v, 20); // Problem ? cout << “The max: “ << mr << ‘\n’; ... }

Pre conditions bool Rational :: operator>(const Rational& r) { if (num*r.den > r.num*den) return true; else return false; } ostream& operator<<(ostream& os, const Rational& r) { os << r.num << ‘/’ << r.den; return os ; } (declared as a friend function in class rational)

Template Classes • Many classes are relatively insensitive to the data type of their members • Container classes carry out similar operations to • add • remove • find • The operations are the same whatever the type of the data members

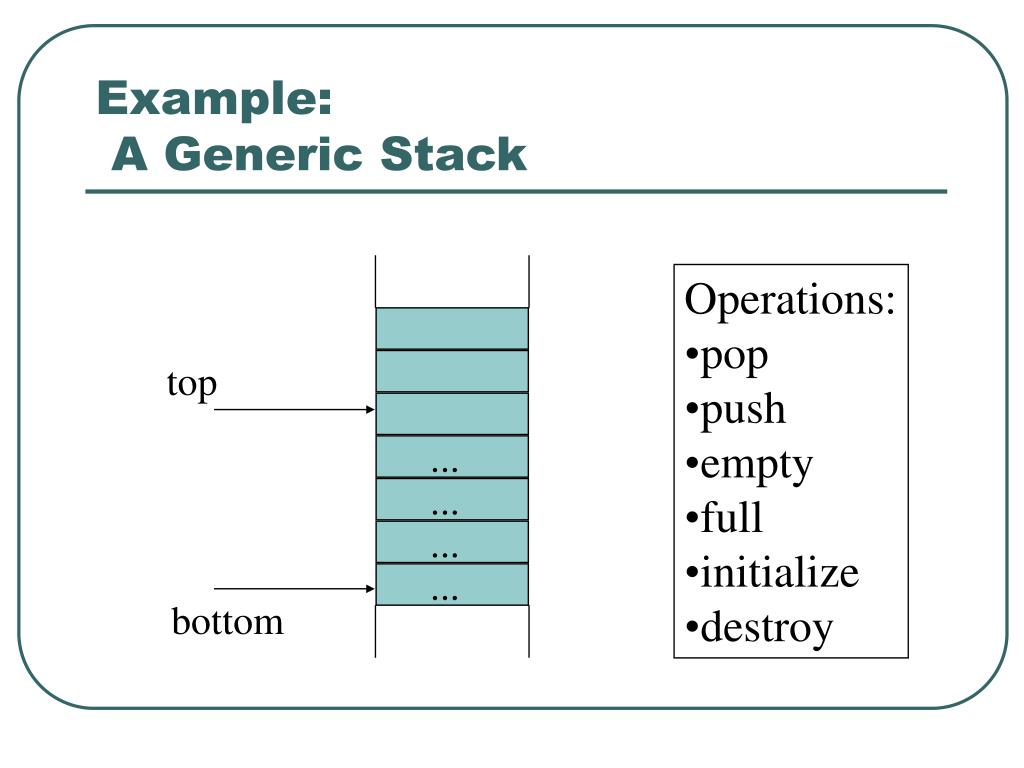

top ... ... ... ... bottom Example: A Generic Stack • Operations: • pop • push • empty • full • initialize • destroy

A Stack of Integers class Stack { int* top, bottom; int size; public: Stack(int); bool push(int); bool pop(int&); bool empty(); bool full(); ~Stack(); };

A Class Template template <class T> class Stack { T *top, *bottom; int size; public: Stack(int); bool push(const T&); bool pop(T&); bool empty(); bool full(); ~Stack(): };

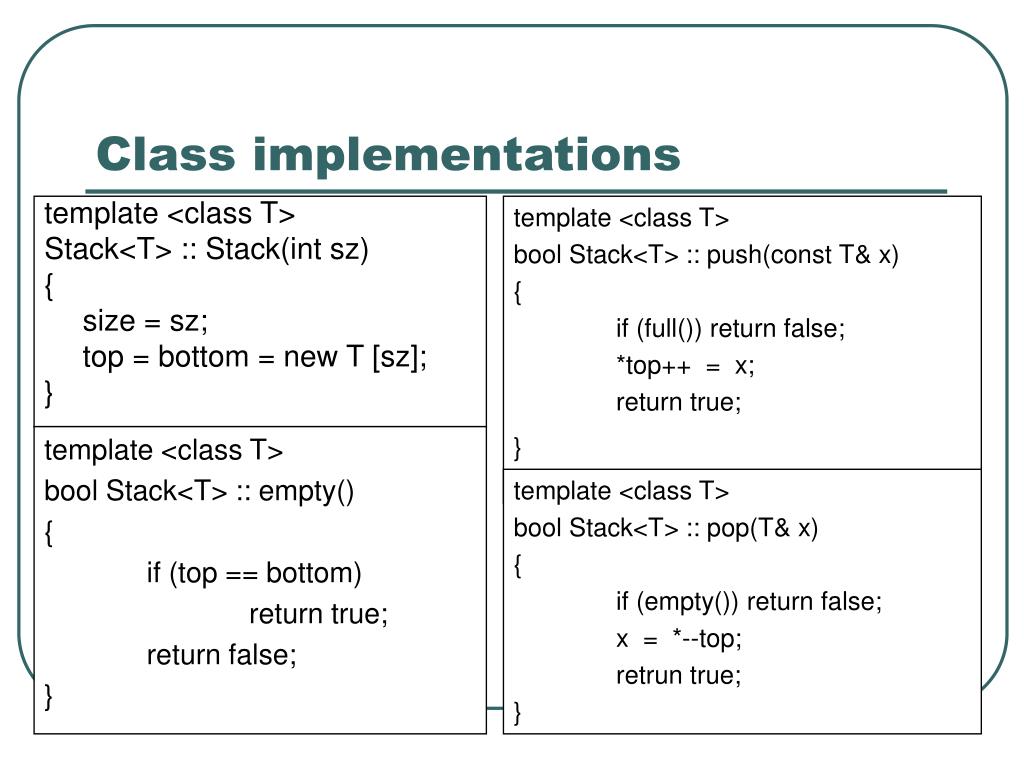

Class implementations template <class T> bool Stack<T> :: push(const T& x) { if (full()) return false; *top++ = x; return true; } template <class T> Stack<T> :: Stack(int sz) { size = sz; top = bottom = new T [sz]; } template <class T> bool Stack<T> :: empty() { if (top == bottom) return true; return false; } template <class T> bool Stack<T> :: pop(T& x) { if (empty()) return false; x = *--top; retrun true; }

Cont. template <class T> Stack<T> :: ~Stack() { delete [] bottom; } template <class T> bool Stack<T> :: full() { if (top-bottom >= size) return true; return false; }

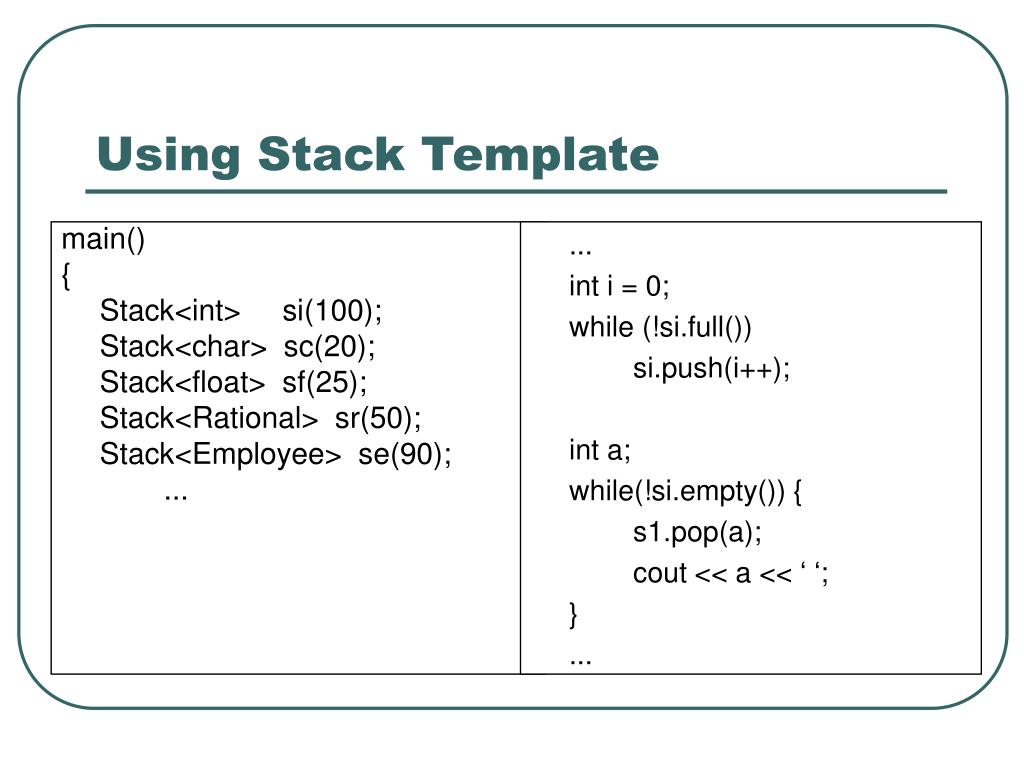

Using Stack Template main() { Stack<int> si(100); Stack<char> sc(20); Stack<float> sf(25); Stack<Rational> sr(50); Stack<Employee> se(90); ... ... int i = 0; while (!si.full()) si.push(i++); int a; while(!si.empty()) { s1.pop(a); cout << a << ‘ ‘; } ...
