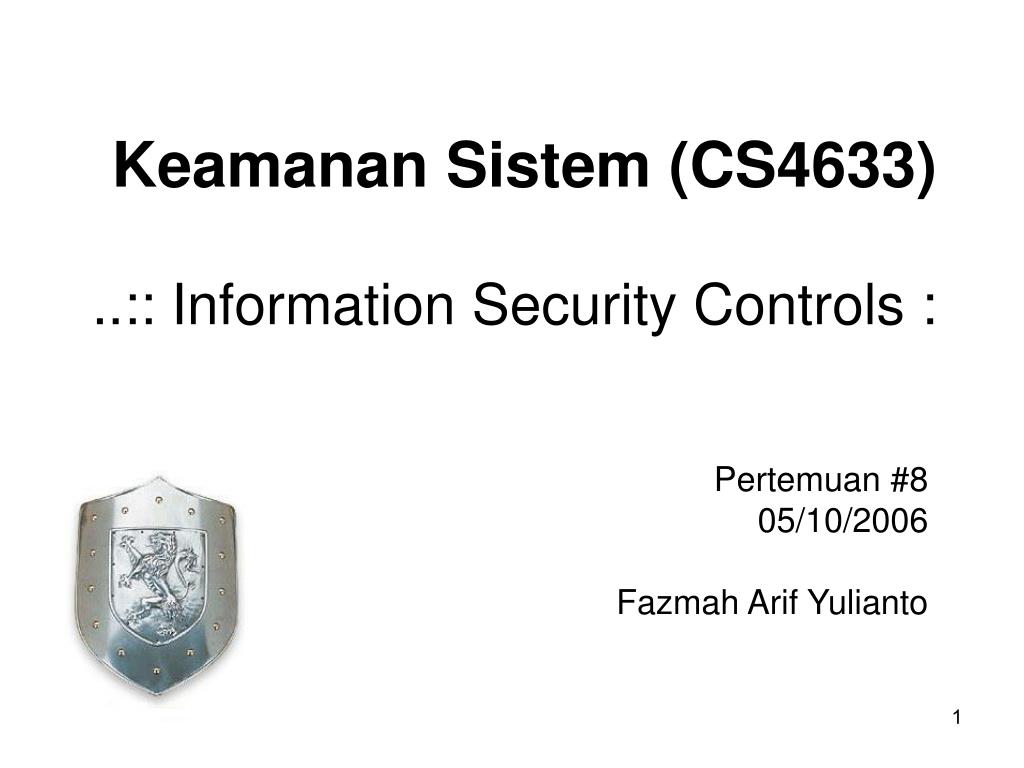

Keamanan Sistem (CS4633)..:: Information Security Controls : Pertemuan #8 05/10/2006 Fazmah Arif Yulianto
Types of Inf_Sec Controls • Physical • Technical (logical) • Administrative (personnel) • Preventive • Detective • Deterrent • Corrective • Recovery
Terminologies • Preventive controls attempt to avoid the occurrence of unwanted events • Detective controls attempt to identify unwanted events after they have occurred • Deterrent controls are intended to discourage individuals from intentionally violating information security policies or procedures • Corrective controls either remedy the circumstances that allowed the unauthorized activity or return conditions to what they were before the violation • Recovery controls restore lost computing resources or capabilities and help the organization recover monetary losses caused by a security violation
Physical Controls: Preventive • To prevent unauthorized personnel from entering computing facilities (i.e., locations housing computing resources, supporting utilities, computer hard copy, and input data media) and to help protect against natural disasters. • Examples of these controls include: • Backup files and documentation, backup power • Fences, Security guards, Badge systems. • Double door systems, Locks and keys, Biometric access controls. • Site selection. • Fire extinguishers etc.
Physical Controls: Detective • Warn protective services personnel that physical security measures are being violated. • Examples of these controls include: • Motion detectors. • Smoke and fire detectors. • Closed-circuit television monitors. • Sensors and alarms etc.
Some types of Physical Security • Barriers: walls, fences, doors, gates etc. • Q: Who or what is the barrier intended to stop, and for how long? • Locks: day access locks, after-hours locks, emergency egress locks • Mechanical / electrical • door control system = authentication + door locking devices • Lock vs lockpicking • Alarms: primarily for letting us know if control is functioning properly — that is, has it been breached? • Q: who and what is it supposed to detect, and what is the intended response?
Physical Security (cont’d) • Lights and cameras: best suited for assessing a situation — a tool to extend the eyes (and sometimes ears) of the guard force. • A common misuse of cameras is assuming that they will detect an intruder • Antitheft, Antitamper, and Inventory Controls • Antitamper devices control access to ensure the integrity of the protected asset • Antitheft devices and inventory controls are intended to limit movement to a confined area • …

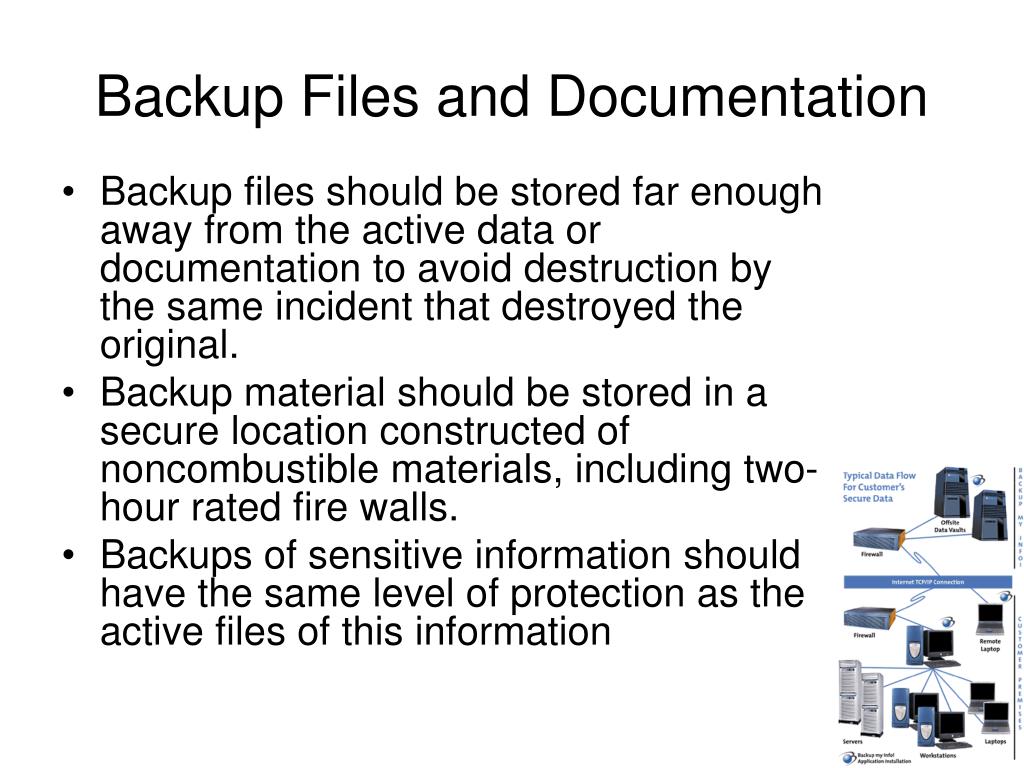

Backup Files and Documentation • Backup files should be stored far enough away from the active data or documentation to avoid destruction by the same incident that destroyed the original. • Backup material should be stored in a secure location constructed of noncombustible materials, including two-hour rated fire walls. • Backups of sensitive information should have the same level of protection as the active files of this information

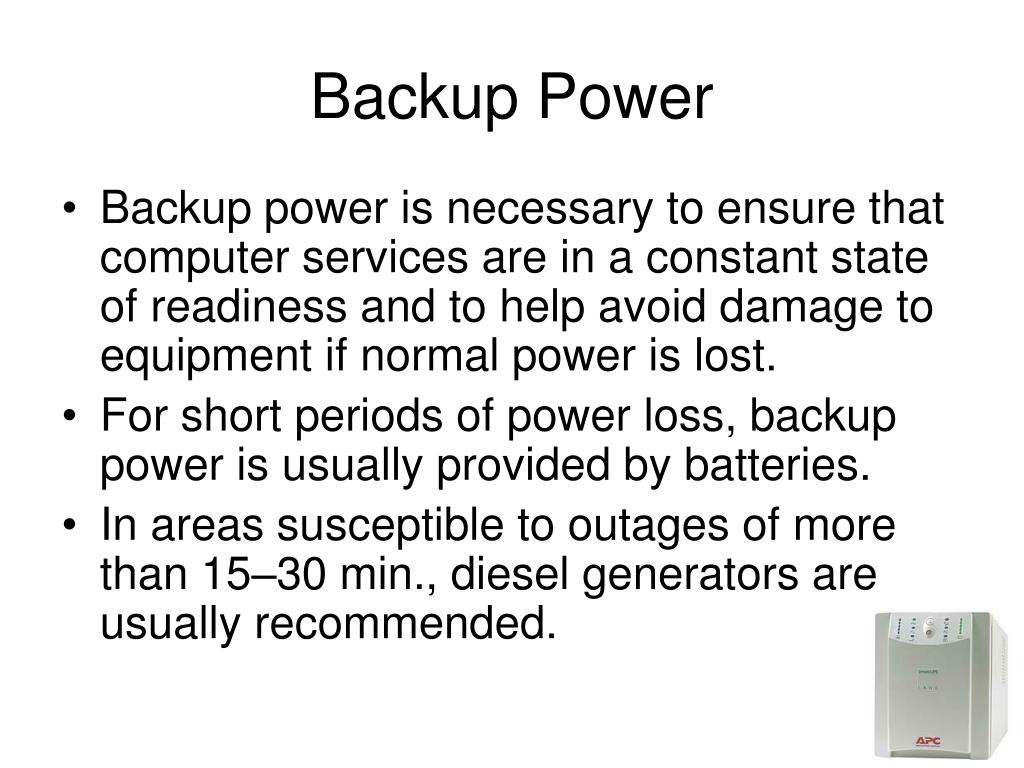

Backup Power • Backup power is necessary to ensure that computer services are in a constant state of readiness and to help avoid damage to equipment if normal power is lost. • For short periods of power loss, backup power is usually provided by batteries. • In areas susceptible to outages of more than 15–30 min., diesel generators are usually recommended.

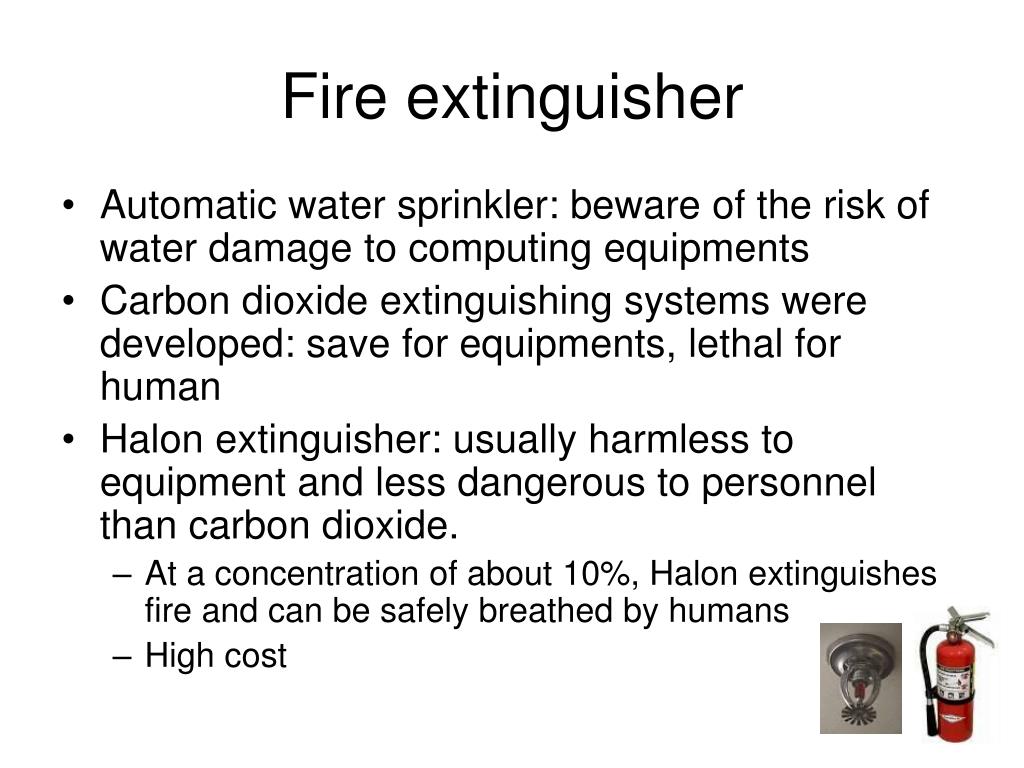

Fire extinguisher • Automatic water sprinkler: beware of the risk of water damage to computing equipments • Carbon dioxide extinguishing systems were developed: save for equipments, lethal for human • Halon extinguisher: usually harmless to equipment and less dangerous to personnel than carbon dioxide. • At a concentration of about 10%, Halon extinguishes fire and can be safely breathed by humans • High cost

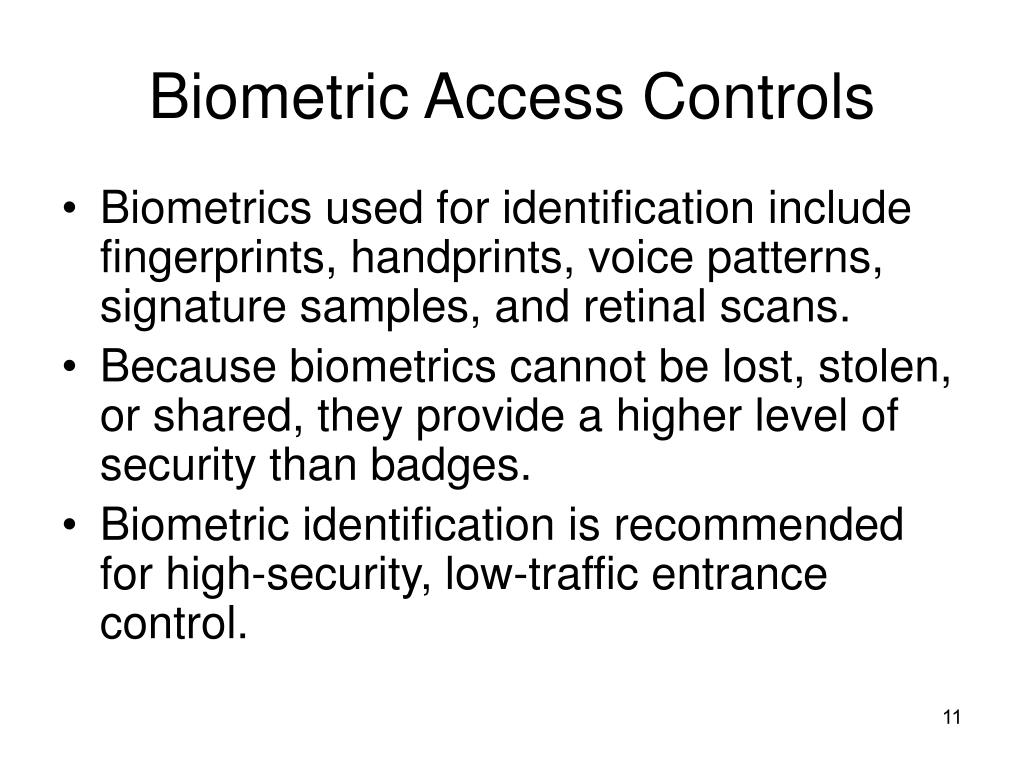

Biometric Access Controls • Biometrics used for identification include fingerprints, handprints, voice patterns, signature samples, and retinal scans. • Because biometrics cannot be lost, stolen, or shared, they provide a higher level of security than badges. • Biometric identification is recommended for high-security, low-traffic entrance control.
More on biometrics • Every person has unique physiological, behavioral, and morphological characteristics that can be examined and quantified. • Biometrics is the use of these characteristics to provide positive personal identification.
Some Biometric Performances • Fingerprint Scan:False rejection rate = 9.4%; False acceptance rate = 0; Average processing time = 7 seconds • Retinal scan: FRR = 1.5%; FAR = 1.5%; APT = 7 seconds • Palm scan: FRR = 0; FAR = 0.00025%; APT = 2-3 seconds • Hand geometry: FRR = 0.1%; FAR = 0.1%; ATP = 2 to 3 seconds • Facial recognition: ATP = 2 seconds • Voice verification: FRR = 8.2%; FAR = 0.4%; ATP = 2 to 3 seconds

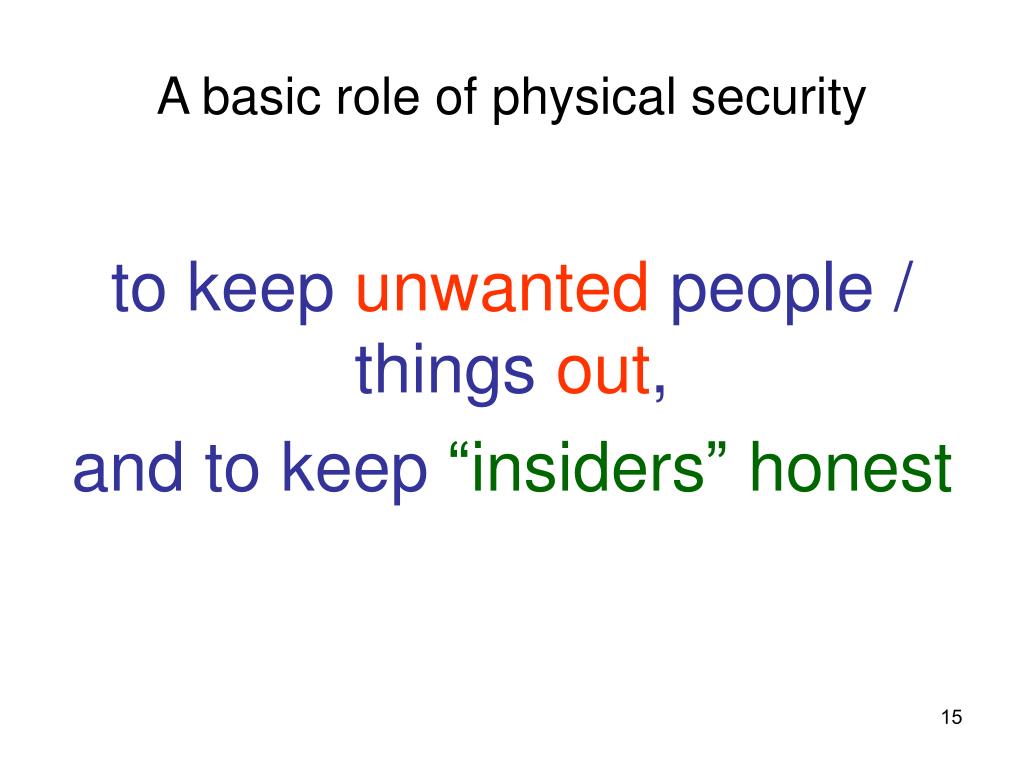

A basic role of physical security to keep unwanted people / things out, and to keep “insiders” honest
Technical Controls: Preventive • To prevent unauthorized personnel or programs from gaining remote access to computing resources. • Examples of these controls include: • Access control software. • Antivirus software. • Library control systems. • Passwords. • Smart cards. • Encryption. • Dial-up access control and callback systems. etc.
Technical Controls: Detective • Warn personnel of violations or attempted violations of preventive technical controls. • Examples of these include: • Audit trails • Intrusion detection expert systems

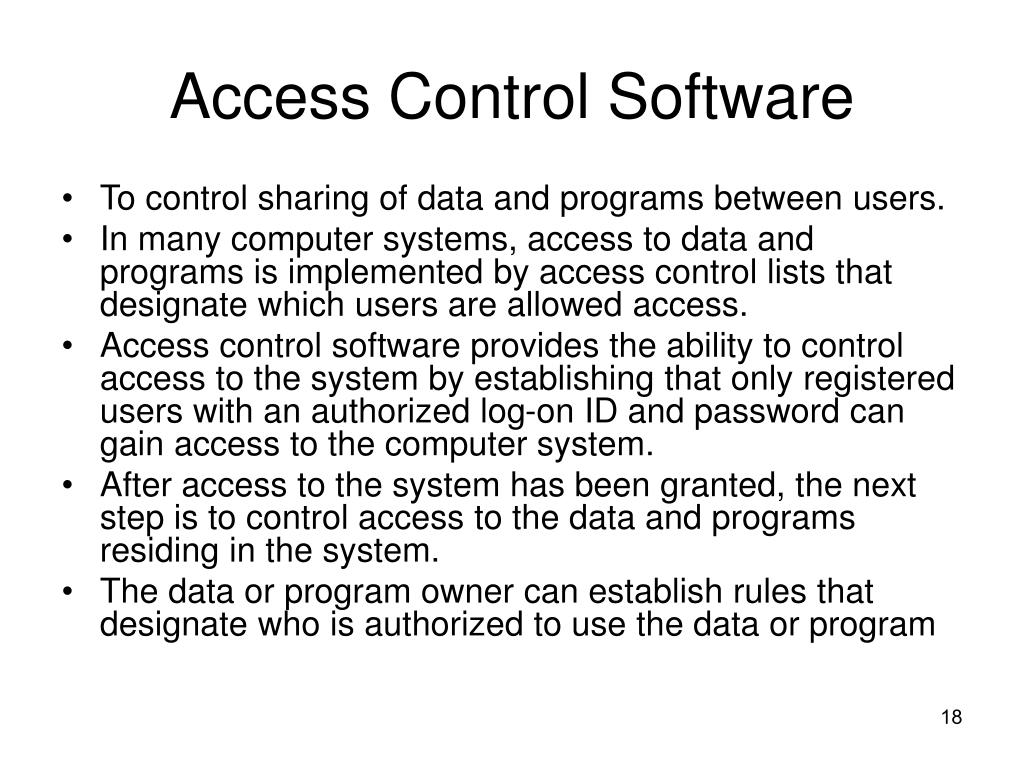

Access Control Software • To control sharing of data and programs between users. • In many computer systems, access to data and programs is implemented by access control lists that designate which users are allowed access. • Access control software provides the ability to control access to the system by establishing that only registered users with an authorized log-on ID and password can gain access to the computer system. • After access to the system has been granted, the next step is to control access to the data and programs residing in the system. • The data or program owner can establish rules that designate who is authorized to use the data or program

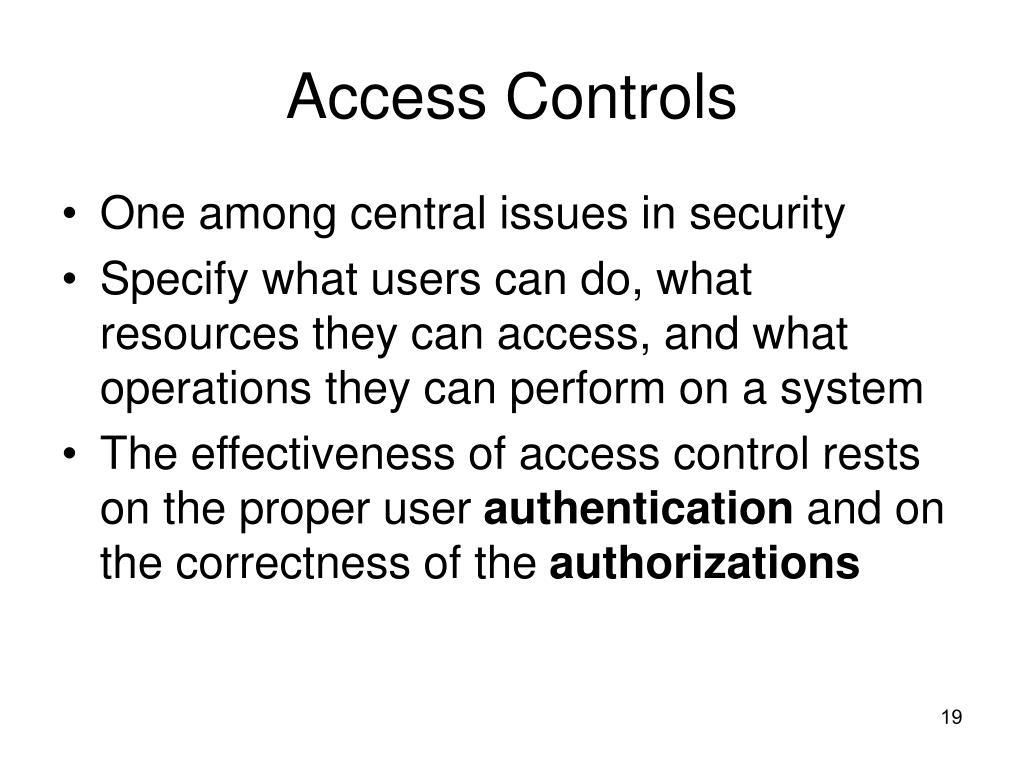

Access Controls • One among central issues in security • Specify what users can do, what resources they can access, and what operations they can perform on a system • The effectiveness of access control rests on the proper user authentication and on the correctness of the authorizations
Audit Control • Concern a posteriori analysis of all the request and activities of users in the system requires logging • Useful as/to: • Deterrent/pencegah • Find out about possible attempted or actual violations • Determining possible flaws in the system • Hold users accountable for their actions

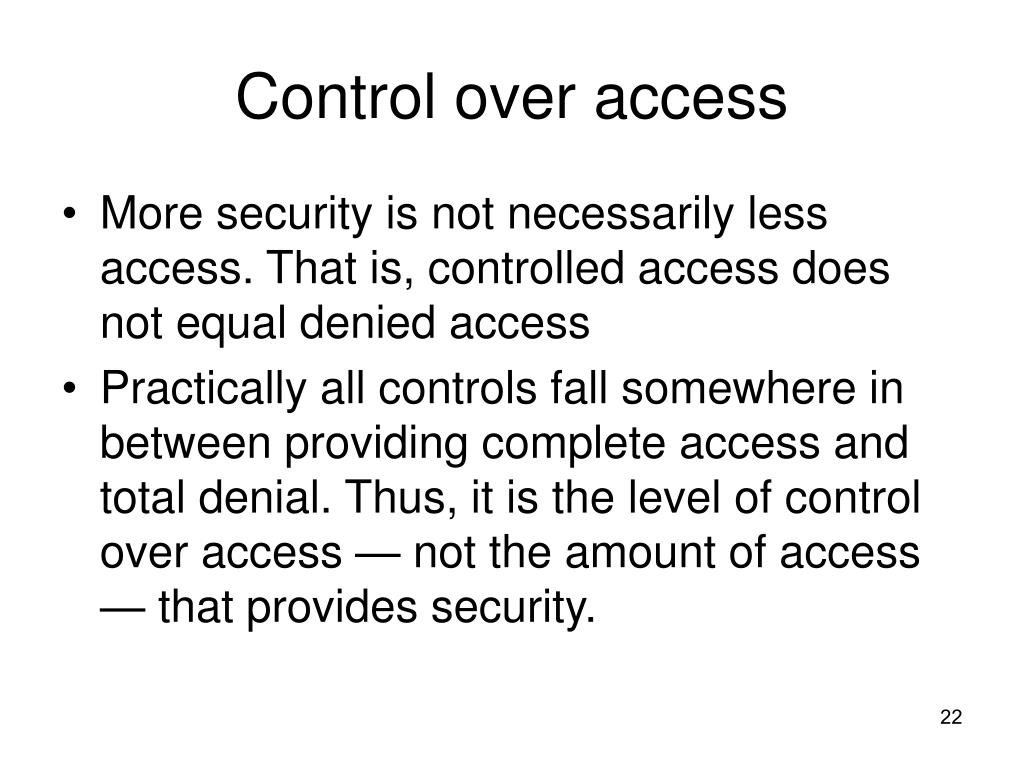

Control over access • More security is not necessarily less access. That is, controlled access does not equal denied access • Practically all controls fall somewhere in between providing complete access and total denial. Thus, it is the level of control over access — not the amount of access — that provides security.
Layered Defense BREADTH DEPTH DETERRENCE
Layered Defense: Breadth A single type of control rarely eliminates all vulnerabilities • suppose one decides to control read access to data by using a log-on password. But the log-on password does not afford protection if one sends the data over the Internet. A different type of control (i.e., encryption) would therefore provide the additional coverage needed.
Layered Defense: Depth • To be realistic with security, one must believe in failure Any given control is not perfect and will fail, sooner or later. • Adds layers of additional access controls as a backstop measure. • Example: The password will not stay secret forever embrace the common dictum, “something you have, something you know, and something you are.” (password, smartcard, fingerprint)

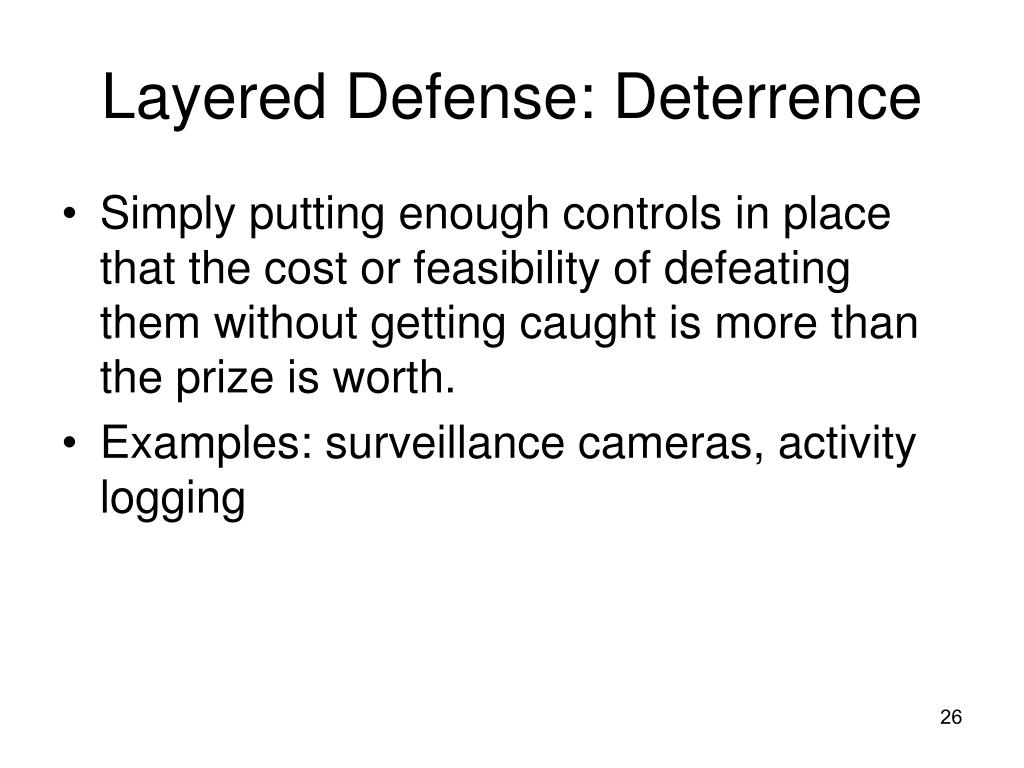

Layered Defense: Deterrence • Simply putting enough controls in place that the cost or feasibility of defeating them without getting caught is more than the prize is worth. • Examples: surveillance cameras, activity logging

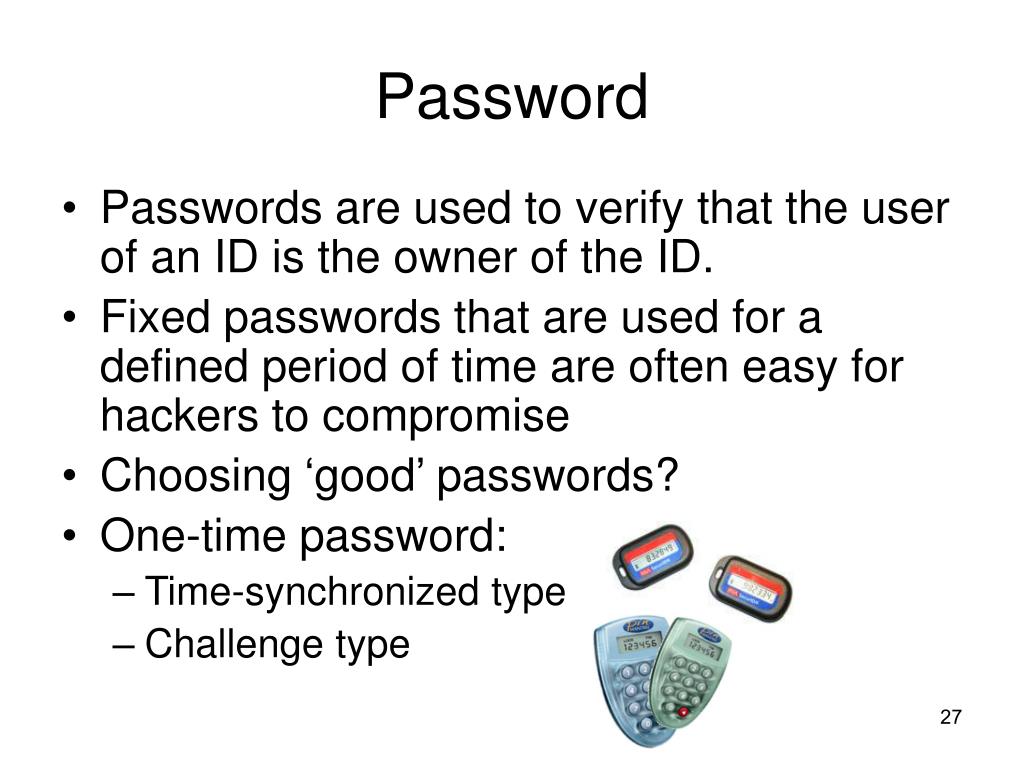

Password • Passwords are used to verify that the user of an ID is the owner of the ID. • Fixed passwords that are used for a defined period of time are often easy for hackers to compromise • Choosing ‘good’ passwords? • One-time password: • Time-synchronized type • Challenge type
Administrative Controls: Preventive • Personnel-oriented techniques for controlling people’s behavior to ensure the confidentiality, integrity, and availability of computing data and programs. • Examples of preventive administrative controls include: • Security awareness and technical training. • Separation of duties. • Procedures for recruiting and terminating employees. • Security policies and procedures. • Supervision. • Disaster recovery, contingency, and emergency plans. • User registration for computer access.

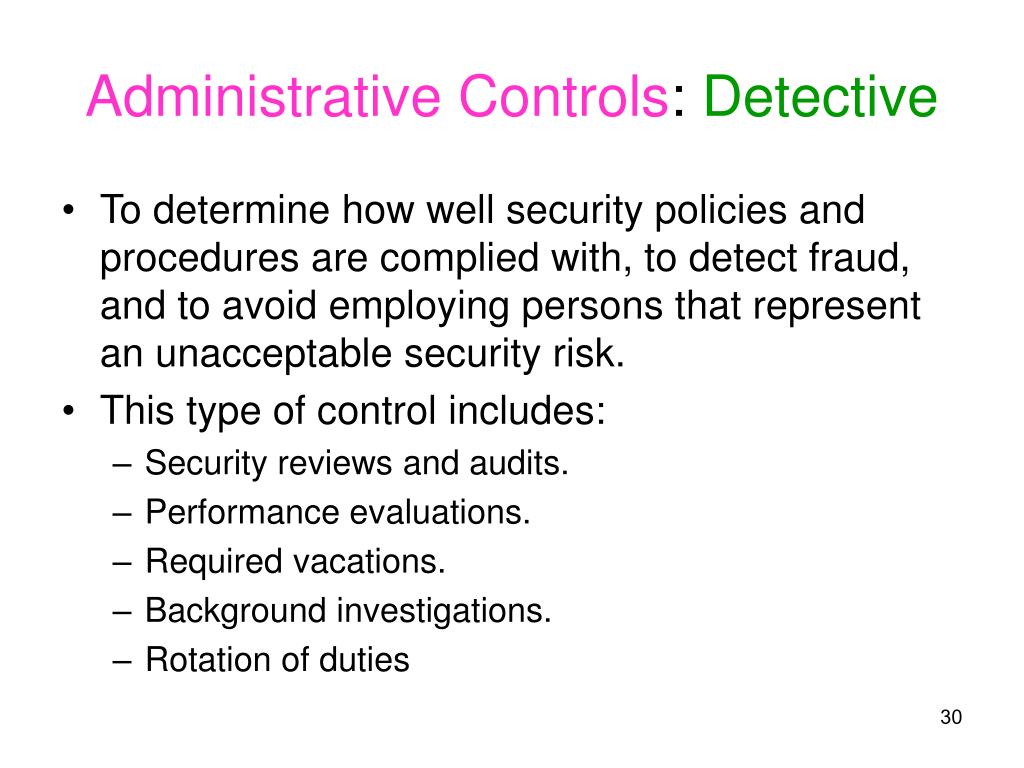

Administrative Controls: Detective • To determine how well security policies and procedures are complied with, to detect fraud, and to avoid employing persons that represent an unacceptable security risk. • This type of control includes: • Security reviews and audits. • Performance evaluations. • Required vacations. • Background investigations. • Rotation of duties

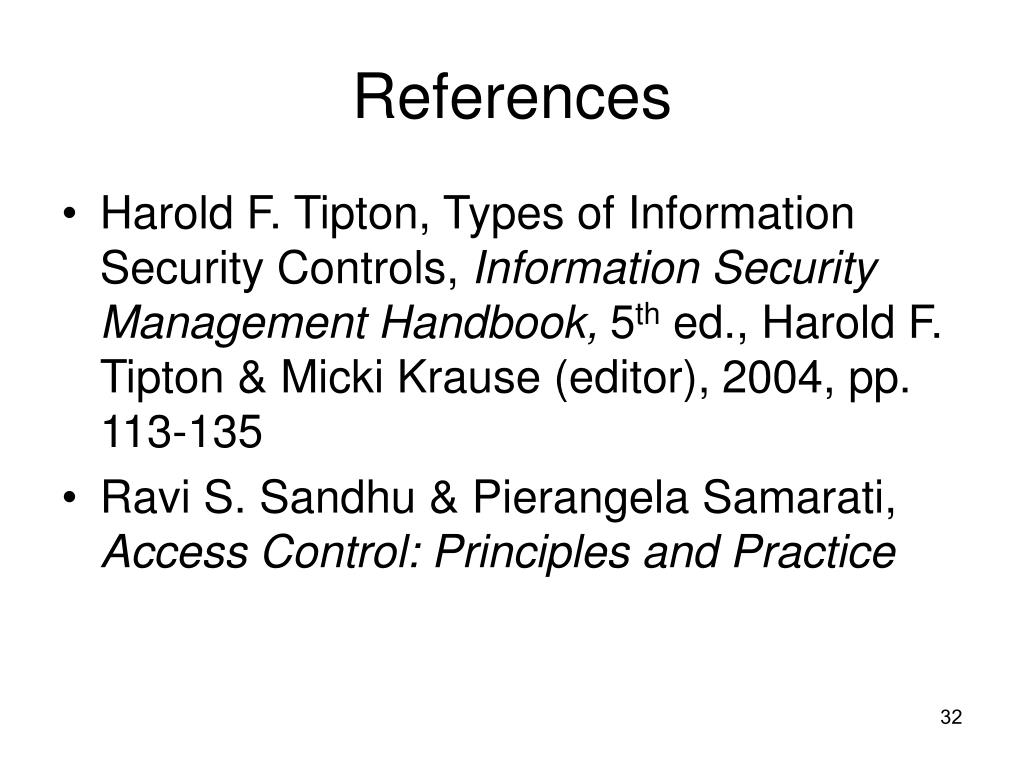

References • Harold F. Tipton, Types of Information Security Controls, Information Security Management Handbook, 5th ed., Harold F. Tipton & Micki Krause (editor), 2004, pp. 113-135 • Ravi S. Sandhu & Pierangela Samarati, Access Control: Principles and Practice
