Address Lookup and Classification

1. Address Lookup and Classification EE384Y May 25, 2006 Pankaj Gupta Principal Architect and Member of Technical Staff, Netlogic Microsystems pankaj@netlogicmicro.com http://klamath.stanford.edu/~pankaj

2. Outline • Routing Lookups • Packet Classification • Motivation and problem definition • Classification algorithms • Linear search • Associative search (TCAM) • Trie-based techniques • Crossproducting • Tradeoffs in classification • Heuristic algorithms • References

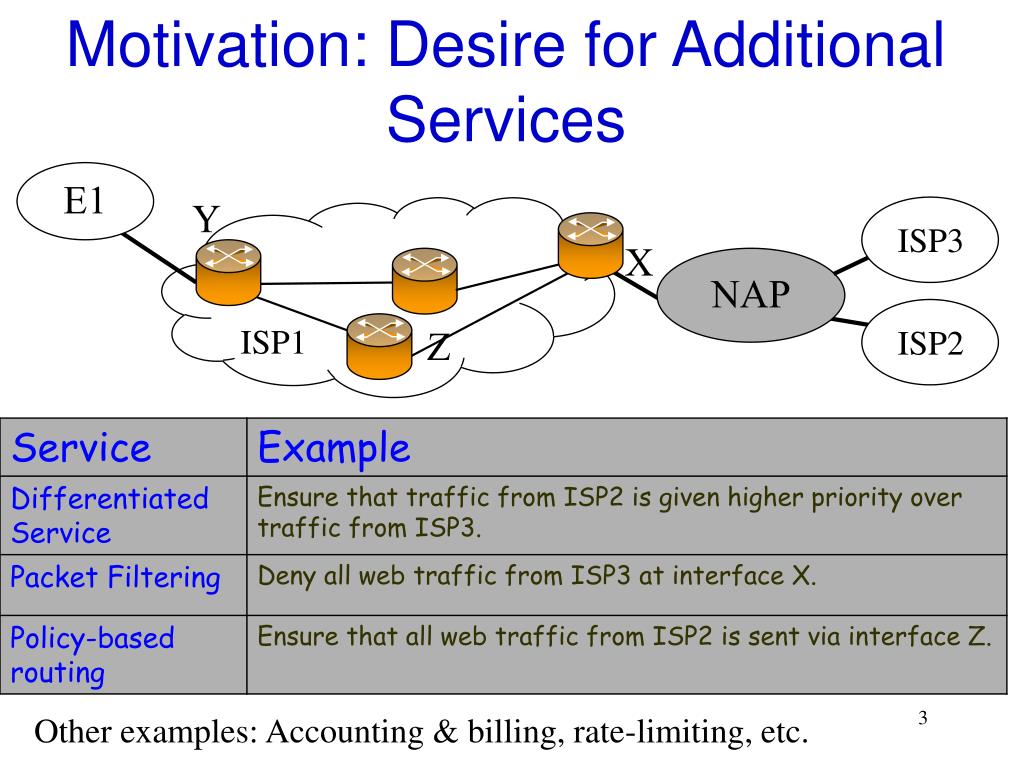

3. Motivation: Desire for Additional Services E1 Y ISP3 X NAP ISP1 ISP2 Z Other examples: Accounting & billing, rate-limiting, etc.

4. Special Processing Requires Identification of Flows • All packets of a flow obey a pre-defined rule and are processed similarly by the router • E.g. a flow = (src-IP-address, dst-IP-address), or a flow = (dst-IP-prefix, protocol) etc. • Router needs to identify the flow of every incoming packet and then perform appropriate special processing based on negotiated service agreements Classification Rules or policies (aka ACL entries, filters)

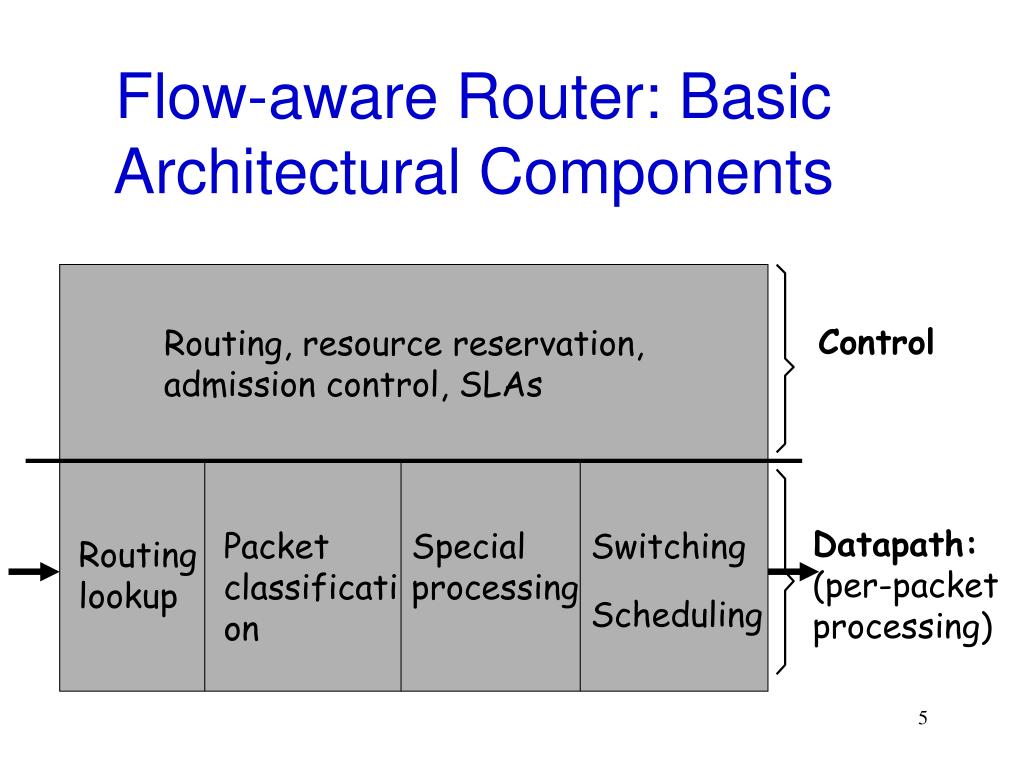

5. Flow-aware Router: Basic Architectural Components Control Routing, resource reservation, admission control, SLAs Datapath: (per-packet processing) Packet classification Special processing Switching Routing lookup Scheduling

6. Example: packet (5.168.3.32, 152.133.171.71, …, TCP) Multi-field Packet Classification L3-DA L3-SA L4-PROT Packet Classification: Find the action associated with the highest priority rule matching an incoming packet header.

7. Formal Problem Definition • Given a classifier C with N rules, Rj, 1  j  N, where Rj consists of three entities: • A regular expression Rj[i], 1  i  d, on each of the d header fields, • A number, pri(Rj), indicating the priority of the rule in the classifier, and • An action, referred to as action(Rj). For an incoming packet P with the header considered as a d-tuple of points (P1, P2, …, Pd), the d-dimensional packet classification problem is to find the rule Rm with the highest priority among all the rules Rj matching the d-tuple; i.e., pri(Rm) > pri(Rj),  j  m, 1 j  N, such that Pi matches Rj[i], 1  i  d. We call rule Rm the best matching rule for packet P.

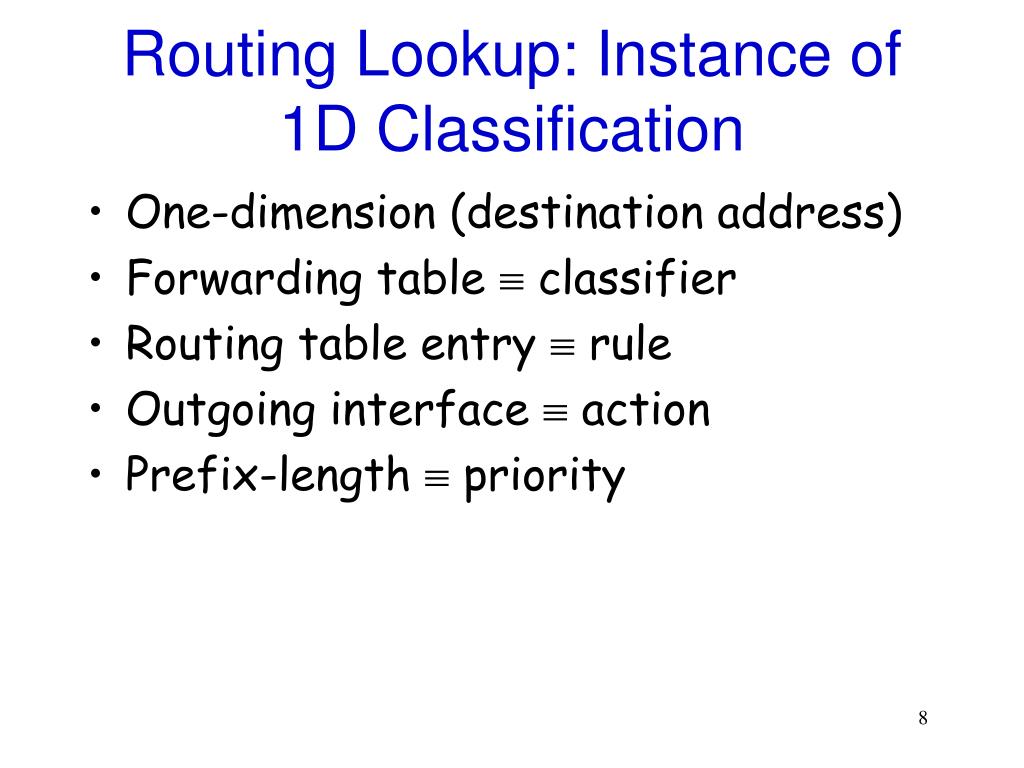

8. Routing Lookup: Instance of 1D Classification • One-dimension (destination address) • Forwarding table  classifier • Routing table entry  rule • Outgoing interface  action • Prefix-length  priority

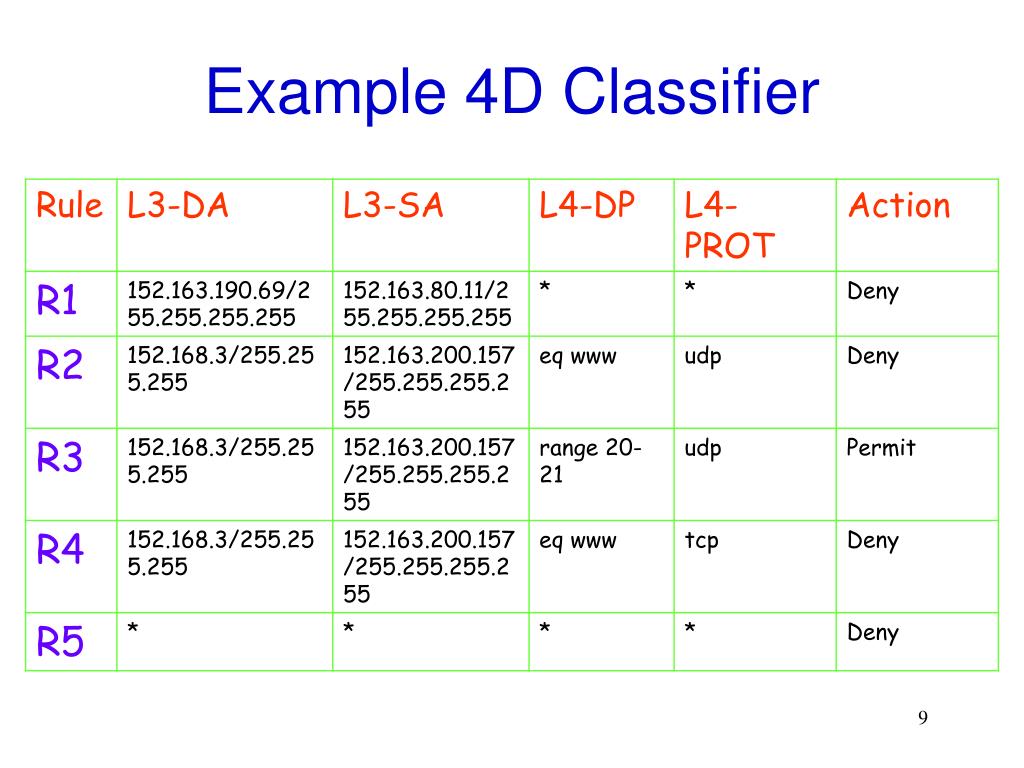

9. Example 4D Classifier

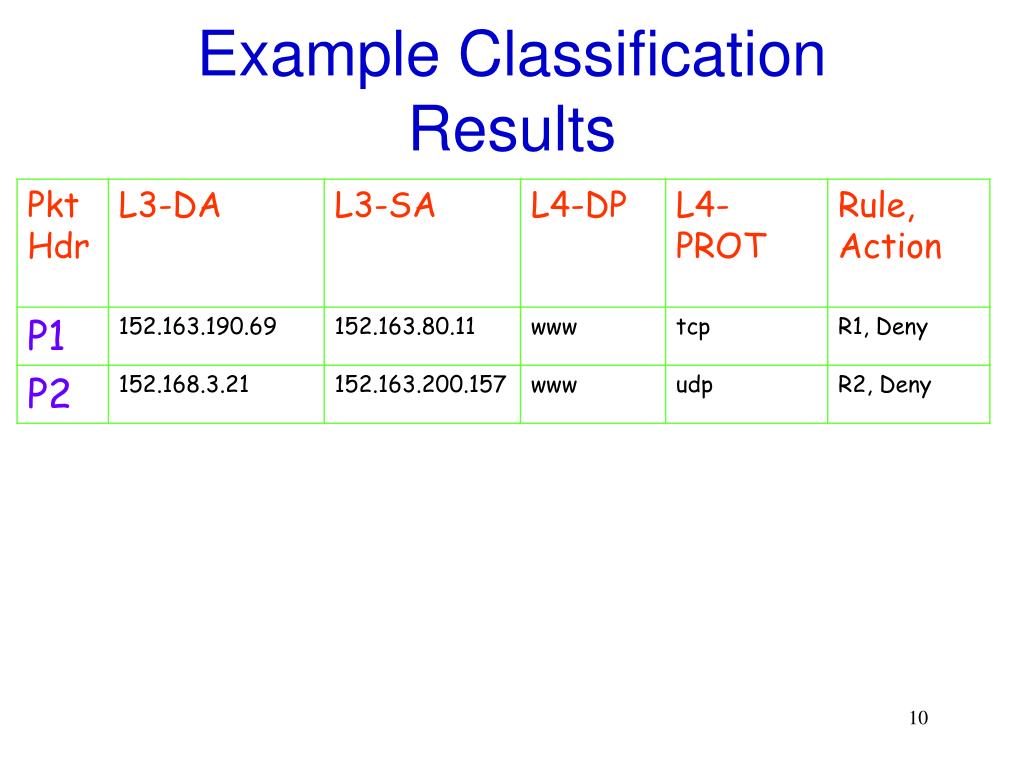

10. Example Classification Results

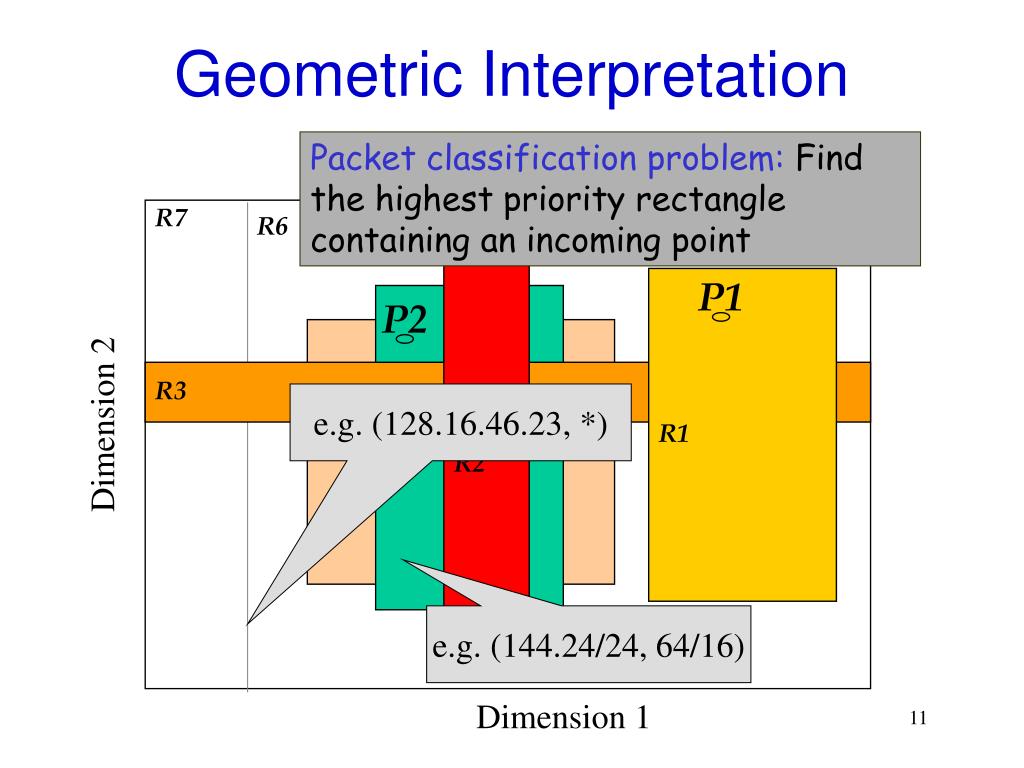

11. P1 P2 Geometric Interpretation Packet classification problem: Find the highest priority rectangle containing an incoming point R7 R6 R2 R1 R4 R5 R3 e.g. (128.16.46.23, *) Dimension 2 e.g. (144.24/24, 64/16) Dimension 1

12. Outline • Routing Lookups • Packet Classification • Motivation and problem definition • Classification algorithms • Linear search • Associative search (TCAM) • Trie-based techniques • Crossproducting • Tradeoffs in classification • Heuristic algorithms • References

13. Metrics for Classification Algorithms • Speed • Storage requirements • Ability to handle large classifiers • Low preprocessing time • Update time • Scalability in the number of header fields • Flexibility in rule specification

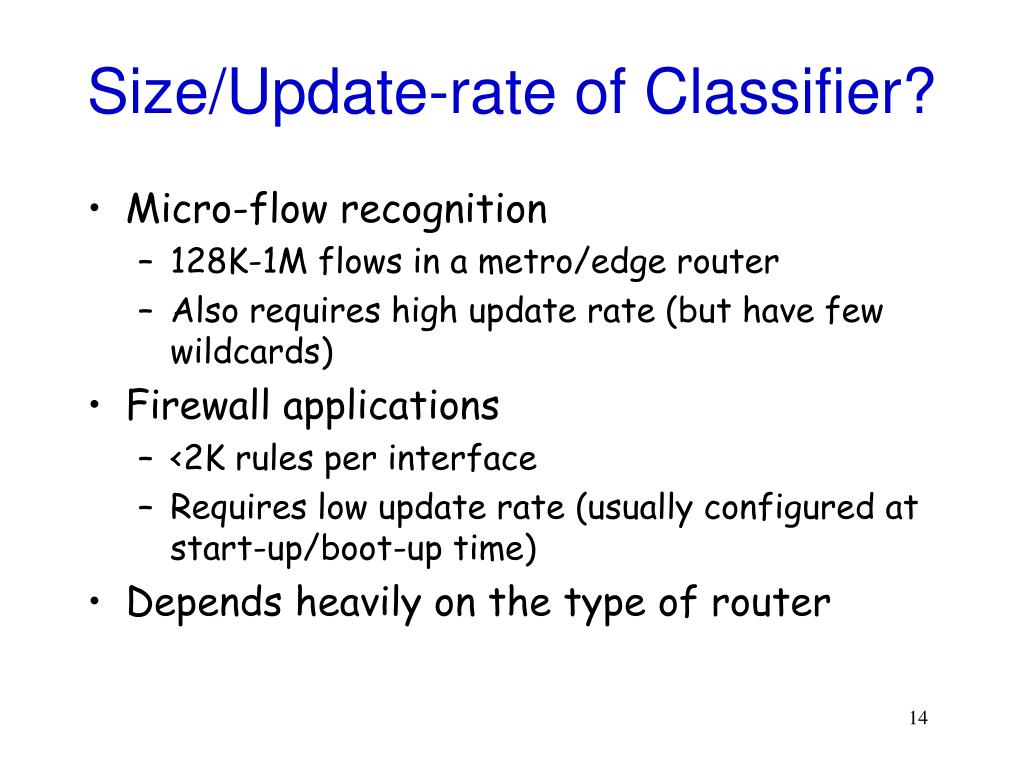

14. Size/Update-rate of Classifier? • Micro-flow recognition • 128K-1M flows in a metro/edge router • Also requires high update rate (but have few wildcards) • Firewall applications • <2K rules per interface • Requires low update rate (usually configured at start-up/boot-up time) • Depends heavily on the type of router

15. Linear Search • Keep rules in a linked list • O(N) storage, O(N) lookup time, O(1) update complexity

16. Ternary Match Operation • Each TCAM entry stores a value, V, and mask, M • Hence, two bits (Vi and Mi) for each bit position i (i=1..W) • For an incoming packet header, H = {Hi}, the TCAM entry outputs • a match if Hi matches Vi in each bit position for which Mi equals ‘1’. Optional Exercise: What is the logic equation for Z (boolean variable denoting whether a TCAM entry matched)? Optional Exercise: What is the logic equation for Z (boolean variable denoting whether a TCAM entry matched), if instead of (Vi, Mi) we store (Ai,Bi) where (0,0) = always match, (1,1) = always mismatch, (0,1) = match0, and (1,0) = match1

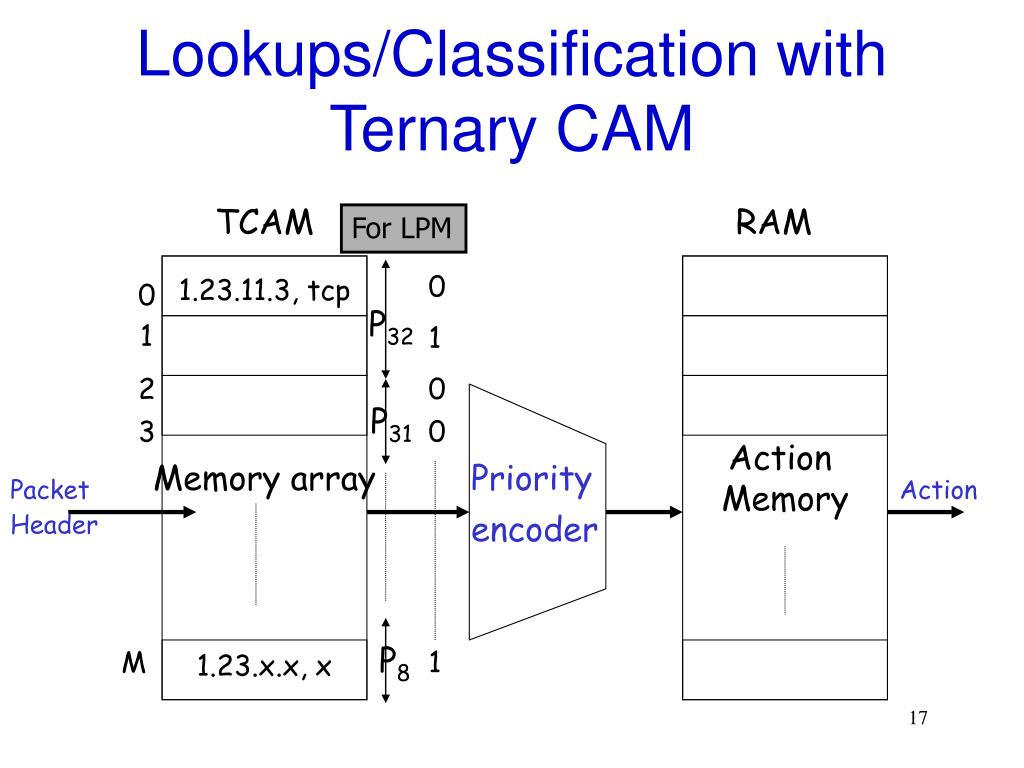

17. For LPM P32 P31 P8 Lookups/Classification with Ternary CAM TCAM RAM Memory array Action Memory 1.23.11.3, tcp 0 0 1 1 2 0 3 0 Priority Packet Action encoder Header M 1.23.x.x, x 1

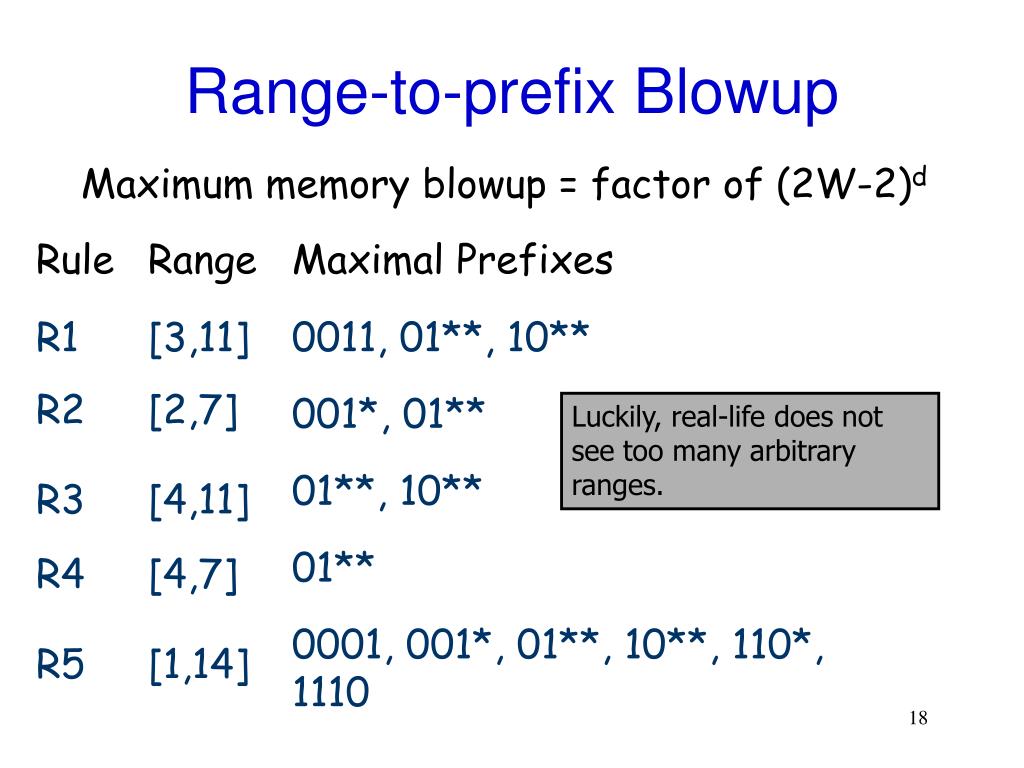

18. Range-to-prefix Blowup Maximum memory blowup = factor of (2W-2)d Luckily, real-life does not see too many arbitrary ranges.

19. TCAMs • Advantages • Extensible to multiple fields • Fast: 6-8 ns today (133-150 searches per second) going to 250 Msps • Simple to understand and use • Disadvantages • Inflexible: range-to-prefix blowup • Power: ~15-20W @ 100Msps • Cost: $200-$250 for ~2MByte • Density: largest available in 2006 is ~2MB, i.e., 128K x 128 (can be cascaded) • Tough memory soft-error problem

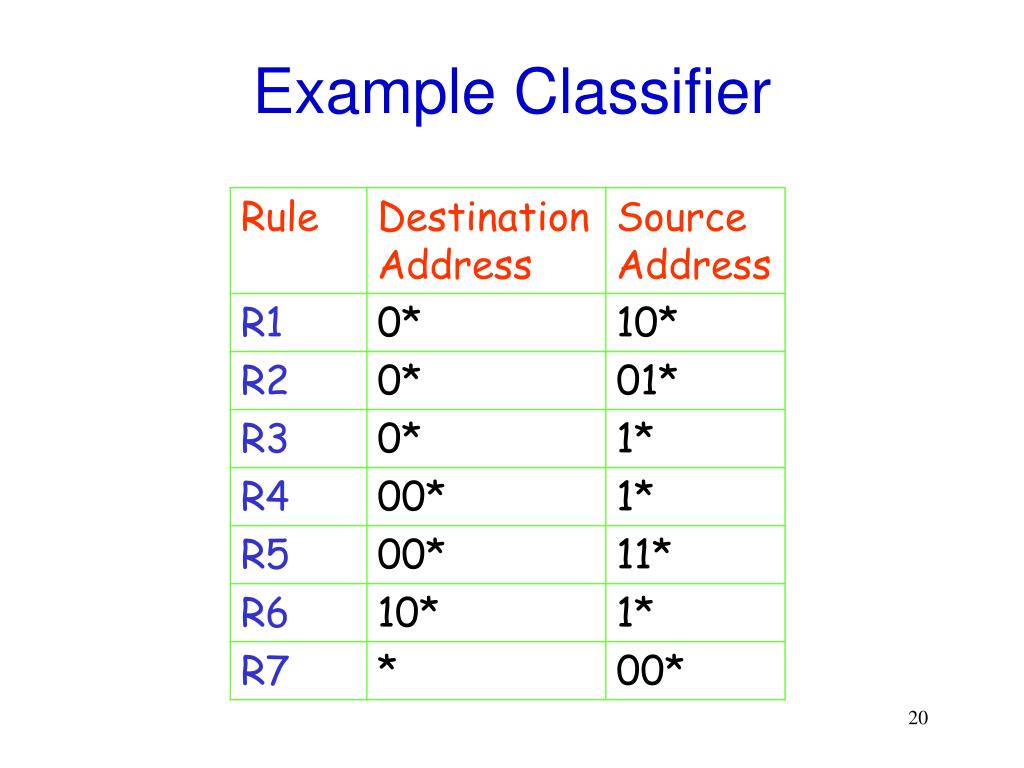

20. Example Classifier

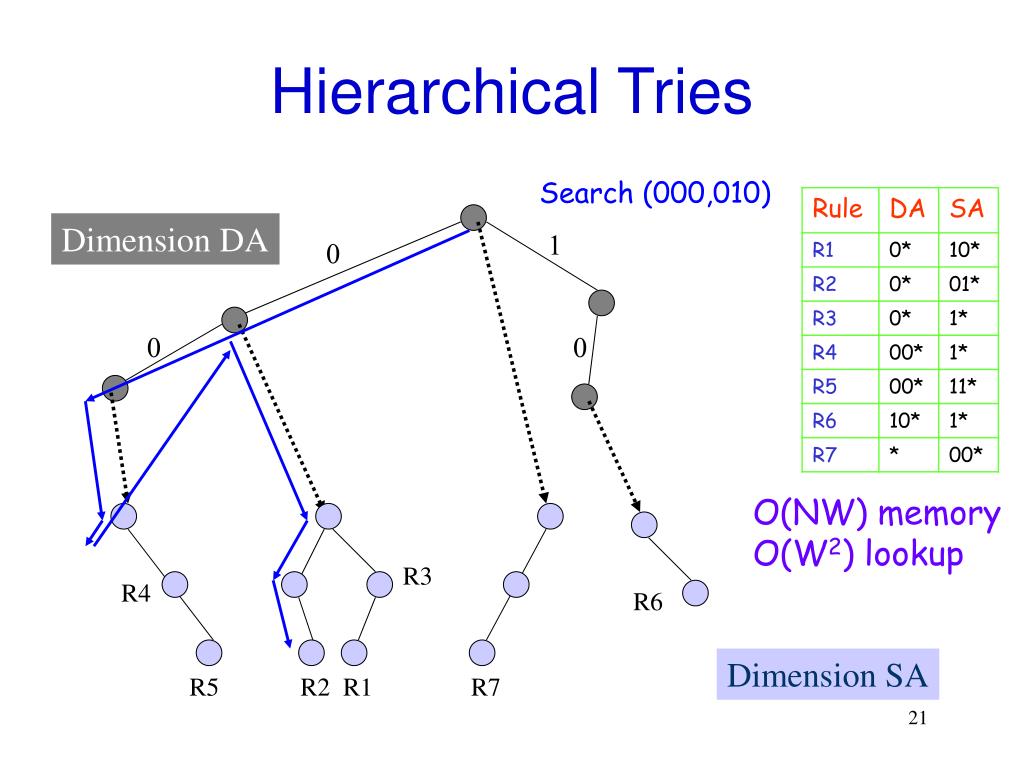

21. R3 R4 R6 Dimension SA R5 R2 R1 R7 Hierarchical Tries Search (000,010) Dimension DA 1 0 0 0 O(NW) memory O(W2) lookup

22. Set-pruning Tries [Tsuchiya, Sri98] Search (000,010) Dimension DA 1 0 0 0 O(N2) memory O(2W) lookup R4 R3 R6 Dimension SA R7 R2 R1 R5 R7 R2 R1 R7 R7

23. 0 0 0 0 Grid-of-Tries [Sri98] Search (000,010) Dimension DA 1 0 0 0 O(NW) memory O(2W) lookup R3 R4 R6 Dimension SA R5 R2 R1 R7

24. Advantages • Good solution for two dimensions • Disadvantages • Difficult to carry out updates • Not easily extensible to more than two dimensions Grid-of-Tries 20K 2D rules: 2MB, 9 memory accesses (with prefix-expansion)

25. P1 Crossproducting [Sri98] (8,4) 6 5 R2 R1 R3 4 R4 (1,3) 3 2 1 1 2 3 4 5 6 7 8 9

26. Crossproducting Need: d 1-D lookups + 1 memory access, O(Nd) space 50 rules: 1.5MB, need caching (on-demand crossproducting) for bigger classifiers • Advantages • Fast accesses • Suitable for multiple fields • Disadvantages • Large amount of memory • Need caching for bigger classifiers (> 50 rules)

27. Outline • Routing Lookups • Packet Classification • Motivation and problem definition • Classification algorithms • Linear search • Associative search (TCAM) • Trie-based techniques • Crossproducting • Tradeoffs in classification • Heuristic algorithms • References

28. Classification Algorithms: Speed vs. Storage Tradeoff Lower bounds for Point Location in N regions with d dimensions from Computational Geometry O(log N) time with O(Nd) storage, or O(logd-1N) time with O(N) storage N = 100, d = 4, Nd = 100 MBytes and logd-1N = 350 memory accesses

29. Hierarchy (to at least some level) • Structure Properties of real-life classifiers: One Solution: Heuristics that “seem to work well in real-life” • Recursive Flow Classification [Gupta, McKeown 1999] • Generalization of crossproducting to conserve storage • Hierarchical Intelligent Cuttings [Gupta, McKeown 1999] • Aggregated Bit-vector [Baboescu, Varghese 2001] • HyperCuts [Singh, Baboescu, Varghese2003] • Good heuristics do better than worst-case bounds for real-life datasets.

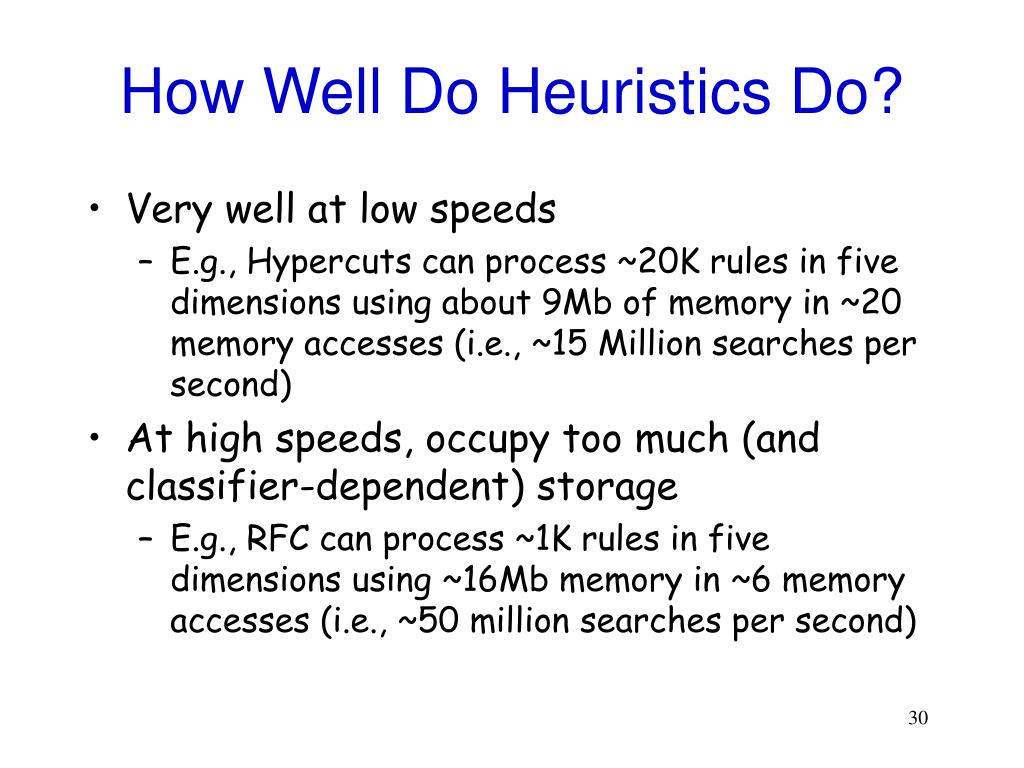

30. How Well Do Heuristics Do? • Very well at low speeds • E.g., Hypercuts can process ~20K rules in five dimensions using about 9Mb of memory in ~20 memory accesses (i.e., ~15 Million searches per second) • At high speeds, occupy too much (and classifier-dependent) storage • E.g., RFC can process ~1K rules in five dimensions using ~16Mb memory in ~6 memory accesses (i.e., ~50 million searches per second)

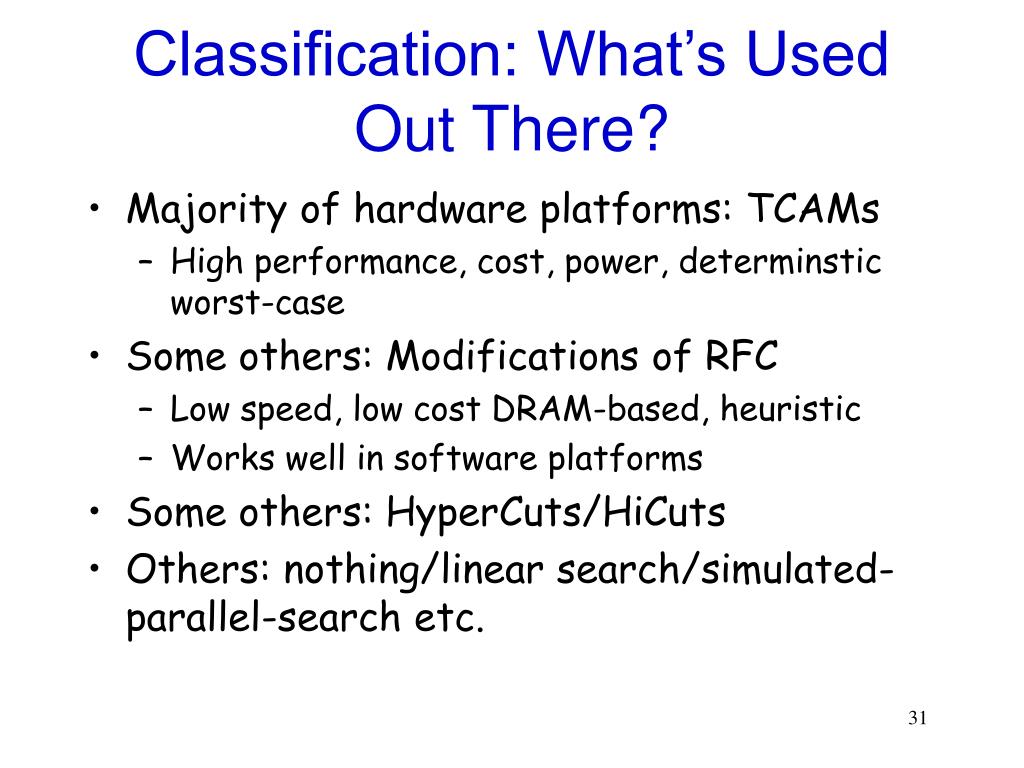

31. Classification: What’s Used Out There? • Majority of hardware platforms: TCAMs • High performance, cost, power, determinstic worst-case • Some others: Modifications of RFC • Low speed, low cost DRAM-based, heuristic • Works well in software platforms • Some others: HyperCuts/HiCuts • Others: nothing/linear search/simulated-parallel-search etc.

32. Lookup: What’s Used Out There? • Overwhelming majority of routers: • Modifications of multi-bit tries (h/w optimized trie algorithms) • DRAM (sometimes SRAM) based, large number of routes (>0.25M) • Parallelism required for speed/storage becomes an issue • Others mostly TCAM based • Allows sharing the same TCAM for both lookup and classification

33. Packet Classification: References • F. Baboescu and G. Varghese, “Scalable packet classification,” Proc. Sigcomm 2001 • [Lak98] T.V. Lakshman. D. Stiliadis. “High speed policy based packet forwarding using efficient multi-dimensional range matching”, Sigcomm 1998, pp 191-202 • K. Lakshminarayanan, A. Rangarajan and S. Venkatachary. “Algorithms for advanced packet classification with Ternary CAMs”, Sigcomm 2005. • [Sri98] V. Srinivasan, S. Suri, G. Varghese and M. Waldvogel. “Fast and scalable layer 4 switching”, Sigcomm 1998, pp 203-214 [Grid-of-tries, crossproducting] • V. Srinivasan, G. Varghese, S. Suri. “Fast packet classification using tuple space search”, Sigcomm 1999, pp 135-146 • P. Gupta, N. McKeown, “Packet classification using hierarchical intelligent cuttings,” Hot Interconnects VII, 1999 • [Gupta99] P. Gupta, N. McKeown, “Packet classification on multiple fields,” Sigcomm 1999, pp 147-160 [RFC]

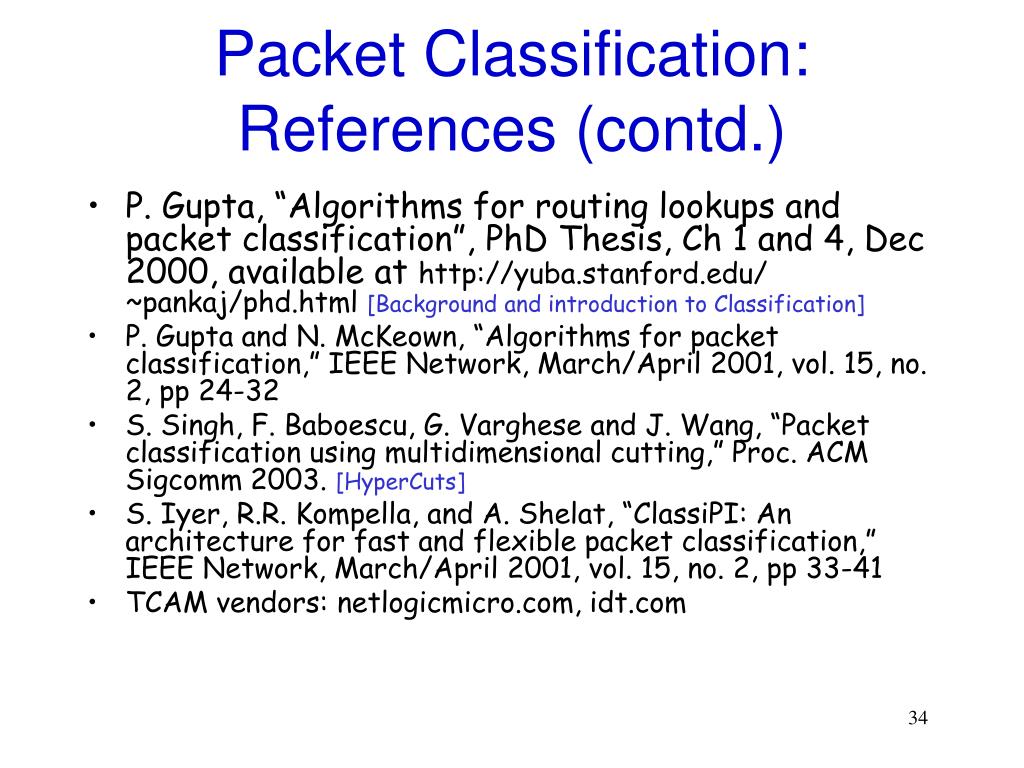

34. Packet Classification: References (contd.) • P. Gupta, “Algorithms for routing lookups and packet classification”, PhD Thesis, Ch 1 and 4, Dec 2000, available at http://yuba.stanford.edu/ ~pankaj/phd.html [Background and introduction to Classification] • P. Gupta and N. McKeown, “Algorithms for packet classification,” IEEE Network, March/April 2001, vol. 15, no. 2, pp 24-32 • S. Singh, F. Baboescu, G. Varghese and J. Wang, “Packet classification using multidimensional cutting,” Proc. ACM Sigcomm 2003. [HyperCuts] • S. Iyer, R.R. Kompella, and A. Shelat, “ClassiPI: An architecture for fast and flexible packet classification,” IEEE Network, March/April 2001, vol. 15, no. 2, pp 33-41 • TCAM vendors: netlogicmicro.com, idt.com
