  1. Ingeniería de servicios y protocolosServices and protocols engineering ADVANCED NETWORKING Next Internet: IP for connecting Smart Objects Ana BelénGarcía Hernandoabgarcia@diatel.upm.es, anabelen.garcia@upm.es

  2. Whatis a SmartObject? • Processing capabilities “Smart …” • Senses or actuates over the physical world “… Object” • The context is highly significant for its behaviour. • In order to do anything, it needs an energy source • Mains, batteries, harvesting techniques (e.g. solar, vibrations, wind). • The great potential of Smart Objects comes mainly from the fact that they are inter-connected (with other SO’s, with external networks, with the Internet) • Usually using LLN (Low-power and Lossy Networks): either wireless (e.g. Zigbee) or wired (e.g. PLC).

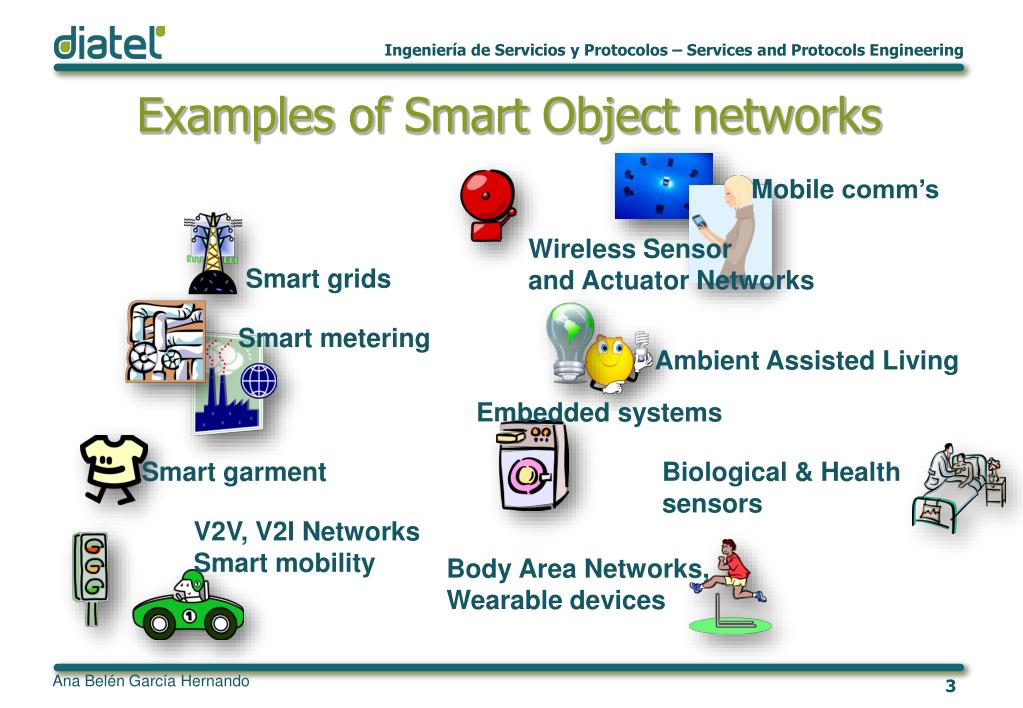

  3. Examples of SmartObjectnetworks Mobile comm’s Wireless Sensor and Actuator Networks Smartgrids Smartmetering AmbientAssisted Living Embeddedsystems Smartgarment Biological & Health sensors V2V, V2I Networks Smartmobility BodyArea Networks, Wearabledevices

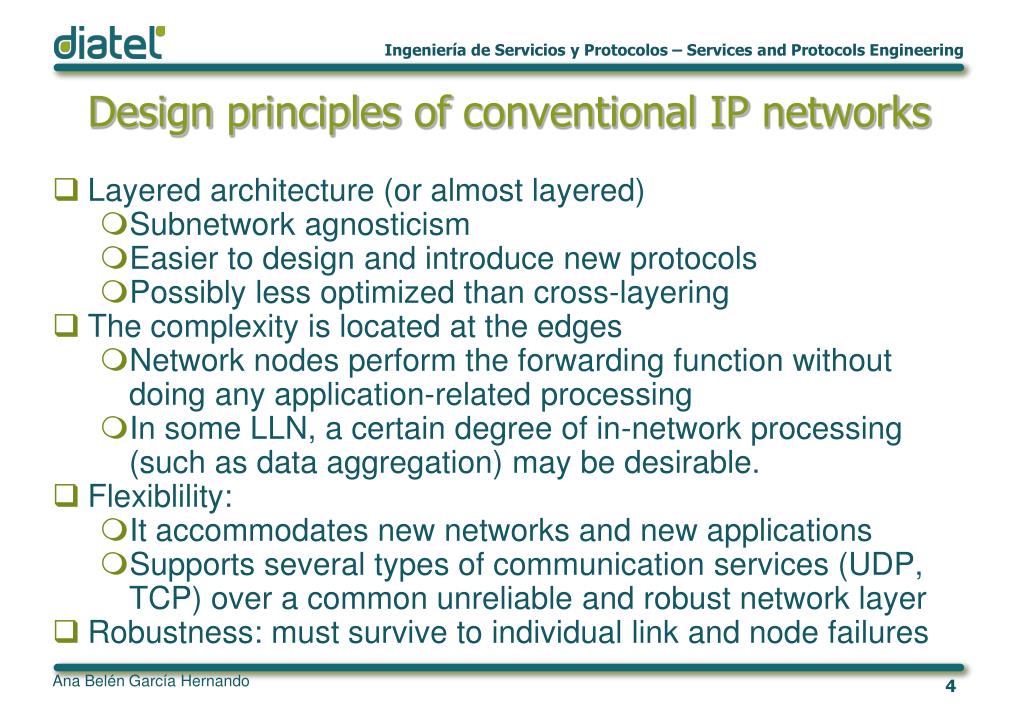

  4. Designprinciples of conventional IP networks • Layered architecture (or almost layered) • Subnetwork agnosticism • Easier to design and introduce new protocols • Possibly less optimized than cross-layering • The complexity is located at the edges • Network nodes perform the forwarding function without doing any application-related processing • In some LLN, a certain degree of in-network processing (such as data aggregation) may be desirable. • Flexiblility: • It accommodates new networks and new applications • Supports several types of communication services (UDP, TCP) over a common unreliable and robust network layer • Robustness: must survive to individual link and node failures

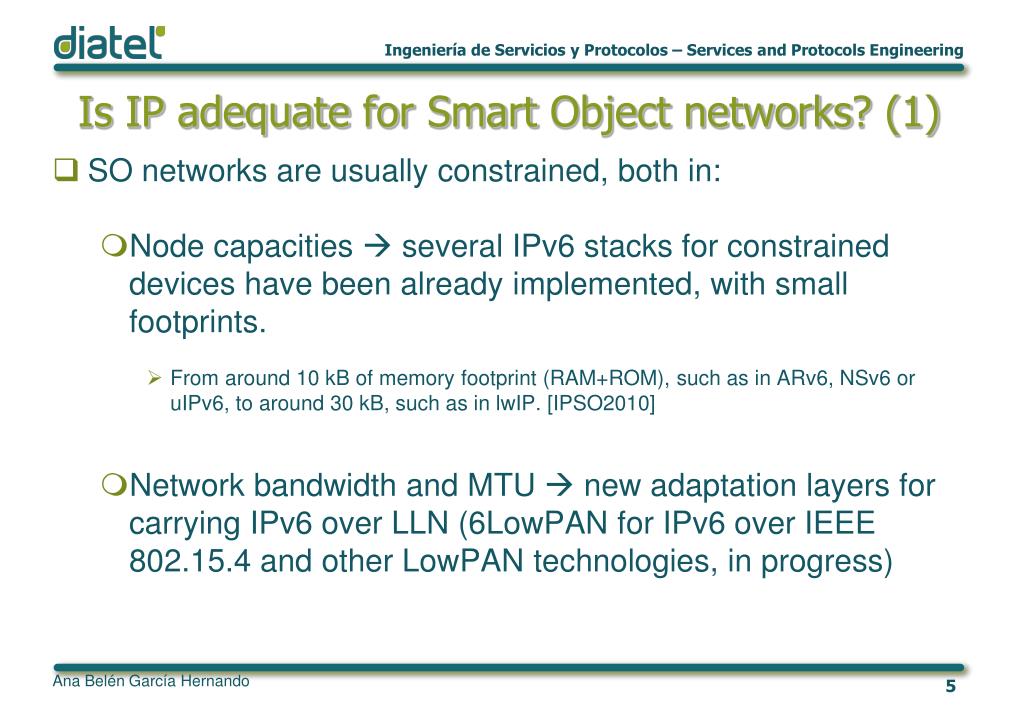

  5. Is IP adequateforSmartObjectnetworks? (1) • SO networks are usuallyconstrained, both in: • Nodecapacities several IPv6 stacksforconstraineddeviceshavebeenalreadyimplemented, withsmallfootprints. • Fromaround 10 kB of memoryfootprint (RAM+ROM), such as in ARv6, NSv6 or uIPv6, toaround 30 kB, such as in lwIP. [IPSO2010] • Network bandwidth and MTU  new adaptationlayersforcarrying IPv6 over LLN (6LowPAN for IPv6 over IEEE 802.15.4 and otherLowPANtechnologies, in progress)

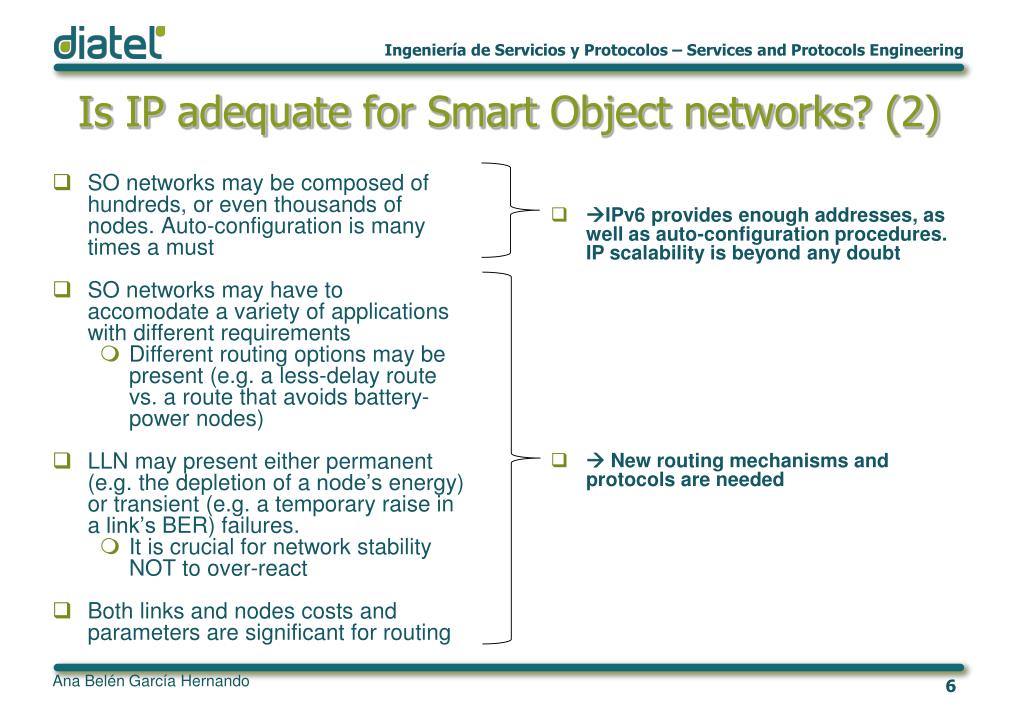

  6. Is IP adequateforSmartObjectnetworks? (2) • IPv6providesenoughaddresses, as well as auto-configurationprocedures. IP scalabilityisbeyondanydoubt •  New routing mechanisms and protocols are needed • SO networksmaybecomposed of hundreds, oreventhousands of nodes. Auto-configurationismany times a must • SO networksmayhavetoaccomodate a variety of applicationswithdifferentrequirements • Differentroutingoptionsmaybepresent (e.g. a less-delayroute vs. a routethatavoidsbattery-powernodes) • LLN maypresenteitherpermanent (e.g.thedepletion of a node’senergy) ortransient (e.g. a temporaryraise in a link’s BER) failures. • Itis crucial fornetworkstability NOT toover-react • Both links and nodescosts and parameters are significantforrouting

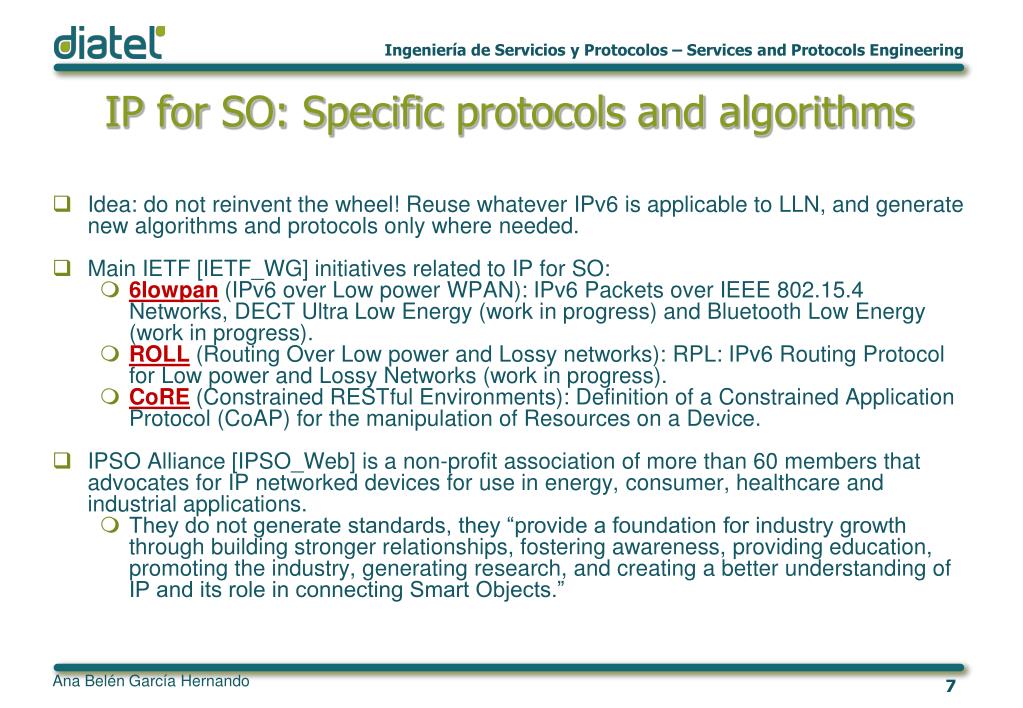

  7. IP for SO: Specificprotocols and algorithms • Idea: do notreinventthewheel! ReusewhateverIPv6isapplicabletoLLN, and generate new algorithms and protocolsonlywhereneeded. • MainIETF[IETF_WG]initiativesrelatedto IP for SO: • 6lowpan (IPv6 over Low power WPAN): IPv6 Packets over IEEE 802.15.4 Networks, DECT Ultra Low Energy (work in progress) and Bluetooth Low Energy (work in progress). • ROLL (Routing Over Low power and Lossy networks): RPL: IPv6 Routing Protocol for Low power and Lossy Networks (work in progress). • CoRE (ConstrainedRESTfulEnvironments): Definition of a Constrained Application Protocol (CoAP) for the manipulation of Resources on a Device. • IPSO Alliance [IPSO_Web] is a non-profit association of more than 60 members that advocates for IP networked devices for use in energy, consumer, healthcare and industrial applications. • They do not generate standards, they “provide a foundation for industry growth through building stronger relationships, fostering awareness, providing education, promoting the industry, generating research, and creating a better understanding of IP and its role in connecting Smart Objects.”

  8. MainapplicationsconsideredforRPL • Urbannetworks (includingSmartGrid). • Buildingautomation • Industrial automation • Home automation • Theseyieldrequirementssuch as: • Scalability • Parameter-Constrained Routing • Support of Multicast and Anycast • Mobility Requirements • Reliability Requirements • Network Dynamicity • Latency • Stability • Convergence time • Security Considerations • Are theredifferentrequirementsforotherapplications?

  9. References and furtherreading [Vasseur2010] Jean-Philippe Vasseur, Adam Dunkels. “Interconnecting Smart Objects with IP: The Next Internet”. Morgan Kaufmann, 2010. [IPSO2010] Internet Protocol for Smart Objects (IPSO) Alliance. “IP for Smart Objects”. White Paper. July 2010. [IPSO_Web] IPSO Alliance Website<http://www.ipso-alliance.org/> [IETF_WG] Active IETF Working Groups<http://datatracker.ietf.org/wg/> [IPSO_RPL_2010] IPSO Webinar: Overview of the RPL protocol (routing for IP Smart Object networks). Slides. 4/12/10. [IPSO_6LoWPAN_2010] IPSO Webinar: 6LoWPAN. Slides. November 30th, 2010.
