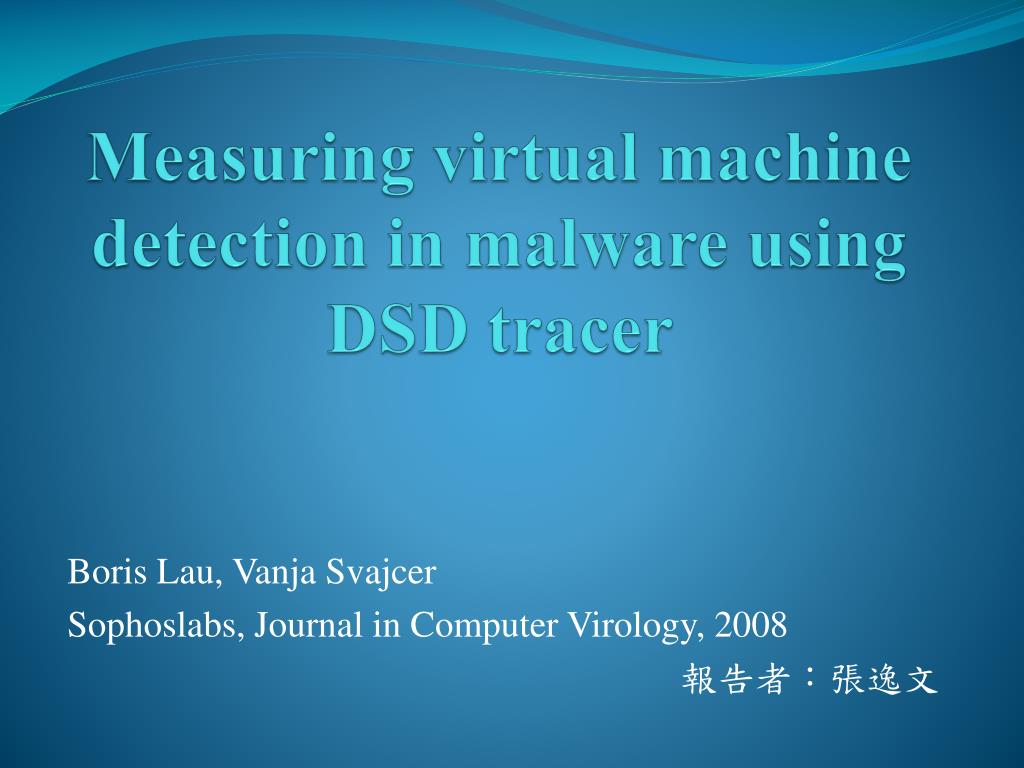

  1. Measuring virtual machine detection in malware using DSD tracer Boris Lau, VanjaSvajcer Sophoslabs, Journal in Computer Virology, 2008 報告者：張逸文

  2. Outline • Introduction • Virtual machine detection methods • Methodology of our study with DSD-Tracer • Results • Conclusion

  3. Introduction（#1） • Virtual machine technology is first implemented by IBM • More attention from virus writers & computer security researchers • If in VM，malware will behave like a normal program • If the proportion is > 0.1%，developing an environment to successfully analyze VM-aware malware is important

  4. Introduction（#2） • The most common security use cases with VM • Software vulnerability research • Malware analysis • Honeypots

  5. Virtual machine detection methods（#1） • If VM is detected, the malware will • stop its execution or • launch a specially crafted payload • Zlob Trojans • IRC bots • Executable packers

  6. Virtual machine detection methods（#2） • Detection of running under MS virtual PC using VPC communication channel • Communication between guest OS & VMM • Exceptions due to opcode：0x0f, 0x3f / 0x0f, 0xc7, 0xc8 • Call different VMM services：0x07, 0x0B

  7. Invalid instruction VPC communication channel detection

  8. Virtual machine detection methods（#3） • Detection of running under VMware using VMWare control API • VMWare backdoor communication • guest ↔ host communication • IN instruction • port 0x5658 • eax：0x564D5868（VMXh） • ebx ：function number

  9. Anti-VMWare prevention virtual machine initialization settings

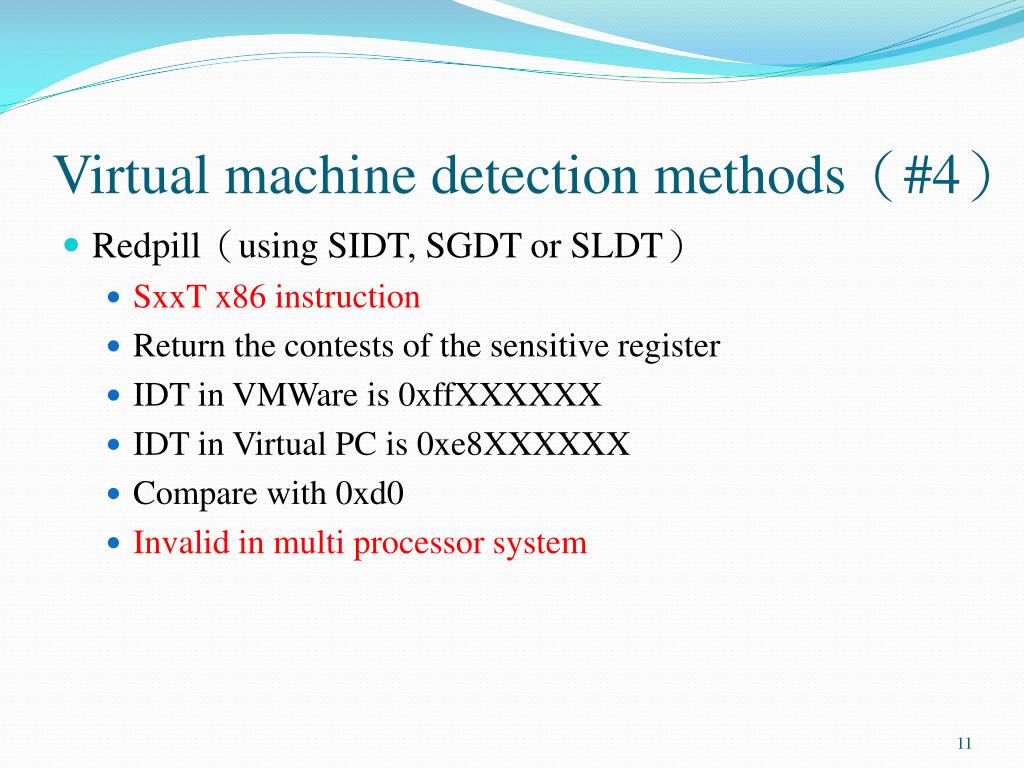

  10. Virtual machine detection methods（#4） • Redpill（using SIDT, SGDT or SLDT） • SxxTx86instruction • Return the contests of the sensitive register • IDT in VMWare is 0xffXXXXXX • IDT in Virtual PC is 0xe8XXXXXX • Compare with 0xd0 • Invalid in multi processor system

  11. Redpill

  12. Virtual machine detection methods（#5） • SMSW VMWare detection • Store Machine Specific Word instruction • Return 16-bit result • 32 bits register（16-bit undefined + 16-bit result） • In VMWare, the top 16-bits doesn’t change

  13. SMSWVMWaredetectioncode

  14. Methodology of our study with DSD-Tracer（#1） • DSD-Tracer • identify obfuscation packers • dynamic & static analysis

  15. Methodology of our study with DSD-Tracer（#2）

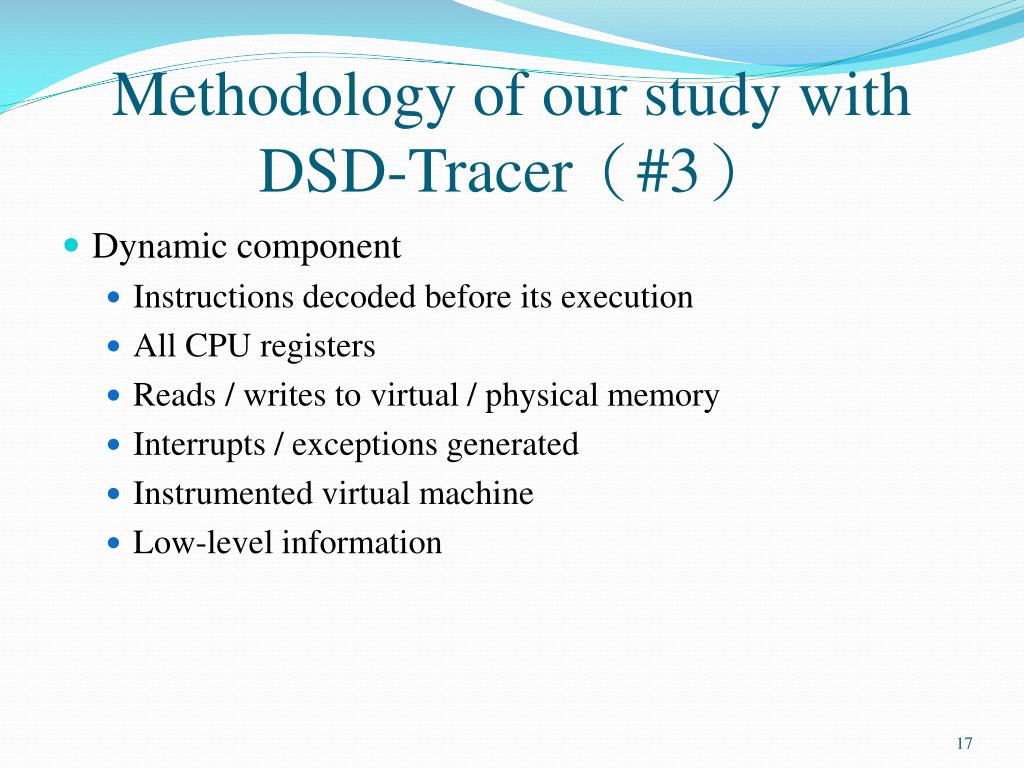

  16. Methodology of our study with DSD-Tracer（#3） • Dynamic component • Instructions decoded before its execution • All CPU registers • Reads / writes to virtual / physical memory • Interrupts / exceptions generated • Instrumented virtual machine • Low-level information

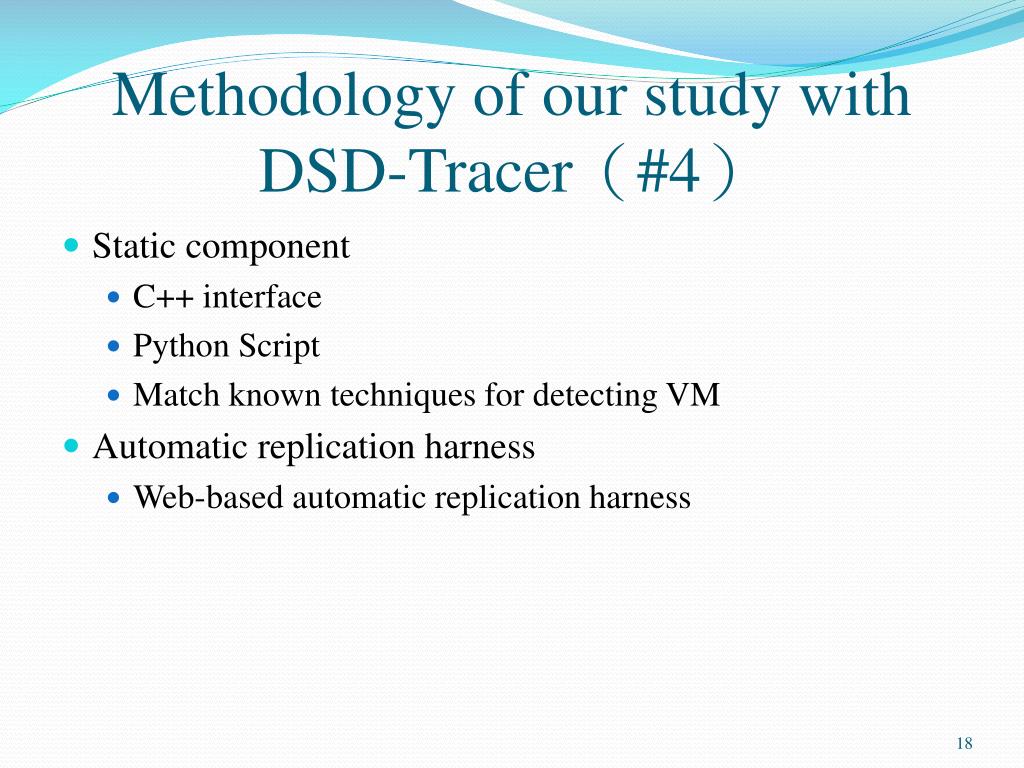

  17. Methodology of our study with DSD-Tracer（#4） • Static component • C++ interface • Python Script • Match known techniques for detecting VM • Automatic replication harness • Web-based automatic replication harness

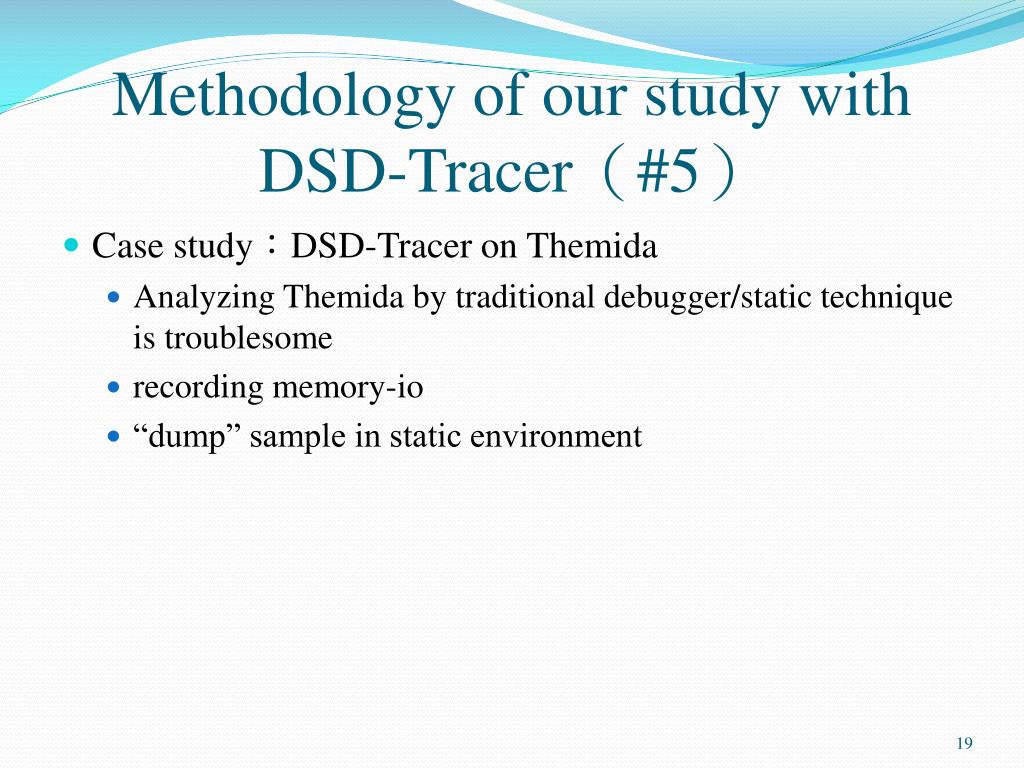

  18. Methodology of our study with DSD-Tracer（#5） • Case study：DSD-Tracer on Themida • Analyzing Themida by traditional debugger/static technique is troublesome • recording memory-io • “dump” sample in static environment

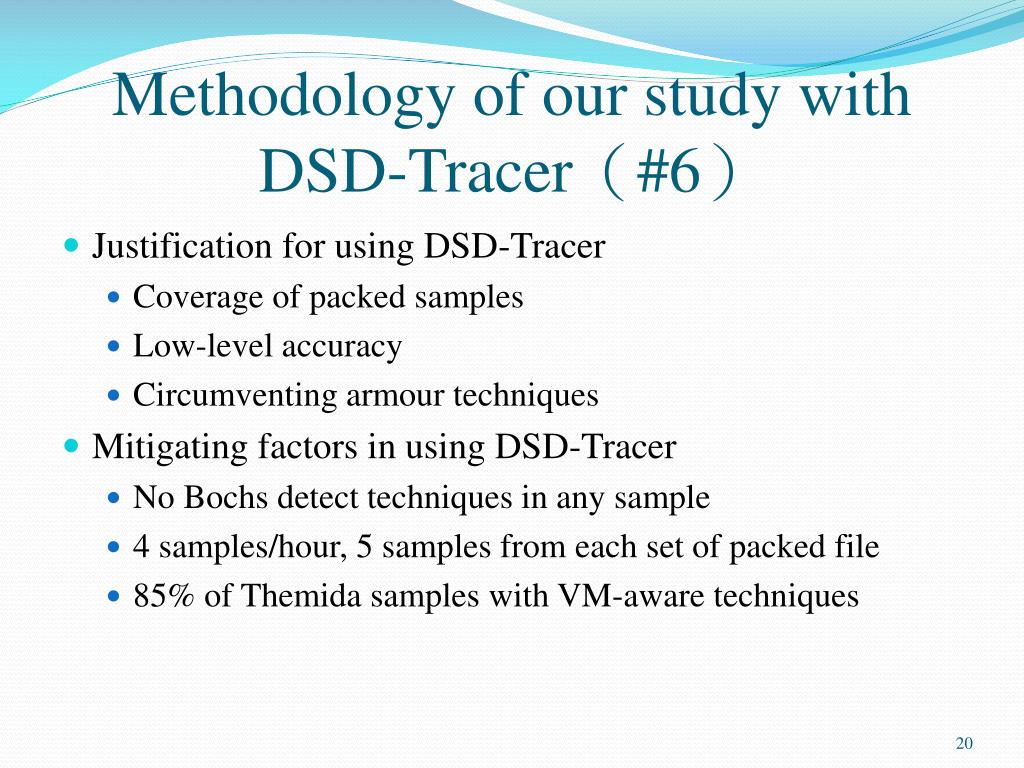

  19. Methodology of our study with DSD-Tracer（#6） • Justification for using DSD-Tracer • Coverage of packed samples • Low-level accuracy • Circumventing armour techniques • Mitigating factors in using DSD-Tracer • No Bochs detect techniques in any sample • 4 samples/hour, 5 samples from each set of packed file • 85% of Themida samples with VM-aware techniques

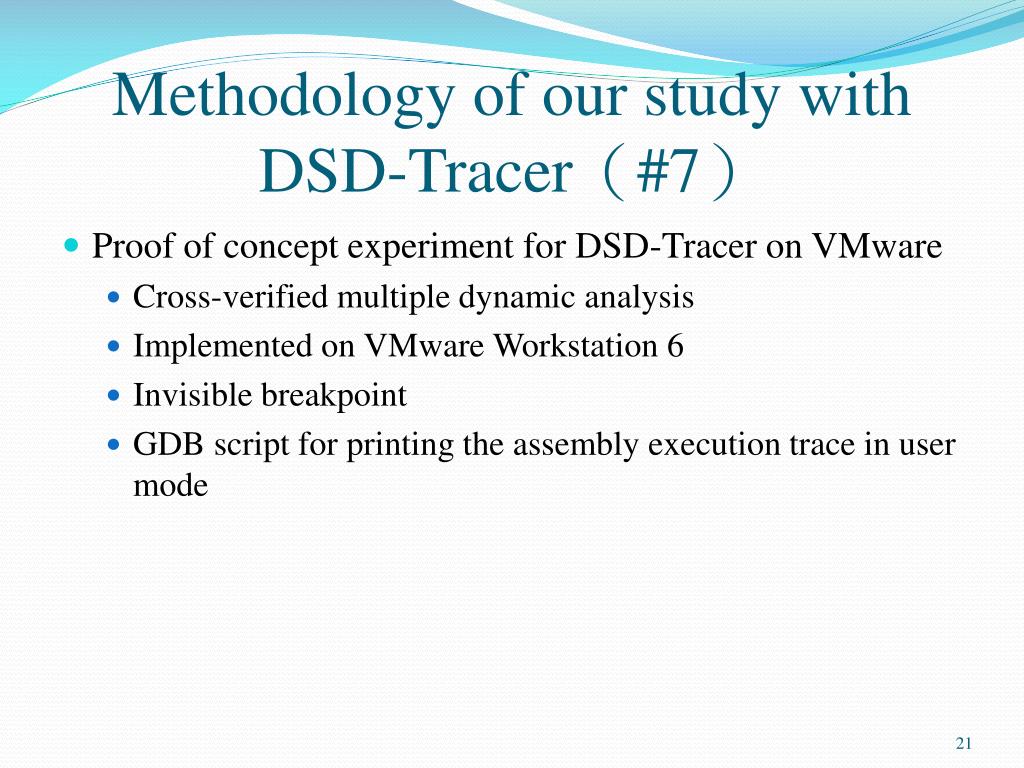

  20. Methodology of our study with DSD-Tracer（#7） • Proof of concept experiment for DSD-Tracer on VMware • Cross-verified multiple dynamic analysis • Implemented on VMware Workstation 6 • Invisible breakpoint • GDB script for printing the assembly execution trace in user mode

  21. Results（#1） • VMdetectioninpackers • 193differentpackers,400packedsamples • Overall VM detection rate is 1.15% • Themidaaccountingfor1.03% • ExeCryptoraccountingfor0.15% • EncPk：custom packers

  22. Results（#2） • VM detection in malware families • Static analysis rules – disassembly • Dynamic analysis rules – Sophos virus engine emulation • 2 million known malicious files • A large set of knows clean files • VM-aware samples < 1% • Method breakdown（Table 1.） • Family breakdown （Table 2.） • Dial/FlashL

  23. Results（#3）

  24. Results（#4） • VMWare backdoor detection method  50% VPC illegal instruction detection method • VPC illegal instruction detectionmethod  93% VMWarebackdoor detection method

  25. Results（#5） • Fig. 7 VMWare backdoor detection in 2007

  26. Results（#6） • Fig. 8 VPC backdoor detections in 2007

  27. Conclusion • Combination of dynamic and static analysis is better • 2.13%VM-aware samples

  28. Q&A

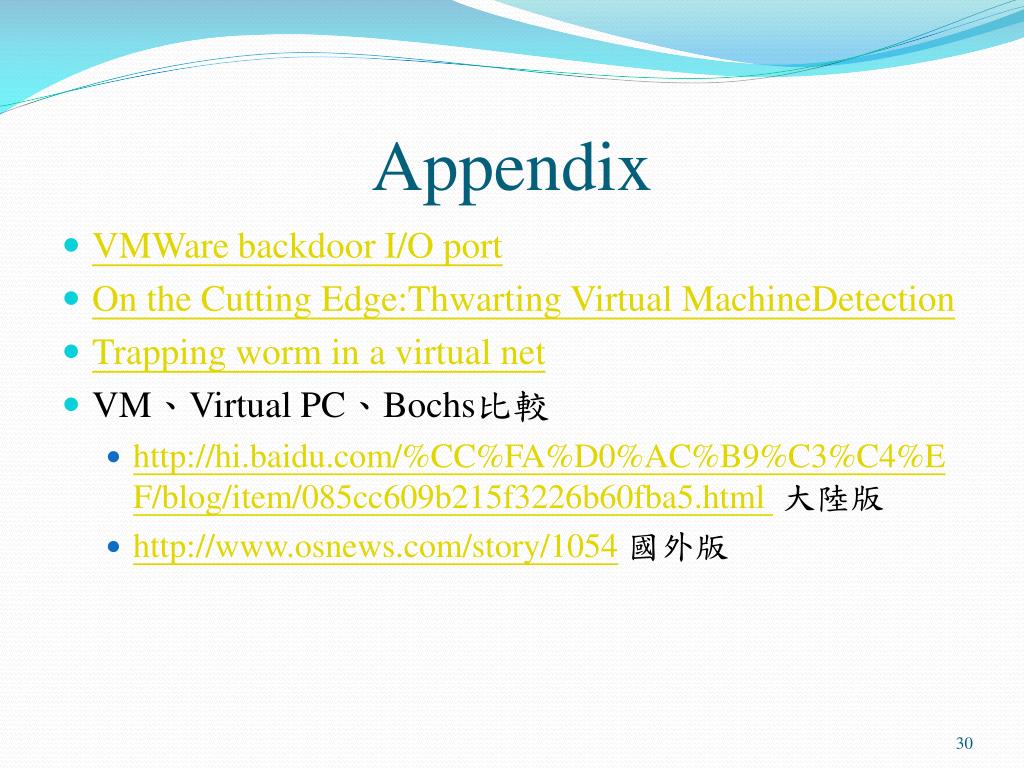

  29. Appendix • VMWare backdoor I/O port • On the Cutting Edge:ThwartingVirtual MachineDetection • Trappingworminavirtualnet • VM、Virtual PC、Bochs比較 • http://hi.baidu.com/%CC%FA%D0%AC%B9%C3%C4%EF/blog/item/085cc609b215f3226b60fba5.html 大陸版 • http://www.osnews.com/story/1054 國外版

  30. Thanks ~
