  1. EEL 3705 / 3705LDigital Logic Design Fall 2006Instructor: Dr. Michael FrankModule #6: Modular Combinational Logic(Thanks to Dr. Perry for the slides) M. Frank, EEL3705 Digital Logic, Fall 2006

  2. Note to Self • There are still way too many slides in this module! • Need to keep working on making it shorter and more concise M. Frank, EEL3705 Digital Logic, Fall 2006

  3. Wednesday, October 10, 2006 • Administrivia: • This week’s lab: • Finish “Top secret code display” (w. K-maps), finish project • Design project #1: Due this Friday!! • Test your designs during a lab period, or in TA office hours • Don’t delay writing the large required amount of documentation! • Homework assignment #3: • Due next Monday (October 16th) • Plan for today: • Show Ping-Pong videogame example, in progress • See module #99, Designs (v.3+) for slides • Start next lecture topic: Modular Combinational Logic M. Frank, EEL3705 Digital Logic, Fall 2006

  4. Modular Combinational Logic Original slides by Dr. Reginald Perry With modifications & additions by Mike Frank M. Frank, EEL3705 Digital Logic, Fall 2006

  5. Decoders • General form: n-to-2n decoder • n inputs, 2n outputs • For each input pattern, one and only one output line will be active. • Uses: • “Minterm generator” • Bit/word-line (memory access) circuit • Code conversion • Demultiplexing (routing) of data M. Frank, EEL3705 Digital Logic, Fall 2006

  6. 1-to-2 Decoder • Truth table shown at right • This one can be implementedby just a simple fan-out andan inverter: y0 y0 x x y1 y1 Circuit schematic Icon M. Frank, EEL3705 Digital Logic, Fall 2006

  7. Recursive Contruction of n-to-2n Decoder out of 1-to-2 and (n−1)-to-2n−1 Decoders w0 …plus 2n AND gates w1 w2 xn−1..1 xn−1..0 2n−1 ANDgates 2n−1 … n−1 2n 2n−1 ANDgates z0 x0 z1 M. Frank, EEL3705 Digital Logic, Fall 2006

  8. 1-to-2, 2-to-4 and 3-to-8 Decodersusing recursive design style in Quartus This is really 4 AND gates in parallel This is really 8 AND gates in parallel M. Frank, EEL3705 Digital Logic, Fall 2006

  9. add a slide on the other recursive composition of 2k-to-(2^(2k)) decoders M. Frank, EEL3705 Digital Logic, Fall 2006

  10. 2 to 4 Decoder – Truth Table • 2 to 4 decoder M. Frank, EEL3705 Digital Logic, Fall 2006

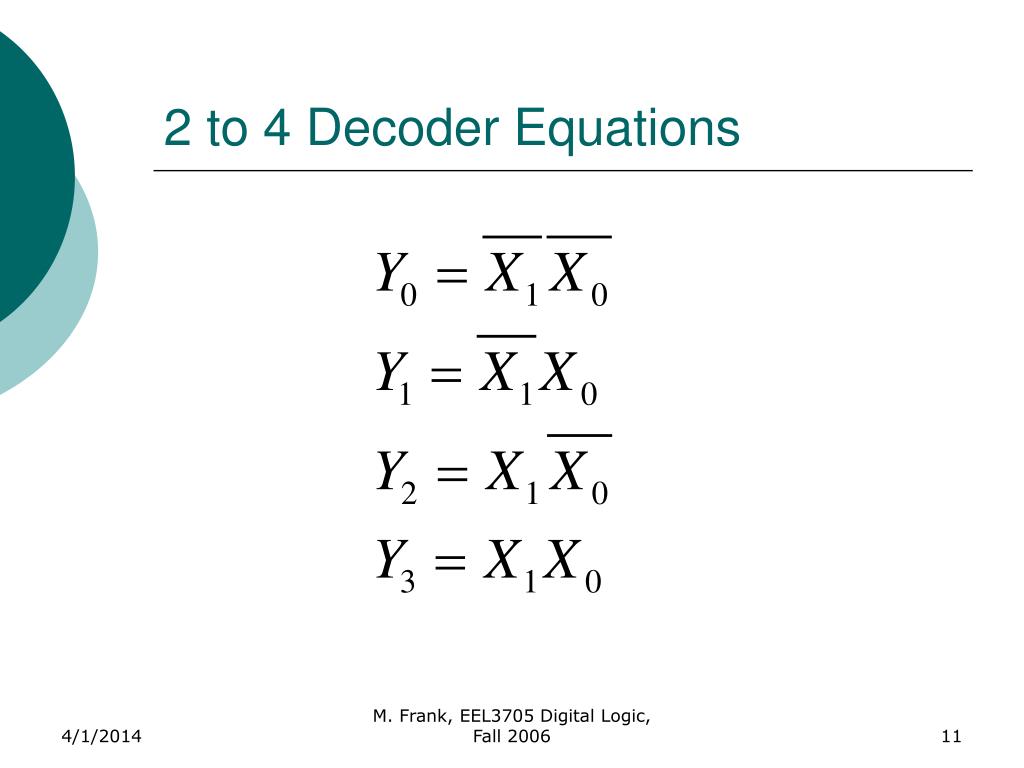

  11. 2 to 4 Decoder Equations M. Frank, EEL3705 Digital Logic, Fall 2006

  12. 2 to 4 Decoder: Circuit M. Frank, EEL3705 Digital Logic, Fall 2006

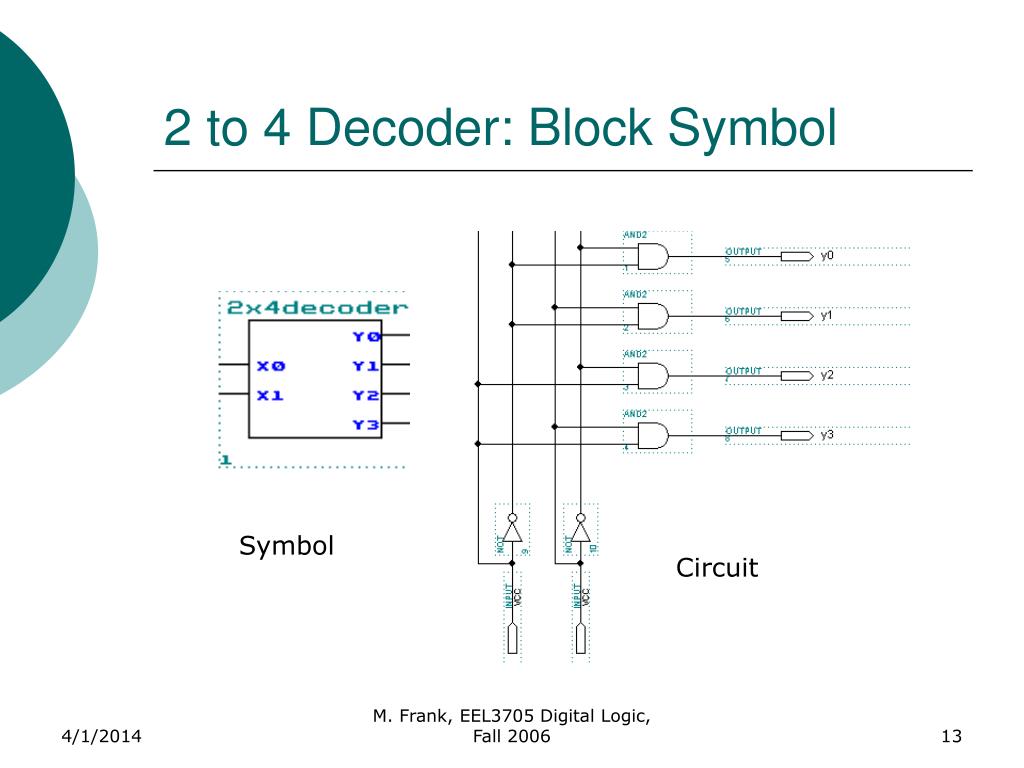

  13. 2 to 4 Decoder: Block Symbol Symbol Circuit M. Frank, EEL3705 Digital Logic, Fall 2006

  14. 3 to 8 Decoder – Truth Table M. Frank, EEL3705 Digital Logic, Fall 2006

  15. 3 to 8 Decoder Equations M. Frank, EEL3705 Digital Logic, Fall 2006

  16. 3 to 8 Decoder: Circuit M. Frank, EEL3705 Digital Logic, Fall 2006

  17. 3 to 8 Decoder: Block Symbol Symbol Circuit M. Frank, EEL3705 Digital Logic, Fall 2006

  18. Design Example • Using only a 3x8 decoder and two-input OR gates, design a logic circuit which implements the following Boolean equation M. Frank, EEL3705 Digital Logic, Fall 2006

  19. Solution m2 m4 m5 M. Frank, EEL3705 Digital Logic, Fall 2006

  20. 2 to 4 Decoder with Enable M. Frank, EEL3705 Digital Logic, Fall 2006

  21. 2x4 Decoder with Enable • Enable is abbreviated as EN • EN is called a Control Signal • Control Signals can be • Active High Signal • EN = 1 – Turns “ON” Decoder • Active Low Signal • EN=0 – Turns “ON” Decoder M. Frank, EEL3705 Digital Logic, Fall 2006

  22. 2 x 4 Decoder with Active High Enable – Truth Table M. Frank, EEL3705 Digital Logic, Fall 2006

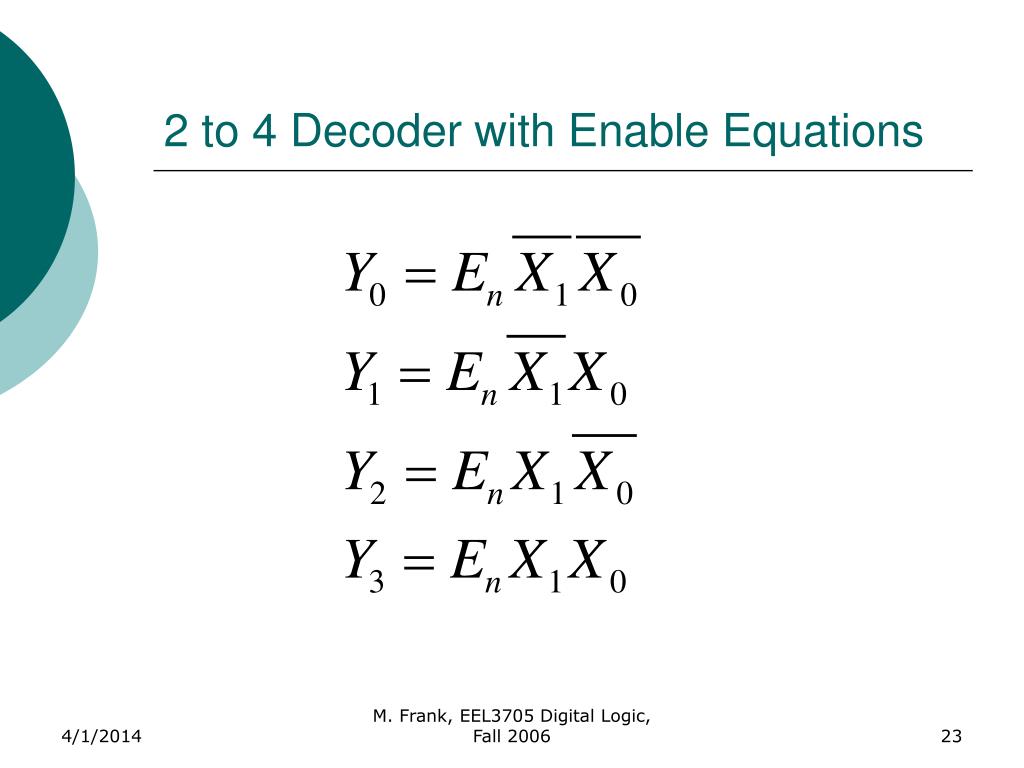

  23. 2 to 4 Decoder with Enable Equations M. Frank, EEL3705 Digital Logic, Fall 2006

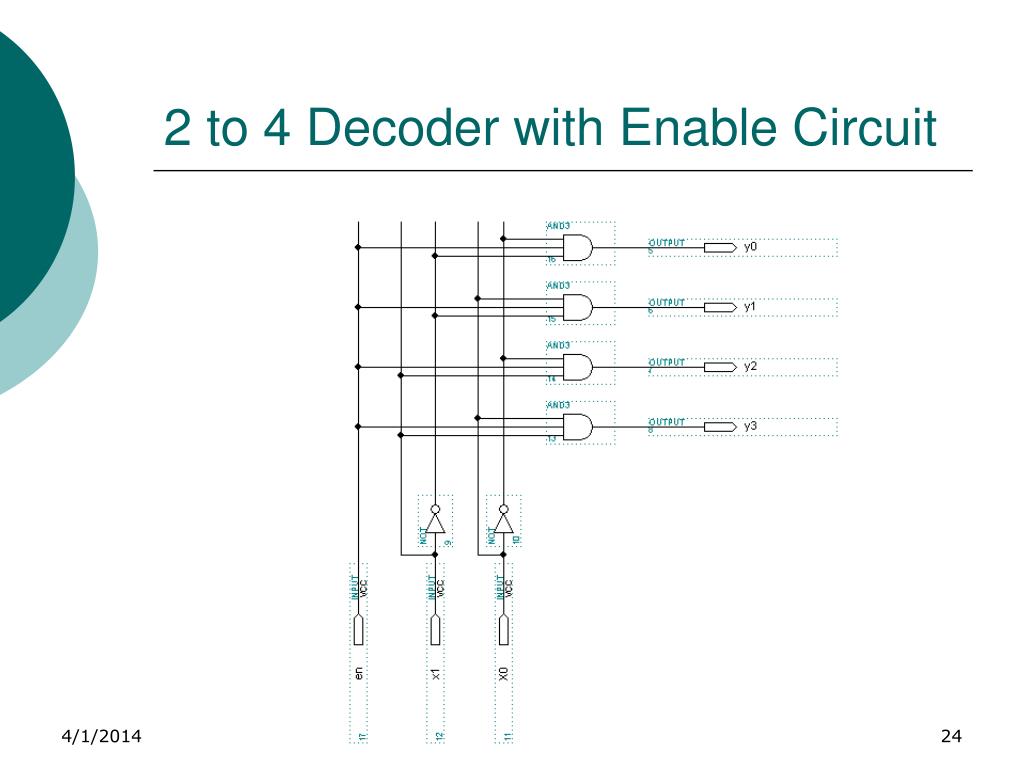

  24. 2 to 4 Decoder with Enable Circuit M. Frank, EEL3705 Digital Logic, Fall 2006

  25. 2 to 4 Decoder with Enable Symbol M. Frank, EEL3705 Digital Logic, Fall 2006

  26. 2 x 4 Decoder with Active High Enable – Truth Table (Short hand notation) d = don’t care En has “highest” priority. If En=0, we “don’t care” about x1 or x0 because Y=0 M. Frank, EEL3705 Digital Logic, Fall 2006

  27. 2 x 4 Decoder with Active Low Enable – Truth Table (Short hand notation) d = don’t care En has “highest” priority. If En=1, we “don’t care” about x1 or x0 because Y=0 M. Frank, EEL3705 Digital Logic, Fall 2006

  28. 2 to 4 Decoder with Active Low Enable Circuit M. Frank, EEL3705 Digital Logic, Fall 2006

  29. Design Example • Design a 3x8 decoder using only 2x4 decoders and NOT gates. M. Frank, EEL3705 Digital Logic, Fall 2006

  30. Solution “On” when A=0 “On” when A=1 M. Frank, EEL3705 Digital Logic, Fall 2006

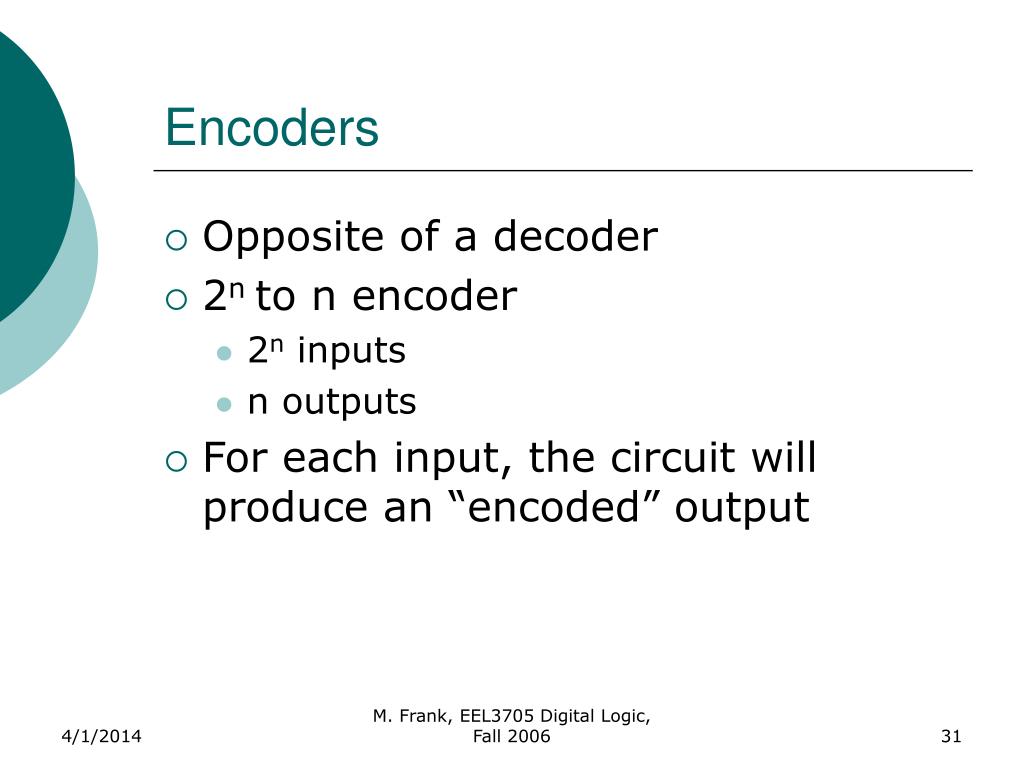

  31. Encoders • Opposite of a decoder • 2n to n encoder • 2n inputs • n outputs • For each input, the circuit will produce an “encoded” output M. Frank, EEL3705 Digital Logic, Fall 2006

  32. Example: 4to 2 Binary EncoderTruth Table Assume only one input high at a time!! M. Frank, EEL3705 Digital Logic, Fall 2006

  33. 4 to 2 Encoder Equations M. Frank, EEL3705 Digital Logic, Fall 2006

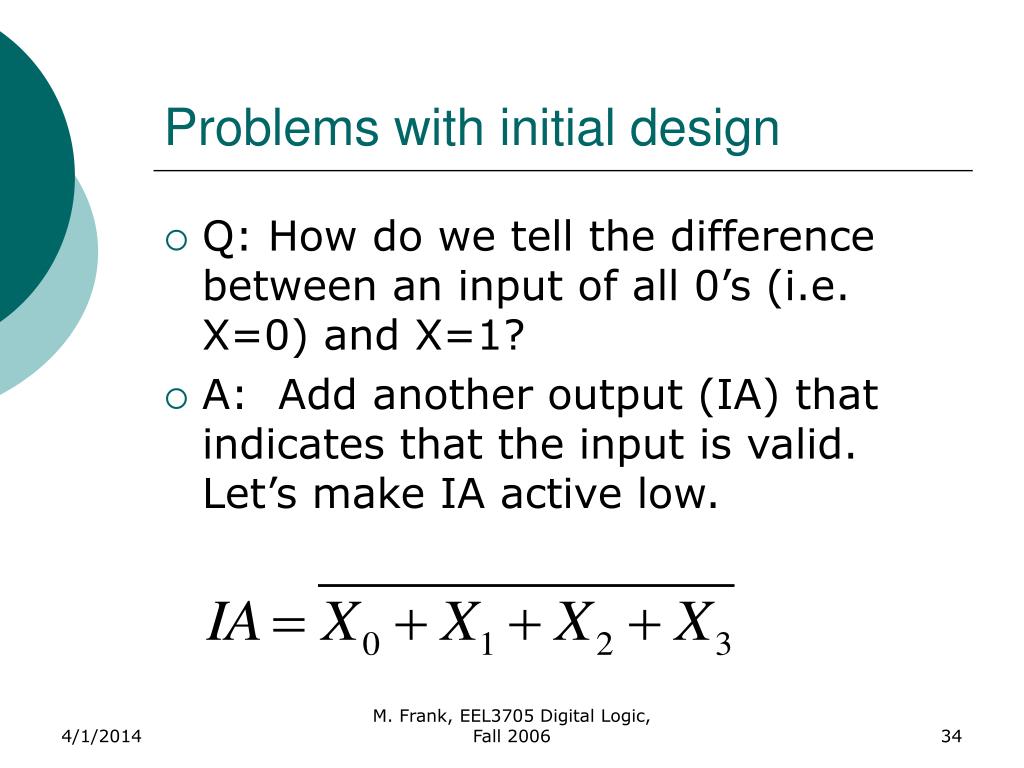

  34. Problems with initial design • Q: How do we tell the difference between an input of all 0’s (i.e. X=0) and X=1? • A: Add another output (IA) that indicates that the input is valid. Let’s make IA active low. M. Frank, EEL3705 Digital Logic, Fall 2006

  35. Problems with initial design If IA = 1 => all lines are 0 If IA = 0 => at least one line is 1 • Q: What happens if more than one input is high at the same time? • A: Design a “priority” encoder that will encode the input with the highest priority. • Let’s set X3 with the highest priority, followed by X2, X1, and X0 M. Frank, EEL3705 Digital Logic, Fall 2006

  36. Example: 4to 2 Priority Binary EncoderTruth Table M. Frank, EEL3705 Digital Logic, Fall 2006

  37. Solution 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Y1 Y0 M. Frank, EEL3705 Digital Logic, Fall 2006

  38. 4 to 2 Priority Encoder Equations M. Frank, EEL3705 Digital Logic, Fall 2006

  39. Monday, October 16, 2006 • Administrivia: • This week’s lab: • “Electronic Device Test” – PO(2/b), experiment • Design projects are being graded this week • Homework assignment #3 is due tonight • Plan for today: • Finish current topic: • Modular Combinational Logic – MUXes, ALUs M. Frank, EEL3705 Digital Logic, Fall 2006

  40. Multiplexer/Data Selectors MUX Very Important Module!!! M. Frank, EEL3705 Digital Logic, Fall 2006

  41. Multiplexer(MUX)/Data Selector • N to 1 multiplexer (or multiplexor) • N=2k data input lines, D0..(N−1) • k=log2(N) control inputs, S(k−1)..0 • Binary encoding of index of selected data • One output: • This circuit will “connect” just the selected input to the output. • The selected input is specified by decoding the control inputs. M. Frank, EEL3705 Digital Logic, Fall 2006

  42. The Simplest Multiplexer • 2-to-1 multiplexer truth table • Output is a copy of • D0 if S0=0 • D1 if S0=1 Schematic,using 1-to-2Decoder module example 2-to-1 MUX Icon M. Frank, EEL3705 Digital Logic, Fall 2006

  43. General Construction of a 2k-to-1 MUX from a k-to-2k decoder, ANDs, and an OR • This is just a direct generalization of the schematic on the previous slide. F “bussed”OR gate 2k 2k 2k This means 2k ANDgates in parallel k S(k−1)..0 M. Frank, EEL3705 Digital Logic, Fall 2006

  44. Recursive Construction of 2k-to-1 muxfrom two 2k−1-to-1 muxes (& a 2-to-1 mux) 2k−1 k−1 F 2k 2k−1 Sk−1 S(k−2)..0 k−1 S(k−1)..0 k M. Frank, EEL3705 Digital Logic, Fall 2006

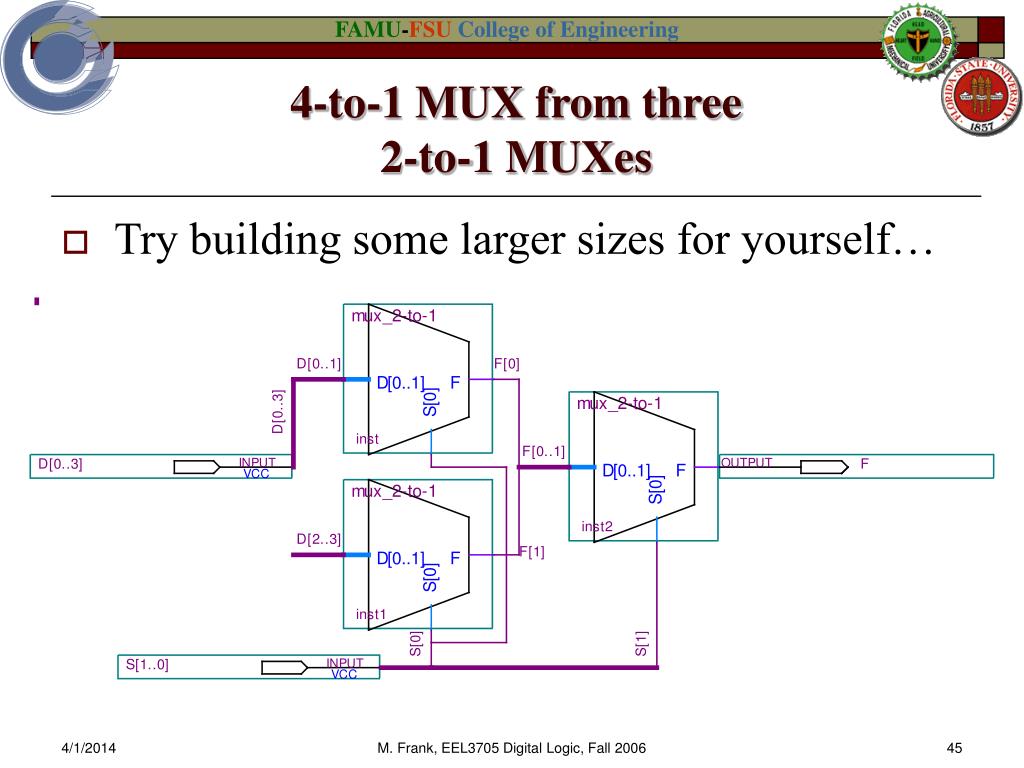

  45. 4-to-1 MUX from three2-to-1 MUXes • Try building some larger sizes for yourself… M. Frank, EEL3705 Digital Logic, Fall 2006

  46. Example: 4to 1 MUX Truth Table Control Inputs Output Data Inputs d = don’t care / Di = data on input i M. Frank, EEL3705 Digital Logic, Fall 2006

  47. 4 to 1 MUX Equation D’s are the DATA inputs, AB are control inputs and called the “select” lines. M. Frank, EEL3705 Digital Logic, Fall 2006

  48. 4 to 1 MUX Circuit Control Inputs Data Inputs Output 2x4 Decoder Only a single AND gate will be “ON” at a time. M. Frank, EEL3705 Digital Logic, Fall 2006

  49. 4 to 1 MUX Symbol A more common, and more mnemonic MUX symbol: D0 Data Inputs D1 F Output D2 Control Inputs S1..0 D3 M. Frank, EEL3705 Digital Logic, Fall 2006

  50. Logic with multiplexers • You can implement any n-input logic function with a single 2n-to-1 multiplexer, by feeding appropriate constants into the MUX’s data inputs. • Namely, the list of the function’s output values from its truth table • The multiplexer implements a “lookup table” • it simply looks up the function result from the indicated row of the truth table • Of course, this is generally not the most hardware-efficient way to implement a given function. M. Frank, EEL3705 Digital Logic, Fall 2006
