  1. Operating Systems Threads, SMP, and Microkernels

  2. Processes and Threads • So far, presented the concept of process as embodying: • Resource ownership:process includes a virtual address space to hold the process image • Scheduling/execution:process follows an execution path that may be interleaved with other processes • These two characteristics are treated independently by the operating system

  3. Processes and Threads • Unit of dispatching is referred to as a thread or lightweight process • Unit of resource ownership is referred to as a process or task

  4. Multithreading • Multithreading: OS supports multiple, concurrent paths of execution within a single process • MS-DOS supports a single user process and thread • Some UNIX variants supports multiple user processes but only one thread per process • Java run-time environment is a single process with multiple threads • Windows, Solaris and many modern versions of UNIX support multiple user processes with multiple threads per process

  5. Threads and Processes

  6. Processes • In multithreaded environment, a process is defined as a unit of resource allocation and a unit of protection. • Process has associated: • A virtual address space which holds the process image • Protected access to processors, other processes (IPC), files, and I/O resources

  7. One or More Threads in Process • Each thread has • An execution state(running, ready, etc.) • Saved thread context when not running • An execution stack • Some per-thread static storage for local variables • Access to process memory and resources(shared by all threads)

  8. Threads

  9. Benefits of Threads • Takes less time to create a new thread than a process • Less time to terminate a thread than a process • Less time to switch between two threads within the same process • Since threads within the same process share memory and files, they can communicate with each other without invoking the kernel

  10. Uses of Threads in a Single-User Multiprocessing System • Foreground and background work • One thread managing display and input • Another executing commands • Asynchronous processing • Thread responsible for periodic backup • Speed of execution • parallelism • Modular program structure

  11. Threads • Suspending a process involves suspending all threads of the process since all threads share the same address space • Termination of a process, terminates all threads within the process

  12. Thread States • Operations associated with a change in thread state • Spawn • Spawn another thread • Block • To wait for an event • Unblock • To move to the ready queue • Finish • De-allocate register context and stacks

  13. User-Level Threads • All thread management is done by the application • The kernel is not aware of the existence of threads • Any application can be multithreaded via a threads library which contains code for • Creating and destroying threads • Passing messages and data between threads • Scheduling thread execution • Saving and restoring thread contexts

  14. User-Level Threads

  15. Process B is Running two threads: Thread 2 is Running, Thread 1 is Ready Thread 2 makes an IO request which results in process B being Blocked

  16. Process B is Blocked waiting for IO requested by Thread 2 Within Process B state of Thread 2 is still Running, Thread 1 is Ready

  17. Process B resumes execution and Thread 2 hits a point where it needs some action performed by Thread 1. So Thread 2 blocks and Thread 1 starts running

  18. Note that Thread scheduling is done by procedure call to the Threads library and this execution is part of Process B’s execution

  19. Kernel-Level Threads(lightweight processes) • Windows is an example of this approach • Kernel maintains context information for the process and the threads • Scheduling is done on a thread basis

  20. Kernel-Level Threads

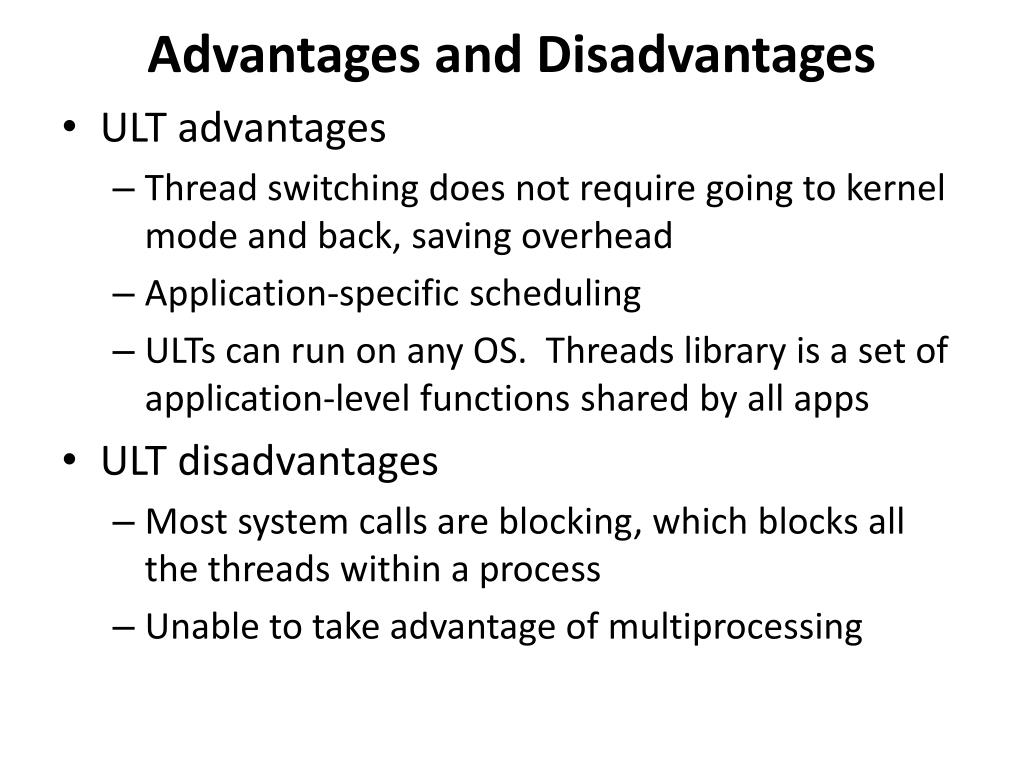

  21. Advantages and Disadvantages • ULT advantages • Thread switching does not require going to kernel mode and back, saving overhead • Application-specific scheduling • ULTs can run on any OS. Threads library is a set of application-level functions shared by all apps • ULT disadvantages • Most system calls are blocking, which blocks all the threads within a process • Unable to take advantage of multiprocessing

  22. Combined Approaches • Example is Solaris • Thread creation done in the user space • Bulk of scheduling and synchronization of threads within application

  23. Combined Approaches

  24. Relationship Between Thread and Processes

  25. Categories of Computer Systems(Flynn, 1972) • Single Instruction Single Data (SISD) stream • Single processor executes a single instruction stream to operate on data stored in a single memory • Single Instruction Multiple Data (SIMD) stream • Each instruction is executed on a different set of data by the different processors

  26. Categories of Computer Systems(Flynn, 1972) • Multiple Instruction Single Data (MISD) stream • A sequence of data is transmitted to a set of processors, each of which executes a different instruction sequence. Never implemented • Multiple Instruction Multiple Data (MIMD) • A set of processors simultaneously execute different instruction sequences on different data sets

  27. Parallel Processor Architectures

  28. Symmetric Multiprocessing • Kernel can execute on any processor • Typically each processor does self-scheduling from the pool of available processes or threads

  29. Symmetric Multiprocessor Organization

  30. Multiprocessor Operating Systems Design Considerations • Simultaneous concurrent processes or threads • Kernel routines must be reentrant • Complex issues in kernel table and management structures to avoid deadlock, invalid ops • Scheduling • Avoid conflicts in independent scheduling by different processors • In kernel-level multithreading, parallel execution of threads possible

  31. Multiprocessor Operating Systems Design Considerations • Synchronization • Enforce mutual exclusion and event ordering • Locks are a commonly used mechanism • Memory management • Complexities of enforcing consistency when pages are shared among processors • Reliability and fault tolerance • Graceful degradation in instances of processor failure • Requires restructuring management tables

  32. Kernel Architecture

  33. Microkernels • Small operating system core • Contains only essential core operating systems functions • Client-Server approach

  34. Microkernels • Many services traditionally part of the OS are now external subsystems • Subsystems interact with the kernel and with each other • Includes • device drivers • file systems, • virtual memory manager, • windowing system, • security services

  35. Benefits of a Microkernel Organization • Uniform interfaces • Don’t need to distinguish between kernel-level and user-level services • All services are provided by means of message passing through the microkernel • Microkernel validates messages, passes them between components and grants access to hardware • Security: prevents message passing unless exchange is allowed

  36. Benefits of a Microkernel Organization • Extensibility • Easier to add new services • Modifications do not require building a new kernel • Flexibility • New features added • Existing features can be subtracted

  37. Benefits of a Microkernel Organization • Portability • Processor specific code restricted to the microkernel • Changes needed to port the system to a new processor are few and tend to be arranged in logical groupings • Reliability • Small microkernel can be rigorously tested

  38. Benefits of a Microkernel Organization • Distributed system support • Message are sent without knowing what the target machine is • Object-oriented operating systems • Components are objects with clearly defined interfaces that can be interconnected to form software

  39. Microkernel Design • Low-level memory management • Mapping each virtual page to a physical page frame

  40. Interprocess Communication • Interprocess communication by messages • Message consists of a header and a body • Header, identifying sender and receiver • Body containing • Direct data; or • Pointer to a block of data; or • Control information about the process

  41. Process “Ports” • IPC based on “ports” associated with processes • Port may be viewed as a queue of messages destined for a process • Each port determines a list of other processes that may use it to communicate with the host process (capabilities) • Port identities and capabilities maintained by the kernel • Host process can grant new access by sending a message to the kernel

  42. I/O and Interrupt Management • With microkernel architecture, hardware interrupts may be handled as messages • I/O ports are included in the address space • Microkernel recognizes interrupts but does not handle them • Instead, generates a message for the user process associated with the interrupt

  43. Solaris • Process includes the user’s address space, stack, and process control block • User-level threads • A user-created execution unit within a process • implemented through a library in a process’s address space • invisible to the OS

  44. Kernel Threads (Solaris) • Kernel threads are fundamental entities that can be scheduled and dispatched to run on one of the system processors • Concurrency and execution are managed at the kernel thread level

  45. Kernel Threads (Solaris) • Some kernel threads are bound to a user-level thread by means of a lightweight process • Other kernel threads are used to implement system functions • They are created, run and destroyed by the kernel

  46. Solaris LWPs • Lightweight processes (LWP) • Visible within a process to the application • Thus, LWP data structures exist within the process address space • Each LWP supports a user-level thread and is bound to one dispatchable kernel thread • Data structures for kernel threads are maintained in the kernel’s address space

  47. Processes and Threads in Solaris

  48. LWP Data Structure • Identifier • Priority • Signal mask • Saved values of user-level registers

  49. LWP Data Structure • Kernel stack • Resource usage and profiling data • Pointer to the corresponding kernel thread • Pointer to the process structure

  50. Process Structure Replaced by Also contains a pointer to the associated kernel thread
