  1. COMS 361Computer Organization Title: Instructions Date: 9/21/2004 Lecture Number: 8

  2. Announcements • Homework 3 • Due 9/28/04

  3. Review • Instructions • MIPS arithmetic instruction format • Immediate instructions • MIPS load and store instructions • Addressing

  4. Outline • Instructions • MIPS load and store instruction format • MIPS immediate instruction format • Addressing • MIPS branch instructions and format

  5. Immediate Instructions • Frequently constants are added during program execution • Increment (i++) • Speed execution if these constants could be in the instruction instead of in memory • MIPS provides an immediate version of some instructions, which contain a constant • C/C++ code i = i + 1; • MIPS code addi $s0, $s1, 1

  6. rs 5 rt 5 rd 5 shamt 5 funct 6 op 6 Immediate Instructions • Syntax is similar to R-type instructions • Except a number needs to be stored in the instruction • Where should the immediate value be put using this instruction format? • Hummmmm

  7. Base register Data Transfer Instructions C/C++ code: b = A[8]; MIPS code: lw $t0, 32($s2) • Data transfer instruction syntax • 1 2, 3(4) 1) Operation (instruction) name 2) Destination register 3) Numerical offset in bytes 4) Register containing the base address of the array register contains a pointer to memory

  8. Data Transfer Instructions lw $t0, 32($s2) • 16-bit address means words within a 215 range around the address in the base register can be loaded • Positive and negative offsets • 16-bit immediate number is the same number of bits as a signed short integer in C/C++ rs rt Address or immediate value op 6 5 16 6

  9. Design Principle 3 • Good design demands good comprises • MIPS comprise • Keep all instructions the same size (32-bits) • Allow different instruction formats for different types of instructions

  10. 35 9 32 18 op rs rt number Machine language • Example: lw $t0, 32($s2) • The effective address (EA) of the word to load is computed as: • Address stored in the $s2 register (the base address) plus the offset amount • Addressing mode is called • register indirect with immediate offset

  11. Machine language • register indirect with immediate offset • EA = register + signed immediate • There are other address schemes used by other architectures, but only this one for MIPS

  12. word address 0 1 2 3 4 5 6 7 8 9 10 11 12 13 8-bit data word 1 word 2 word 3 Pitfall • Forgetting sequential word address in a byte addressable machine differ by the word size (in bytes), not 1 • MIPS is a word aligned machine • Word addresses must be a multiple of 4 • A 32-bit word actually occupies four contiguous locations (bytes) of main memory

  13. Bytes in Word 0 1 2 3 Aligned Not Aligned Word Location Pitfall • 0, 4, 8 and 12 are valid word addresses. • 1, 2, 3, 5, 6, 7, 9, 10 and 11 are not valid word addresses. • Unaligned memory accesses result in a bus error, which you may have unfortunately seen before

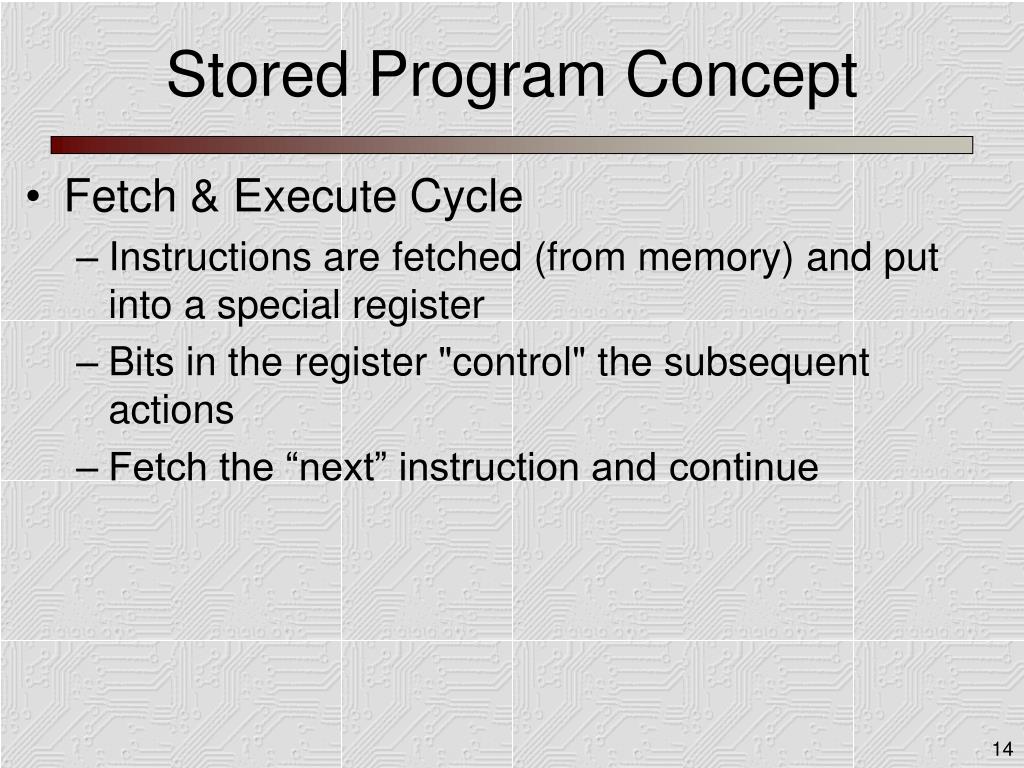

  14. Stored Program Concept • Fetch & Execute Cycle • Instructions are fetched (from memory) and put into a special register • Bits in the register "control" the subsequent actions • Fetch the “next” instruction and continue

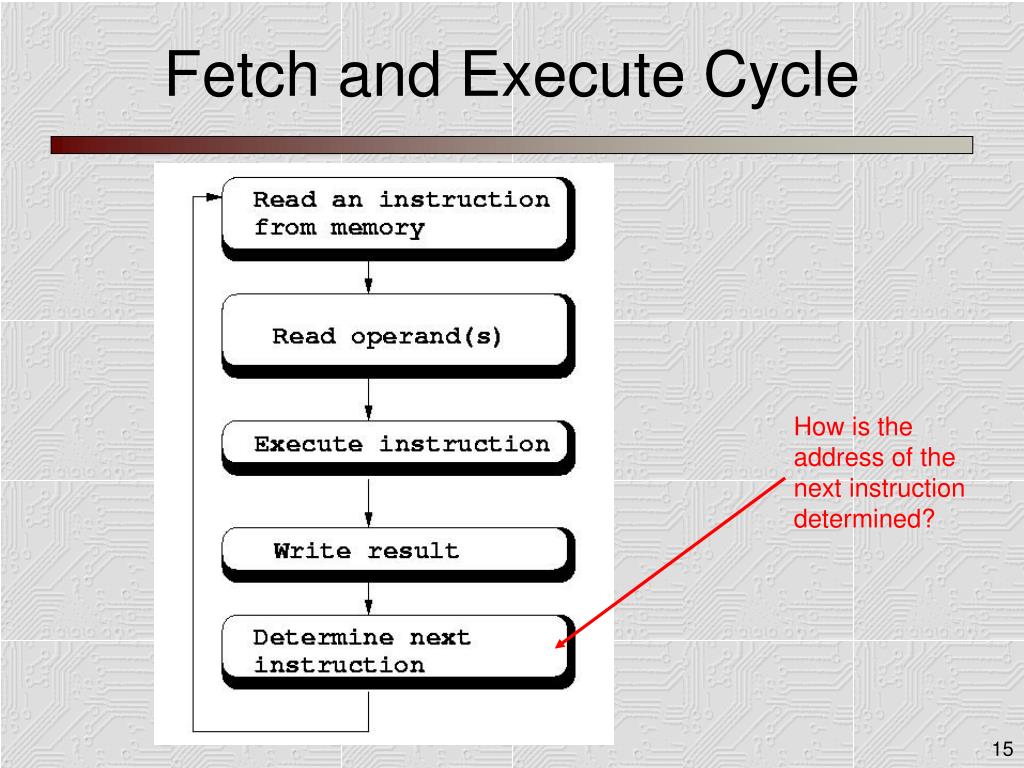

  15. How is the address of the next instruction determined? Fetch and Execute Cycle

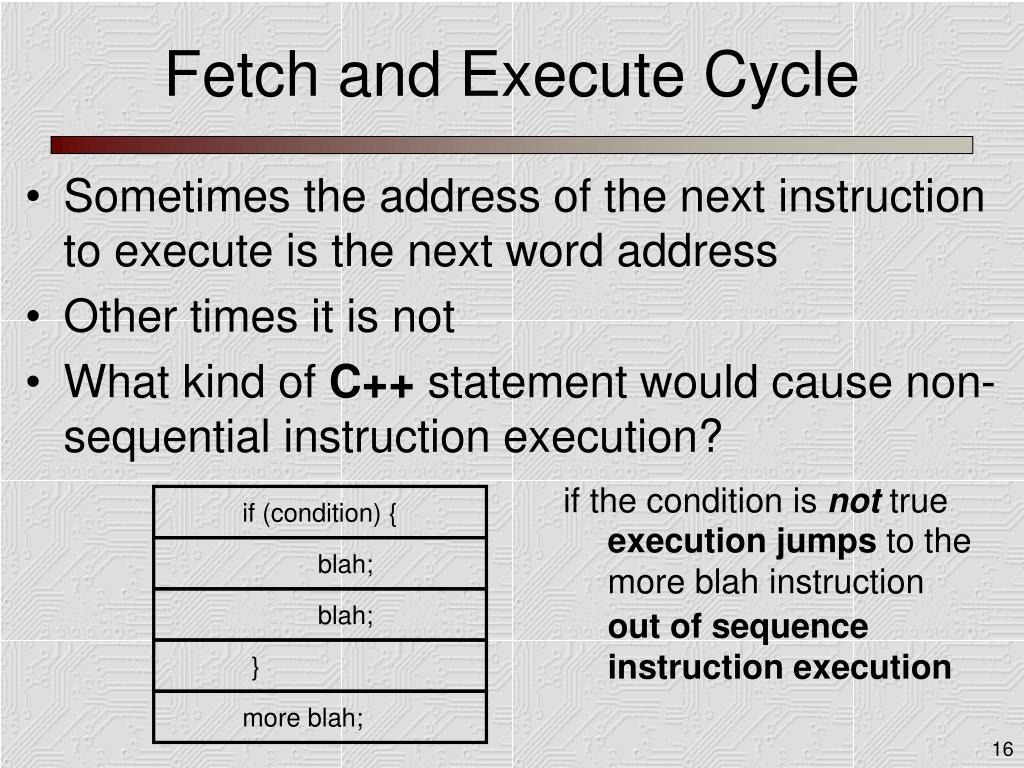

  16. Fetch and Execute Cycle • Sometimes the address of the next instruction to execute is the next word address • Other times it is not • What kind of C++ statement would cause non-sequential instruction execution? if the condition is not true if (condition) { execution jumps to the more blah instruction • blah; • blah; out of sequence instruction execution } • more blah;

  17. A label you create or make up Control Flow • Decision making instructions • Alter the control flow • Change the "next" instruction to be executed • MIPS conditional branch instructions • beq $t0, $t1, EQ • branch if equal • If the contents of register $t0 == $t1 the next instruction to be executed is the one associated with the label EQ • beq $t0, $t1, NEQ • branch if NOT equal • Execute instruction associated with NEQ if the contents of register $t0 != $t1

  18. Control Flow • Example: conditional branch instructions • C/C++ code: if(i == j) { h = i + j; } • MIPS code: bne $s0, $s1, NEQ add $s3, $s0, $s1 NEQ: .... • Notice: in MIPS we reversed the condition to goto NEQ • If the condition is NOT true, skip the next instruction • If the condition is true, execute the next instruction and continue sequential instruction execution

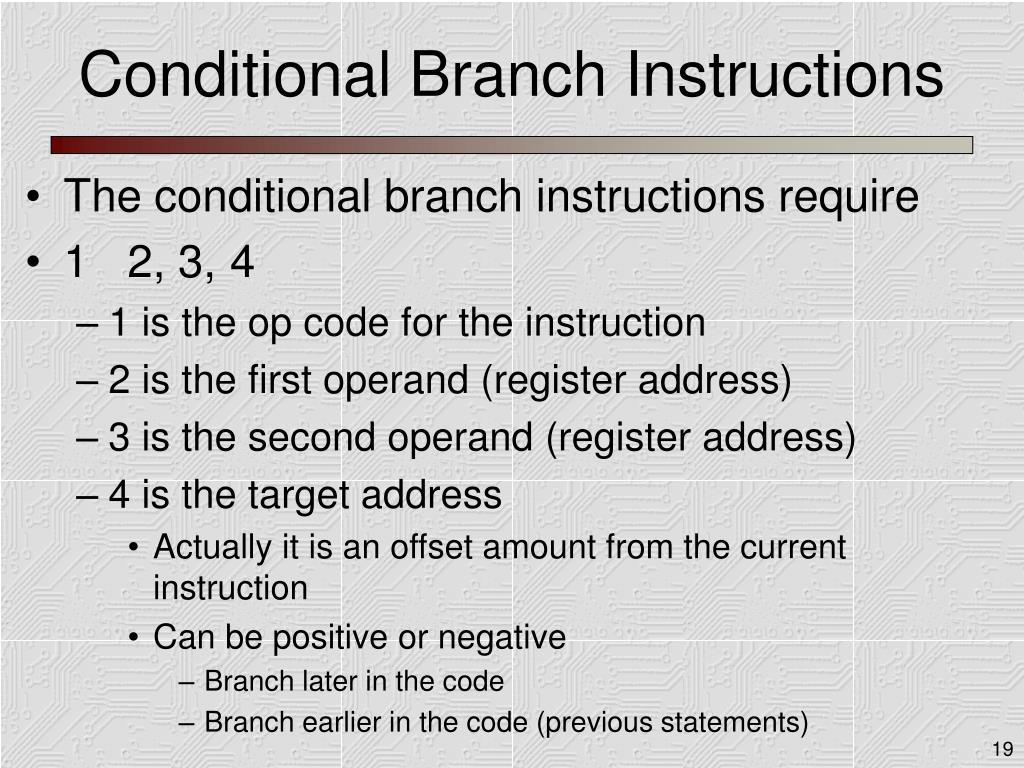

  19. Conditional Branch Instructions • The conditional branch instructions require • 1 2, 3, 4 • 1 is the op code for the instruction • 2 is the first operand (register address) • 3 is the second operand (register address) • 4 is the target address • Actually it is an offset amount from the current instruction • Can be positive or negative • Branch later in the code • Branch earlier in the code (previous statements)

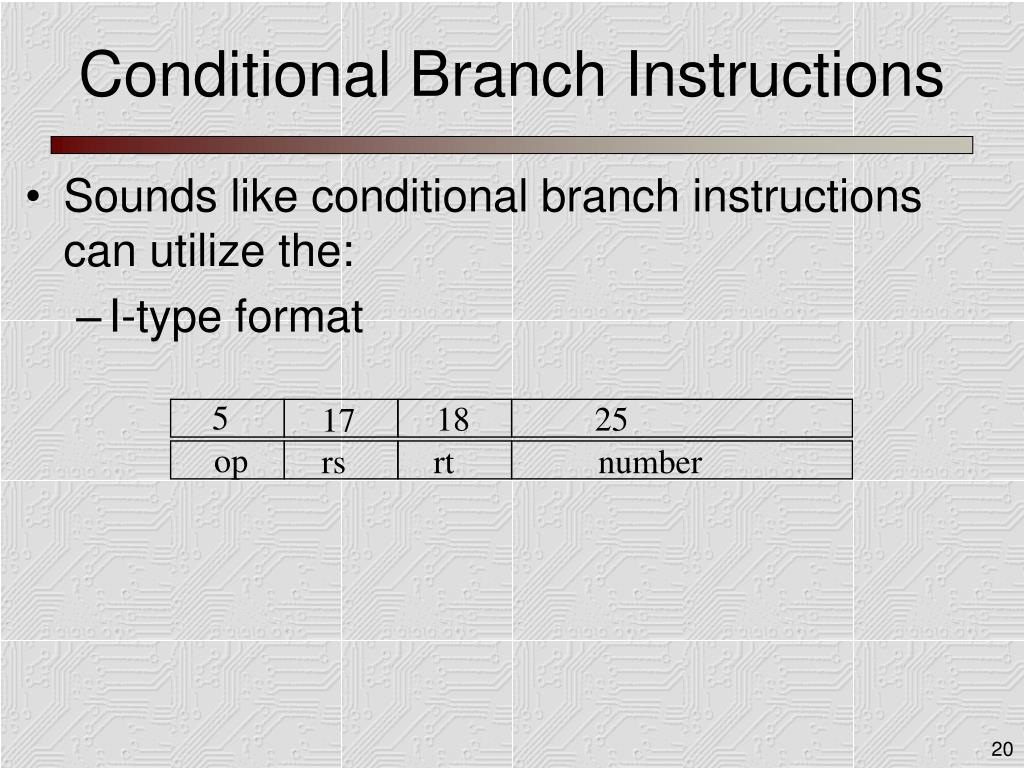

  20. 5 18 25 17 op rs rt number Conditional Branch Instructions • Sounds like conditional branch instructions can utilize the: • I-type format

  21. Conditional Branch Instructions • C++ code: if (i == j) { f = g + h; } else { f = g – h; } • MIPS code: bne $s3, $s4, Else add $s0, $s1, $s2 Else: sub $s0, $s1, $s2 • But of course there is a problem here • The instruction with the Else label is executed regardless of the condition value • Need to unconditionally branch to a label

  22. Control Flow • MIPS also provides an unconditional branch instruction: • j label • Introduce a new type of instruction format • j-type for branch instructions

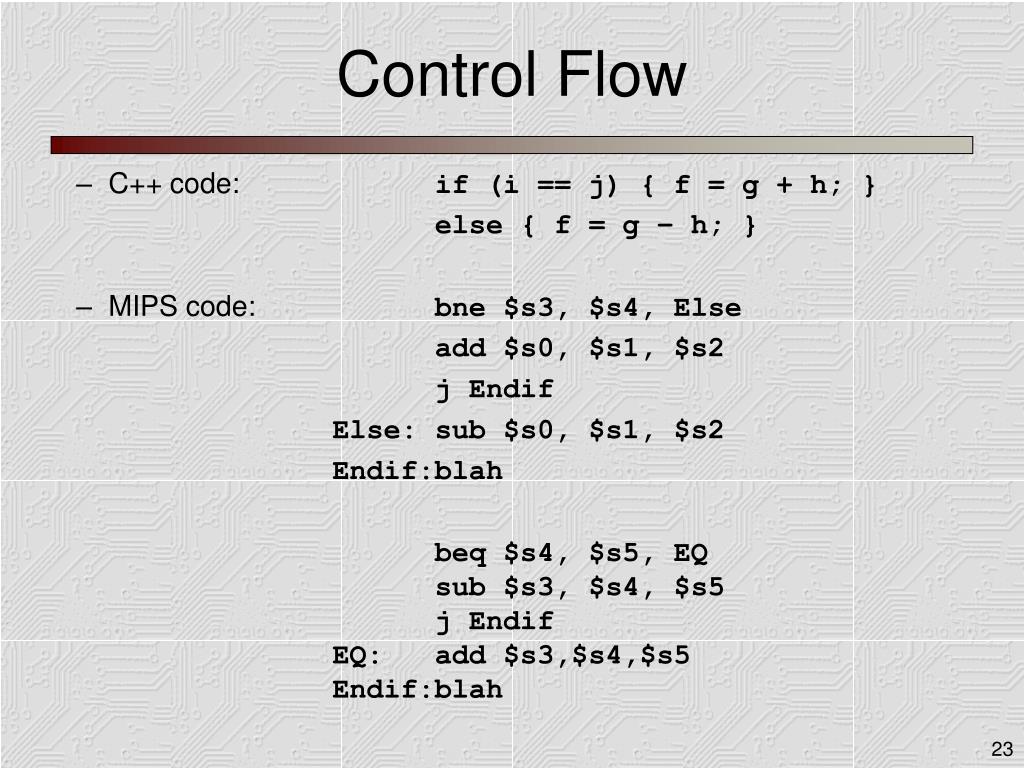

  23. Control Flow • C++ code: if (i == j) { f = g + h; } else { f = g – h; } • MIPS code: bne $s3, $s4, Else add $s0, $s1, $s2 j Endif Else: sub $s0, $s1, $s2 Endif:blah beq $s4, $s5, EQ sub $s3, $s4, $s5 j Endif EQ: add $s3,$s4,$s5 Endif:blah

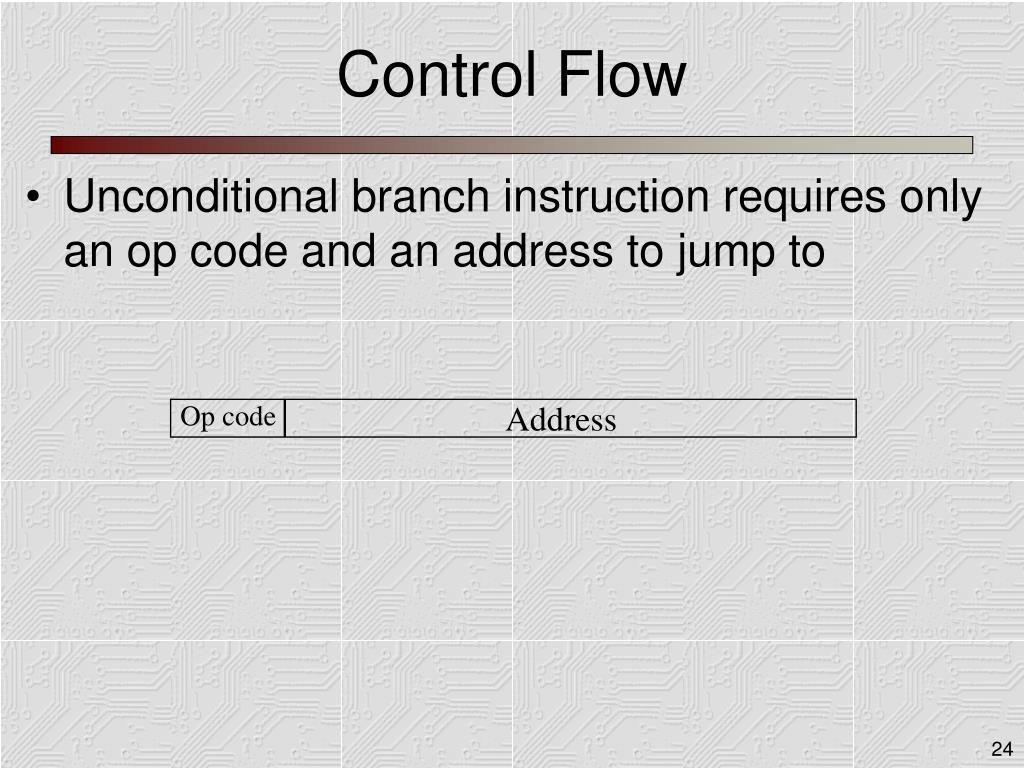

  24. Address Op code Control Flow • Unconditional branch instruction requires only an op code and an address to jump to

  25. Control • Can you build a simple for loop in MIPS assembly language?

  26. Summary so far • InstructionMeaning • add $s1,$s2,$s3 $s1 = $s2 + $s3 • sub $s1,$s2,$s3 $s1 = $s2 – $s3 • lw $s1,100($s2) $s1=Memory[$s2+100] • sw $s1,100($s2) Memory[$s2+100]=$s1 • bne $s4,$s5,LNext instr. is at L if $s4 != $s5 • beq $s4,$s5,LNext instr. is at Label if $s4 == $s5 • j LabelNext instr. is at Label

  27. R op rs rt rd shamt funct I op rs rt 16 bit address J op 26 bit address Summary so far • Instruction formats
