Presentation Transcript

  1. Quadratic Equations Function of a different shape

  2. There are many uses of parabolas in real-world applications.

  3. Graphs of Quadratic Functions Plotting quadratic curves

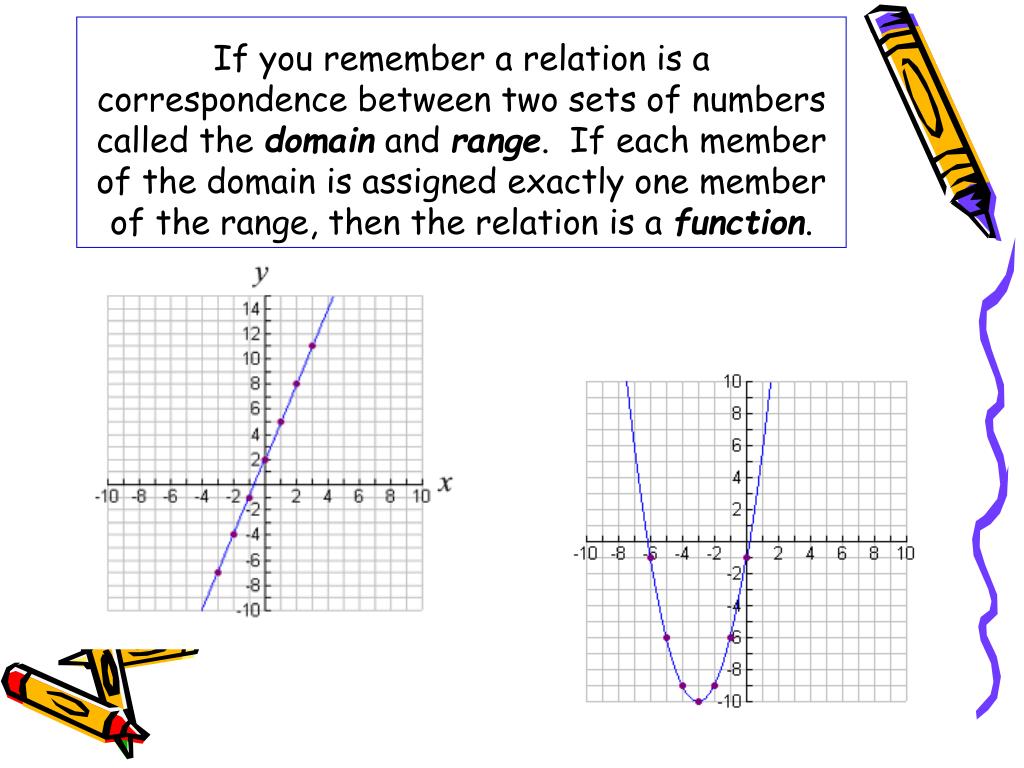

  4. If you remember a relation is a correspondence between two sets of numbers called the domain and range. If each member of the domain is assigned exactly one member of the range, then the relation is a function.

  5. A function can be represented as a list or a table of ordered pairs, a graph in the coordinate plane, or an equation in two variables.

  6. If you notice, the right side of the equationy = 3x + 2 is a polynomial. Can you classify the polynomial by degree?A function of this form (y = mx + b) is called a linear function. Note the graph is a straight line. Y = 3x + 2

  7. Now consider the equationy = x2 + 6x – 1Classify the polynomial on the right.A function defined by an equation of this form y = ax2 + bx + c is called a quadraticfunction.Now we are going to investigate this form.

  8. Let’s try a little experiment with your graphing calculator.Graph the equation y = x2on the coordinate plane. Now graph y = 3x2on the same coordinate plane.How are the graphs the same?How are they different?Can you predict how the graph of y = ¼x2will be similar or different? HINT: Graph y = x2 first, next graph y = 3x2 to see what differences or similarities are present. Now graph y = ¼x2 to see how the shape of the graph changes.

  9. Type in y = x2 on the graphing calculator. Graph of y = x2 Now graph y = 3x2

  10. Type in y = 3x2 on the graphing calculator. Graph of y = x2 and y = 3x2 on the same graph. How are the graphs the same? How are they different? Can you predict what y = ¼x2 looks?

  11. Type in y = x2, y = 3x2, and y = ¼x2. Graphs of y = x2, y = 3x2, and y = ¼x2. What differences do you notice in the new graph y = ¼x2.

  12. These functions (equations) are quadratic functions. Standard Form of a Quadratic Function A quadratic function - is a function that can be written in the form y = ax2 + bx + c, where a ≠ 0. This form is called the standard form of a quadratic function. Ex: y = 5x2 y = x2 + 7 y = x2 –x -3

  13. The variable in a quadratic function is squared (x2), so the graph forms a curved line called a parabola. All quadratic functions have the same shape. The graph of y = x2 forms this U-shaped graph called a parabola.

  14. You can fold a parabola so that the two sides match exactly. This property is called symmetry. The fold or line that divides the parabola into two matching halves is called the axis of symmetry. Axis of symmetry

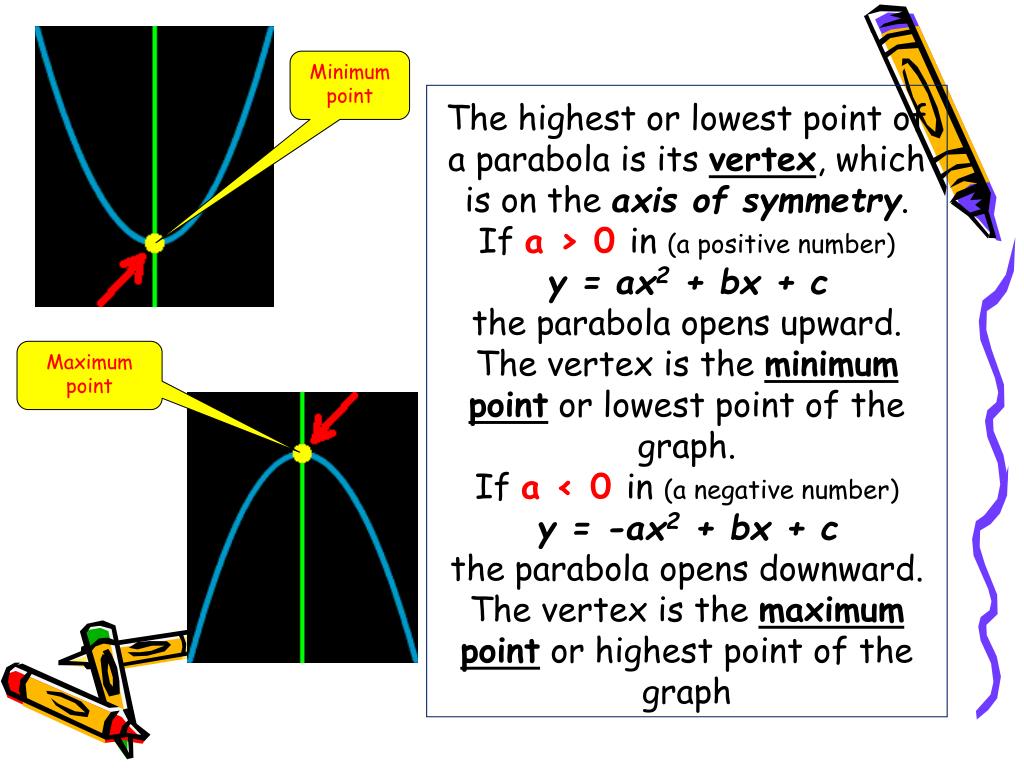

  15. The highest or lowest point of a parabola is its vertex, which is on the axis of symmetry.If a > 0 in (a positive number) y = ax2 + bx + cthe parabola opens upward. The vertex is the minimumpoint or lowest point of the graph.If a < 0 in (a negative number)y = -ax2 + bx + cthe parabola opens downward. The vertex is the maximumpoint or highest point of the graph Minimum point Maximum point

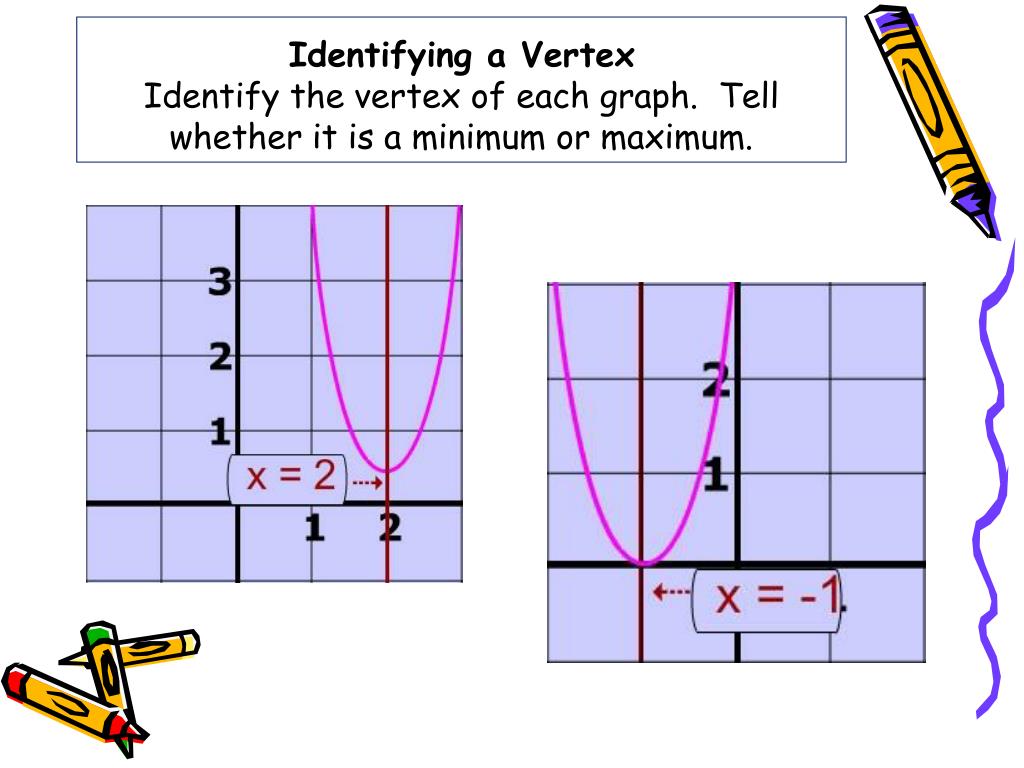

  16. Identifying a VertexIdentify the vertex of each graph. Tell whether it is a minimum or maximum.

  17. On the left is the graph of a parabola. Below are examples of equations of parabolas.y = x2x = y2y = x2 + 2x + 3

  18. Graphing y = ax2

  19. You can use the fact that a parabola is symmetric to graph it quickly.First, find the coordinates of the vertex and several points on either side of the vertex. Then reflect the points across the axis of symmetry. For functions of the form of y = ax2, the vertex is at the origin.Make a table for the function y = x2using x = 0, 1, 2, and 4. Remember our original experiment when we graphed y = x2 and y = 3x2 Try this

  20. Make a table for y = x2using x = 0, 1, 2, 4.Graph the points on the graph then reflect the x-values to the other side of the graph. Try another

  21. Make a table of values and graph the quadratic function f(x) = -2x2using x = 0, 1, 2, 4 Remember these are functions so we also use the function notationf(x)

  22. Graphing y = ax2 + c

  23. Graphing y = ax2 + c (y = 2x2 + 4)The value of c, the constant term in a quadratic function, translates the graph up or down. Make a table and graph y = 2x2 Make a table and graph Y = 2x2 + 3 Try it

  24. Graph y = x2 and y = x2 - 4 This time let’s use the same graph for both. Real world application

  25. Real World ProblemYou can model the height of an object moving under the influence of gravity using a quadratic function. As an object falls, its speed continues to increase. You can find the height of a falling object using the function h = -16t2 + c.The height h is in feet, the time t is in seconds, and the initial height of the object c is in feet. The graph shows at 0 seconds the object is at 50 feet, after one second the object has already fallen to 34 feet, and at 1½ seconds the object has hit the ground height (feet) seconds Seagull drops a clam to break the shell so it can eat it. The gull drops the clam from 50 feet in the air. Try one

  26. Suppose a squirrel is in a tree 60 feet off the ground. She drops an acorn. The functionh = -16t2 + 60 gives the height h of the acorn in feet after t seconds. Make a table and graph this function.

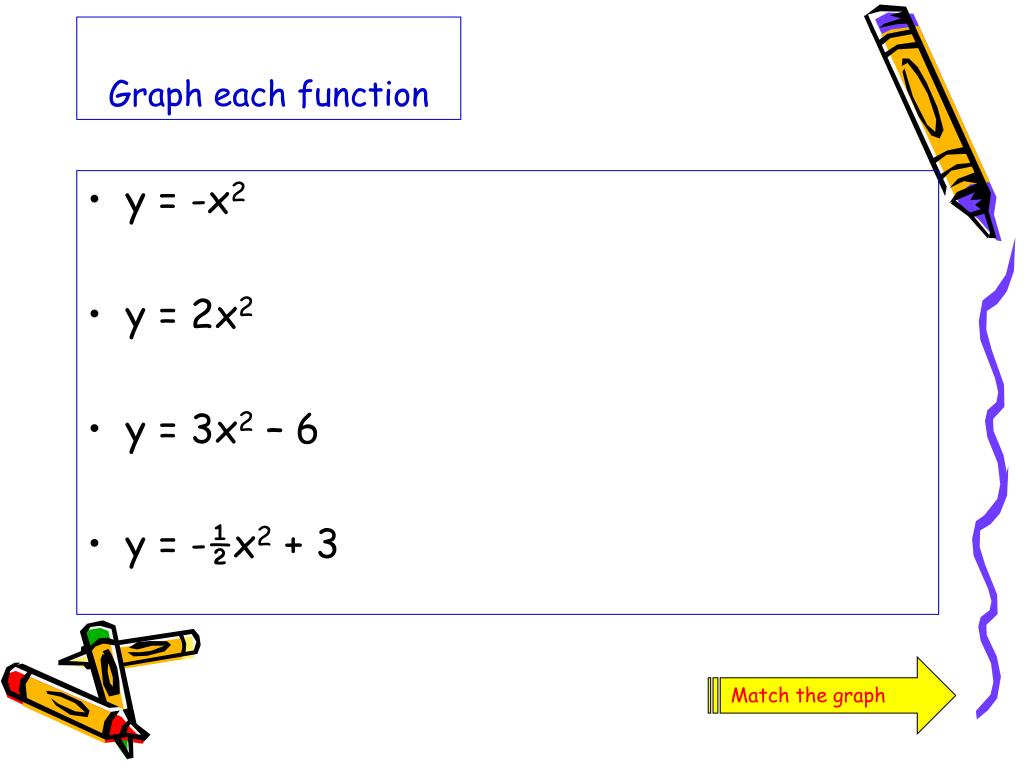

  27. Graph each function • y = -x2 • y = 2x2 • y = 3x2 – 6 • y = -½x2 + 3 Match the graph

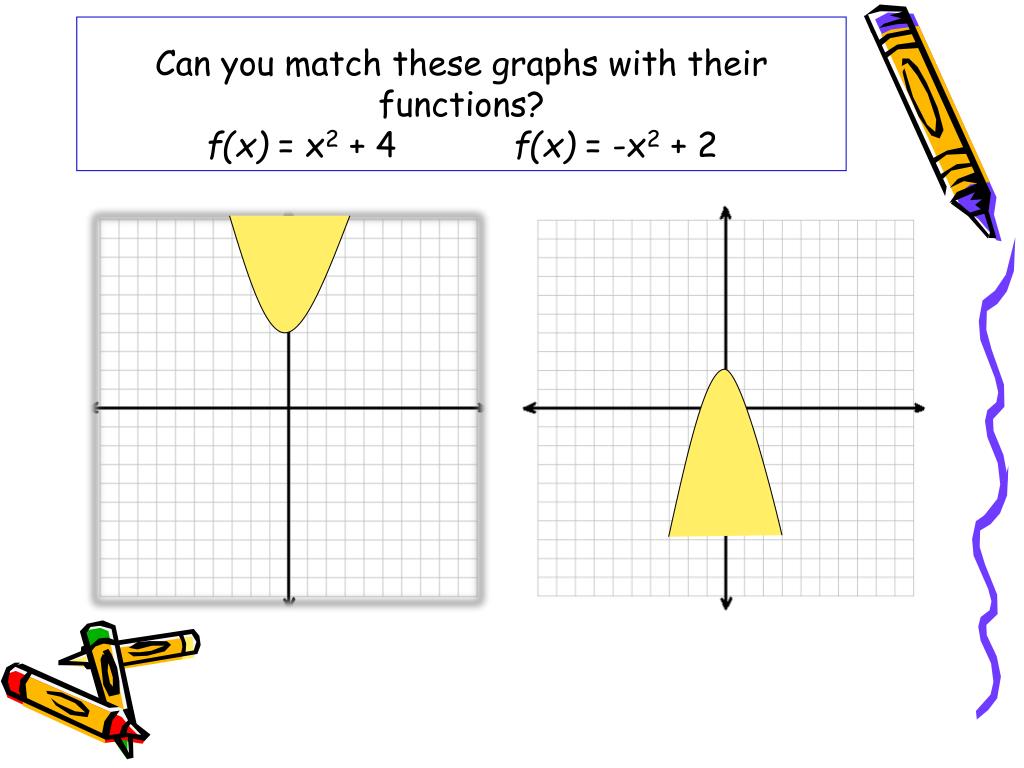

  28. Can you match these graphs with their functions?f(x) = x2 + 4 f(x) = -x2 + 2

  29. Graph of a Quadratic Function f(x) = ax2 + bx + c

  30. So far we have investigated the graphs of y = ax2and y = ax2 + c. In these functions c has always been 0, which means the axis of symmetry has always been the y-axis.In the quadratic function y = ax2 + bx + c, thevalue of baffects the position of the axis of symmetry, moving it left or right.In the next slide we are going to consider functions in the form of y = ax2 + bx + c

  31. Notice that both graphs have the same y-intercept. This is because in both equations c = 0 y = 2x2 + 2x Y = 2x2 + 4x The axis of symmetry changes with each change in the b value.

  32. Since the axis of symmetry is related to the change in the b value, the equation of the axisof symmetry is related to the ratio b/a x = -b/2a Let’s try one! To find the y-value, first substitute a and b into theequationx = -b/2a and solve to find x. Then substitute x back into the original equation to determine y.

  33. Find the coordinates of the vertex and an equation for the axis of symmetry. Then graph the function.y = x2 – 4x + 3a = 1, b = -4, and c = 3x = -b/2ax = -(-4)/2(1) = 4/2 = 2axis of symmetry: x = 2If x = 2,then y = x2 -4x + 3 = y = 22 - 4(2) + 3 = -1 Use the equation for the axis of symmetry. x = -b/2a Substitute the x-value into the original equation and solve for y. the vertex is (2, -1) Now make a table.

  34. Since the vertex of the axis of symmetry is (2, -1) and we know the parabola turns upward (a > 0), we can use values on both sides of (2, -1). Now graph your points and draw a curved line. Try this one.

  35. y = -x2 + 4 a = ,b = c = Find x = -b/2a x = Substitute the x-value into the equation y = -x2 + 4 Now use your vertex as the middle of your table. Solve problems

  36. Graph each function. Label the axis of symmetry and the vertex.1) y = x2 + 4x + 32) y = 2x2 – 6x3) y =x2 + 4x – 44) y = 2x2 + 3x + 1 Real world problem

  37. In professional fireworks displays, aerial fireworks carry “stars” upward, ignite them, and project them into the air.The equation h = -16t2 + 72t + 520 gives the star’s height h in feet at time t in seconds. Since the coefficient of t2 is negative, the curve opens downward, and the vertex is the maximum point.Find the t-coordinate of the vertexx = -b/2a = -72/2(-16) = 2.25After 2.25 seconds, the star will be at its greatest height.Find the h-coordinate of the vertex.h = -16(2.25)2 + 72(2.25) + 520 = 601The maximum height of the star will be 601 feet. TRY THIS

  38. The shape of the Gateway Arch in St. Louis, Missouri, is a catenary curve that resembles a parabola. The equationh = -0.00635x2 + 4.0005x – 0.07875 represents the parabola, where h is the height in feet and x is the distance from one base in feet.What is the equation of the axis of symmetry?What is the maximum height of the arch?

  39. Using the Quadratic Formula Solving any quadratic equations.

  40. In our earlier lesson, you solved quadratic equations by factoring. Another method, which will solve any quadratic equation, is to use the quadratic formula as seen left.Here values of a, b, and c are substituted into the formula to determine x.

  41. Be sure to write a quadratic equation in standard form before using the quadratic formula.Solve: x2 + 6 = 5xx2 -5x + 6 = 0

  42. Solve:x2 + 2 = -3x

  43. You can use the quadratic formula to solve real-world problems. Suppose a football player kicks a ball and gives it an initial velocity of 47ft/s. The starting height of the football is 3 ft. If no one catches the football how long will it be in the air?Using the vertical motion formula and the information given, the formulah = -16t2 + vt + crepresents this illustration. VERTICAL MOTION FORMULA h = -16t2 + vt + c The initial upward velocity is v, and the starting height is c You must decide whether a solution makes sense in the real-world situation. For example, a negative value for time is not a reasonable solution.

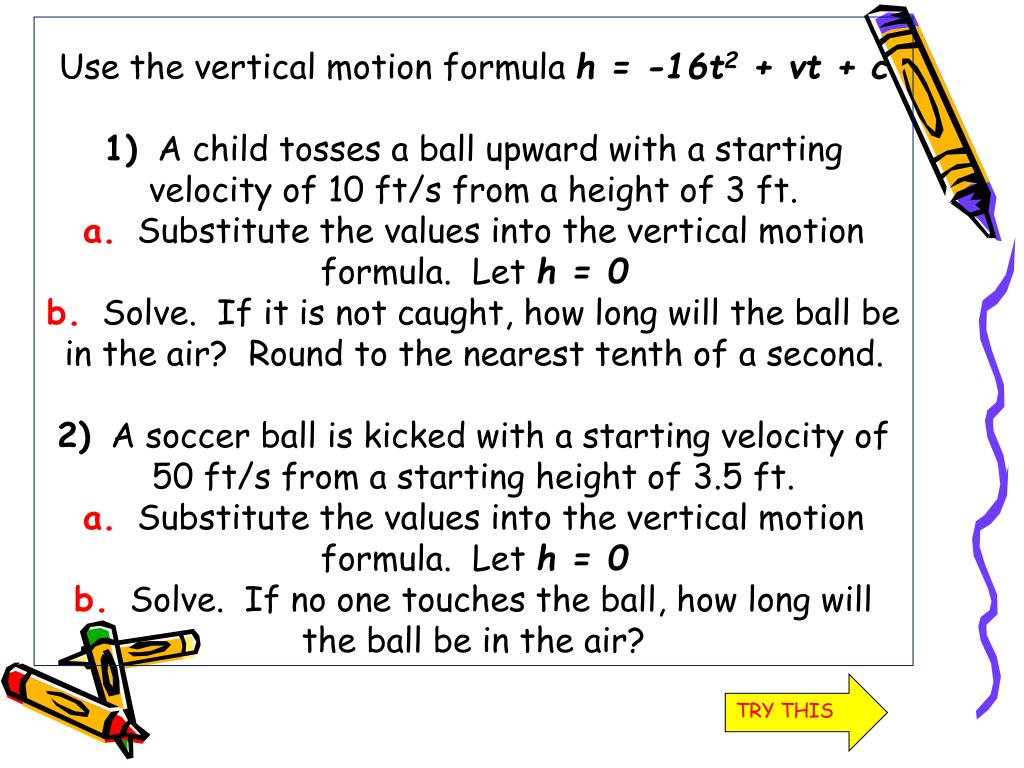

  44. Use the vertical motion formula h = -16t2 + vt + c1) A child tosses a ball upward with a starting velocity of 10 ft/s from a height of 3 ft.a. Substitute the values into the vertical motion formula. Let h = 0b. Solve. If it is not caught, how long will the ball be in the air? Round to the nearest tenth of a second.2) A soccer ball is kicked with a starting velocity of 50 ft/s from a starting height of 3.5 ft.a. Substitute the values into the vertical motion formula. Let h = 0b. Solve. If no one touches the ball, how long will the ball be in the air? TRY THIS

  45. The function below models the United States population P in millions since 1900, where t is the number of years after 1900.P = 0.0089t2 + 1.1149t + 78.4491a. Use the function to estimate the US population the year I graduated from high school.b. Estimate the US population in 2025.c. Estimate the US population in 2050. Try Another

  46. A carnival game involves striking a lever that forces a weight up a tube to strike a bell which will win you a prize. If the weight reaches 20 feet and strikes the bell, you win. The equationh = -16t2 + 32t + 3gives the height h of the weight if the initial velocity v is 32 ft/s.Find the maximum height of the weight.Will the contestant win a prize? One More

  47. The Sky Concert in Peoria, Illinois, is a 4th of July fireworks display set to music. If a rocket (firework) is launched with an initial velocity of 39.2 m/s at a height of 1.6 m above the ground, the equation,h = -4.9t2 + 39.2t + 1.6represents the rockets height h in meters after t seconds. The rocket will explode at approximately the highest point.At what height will the rocket explode?

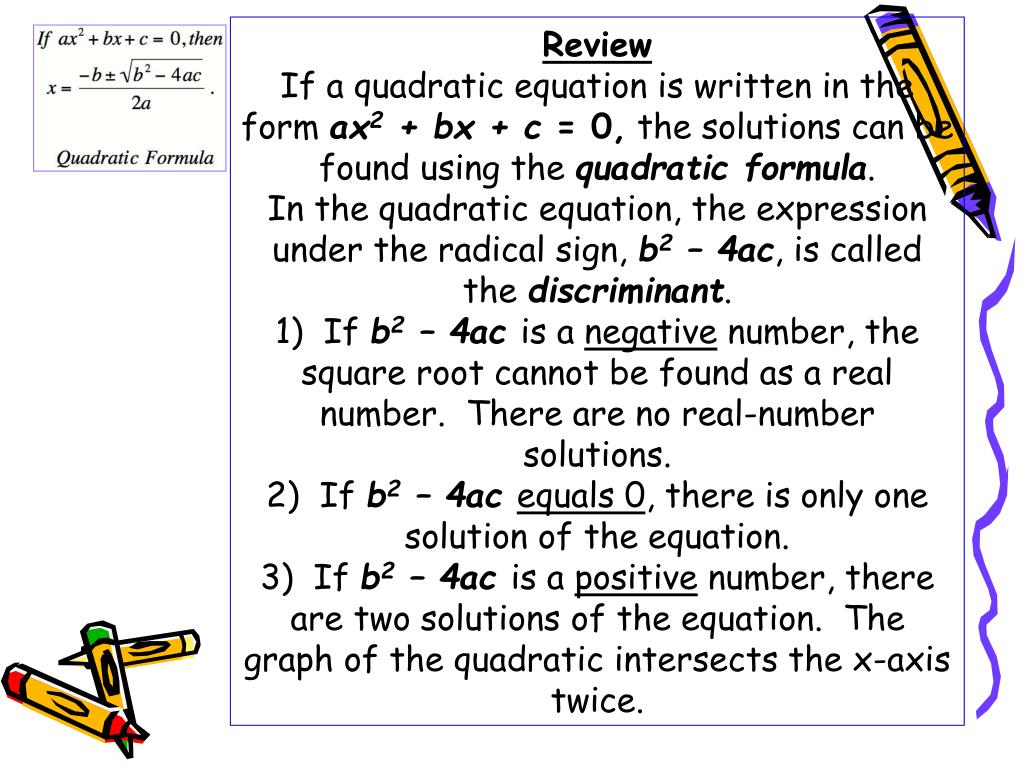

  48. ReviewIf a quadratic equation is written in the form ax2 + bx + c = 0, the solutions can be found using the quadratic formula.In the quadratic equation, the expression under the radical sign, b2 – 4ac, is called the discriminant.1) If b2 – 4ac is a negative number, the square root cannot be found as a real number. There are no real-number solutions.2) If b2 – 4ac equals 0, there is only one solution of the equation.3) If b2 – 4ac is a positive number, there are two solutions of the equation. The graph of the quadratic intersects the x-axis twice.
