  1. IPv6/IPSec Chip forHome & Mobile Networks Hyun Seok Choi (m.choi@samsung.com) Yong Jun Lim (jienie@samsung.com) SAMSUNG Electronics

  2. Outline • Motivation • IPv6 Based Home & Mobile Multimedia Networks • IPv6 Hardware Chip Global IPv6 Summit in AP

  3. Ubiquitous Network Wearable PC Handheld PC Automobile IPv6 Networks IPv6 Router IPv6 Home GW Digital Home & Information Appliances with IPv6 Functionality Global IPv6 Summit in AP

  4. Requirements for Ubiquitous Network • Always on Connection • Borderless interconnections between information appliances (IPv6) • Mobile Communication • Seamless portability of contents (Mobile IPv6) “A rapid adoption of IPv6/MIPv6 is desired for Home/Mobile Multimedia Network Environment” Global IPv6 Summit in AP

  5. Why Hardware • Home appliances or Sensing devices • Everything is connected to the network • There is no CPU/OS • Mobile Devices and Network Security • Resources are limited • Computation load • High Speed Multimedia Data Transfer • Fast protocol stack required Global IPv6 Summit in AP

  6. S/W Overhead • Memory read/write cycle • Fragmentation • Reassembly • IPSec engine • MD5, SHA-1, 3DES, … • Checksum • TCP, UDP Global IPv6 Summit in AP

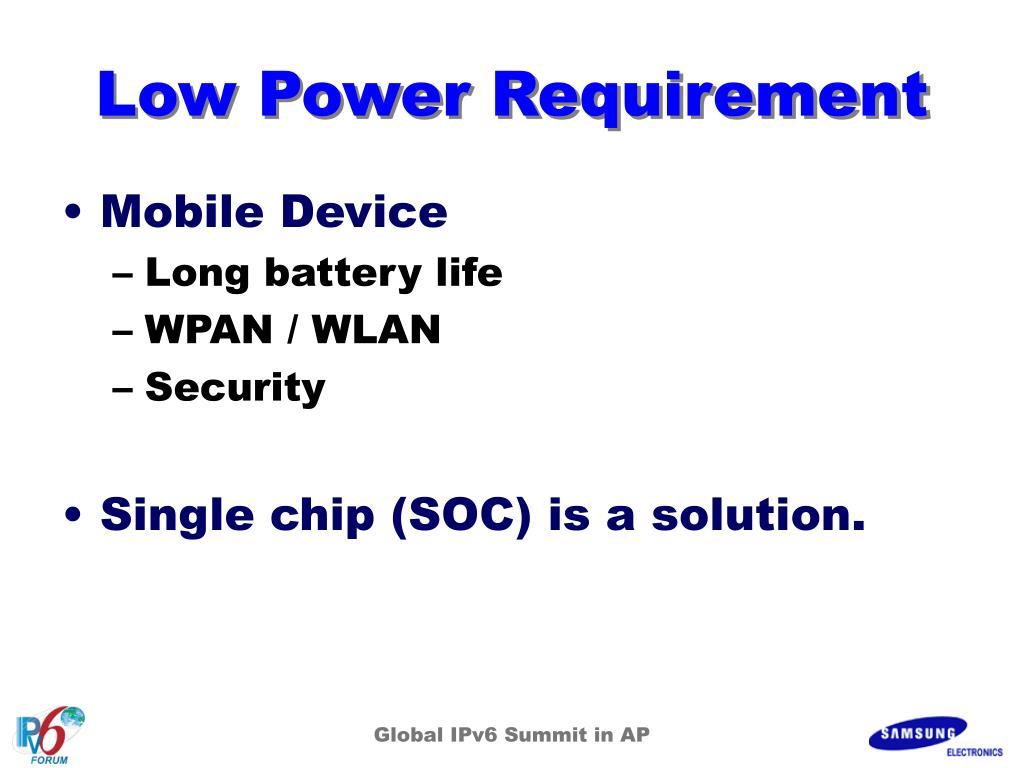

  7. Low Power Requirement • Mobile Device • Long battery life • WPAN / WLAN • Security • Single chip (SOC) is a solution. Global IPv6 Summit in AP

  8. Multimedia Data Transfer • S/W Protocol is bottleneck in high speed data transfer • Needs hardwired logic • MPEG2/4 over IPv6 Media Center MPEG4 data Security MPEG2 data Mobile Device Digital TV Global IPv6 Summit in AP

  9. Security Security Fast Hand-Off And Security Using MIPv6/IPSec Mobility support Nexio Platform With H/W support Nexio Platform With H/W support Internet IPv6 Home GW Office Global IPv6 Summit in AP

  10. Hardball6 Specification • IPv6 Core Specification • Stateless Auto-configuration • Neighbor Discovery • IPv6, ICMPv6 • Simple Multicast Listener Discovery • IPSec • Tightly connected to the IPv6 Core • Manually configured keying • Hardwired SPD/SAD I/F • AH algorithm : HMAC-MD5-96, HMAC-SHA-1-96 • ESP algorithm : DES-CBC IV-64, 3DES-CBC IV-64 Global IPv6 Summit in AP

  11. Interoperability • IPv6 basic stack • FreeBSD (KAME) • Linux • Windows CE .Net 4.1 (IPv6 enabled) • IPSec • NetBSD • Using manual key Global IPv6 Summit in AP

  12. Applications • Mobile Device • Multimedia data transfer • VoIP • Home Information Appliance • Sensor Network • Home Security • VPN • 3G/4G Phone • … IPv6 Chip Global IPv6 Summit in AP

  13. Future Work System On Chip TCP,UDP,DHCP DNS, FTP, SMTP HTTPD, IKE, … Mobile IP S/W H/W IPv4/IPv6 Dual Stack ARM Core IPSec WLAN / WPAN CheckSum Global IPv6 Summit in AP

  14. What is Mission • Home/Mobile/Office • All-IP for all appliances • Mobile Service • Telematics / ITS • U-Commerce • QoS, Security, Mobility Service • Peer-to-Peer Communication • Plug & Play • Seamless Network Connection • Transition Technology • Multicast Server • Multimedia Streaming • Game/Education • Home Server All IP Seamless Network Multimedia Service IPv6 Based Home/Mobile Multimedia Network Global IPv6 Summit in AP

  15. Summary • Needs Hardwired Protocol • Mobile devices need low power consumption • High speed multimedia data transfer • Security (IPSec) • IPv6 based home & mobile multimedia networks Global IPv6 Summit in AP

  16. Thank you … Global IPv6 Summit in AP
