  1. Screen Display Module M15.2 Sections 9.5, 13.1, 13.2

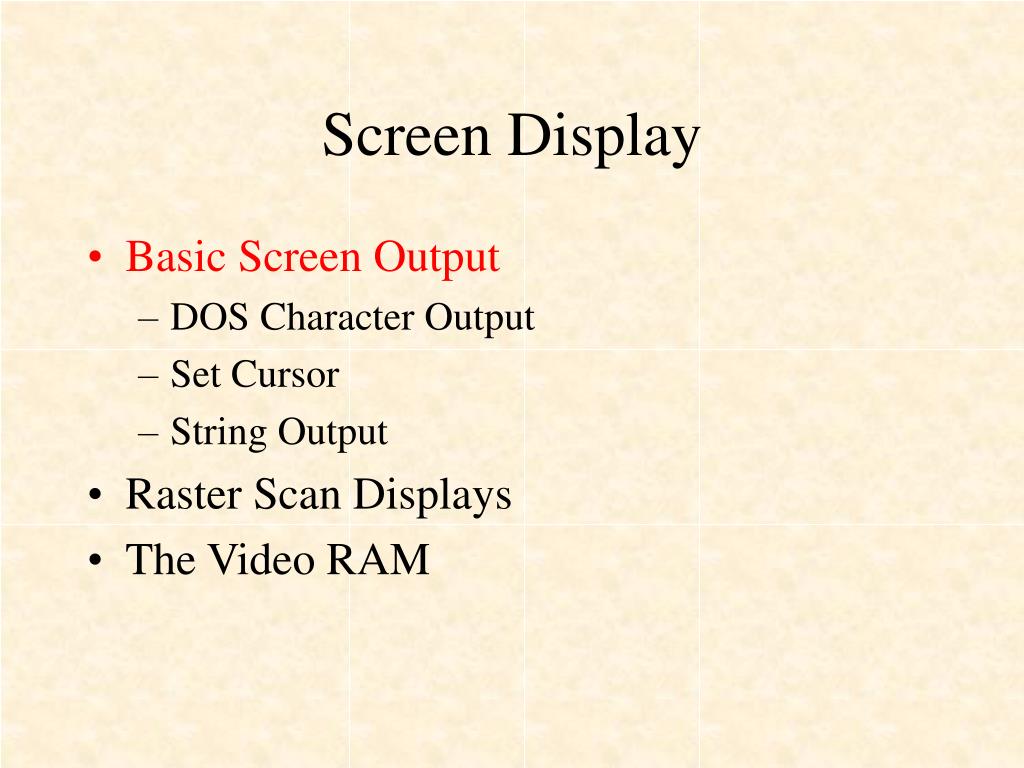

  2. Screen Display • Basic Screen Output • DOS Character Output • Set Cursor • String Output • Raster Scan Displays • The Video RAM

  3. Screen Output

  4. Screen Output

  5. Screen Output

  6. Print string on bottom line of screen Use /MA to enter string at address 0000. END STRING WITH $ SIGN

  7. Program to display Hello on bottom line

  8. Screen Display • Basic Screen Output • DOS Character Output • Set Cursor • String Output • Raster Scan Displays • The Video RAM

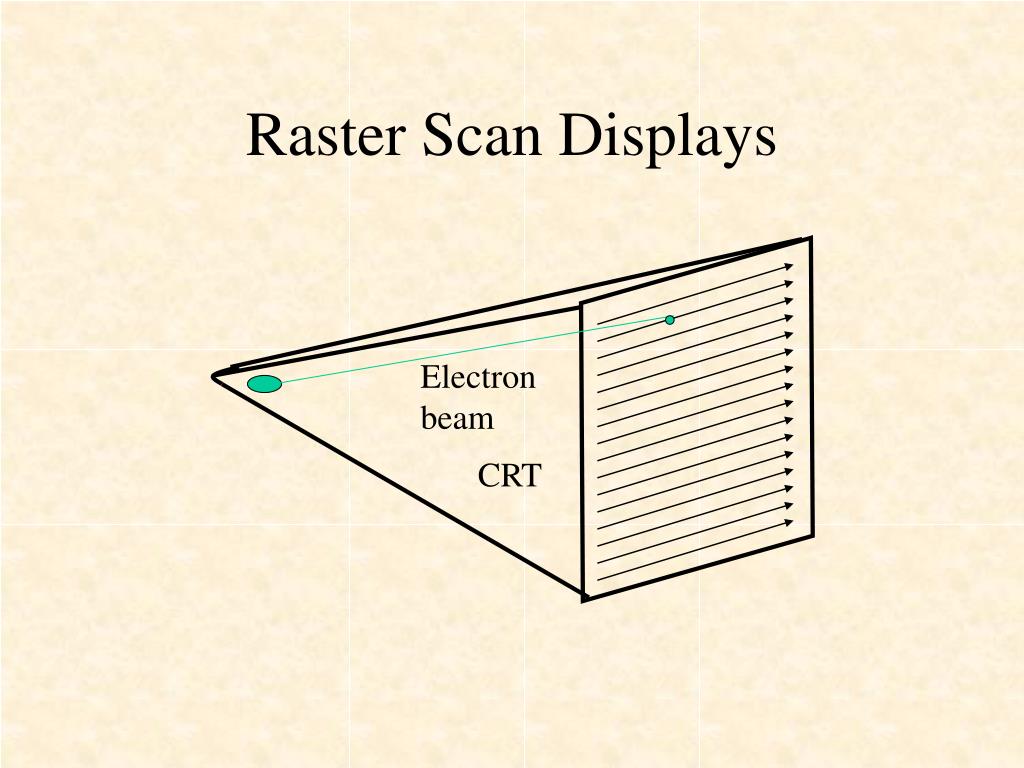

  9. Raster Scan Displays Electron beam CRT

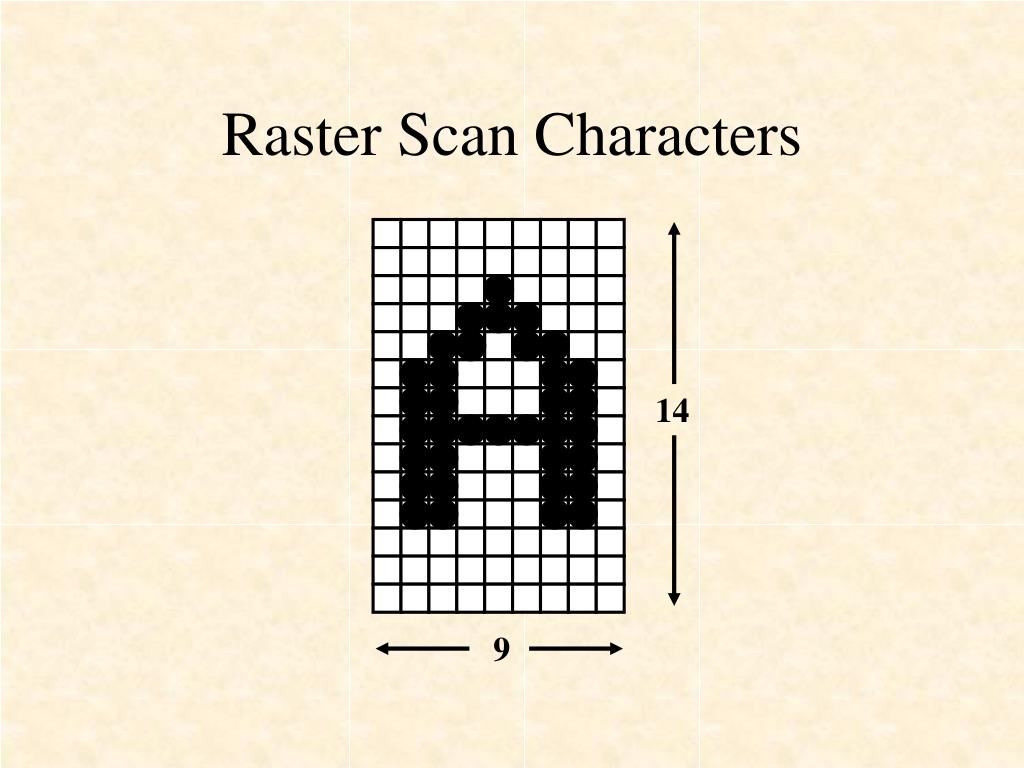

  10. Raster Scan Characters 14 9

  11. T 54 H 48 Character 45 E generator Character line 1 Row (40 words or select 80 bytes) 1 1 1 1 1 0 0 0 Video Shift register signal Character line 2 (40 words or 80 bytes) even addresses odd addresses

  12. Attribute Byte 7 6 5 4 3 2 1 0 BL R G B I R G B Blinking bit Foreground 0 = not blinking 1 = foreground Intensity bit blinking 0 = normal intensity 1 = high intensity Background

  13. Screen Display • Basic Screen Output • DOS Character Output • Set Cursor • String Output • Raster Scan Displays • The Video RAM

  14. The Video RAM

  15. Video RAM Segment AddressesCGA, EGA, VGA

  16. Video RAM - 40 columns

  17. Video RAM - 80 columns

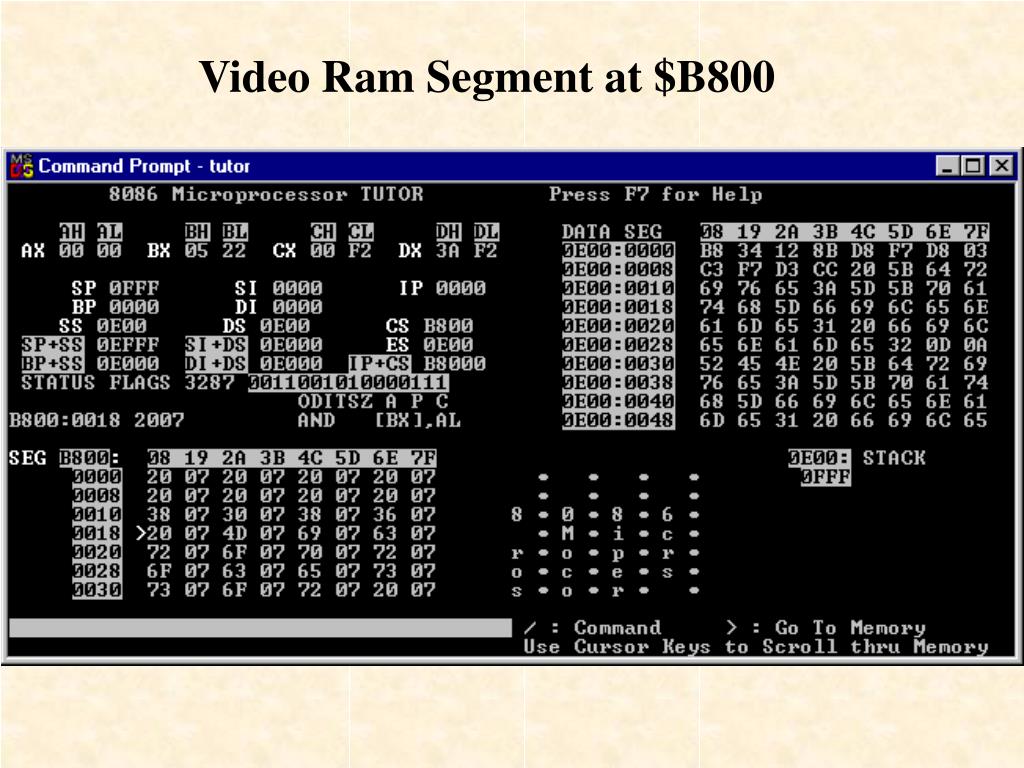

  18. Video Ram Segment at $B800
