  1. TUTORIAL 4 WORKING WITH SCHEMAS New Perspectives on XML, 2nd Edition Tutorial 4

  2. SCHEMAS • A schema is an XML document that defines the content and structure of one or more XML documents. • The XML document containing the content is called the instance document. New Perspectives on XML, 2nd Edition Tutorial 4

  3. COMPARING SCHEMAS AND DTDS This figure compares schemas and DTDs New Perspectives on XML, 2nd Edition Tutorial 4

  4. SCHEMA VOCABULARIES • There is no single schema form. Several schema “vocabularies” have been developed in the XML language. • Support for a particular schema depends on the XML parser being used for validation. New Perspectives on XML, 2nd Edition Tutorial 4

  5. SCHEMA VOCABULARIES This figure shows a few schema vocabularies New Perspectives on XML, 2nd Edition Tutorial 4

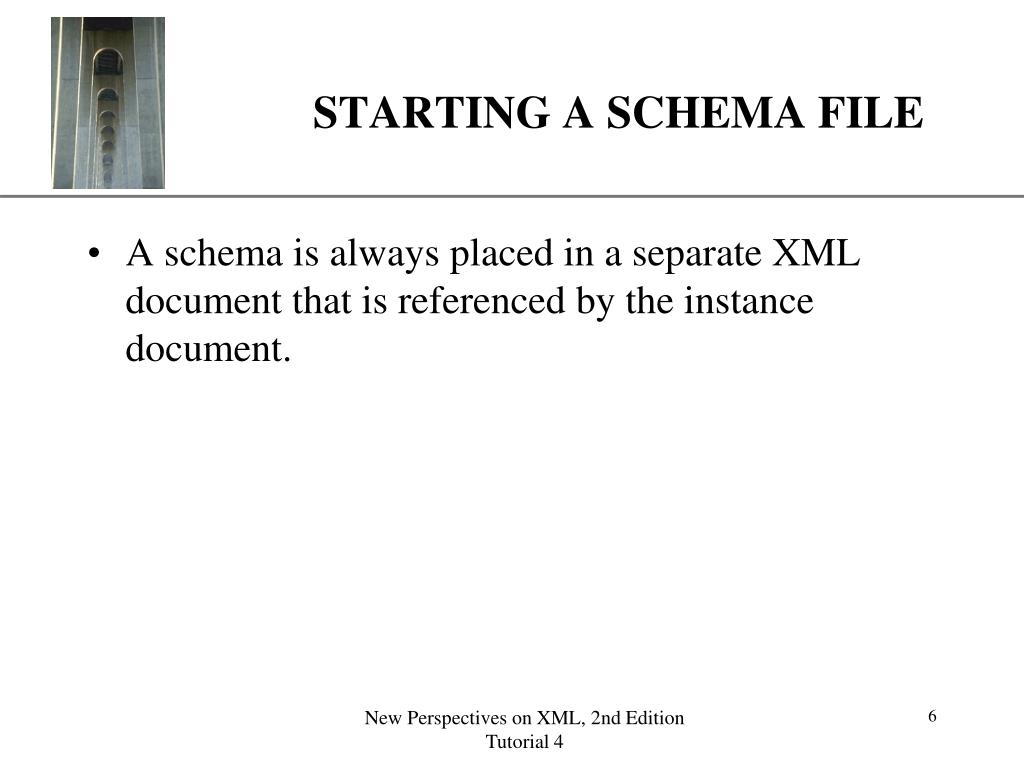

  6. STARTING A SCHEMA FILE • A schema is always placed in a separate XML document that is referenced by the instance document. New Perspectives on XML, 2nd Edition Tutorial 4

  7. Example Schema <?xml version="1.0"?>< xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"><xs:element name="note">  <xs:complexType>    <xs:sequence>      <xs:element name="to" type="xs:string"/>      <xs:element name="from" type="xs:string"/>      <xs:element name="heading" type="xs:string"/>      <xs:element name="body" type="xs:string"/>    </xs:sequence>  </xs:complexType>< /xs:element>< /xs:schema> New Perspectives on XML, 2nd Edition Tutorial 4

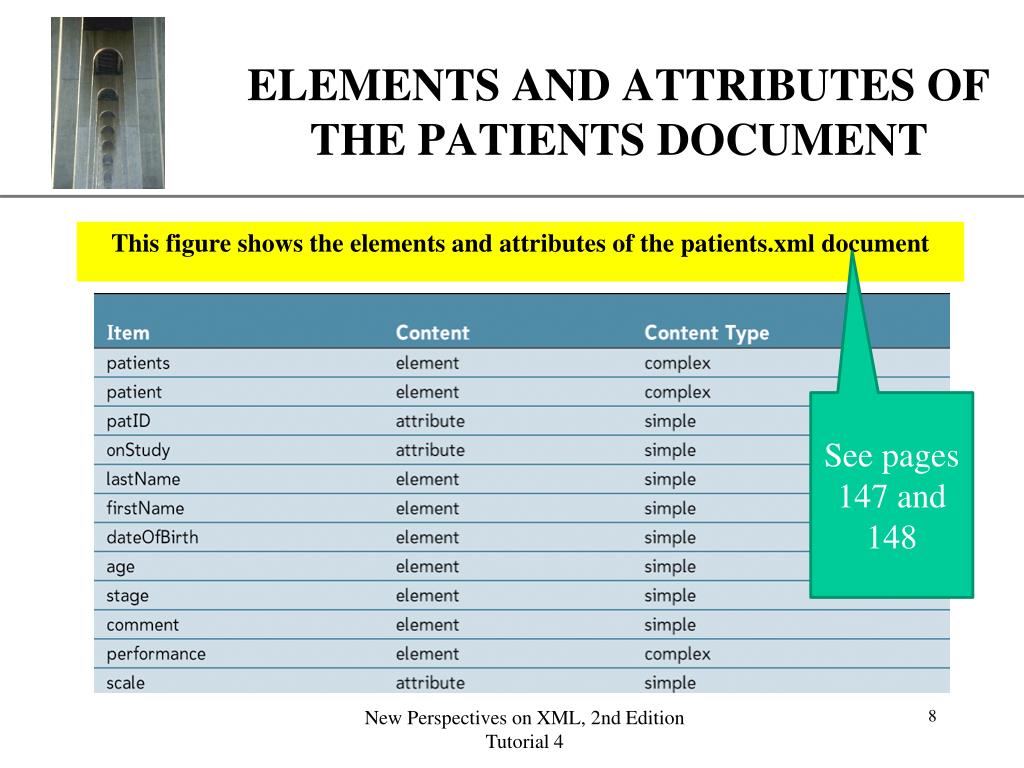

  8. ELEMENTS AND ATTRIBUTES OF THE PATIENTS DOCUMENT This figure shows the elements and attributes of the patients.xml document See pages 147 and 148 New Perspectives on XML, 2nd Edition Tutorial 4

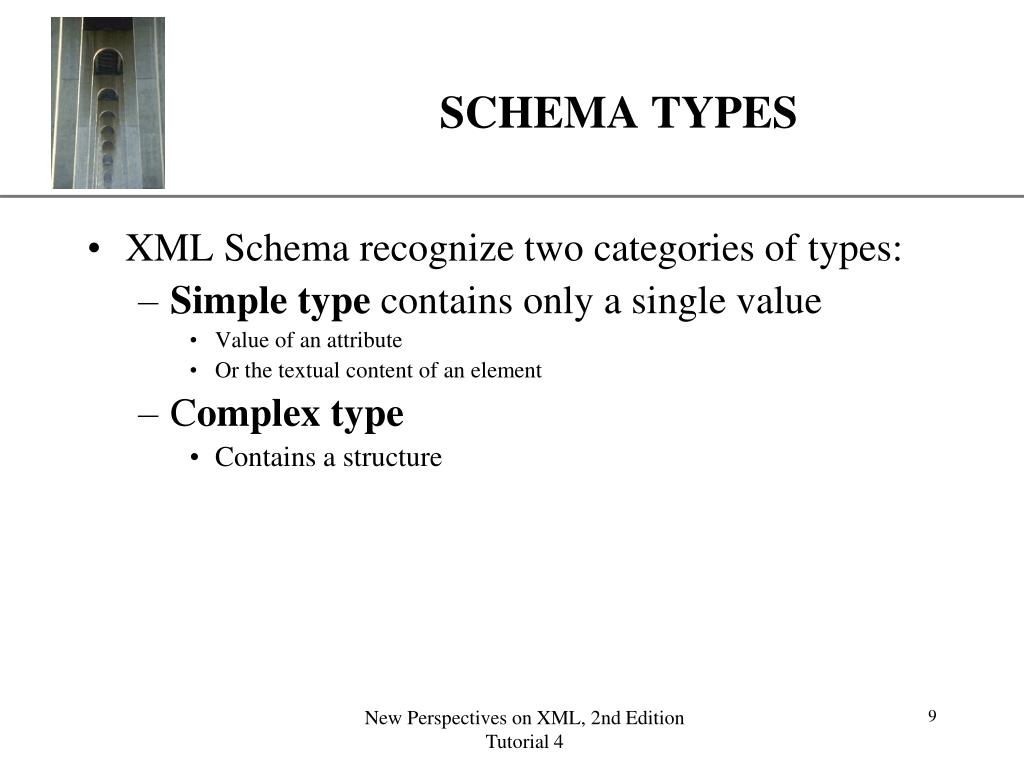

  9. SCHEMA TYPES • XML Schema recognize two categories of types: • Simpletype contains only a single value • Value of an attribute • Or the textual content of an element • Complextype • Contains a structure New Perspectives on XML, 2nd Edition Tutorial 4

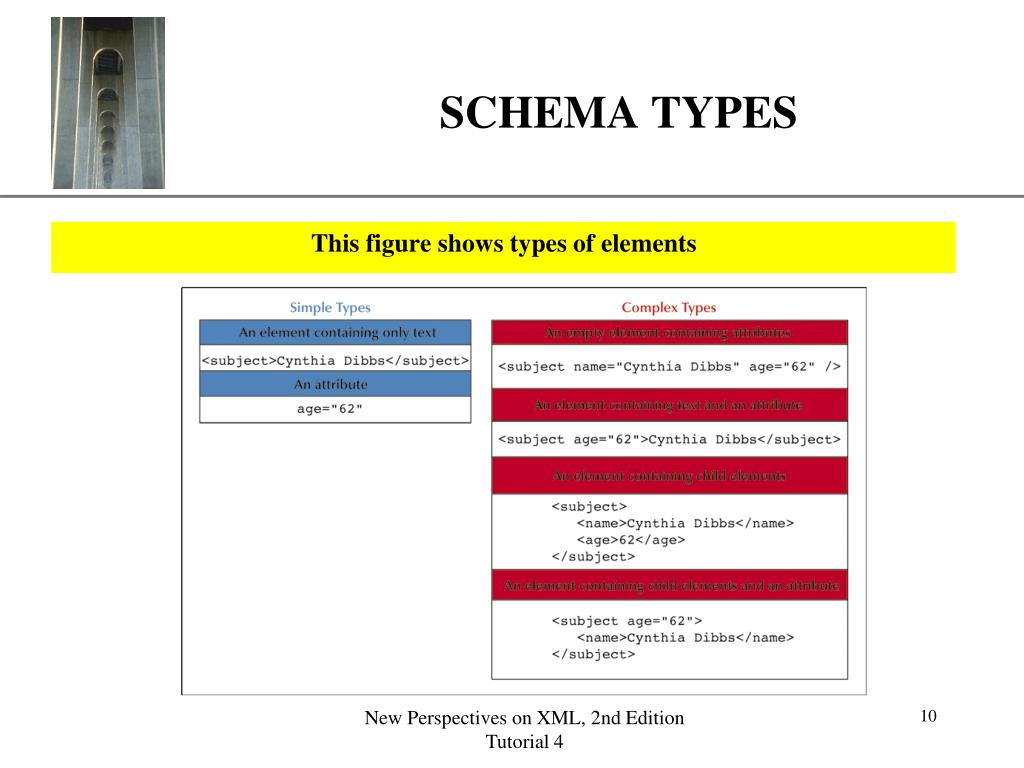

  10. SCHEMA TYPES This figure shows types of elements New Perspectives on XML, 2nd Edition Tutorial 4

  11. SIMPLE TYPE ELEMENTS • Use the following syntax to declare a simple type element in XML Schema: <element name=“name” type =“type”/> name = the name of the element in the instance document type = the data type of the element. • Example: <xs:element name = “lastName” type = “xs:string” /> Unlike DTD, schema is an XML language New Perspectives on XML, 2nd Edition Tutorial 4

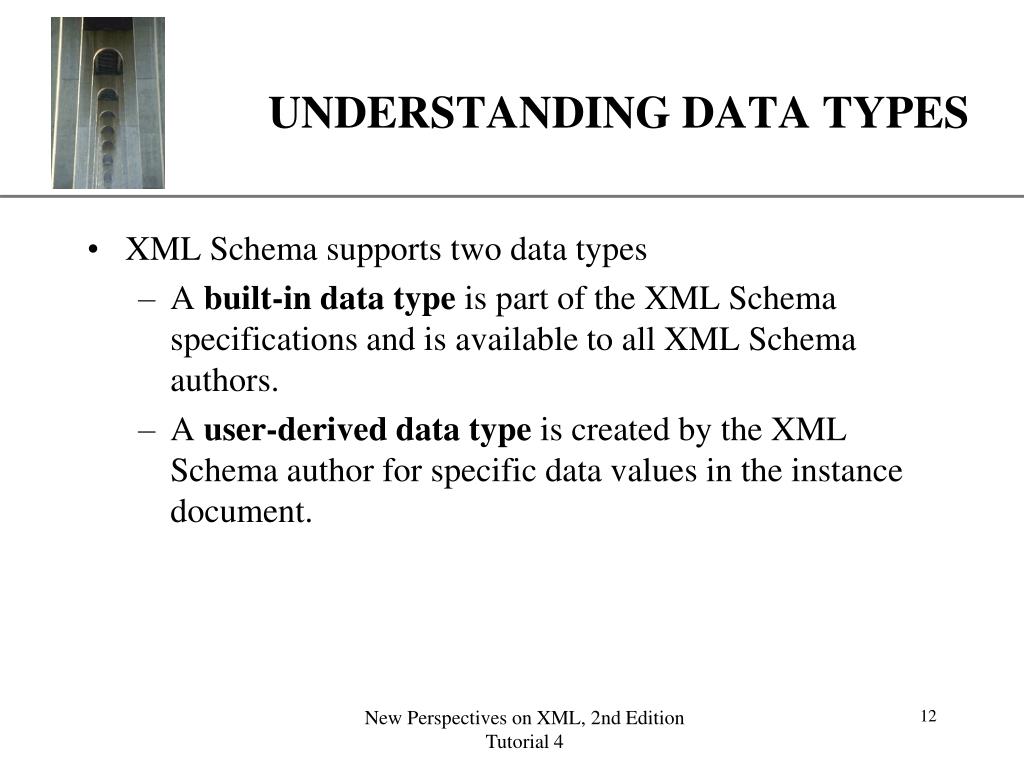

  12. UNDERSTANDING DATA TYPES • XML Schema supports two data types • A built-in data type is part of the XML Schema specifications and is available to all XML Schema authors. • A user-derived data type is created by the XML Schema author for specific data values in the instance document. New Perspectives on XML, 2nd Edition Tutorial 4

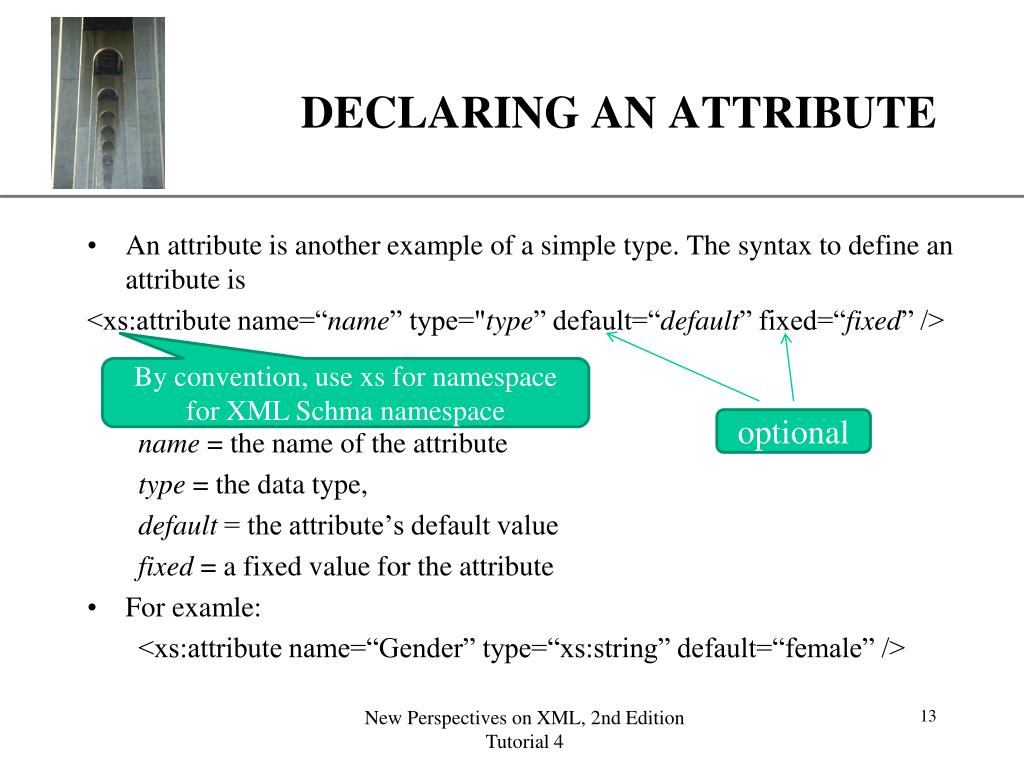

  13. DECLARING AN ATTRIBUTE • An attribute is another example of a simple type. The syntax to define an attribute is <xs:attribute name=“name” type="type” default=“default” fixed=“fixed” /> name = the name of the attribute type = the data type, default = the attribute’s default value fixed = a fixed value for the attribute • For examle: <xs:attribute name=“Gender” type=“xs:string” default=“female” /> By convention, use xs for namespace for XML Schma namespace optional New Perspectives on XML, 2nd Edition Tutorial 4

  14. ASSOCIATING ATTRIBUTES AND ELEMENTS • The basic structure for defining a complex type with XML Schema is <xs:element name="name"> <xs:complexType> declarations </xs:complexType> </xs:element> name = the name of the element declarations = schema commands specific to the type of complex element being defined. New Perspectives on XML, 2nd Edition Tutorial 4

  15. ASSOCIATING ATTRIBUTES AND ELEMENTS • Four complex type elements that usually appear in an instance document are the following: • The element is an empty element and contains only attributes. • The element contains textual content and attributes but no child elements. • The element contains child elements but not attributes. • The element contains both child elements and attributes. The following slides describe each of these New Perspectives on XML, 2nd Edition Tutorial 4

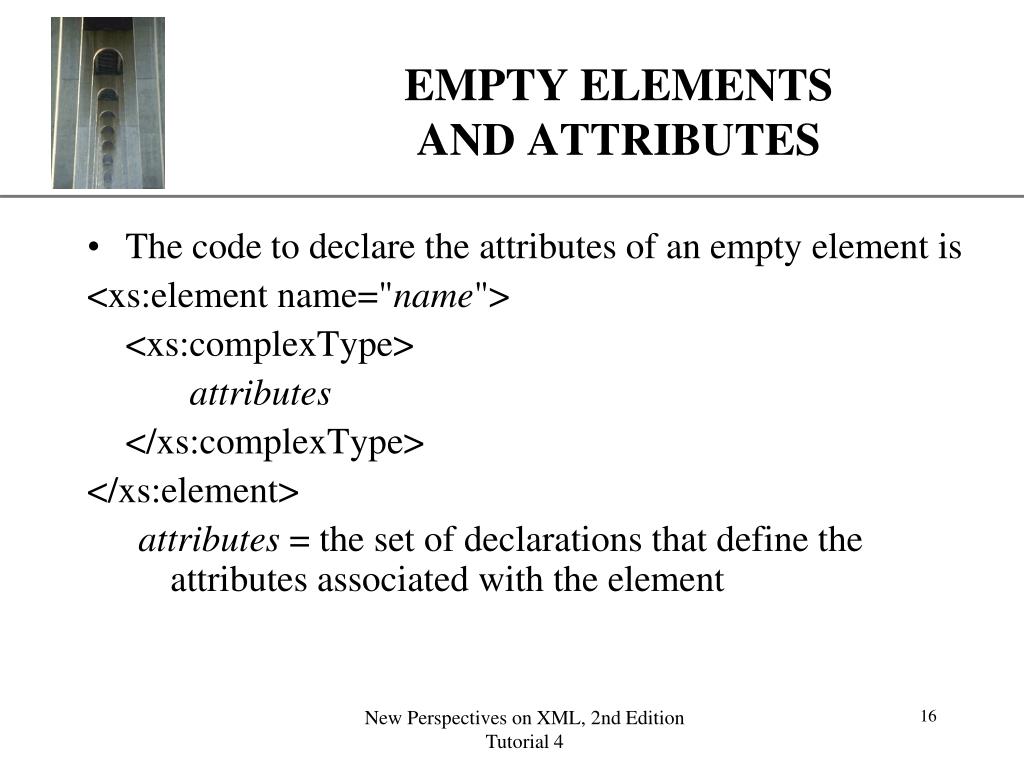

  16. EMPTY ELEMENTS AND ATTRIBUTES • The code to declare the attributes of an empty element is <xs:element name="name"> <xs:complexType> attributes </xs:complexType> </xs:element> attributes = the set of declarations that define the attributes associated with the element New Perspectives on XML, 2nd Edition Tutorial 4

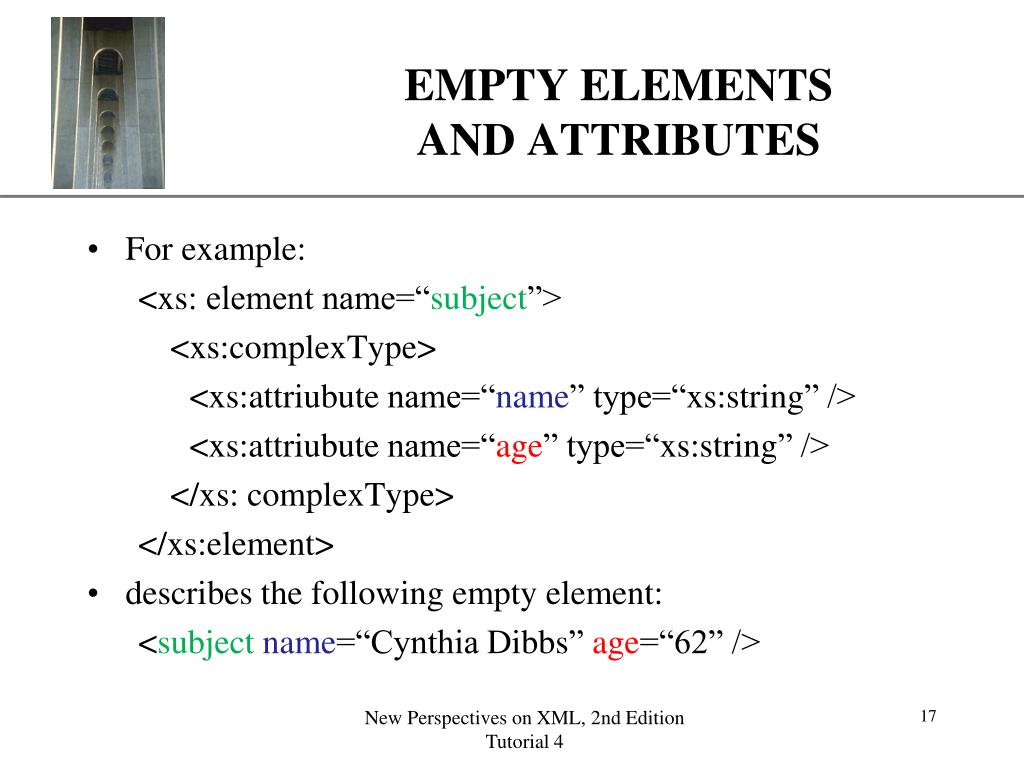

  17. EMPTY ELEMENTS AND ATTRIBUTES • For example: <xs: element name=“subject”> <xs:complexType> <xs:attriubute name=“name” type=“xs:string” /> <xs:attriubute name=“age” type=“xs:string” /> </xs: complexType> </xs:element> • describes the following empty element: <subjectname=“Cynthia Dibbs” age=“62” /> New Perspectives on XML, 2nd Edition Tutorial 4

  18. SIMPLE CONTENT AND ATTRIBUTES • If an element is not empty and contains textual content (but no child elements), the structure of the complex type element is slightly different. <xs:element name="name"> <xs:complexType> <xs:simpleContent> <xs:extension base="type"> attributes </xs:extension> </xs:simpleContent> </xs:complexType> </xs:element> New Perspectives on XML, 2nd Edition Tutorial 4

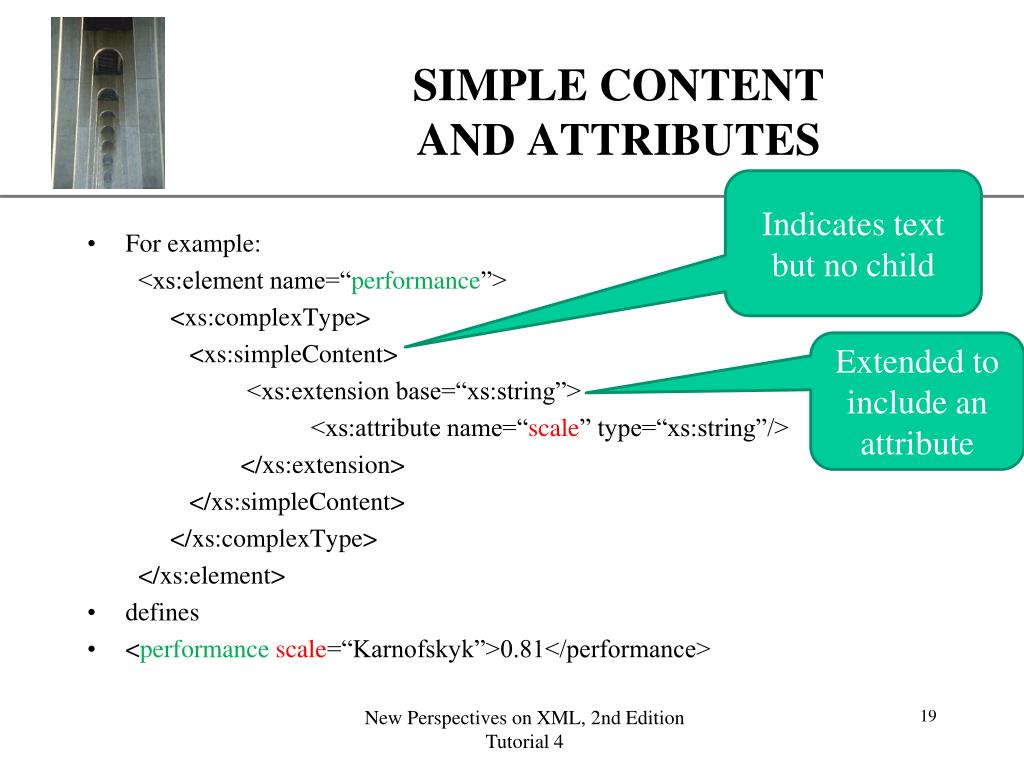

  19. SIMPLE CONTENT AND ATTRIBUTES Indicates text but no child • For example: <xs:element name=“performance”> <xs:complexType> <xs:simpleContent> <xs:extension base=“xs:string”> <xs:attribute name=“scale” type=“xs:string”/> </xs:extension> </xs:simpleContent> </xs:complexType> </xs:element> • defines • <performancescale=“Karnofskyk”>0.81</performance> Extended to include an attribute New Perspectives on XML, 2nd Edition Tutorial 4

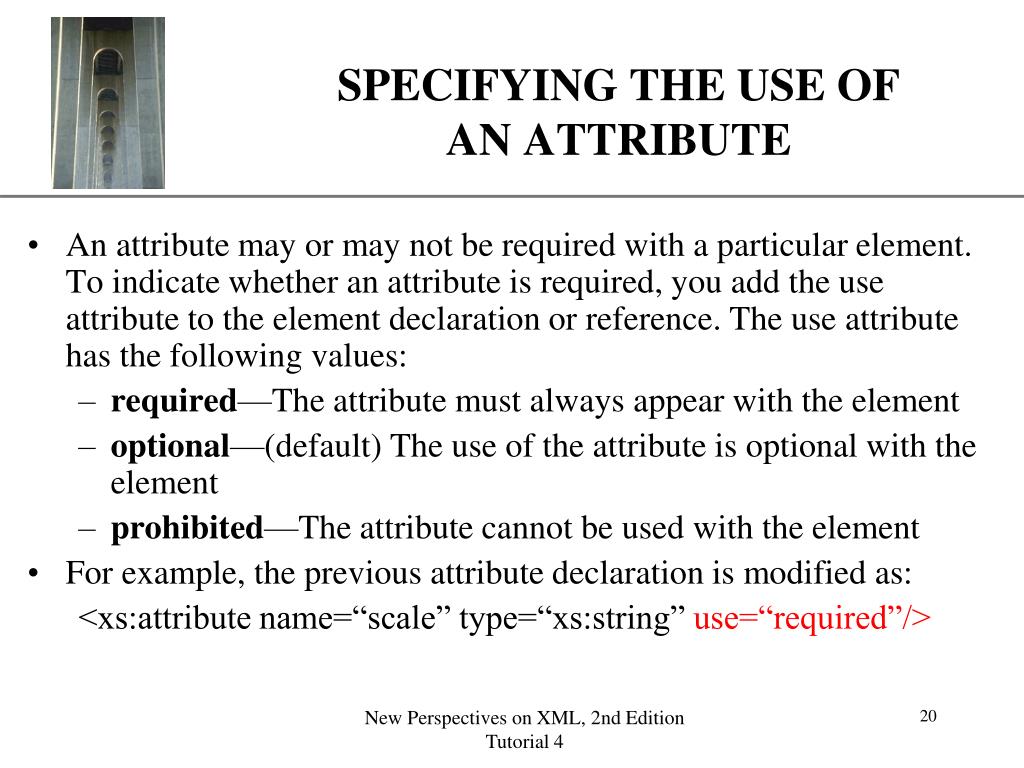

  20. SPECIFYING THE USE OF AN ATTRIBUTE • An attribute may or may not be required with a particular element. To indicate whether an attribute is required, you add the use attribute to the element declaration or reference. The use attribute has the following values: • required—The attribute must always appear with the element • optional—(default) The use of the attribute is optional with the element • prohibited—The attribute cannot be used with the element • For example, the previous attribute declaration is modified as: <xs:attribute name=“scale” type=“xs:string” use=“required”/> New Perspectives on XML, 2nd Edition Tutorial 4

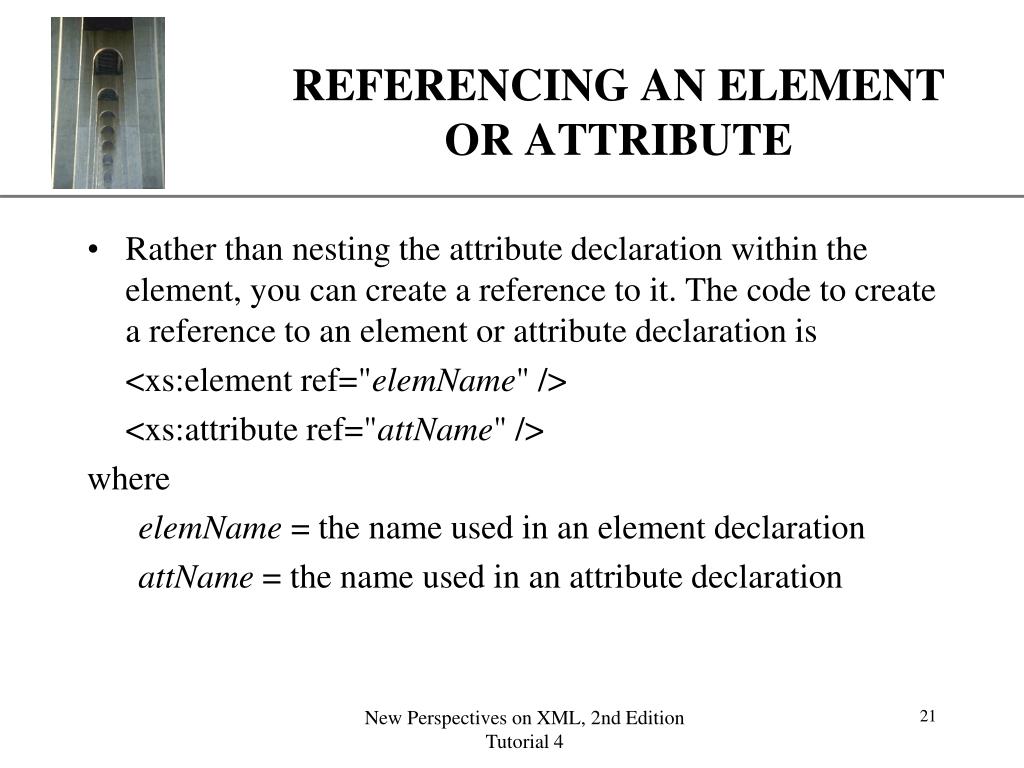

  21. REFERENCING AN ELEMENT OR ATTRIBUTE • Rather than nesting the attribute declaration within the element, you can create a reference to it. The code to create a reference to an element or attribute declaration is <xs:element ref="elemName" /> <xs:attribute ref="attName" /> where elemName = the name used in an element declaration attName = the name used in an attribute declaration New Perspectives on XML, 2nd Edition Tutorial 4

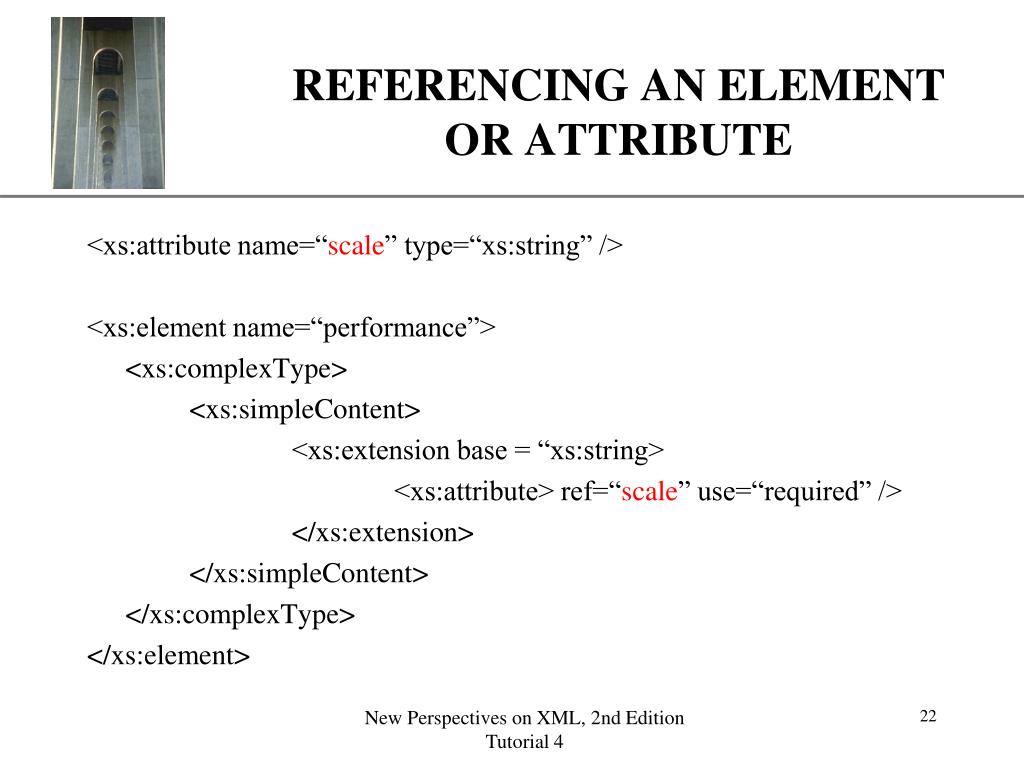

  22. REFERENCING AN ELEMENT OR ATTRIBUTE <xs:attribute name=“scale” type=“xs:string” /> <xs:element name=“performance”> <xs:complexType> <xs:simpleContent> <xs:extension base = “xs:string> <xs:attribute> ref=“scale” use=“required” /> </xs:extension> </xs:simpleContent> </xs:complexType> </xs:element> New Perspectives on XML, 2nd Edition Tutorial 4

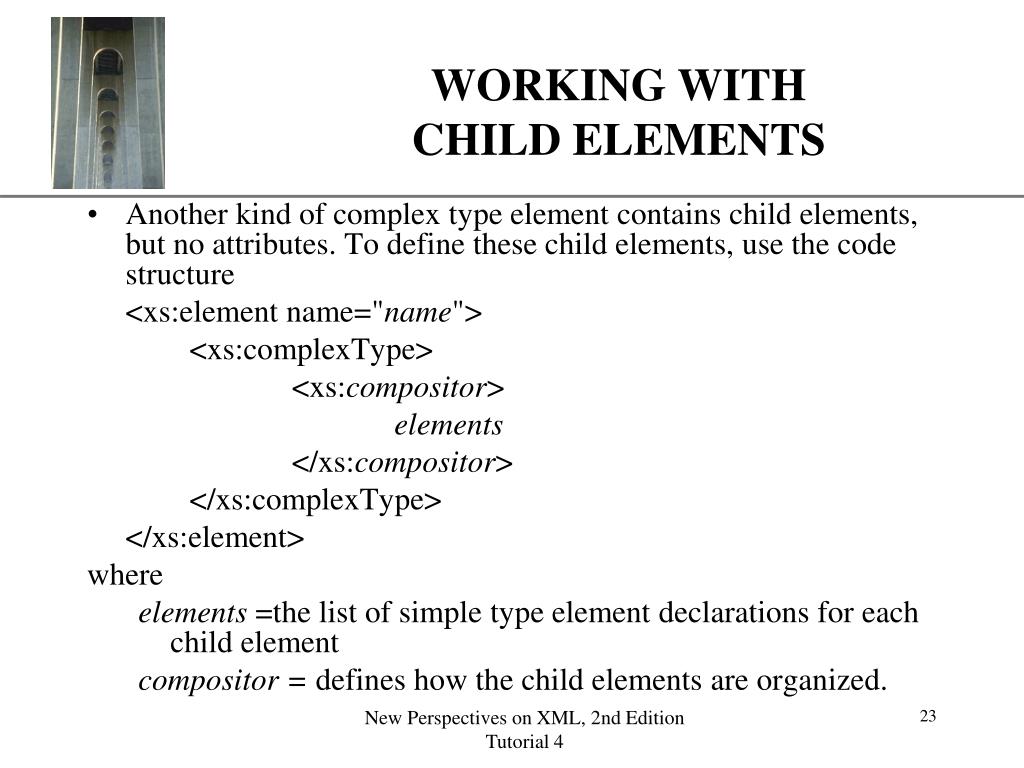

  23. WORKING WITH CHILD ELEMENTS • Another kind of complex type element contains child elements, but no attributes. To define these child elements, use the code structure <xs:element name="name"> <xs:complexType> <xs:compositor> elements </xs:compositor> </xs:complexType> </xs:element> where elements =the list of simple type element declarations for each child element compositor = defines how the child elements are organized. New Perspectives on XML, 2nd Edition Tutorial 4

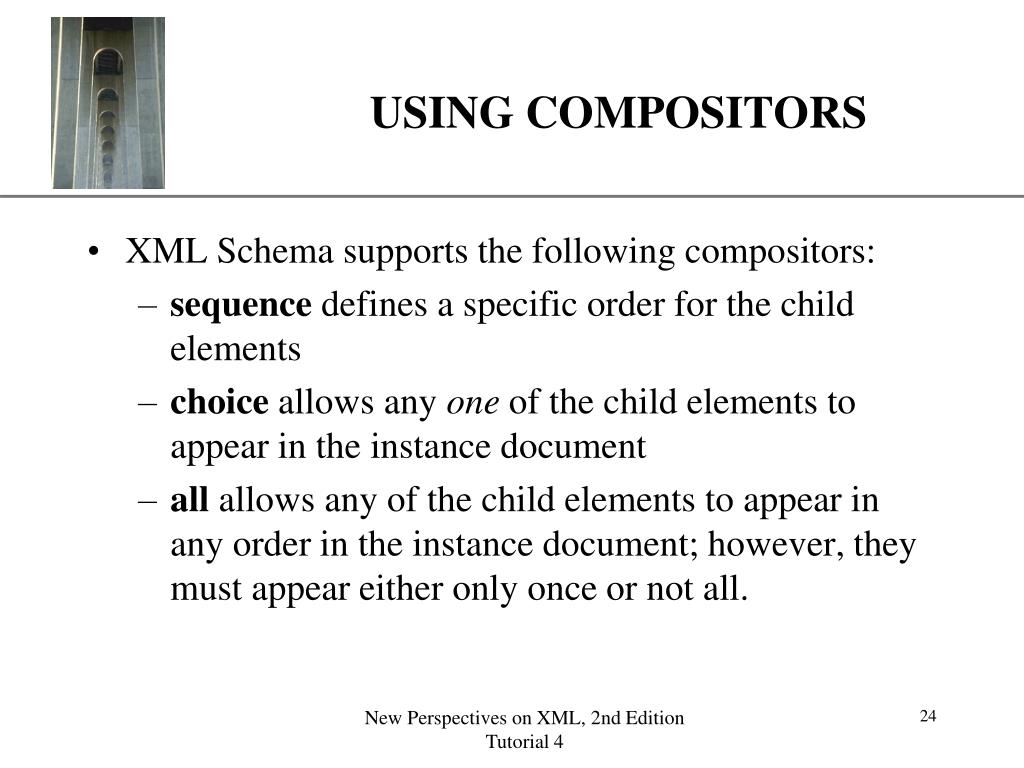

  24. USING COMPOSITORS • XML Schema supports the following compositors: • sequence defines a specific order for the child elements • choice allows any one of the child elements to appear in the instance document • all allows any of the child elements to appear in any order in the instance document; however, they must appear either only once or not all. New Perspectives on XML, 2nd Edition Tutorial 4

  25. USING COMPOSITORS <element name=“address”> <xs:complexType> <xs:sequence> <xs:element name = “street” type = “xs:string”/> <xs:element name = “city” type = “xs:string”/> <xs:element name = “state” type = “xs:string”/> </xs:sequence> <xs:complexType> </element> Must be in sequence New Perspectives on XML, 2nd Edition Tutorial 4

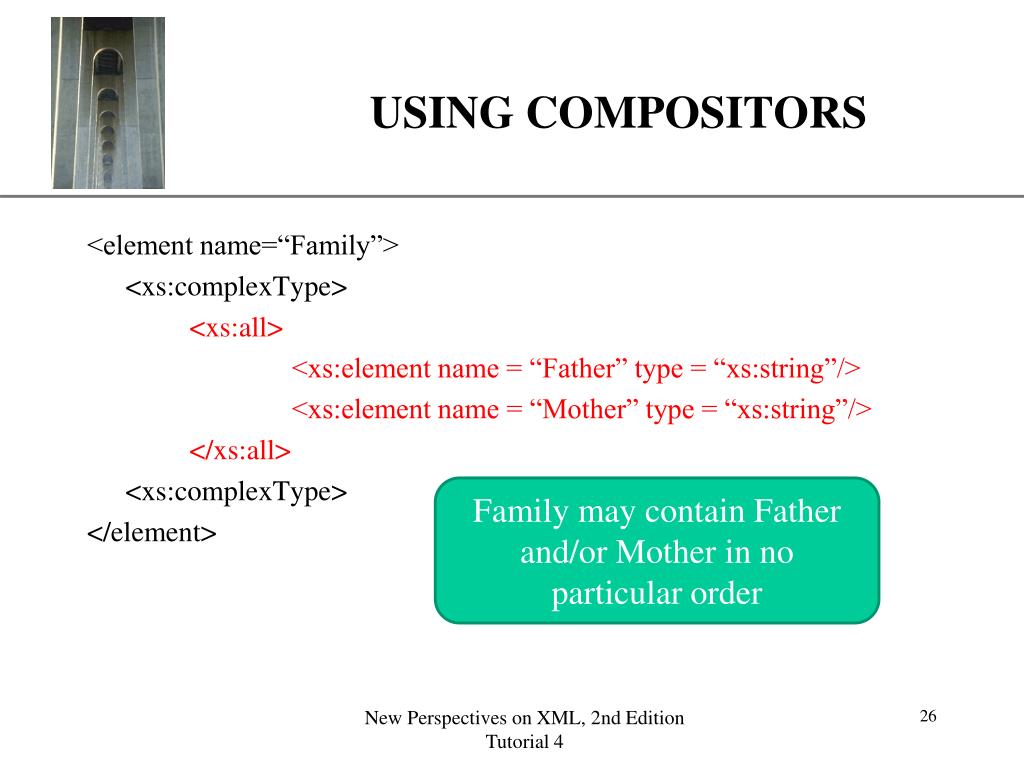

  26. USING COMPOSITORS <element name=“Family”> <xs:complexType> <xs:all> <xs:element name = “Father” type = “xs:string”/> <xs:element name = “Mother” type = “xs:string”/> </xs:all> <xs:complexType> </element> Family may contain Father and/or Mother in no particular order New Perspectives on XML, 2nd Edition Tutorial 4

  27. SPECIFYING THE OCCURENCES OF AN ITEM • <xs:element name=“patient” type=“xs:string” minOccurs=“1” maxOccurs=“3”/> New Perspectives on XML, 2nd Edition Tutorial 4

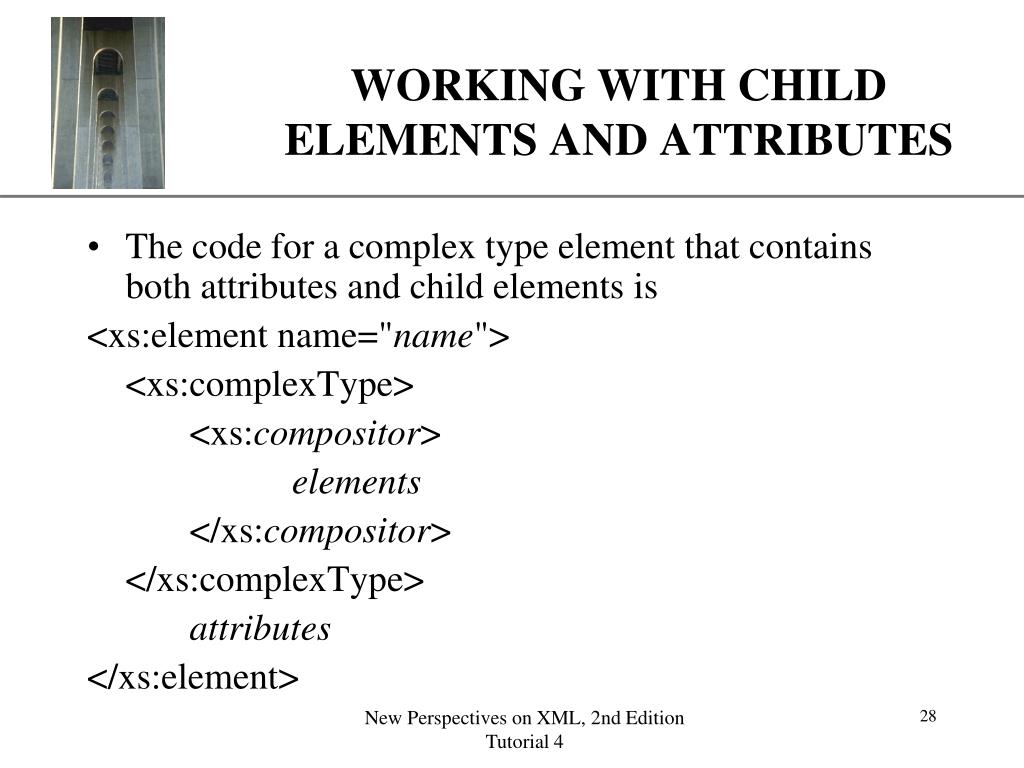

  28. WORKING WITH CHILD ELEMENTS AND ATTRIBUTES • The code for a complex type element that contains both attributes and child elements is <xs:element name="name"> <xs:complexType> <xs:compositor> elements </xs:compositor> </xs:complexType> attributes </xs:element> New Perspectives on XML, 2nd Edition Tutorial 4

  29. CHILD ELEMENTS AND ATTRIBUTES EXAMPLE <xs:element name=“patient”> <xs:complexType> <xs:sequence> <xs:element ref=“lastname”/> <xs:element ref=“firstName”/> </xs:sequence> <xs:attribute ref=“patID use=“required”> </xs:complexType> <xs:element> New Perspectives on XML, 2nd Edition Tutorial 4

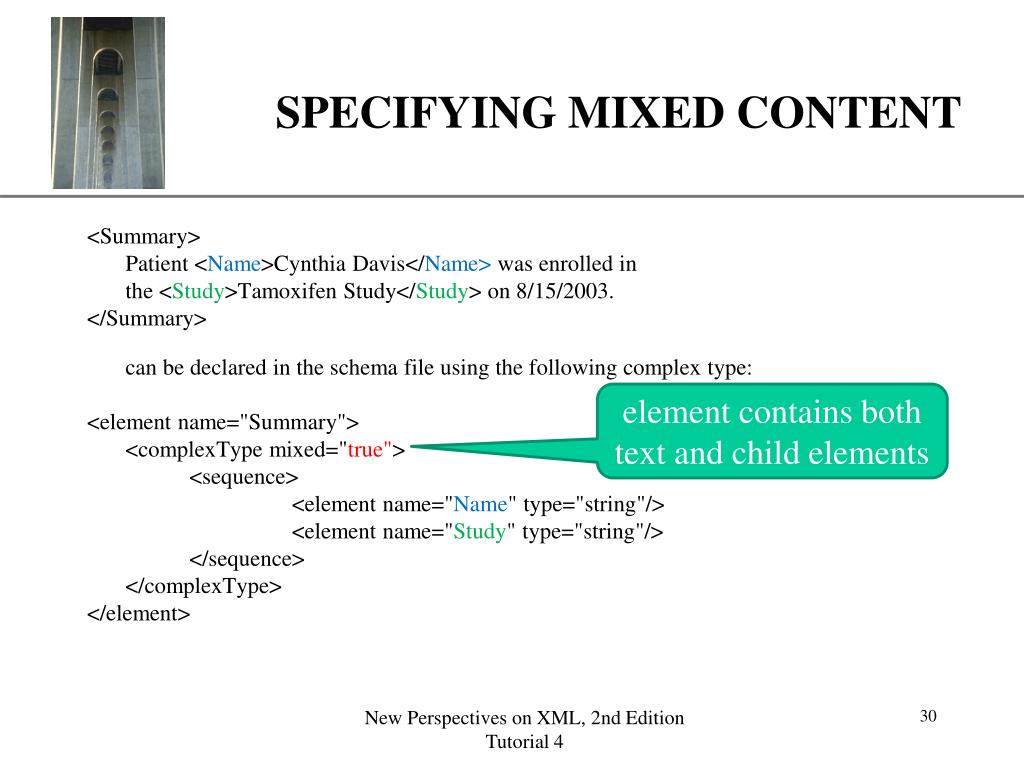

  30. SPECIFYING MIXED CONTENT <Summary> Patient <Name>Cynthia Davis</Name> was enrolled in the <Study>Tamoxifen Study</Study> on 8/15/2003. </Summary> can be declared in the schema file using the following complex type: <element name="Summary"> <complexType mixed="true"> <sequence> <element name="Name" type="string"/> <element name="Study" type="string"/> </sequence> </complexType> </element> element contains both text and child elements New Perspectives on XML, 2nd Edition Tutorial 4

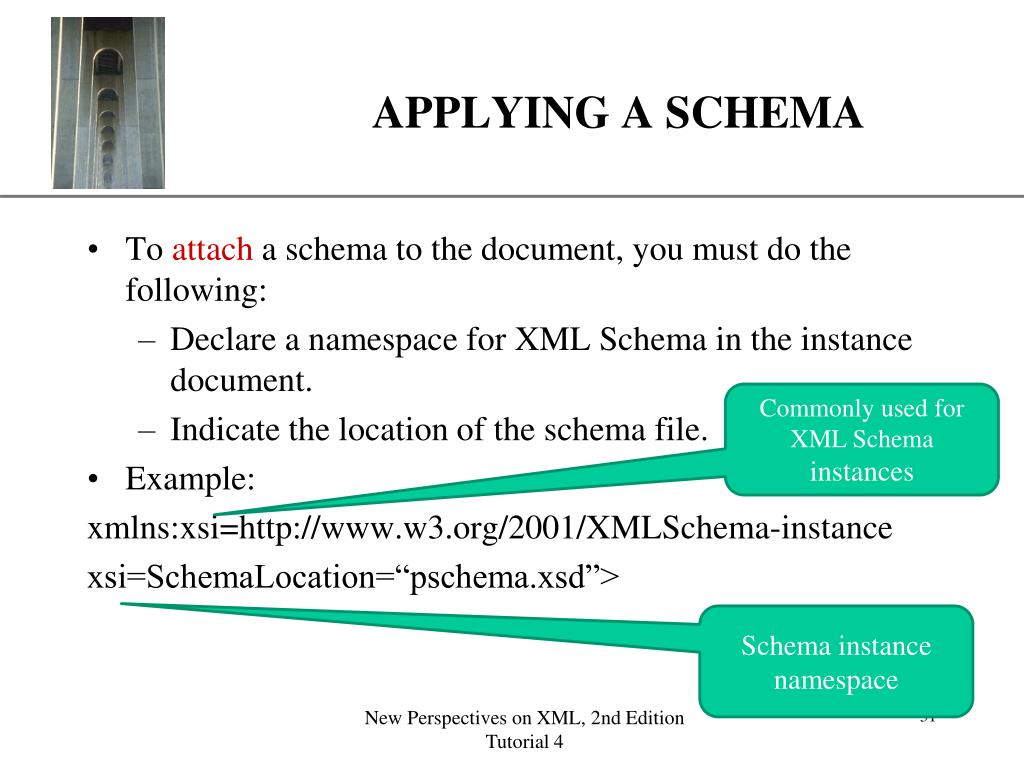

  31. APPLYING A SCHEMA • To attach a schema to the document, you must do the following: • Declare a namespace for XML Schema in the instance document. • Indicate the location of the schema file. • Example: xmlns:xsi=http://www.w3.org/2001/XMLSchema-instance xsi=SchemaLocation=“pschema.xsd”> Commonly used for XML Schema instances Schema instance namespace New Perspectives on XML, 2nd Edition Tutorial 4

  32. APPLYING A SCHEMA • Specifying a schema in an XML document • is treated only as a hint by validating parsers • ignored by some parsers • Not allowed to prevent improper financial documents from being fraudulently submitted • If there is no namespace for the contents of the instance document, add the following attribute to the root element: xsi:noNamespaceSchemaLocation="schema" Schema instance namespace New Perspectives on XML, 2nd Edition Tutorial 4

  33. Pause and breath New Perspectives on XML, 2nd Edition Tutorial 4

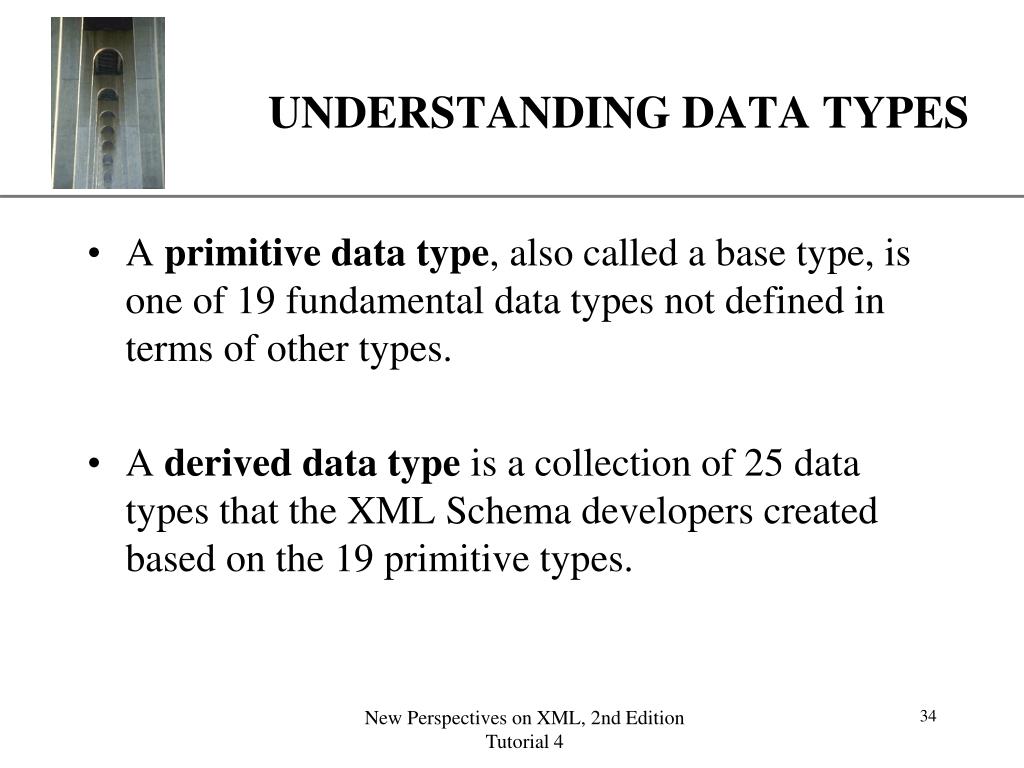

  34. UNDERSTANDING DATA TYPES • A primitive data type, also called a base type, is one of 19 fundamental data types not defined in terms of other types. • A derived data type is a collection of 25 data types that the XML Schema developers created based on the 19 primitive types. New Perspectives on XML, 2nd Edition Tutorial 4

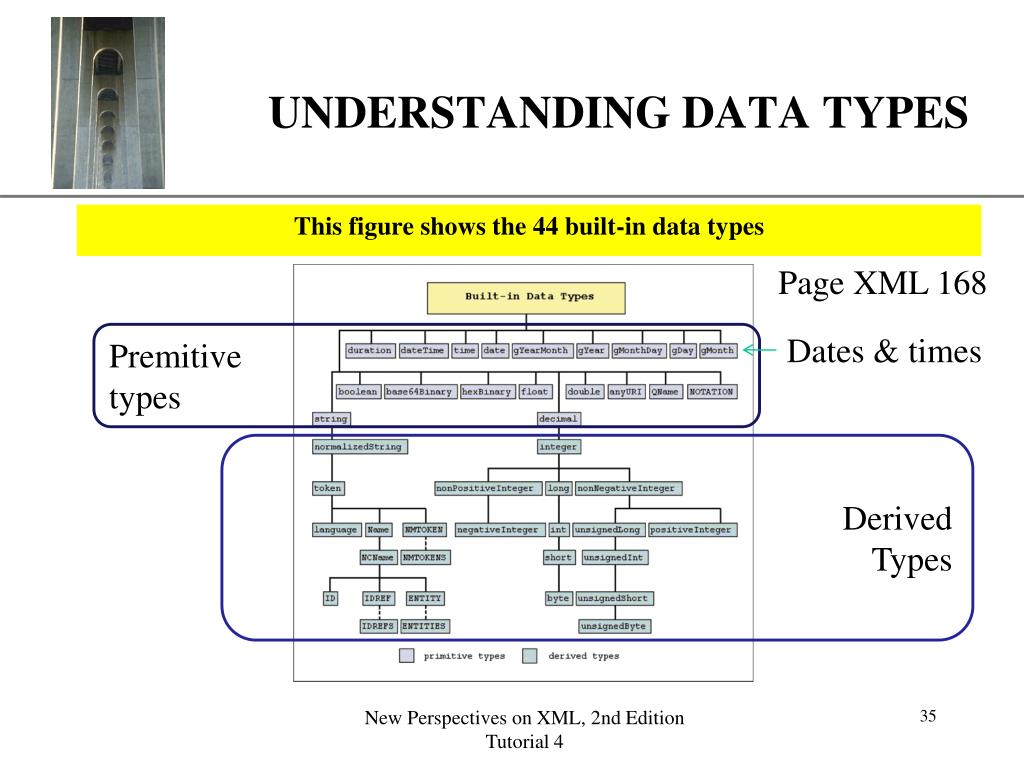

  35. UNDERSTANDING DATA TYPES This figure shows the 44 built-in data types Page XML 168 Premitive types Dates & times Derived Types New Perspectives on XML, 2nd Edition Tutorial 4

  36. UNDERSTANDING DATA TYPES This figure shows a partial description of XML string data types Page XML 169 New Perspectives on XML, 2nd Edition Tutorial 4

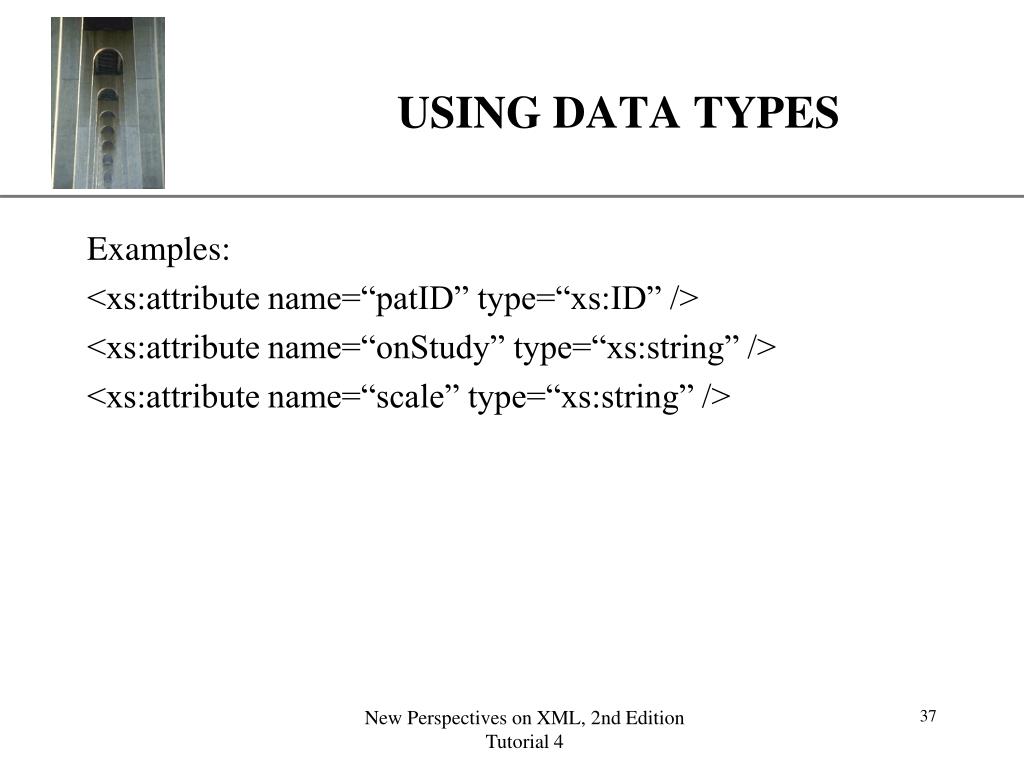

  37. USING DATA TYPES Examples: <xs:attribute name=“patID” type=“xs:ID” /> <xs:attribute name=“onStudy” type=“xs:string” /> <xs:attribute name=“scale” type=“xs:string” /> New Perspectives on XML, 2nd Edition Tutorial 4

  38. UNDERSTANDING DATA TYPES This figure shows a partial description of XML numeric data types Page XML 170 New Perspectives on XML, 2nd Edition Tutorial 4

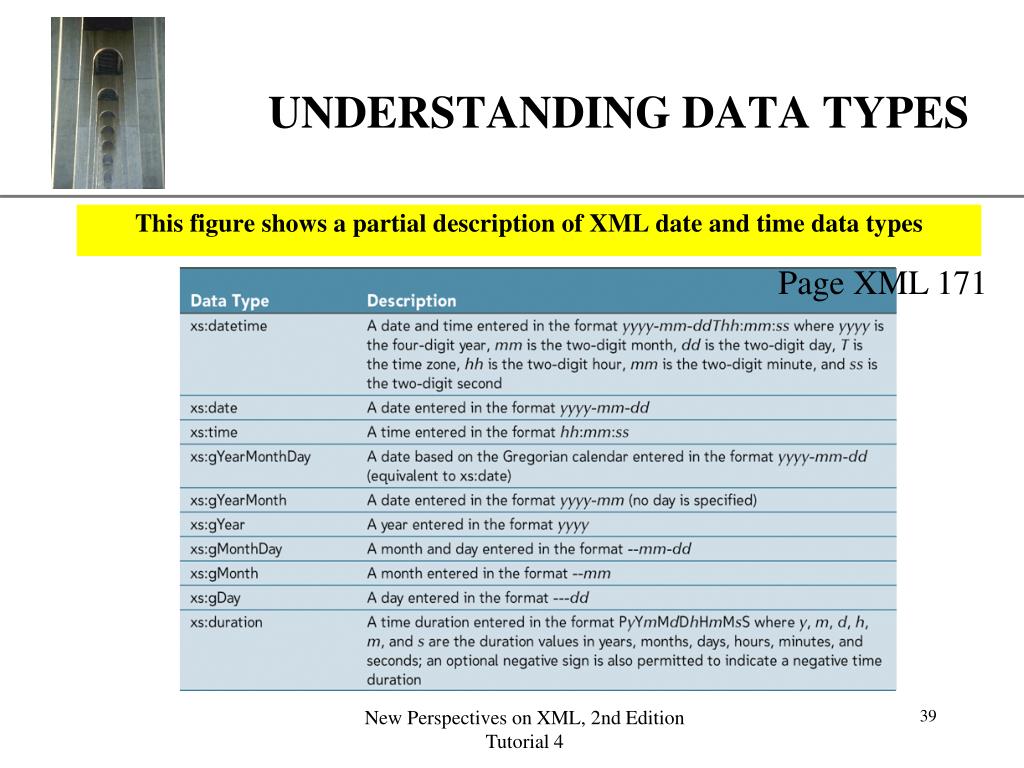

  39. UNDERSTANDING DATA TYPES This figure shows a partial description of XML date and time data types Page XML 171 New Perspectives on XML, 2nd Edition Tutorial 4

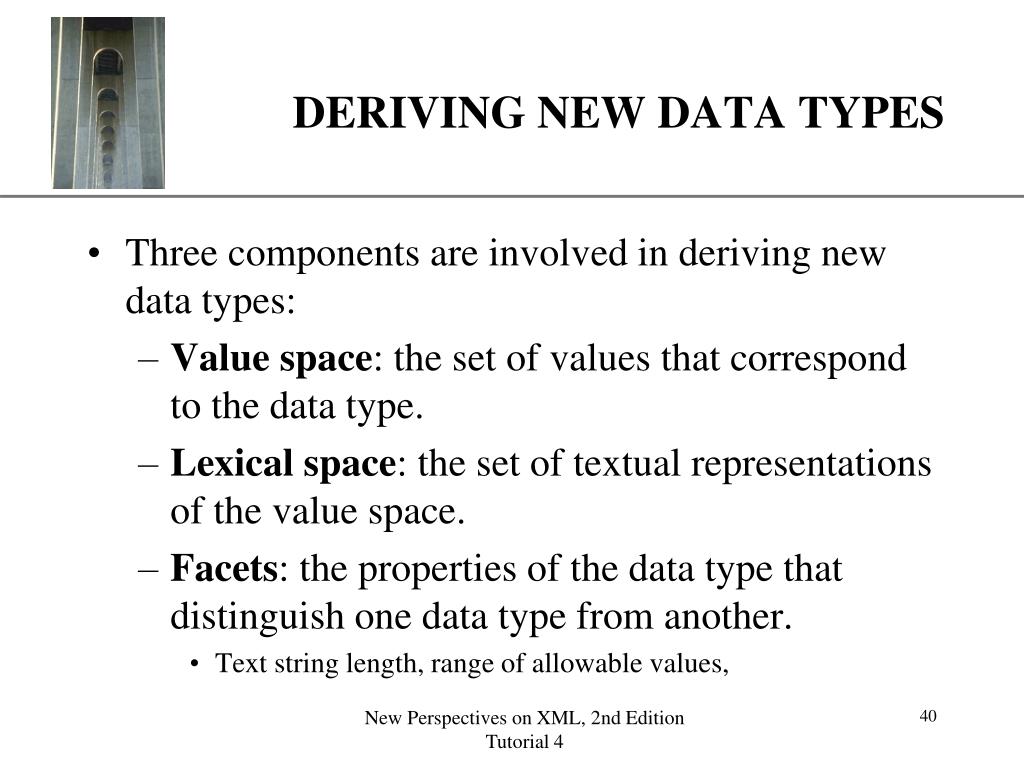

  40. DERIVING NEW DATA TYPES • Three components are involved in deriving new data types: • Value space: the set of values that correspond to the data type. • Lexical space: the set of textual representations of the value space. • Facets: the properties of the data type that distinguish one data type from another. • Text string length, range of allowable values, New Perspectives on XML, 2nd Edition Tutorial 4

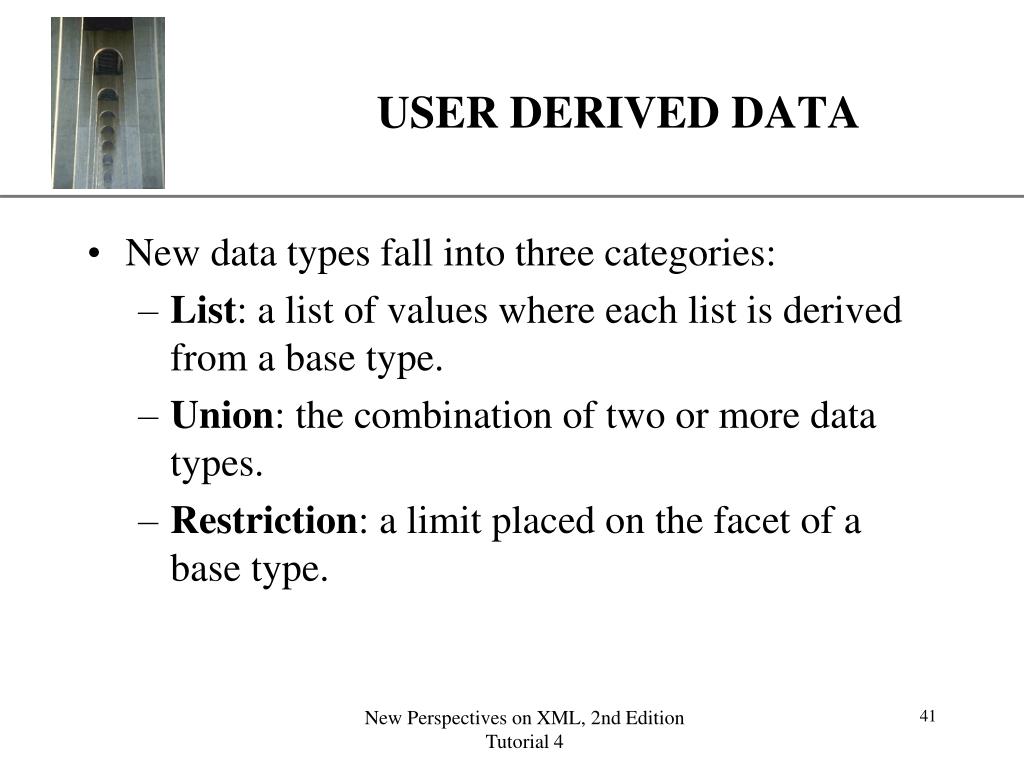

  41. USER DERIVED DATA • New data types fall into three categories: • List: a list of values where each list is derived from a base type. • Union: the combination of two or more data types. • Restriction: a limit placed on the facet of a base type. New Perspectives on XML, 2nd Edition Tutorial 4

  42. LIST • List data type is a list of values separated by white space • To create a list data type: <xs:simpleType name=wbcList”> <xs:listitemType=xs:decimal” /> <xs:simpleType> • To use the data type: <xs:element name=“wbc” type=“wbcList” /> <wbe>15.1 15.8. 20.0 9.3 7.1 5.2 </wbc> New Perspectives on XML, 2nd Edition Tutorial 4

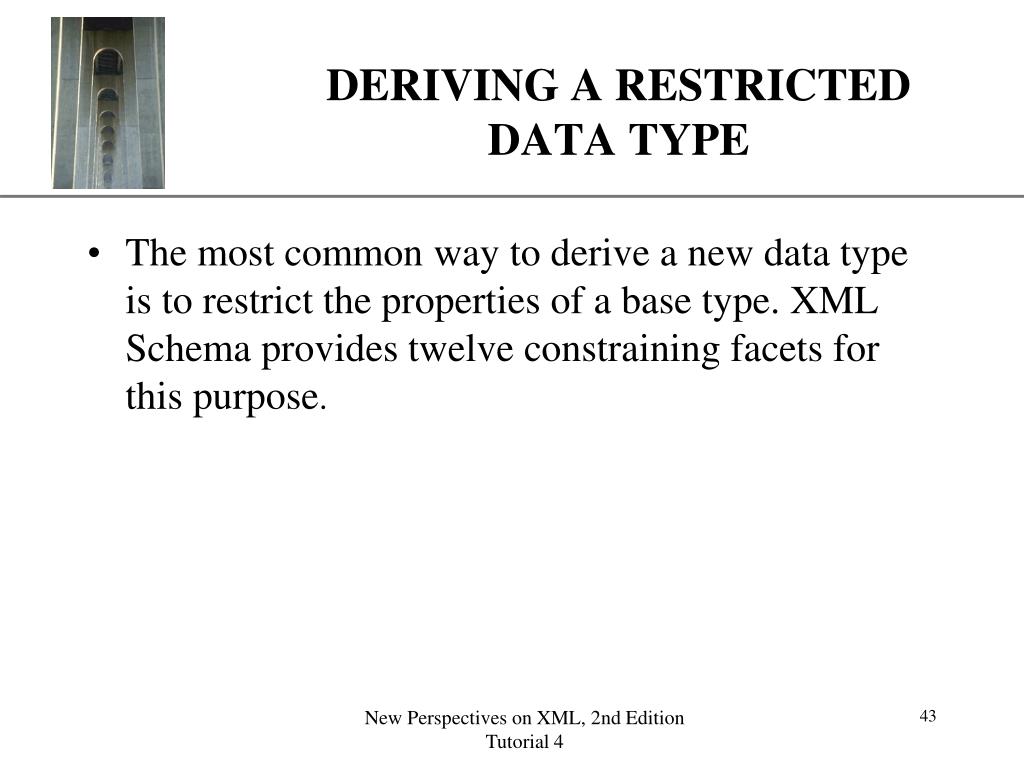

  43. DERIVING A RESTRICTED DATA TYPE • The most common way to derive a new data type is to restrict the properties of a base type. XML Schema provides twelve constraining facets for this purpose. New Perspectives on XML, 2nd Edition Tutorial 4

  44. CONSTRAINING FACETS This figure shows the 12 constraining facets New Perspectives on XML, 2nd Edition Tutorial 4

  45. CONSTRAINING FACETS EXAMPLE <xs:simpleType name=“ageType”> <xs:restriction base=“xs:integer”> <xs:minInclusive value = “21” /> </xs:restriction> </xs:simpleType> Constrains the data type to be greater than or equal to the value New Perspectives on XML, 2nd Edition Tutorial 4

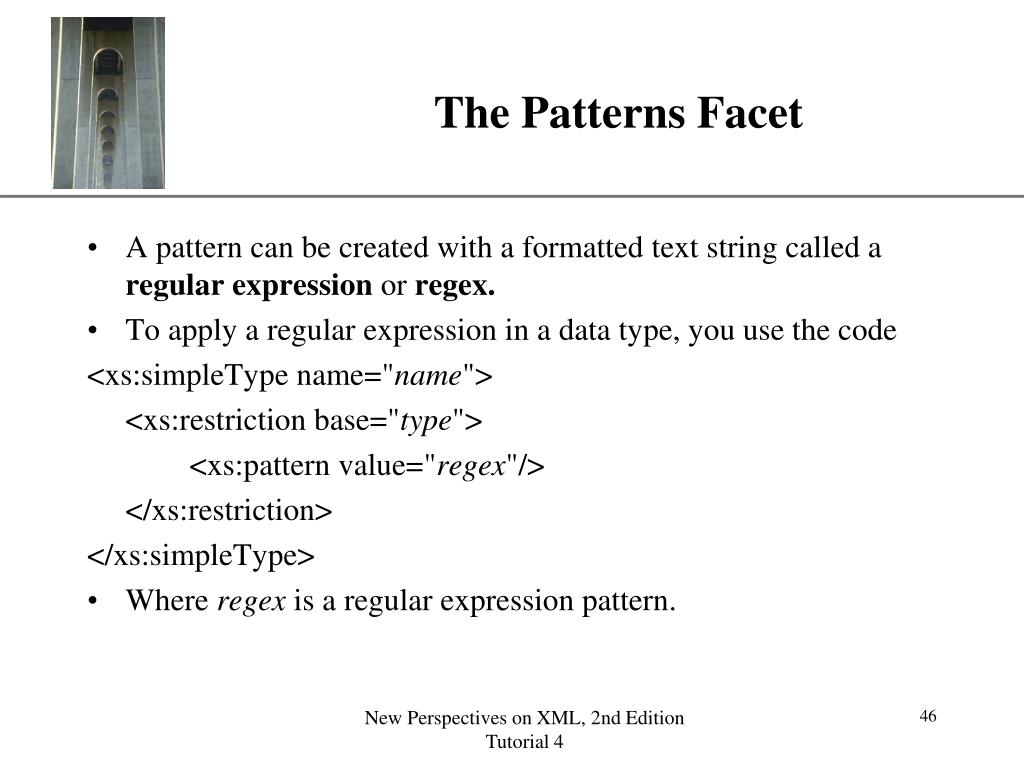

  46. The Patterns Facet • A pattern can be created with a formatted text string called a regular expression or regex. • To apply a regular expression in a data type, you use the code <xs:simpleType name="name"> <xs:restriction base="type"> <xs:pattern value="regex"/> </xs:restriction> </xs:simpleType> • Where regex is a regular expression pattern. New Perspectives on XML, 2nd Edition Tutorial 4

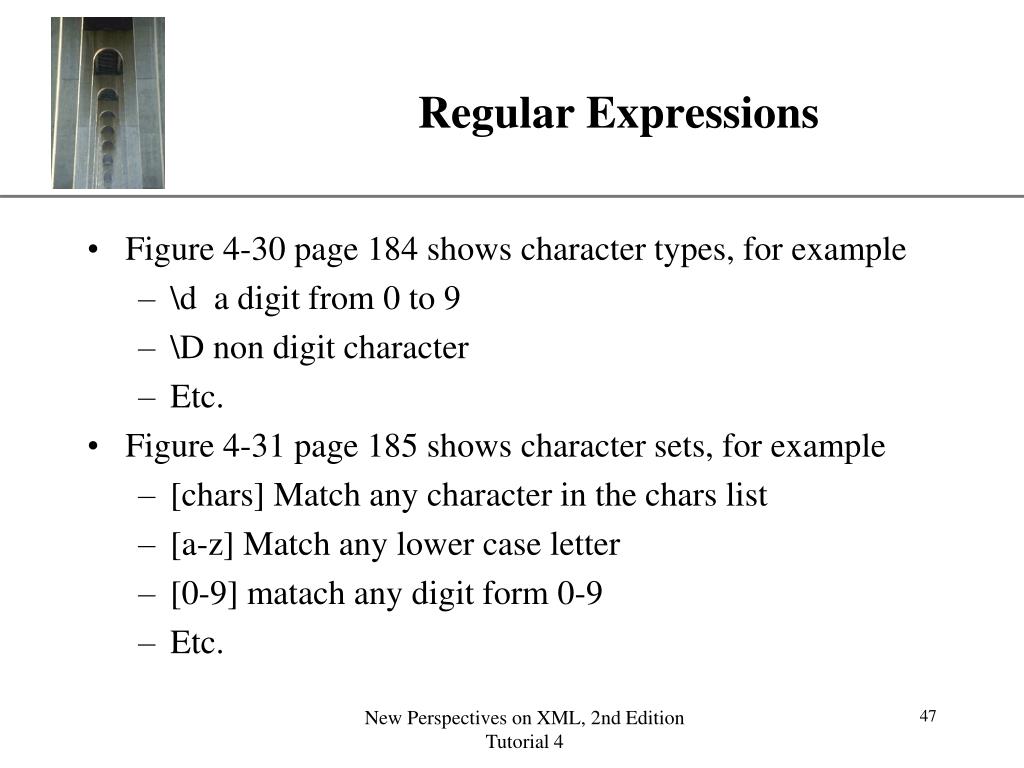

  47. Regular Expressions • Figure 4-30 page 184 shows character types, for example • \d a digit from 0 to 9 • \D non digit character • Etc. • Figure 4-31 page 185 shows character sets, for example • [chars] Match any character in the chars list • [a-z] Match any lower case letter • [0-9] matach any digit form 0-9 • Etc. New Perspectives on XML, 2nd Edition Tutorial 4

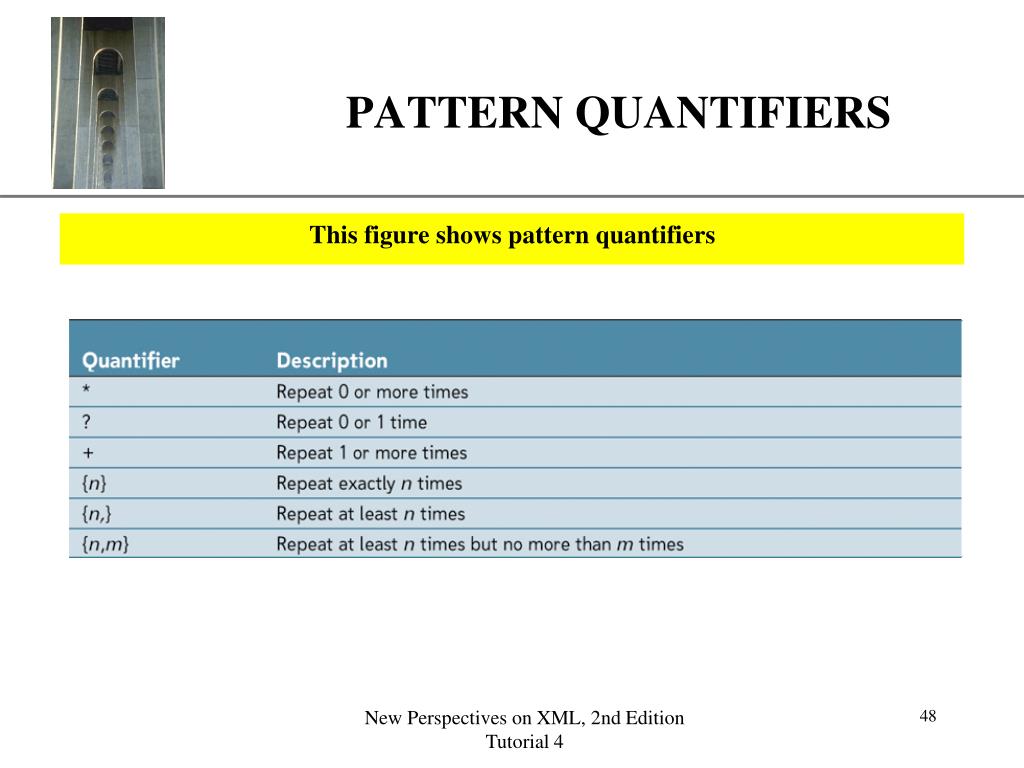

  48. PATTERN QUANTIFIERS This figure shows pattern quantifiers New Perspectives on XML, 2nd Edition Tutorial 4

  49. EXAMPLE REGULAR EXPRESSIONS • <xs:pattern value=“\d{3}” /> • <xs:pattern value=“[A-Z]*” /> • <xs:pattern value=“[A-Z]{0,10}*” /} <xs:ximpleType name=“mrType”> <sx:restrictiion base=“xs:ID”> <xs:pattern value=“MR\d{3}-\d{3}-d2{2}” /> </xs:restriction> <xs:simpleType> New Perspectives on XML, 2nd Edition Tutorial 4

  50. WORKING WITH NAMED TYPES • Schema authors can create customized complex types. • Advantage: reuse the complex structure in several places in the document. • For example: <xs:element name=“fullName"> <xs:complexType> <xs:sequence> <xs:element name="firstName" type="xs:string"/> <xs:element name="lastName" type="xs:string" /> </xs:sequence> </xs:complexType> </xs:element> • Use <xs:element name=“client” type=“fullName”/> <xs:element name=“salesperson” type=“fullName”/> New Perspectives on XML, 2nd Edition Tutorial 4
