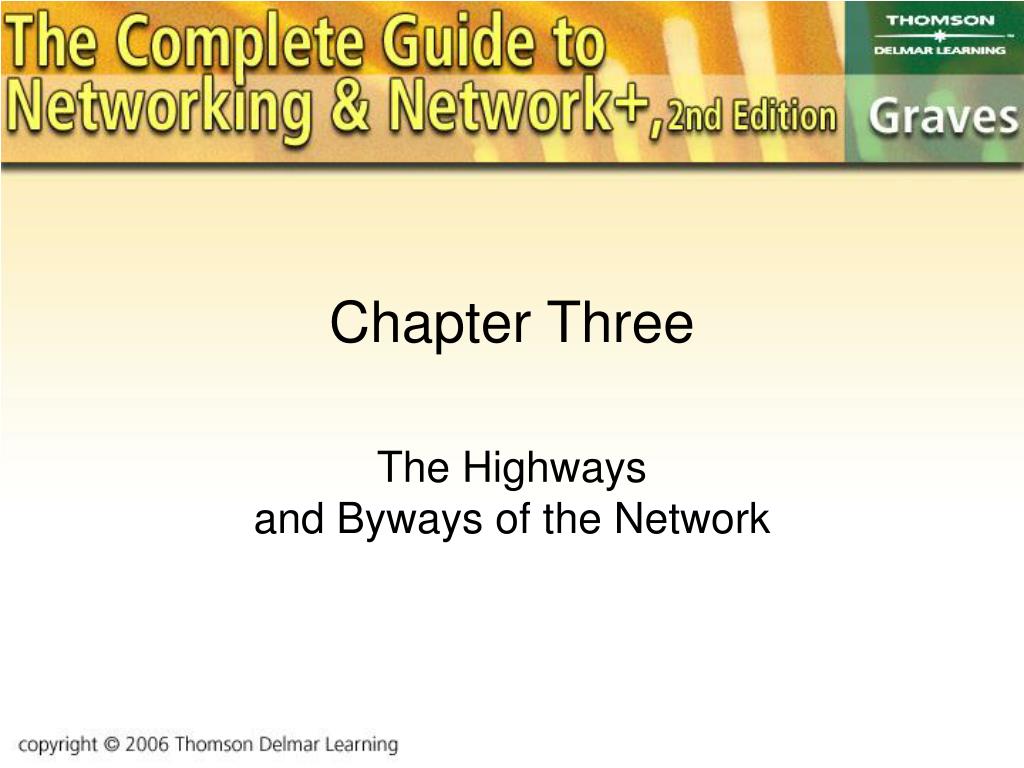

  1. Chapter Three The Highways and Byways of the Network

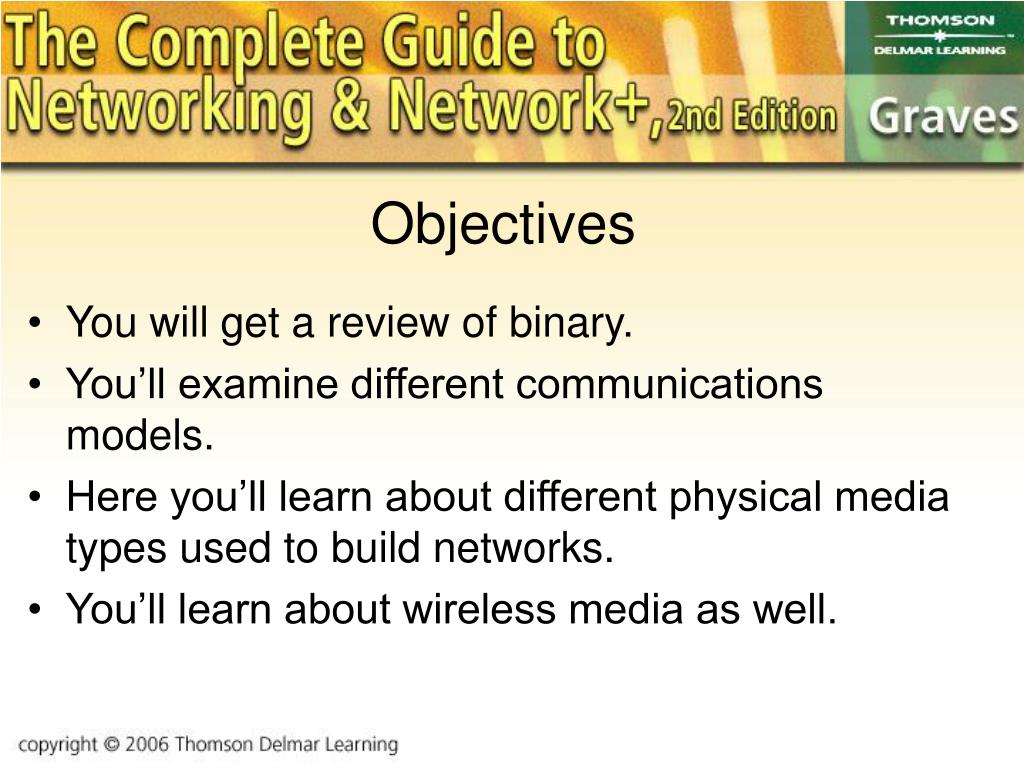

  2. Objectives • You will get a review of binary. • You’ll examine different communications models. • Here you’ll learn about different physical media types used to build networks. • You’ll learn about wireless media as well.

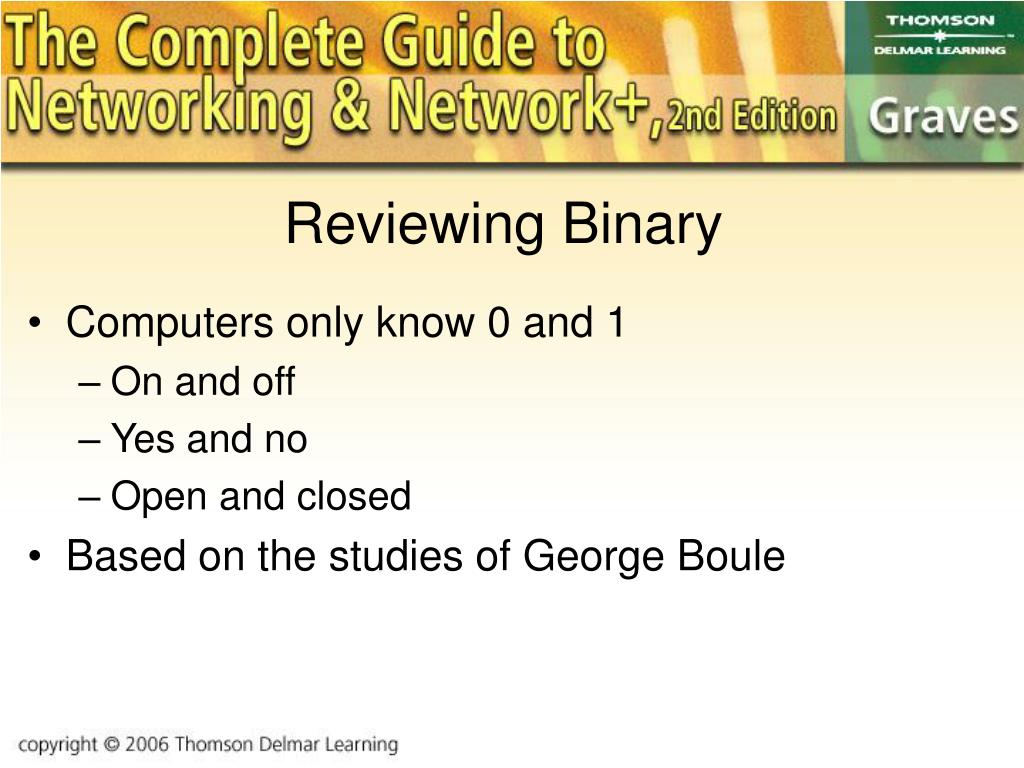

  3. Reviewing Binary • Computers only know 0 and 1 • On and off • Yes and no • Open and closed • Based on the studies of George Boule

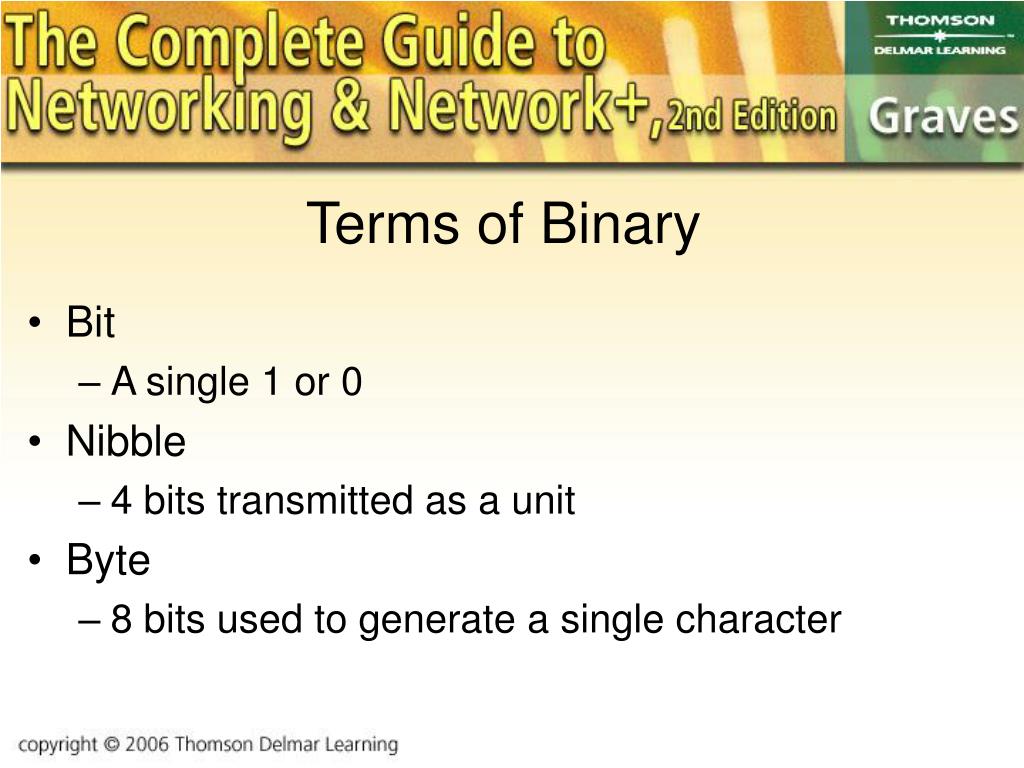

  4. Terms of Binary • Bit • A single 1 or 0 • Nibble • 4 bits transmitted as a unit • Byte • 8 bits used to generate a single character

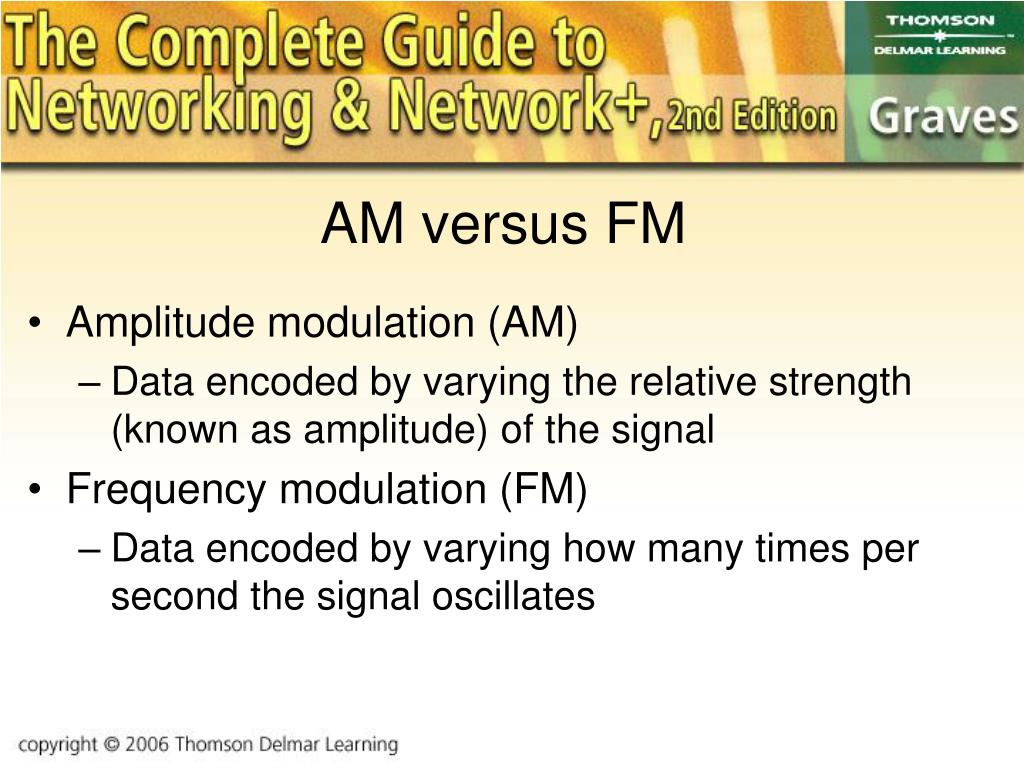

  5. AM versus FM • Amplitude modulation (AM) • Data encoded by varying the relative strength (known as amplitude) of the signal • Frequency modulation (FM) • Data encoded by varying how many times per second the signal oscillates

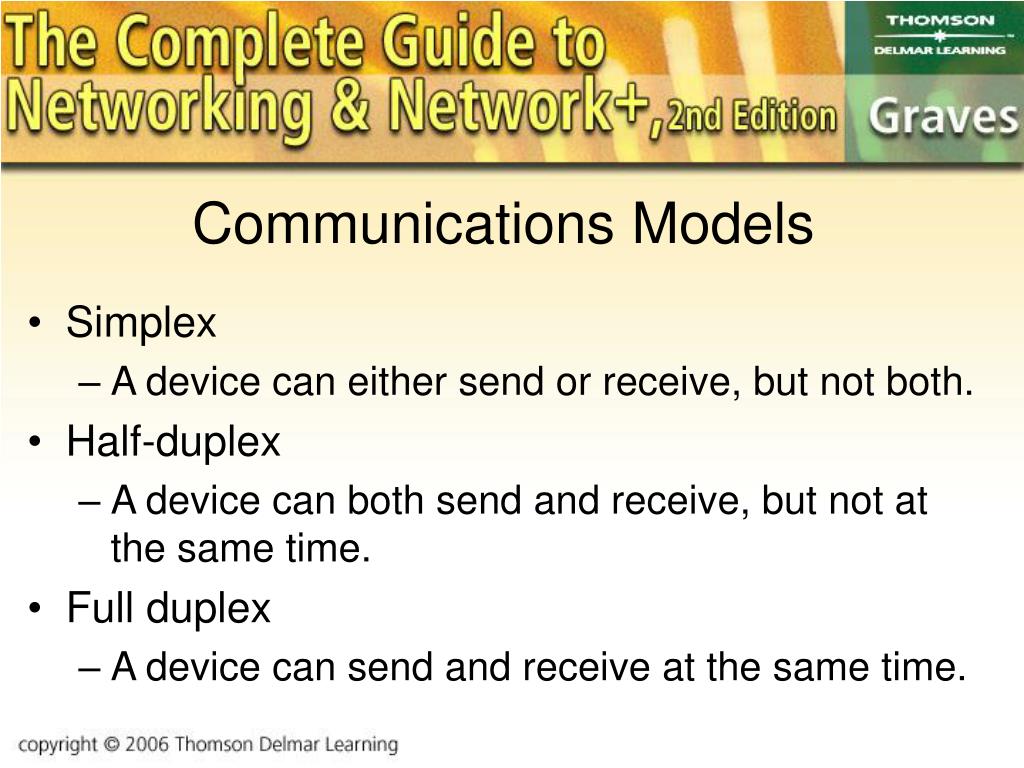

  6. Communications Models • Simplex • A device can either send or receive, but not both. • Half-duplex • A device can both send and receive, but not at the same time. • Full duplex • A device can send and receive at the same time.

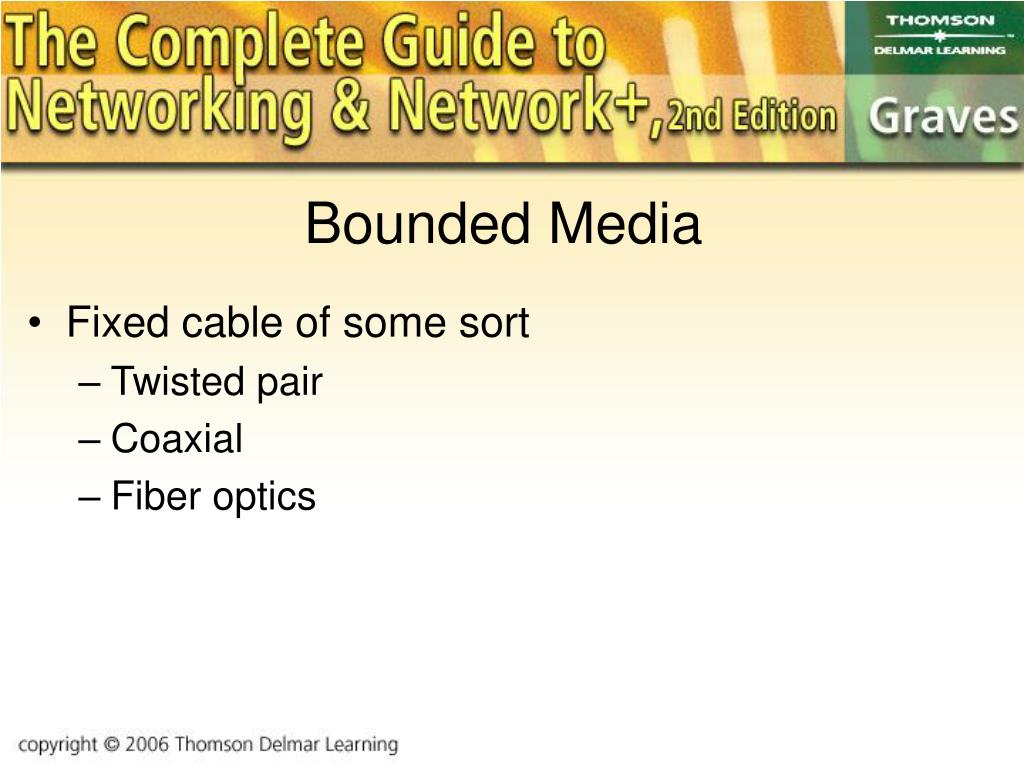

  7. Bounded Media • Fixed cable of some sort • Twisted pair • Coaxial • Fiber optics

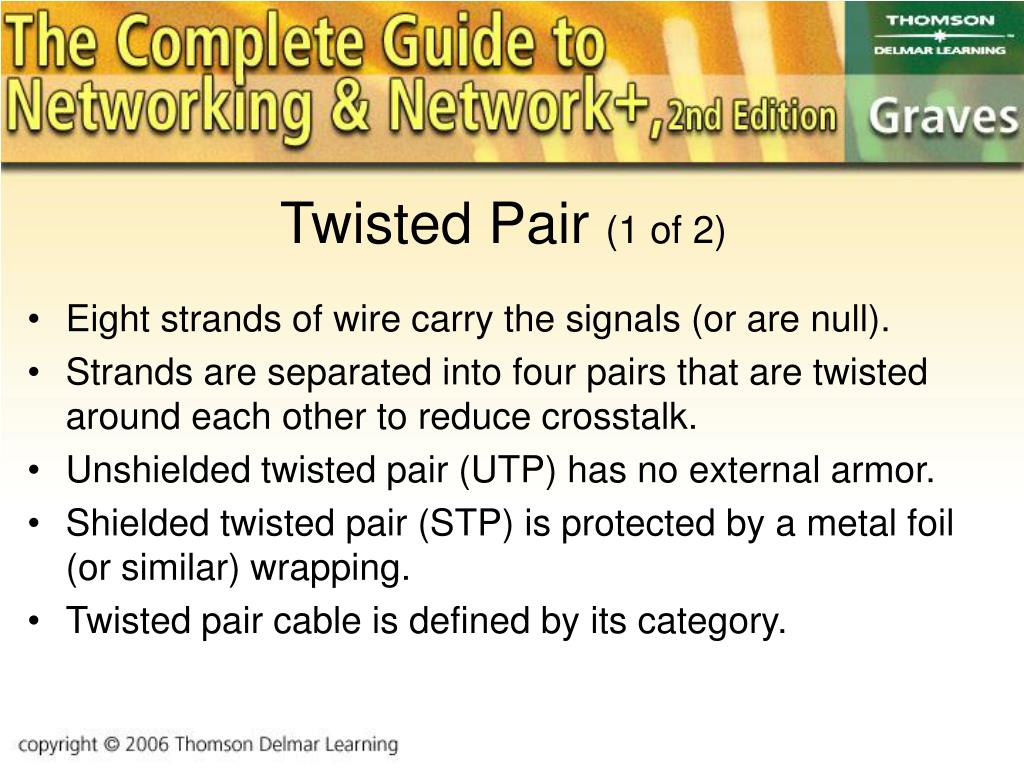

  8. Twisted Pair (1 of 2) • Eight strands of wire carry the signals (or are null). • Strands are separated into four pairs that are twisted around each other to reduce crosstalk. • Unshielded twisted pair (UTP) has no external armor. • Shielded twisted pair (STP) is protected by a metal foil (or similar) wrapping. • Twisted pair cable is defined by its category.

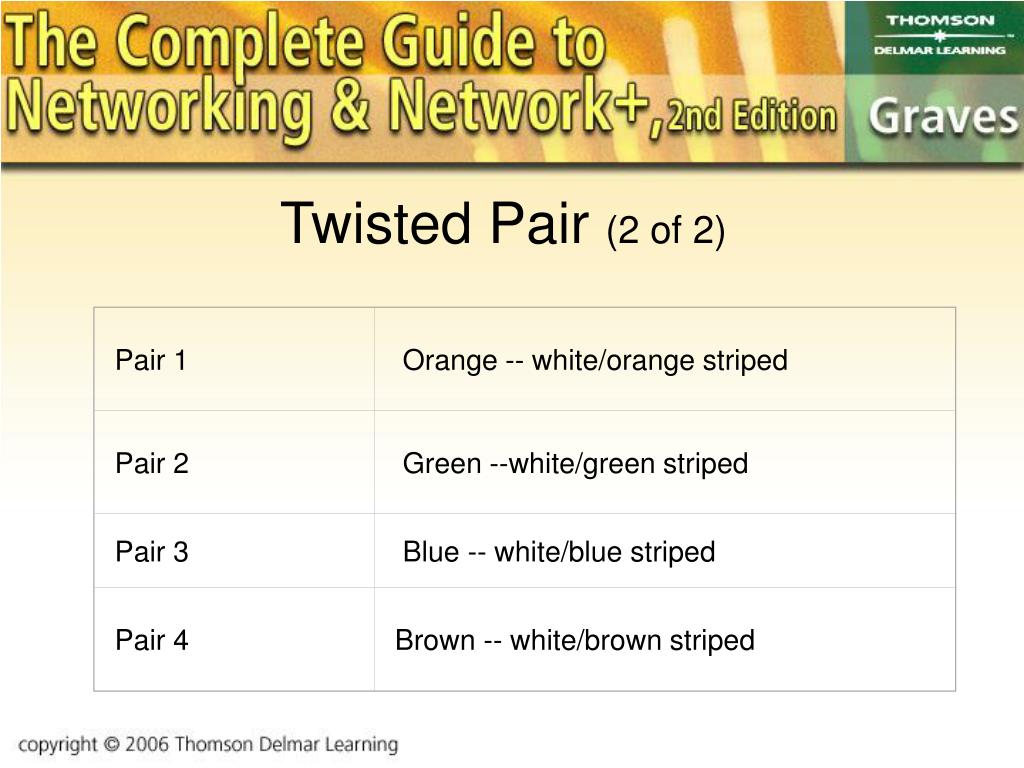

  9. Pair 1 Orange -- white/orange striped Pair 2 Green --white/green striped Pair 3 Blue -- white/blue striped Pair 4 Brown -- white/brown striped Twisted Pair (2 of 2)

  10. Some Twisted Concepts • Limited to 100 meters without a repeater • Bandwidth limitations defined by category • Terminated by RJ-45 connector

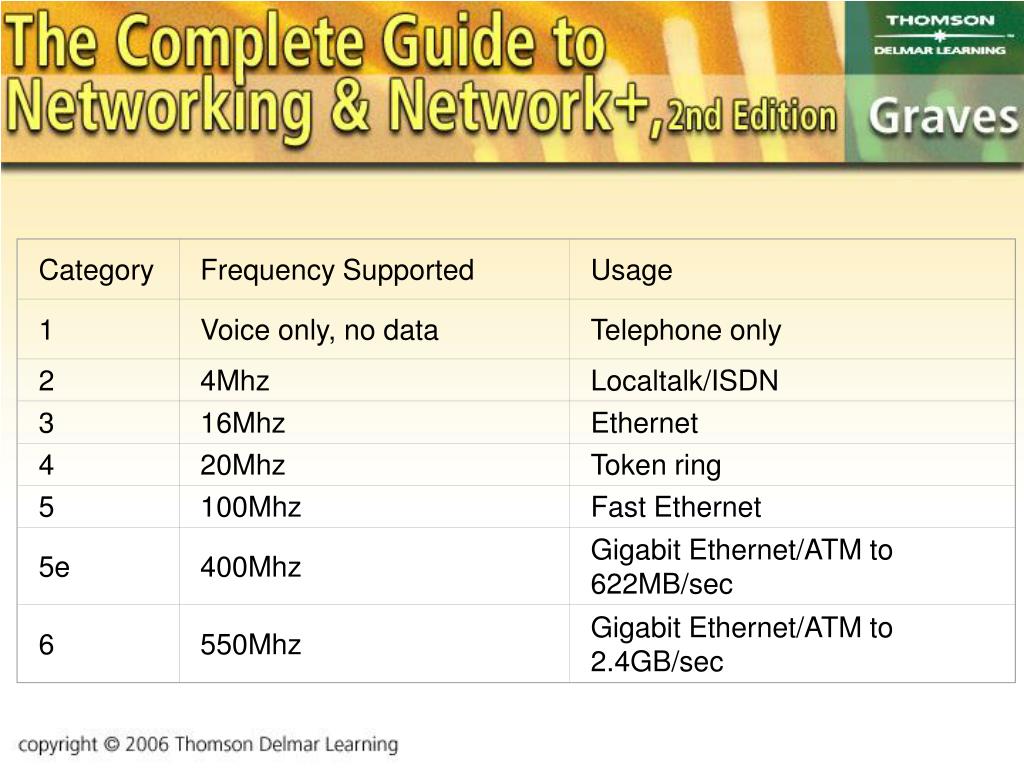

  11. Category Frequency Supported Usage 1 Voice only, no data Telephone only 2 4Mhz Localtalk/ISDN 3 16Mhz Ethernet 4 20Mhz Token ring 5 100Mhz Fast Ethernet 5e 400Mhz Gigabit Ethernet/ATM to 622MB/sec 6 550Mhz Gigabit Ethernet/ATM to 2.4GB/sec

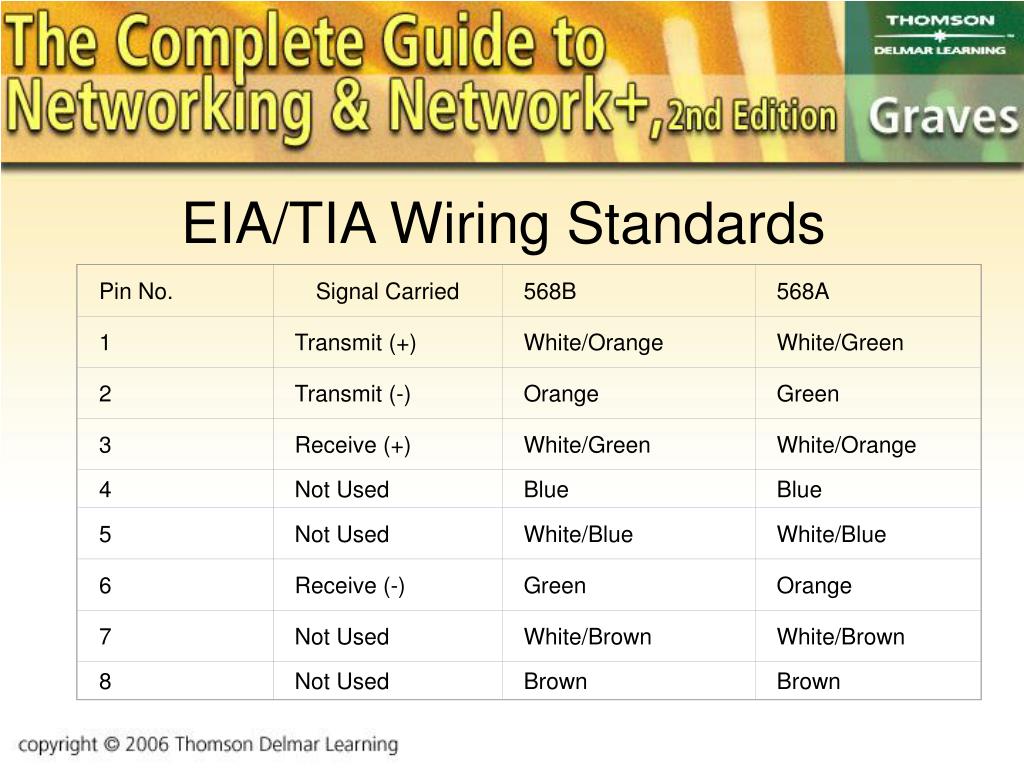

  12. Pin No. Signal Carried 568B 568A 1 Transmit (+) White/Orange White/Green 2 Transmit (-) Orange Green 3 Receive (+) White/Green White/Orange 4 Not Used Blue Blue 5 Not Used White/Blue White/Blue 6 Receive (-) Green Orange 7 Not Used White/Brown White/Brown 8 Not Used Brown Brown EIA/TIA Wiring Standards

  13. Coaxial Cable • Thinnet • RG-58 • Terminated with BNC connector • 10Mb/s throughput • 180M maximum run • Thicknet • RG-8 • Terminated with vampire clamp • 10Mb/s throughput • 500M maximum run

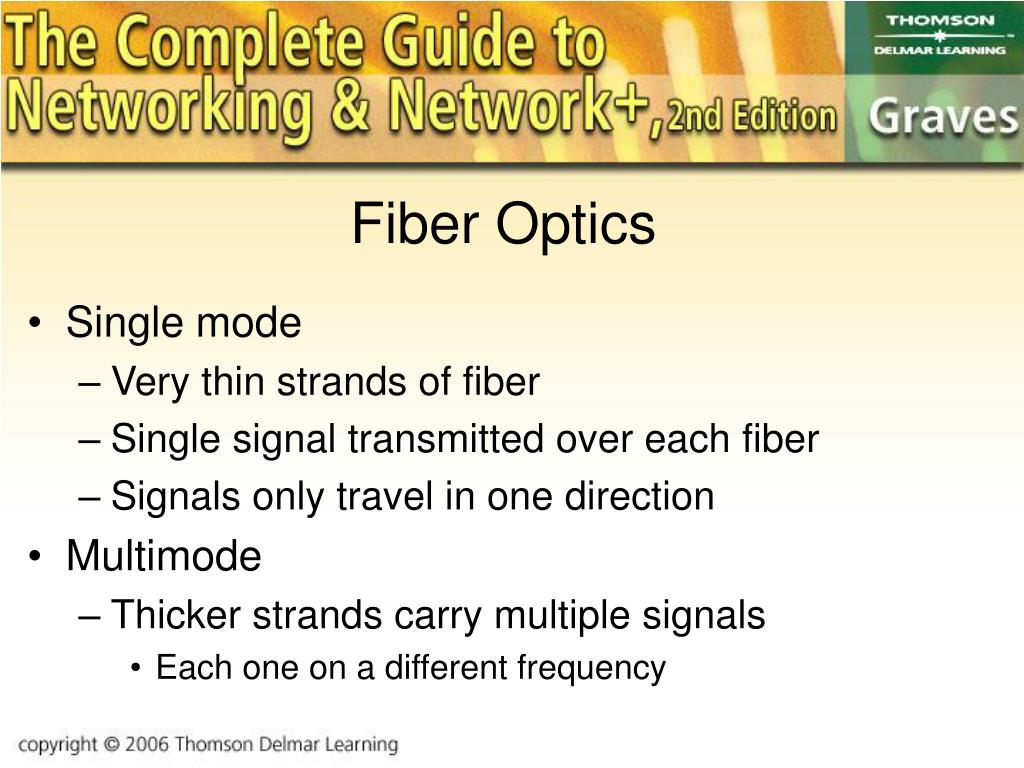

  14. Fiber Optics • Single mode • Very thin strands of fiber • Single signal transmitted over each fiber • Signals only travel in one direction • Multimode • Thicker strands carry multiple signals • Each one on a different frequency

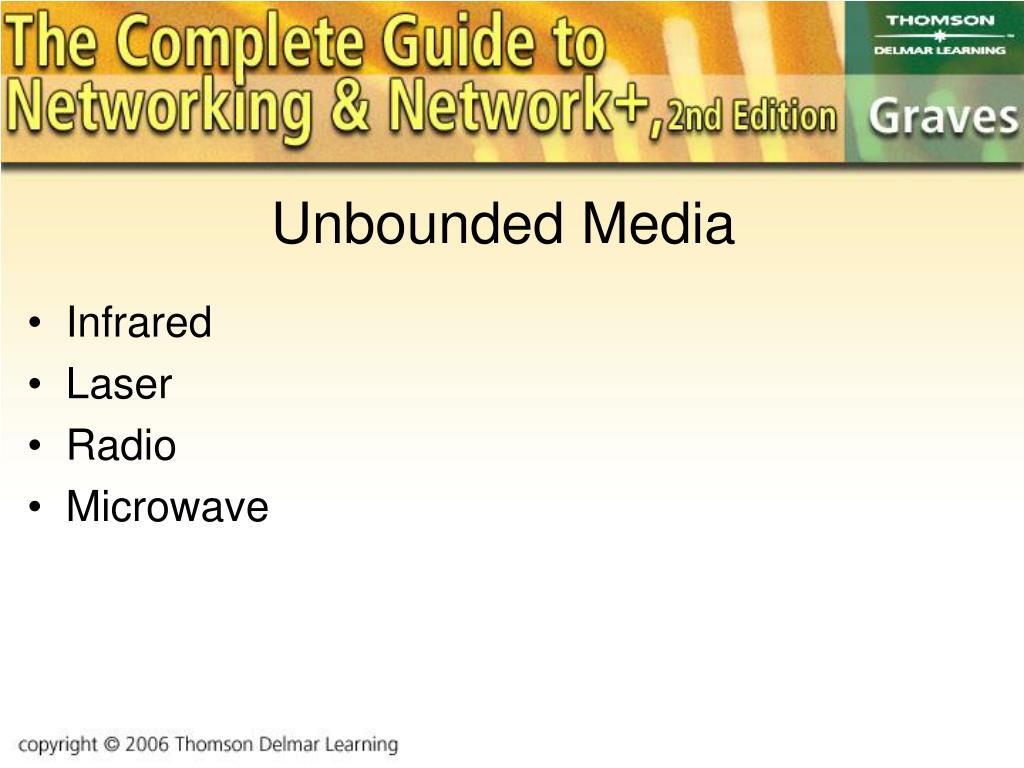

  15. Unbounded Media • Infrared • Laser • Radio • Microwave

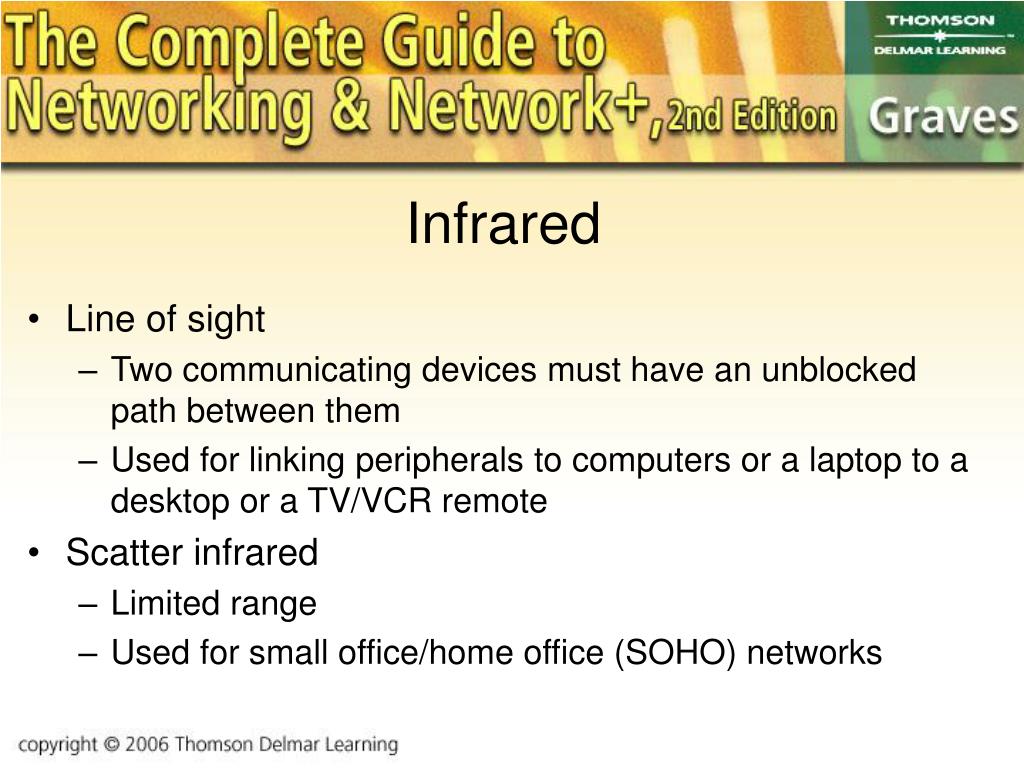

  16. Infrared • Line of sight • Two communicating devices must have an unblocked path between them • Used for linking peripherals to computers or a laptop to a desktop or a TV/VCR remote • Scatter infrared • Limited range • Used for small office/home office (SOHO) networks

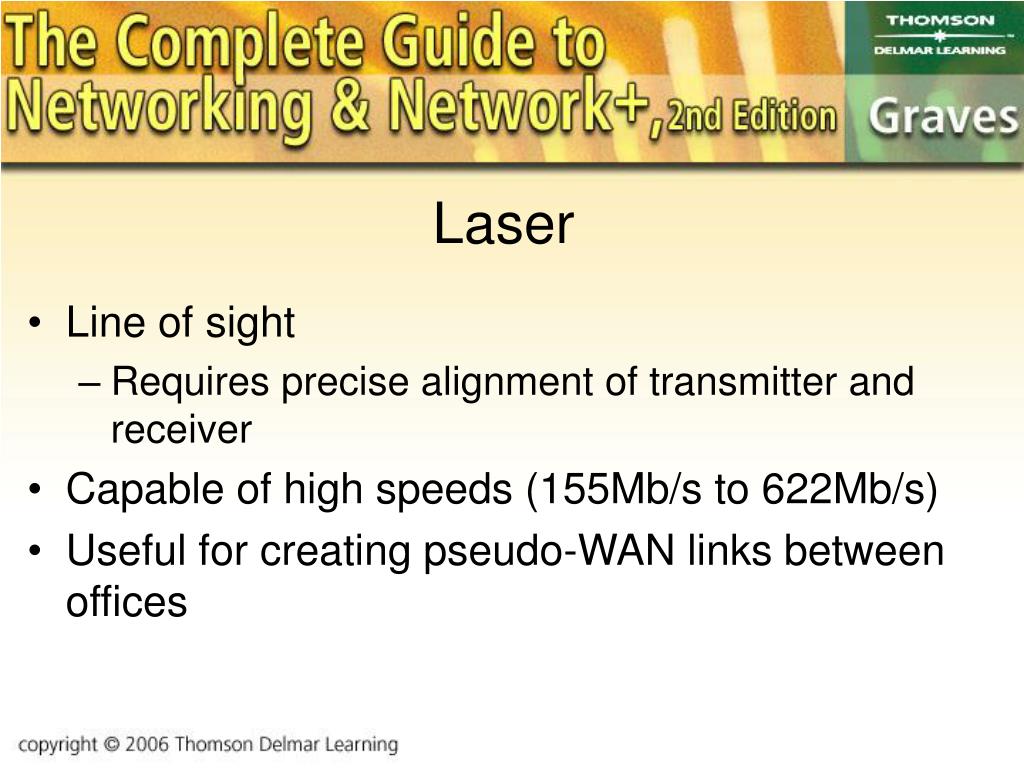

  17. Laser • Line of sight • Requires precise alignment of transmitter and receiver • Capable of high speeds (155Mb/s to 622Mb/s) • Useful for creating pseudo-WAN links between offices

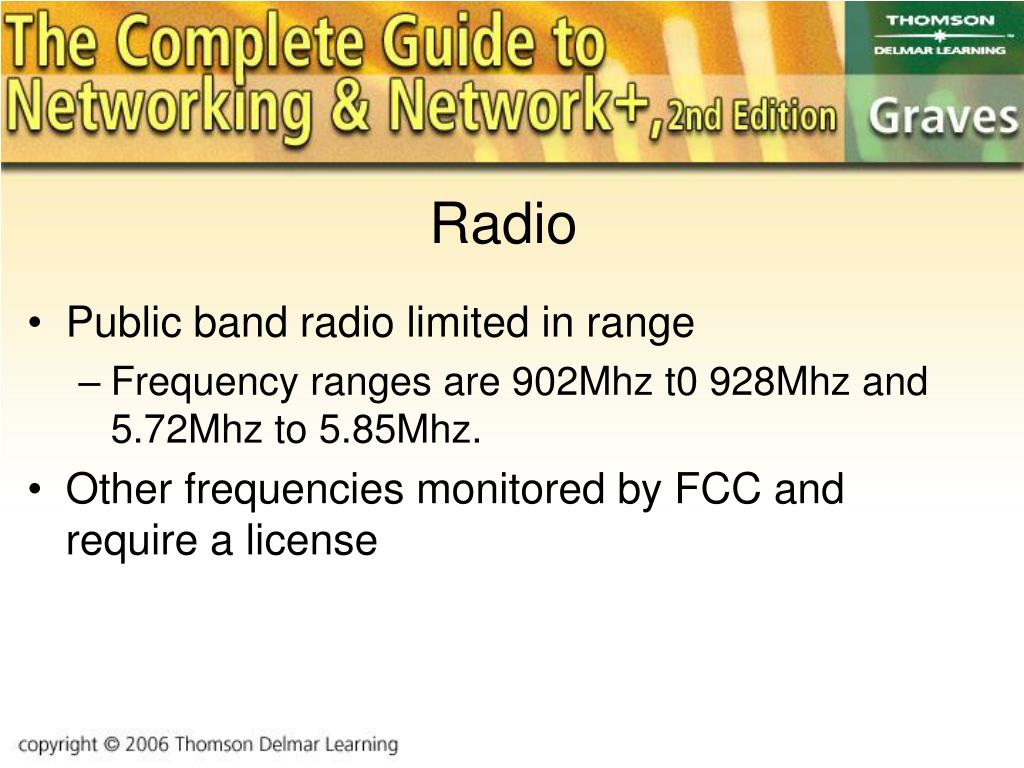

  18. Radio • Public band radio limited in range • Frequency ranges are 902Mhz t0 928Mhz and 5.72Mhz to 5.85Mhz. • Other frequencies monitored by FCC and require a license

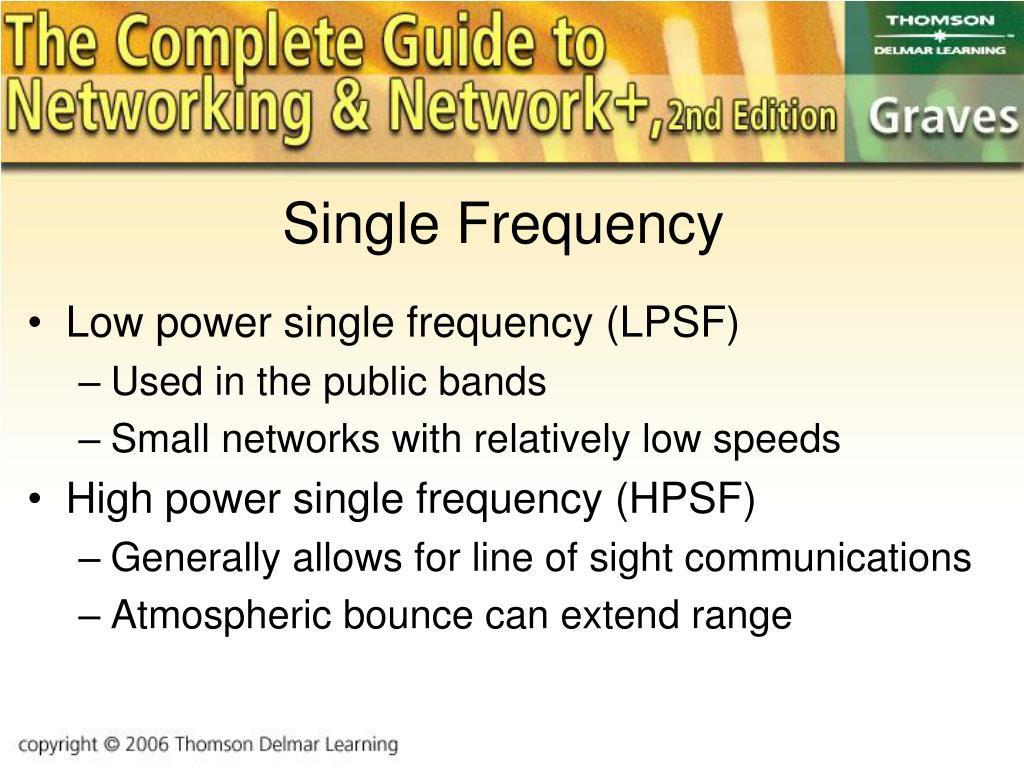

  19. Single Frequency • Low power single frequency (LPSF) • Used in the public bands • Small networks with relatively low speeds • High power single frequency (HPSF) • Generally allows for line of sight communications • Atmospheric bounce can extend range

  20. Spread Spectrum • Signal bounced over multiple frequencies to increase security • Direct sequence spread spectrum • A specific pattern of frequency hops followed • Frequency hopping spread spectrum • Signal bounces between frequencies in a pseudo-random order for higher security

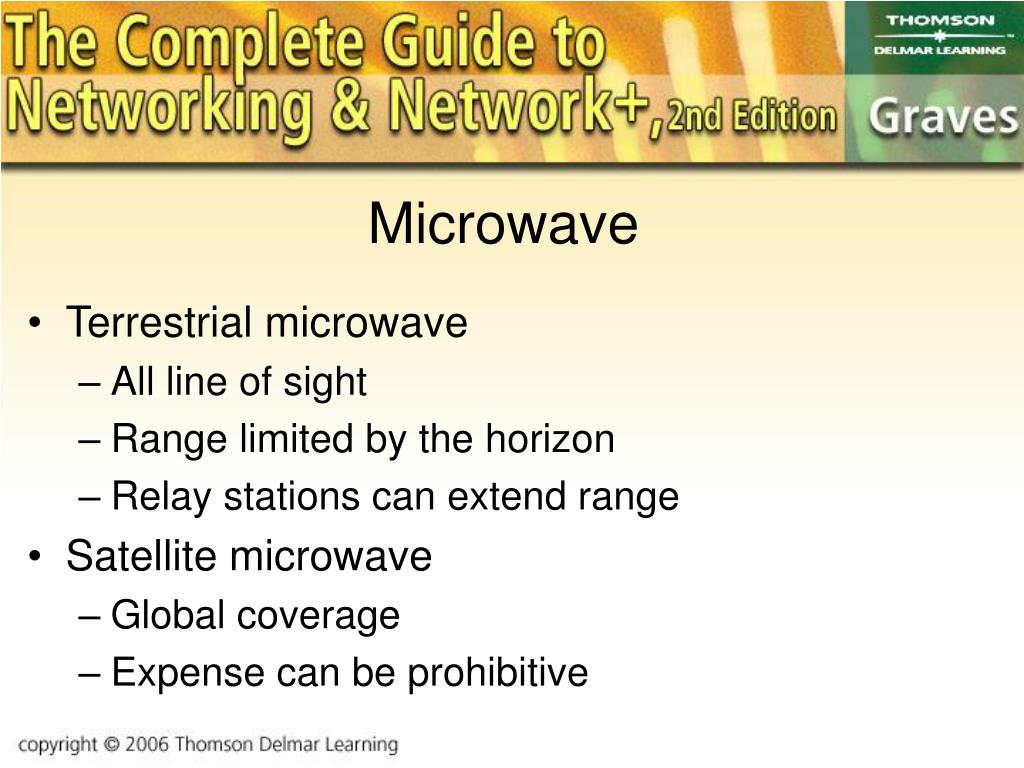

  21. Microwave • Terrestrial microwave • All line of sight • Range limited by the horizon • Relay stations can extend range • Satellite microwave • Global coverage • Expense can be prohibitive
