Presentation Transcript

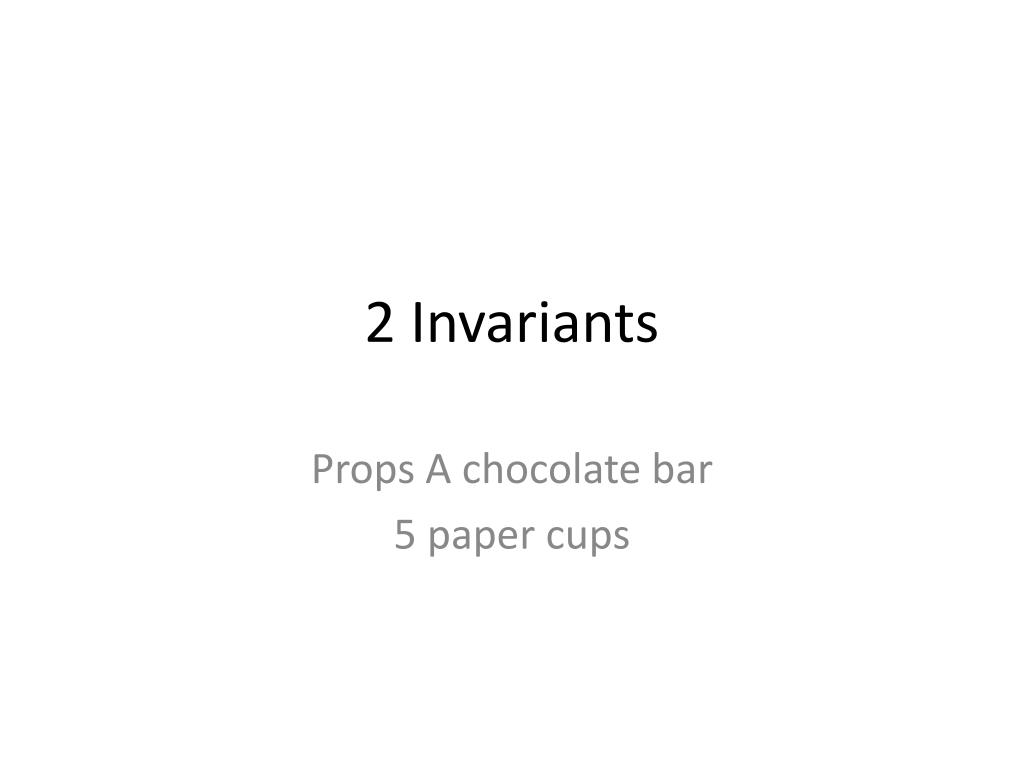

  1. 2 Invariants Props A chocolate bar 5 paper cups

  2. Invariants • An invariant is something that does not change. • Other names you may be more familiar with are laws, patterns.

  3. Invariants in Maths and Science 1 • Invariants are fundamentally important. • Maths 2.PI.radius = circumference • (or 2.PI.R – C= 0) • Chemistry H2 + O = H2O • (hydrogen + oxygen = water) • Conservation of mass

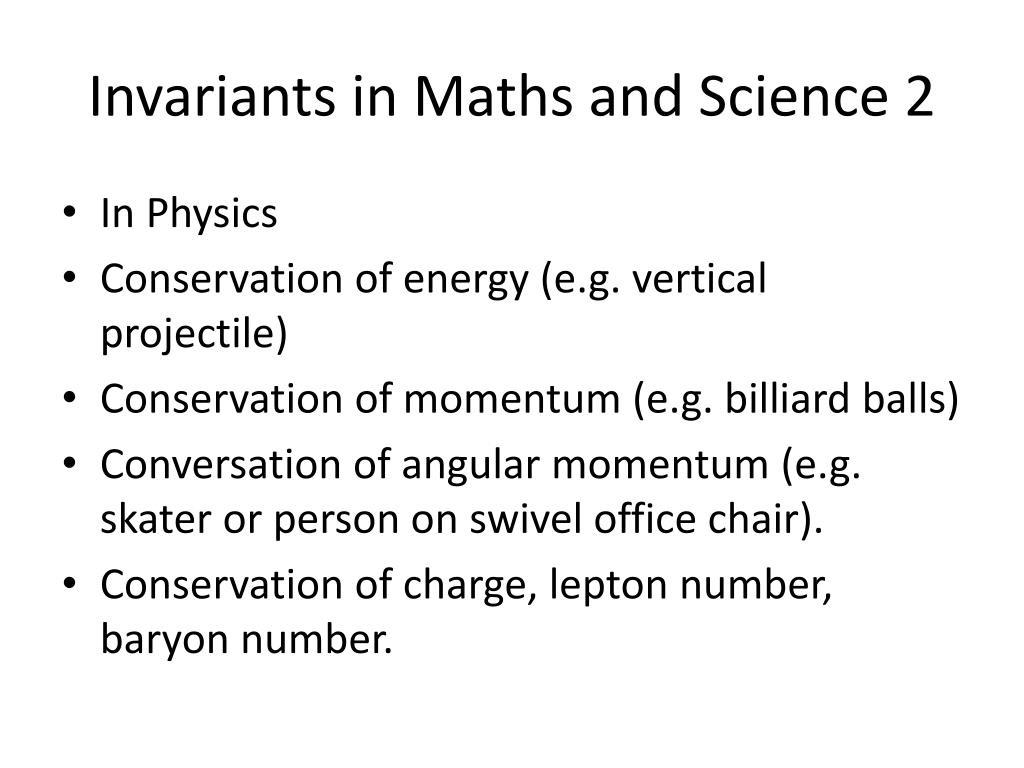

  4. Invariants in Maths and Science 2 • In Physics • Conservation of energy (e.g. vertical projectile) • Conservation of momentum (e.g. billiard balls) • Conversation of angular momentum (e.g. skater or person on swivel office chair). • Conservation of charge, lepton number, baryon number.

  5. Chocolate Bars • A rectangular chocolate bar is divided into chunks by horizontal and vertical grooves. • It is to be cut into individual squares. • A cut is made by taking a piece and cutting along a groove. This splits a piece into two pieces. • How many cuts are needed.

  6. Abstraction • How do we describe the state of the problem • Two variables. • P = number of pieces of chocolate • C = number of cuts • P and C describe the state of the chocolate bar • This description removes detail (e.g. it is chocolate, the order the cuts are made).

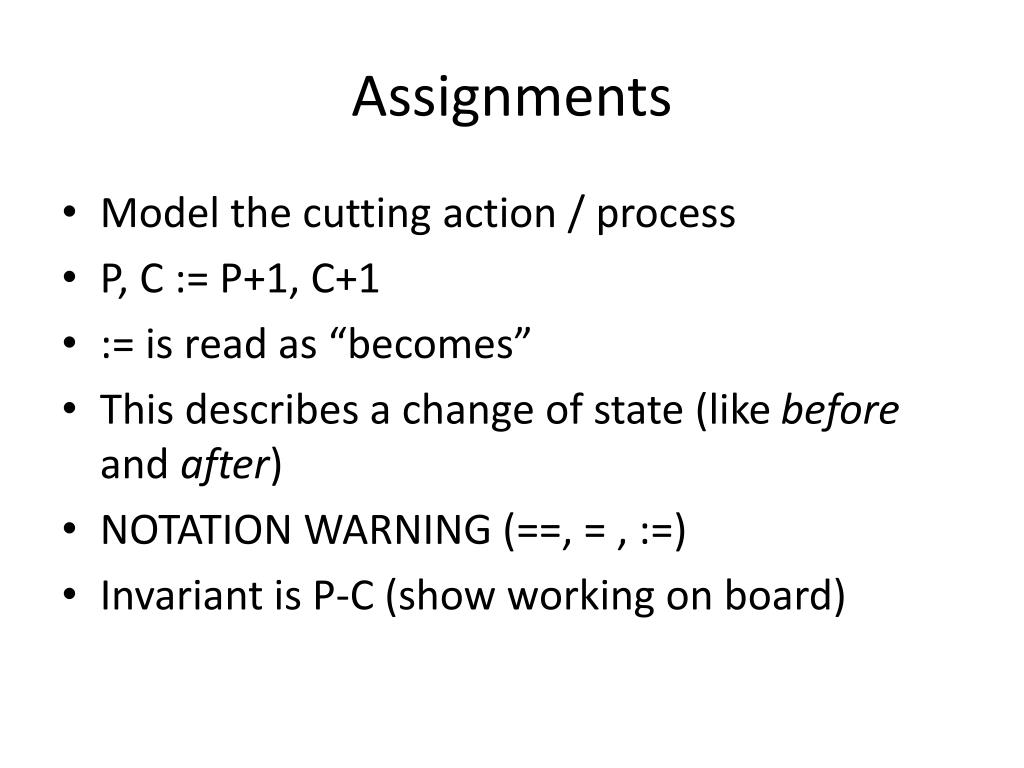

  7. Assignments • Model the cutting action / process • P, C := P+1, C+1 • := is read as “becomes” • This describes a change of state (like before and after) • NOTATION WARNING (==, = , :=) • Invariant is P-C (show working on board)

  8. Induction • Initially P=1 and C=0 • So initially P-C=1 • But P-C is invariant • When the bar is cut into S squares, P=S • S-C=1, that is C=S-1 • The number of cuts required is one less than the number of pieces

  9. Tumbler Problem • Several tumblers (cups or classes) are placed on a table. Some are the right way up, some are upside down. You can only turn over a pair of tumblers. You cannot turn over an individual tumbler (that would make the problem trivial). The aim/goal is to turn all the tumblers the right way up.

  10. Abstraction, Assignment • U is the number of tumblers upside down • (this does not record the position of the tumblers) • 3 cases • 1turn two tumblers the right way up (U:=U+2) • 2 turn two tumblers the wrong way up (U:=U-2) • 3 turn one the right way up and the other the wrong way up (U:=U+1-1) • What is an invariant of these 3 assignments?

  11. Invariant - Parity • Parity is a Boolean value (true or false) • True if (0, 2, 4, 6, …) • False if (1, 3, 5, 7, …) • Notation even.U • Invariant of U:=U+2 (show this) • Invariant of U:=U-2 (show this) • Modular arithmetic

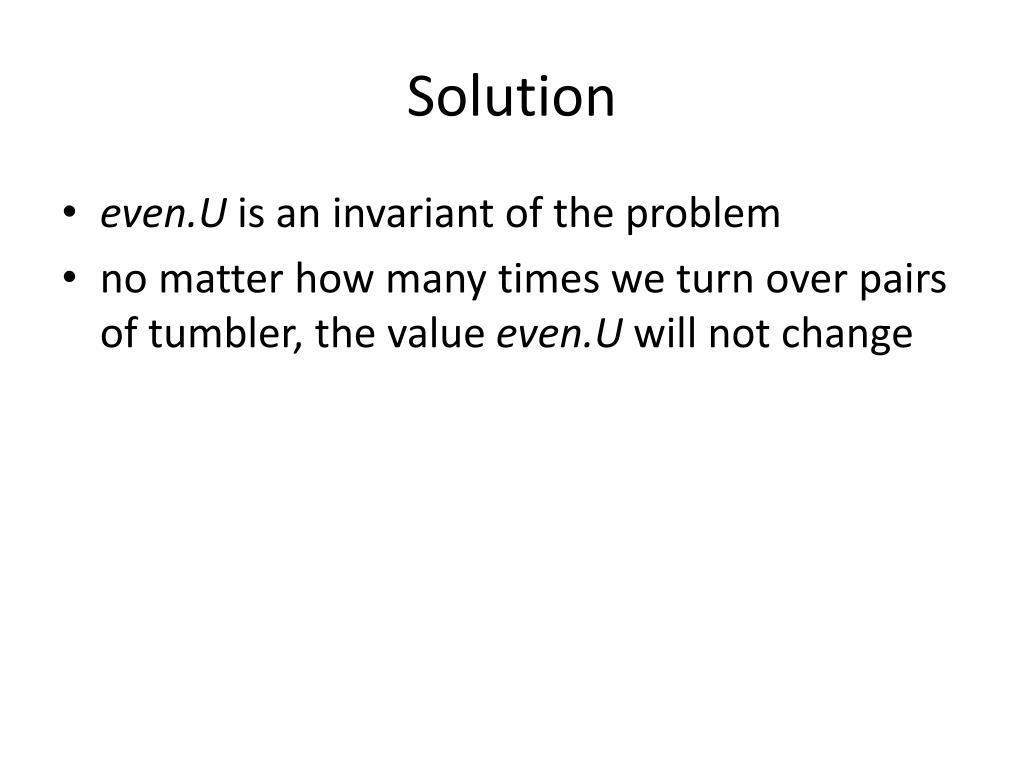

  12. Solution • even.U is an invariant of the problem • no matter how many times we turn over pairs of tumbler, the value even.U will not change

  13. Review • Invariant – something that does not change • Abstraction – remove unnecessary detail and focus on the essential parts of the problem • Chocolate bar – the difference P-C was invariant • Inverting tumblers – the parity was invariant.

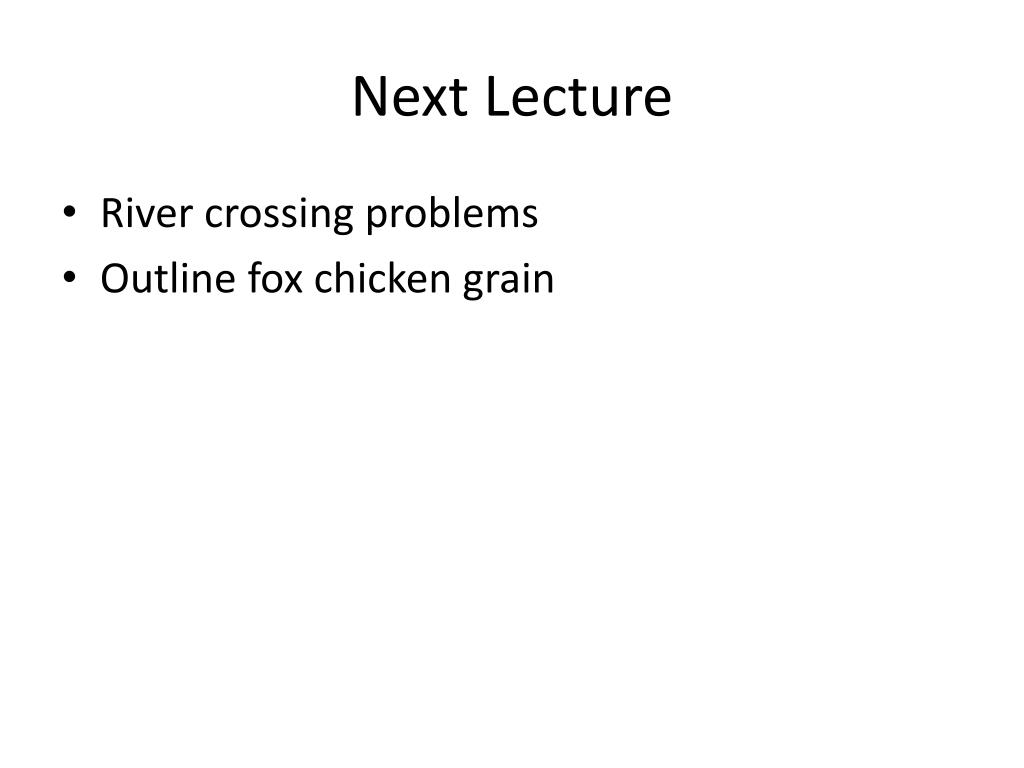

  14. Next Lecture • River crossing problems • Outline fox chicken grain
