Objectivity Production Issues

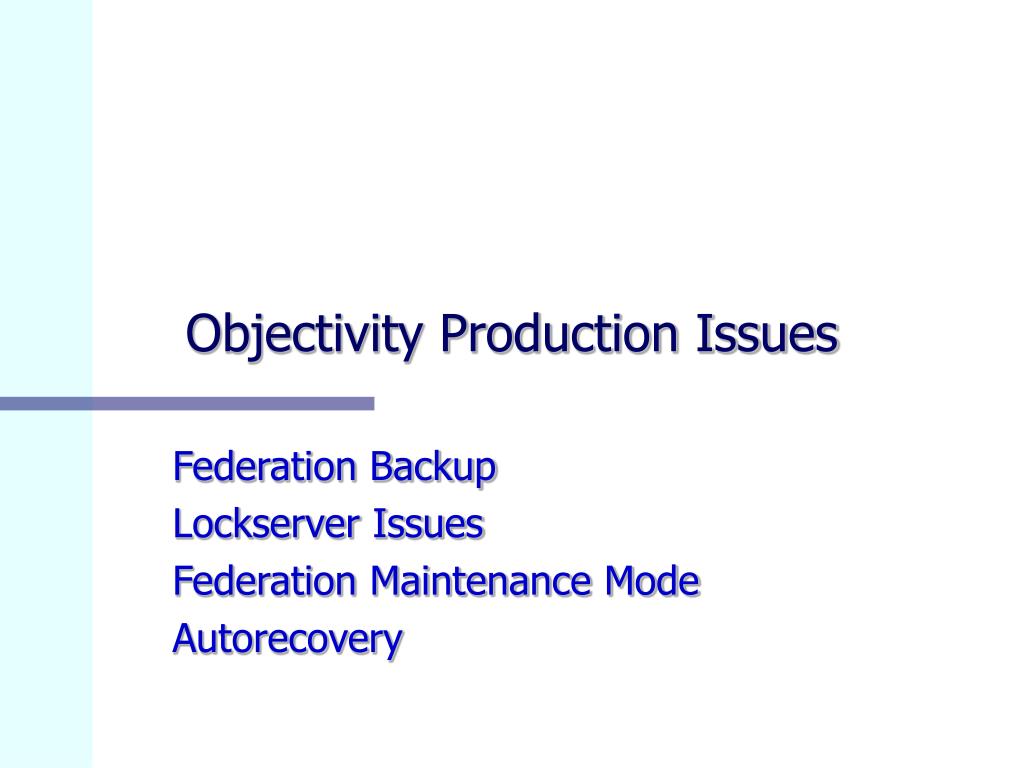

1. Objectivity Production Issues Federation Backup Lockserver Issues Federation Maintenance Mode Autorecovery

2. Central Boot File Location • The primary boot file for production federations should be kept in the federation directory on the “Lockserver” machine • The boot file is always available for admin and backup tasks typically running on this machine • The boot file will stay consistent with the federation whereas copies (e.g. in AFS) are likely to get out of sync • Since ooams is running on the lockserver machine, remote users may pick up the boot file directly from there. • Please use:OO_FD_BOOT=lockxxxx.cern.ch::/usr/objy/FDNAME/FDNAME.BOOTinstead of copied boot files.

3. Federation Repairs • We finally got DBF • Thanks! • DBF is a Objy internal database repair tool • display content of transaction journals • remove unavailable DBs,containers,pages,objects and null out any references to them • Luckily not much experience yet! • We did not loose a single federation or database yet! • Used it successfully to zero-out associations into a database file that “disappeared” • Need to start practicing (during Todd’s next visit?) with artificially damaged DBs.

4. Federation Backup • Which data to back up: • Central Objy Data: Federation File (.FDDB) or any other representation of catalogue and schema • Central Application Data: e.g. experiment registry small data amount,frequent writes,always online • Which data to leave alone: • Raw Data:huge amount,write once,mostly offline on HPSS tapes

5. How to perform Backups? • Using Objy’s backup programs • Supports to perform backups concurrently with user transactions • Uses a special Federation wide MROW mode • Store a consistent snapshot of the complete FD • Supports incremental backups on container level • Requiresall database files to be online • Would stage all HPSS tapes :-( • Using simple file base backup tools • Allows backups of subsets of the federation files • Works only if the FD is in a consistent state e.g. no other user is modifying the FDduring the backup

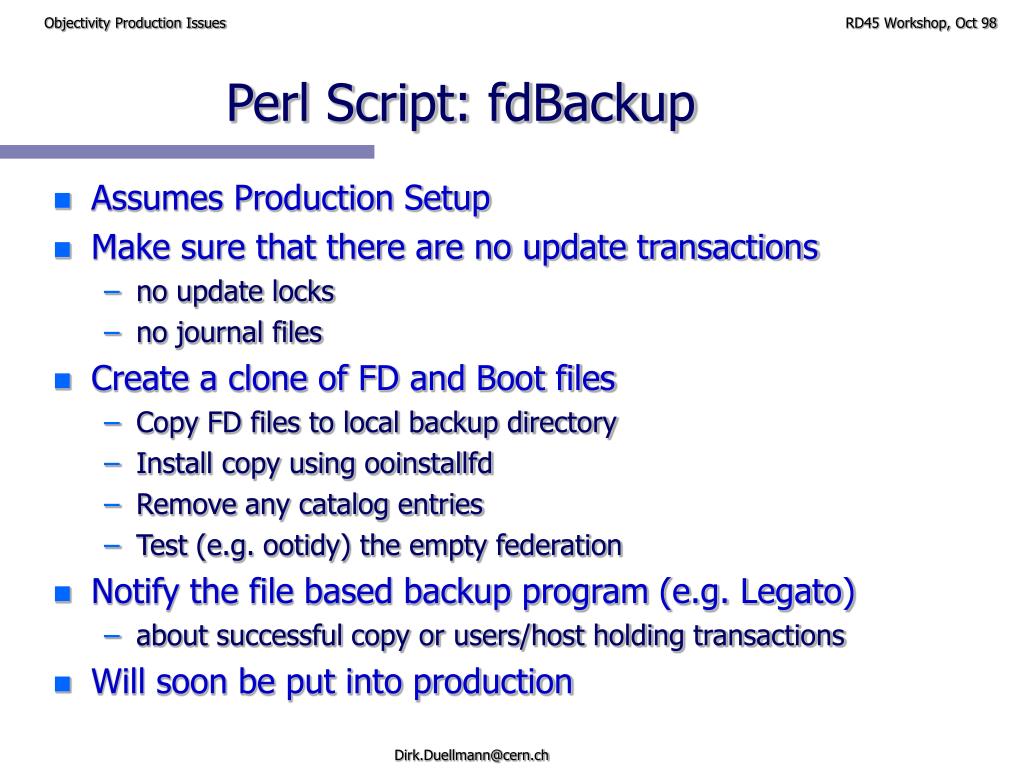

6. Perl Script: fdBackup • Assumes Production Setup • Make sure that there are no update transactions • no update locks • no journal files • Create a clone of FD and Boot files • Copy FD files to local backup directory • Install copy using ooinstallfd • Remove any catalog entries • Test (e.g. ootidy) the empty federation • Notify the file based backup program (e.g. Legato) • about successful copy or users/host holding transactions • Will soon be put into production

7. Proposed Extension to Objy’s Backup Tool • Add a new backup/restore parameter specifying which DBs should be saved. • All other DBs are considered to be read-only and are ignored by backup and restore • User takes the full responsibility for the consistency of ignored DB files! • If we change any ignored DBs between backup and restore we are on our own! • This is not HEP specific! • A similar feature will be needed for any VLDB using a tapes for mass storage

8. Lockserver Problems • Keep your lockservers alive! • Killing and restarting lockservers won’t work in production • Stopping the lockserver using kill -9 risks a corrupted FD • oolockserver and ooams need to be run on a well defined account • Check if you can cleanup any locks using oocleanup • either oocleanup -local • or oocleanup -deadowner -t <transid> • Report any lockserver problems! • Lockserver core dumps • Locks which can not be removed using oocleanup • Missing transaction during oocleanup • Leftover journal files • Any other reason to shutdown/restart the lockserver

9. Unrecoverable Locks • Under some circumstances Objy creates locks which can not be removed using oocleanup • e.g. oonewfd against a non-writable directory • e.g. ooattach against a corrupted db file • oocleanup fails to remove those locks • Only wait out: • Remove locks by hand using objy internal tools • Too dangerous to make them publicly available • These problems need to be fixed soon

10. Leftover Journal Files • oolockserver and oocleanup sometimes disagree about the existence of transactions • Leftover journal file for which no corresponding transaction is known to the lockserver • Recovery was only possible by manually removing the journal files. • BTW: renaming journal did not work since oocleanup is quite open when it searches for journal files:LeftJournal-oo_Ceres_65535_shd07_2022_cerescdr_1.JNLAny file ending in .JNL will be used by oocleanup

11. Most Frequent Locking Problem • Two processes running this code concurrently will get into locking problems: startUpdate(); // new transaction ooItr(SharedObj) sh_it; sh_it.scan(contH); while(sh_it.next()) { if (sh_it->unused) // read lock on contHsh_it->methodCallingUpdate(); // upgrade to update …. • Process A gets a read lock. Process B gets a read lock. • A wants to upgrade to update but waits because of B’s read lock. • B wants to upgrade to update but waits because of A’s read lock. • Both fail after their lock waiting period is expired.

12. Similar Locking Situations • Call a method on an object using a handle and update it startUpdate(); // new transaction if (objH->needsUpdating()) // implicit read lock objH.update(); // upgrade to update • Any method call through a handle obtained in an earlier transaction will implicitly open object and container in read mode. • Lookup an object by name and update it • scope name in the scope of the enclosing container • lookup using an ooMap in the same container startUpdate();mapH->lookup(objH,”name”,oocUpdate);

13. Resolution • Containers with objects that are updated from more than one process need special handling: • Obtain any update locks on updated containers as soon as possible. • Keep update transactions involving as short as possible. • Code that handles such objects should • Already open involved containers update mode. • Make sure that no other code opens those containers in the same transaction. • Sometimes it is easier/safer to perform the actual update in a separate transaction context (e.g. using ooContext)

14. Federation Maintenance • Federation Backup • Federation file with schema & catalogue • Central registry databases • e.g., System.db defining container groups and naming trees • Lockserver Maintenance • Removal of dangling locks • Federation Repairs • Fixing missing or corrupted files or containers • Running repair applications to fix dangling references • This tasks can not always be performed on a deployed FD with tens or hundreds of (remote) users • Need to foresee a safe way to bring a federation to “maintenance mode” • or a whole lockserver • or a group of lockservers, if we use replication

15. FD Maintenance Mode • The Goal: Safe way of bringing the FD to “maintenance mode” • Deny the start of new transactions • Wait for a clean end of ongoing transactions • Start maintenance task • Use of federation/db locks does not help • If there is any other lock “get FD lock” fails immediately (FD lock is not queued?) • FD lock request succeeds only if the admin is the only client (which might never happen...) • Current Procedure: Neither safe nor even complete! • “Ask” all clients to disconnect • User id, PID and host may be obtained from the lock table • Kill remaining clients • Loss of valuable process status (e.g. Simulation Jobs) • No way to remotely terminate processes e.g. on Windows NT or over the WAN • Rollback all update transactions • Increased risk to run into FD corruption • Increased risk to run into application level inconsistencies • Start maintenance task

16. BaBar’s Approach • The BaBar API checks for a special lock file in the file system • If the file is present, the application code stalls on the next transaction start • Application sleeps and periodically checks until the file has been removed • Disadvantages • Dependency on a common file system • Could probably be implemented using a special container in the FD • Protection only provided on BaBar API level • All Objy Tools need to be wrapped • “Long” Transactions • oobrowse may keep open transactions for days

17. A Possible Solution? • Ask Objy to expose the “Master Update Lock” • A special lock exists in the Objy kernel which • is queued • is locks out any other update transactions • Lockserver knows about starting update transactions • Using some (not yet existing) API the db-admin could obtain this lock to prevent any new update transactions • New update transaction could • either immediately fail with an error code • or wait in the queue until the FD becomes available for update again • would need a change in Objy’s start update implementation

18. Federation Autorecovery • Idea behind Auto-recovery • Roll back all open transactions after a lockserver crash using remaining journal files • Lockserver process spawns a special recovery process (similar to oocleanup) • If this auto-recovery fails then any access to the FD is denied by the lockserver! • Auto-recovery is triggered when the lockserver process “sees” a FDID for the first time • E.g. after oonewfd/oochangefd or ooinstallfd • Every development FD gets autorecovered during its creation

19. Autorecovery Problems • Our development federations reside typically on shared filesystems like AFS, NT-Domain Servers or Novell • The lockserver process (running as local root) can not write to files in AFS/NICE. • Autorecovery fails (even if there are no journal files…) • The user who owns the FD can not run oocleanup either, since the lockserver denies access to the federation • oocleanup -standalone works only if there is no running lockserver • As a workaround we usually run lockservers with the noautorecovery option • This option has been (silently) removed from the V5 NT-port • We now frequently run into autorecovery deadlocks!

20. Autorecovery & Authentication • Autorecovery concept assumes that the lockserver can write to any DB file in the federation • How will this work once AMS requires e.g. a Kerberos token to authenticate any access database files? • How will this work with user databases in AFS or NICE as part of the production federation? • Will we have to make all files in a federation writable for a single central account?

21. Cleanup FDs using Replication • Locks in replicated DBs are propagated to each partition’s lockserver (each lockserver serving a replica of this DB?) • What if an application holding a lock on a replica crashes? • How to run oocleanup? • Just once against one partition boot file? • We saw remaining locks on the other partitions lockserver. • Repeatedly against all partition boot files? • Run into problems since running oocleanup on partition A removed journal files which the second oocleanup (partition B) seemed to need. • More documentation/training needed !

22. Summary • Need a fix for “unrecoverable lock” and “leftover journal file” problems. • Possibility to specify an “ignore list” would allow us to exploit the advantages of Objy’s backup tools. • Need a safe way to bring a FD into Maintenance Mode (e.g. using Master Update Lock) • Current implementation of auto-recovery imposes constraints on the usability of Objy in shared filesystems and on the authentication model for production federations.
