  1. Grundfos GO

  2. Grundfos GO

  3. Why Grundfos GO? Data logging Change settings Guidance onsite Education upfront Manage reporting Professional End-users Intelligent data analysis Installers & Service Partners Monitoring Access support information Connect & identify pumps 3

  4. Content of this training • The product concepts • Infra-red and radio communication • Grundfos GO remote App features • App demonstration • Service

  5. Grundfos GO the concept • Grundfos GO is based on standard Smartphone technology, we support iPhone, iPod, iPad and Android based telephones. Some of the features in Grundfos GO requires additional hardware to establish a communication link to the pump • Supports infrared communication for backwards compatibility, and radio communication for faster connection to new products.

  6. MI 201 – iPod touch (complete box product) • One product number, iPod inclusive • Insert iPod into protective cover • Power-on • Download the Grundfos GO Remote App • Ready to GO! Delivered with: • iPod touch 4G 8 GB version • Power supply for charging • Protective sleeve for MI 201

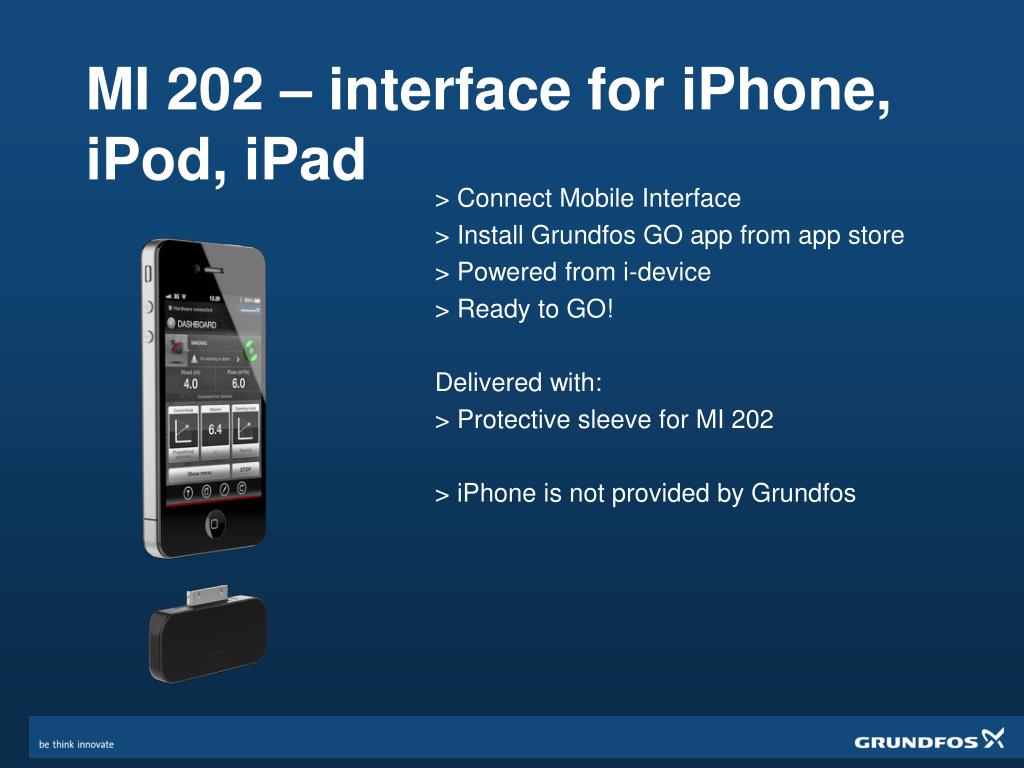

  7. MI 202 – interface for iPhone, iPod, iPad • Connect Mobile Interface • Install Grundfos GO app from app store • Powered from i-device • Ready to GO! Delivered with: • Protective sleeve for MI 202 • iPhone is not provided by Grundfos

  8. MI 301 – Universal interface • Pair MI 301 with Smartphone (Blue tooth) • Install Grundfos GO app from app store or android market • Ready to GO! Delivered with: • Power supply for charging • Battery can operate for 8 hours continual use • Automatically enters sleep mode when not used • Smartphone is not provided by Grundfos

  9. Infrared communication Grundfos GO is backwards compatible with Grundfos E-pumps and will communicate with the following Grundfos products: • Pumps: • MAGNA • CRE, CRIE, CRNE, CME • MTRE, SPKE, CRKE • TPE, TPED • Control boxes/systems: • Multi-E • CU 300 • CU 301 • IO351 • MP204

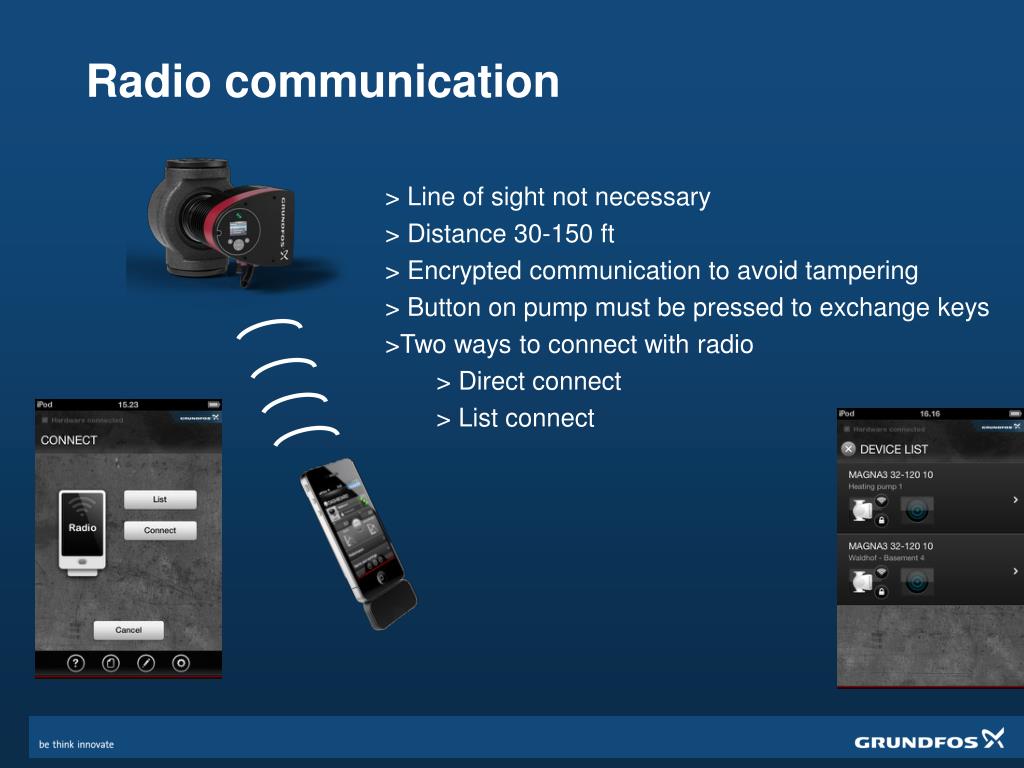

  10. Radio communication • Line of sight not necessary • Distance 30-150 ft • Encrypted communication to avoid tampering • Button on pump must be pressed to exchange keys • Two ways to connect with radio • Direct connect • List connect

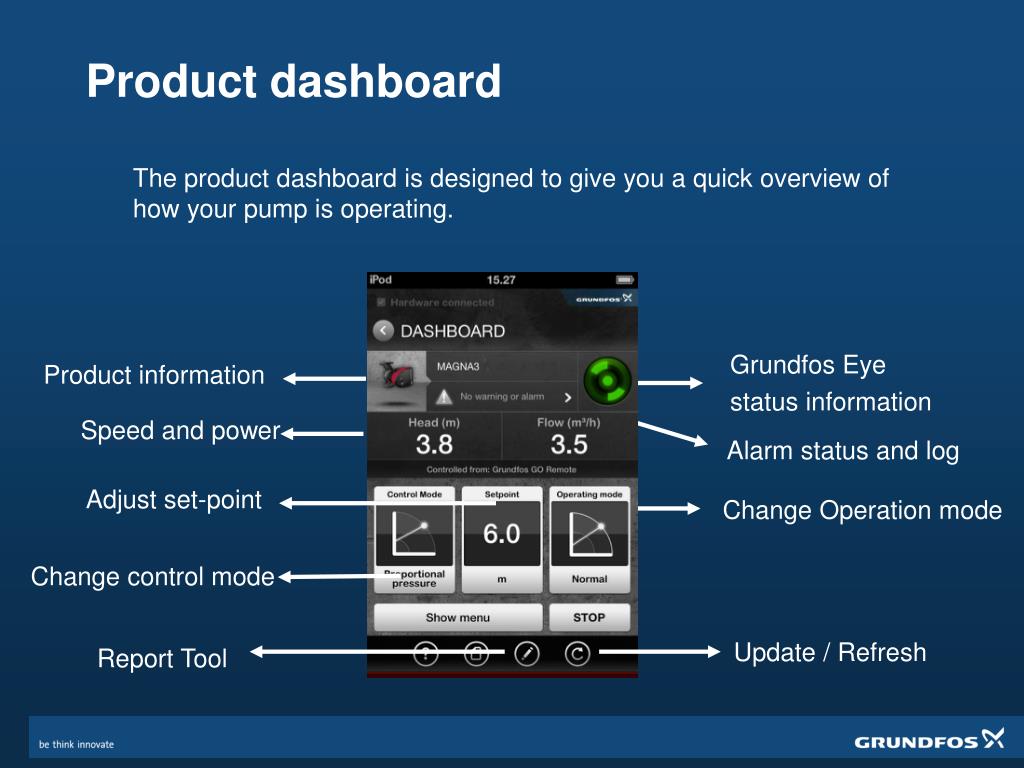

  11. Product dashboard The product dashboard is designed to give you a quick overview of how your pump is operating. Grundfos Eye status information Product information Speed and power Alarm status and log Adjust set-point Change Operation mode Change controlmode Update / Refresh Report Tool

  12. Context aware help If you need help, it is never more than a click away, the context aware help function will guide you on the right track Help on subject Cancel help Get context aware help

  13. Status data • In the status data view, all measured data from the pump can be monitored. • With the new radio based communication the data is continuously updated.

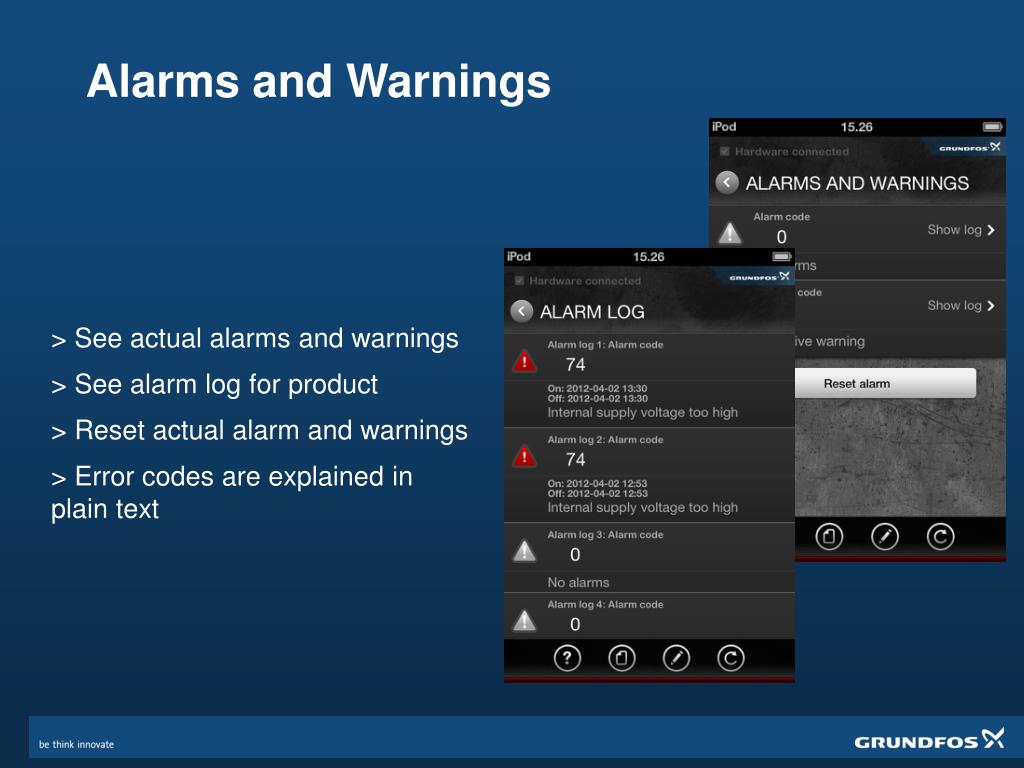

  14. Alarms and Warnings • See actual alarms and warnings • See alarm log for product • Reset actual alarm and warnings • Error codes are explained in plain text

  15. Product settings Products settings are easily adjusted with the new touch based interface. Adjusting the set point of your pump has never been easier, just drag and set directly from the pump curve

  16. Installation report Grundfos GO has been designed to save you time and effort. The built-in PDF generator stores your pump reports and important notes safely in an easy-to-share format, that saves you the trouble of dealing with pen, paper and printouts. Add notes and pictures from the installation, when you are done have the facility manager sign directly on the screen.

  17. Read/Write profiles With Grundfos GO you can easily install multiple pump, read the settings from one pump, and write them into the next pump.

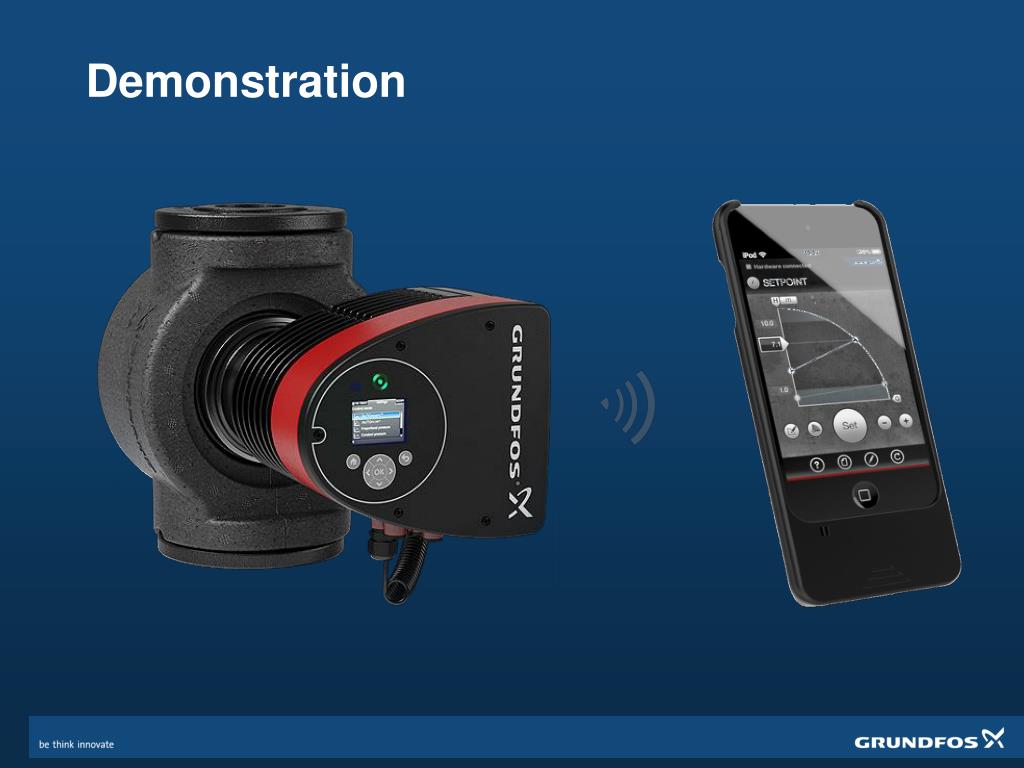

  18. Demonstration

  19. Demo Mode Open Grundfos GO Remote app Select ‘Settings’. Select ‘On’ under ‘Demo mode’. Return to ‘Select a Connection’. Select ‘Radio’ or ‘IR’. Explore the menus. Return to ‘Settings’. Select ‘Off’ under ‘Demo mode’.

  20. Service for Mobile Interfaces • The Grundfos parts are cover with normal Grundfos service strategy, 2 year warranty. • If they malfunction, the complete product is scrapped. • The iPod touch is not covered by Grundfos, Apple has the 1 year service obligation, the customer can join the Apple Care Protection Plan can be purchased from Apple if the device is registered. • Tested for connectivity with Apple devices

  21. Thank you for your time

  22. Training Lab Order of Events Group A: Training Lab Exercises by number Group B: AUTOADAPT Elevator Speech by Group Group C: Break Group D: Magna3 Hardware Exercises Each Event 25 minutes long with 5 minutes transition time
