3.4 – Proving Lines Parallel

3.4 – Proving Lines Parallel. Reasons:. Corresponding Angles Converse – If two lines are cut by a transversal so that the corresponding angles are congruent, then the two lines are parallel

xerxes
Télécharger la présentation

3.4 – Proving Lines Parallel

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 3.4 – Proving Lines Parallel

  2. Reasons: • Corresponding Angles Converse – If two lines are cut by a transversal so that the corresponding angles are congruent, then the two lines are parallel • Consecutive Interior Angles Converse – If two lines are cut by a transversal so that the consecutive interior angles are supplementary, then the two lines are parallel

  3. More Reasons • Alternate Interior Angles Converse – If two lines are cut by a transversal so that the alternate interior angles are congruent, then the two lines are parallel • Alternate Exterior Angles Converse – If two lines are cut by a transversal so that the alternate exterior angles are congruent, then the two lines are parallel • (use converses when proving parallel lines)

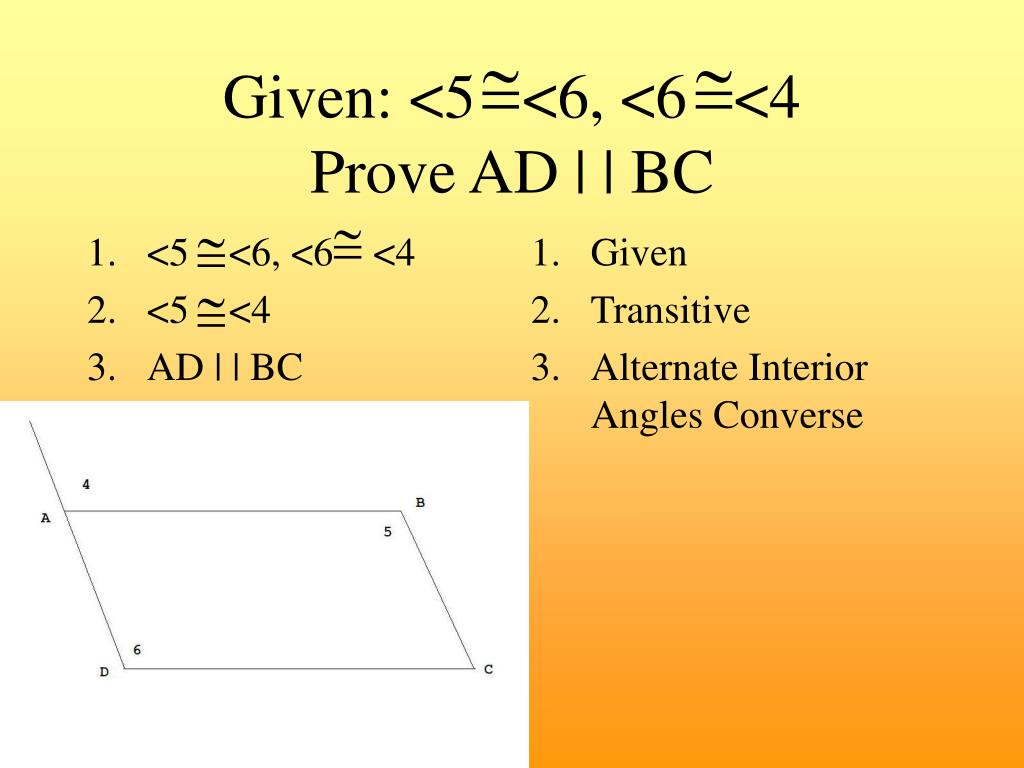

  4. <5 <6, <6 <4 <5 <4 AD | | BC Given Transitive Alternate Interior Angles Converse Given: <5 <6, <6 <4Prove AD | | BC

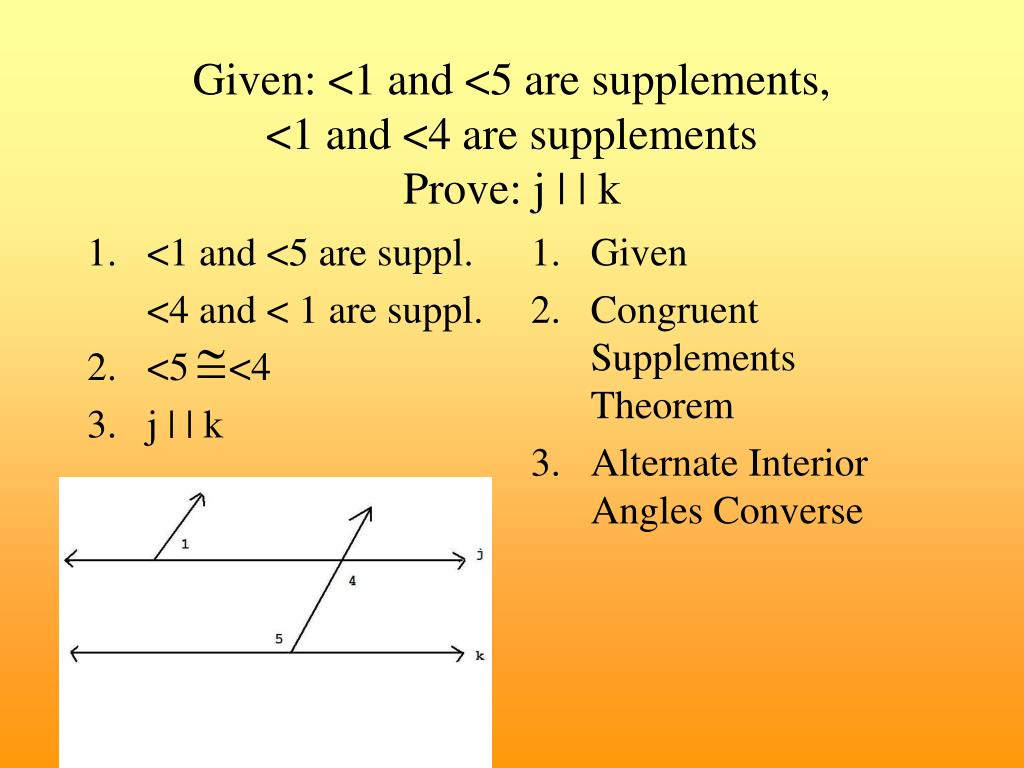

  5. <1 and <5 are suppl. <4 and < 1 are suppl. <5 <4 j | | k Given Congruent Supplements Theorem Alternate Interior Angles Converse Given: <1 and <5 are supplements, <1 and <4 are supplementsProve: j | | k

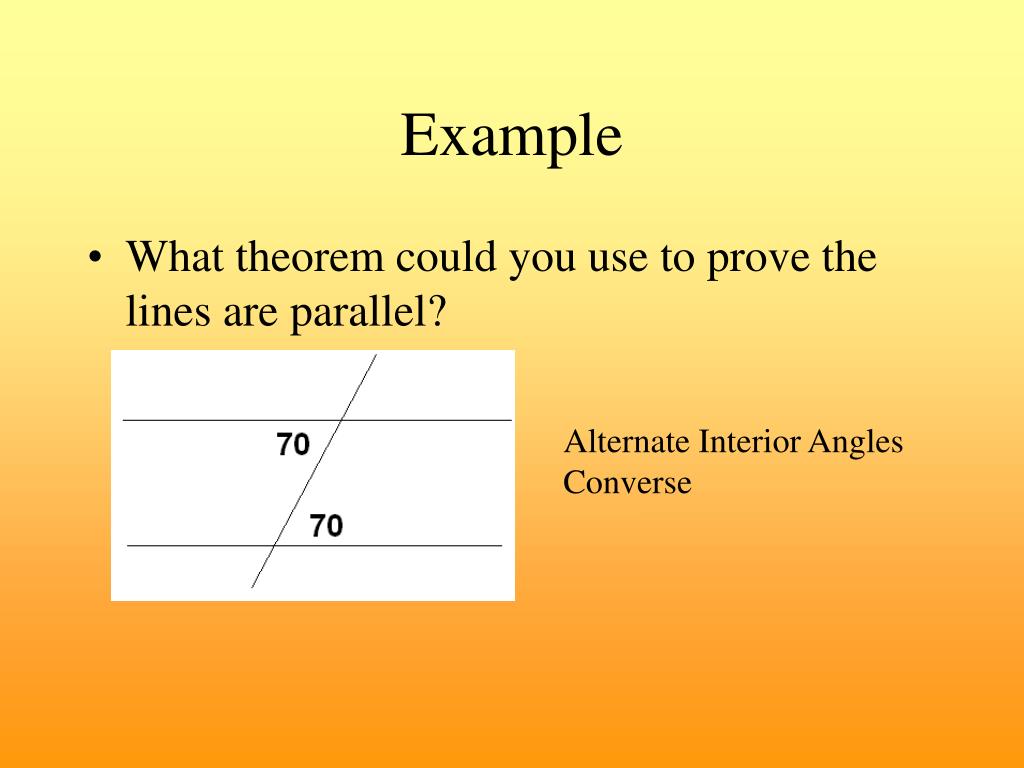

  6. Example • What theorem could you use to prove the lines are parallel? Alternate Interior Angles Converse

  7. Assignment • P. 153-154 10-18, 20-28all
