  1. Algorithms analysis and design BY Lecturer: Aisha Dawood

  2. Graph algorithms MST Prim Kruskal Dijkstra

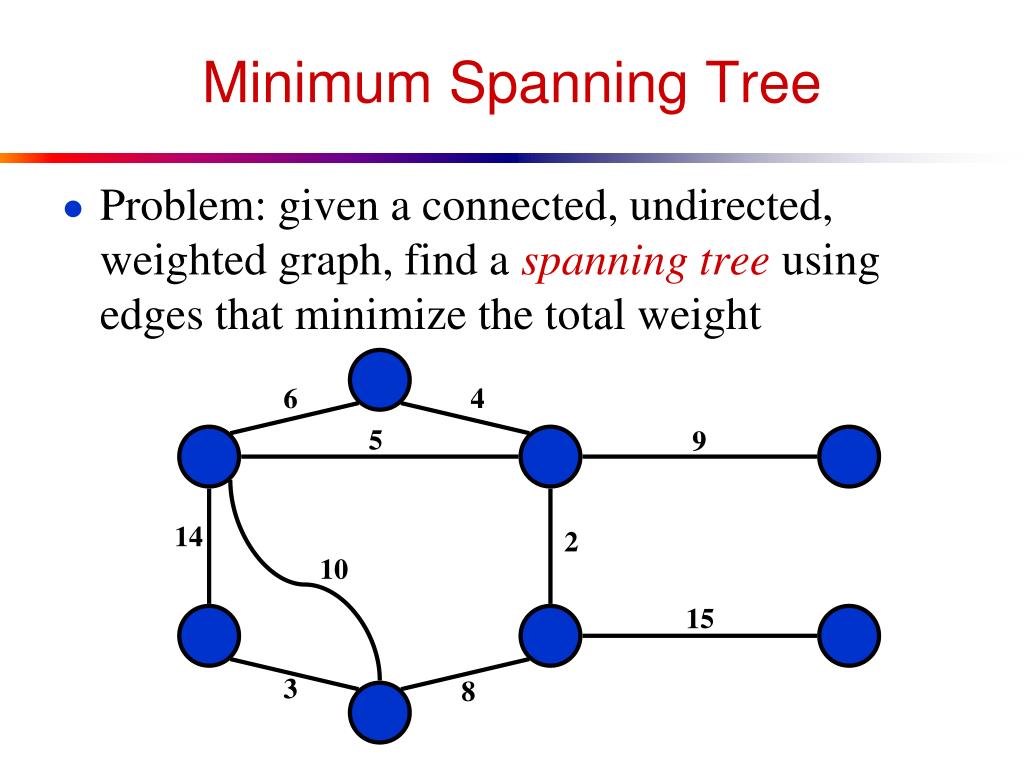

  3. Minimum Spanning Tree • Problem: given a connected, undirected, weighted graph, find a spanning tree using edges that minimize the total weight 6 4 5 9 14 2 10 15 3 8

  4. Minimum Spanning Tree • Which edges form the minimum spanning tree (MST) of the below graph? A 6 4 5 9 H B C 14 2 10 15 G E D 3 8 F

  5. Minimum Spanning Tree • Answer: A 6 4 5 9 H B C 14 2 10 15 G E D 3 8 F

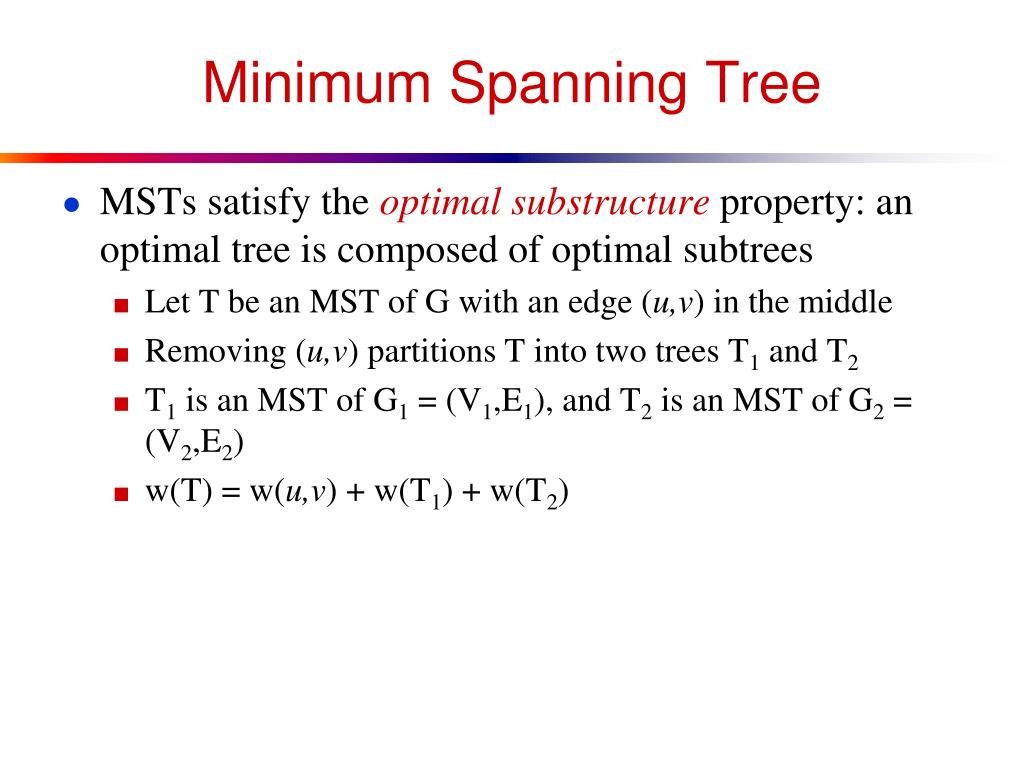

  6. Minimum Spanning Tree • MSTs satisfy the optimal substructure property: an optimal tree is composed of optimal subtrees • Let T be an MST of G with an edge (u,v) in the middle • Removing (u,v) partitions T into two trees T1 and T2 • T1is an MST of G1 = (V1,E1), and T2 is an MST of G2 = (V2,E2) • w(T) = w(u,v) + w(T1) + w(T2)

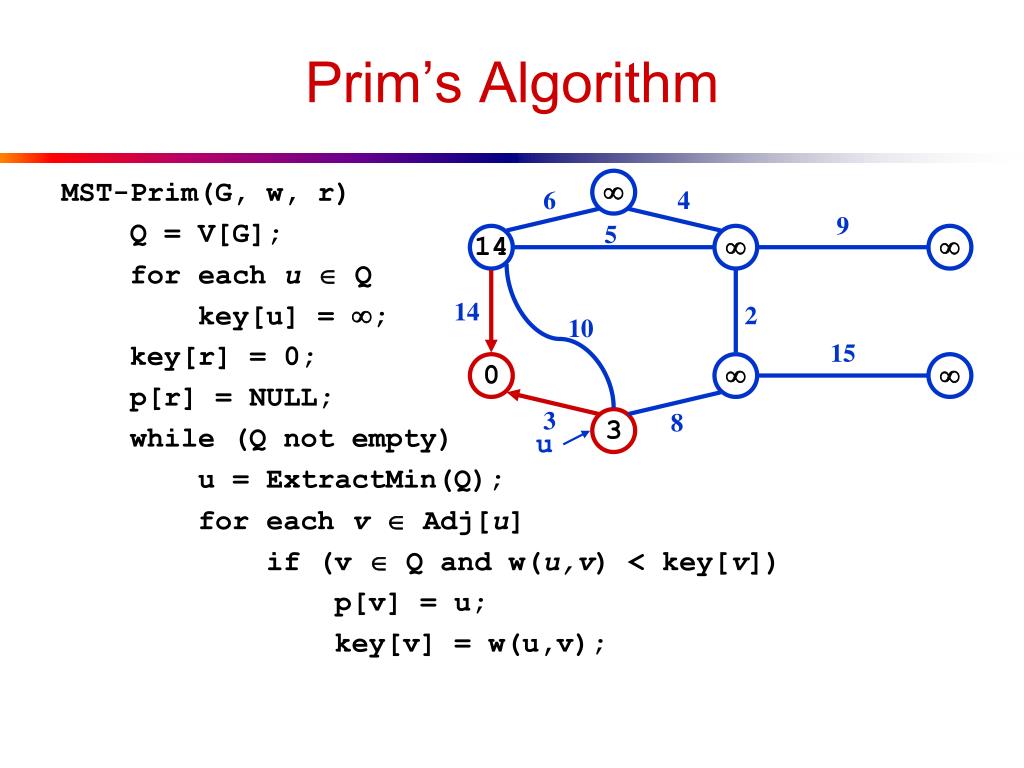

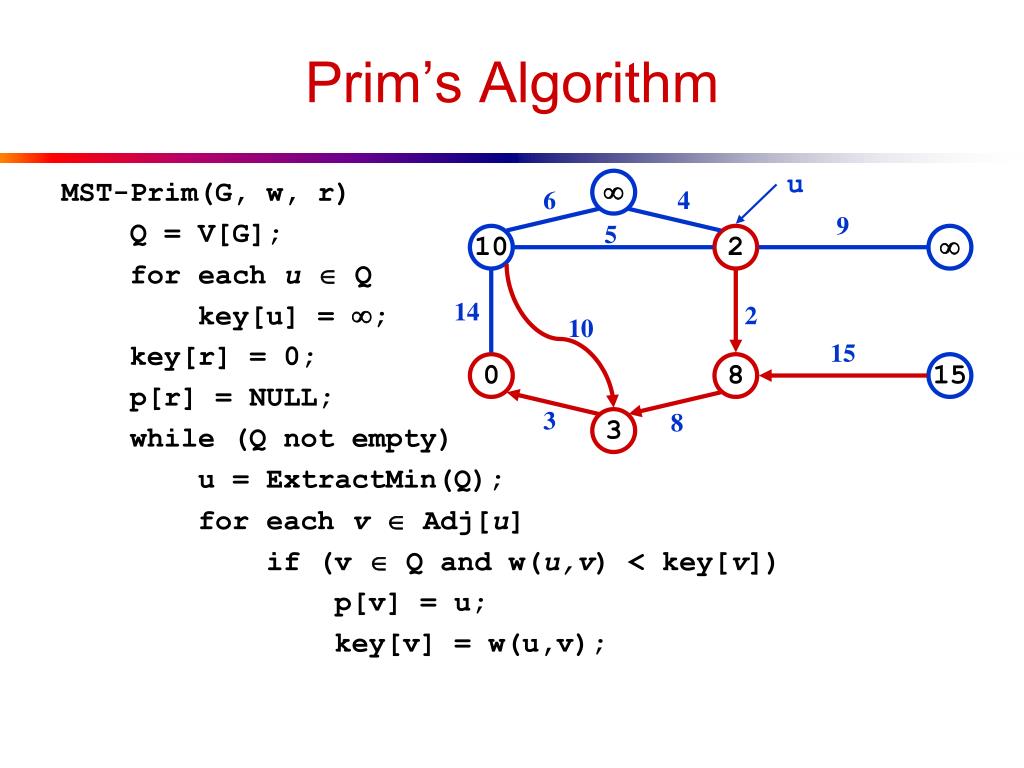

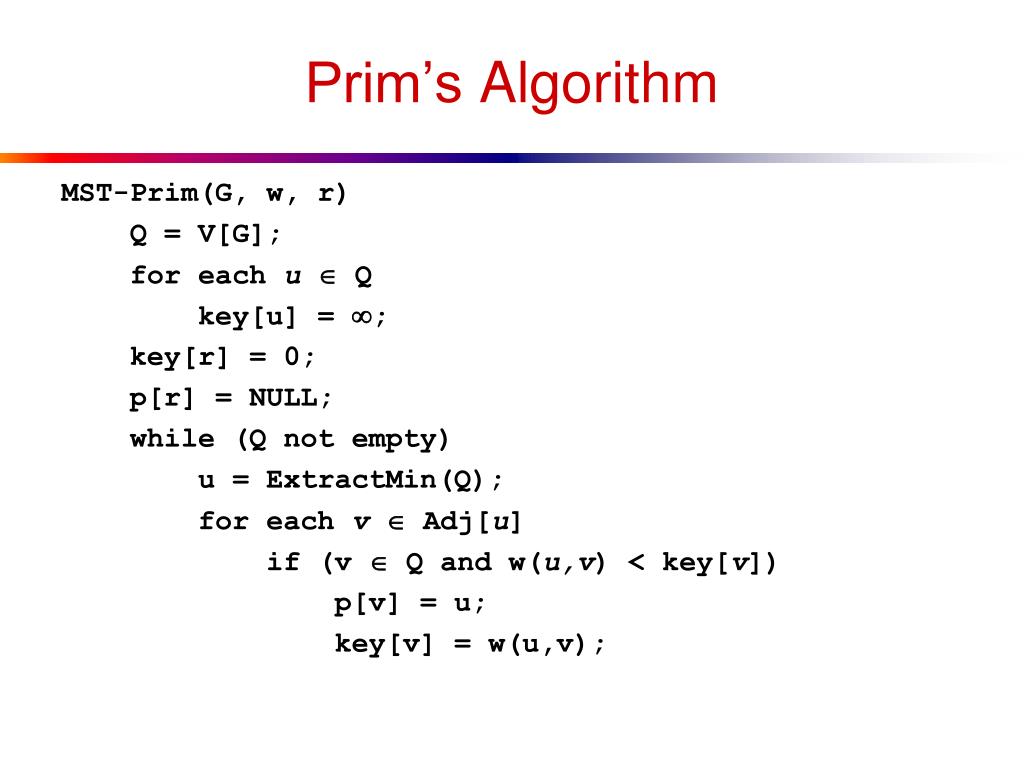

  7. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);

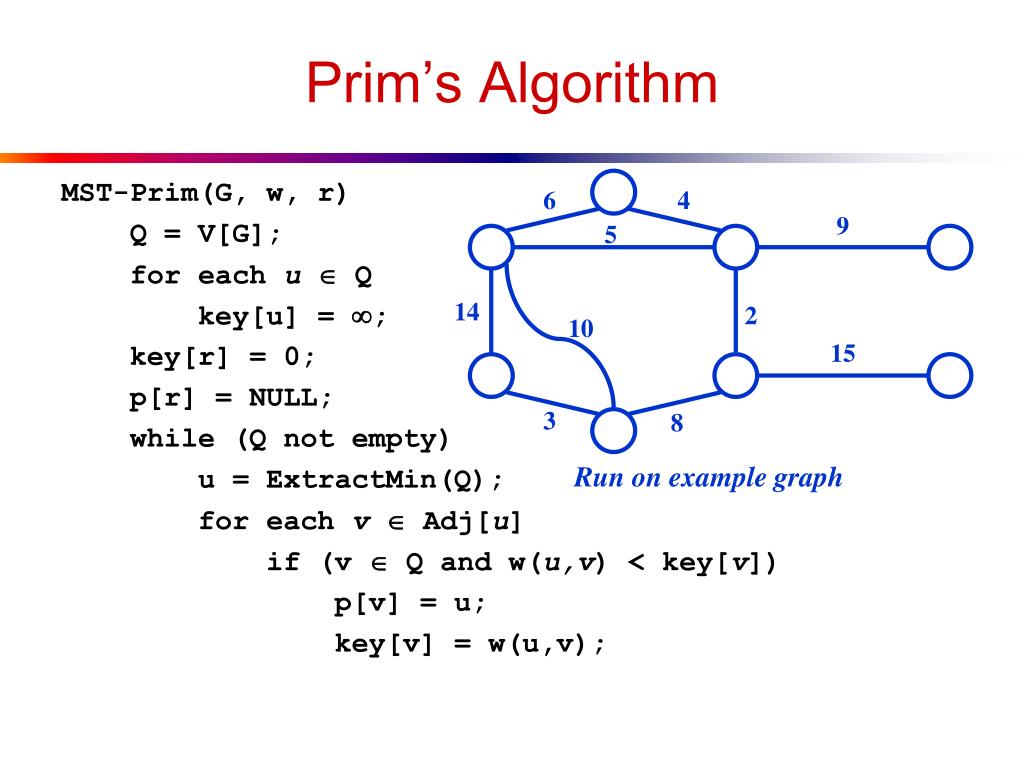

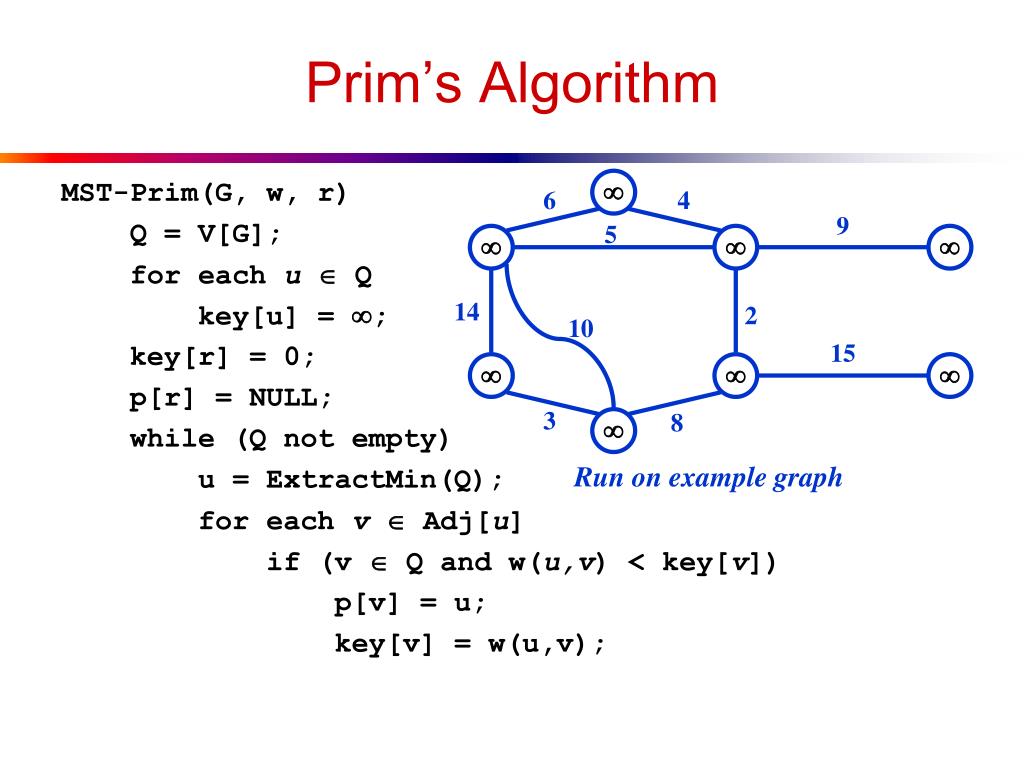

  8. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v); 6 4 9 5 14 2 10 15 3 8 Run on example graph

  9. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5    14 2 10 15    3 8  Run on example graph

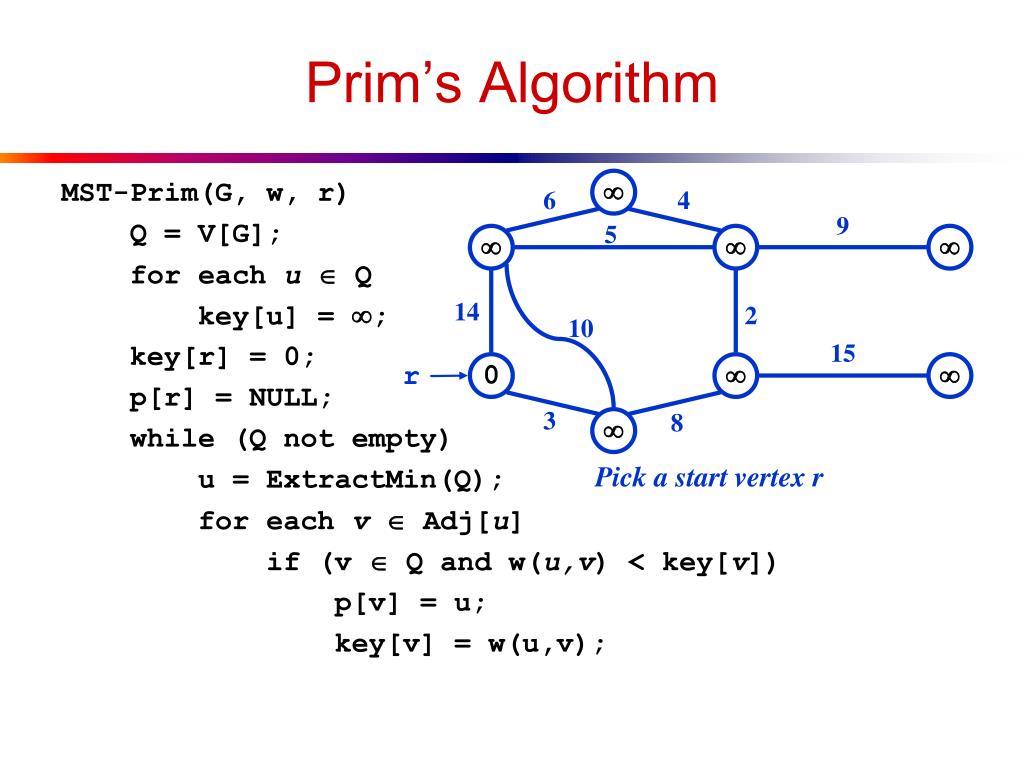

  10. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5    14 2 10 15 r 0   3 8  Pick a start vertex r

  11. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5    14 2 10 15 u 0   3 8  Red vertices have been removed from Q

  12. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5    14 2 10 15 u 0   3 8 3 Red arrows indicate parent pointers

  13. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5 14   14 2 10 15 u 0   3 8 3

  14. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5 14   14 2 10 15 0   3 8 3 u

  15. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5 14   14 2 10 15 0 8  3 8 3 u

  16. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5 10   14 2 10 15 0 8  3 8 3 u

  17. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5 10   14 2 10 15 0 8  3 8 3 u

  18. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5 10 2  14 2 10 15 0 8  3 8 3 u

  19. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5 10 2  14 2 10 15 0 8 15 3 8 3 u

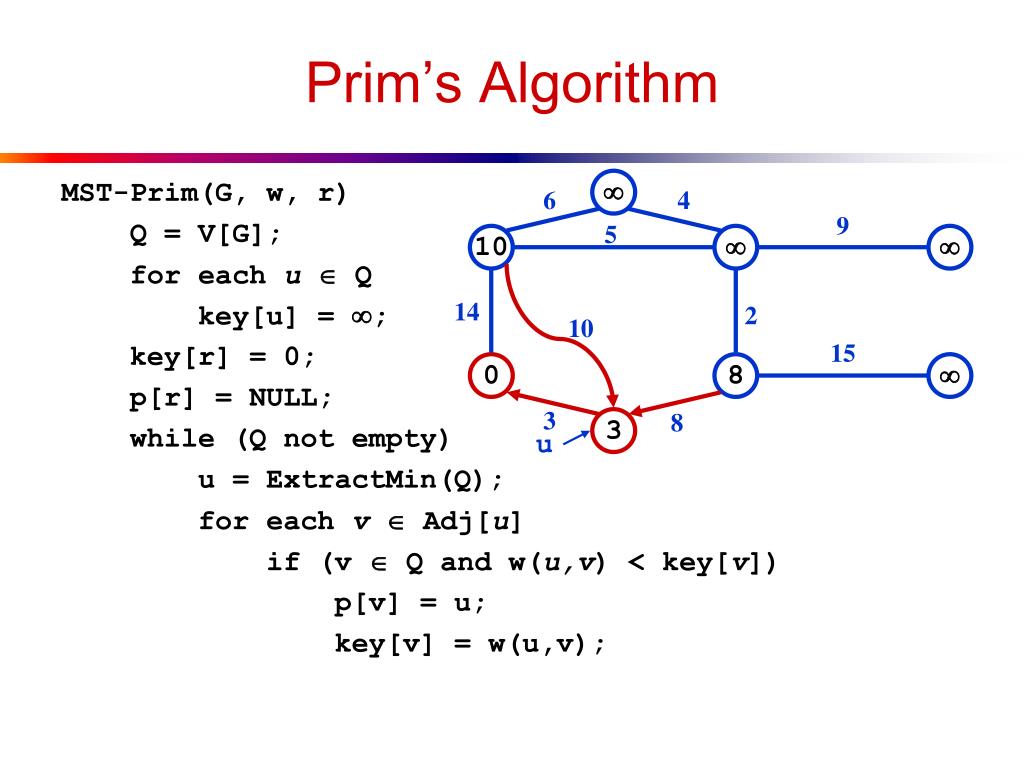

  20. Prim’s Algorithm u MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5 10 2  14 2 10 15 0 8 15 3 8 3

  21. Prim’s Algorithm u MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v);  6 4 9 5 10 2 9 14 2 10 15 0 8 15 3 8 3

  22. Prim’s Algorithm u MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v); 4 6 4 9 5 10 2 9 14 2 10 15 0 8 15 3 8 3

  23. Prim’s Algorithm u MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v); 4 6 4 9 5 5 2 9 14 2 10 15 0 8 15 3 8 3

  24. Prim’s Algorithm u MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v); 4 6 4 9 5 5 2 9 14 2 10 15 0 8 15 3 8 3

  25. Prim’s Algorithm u MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v); 4 6 4 9 5 5 2 9 14 2 10 15 0 8 15 3 8 3

  26. Prim’s Algorithm u MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v); 4 6 4 9 5 5 2 9 14 2 10 15 0 8 15 3 8 3

  27. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v); 4 6 4 9 5 5 2 9 u 14 2 10 15 0 8 15 3 8 3

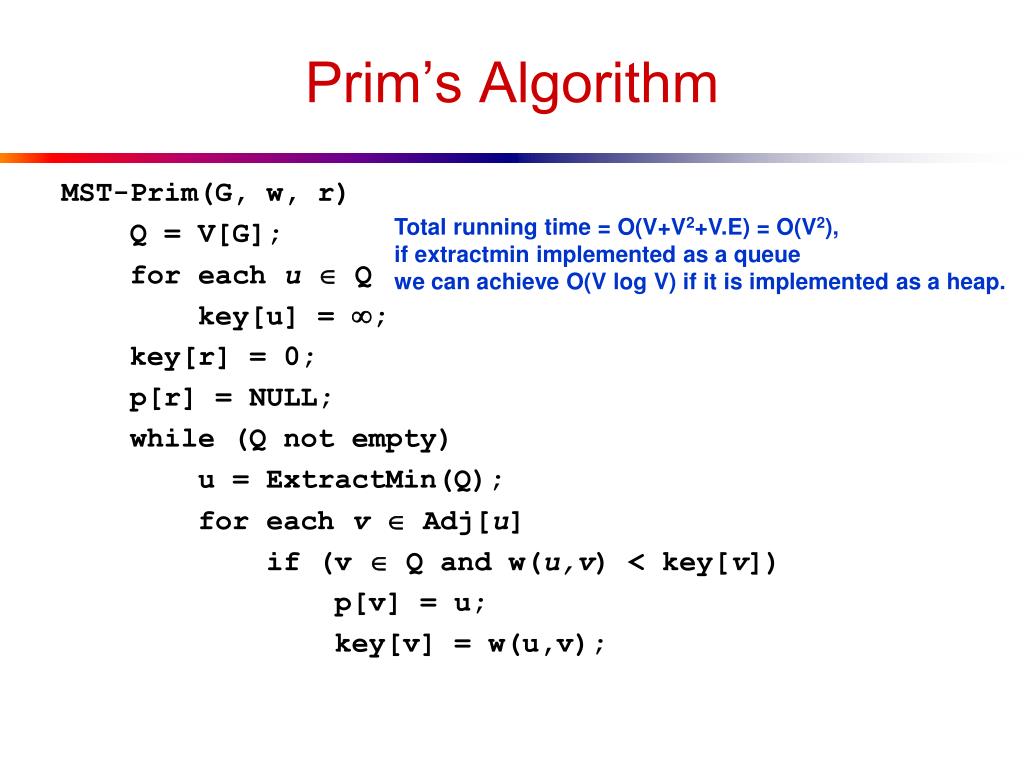

  28. Prim’s Algorithm MST-Prim(G, w, r) Q = V[G]; for each u Q key[u] = ; key[r] = 0; p[r] = NULL; while (Q not empty) u = ExtractMin(Q); for each v Adj[u] if (v Q and w(u,v) < key[v]) p[v] = u; key[v] = w(u,v); Total running time = O(V+V2+V.E) = O(V2), if extractminimplemented as a queue we can achieve O(V log V) if it is implemented as a heap.

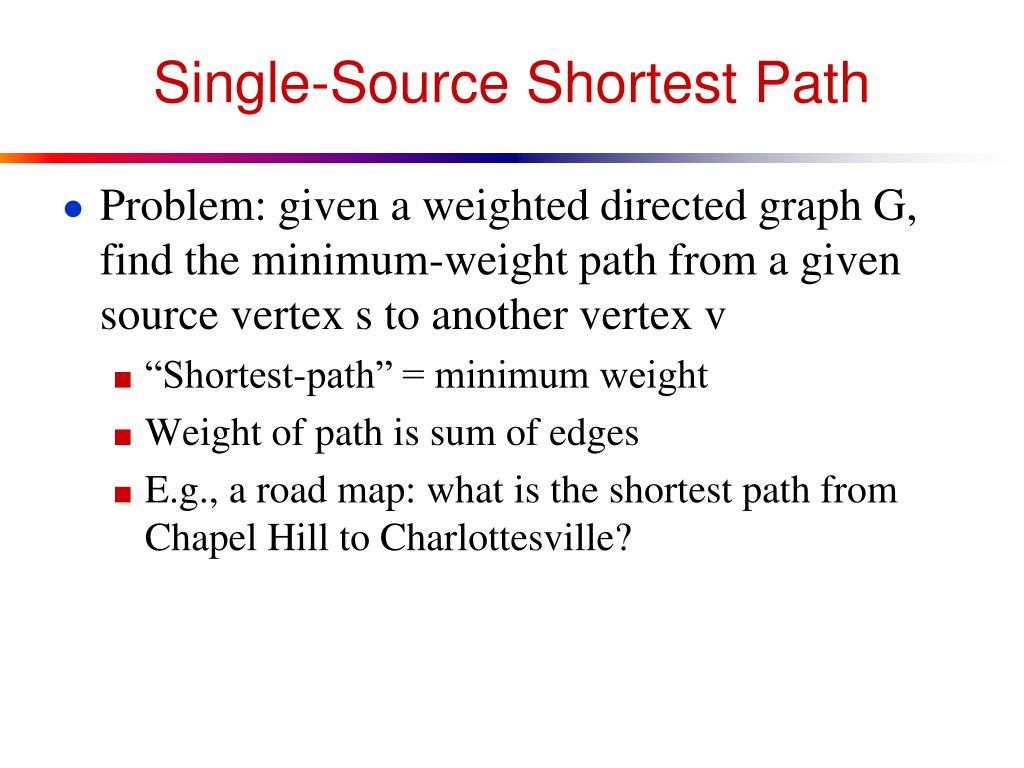

  29. Single-Source Shortest Path • Problem: given a weighted directed graph G, find the minimum-weight path from a given source vertex s to another vertex v • “Shortest-path” = minimum weight • Weight of path is sum of edges • E.g., a road map: what is the shortest path from Chapel Hill to Charlottesville?

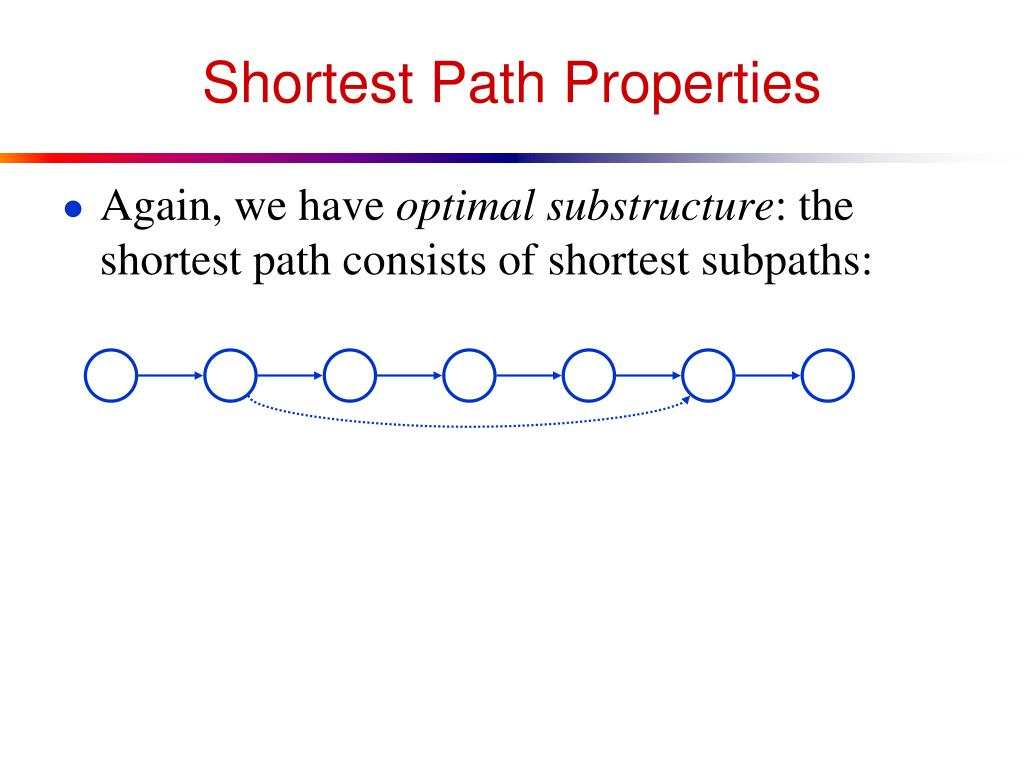

  30. Shortest Path Properties • Again, we have optimal substructure: the shortest path consists of shortest subpaths:

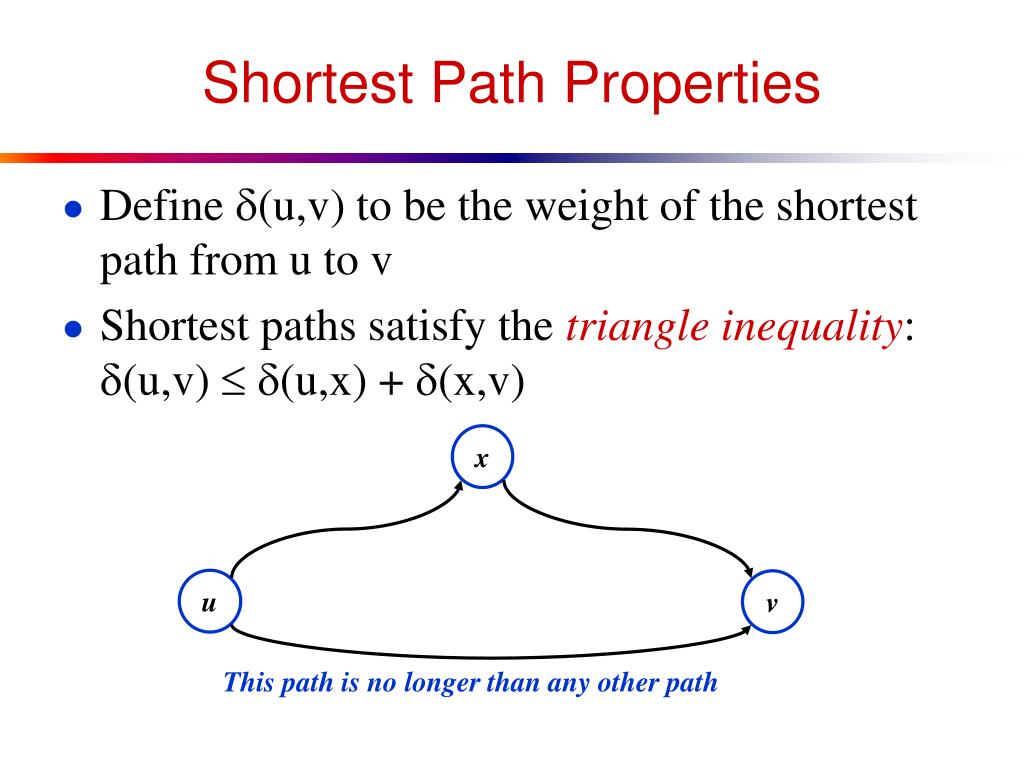

  31. Shortest Path Properties • Define (u,v) to be the weight of the shortest path from u to v • Shortest paths satisfy the triangle inequality: (u,v)  (u,x) + (x,v) x u v This path is no longer than any other path

  32. 2 2 9 6 5 5 Relax Relax 2 2 7 6 5 5 Relaxation • A key technique in shortest path algorithms is relaxation • Idea: for all v, maintain upper bound d[v] on (s,v) Relax(u,v,w) { if (d[v] > d[u]+w) then d[v]=d[u]+w; }

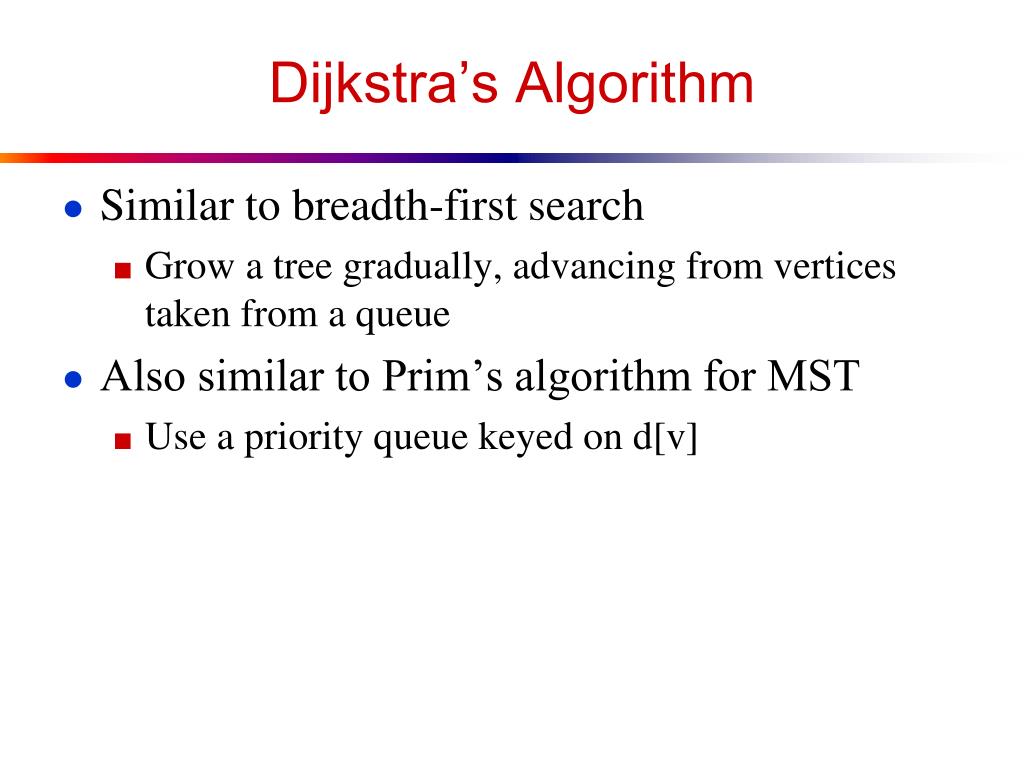

  33. Dijkstra’s Algorithm • Similar to breadth-first search • Grow a tree gradually, advancing from vertices taken from a queue • Also similar to Prim’s algorithm for MST • Use a priority queue keyed on d[v]

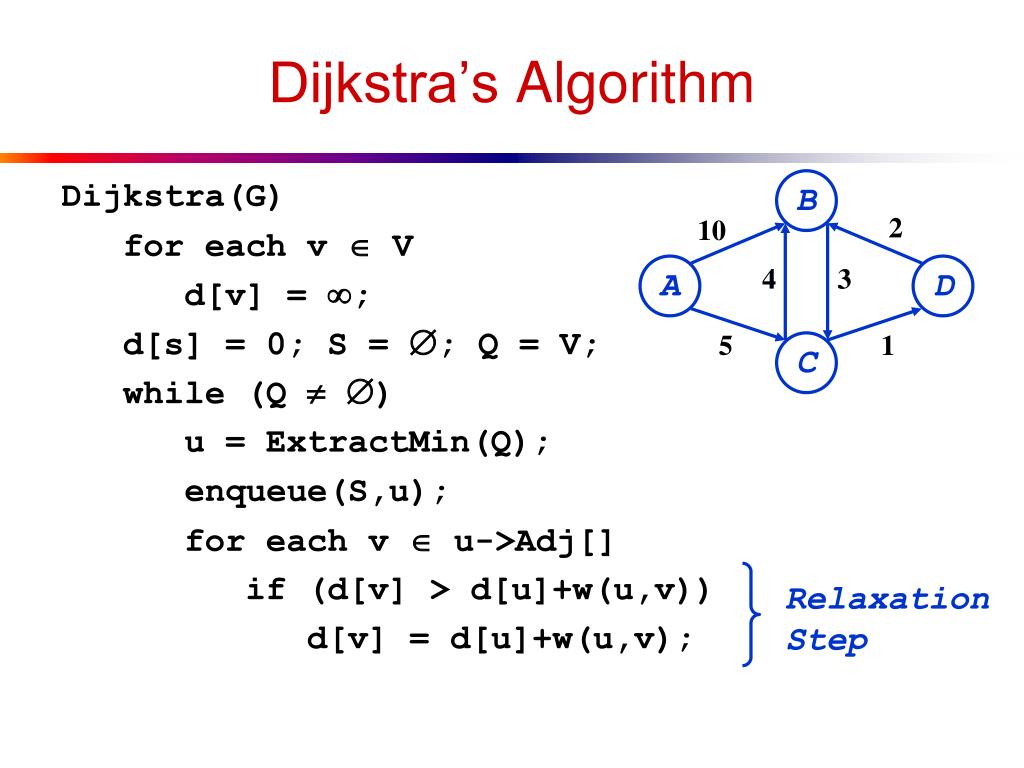

  34. B 2 10 A 4 3 D 5 1 C RelaxationStep Dijkstra’s Algorithm Dijkstra(G) for each v  V d[v] = ; d[s] = 0; S = ; Q = V; while (Q  ) u = ExtractMin(Q); enqueue(S,u); for each v  u->Adj[] if (d[v] > d[u]+w(u,v)) d[v] = d[u]+w(u,v);

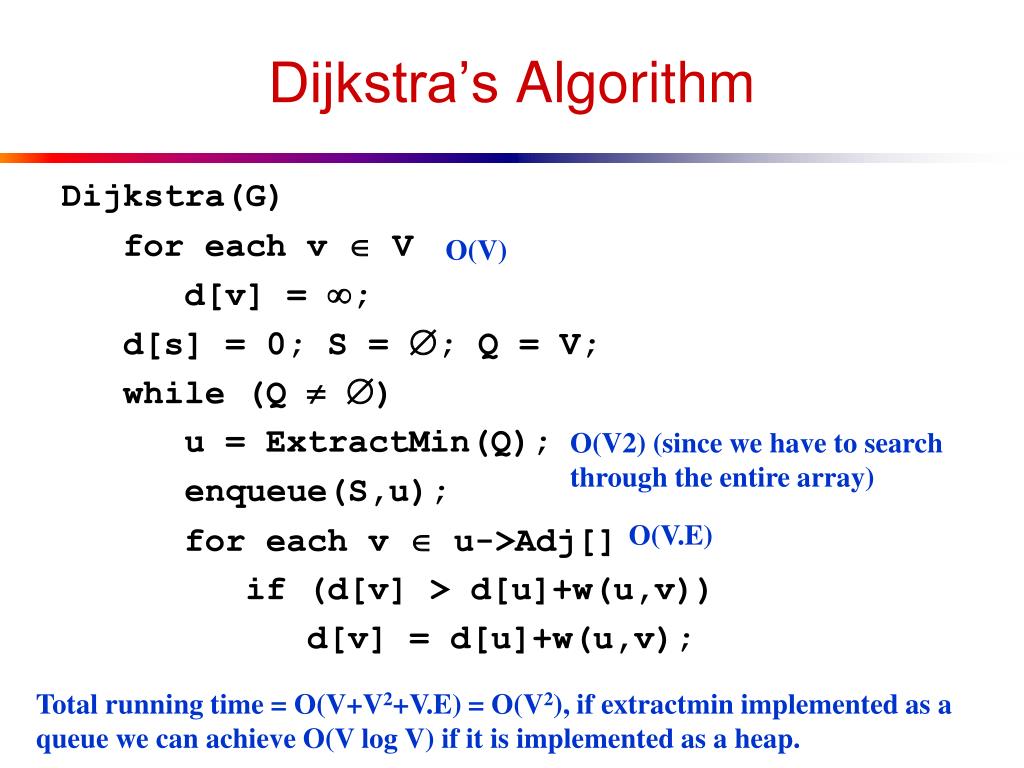

  35. Dijkstra’s Algorithm Dijkstra(G) for each v  V d[v] = ; d[s] = 0; S = ; Q = V; while (Q  ) u = ExtractMin(Q); enqueue(S,u); for each v  u->Adj[] if (d[v] > d[u]+w(u,v)) d[v] = d[u]+w(u,v); O(V) O(V2) (since we have to search through the entire array) O(V.E) Total running time = O(V+V2+V.E) = O(V2), if extractmin implemented as a queue we can achieve O(V log V) if it is implemented as a heap.

  36. Dijkstra’s Algorithm

  37. Dijkstra’s Algorithm

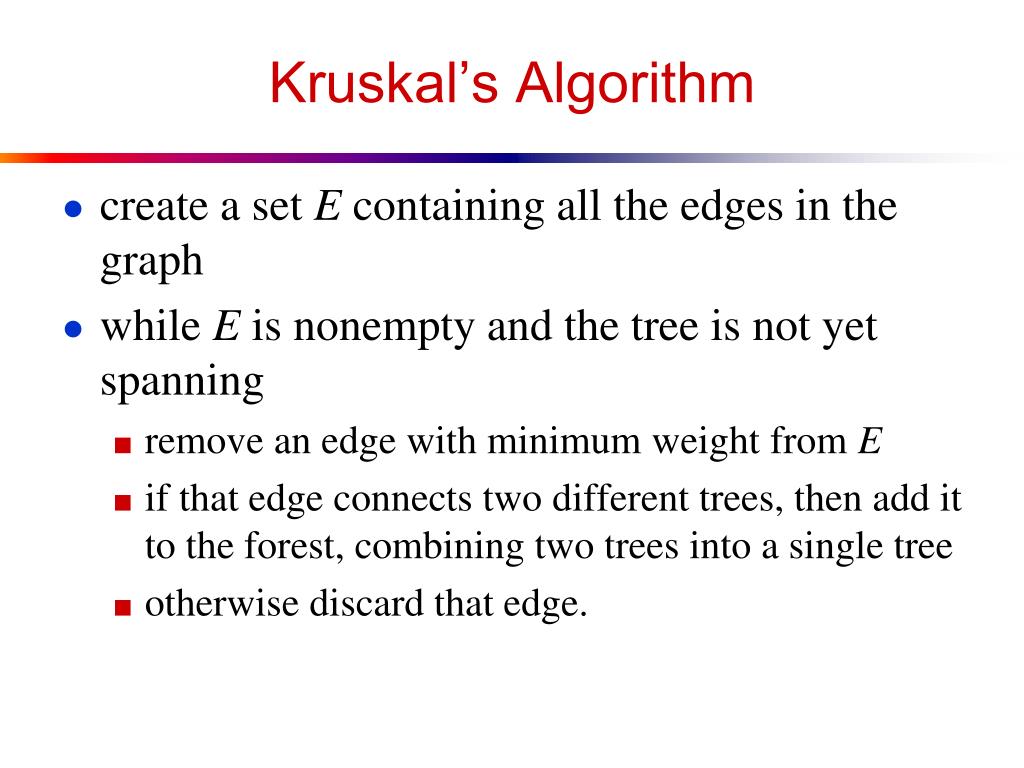

  38. Kruskal’s Algorithm • create a set E containing all the edges in the graph • while E is nonempty and the tree is not yet spanning • remove an edge with minimum weight from E • if that edge connects two different trees, then add it to the forest, combining two trees into a single tree • otherwise discard that edge.

  39. Kruskal’s Algorithm Kruskal() { T = ; for each v  V MakeSet(v); sort E by increasing edge weight w for each (u,v)  E (in sorted order) if FindSet(u)  FindSet(v) T = T U {{u,v}}; Union(FindSet(u), FindSet(v)); }

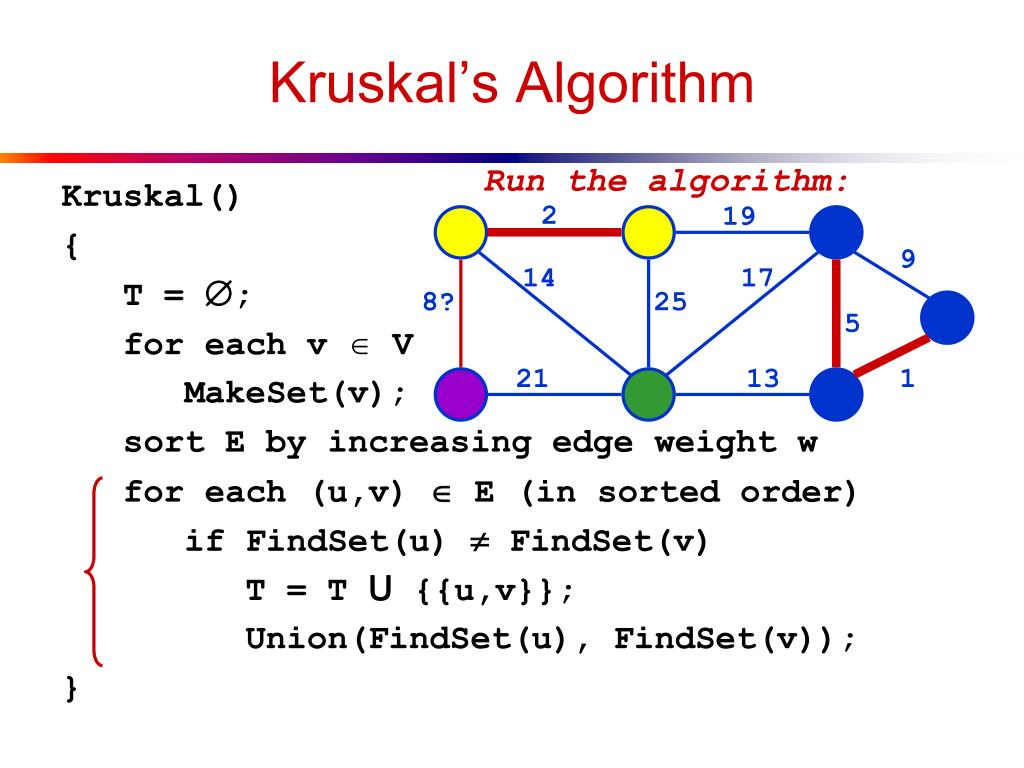

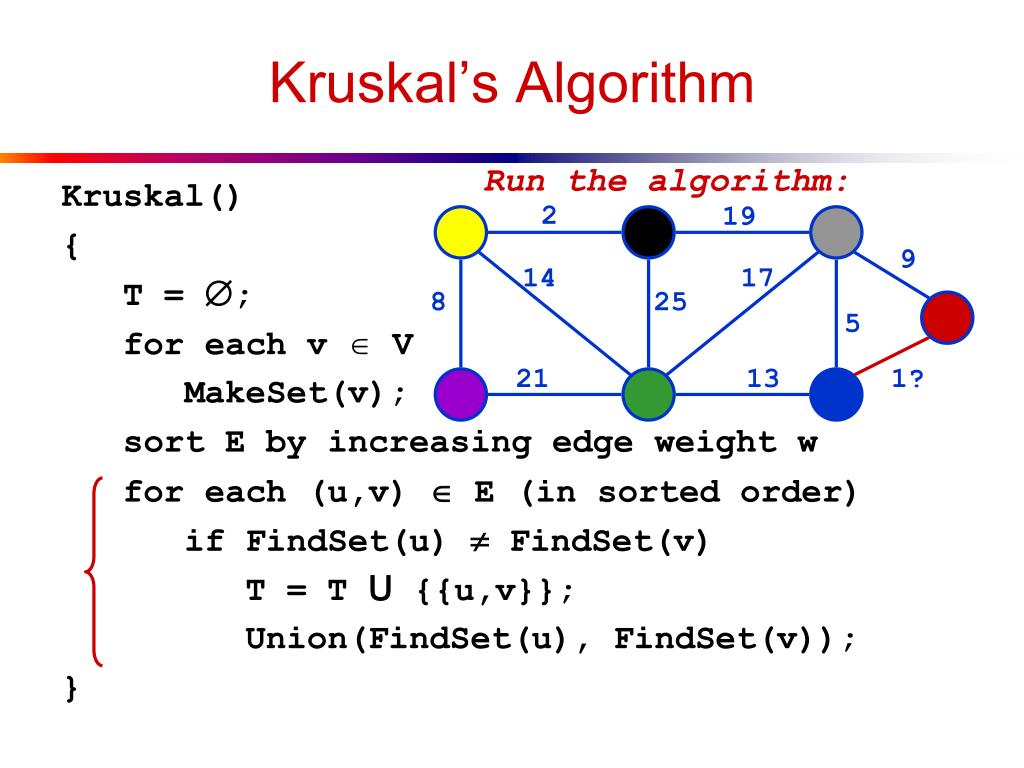

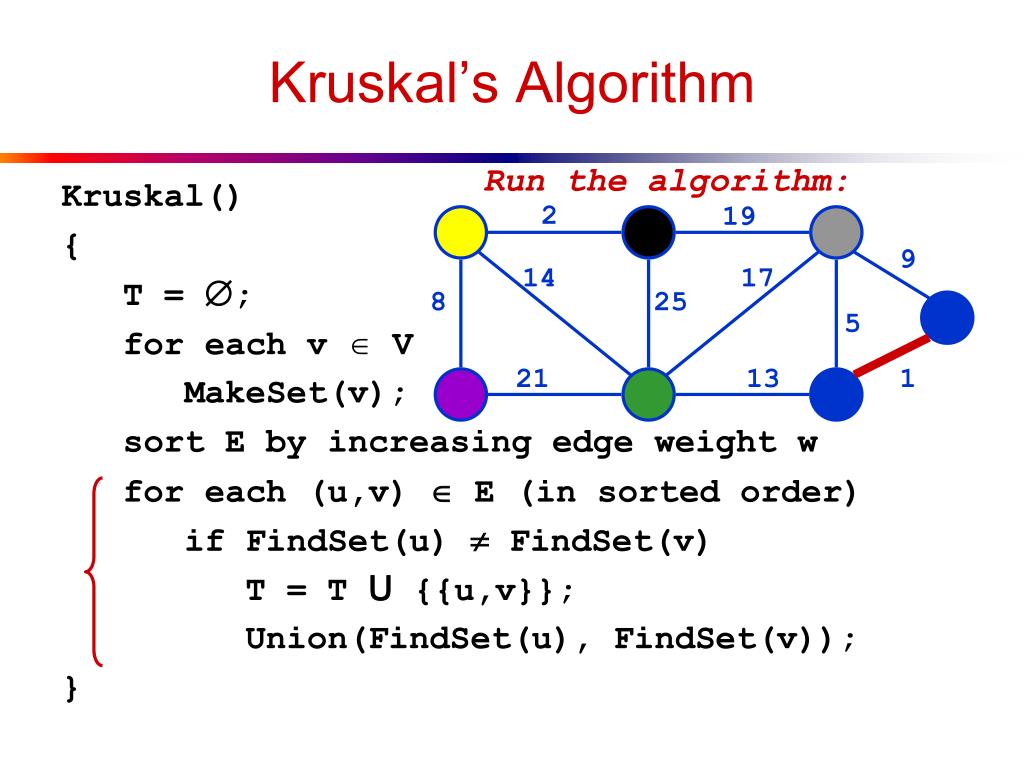

  40. Kruskal’s Algorithm Run the algorithm: Kruskal() { T = ; for each v  V MakeSet(v); sort E by increasing edge weight w for each (u,v)  E (in sorted order) if FindSet(u)  FindSet(v) T = T U {{u,v}}; Union(FindSet(u), FindSet(v)); } 2 19 9 14 17 8 25 5 21 13 1

  41. Kruskal’s Algorithm Run the algorithm: Kruskal() { T = ; for each v  V MakeSet(v); sort E by increasing edge weight w for each (u,v)  E (in sorted order) if FindSet(u)  FindSet(v) T = T U {{u,v}}; Union(FindSet(u), FindSet(v)); } 2 19 9 14 17 8 25 5 21 13 1

  42. Kruskal’s Algorithm Run the algorithm: Kruskal() { T = ; for each v  V MakeSet(v); sort E by increasing edge weight w for each (u,v)  E (in sorted order) if FindSet(u)  FindSet(v) T = T U {{u,v}}; Union(FindSet(u), FindSet(v)); } 2 19 9 14 17 8 25 5 21 13 1

  43. Kruskal’s Algorithm Run the algorithm: Kruskal() { T = ; for each v  V MakeSet(v); sort E by increasing edge weight w for each (u,v)  E (in sorted order) if FindSet(u)  FindSet(v) T = T U {{u,v}}; Union(FindSet(u), FindSet(v)); } 2 19 9 14 17 8 25 5 21 13 1?

  44. Kruskal’s Algorithm Run the algorithm: Kruskal() { T = ; for each v  V MakeSet(v); sort E by increasing edge weight w for each (u,v)  E (in sorted order) if FindSet(u)  FindSet(v) T = T U {{u,v}}; Union(FindSet(u), FindSet(v)); } 2 19 9 14 17 8 25 5 21 13 1

  45. Kruskal’s Algorithm Run the algorithm: Kruskal() { T = ; for each v  V MakeSet(v); sort E by increasing edge weight w for each (u,v)  E (in sorted order) if FindSet(u)  FindSet(v) T = T U {{u,v}}; Union(FindSet(u), FindSet(v)); } 2? 19 9 14 17 8 25 5 21 13 1

  46. Kruskal’s Algorithm Run the algorithm: Kruskal() { T = ; for each v  V MakeSet(v); sort E by increasing edge weight w for each (u,v)  E (in sorted order) if FindSet(u)  FindSet(v) T = T U {{u,v}}; Union(FindSet(u), FindSet(v)); } 2 19 9 14 17 8 25 5 21 13 1

  47. Kruskal’s Algorithm Run the algorithm: Kruskal() { T = ; for each v  V MakeSet(v); sort E by increasing edge weight w for each (u,v)  E (in sorted order) if FindSet(u)  FindSet(v) T = T U {{u,v}}; Union(FindSet(u), FindSet(v)); } 2 19 9 14 17 8 25 5? 21 13 1

  48. Kruskal’s Algorithm Run the algorithm: Kruskal() { T = ; for each v  V MakeSet(v); sort E by increasing edge weight w for each (u,v)  E (in sorted order) if FindSet(u)  FindSet(v) T = T U {{u,v}}; Union(FindSet(u), FindSet(v)); } 2 19 9 14 17 8 25 5 21 13 1

  49. Kruskal’s Algorithm Run the algorithm: Kruskal() { T = ; for each v  V MakeSet(v); sort E by increasing edge weight w for each (u,v)  E (in sorted order) if FindSet(u)  FindSet(v) T = T U {{u,v}}; Union(FindSet(u), FindSet(v)); } 2 19 9 14 17 8? 25 5 21 13 1
