Operating Systems and Using Linux

Operating Systems and Using Linux. Topics Review Number Systems. Go over Homework 1 Solution. CSHC Hours of Operations. What is an Operating System?. The Number System. Position Number System The same digits have different meaning depending on their position in the numeral.

xyla-salinas
Télécharger la présentation

Operating Systems and Using Linux

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

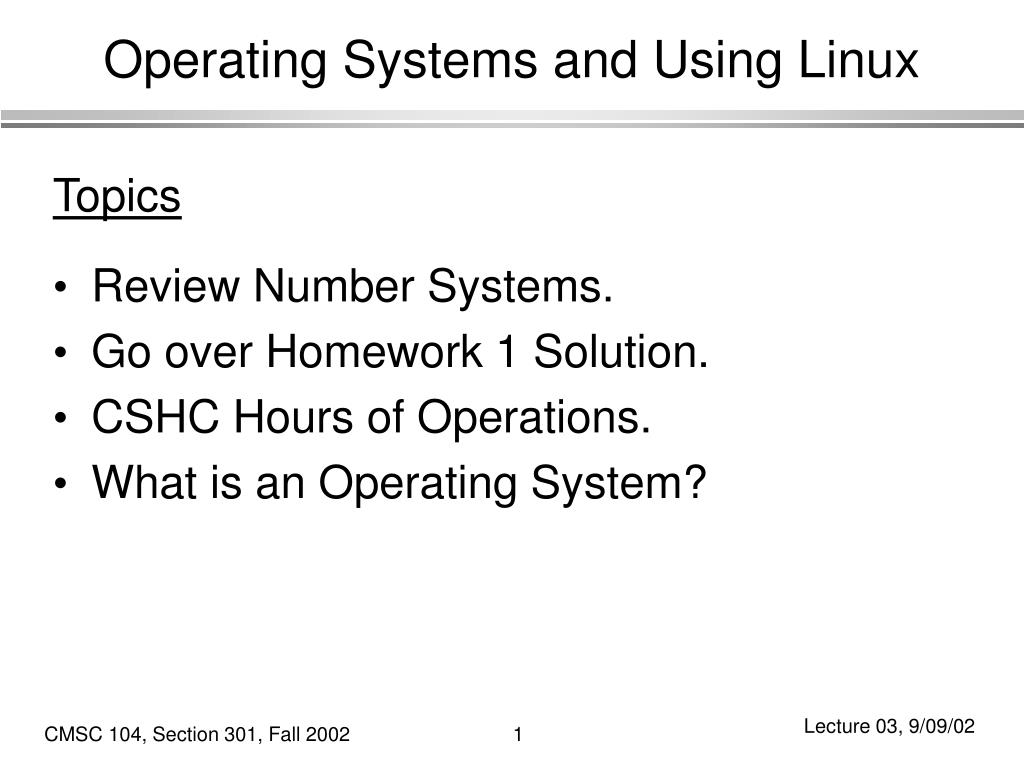

  1. Operating Systems and Using Linux Topics • Review Number Systems. • Go over Homework 1 Solution. • CSHC Hours of Operations. • What is an Operating System?

  2. The Number System Position Number System • The same digits have different meaning depending on their position in the numeral. • The value of a digit depends on the digit itself of its position. • Binary, decimal, hexadecimal are all position number system.

  3. The Number System (con’t) • Example: 4410 • 101 100 • 4 4 • ------------ • 4 x 10 + 4 = 4410

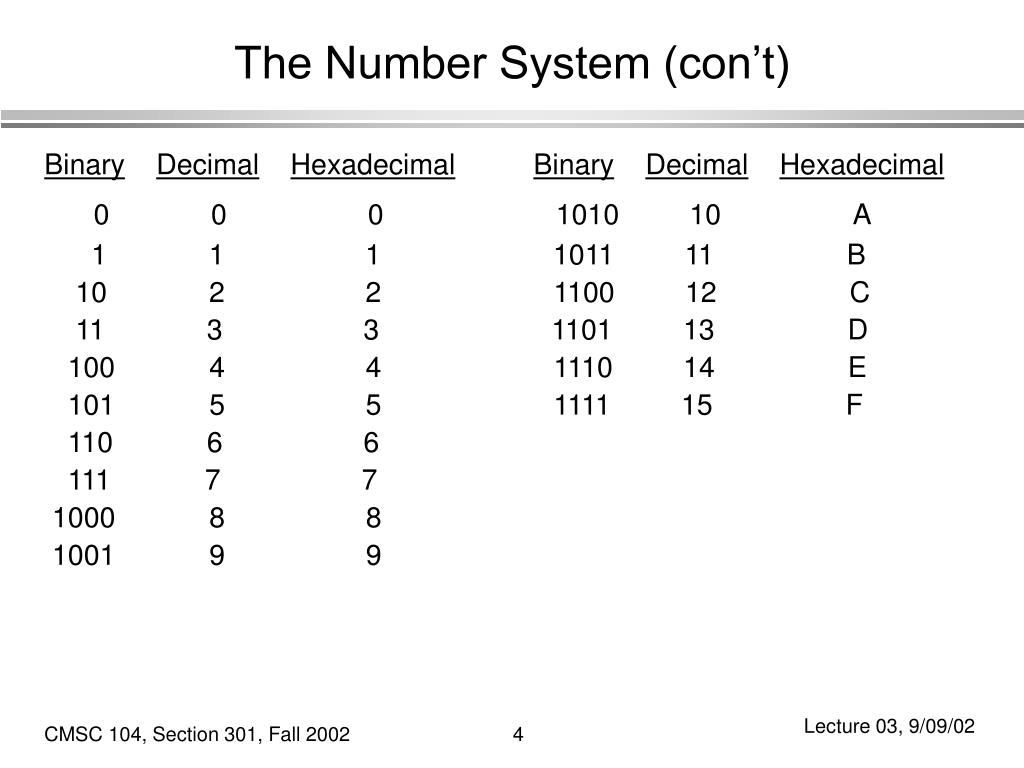

  4. The Number System (con’t) BinaryDecimalHexadecimalBinaryDecimalHexadecimal 0 0 0 1010 10 A 1 1 1 1011 11 B 10 2 2 1100 12 C 11 3 3 1101 13 D 100 4 4 1110 14 E 101 5 5 1111 15 F 110 6 6 111 7 7 1000 8 8 1001 9 9

  5. Converting From Hexadecimal to Decimal • Example: Convert 1A5F16 to decimal. • 1A5F • 163 162 161 160 • 4096 256 16 1 • Recall: A16 = 1010 and F16 = 1510. • = 1 x 4096 + A x 256 + 5 x 16 + F x 1 • = 1 x 4096 + 10 x 256 + 5 x 16 + 15 x 1 • = 4096 + 2560 + 80 + 15 • = 675110

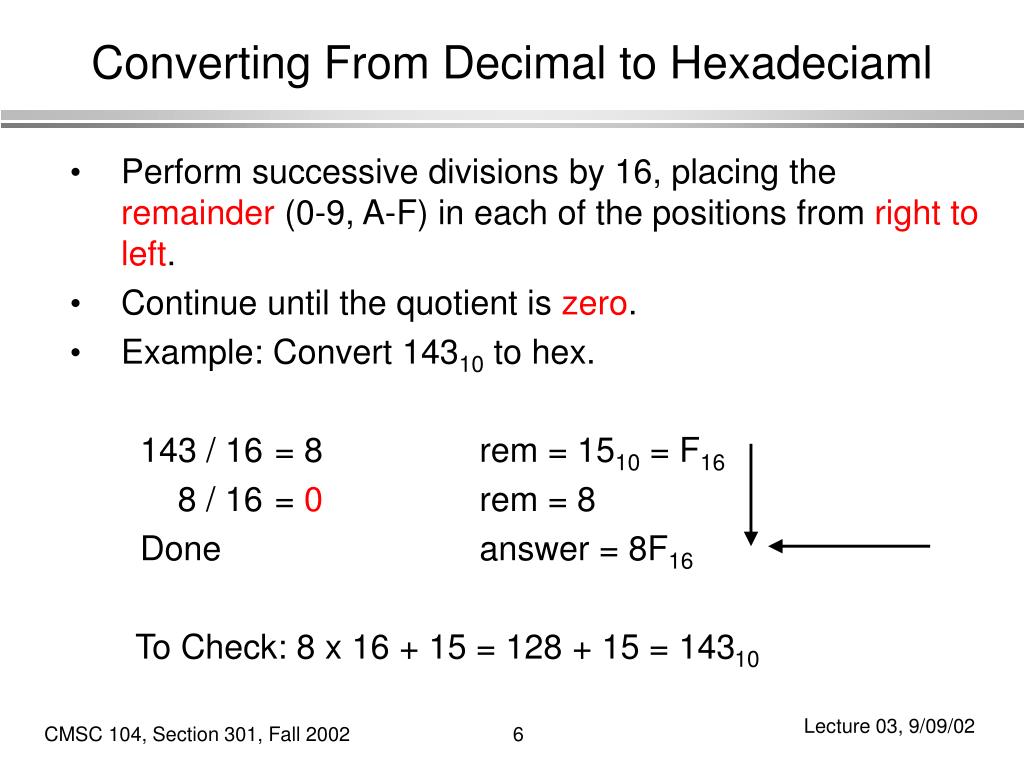

  6. Converting From Decimal to Hexadeciaml • Perform successive divisions by 16, placing the remainder (0-9, A-F) in each of the positions from right to left. • Continue until the quotient is zero. • Example: Convert 14310 to hex. • 143 / 16 = 8 rem = 1510 = F16 • 8 / 16 = 0 rem = 8 • Done answer = 8F16 • To Check: 8 x 16 + 15 = 128 + 15 = 14310

  7. Example of Equivalent Numbers • Binary: 1 0 1 0 0 0 0 1 0 1 0 0 1 1 12 • Decimal: 2064710 • Hexadecimal: 50A716 • Notice that the number of digits needed is smaller as the base increases.

  8. Homwork Solution 1 Go over homework solution 1!

  9. Operating Systems and Using Linux Topics • What is an Operating System?

  10. Computer Science Help Desk • CSHC (Computer Science Help Center) is staffed by student tutors. • Help with homework and projects. • Text editors and Linux questions. • ECS 332A – Hours of Operations: • Monday – Thursday 12 - 8 PM • Friday 12 – 4 PM

  11. What is an Operating System (OS)? • A computer program • Performs many operations, such as: • Allows you to communicate with the computer (tell it what to do) • Controls access (login) to the computer • Keeps track of all processes currently running • At this point, your main concern is how to communicate with the computer using the OS.

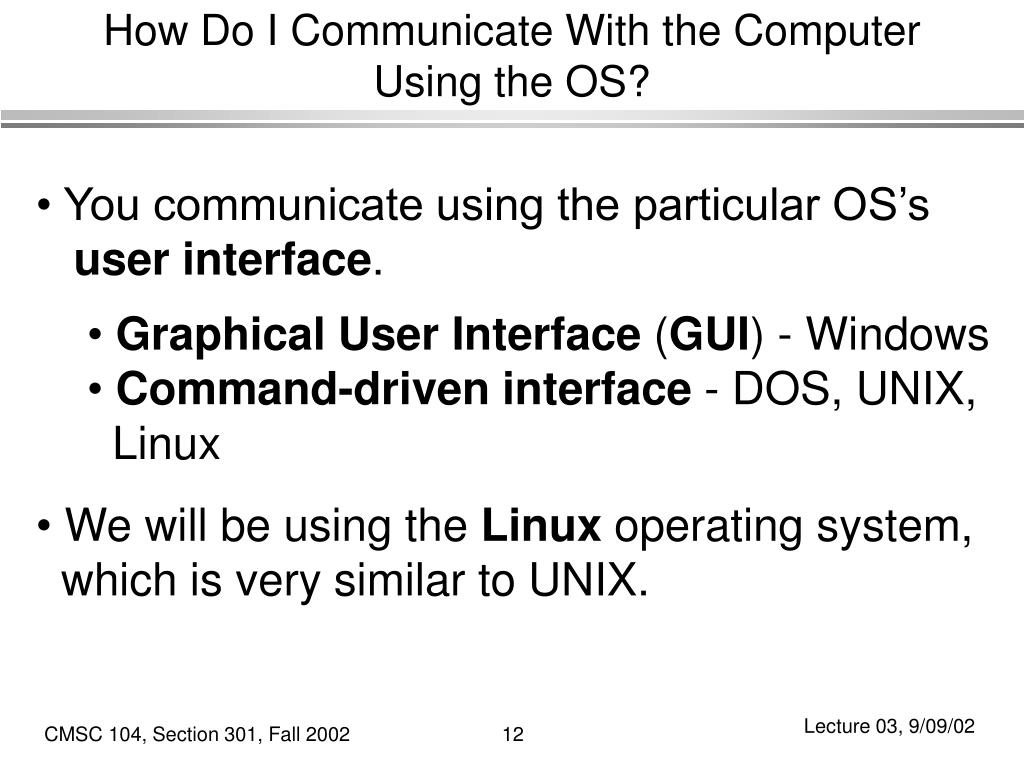

  12. How Do I Communicate With the Computer Using the OS? • You communicate using the particular OS’s • user interface. • Graphical User Interface (GUI) - Windows • Command-driven interface - DOS, UNIX, • Linux • We will be using the Linux operating system, • which is very similar to UNIX.

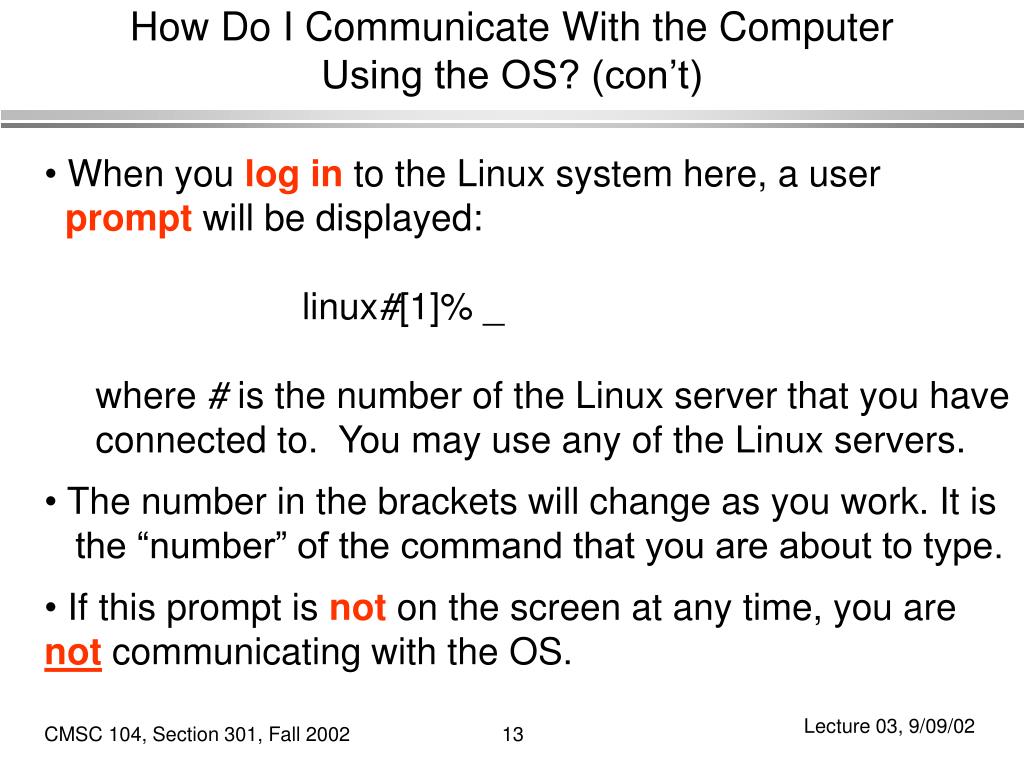

  13. How Do I Communicate With the Computer Using the OS? (con’t) • When you log in to the Linux system here, a user • prompt will be displayed: • linux#[1]% _ • where # is the number of the Linux server that you have connected to. You may use any of the Linux servers. • The number in the brackets will change as you work. It is • the “number” of the command that you are about to type. • If this prompt is not on the screen at any time, you are not communicating with the OS.
