  1. JDF Toolkits for JDF and JMF

  2. JDF Library and API • Read, write, work with JDF and JMF files • Additional high-level routines • spawn / merge • Validate / Repair • Convert Versions • MIME handling • Networking

  3. JDF Library and API • JDFLibC – C++ • Windows: VisualC++ (VC10 main), VC7 – VC1032 bit / 64 bit available • Mac OS X: Xcode, CodeWarrior • Linux: makefiles (last update: 2002 (!)) • JDFLibJ – Java • compiled with Java 1.5 (Java 1.6 incoming) • used extensively by CIP4‘s JDF tools • C# Translation beta available

  4. CIP4 JDF Editor • Visual editor for JDF and JMF files • Views: • input/output • Process • localized capabilities • Comments • XML • Validates: • Capabilities (used for certification) • XML Schema • Sends JDF / JMF • Binaries for Mac and Windows

  5. CIP4 JDF Editor

  6. CIP4 JDF Utilities • CheckJDF • Check validity of JDF files (online and on the command line) • FixJDF • Update a JDF file to another version • Both are integrated into the Editor

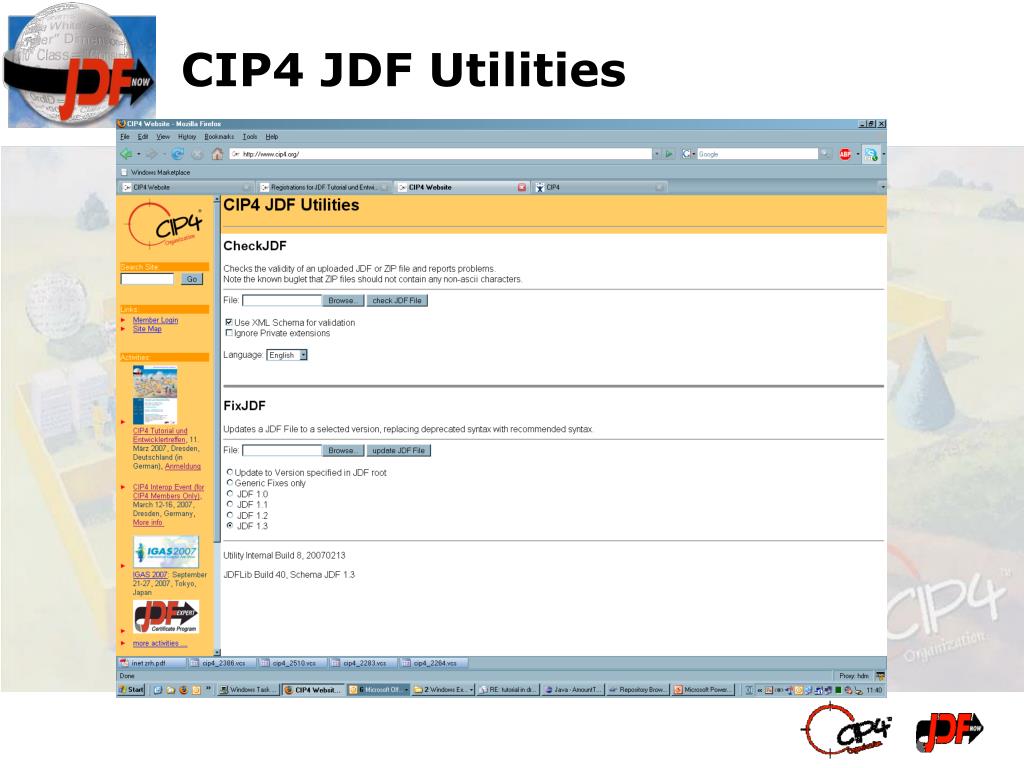

  7. CIP4 JDF Utilities

  8. Elk • “application framework providing services needed by a JDF device” • Send and receive JMF • Send and receive JDF • Job queue • Execute JDF nodes • … • Reference implementation: elk-press

  9. Alces • Tool for testing JDF software • JDF Controller / Manager

  10. MIS proxy „need job“ „need job“ worker worker Bambi • „simple Elk“ based on Tomcat • Queue Handling • Device Simulation • Message + Subscription handling • Push and Pull workflows • Simulators can pull jobsfor load balancing

  11. Bambi Properties • JMF Queue • HTTP • Hot Folder • MIME • JMF Signal Handling • Device Simulation • Manual • Scripted Phases • Device Proxy • JDF Visualization

  12. Bambi

  13. Legal • Code is open source • Free for non-commercial use • Free for in-house use • Usage in commercial products that are for sale  only for Full and Partner members

  14. Links • Downloads http://www.cip4.org/open_source/index.html • Public Wiki http://www.cip4.org/publicwiki • Subversion http://cip4srv2.igd.fhg.de/svnroot/ • Bugtracker Jira http://www.cip4.org/jira/secure/Dashboard.jspa
