  1. CRYPTOGRAPHY Gayathri V.R. Kunapuli

  2. OUTLINE • History of Cryptography • Need for cryptography • Private Key Cryptosystems • Public Key Cryptosystems • Comparison between Public and Private Key Cryptosystems • PEM • Future Work

  3. History of Cryptography[2] • Ceaser Ciphers • Transposition Cipher • Substitution Cipher • Vigene`re Cipher • Enigma Machine

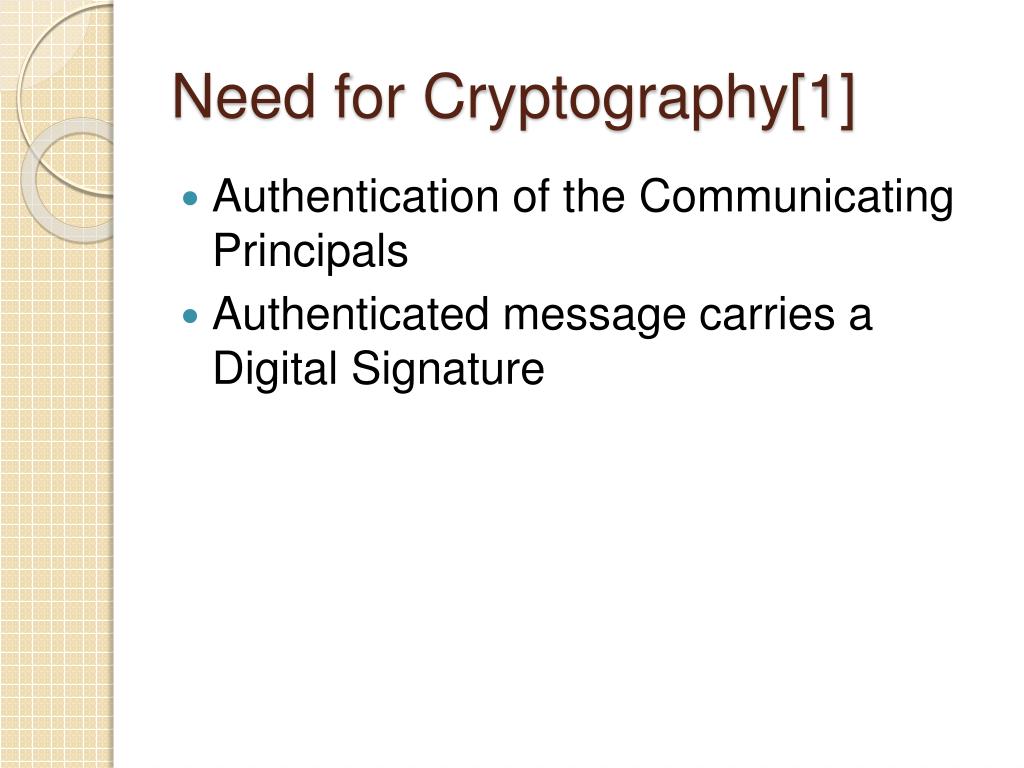

  4. Need for Cryptography[1] • Authentication of the Communicating Principals • Authenticated message carries a Digital Signature

  5. Private Key Cryptosystems[1,2] • Also called Symmetric Cryptography • Encryption algorithm E turns plain text message M into a cipher text C • C=E(M) • Decrypt C by using decryption algorithm D which is an inverse function of E • M=D(C)

  6. Private Key Cryptosystems cont[1,2] • Algorithm decomposed into Function(public) and Key(secret) • Encrypted using the key Ke and decrypted using the key Kd M=DKd(EKe(M)) • A function and a variable number of keys constitute a class of algorithms indexed by the keys.

  7. Cont… • The encryption function is -One-to-one injective mapping -One way function • The secrecy rests on the keys rather than on algorithms. • The key should be of sufficient length in bits.

  8. DES(Jan,1977)[1,2] • Encryption consists of 3 stages of Transposition and 16 stages of Substitution of bits. • Easy to implement on VLSI • The 56-bit length key was found insufficient and easy to break • Repetitions in cipher text give clues to eavesdroppers • Spurious data can be injected

  9. Contd… • Private Key systems require [n*(n-1)]/2 keys for ‘n’ principals in a system • The conversation key must be agreed upon beforehand • Management of the keys is a function of the Key Distribution Server(KDS)

  10. Public Key Cryptographic Systems(Need)[1] • Also called as the Asymmetric Cryptography • To avoid the need to transmit secret keys and • To reduce the key requirement to 2n, the public key systems are used

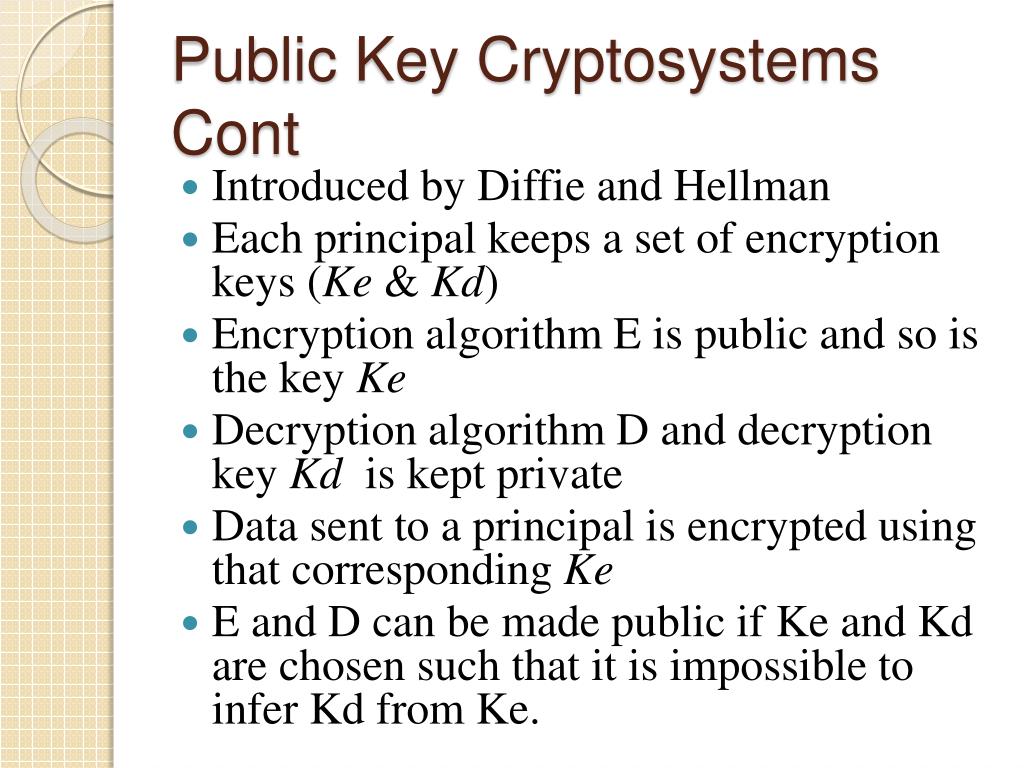

  11. Public Key Cryptosystems Cont • Introduced by Diffie and Hellman • Each principal keeps a set of encryption keys (Ke & Kd) • Encryption algorithm E is public and so is the key Ke • Decryption algorithm D and decryption key Kd is kept private • Data sent to a principal is encrypted using that corresponding Ke • E and D can be made public if Ke and Kd are chosen such that it is impossible to infer Kd from Ke.

  12. RSA(Aug,1977)[1,2,5] • The algorithms E and D are inverses • Plain text messages are limited to a size is limited to ‘k’ • Integer k is chosen such that 2k < N • N =p * q where p & q are LARGE prime numbers • Kp (public encyrption key) and Ks (private decryption key) are derived from p & q

  13. Contd • The robustness of RSA algorithm relies on the computational complexity in factoring a large number upon which the keys are based. • The authenticity of the sender can also be verified.

  14. Comparison between the cryptosystems[1] • Private Key DES is computationally efficient • Public Key RSA is computationally expensive • Possible best use is RSA for short/important data and DES for long or less critical

  15. PEM[1,5] • Provides mechanism for the mail users to specify the cryptographic algorithm and parameters to be used for mail messages. • Essential data fields in PEM are • DEK • IK • MIC

  16. Extended Works[4] • To prevent the Denial-of-Decryption • To reduce the time taken for the authentication of the digital signatures • Self Generated Certificate Public Key Cryptography

  17. References • 1. Chow, Randy; Johnson, Theodore; Distributed Operating Systems & Algorithms, 1998 • 2. Aiden A.Bruen,MarioA.Forcinito; Cryptography, Information theory and Error-correction,2005 • 3.www.wikipedia.org/history of cryptography • 4. Self generated certificate public key cryptography and certificateless signature/Encryption scheme in the standard model ASIACCS’07, March 20-22, 2007, Singapore. • 5.http://www.cybercrimes.net/Cryptography/Articles/Hebert.html (April 2007)
