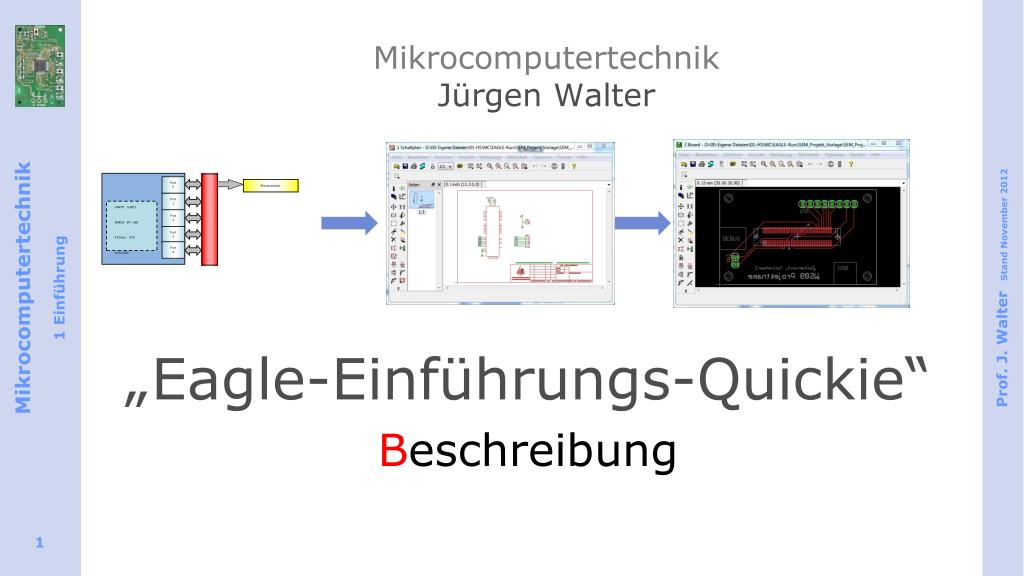

  1. Port 0 Pfostenstecker Port 1 UART0 UART1 SMBUS SPI USB 4 Timers PCA 10-bit ADC Port 2 Port 3 Port 4 MikrocomputertechnikJürgen Walter „Eagle-Einführungs-Quickie“ Beschreibung

  2. Lernziele: • Installation von www.cadsoft.de • Prinzipielle Vorgehensweise zur Erstellung einer Leiterplatte • Informationen • Arbeitsfähiges Entflechtungsprogramm

  3. Voraussetzungen • Ausdruck Schaltplan VC_2_Z2 • Dateien: EAGLE_KURS_FUER_STUDIERENDE

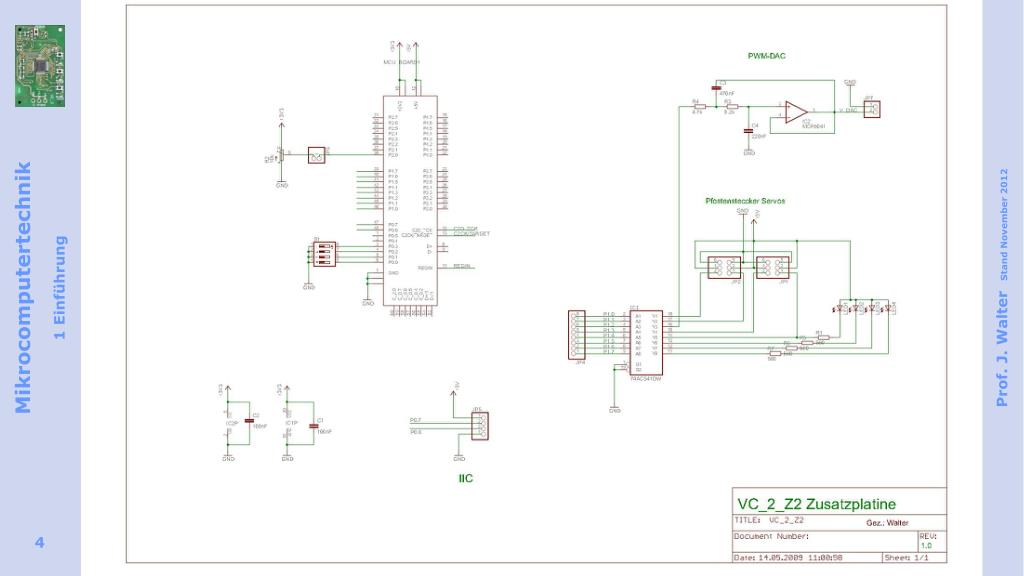

  4. VC_2_Z2

  5. Eagle installieren • DateienEagleInstallationsQuickie laden • Eagle########.exe ausführen • Eagle Verzeichnis für Projekte anlegen (Daten D:\) • SEM_Vorlage_Projekt.sch • Aufrufen: SEM_Vorlage_Projekt.sch • *.sch Suffix-mit Eagle verbinden

  6. Erste Schritte • Move Gruppe, Move • add / net • Anschluss Pfostenstecker – (PINHEAD) • Anschluss Treiber – SN74HCT541DW – (74xx-eu) • Anschluss LEDs (LED-LED-LEDCHIPLED_1206) • Widerstände (RCL-R-EU_R1206) • Anschluss DIP-Switches (switch-dil-DIP04YL) • Power GND, +3V3, +5V • Versorgungspins IC 541 (invoke) + Blockkondensator Bibliothek rcl-EU-C 1206

  7. Dateien

  8. Übung: VC_2_Z2 • Alle Jumper • Alles: PWM-DAC (1206) + JP7 • Blockkondensatoren C1,C2 für IC1,IC2 • LEDs + R • Potentiometer

  9. Eagle-Footprint von Farnell • Web-Konto eröffnen • Bauteil laden • Anleitung befolgen

  10. Anleitung: Import von Farnell • To import your new library into EAGLE: • 1. Start EAGLE. • 2. Select File -> New -> Library from the menu. • 3. In the blank library window, select File -> Script from the menu. • 4. Select the EDIT tab. • 5. Browse to the correct EAGLE Script file (".scr" file extension) in the file "Open" window. • 6. After opening the file, the script will populate the new library. • 7. Use File -> Save (or Save As..) to save the library to the desired location in EAGLE native format.

  11. Linkliste für Handbuch/Lehrvideos • http://www.element14.com/community/videos/3212/l/EAGLE-RECORDED-WEBINAR:-Grundlagen-(German) • http://www.cadsoft.de/wp-content/uploads/2011/05/V6_tutorial_de.pdf

  12. Quickies – schnell und intensiv lernen • Ziel erreicht!
