  1. Fluid analyses procedure Radiation Protection and Chemical Analyses for Detector Cooling Stations Presentation done by Elena Perez Rodriguez For further information contact elena.perez.rodriguez@cern.ch EN/CV/DC

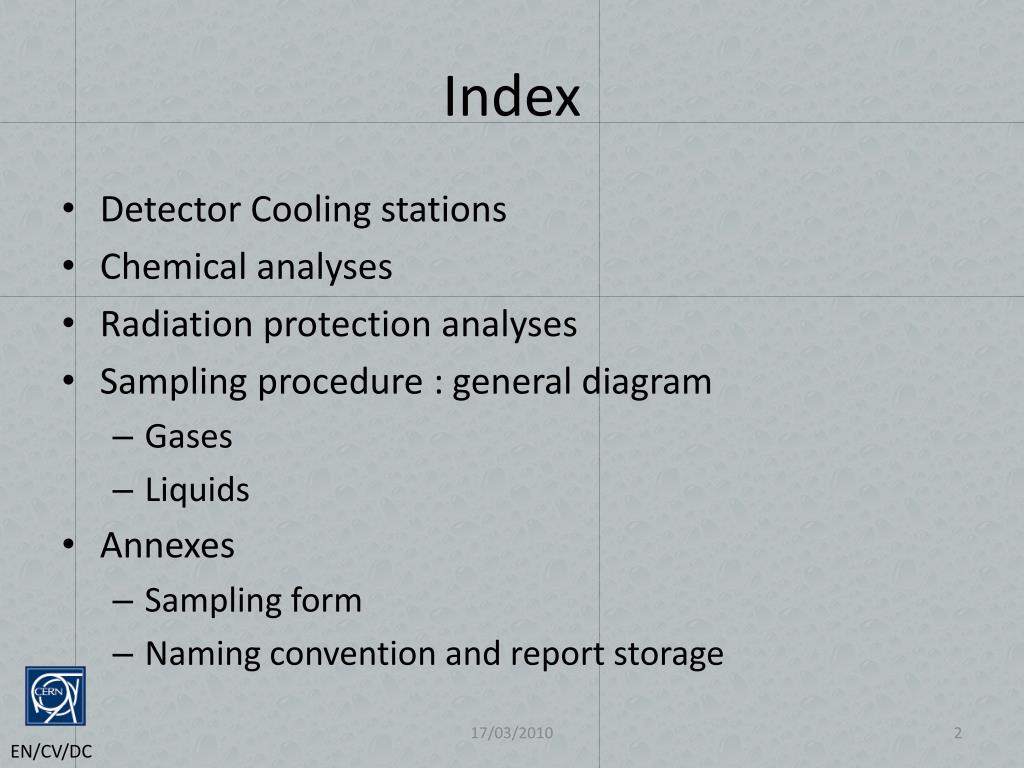

  2. Index • Detector Cooling stations • Chemical analyses • Radiation protection analyses • Sampling procedure : general diagram • Gases • Liquids • Annexes • Sampling form • Naming convention and report storage 17/03/2010 EN/CV/DC

  3. Detector Cooling stations Chemical analyses Radiation Protection analyses 17/03/2010 EN/CV/DC

  4. Chemical Analyses • Regular analyses • To monitor the chemical quality of the fluid. • Requested by the experiment. • Fluorocarbon analyses • Organic Purity • Other perfluorocarbons • H containing molecules or grease • Acidity • Prepolimers • H2O 17/03/2010 EN/CV/DC

  5. Radiation Protection Analyses • Regular analyses • To monitor the activation of the fluid • Corrective maintenance • For safety reasons in a non-planned intervention • Estimated time for the analyses: 2 hours (not during nights) • Authorization e-mail with analyses result will be sent to Detector Cooling mailing list Working hours 75252 Non - working hours 74848 17/03/2010 EN/CV/DC

  6. Sampling procedure: general diagram 17/03/2010 EN/CV/DC

  7. C He A B Primary Pump Sampling Bottle in oven at 110 ºC Sampling procedure: gases • One stainless steel bottle for both analyses • The bottle will be reused cleaning • Sampling schema 17/03/2010 EN/CV/DC

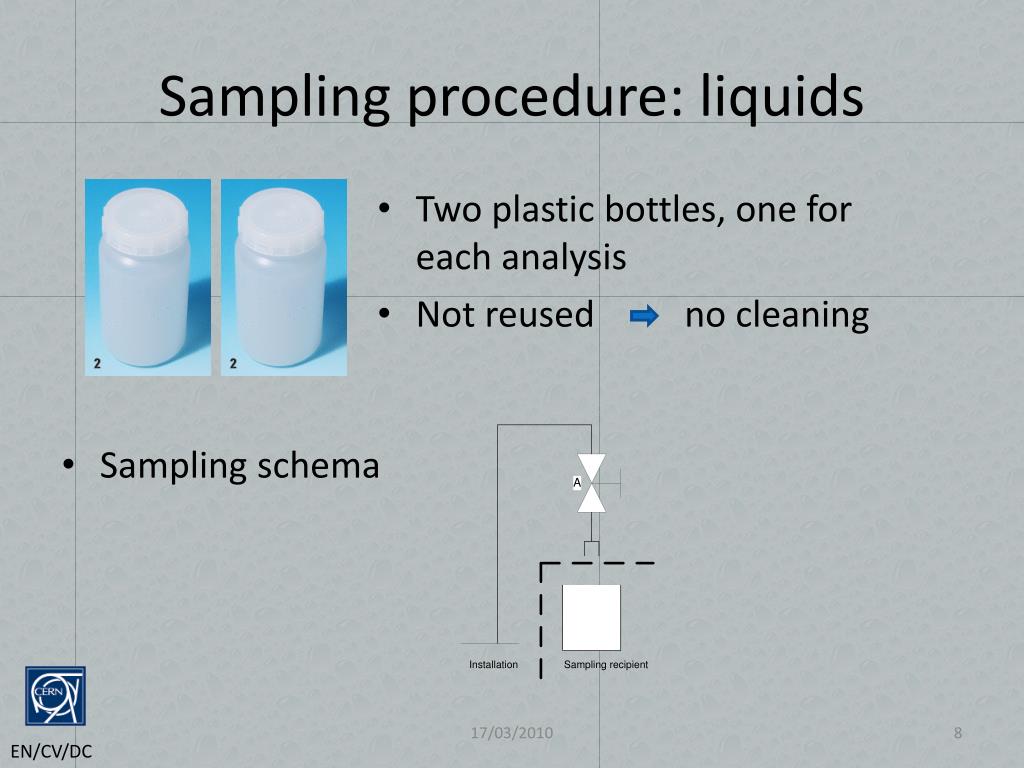

  8. Sampling procedure: liquids • Two plastic bottles, one for each analysis • Not reused no cleaning • Sampling schema 17/03/2010 EN/CV/DC

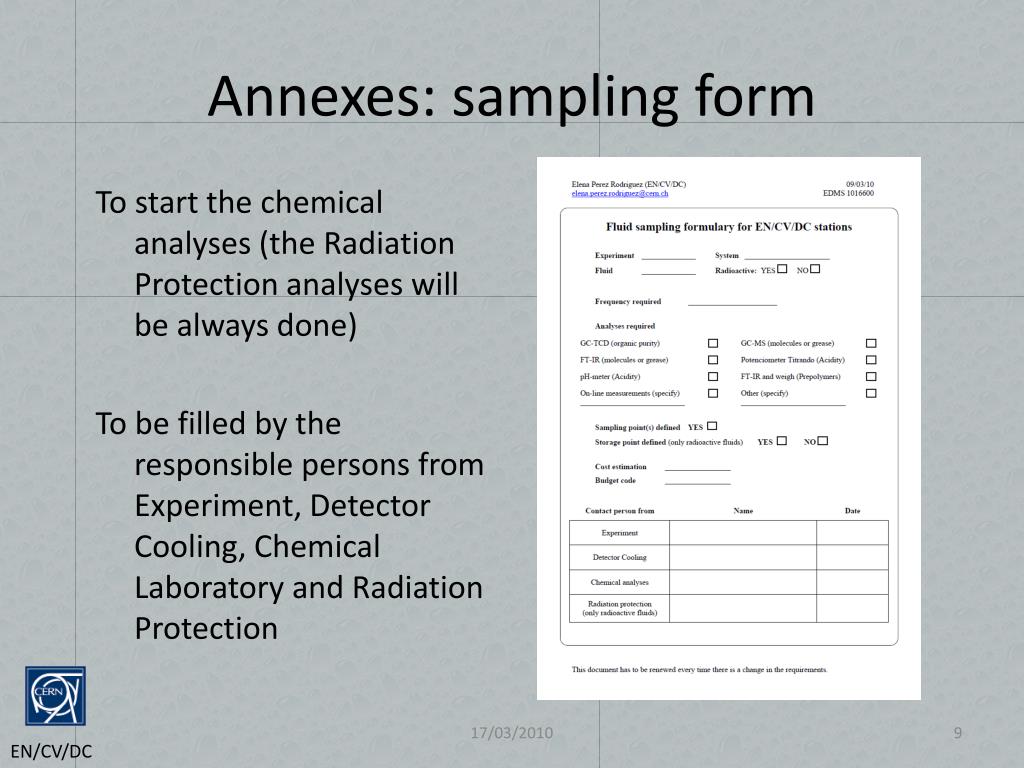

  9. Annexes: sampling form To start the chemical analyses (the Radiation Protection analyses will be always done) To be filled by the responsible persons from Experiment, Detector Cooling, Chemical Laboratory and Radiation Protection 17/03/2010 EN/CV/DC

  10. Annexes: naming convention and report storage • Reports storage • In EDMS folder 0000078435 • In Radiation Protection web page • Naming convention • For bottles • For reports DCG202 Detector Cooling G = PFC Gas L= PFC Liquid W= Water Point 2 Bottle 02 YYYYMMDD_FCUE-0002_CH Date Maintenance code for the station CH = Chemical RP = Radiation Protection 17/03/2010 EN/CV/DC

  11. Thank you for your attention Any questions ? 17/03/2010 EN/CV/DC
