Presentation Transcript

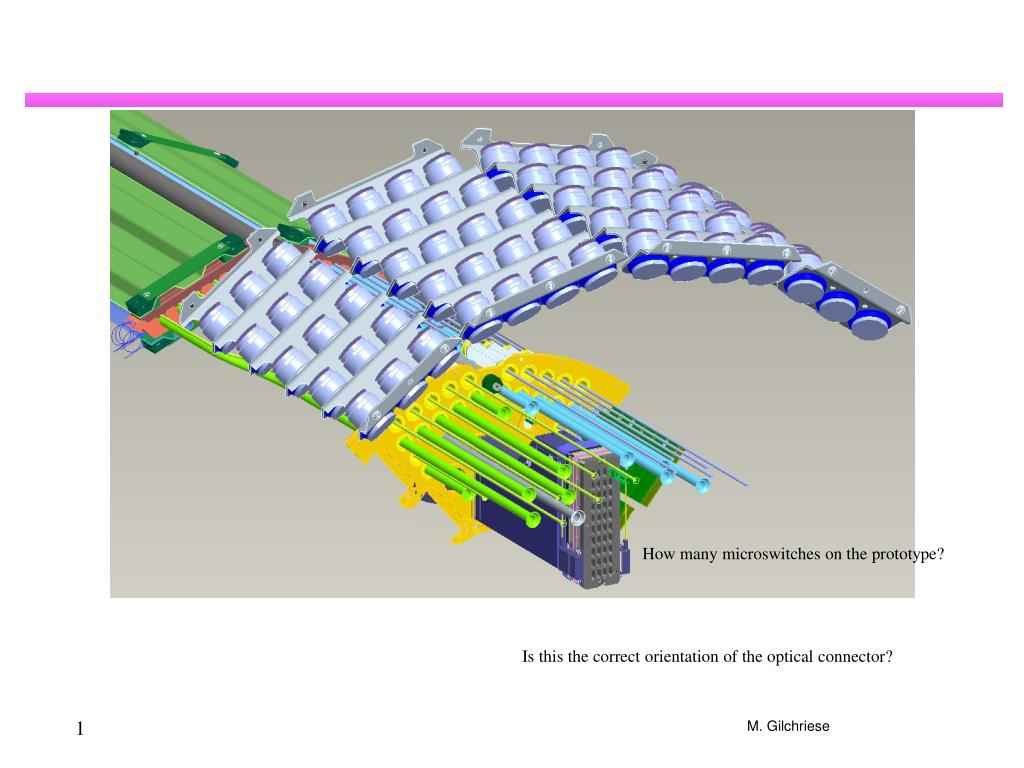

  1. How many microswitches on the prototype? Is this the correct orientation of the optical connector?

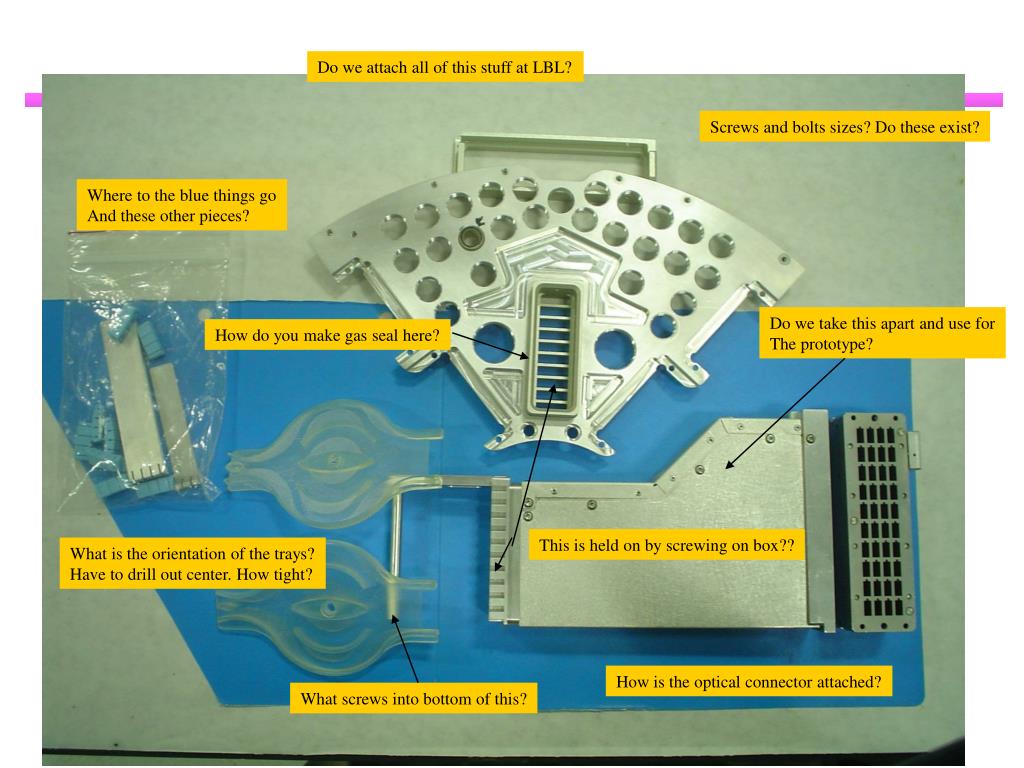

  2. Do we attach all of this stuff at LBL? Screws and bolts sizes? Do these exist? Where to the blue things go And these other pieces? Do we take this apart and use for The prototype? How do you make gas seal here? This is held on by screwing on box?? What is the orientation of the trays? Have to drill out center. How tight? How is the optical connector attached? What screws into bottom of this?

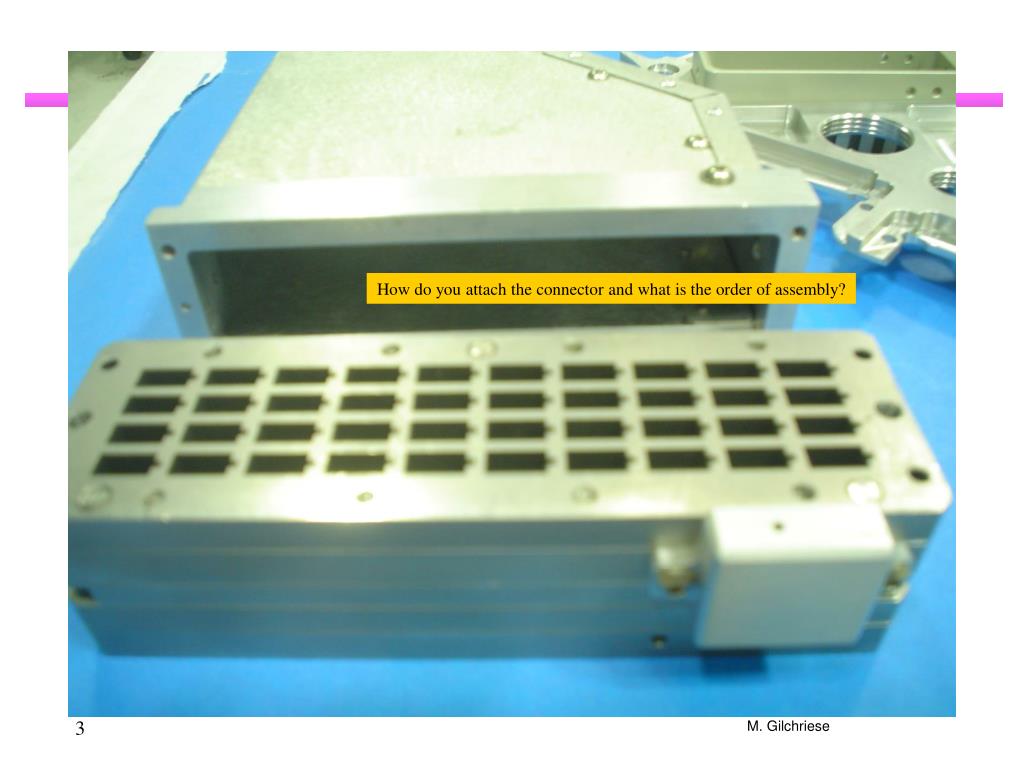

  3. How do you attach the connector and what is the order of assembly?
