  1. Win44 Model 44 software for Windows XP Windows Vista Windows 7

  2. Win44 The best software your hardware ever met. © 2012, Orchid Software, Inc., All Rights Reserved

  3. Fully supported environment • Win44 is supported by Orchid Software, Inc. • Windows is supported by Microsoft, Inc. • Web updates available from both. • Compatible with the latest generation of PC hardware. • PCI based M44 to PC interface • Runs under Windows XP, Windows Vista, or Windows 7 • 32 bit editions only. Advantages © 2012, Orchid Software, Inc., All Rights Reserved

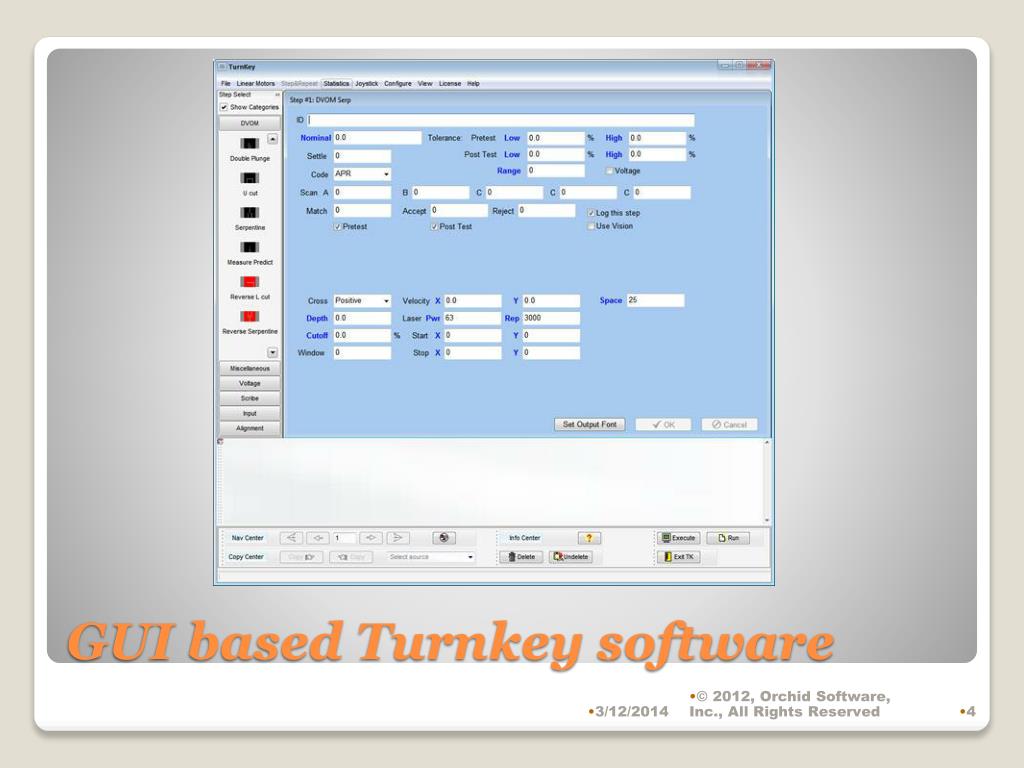

  4. GUI based Turnkey software © 2012, Orchid Software, Inc., All Rights Reserved

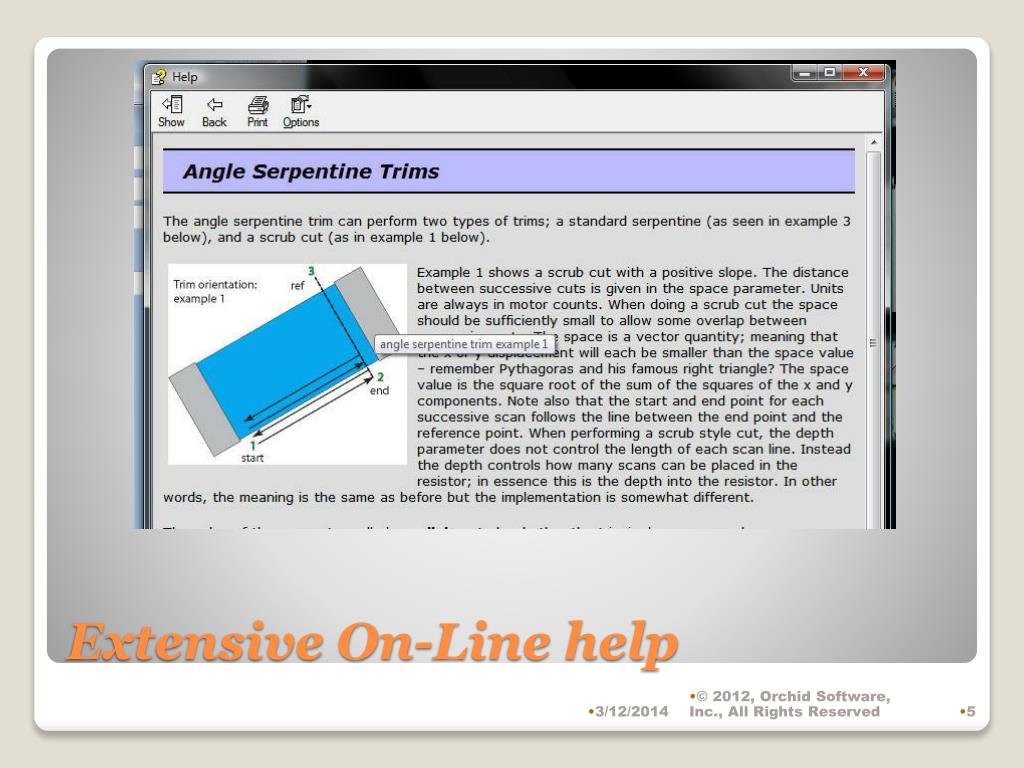

  5. Extensive On-Line help © 2012, Orchid Software, Inc., All Rights Reserved

  6. More function step types than DOS or RT11 based software • Math function steps • Double plunge trims • 1D barcodes – code 128 and code 39 • 2D DataMatrix barcode • Pattern recognition for x-y alignment • Angular trims • many more; in fact there are more than 80 function types available in this program Turnkey Software highlights © 2012, Orchid Software, Inc., All Rights Reserved

  7. 1D Barcode step © 2012, Orchid Software, Inc., All Rights Reserved

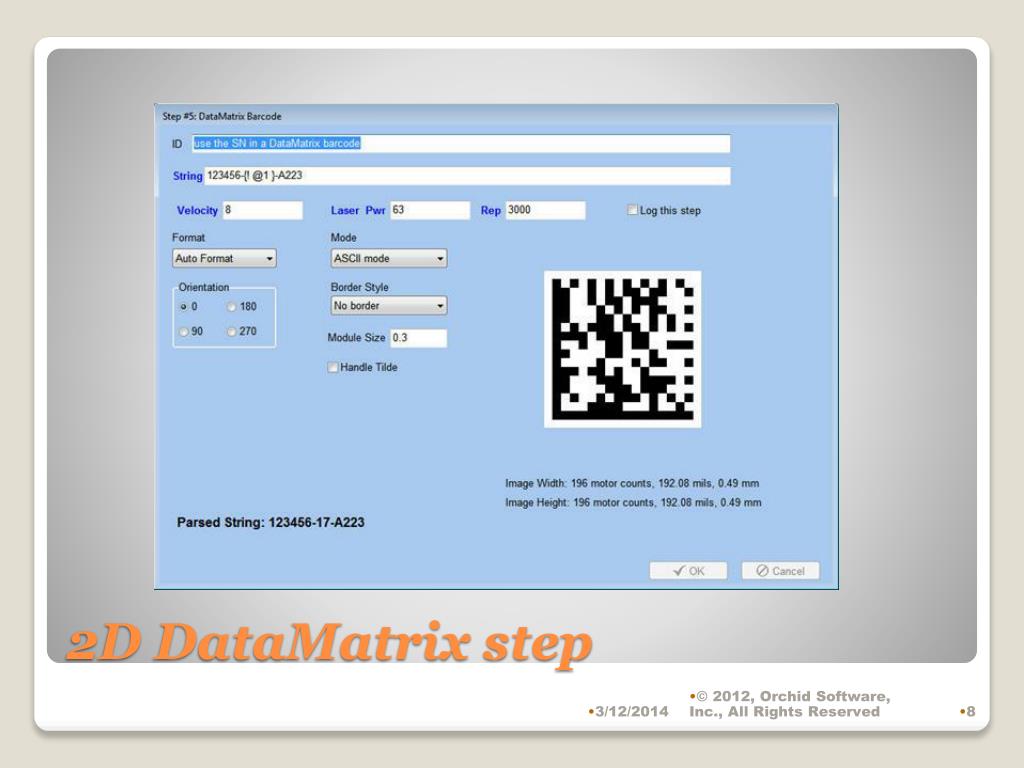

  8. 2D DataMatrix step © 2012, Orchid Software, Inc., All Rights Reserved

  9. BMP image scriber step © 2012, Orchid Software, Inc., All Rights Reserved

  10. The Windows TK offers an optional GPIB version. • Use GPIB instrumentation for trimming and testing • Power supply control steps, relay control steps, and math functions are all part of the standard equipment GPIB Support © 2012, Orchid Software, Inc., All Rights Reserved

  11. If you write your own software your sources are very highly compatible. • The Win44 library is nearly 100% compatible with the DOS and RT11 support libraries. • Converting source software is straightforward. • Converting from RT11 sources is just about as easy. • Supported compilers • BDS 2006 • Embarcadero Delphi 2010 • Embarcadero Delphi XE • Embarcadero Delphi XE2 Do it yourself © 2012, Orchid Software, Inc., All Rights Reserved

  12. Besides creating your own programs you can include custom code in turnkey! • Call code from external BPL libraries • Call external EXE files – pass data to the external EXE and receive data back as well. Now you can write your own code and use it from within the turnkey program. The turnkey program itself becomes a tool for you to use as a base program that you can incorporate your own software within – all without the need for any of the turnkey source code. Do it yourself © 2012, Orchid Software, Inc., All Rights Reserved

  13. If you have any questions about the software, please contact Orchid Software, Inc.541.597.4943 • For quotations and ordering information, please contact VjE Enterprises, Inc.503.829.2782 Contact us © 2012, Orchid Software, Inc., All Rights Reserved
