Parallax Multi-core Propeller. Mech 208. Patrick James Sean Screws. Multi-core Propeller. Can be used for a wide array of functions Typically programmed using “Spin” or C Great for high-speed processing due to the multi-core architecture

yates
Télécharger la présentation

Parallax Multi-core Propeller

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

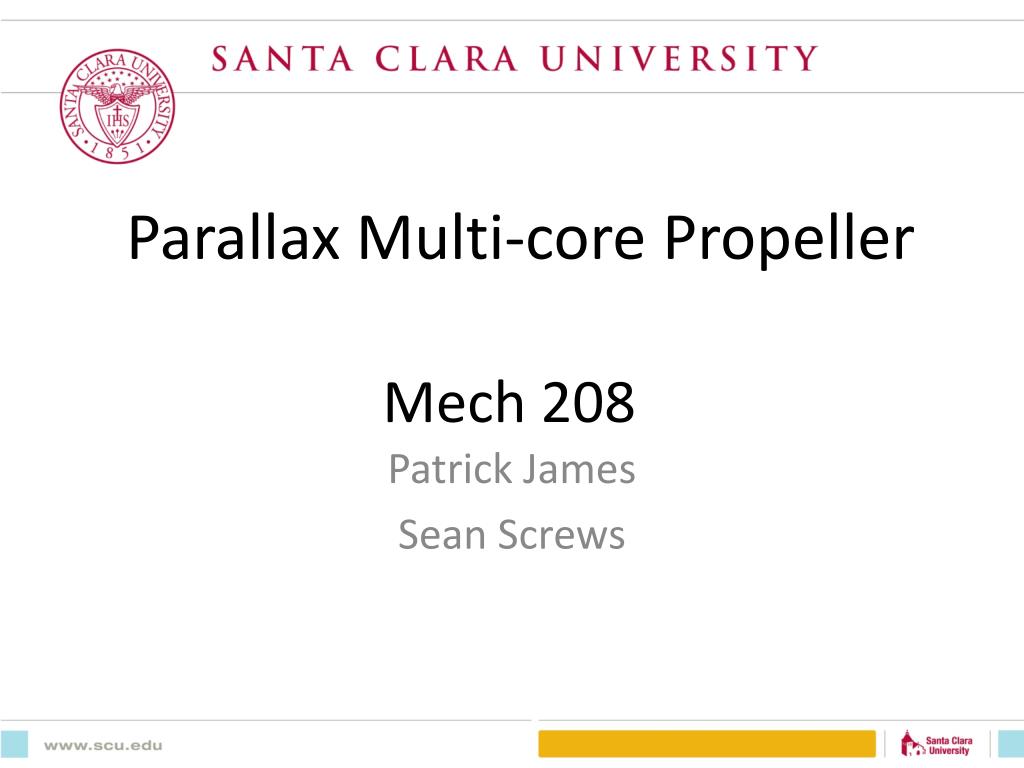

  1. Parallax Multi-core Propeller Mech 208 Patrick James Sean Screws

  2. Multi-core Propeller • Can be used for a wide array of functions • Typically programmed using “Spin” or C • Great for high-speed processing due to the multi-core architecture • All inputs identical to each core, so no need of switching / multiplexing

  3. Multi-core Propeller • Model Number: P8X32A • Processors (cogs): Eight • Architecture: 32-bits • System Clock Speed: DC to 80 MHz • Global RAM/ROM: 64 K bytes; 32 K RAM / 32 K ROM • Cog RAM: 512 x 32 bits each • I/O Pins: 32 (simultaneously addressable by all eight cogs) • Current Source/Sink per I/O: 40 mA • Clock Modes: (a) External crystal 4-8 MHz (16 x PLL) (b) Internal oscillator ~12 MHz or ~20 kHz (c) Direct drive

  4. Multi-core Propeller • 8 individual processors or “cogs” • All identical, but can be used to interact with each other or as completely separate • Contains on-board RAM for EEPROM use

  5. Implementation Tips • Relatively similar to Basic Stamp or Arduino • Can be programmed in C • Memory map is flat similar to Basic Stamp • Best product to purchase is Propeller board of education (contains built in receivers for peripheral sensors and other devices)

  6. Places to buy component • Parallax • Digikey • Jameco • Fry’s • Radio Shack • Halted
