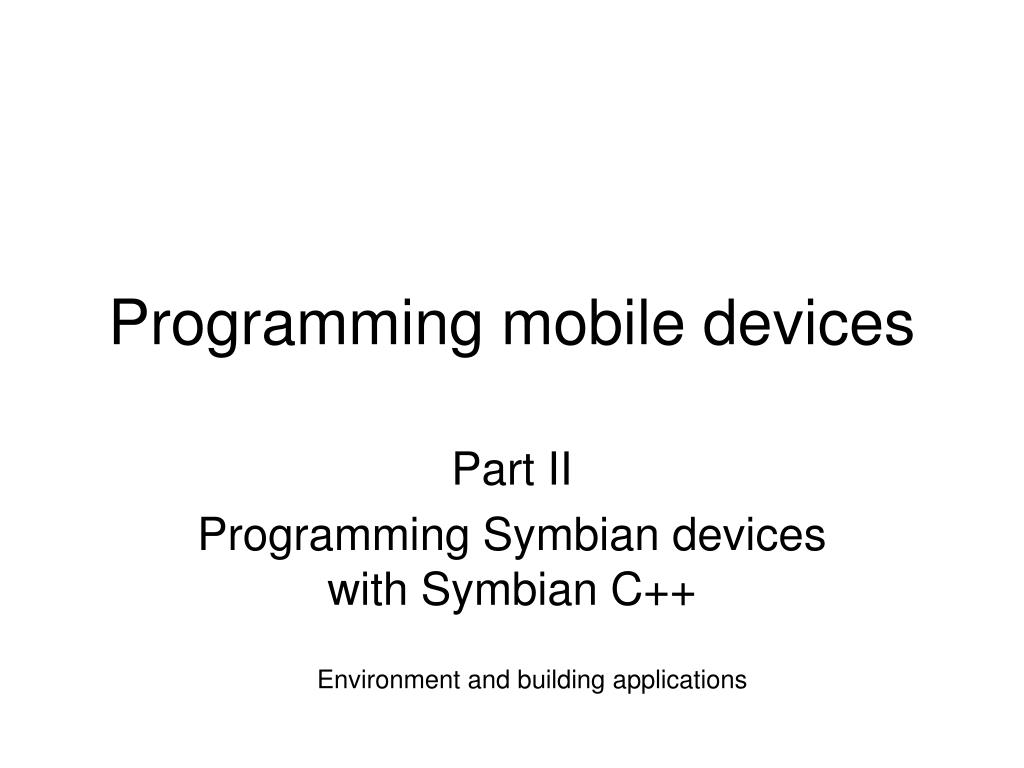

  1. Programming mobile devices Part II Programming Symbian devices with Symbian C++ Environment and building applications

  2. Content • The development environment • Tools • SDKs • IDEs • Simple example • Building and running

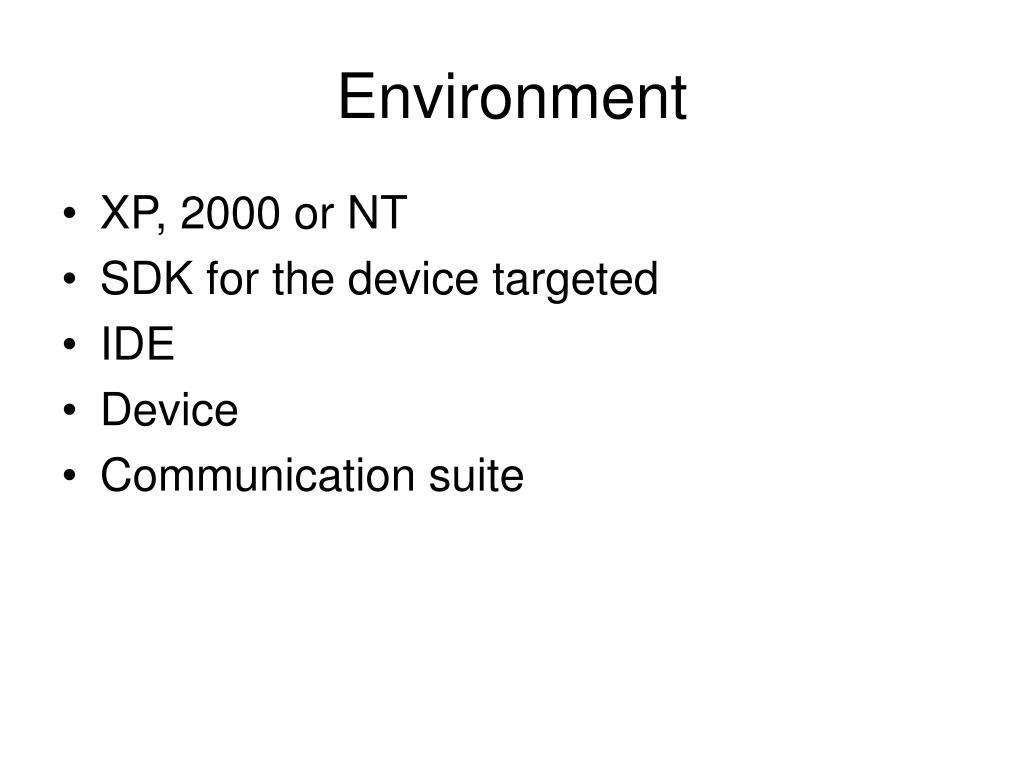

  3. Environment • XP, 2000 or NT • SDK for the device targeted • IDE • Device • Communication suite

  4. Tools • An SDK for the targeted platform • An IDE that is supported by the SDK • Communicatio between the phone and the device • Communication suite • Communication media, such as BT or USB cable

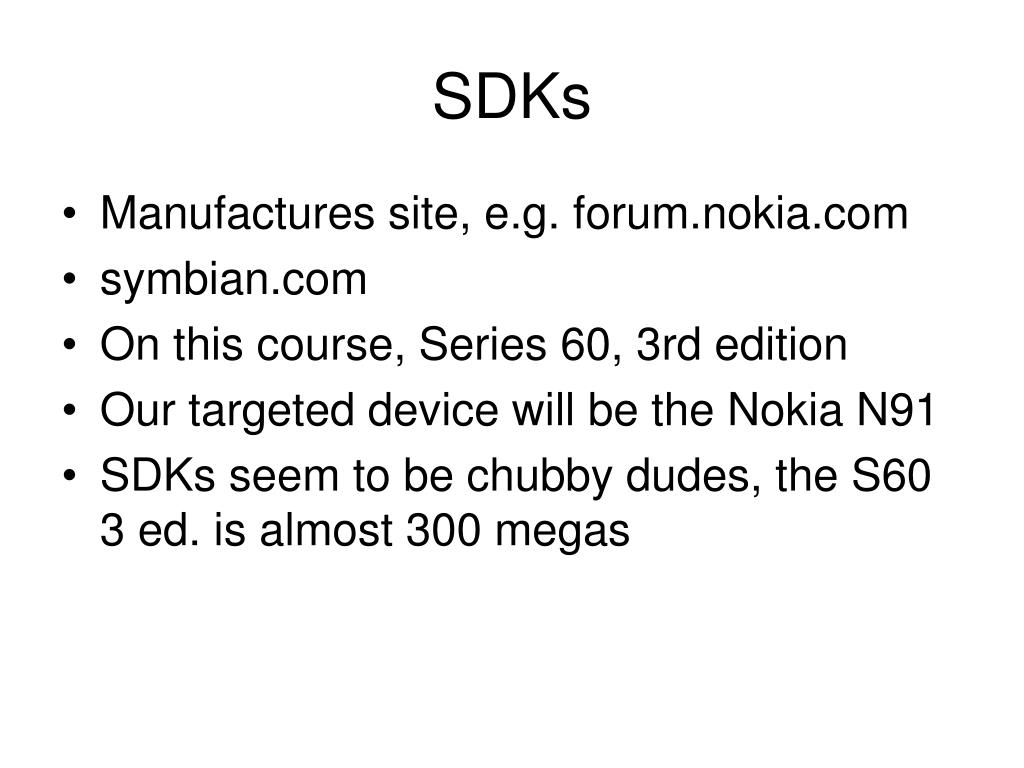

  5. SDKs • Manufactures site, e.g. forum.nokia.com • symbian.com • On this course, Series 60, 3rd edition • Our targeted device will be the Nokia N91 • SDKs seem to be chubby dudes, the S60 3 ed. is almost 300 megas

  6. IDEs • MS Visual C++ • Metrowerks Code Warrior • Borland C++ Builder • Carbide.c++

  7. Required components • The setting I created was • S60 3 edition SDK • Carbide.c++ (forum.nokia.com) • Active State Active Perl (www.activestate.com) • Testing the setup • type "devices" on the command prompt

  8. Application Components • Application View • main window • Application UI • instantiates the application view • command handler for GUI controls • Application document • non-GUI data aspects • instantiates the UI class

  9. Application Components • Application • instantiates and starts the document class

  10. Hei Maailma (Hello World) • source code files: • HeiMaailma.cpp • HeiMaailmaApplication.cpp • HeiMaailmaAppUi.cpp • HeiMaailmaAppView.cpp • HeiMaailmaDocument.cpp

  11. Building • To build from the command line: • bldmake BLDFILES • abld build wins • epoc • Building from an IDE • depends on the IDE • we will use Carbide.c++ • examples in demos

  12. Build environment • epoc32 • include (common API classes) • build (intermediate build files) • tools (scripts, exes etc. windows tools) • gcc (compiler tools) • release (executables for supported platforms) • data/z (simulated z drive of the emulator) • wins (default location for other emulator memory drives)

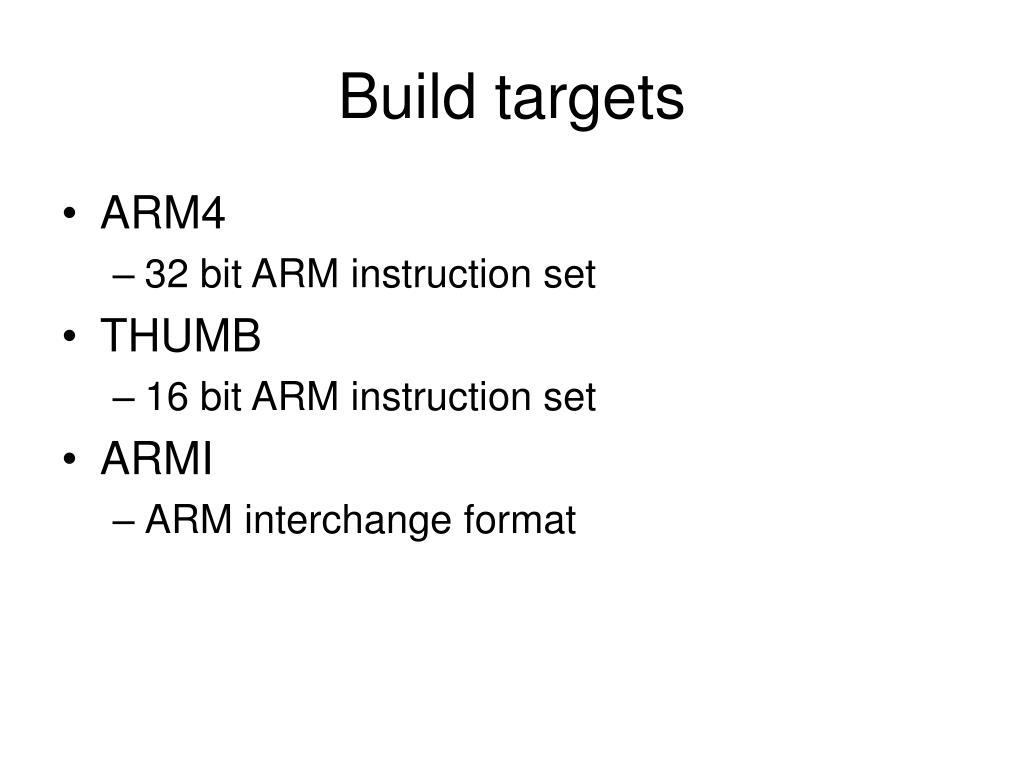

  13. Build targets • ARM4 • 32 bit ARM instruction set • THUMB • 16 bit ARM instruction set • ARMI • ARM interchange format

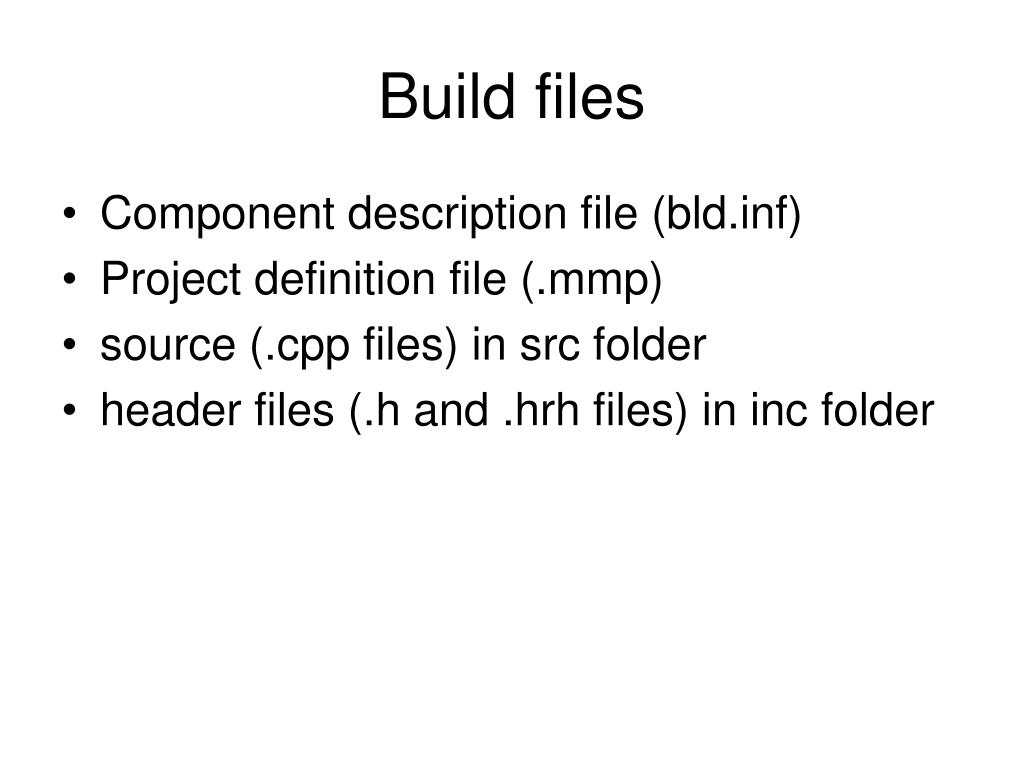

  14. Build files • Component description file (bld.inf) • Project definition file (.mmp) • source (.cpp files) in src folder • header files (.h and .hrh files) in inc folder

  15. Emulators • WINS • Microsoft • WINSC • Code Warrior • WINSB • Borland

  16. HeiMaailma.cpp // INCLUDE FILES #include <eikstart.h> #include "HeiMaailmaApplication.h" LOCAL_C CApaApplication* NewApplication() { return new CHeiMaailmaApplication; } GLDEF_C TInt E32Main() { return EikStart::RunApplication( NewApplication ); }

  17. HeiMaailmaApplication.cpp #include "HeiMaailmaDocument.h" #include "HeiMaailmaApplication.h" // ============================ MEMBER FUNCTIONS =========== // UID for the application; // this should correspond to the uid defined in the mmp file const TUid KUidHeiMaailmaApp = { 0x088C40EE }; // ----------------------------------------------------------------------------- // CHeiMaailmaApplication::CreateDocumentL() // Creates CApaDocument object // ----------------------------------------------------------------------------- // CApaDocument* CHeiMaailmaApplication::CreateDocumentL() { // Create an HeiMaailma document, and return a pointer to it return (static_cast<CApaDocument*> ( CHeiMaailmaDocument::NewL( *this ) ) ); }

  18. HeiMaailmaApplication.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaApplication::AppDllUid() // Returns application UID // ----------------------------------------------------------------------------- // TUid CHeiMaailmaApplication::AppDllUid() const { // Return the UID for the HeiMaailma application return KUidHeiMaailmaApp; } // End of File

  19. HeiMaailmaDocument.cpp // INCLUDE FILES #include "HeiMaailmaAppUi.h" #include "HeiMaailmaDocument.h" // ============================ MEMBER FUNCTIONS============ // ----------------------------------------------------------------------------- // CHeiMaailmaDocument::NewL() // Two-phased constructor. // ----------------------------------------------------------------------------- // CHeiMaailmaDocument* CHeiMaailmaDocument::NewL( CEikApplication& aApp ) { CHeiMaailmaDocument* self = NewLC( aApp ); CleanupStack::Pop( self ); return self; }

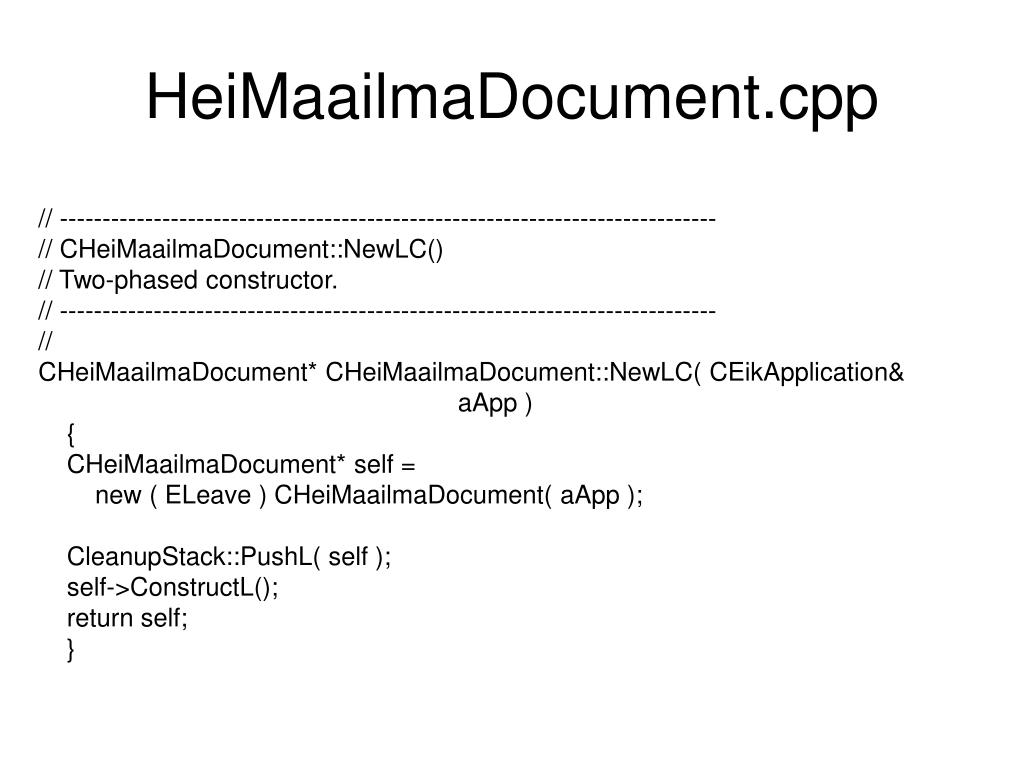

  20. HeiMaailmaDocument.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaDocument::NewLC() // Two-phased constructor. // ----------------------------------------------------------------------------- // CHeiMaailmaDocument* CHeiMaailmaDocument::NewLC( CEikApplication& aApp ) { CHeiMaailmaDocument* self = new ( ELeave ) CHeiMaailmaDocument( aApp ); CleanupStack::PushL( self ); self->ConstructL(); return self; }

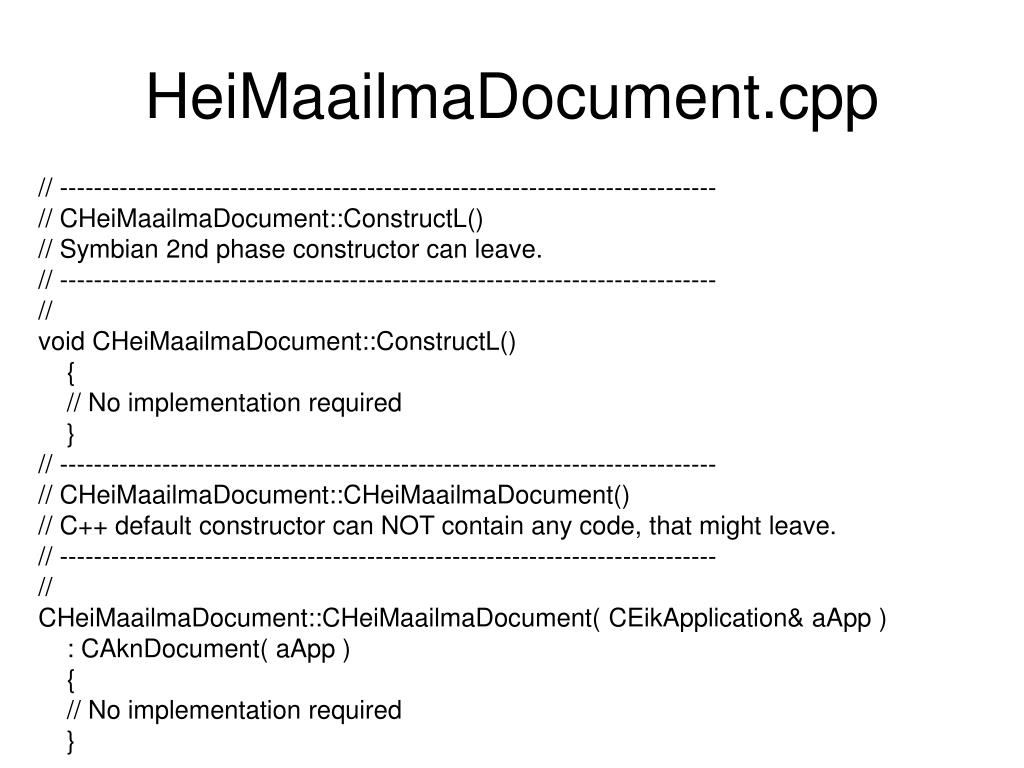

  21. HeiMaailmaDocument.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaDocument::ConstructL() // Symbian 2nd phase constructor can leave. // ----------------------------------------------------------------------------- // void CHeiMaailmaDocument::ConstructL() { // No implementation required } // ----------------------------------------------------------------------------- // CHeiMaailmaDocument::CHeiMaailmaDocument() // C++ default constructor can NOT contain any code, that might leave. // ----------------------------------------------------------------------------- // CHeiMaailmaDocument::CHeiMaailmaDocument( CEikApplication& aApp ) : CAknDocument( aApp ) { // No implementation required }

  22. HeiMaailmaDocument.cpp // CHeiMaailmaDocument::~CHeiMaailmaDocument() Destructor. // --------------------------------------------------------------------------- // CHeiMaailmaDocument::~CHeiMaailmaDocument() { // No implementation required } // CHeiMaailmaDocument::CreateAppUiL() // Constructs CreateAppUi. // --------------------------------------------------------------------------- // CEikAppUi* CHeiMaailmaDocument::CreateAppUiL() { // Create the application user interface, and return a pointer to it; // the framework takes ownership of this object return ( static_cast <CEikAppUi*> ( new ( ELeave ) CHeiMaailmaAppUi ) ); }

  23. HeiMaailmaDocument.cpp // CHeiMaailmaDocument::~CHeiMaailmaDocument() Destructor. // --------------------------------------------------------------------------- // CHeiMaailmaDocument::~CHeiMaailmaDocument() { // No implementation required } // CHeiMaailmaDocument::CreateAppUiL() // Constructs CreateAppUi. // --------------------------------------------------------------------------- // CEikAppUi* CHeiMaailmaDocument::CreateAppUiL() { // Create the application user interface, and return a pointer to it; // the framework takes ownership of this object return ( static_cast <CEikAppUi*> ( new ( ELeave ) CHeiMaailmaAppUi ) ); }

  24. HeiMaailmaAppUi.cpp // INCLUDE FILES #include <avkon.hrh> #include <aknnotewrappers.h> #include <stringloader.h> #include <HeiMaailma.rsg> #include <f32file.h> #include <s32file.h> #include "HeiMaailma.pan" #include "HeiMaailmaAppUi.h" #include "HeiMaailmaAppView.h" #include "HeiMaailma.hrh" _LIT( KFileName, "C:\\private\\088C40EE\\HeiMaailma.txt" ); _LIT( KText, "Hei Maailma!");

  25. HeiMaailmaAppUi.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaAppUi::ConstructL() // Symbian 2nd phase constructor can leave. // ----------------------------------------------------------------------------- // void CHeiMaailmaAppUi::ConstructL() { // Initialise app UI with standard value. BaseConstructL(); // Create view object iAppView = CHeiMaailmaAppView::NewL( ClientRect() ); // Create a file to write the text to RFs fsSession; User::LeaveIfError(fsSession.Connect()); CleanupClosePushL( fsSession );

  26. HeiMaailmaAppUi.cpp TInt err = fsSession.MkDirAll(KFileName); if ( KErrNone != err ) { CleanupStack::PopAndDestroy(1); // fsSession return; } RFile file; err = file.Replace(fsSession, KFileName, EFileWrite ); CleanupClosePushL( file ); if ( KErrNone != err ) { CleanupStack::PopAndDestroy(2); // file, fsSession return; } RFileWriteStream outputFileStream( file ); CleanupClosePushL( outputFileStream ); outputFileStream << KText; CleanupStack::PopAndDestroy(3); // outputFileStream, file, fsSession }

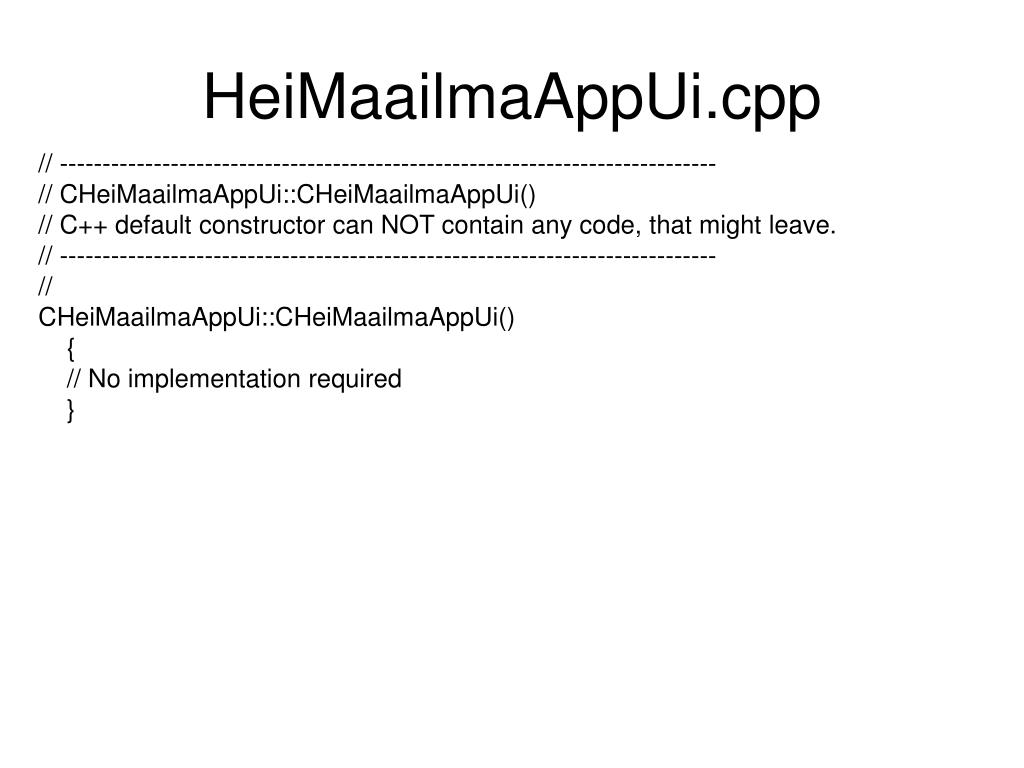

  27. HeiMaailmaAppUi.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaAppUi::CHeiMaailmaAppUi() // C++ default constructor can NOT contain any code, that might leave. // ----------------------------------------------------------------------------- // CHeiMaailmaAppUi::CHeiMaailmaAppUi() { // No implementation required }

  28. HeiMaailmaAppUi.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaAppUi::~CHeiMaailmaAppUi() // Destructor. // ----------------------------------------------------------------------------- // CHeiMaailmaAppUi::~CHeiMaailmaAppUi() { if ( iAppView ) { delete iAppView; iAppView = NULL; } }

  29. HeiMaailmaAppUi.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaAppUi::HandleCommandL() // Takes care of command handling. // ----------------------------------------------------------------------------- // void CHeiMaailmaAppUi::HandleCommandL( TInt aCommand ) { switch( aCommand ) { case EEikCmdExit: case EAknSoftkeyExit: Exit(); break; case ECommand1: { // Load a string from the resource file and display it HBufC* textResource = StringLoader::LoadLC( R_COMMAND1_TEXT ); CAknInformationNote* informationNote;

  30. HeiMaailmaAppUi.cpp informationNote = new ( ELeave ) CAknInformationNote; // Show the information Note with // textResource loaded with StringLoader. informationNote->ExecuteLD( *textResource); // Pop HBuf from CleanUpStack and Destroy it. CleanupStack::PopAndDestroy( textResource ); } break; case ECommand2: { RFs fsSession; RFile rFile; // Connects a client process to the fileserver User::LeaveIfError(fsSession.Connect()); CleanupClosePushL(fsSession);

  31. HeiMaailmaAppUi.cpp //Open file where the stream text is User::LeaveIfError(rFile.Open(fsSession,KFileName, EFileStreamText));//EFileShareReadersOnly));// EFileStreamText)); CleanupClosePushL(rFile); // copy stream from file to RFileStream object RFileReadStream inputFileStream(rFile); CleanupClosePushL(inputFileStream); // HBufC descriptor is created from the RFileStream object. HBufC* fileData = HBufC::NewLC(inputFileStream, 32); CAknInformationNote* informationNote; informationNote = new ( ELeave ) CAknInformationNote; // Show the information Note informationNote->ExecuteLD( *fileData);

  32. HeiMaailmaAppUi.cpp // Pop loaded resources from the cleanup stack CleanupStack::PopAndDestroy(4); // filedata, inputFileStream, rFile, fsSession fsSession.Close(); } break; default: Panic( EHeiMaailmaUi ); break; } }

  33. HeiMaailmaAppUi.cpp // ----------------------------------------------------------------------------- // Called by the framework when the application status pane // size is changed. Passes the new client rectangle to the // AppView // ----------------------------------------------------------------------------- // void CHeiMaailmaAppUi::HandleStatusPaneSizeChange() { iAppView->SetRect( ClientRect() ); } // End of File

  34. HeiMaailmaAppView.cpp // INCLUDE FILES #include <coemain.h> #include "HeiMaailmaAppView.h" // ============================ MEMBER FUNCTIONS=========== // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::NewL() // Two-phased constructor. // ----------------------------------------------------------------------------- // CHeiMaailmaAppView* CHeiMaailmaAppView::NewL( const TRect& aRect ) { CHeiMaailmaAppView* self = CHeiMaailmaAppView::NewLC( aRect ); CleanupStack::Pop( self ); return self; }

  35. HeiMaailmaAppView.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::NewLC() // Two-phased constructor. // ----------------------------------------------------------------------------- // CHeiMaailmaAppView* CHeiMaailmaAppView::NewLC( const TRect& aRect ) { CHeiMaailmaAppView* self = new ( ELeave ) CHeiMaailmaAppView; CleanupStack::PushL( self ); self->ConstructL( aRect ); return self; }

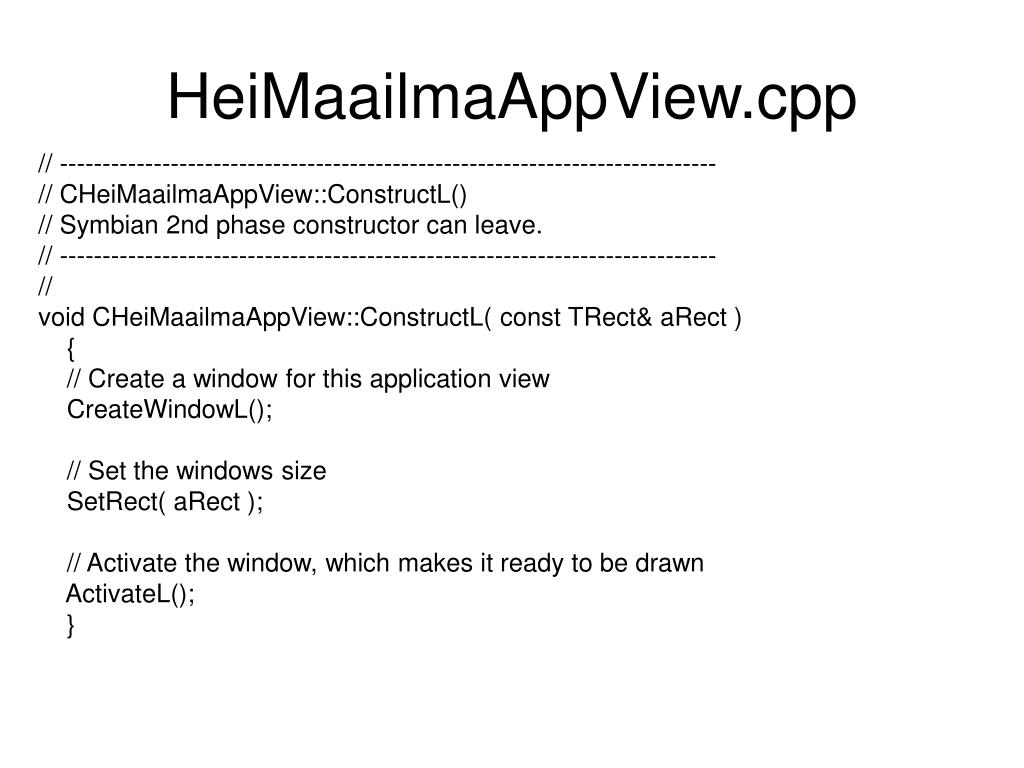

  36. HeiMaailmaAppView.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::ConstructL() // Symbian 2nd phase constructor can leave. // ----------------------------------------------------------------------------- // void CHeiMaailmaAppView::ConstructL( const TRect& aRect ) { // Create a window for this application view CreateWindowL(); // Set the windows size SetRect( aRect ); // Activate the window, which makes it ready to be drawn ActivateL(); }

  37. HeiMaailmaAppView.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::CHeiMaailmaAppView() // C++ default constructor can NOT contain any code, that might leave. // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::CHeiMaailmaAppView() { // No implementation required } // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::~CHeiMaailmaAppView() // Destructor. // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::~CHeiMaailmaAppView() { // No implementation required }

  38. HeiMaailmaAppView.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::CHeiMaailmaAppView() // C++ default constructor can NOT contain any code, that might leave. // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::CHeiMaailmaAppView() { // No implementation required } // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::~CHeiMaailmaAppView() // Destructor. // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::~CHeiMaailmaAppView() { // No implementation required }

  39. HeiMaailmaAppView.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::Draw() // Draws the display. // ----------------------------------------------------------------------------- // void CHeiMaailmaAppView::Draw( const TRect& /*aRect*/ ) const { // Get the standard graphics context CWindowGc& gc = SystemGc(); // Gets the control's extent TRect drawRect( Rect()); // Clears the screen gc.Clear( drawRect ); }

  40. HeiMaailmaAppView.cpp // ----------------------------------------------------------------------------- // CHeiMaailmaAppView::SizeChanged() // Called by framework when the view size is changed. // ----------------------------------------------------------------------------- // void CHeiMaailmaAppView::SizeChanged() { DrawNow(); } // End of File

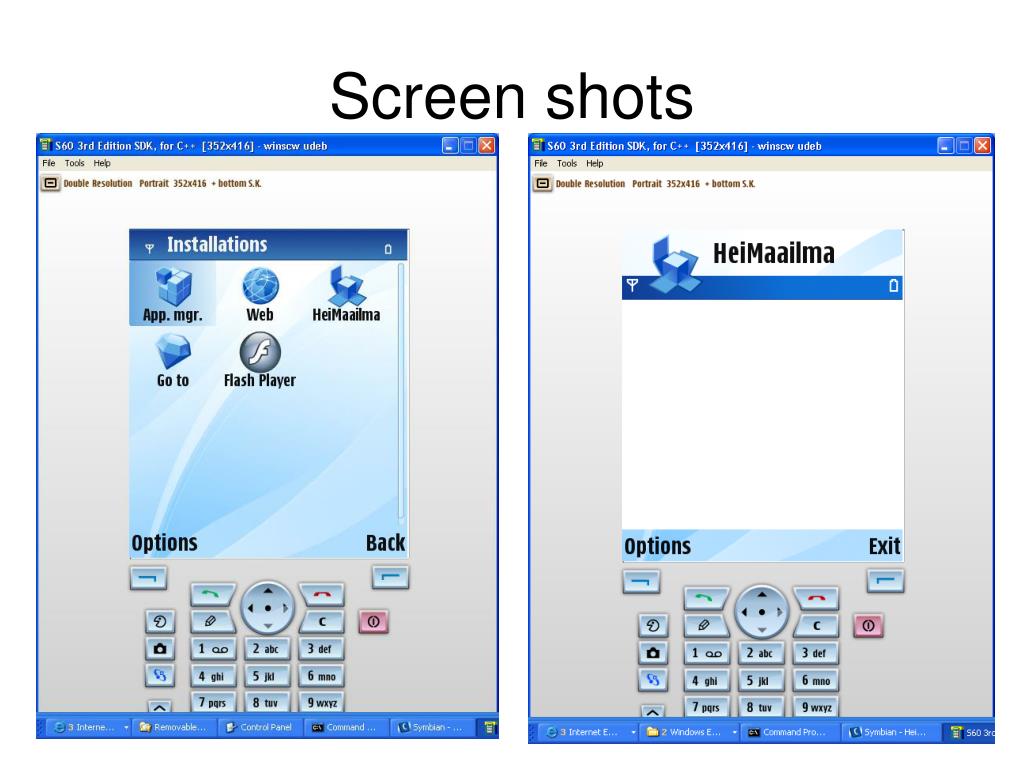

  41. Screen shots

  42. Screen shots
