Chapter 4

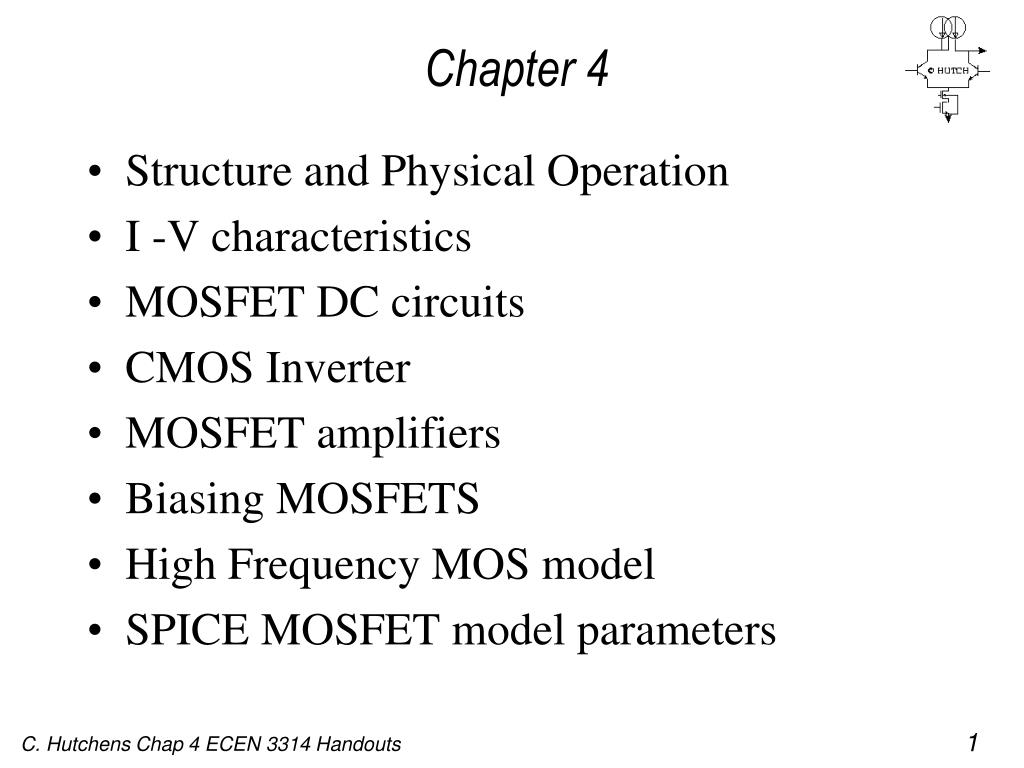

1. Structure and Physical Operation I -V characteristics MOSFET DC circuits CMOS Inverter MOSFET amplifiers Biasing MOSFETS High Frequency MOS model SPICE MOSFET model parameters Chapter 4

2. MOSFET ID-VG, ID-VDS Output Charc. Input Charc. IDsat = n Cox W/L (VGS - VTN)2/2 --- SQUARE LAW L>250nm

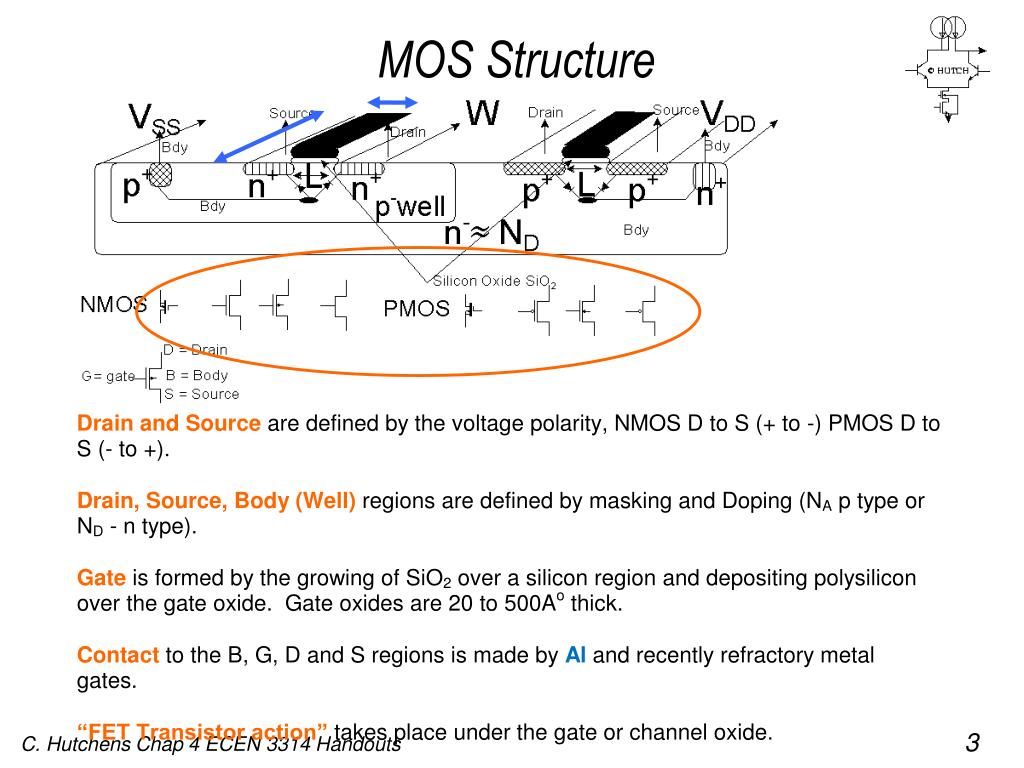

3. MOS Structure

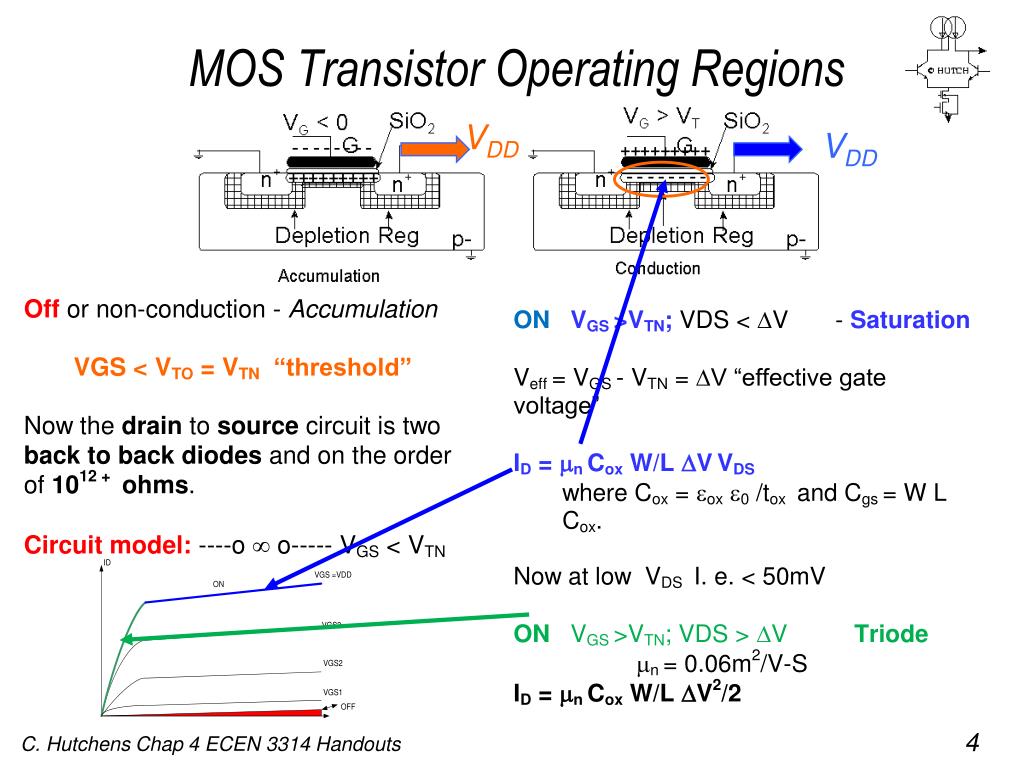

4. MOS Transistor Operating Regions VDD VDD

5. MOS Transistor Operation-OFF

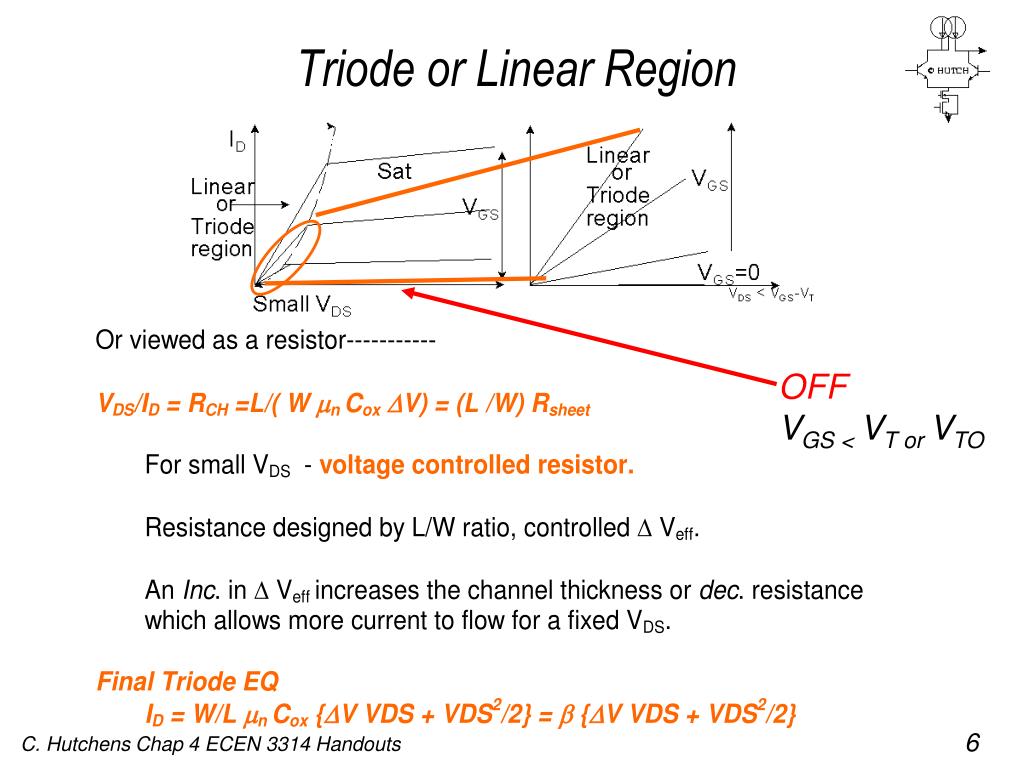

6. Triode or Linear Region OFF VGS < VT or VTO

7. Increasing VDS – ID saturates

8. Cgs ON/Triode: V > 0 or VGS > VTO Cgs = WL Cox; V > VDS OFF: V < 0 or VGS < VTO Cgs  WL Cox Sat: V < 0 or VGS < VTO Cgs = 2/3 WL Cox ; V < VDS NMOS N Diffusion PMOS P Diffusion PolySilicon

9. Significant Process Parameter Constants

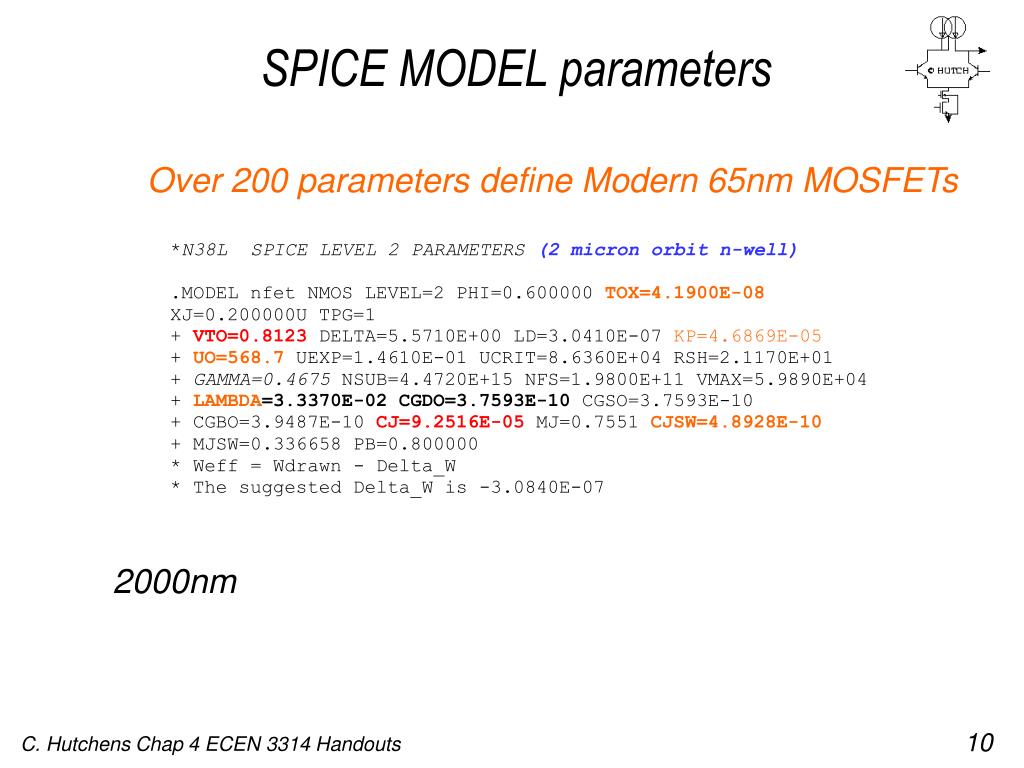

10. SPICE MODEL parameters Over 200 parameters define Modern 65nm MOSFETs 2000nm

11. ID vs. VGS; VDS > V L > 250nm Square Law L < 250nm Vel. Sat.

12. ID vs. VGS; VDS > V Supplemental Taking the square root of ID and solving for slope & intercept; Extract VTO and KP

13. Enhancement/ Depletion Mode NMOS – 1st Quadrant PMOS – 3rd Quadrant Enhancement VTN > 0V VTP < 0V Depletion Mode VTN > 0V VTP < 0V

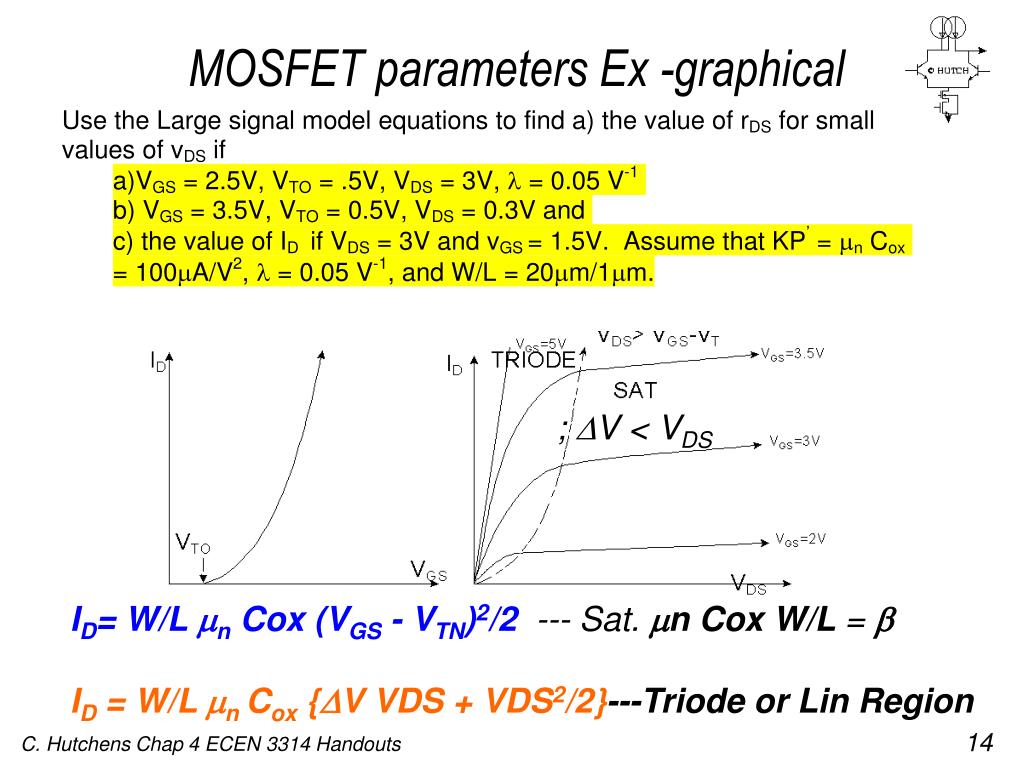

14. MOSFET parameters Ex -graphical ; V < VDS ID= W/LnCox (VGS - VTN)2/2 --- Sat. n Cox W/L =  ID = W/L n Cox {V VDS + VDS2/2}---Triode or Lin Region

15. CMOS Inverter – Strong pull up & down Rise time Fall Time

16. INVERTER POWER Supplemental

17. The Digital CMOS inverter Supplemental

18. CMOS Logic

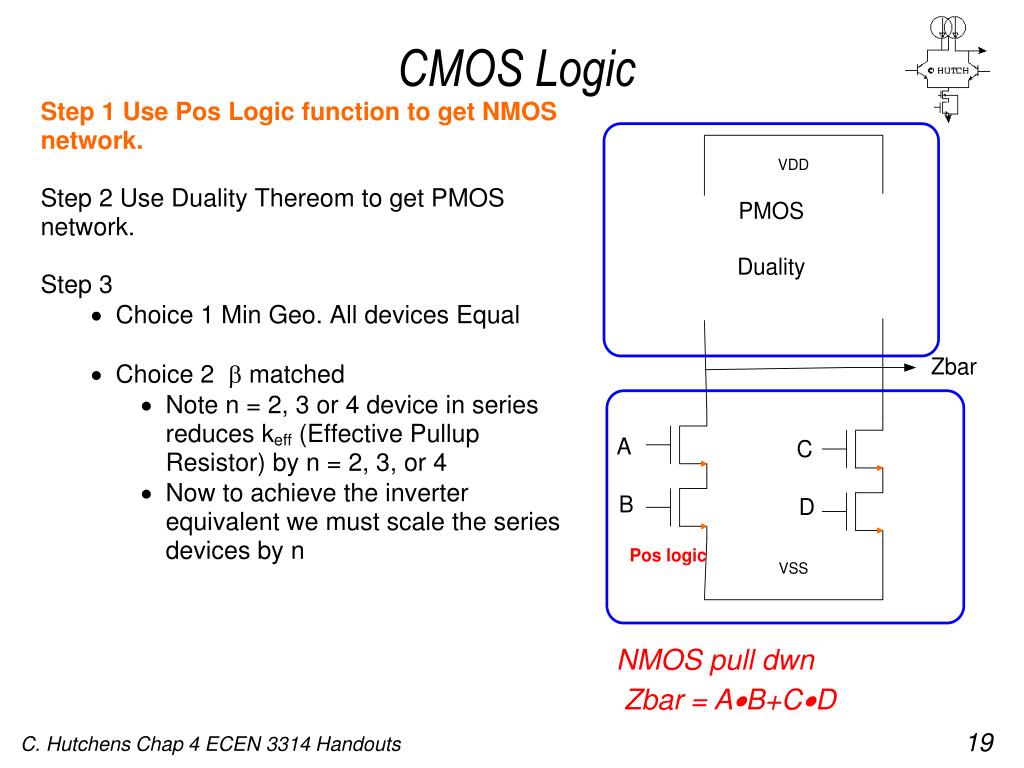

19. CMOS Logic NMOS pull dwn Zbar = AB+CD

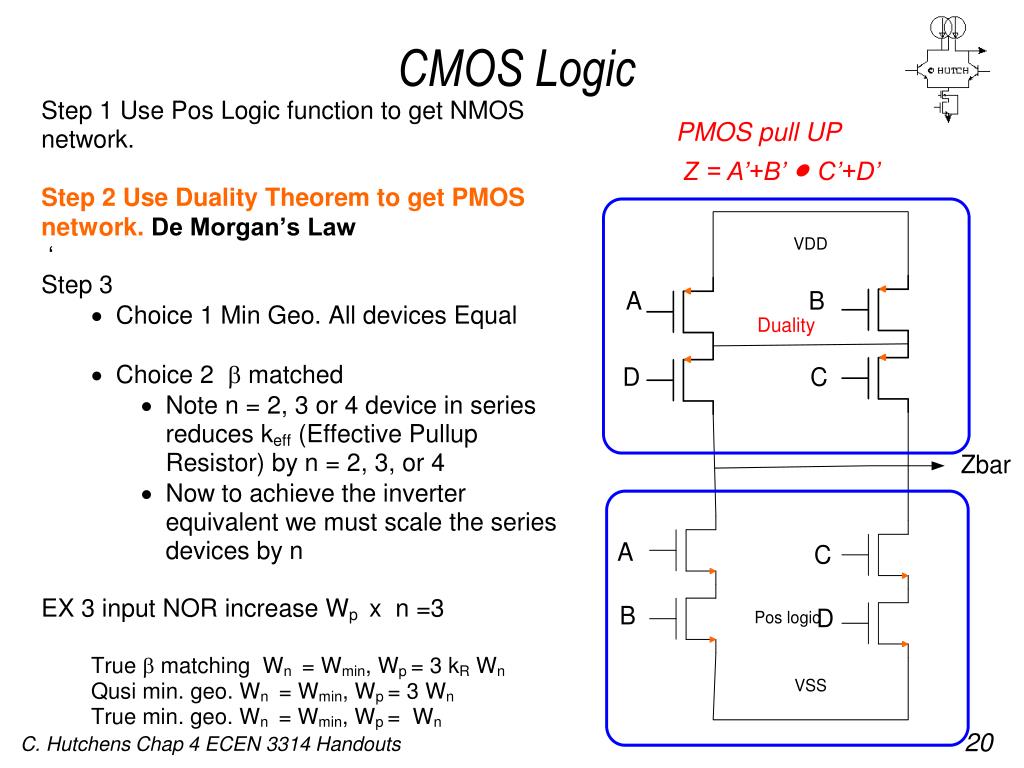

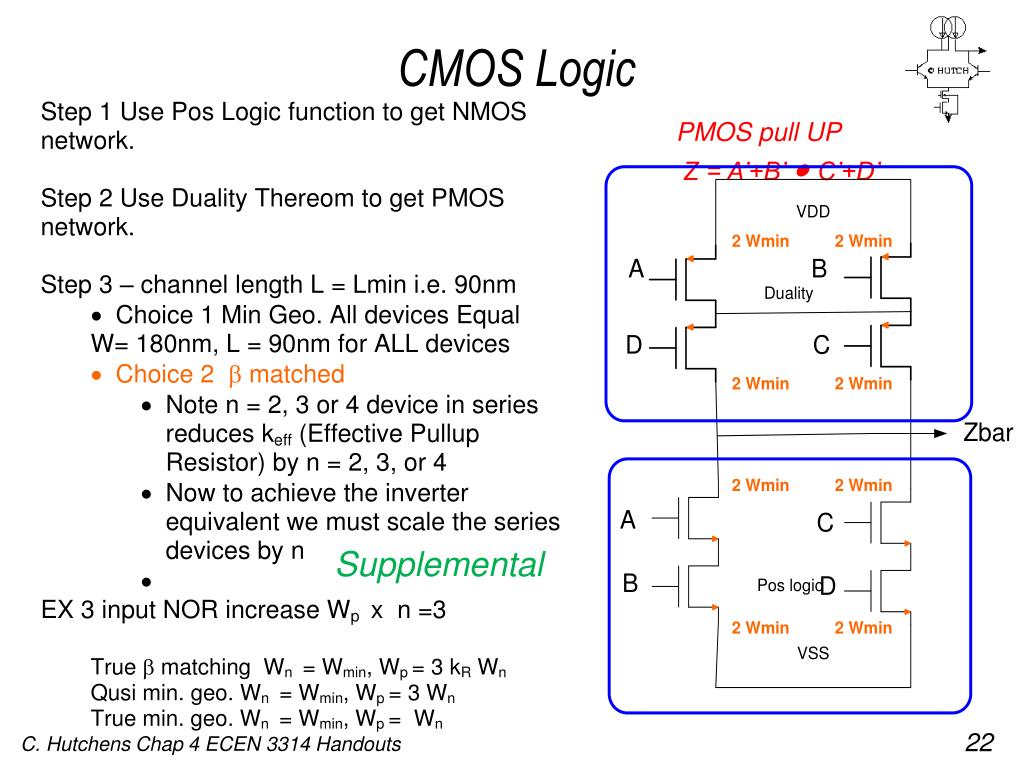

20. CMOS Logic PMOS pull UP Z = A’+B’  C’+D’

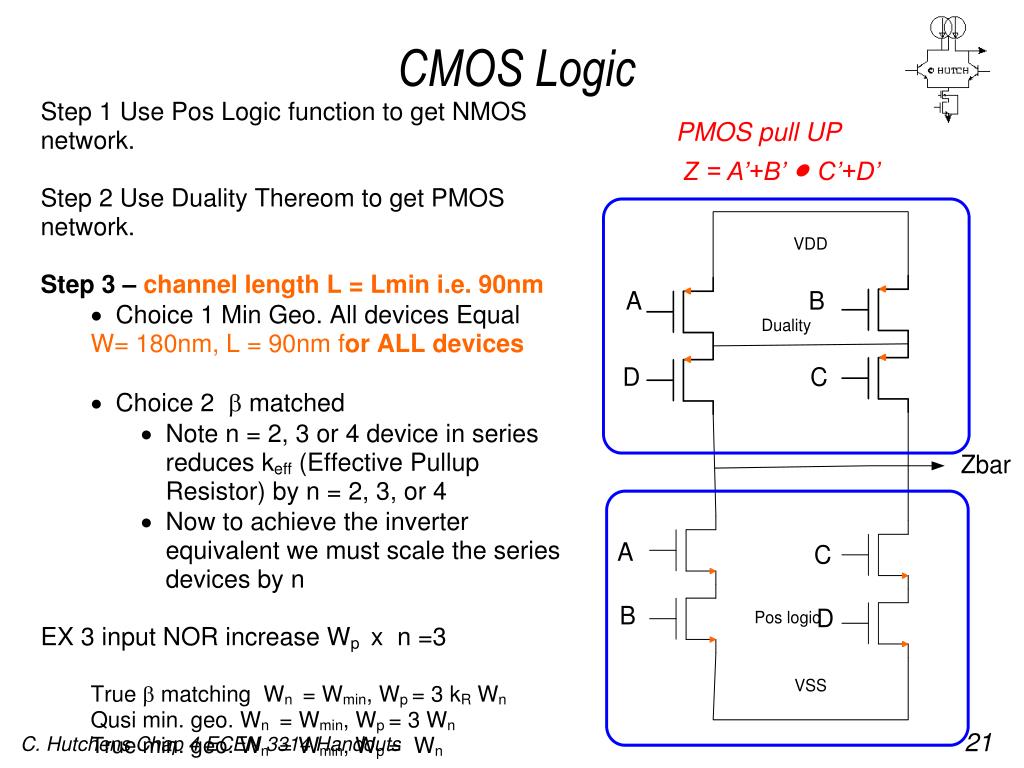

21. CMOS Logic PMOS pull UP Z = A’+B’  C’+D’

22. CMOS Logic PMOS pull UP Z = A’+B’  C’+D’ Supplemental

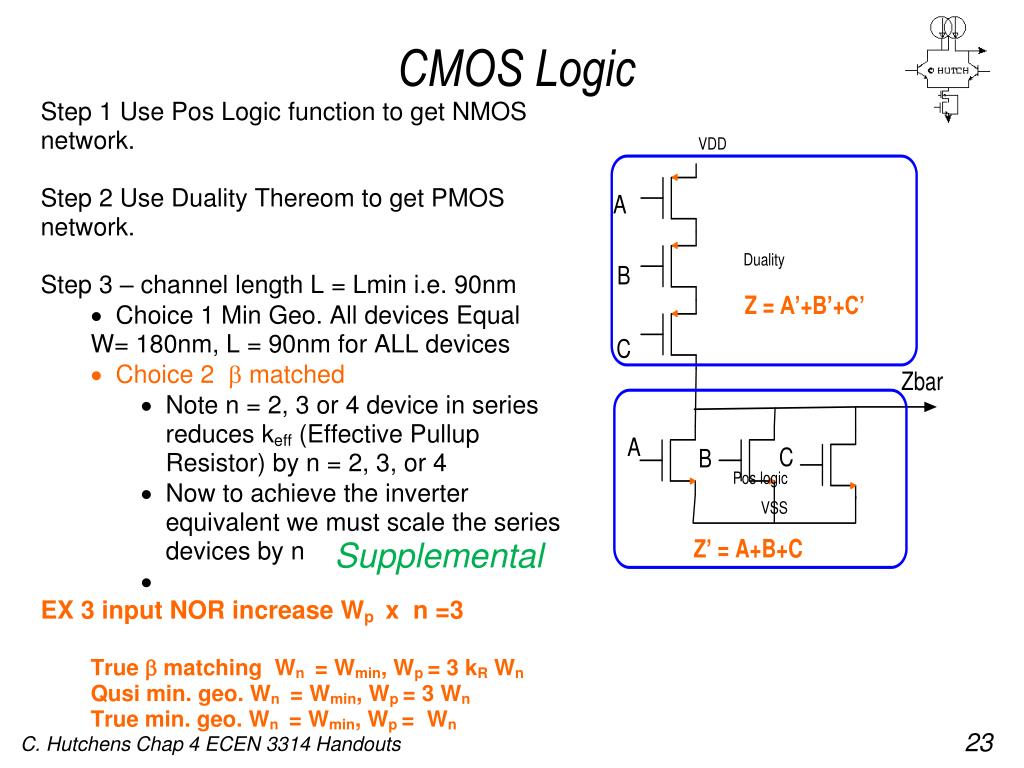

23. CMOS Logic Supplemental

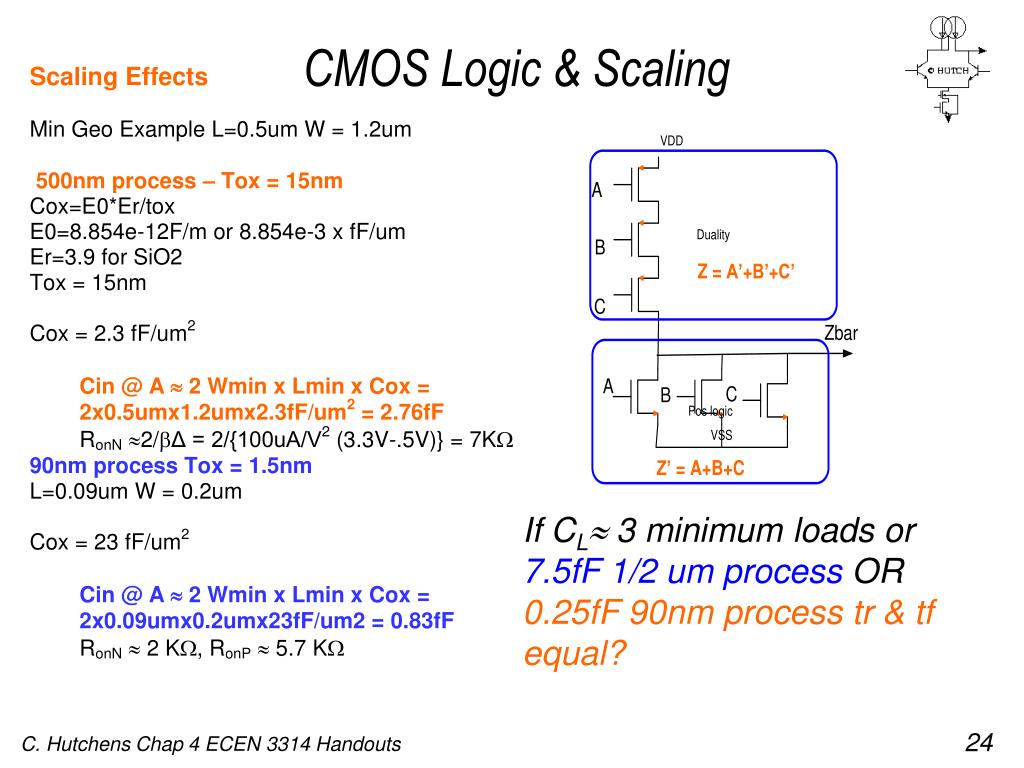

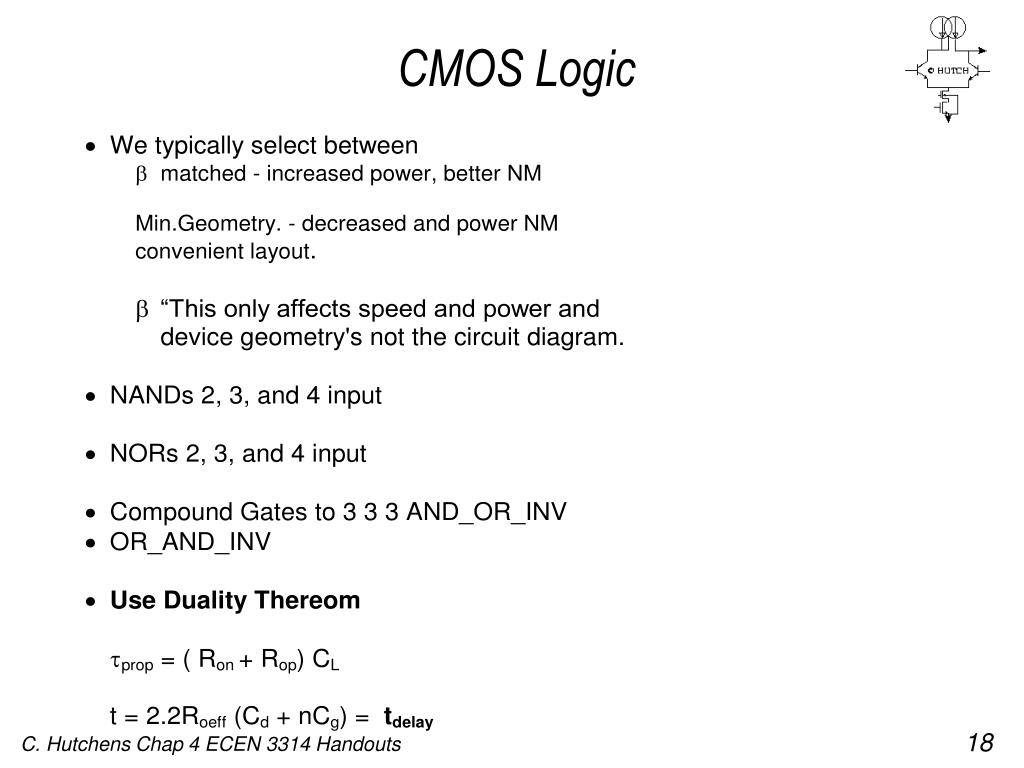

24. CMOS Logic & Scaling If CL 3 minimum loads or 7.5fF 1/2 um process OR 0.25fF 90nm process tr & tf equal?

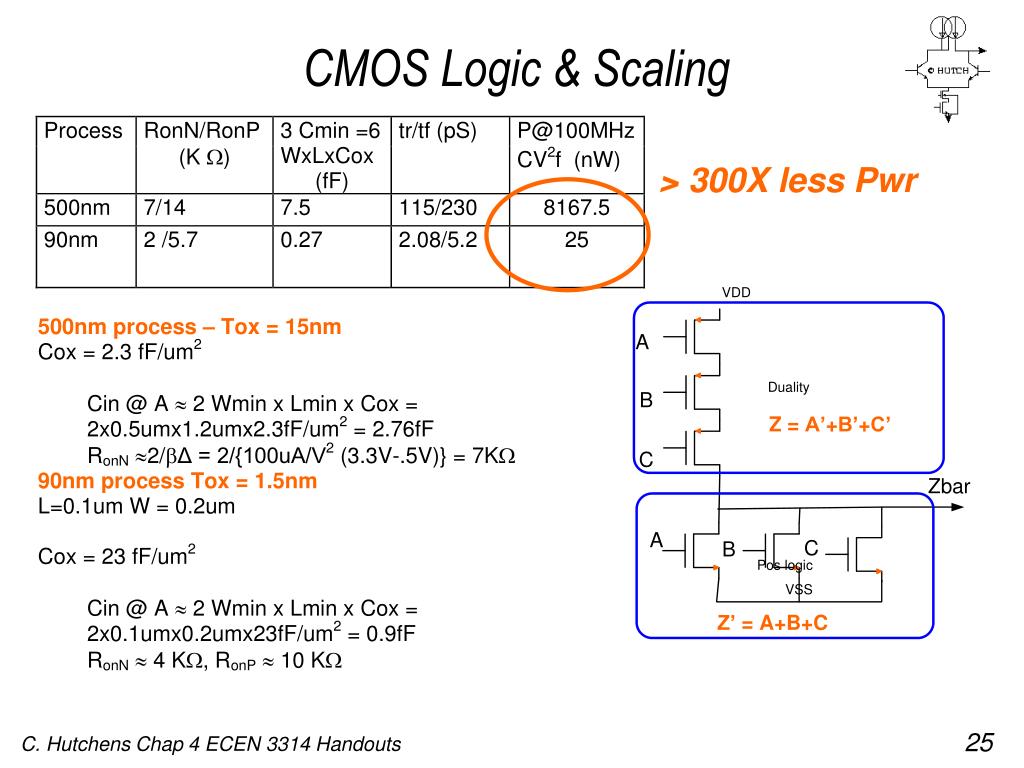

25. CMOS Logic & Scaling > 300X less Pwr

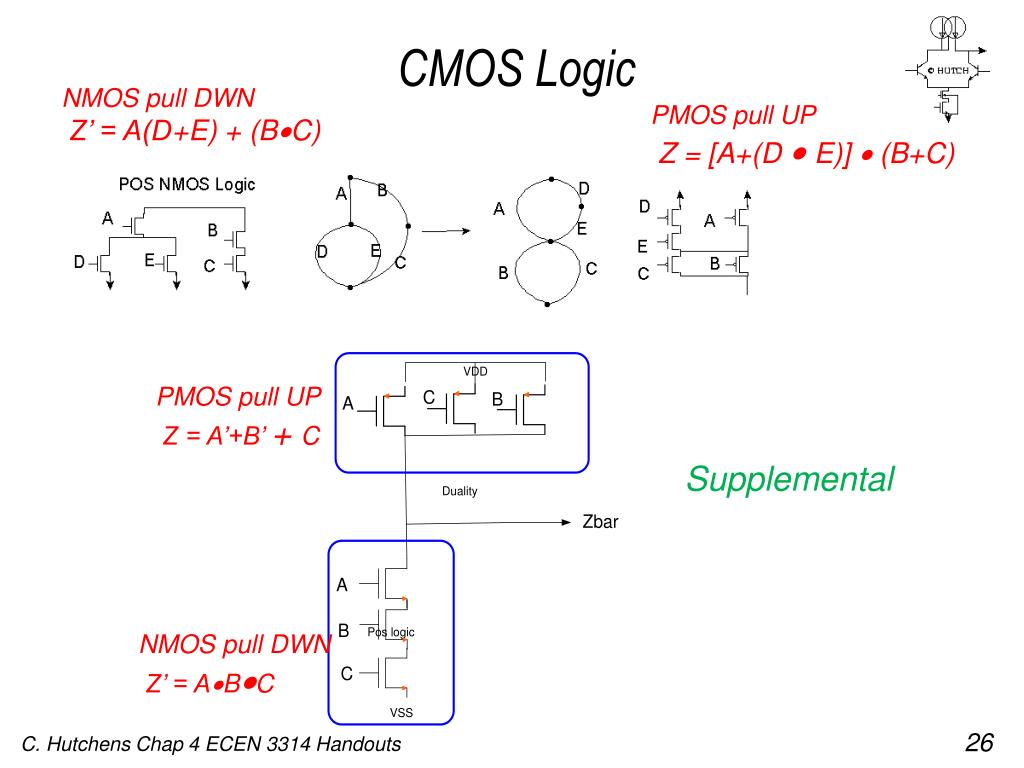

26. CMOS Logic NMOS pull DWN Z’ = A(D+E) + (BC) PMOS pull UP Z = [A+(D E)]  (B+C) PMOS pull UP Z = A’+B’ + C Supplemental NMOS pull DWN Z’ = ABC

27. CMOS Analog ID vs. VDS

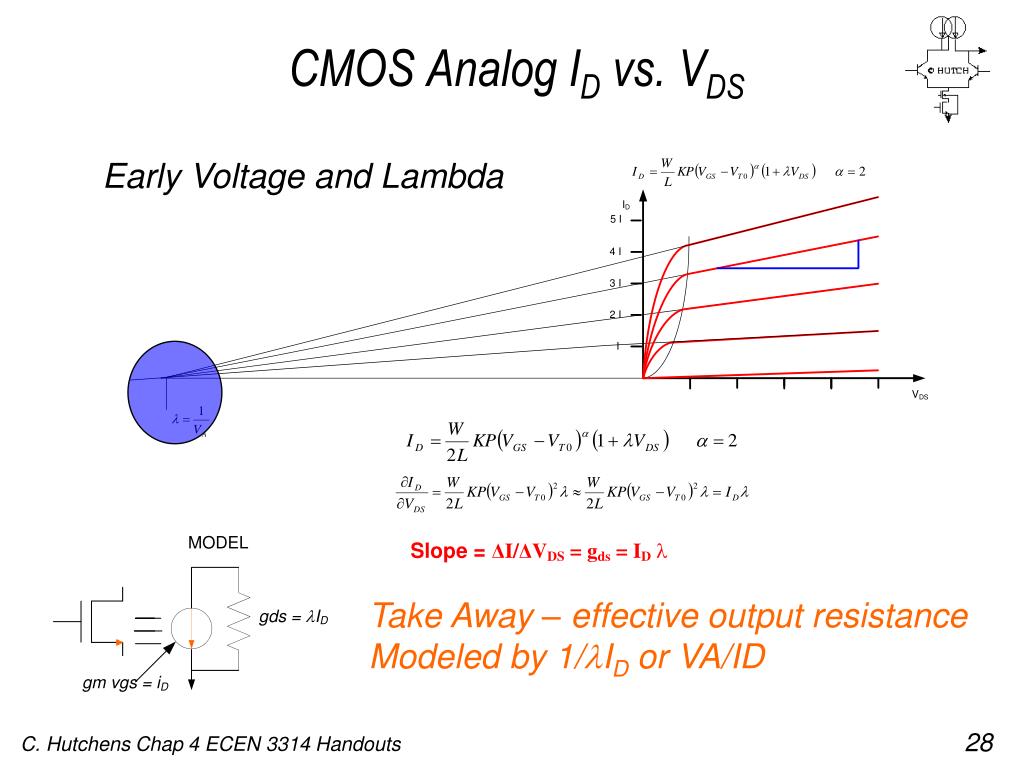

28. CMOS Analog ID vs. VDS Early Voltage and Lambda Take Away – effective output resistance Modeled by 1/ID or VA/ID

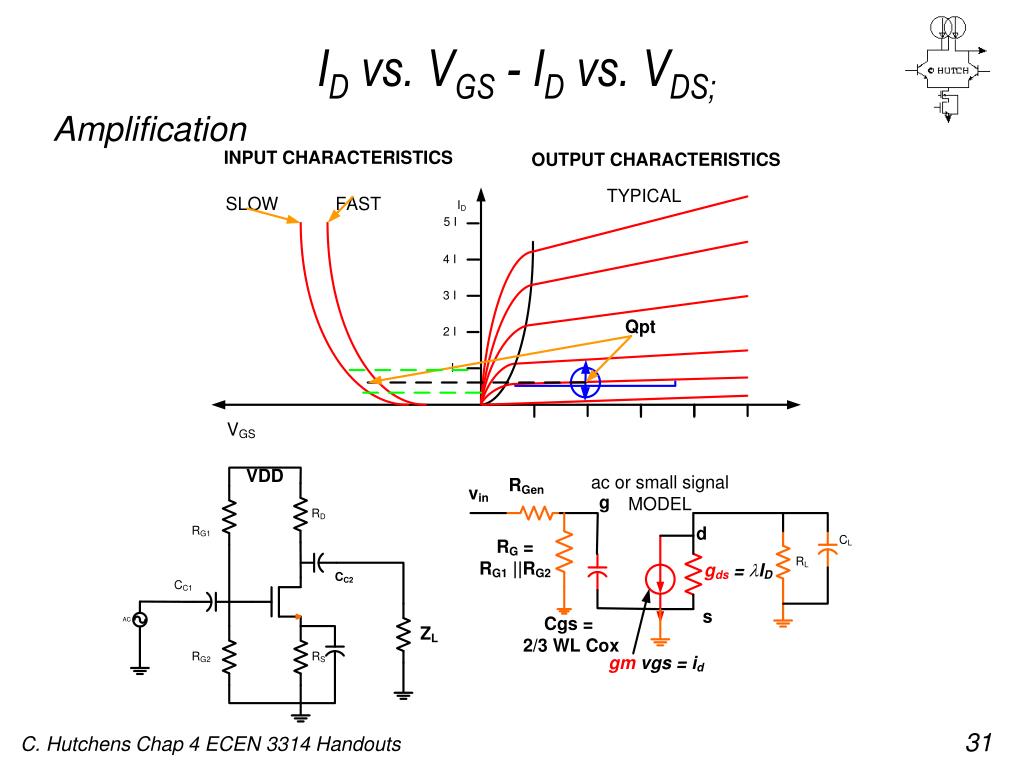

29. ID vs. VGS - ID vs. VDS; Amplification

30. Common Drain in ICs

31. ID vs. VGS - ID vs. VDS; Amplification

32. Q pt Bias Stabilization Amplification

33. Q pt Bias Stabilization Amplification

34. f1 Bias Considerations Amplification

35. f2 Considerations Amplification

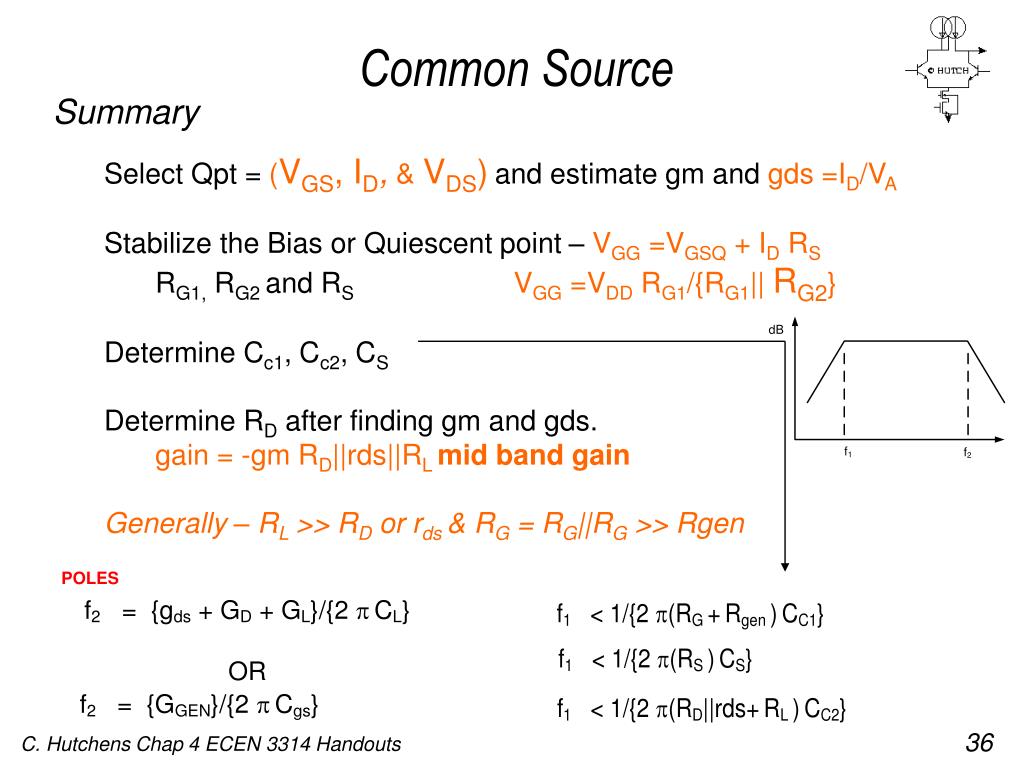

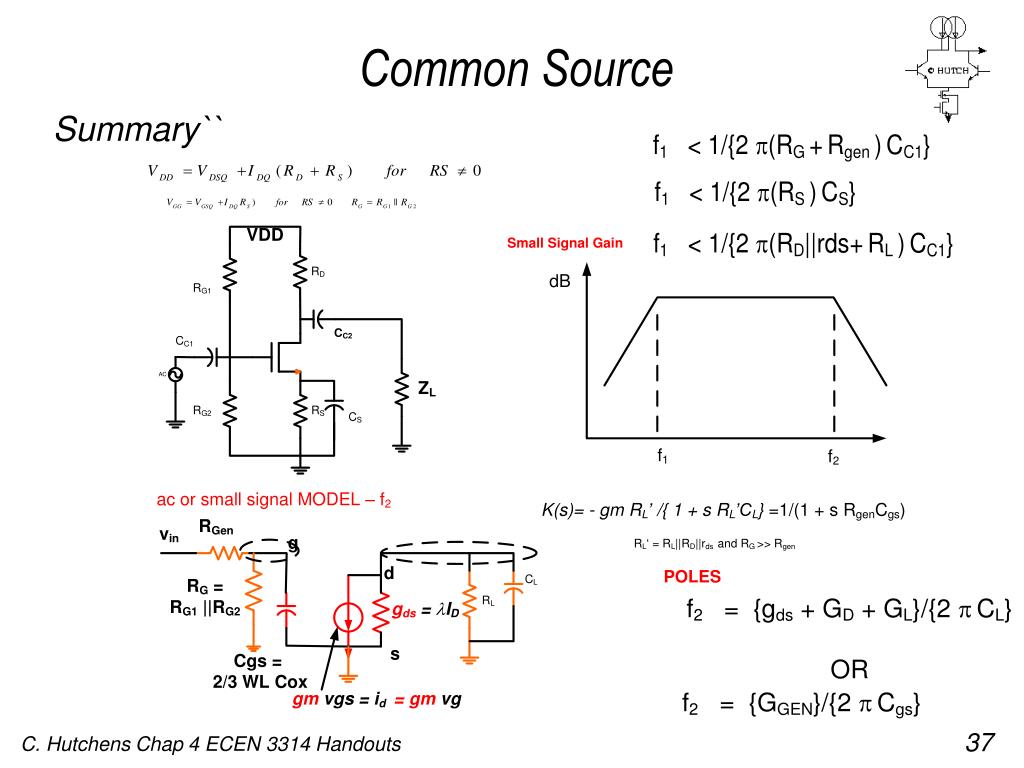

36. Common Source Summary • Select Qpt = (VGS, ID, & VDS)and estimate gm and gds =ID/VA • Stabilize the Bias or Quiescent point – VGG =VGSQ + ID RS • RG1, RG2 and RS VGG =VDD RG1/{RG1|| RG2} • Determine Cc1, Cc2, CS • Determine RD after finding gm and gds. • gain = -gm RD||rds||RL mid band gain • Generally – RL >> RD or rds & RG = RG||RG >> Rgen

37. Common Source Summary``

38. Why CMOS Inverter NMOS PMOS

39. Complimentry CMOS & Symbols

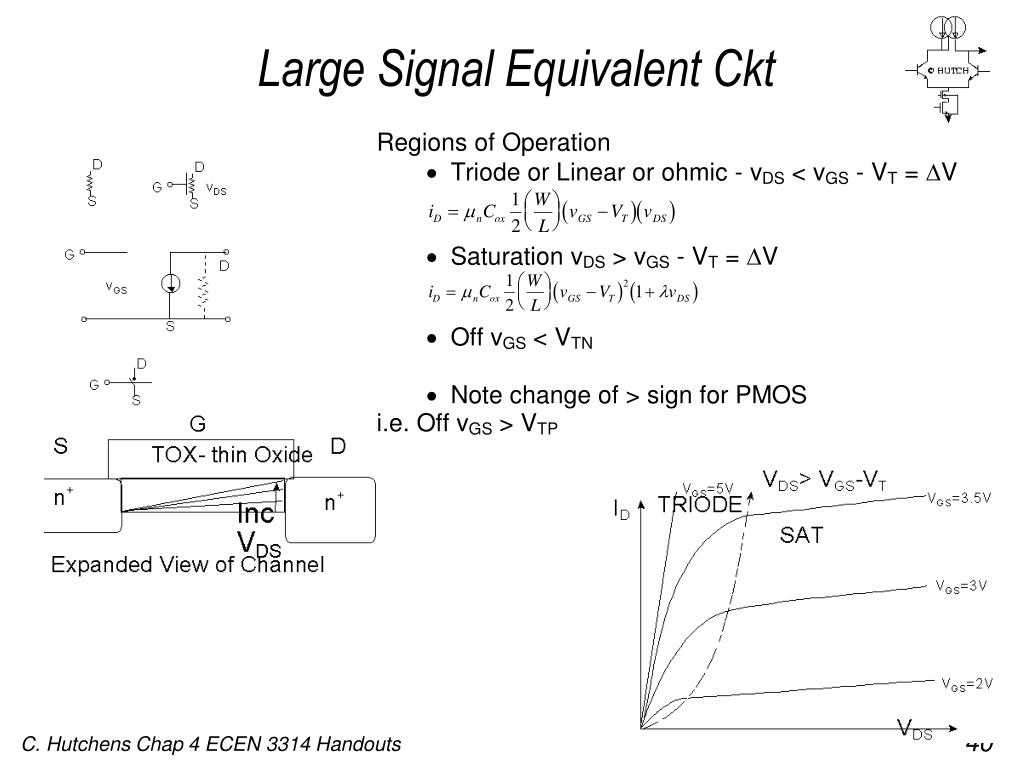

40. Large Signal Equivalent Ckt

41. Modeling rout Supplemental

42. Supplemental

43. Misc. Effects Supplemental

44. MOSFET DC BIAS

45. Shifting the Qpt for Gain A Gain A = ΔVDS/ ΔVGS

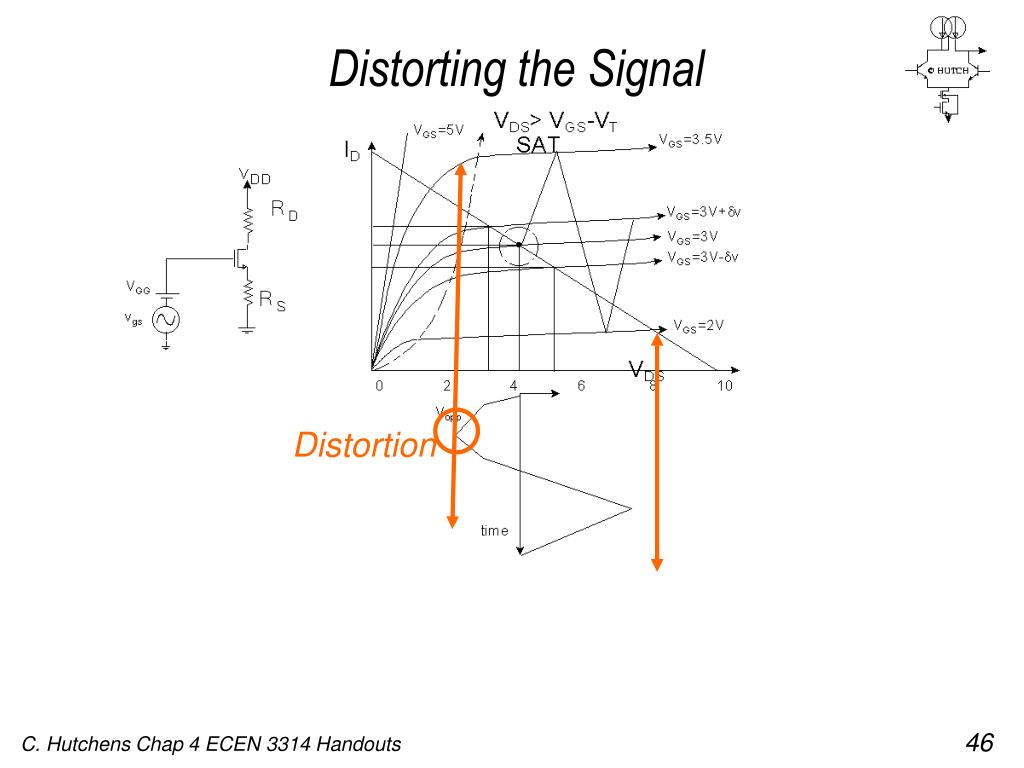

46. Distorting the Signal Distortion

47. Shifting the Qpt con’t Analytical ΔID ΔVGS gm = ΔID/ ΔVGS

48. MOSFET DC BIAS

49. MOSFET DC BIAS-CS,CD,CG Gain – modest Rin – High Ro – High Inverting Gain – modest Rin – low Ro – High noninverting Gain –Unity Rin – High Ro – Low Noninverting buffer
