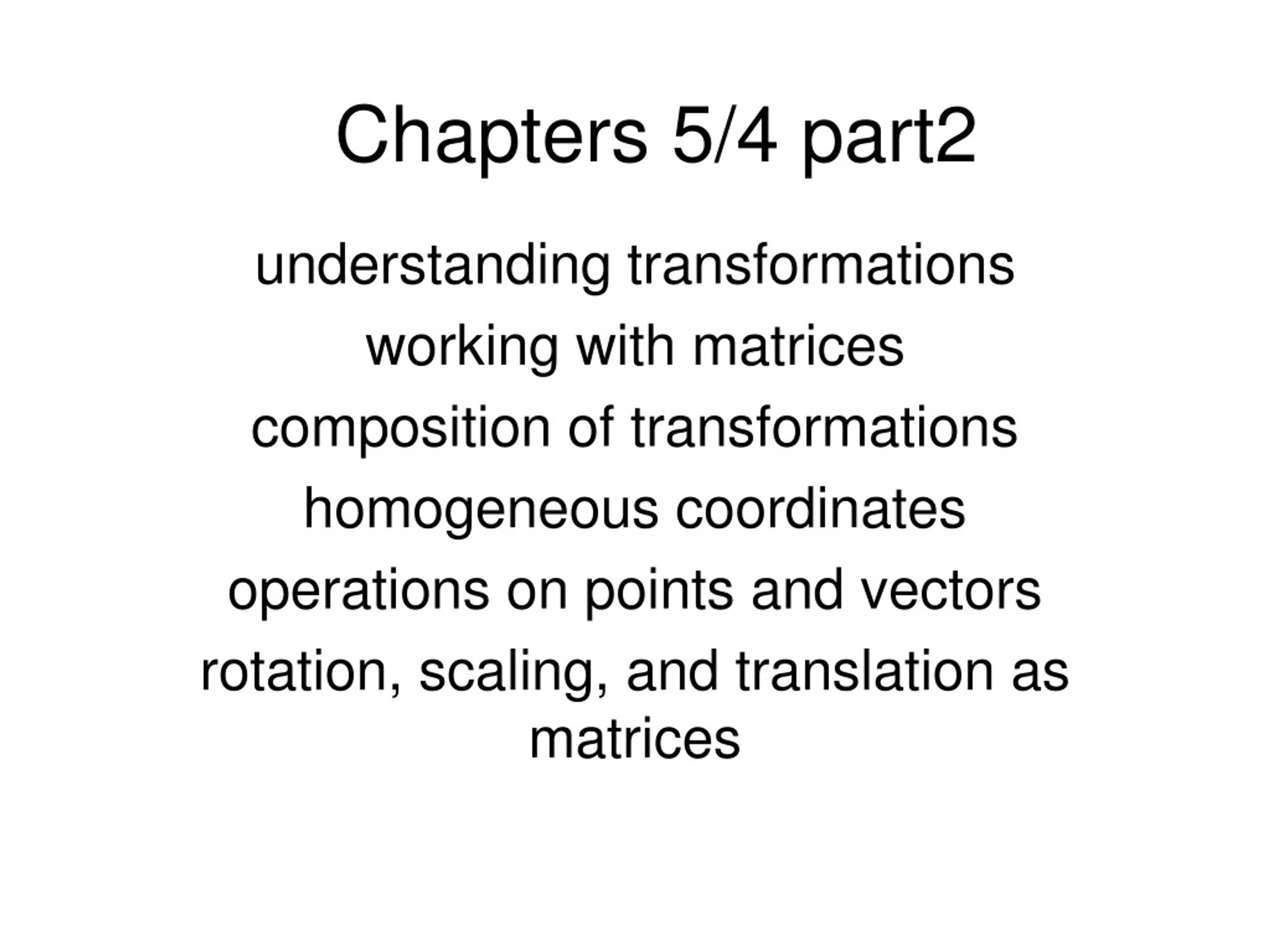

  1. Chapters 5/4 part2 understanding transformations working with matrices composition of transformations homogeneous coordinates operations on points and vectors rotation, scaling, and translation as matrices

  2. Multiplying matrices • on the board 2d • two 2x2 square matrices • a 2x2 matrix times a vector • figuring out matrices for rotation and scaling • figure out matrix for translation

  3. Multiplying matrices • on the board 2d • two 2x2 square matrices • a 2x2 matrix times a vector • figuring out matrices for rotation and scaling • no 2x2 matrix for translation

  4. Composition of transformations • example: rotate 90 degrees, then 180 degrees • follow a vector • do the matrix multiplication

  5. reflection • Come up with a matrix for reflection across the y axis

  6. reflection as scaling • reflection across the y axis is scaling by -1 in x and 1 in y.

  7. Rotation and reflection experiment • work in pairs: • On paper, draw axes and vector (2, 1)T • Person 1, rotate 90 degrees, then reflect across y axis. • Person 2, reflect across y axis, then rotate 90 degrees. • Compare.

  8. Figure out order of multiplication • F is reFlection across y axis • T is roTation of 90 degrees • Person 1, compute FT, • Person 2, compute TF • Which one is rotation followed by reflection? (Apply to (2,1)T )

  9. Figure out order of multiplication • F is reFlection across y axis • T is roTation of 90 degrees • Person 1, compute FT, • Person 2, compute TF • Which one is rotation followed by reflection? (Apply to (2,1)T ) • Answer: FT

  10. 3D • 3x3 matrices • 3 coordinates for vectors and points

  11. homogeneous coordinates x y z 1 • [ x y z 1]T = for a point. • [ x y z 0]T = for a vector. x y z 0

  12. operations on homogeneous coordinates • You can add vectors: [ 2 3 4 0 ]T + [ 1 1 1 0]T = [ 3 4 5 0]T, a vector. • You can NOT add points [ 2 3 4 1 ]T + [ 1 1 1 1]T = [ 3 4 5 2]T, not a point!

  13. operations on homogeneous coordinates cont. • You CAN add a vector to a point: [ 2 3 4 1 ]T + [ 1 1 1 0]T = [ 3 4 5 1]T, another point. p+v v p

  14. rotation in homogeneous coordinates: Rotation about the z-axis: cos(θ) -sin(θ) 0 0 sin(θ) cos(θ) 0 0 0 0 1 0 0 0 0 1

  15. scaling in homogeneous coordinates: Scaling 3 in x, 2 in y, 4 in z; 3 0 0 0 0 2 0 0 0 0 4 0 0 0 0 1

  16. TRANSLATING in homogeneous coordinates: moving 3 in x, 2 in y, 4 in z directions; 1 0 0 3 a a+3 0 1 0 2 b = b+2 0 0 1 4 c c+4 0 0 0 1 1 1

  17. PROJECTION and MODELVIEW Matrices • GL_MODELVIEW is for organizing the pieces of the picture - building the model. • GL_PROJECTION is for setting viewing box and type of projection for viewing.

  18. PROJECTION and MODELVIEW Matrices • Both matrices are alway active and being used. • A point (vertex) is multiplied by the MODELVIEW matrix to place it in our scene • then the result is multiplied by the PROJECTION matrix to project it to the front of the viewing box.

  19. Composing Transformations • run boxV5.cpp • Key input t: glTranslatef(10.0,0.0,0.0); glRotatef(45.0, 0.0,0.0,1.0); glutWireCube(5.0); • Key input r: glRotatef(45.0, 0.0,0.0,1.0); glTranslatef(10.0,0.0,0.0); glutWireCube(5.0);

  20. Why reversed? • key input t: • Model view matrix starts as I • Call translate multiplies IT • Call rotate multiplies ITR • Draw cube multiplies ITRv for every point v of the cube. • This applies R first, not T!

  21. Book has lots of experiments with composition - run them with understanding!

  22. boxV6.cpp • original - a box and a sphere • m: translate together • o: say translate then rotate, but really rotate then translate • Check out the code! • try ortho and frustrum

  23. PROJECTION and MODELVIEW Matrices • We can only change or set one at a time. • To modify one we have to put it in the "matrix modifying machine", eg • glMatrixMode(GL_PROJECTION); • glMatrixMode(GL_MODELVIEW);

  24. PROJECTION and MODELVIEW Matrices • To make sure we start with a clean slate: glLoadIdentity(); - this sets it to the identity matrix. • Any new changes are made to the matrix that is currently "in Mode".

  25. PROJECTION Matrix glMatrixMode(GL_PROJECTION); glLoadIdentity(); glOrtho... or glFrustum... This is usually in resize routine, but it can be modified in display routine. Remember to then return to the MODELVIEW matrix, glMatrixMode(GL_MODELVIEW);
