  1. Programming Behavioral Experiments in FlashSession 1 of 3Intro to Web Programming, PhP, and Flash April 8th – Jeff Galak (CMU)

  2. Agenda for the Week • Session 1: Thursday, April 8th (10-12pm): Intro to Web Programming, PhP, and Flash • Session 2: Thursday, April 8th (2-4pm): Building Your First Flash Experiment • Session 3: Friday, April 9th (10-12pm): Advanced Topics if Flash (Sounds, Videos, and Real Time Ratings) Session 1 - 04/08/2010

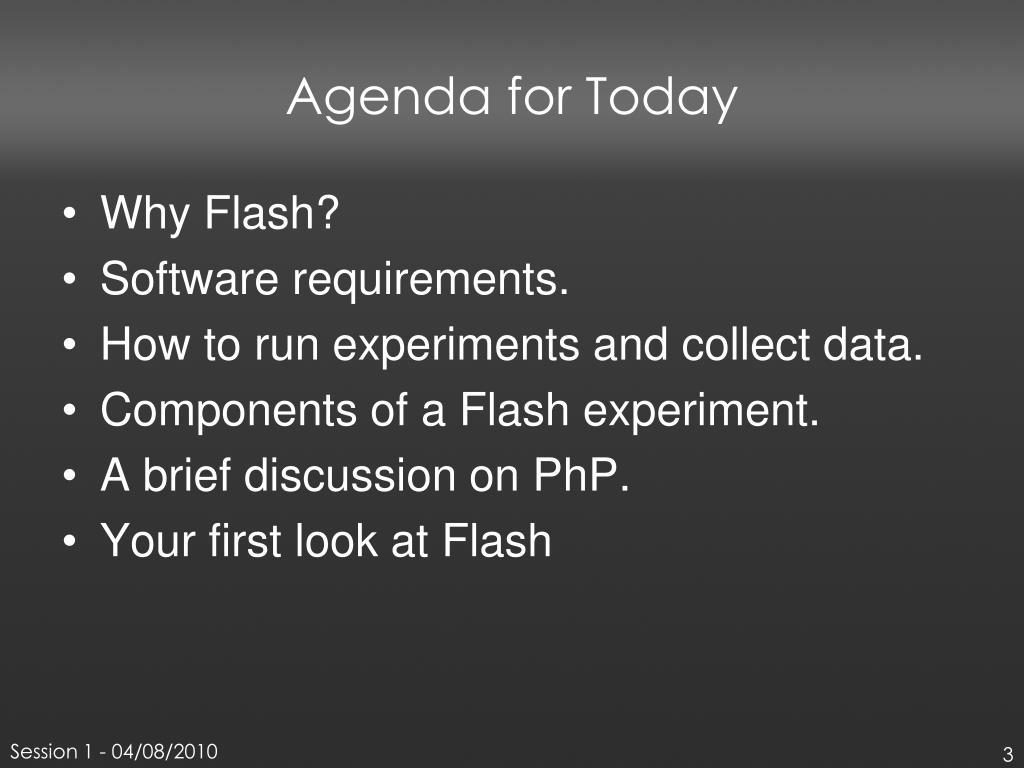

  3. Agenda for Today • Why Flash? • Software requirements. • How to run experiments and collect data. • Components of a Flash experiment. • A brief discussion on PhP. • Your first look at Flash Session 1 - 04/08/2010

  4. Three Programming Options (maybe 4) Session 1 - 04/08/2010

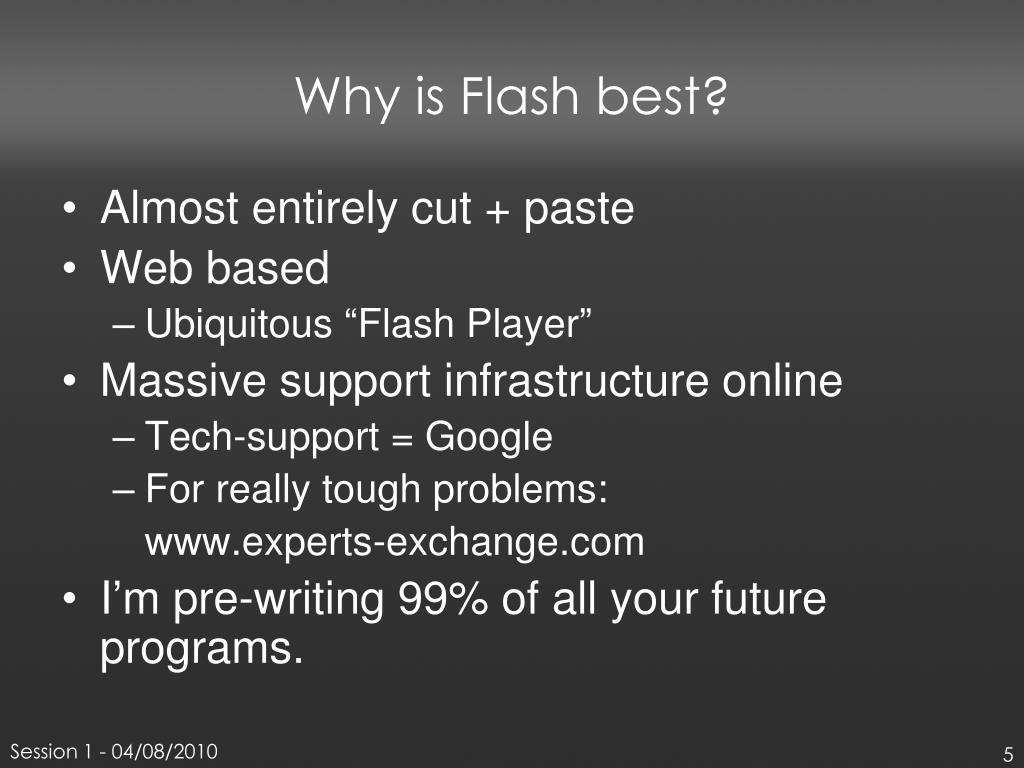

  5. Why is Flash best? • Almost entirely cut + paste • Web based • Ubiquitous “Flash Player” • Massive support infrastructure online • Tech-support = Google • For really tough problems: www.experts-exchange.com • I’m pre-writing 99% of all your future programs. Session 1 - 04/08/2010

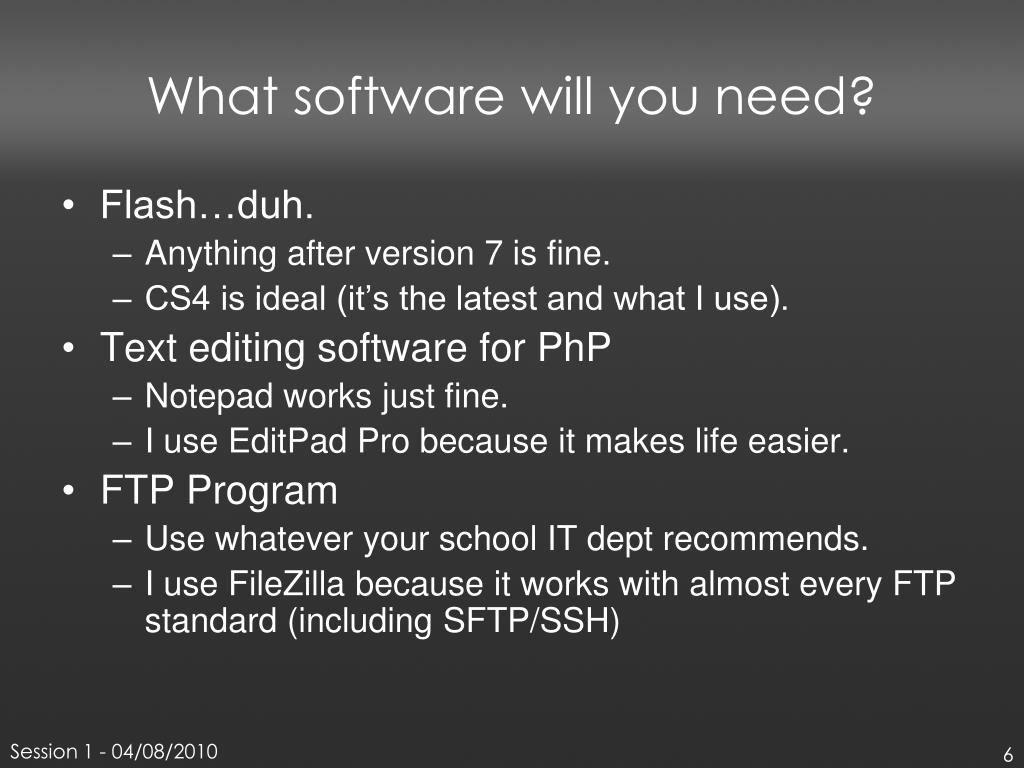

  6. What software will you need? • Flash…duh. • Anything after version 7 is fine. • CS4 is ideal (it’s the latest and what I use). • Text editing software for PhP • Notepad works just fine. • I use EditPad Pro because it makes life easier. • FTP Program • Use whatever your school IT dept recommends. • I use FileZilla because it works with almost every FTP standard (including SFTP/SSH) Session 1 - 04/08/2010

  7. What you need to run a Flash Experiment • Access to a web server with: • PhP 4 or 5 support • Your school should have this • USC:?? • If you want to get fancy, you can store the data in a database (MySQL). • Ask me about this off-line Session 1 - 04/08/2010

  8. The Flash Experiment Infrastructure Ss goes to website URL Calls Flash (SWF) File Flash Sends Data PhP Parser Converts Raw Data into CSV Session 1 - 04/08/2010

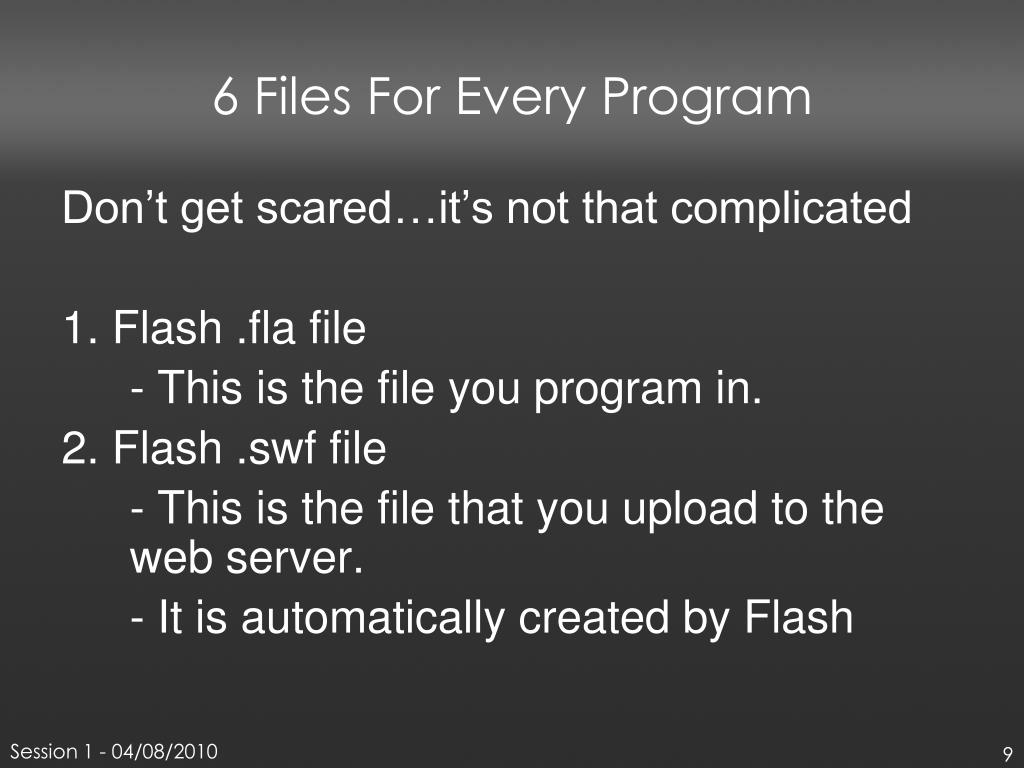

  9. 6 Files For Every Program Don’t get scared…it’s not that complicated 1. Flash .fla file - This is the file you program in. 2. Flash .swf file - This is the file that you upload to the web server. - It is automatically created by Flash Session 1 - 04/08/2010

  10. 6 Files For Every Program 3. Condition file: .txt - This is just a place holder file that helps with assigning conditions 4. PhP: .php execution file - This file acts like an .html file and runs your flash program (.swf). - It assigns conditions (more later) Session 1 - 04/08/2010

  11. 6 Files For Every Program 5. PhP: .php debriefing file - This is where you include the debreifing for your experiments (it can be blank…but has to exist). 6. PhP: .php parser - This is a program I wrote that converts Flash data into a .csv data file - You never have to touch this file…just make sure it’s there. Session 1 - 04/08/2010

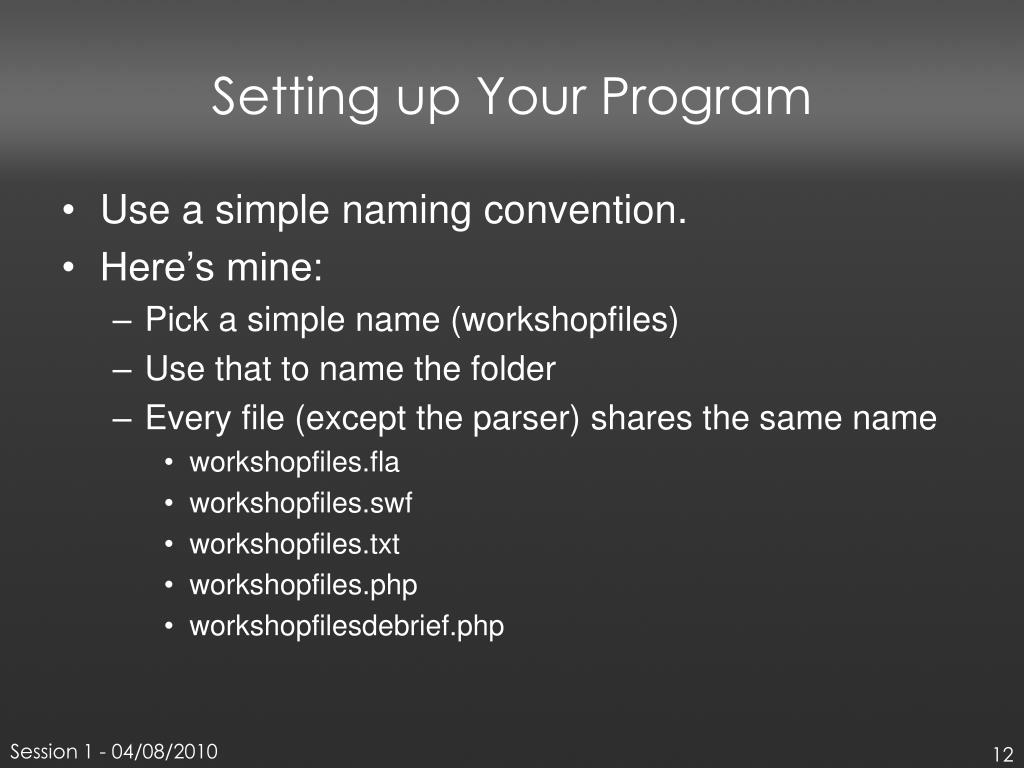

  12. Setting up Your Program • Use a simple naming convention. • Here’s mine: • Pick a simple name (workshopfiles) • Use that to name the folder • Every file (except the parser) shares the same name • workshopfiles.fla • workshopfiles.swf • workshopfiles.txt • workshopfiles.php • workshopfilesdebrief.php Session 1 - 04/08/2010

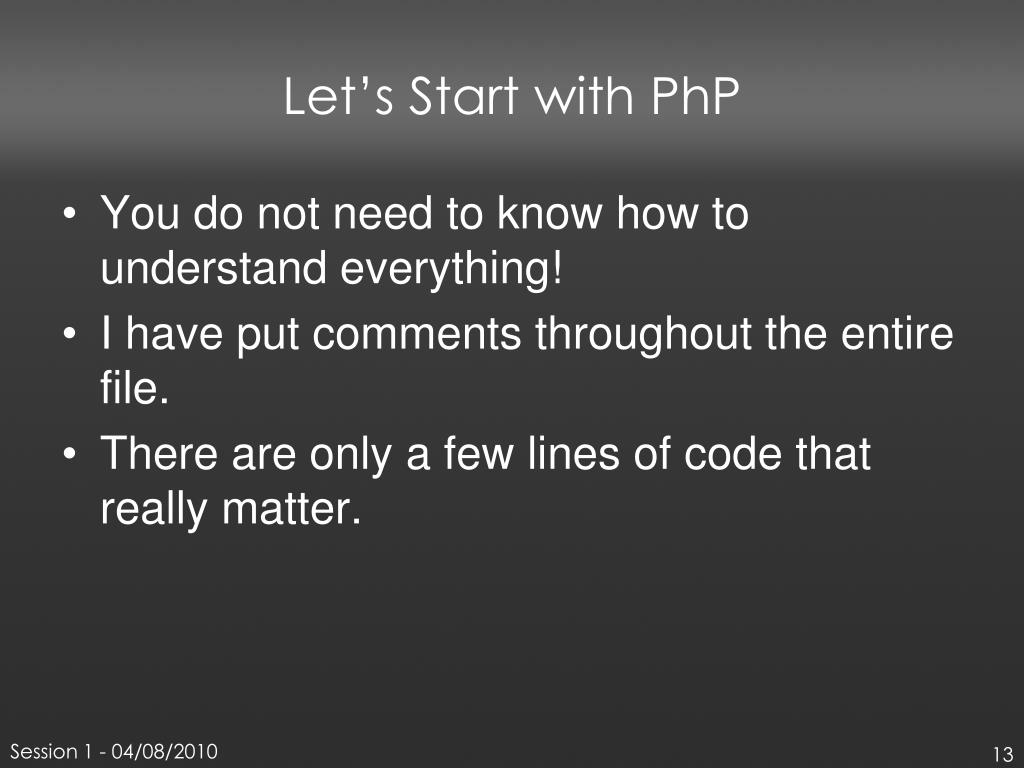

  13. Let’s Start with PhP • You do not need to know how to understand everything! • I have put comments throughout the entire file. • There are only a few lines of code that really matter. Session 1 - 04/08/2010

  14. First a Note about Conditions • PhP and Flash don’t understand what a 2x2 is. • But they understand numbers. • So if you have, say, a: 2 (Name: Jeff, Not-Jeff) x 3 (Awesomeness: Low, Medium, High) you rewrite the conditions as: 1 = Jeff + Low 4 = Not-Jeff+ Low 2 = Jeff + Medium 5 = Not-Jeff + Medium 3 = Jeff + High 6 = Not-Jeff + High Session 1 - 04/08/2010

  15. workshopfiles.php You only care about two lines: $experimentname = "workshopfiles"; - defines the name of the experiment $numofconditions = 6; - defines the number of conditions Ignore the rest Voilà! You learned php. Session 1 - 04/08/2010

  16. First Look at Flash Session 1 - 04/08/2010

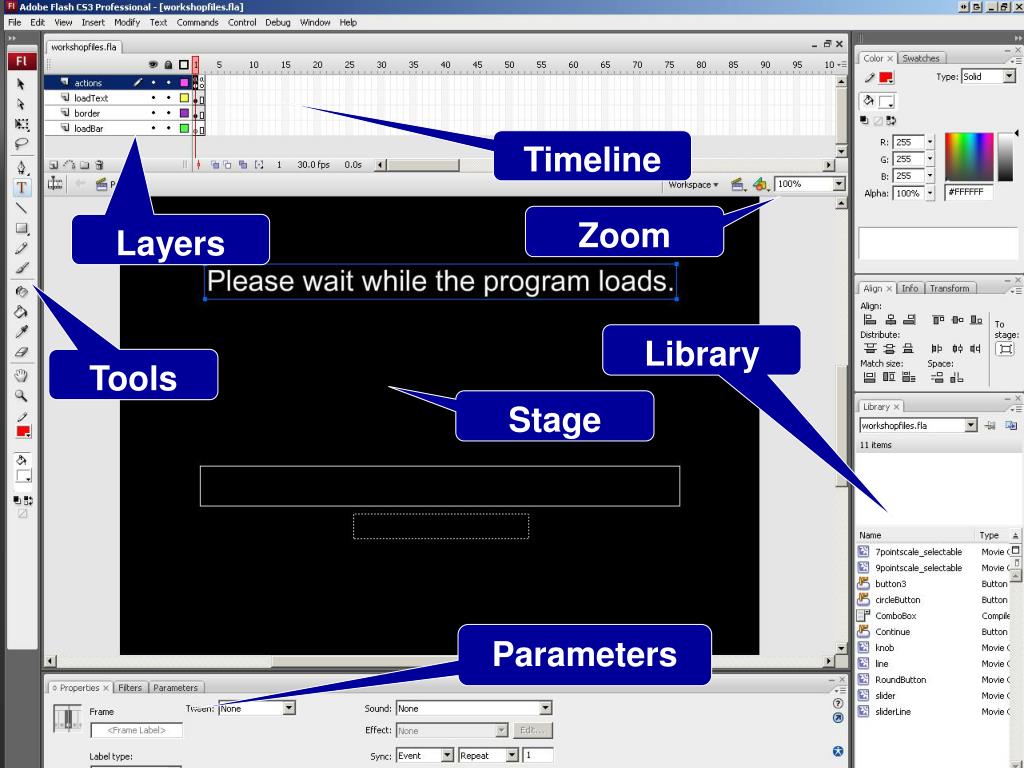

  17. Timeline Zoom Layers Library Tools Stage Parameters Session 1 - 04/08/2010

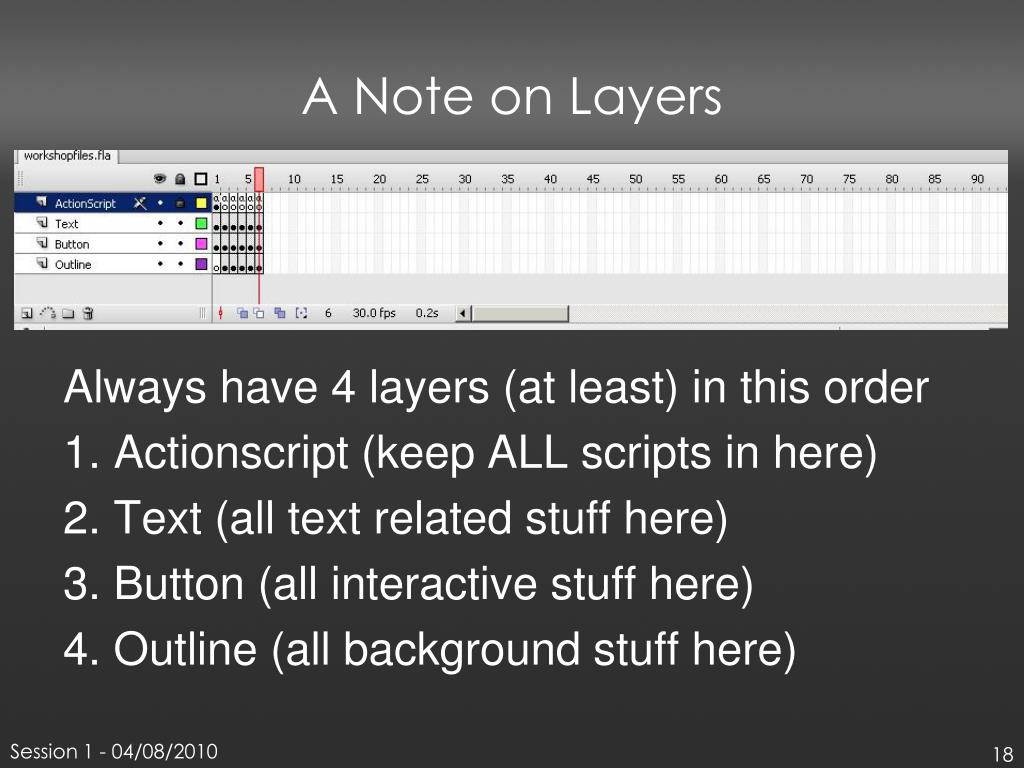

  18. A Note on Layers Always have 4 layers (at least) in this order 1. Actionscript (keep ALL scripts in here) 2. Text (all text related stuff here) 3. Button (all interactive stuff here) 4. Outline (all background stuff here) Session 1 - 04/08/2010

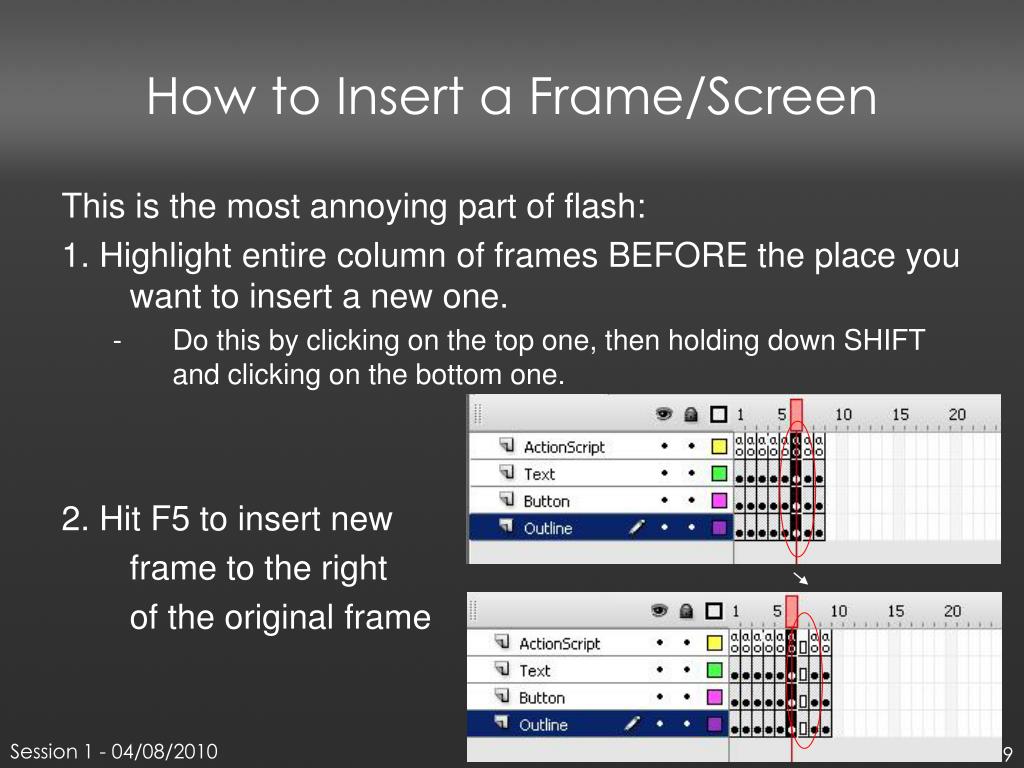

  19. How to Insert a Frame/Screen This is the most annoying part of flash: 1. Highlight entire column of frames BEFORE the place you want to insert a new one. • Do this by clicking on the top one, then holding down SHIFT and clicking on the bottom one. 2. Hit F5 to insert new frame to the right of the original frame Session 1 - 04/08/2010

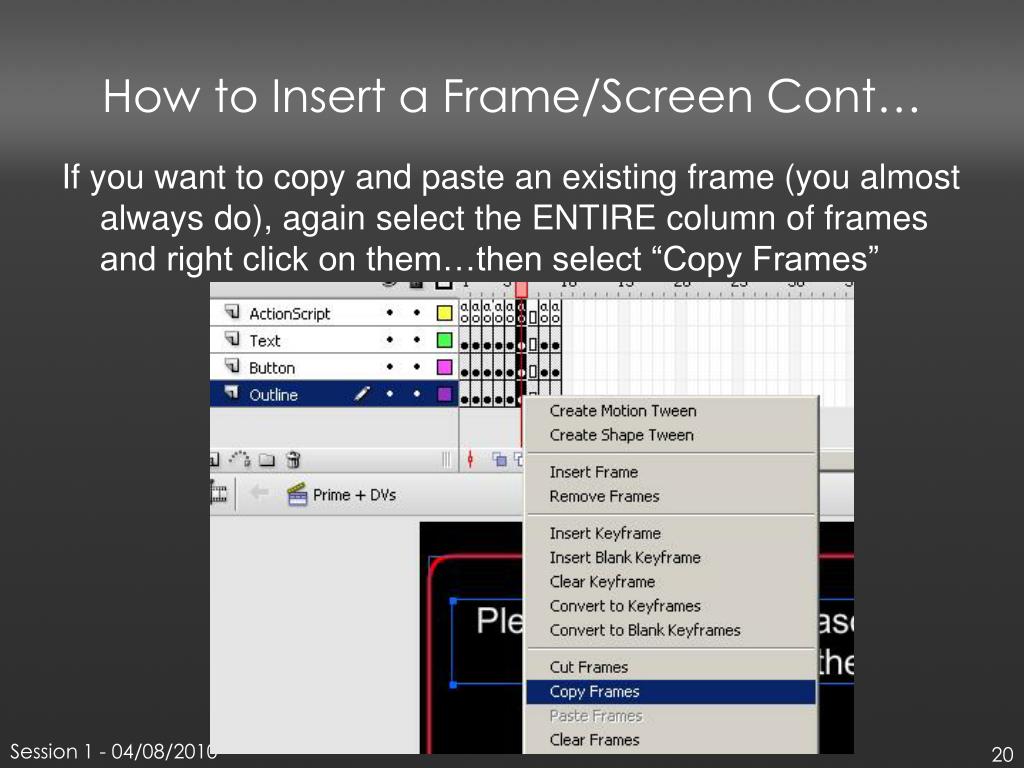

  20. How to Insert a Frame/Screen Cont… If you want to copy and paste an existing frame (you almost always do), again select the ENTIRE column of frames and right click on them…then select “Copy Frames” Session 1 - 04/08/2010

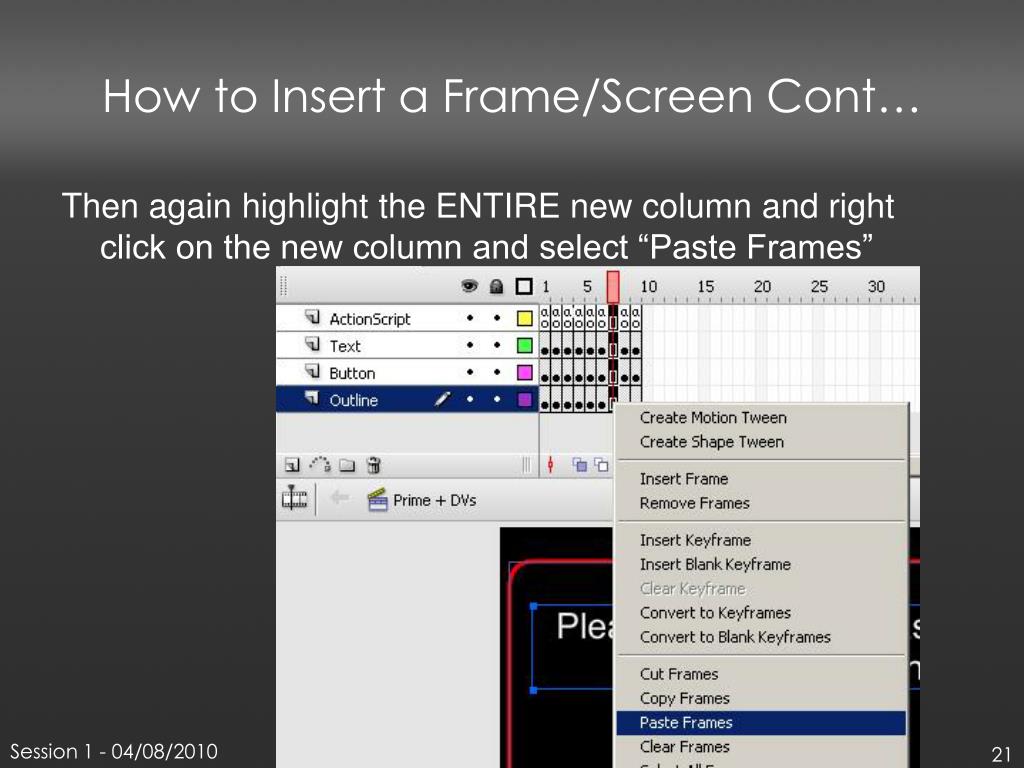

  21. How to Insert a Frame/Screen Cont… Then again highlight the ENTIRE new column and right click on the new column and select “Paste Frames” Session 1 - 04/08/2010

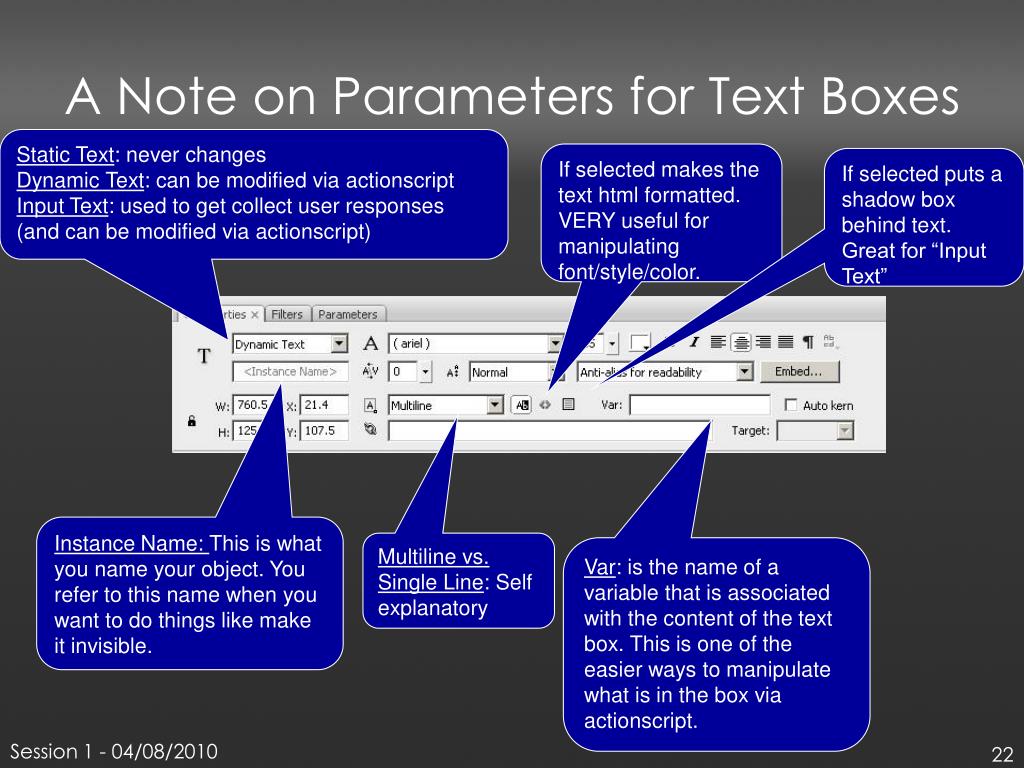

  22. A Note on Parameters for Text Boxes Static Text: never changes Dynamic Text: can be modified via actionscript Input Text: used to get collect user responses (and can be modified via actionscript) If selected makes the text html formatted. VERY useful for manipulating font/style/color. If selected puts a shadow box behind text. Great for “Input Text” Instance Name: This is what you name your object. You refer to this name when you want to do things like make it invisible. Multiline vs. Single Line: Self explanatory Var: is the name of a variable that is associated with the content of the text box. This is one of the easier ways to manipulate what is in the box via actionscript. Session 1 - 04/08/2010

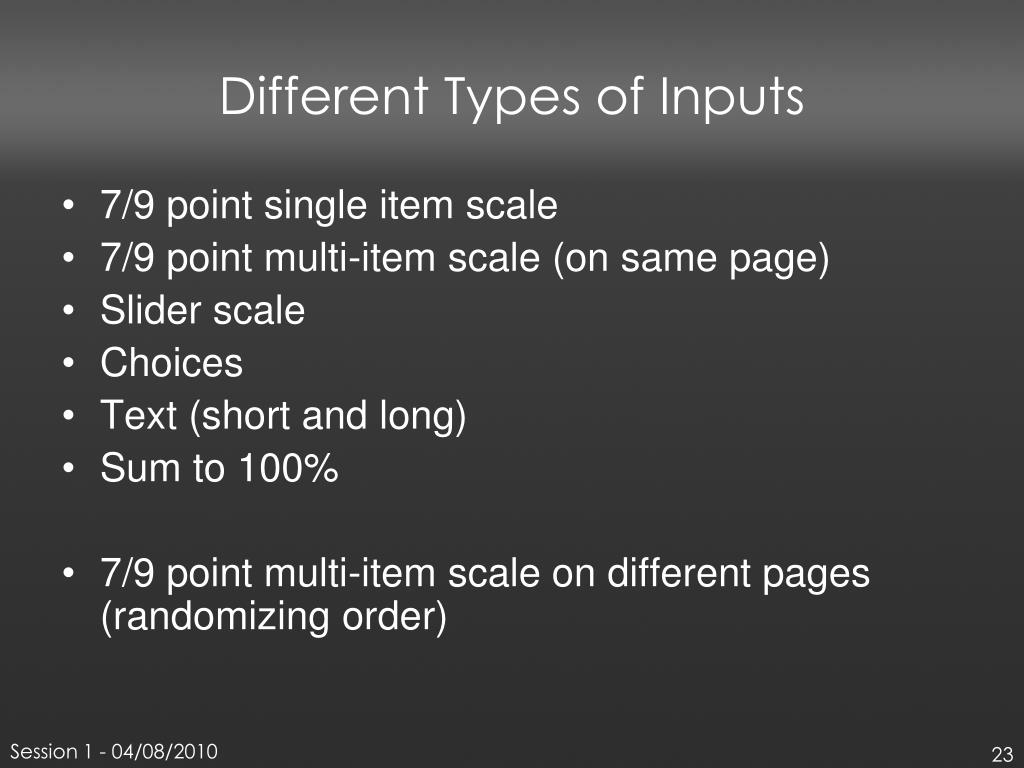

  23. Different Types of Inputs • 7/9 point single item scale • 7/9 point multi-item scale (on same page) • Slider scale • Choices • Text (short and long) • Sum to 100% • 7/9 point multi-item scale on different pages (randomizing order) Session 1 - 04/08/2010

  24. How to Test Your Program • CTRL + ENTER: Run entire program • CTRL + ALT + ENTER: Run current scene • SHIFT + ENTER: Compile program • trace!! • Sends text to the “output” window • Only used for debugging • VERY useful Session 1 - 04/08/2010

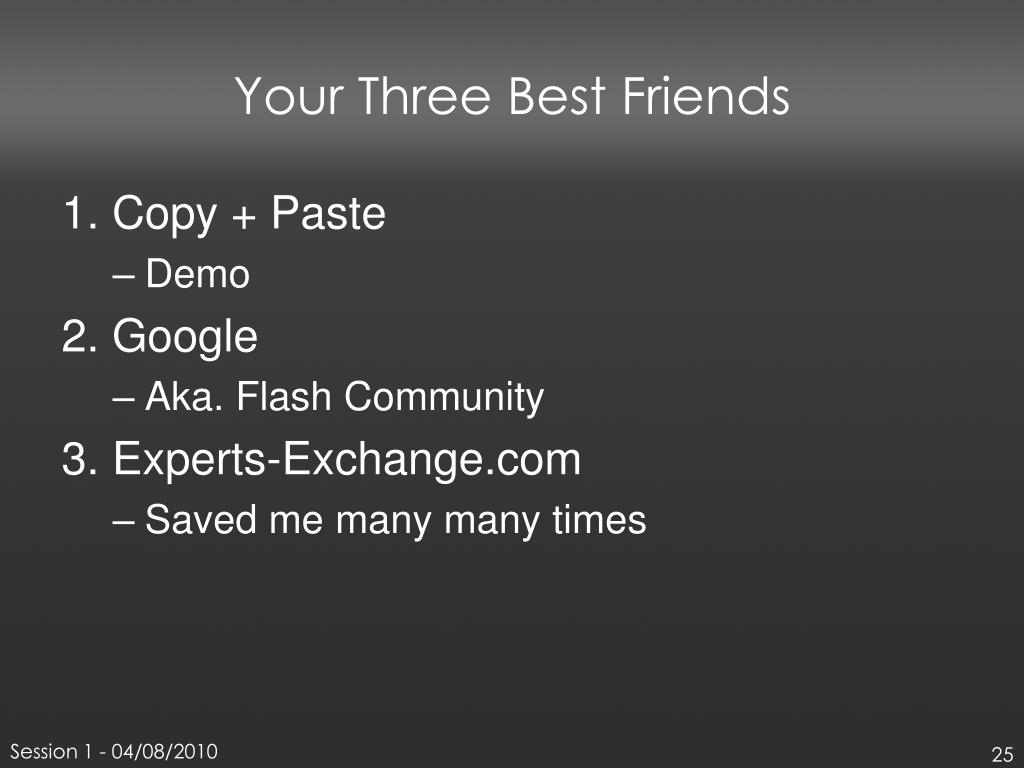

  25. Your Three Best Friends 1. Copy + Paste • Demo 2. Google • Aka. Flash Community 3. Experts-Exchange.com • Saved me many many times Session 1 - 04/08/2010

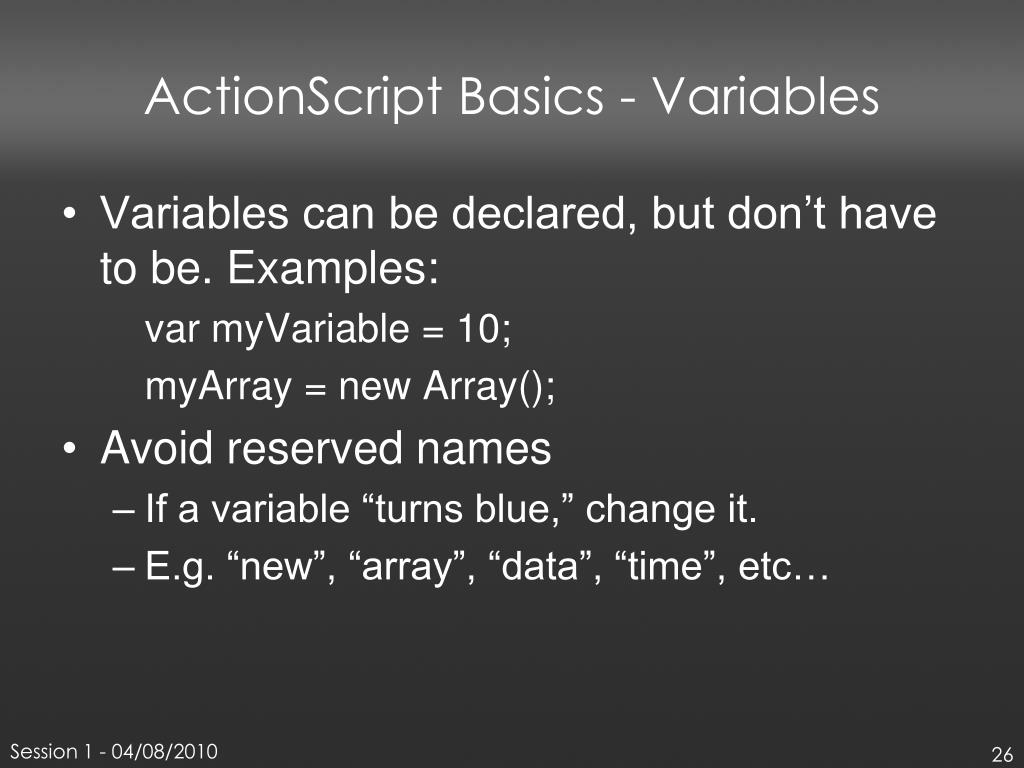

  26. ActionScript Basics - Variables • Variables can be declared, but don’t have to be. Examples: var myVariable = 10; myArray = new Array(); • Avoid reserved names • If a variable “turns blue,” change it. • E.g. “new”, “array”, “data”, “time”, etc… Session 1 - 04/08/2010

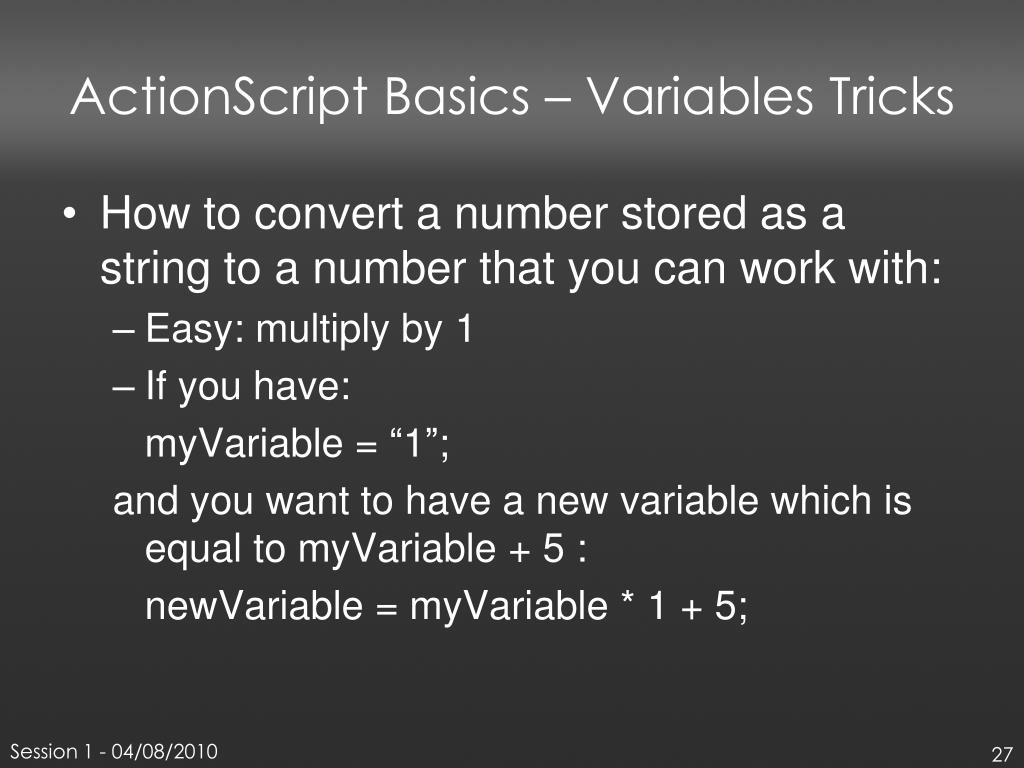

  27. ActionScript Basics – Variables Tricks • How to convert a number stored as a string to a number that you can work with: • Easy: multiply by 1 • If you have: myVariable = “1”; and you want to have a new variable which is equal to myVariable + 5 : newVariable = myVariable * 1 + 5; Session 1 - 04/08/2010

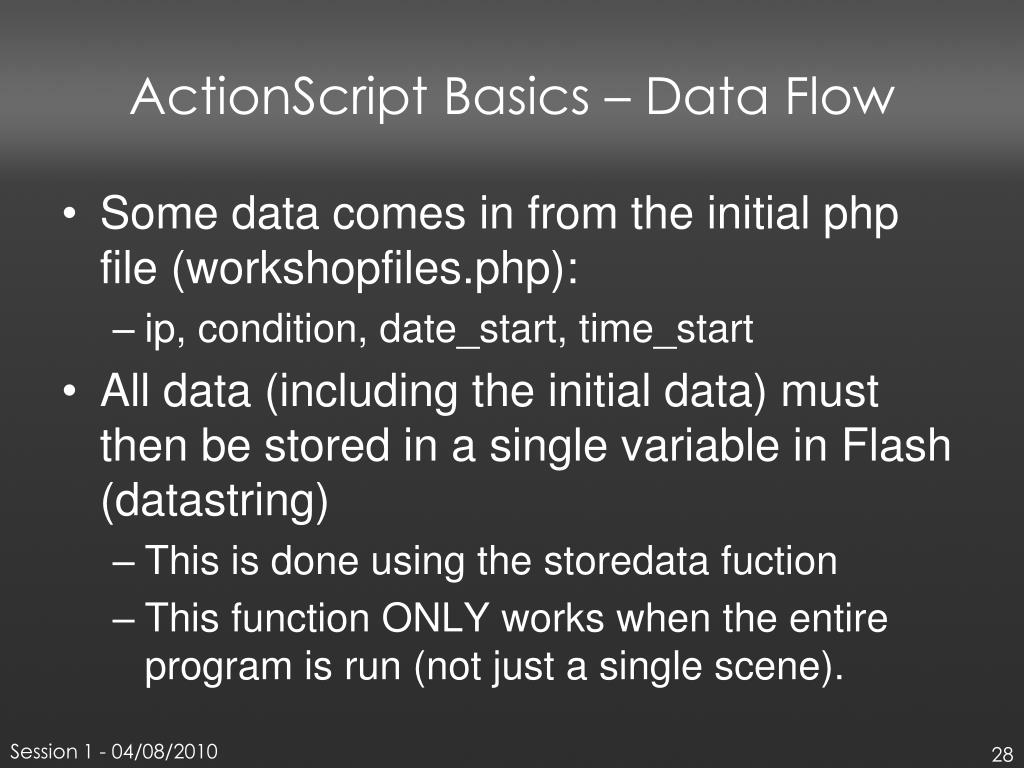

  28. ActionScript Basics – Data Flow • Some data comes in from the initial php file (workshopfiles.php): • ip, condition, date_start, time_start • All data (including the initial data) must then be stored in a single variable in Flash (datastring) • This is done using the storedata fuction • This function ONLY works when the entire program is run (not just a single scene). Session 1 - 04/08/2010

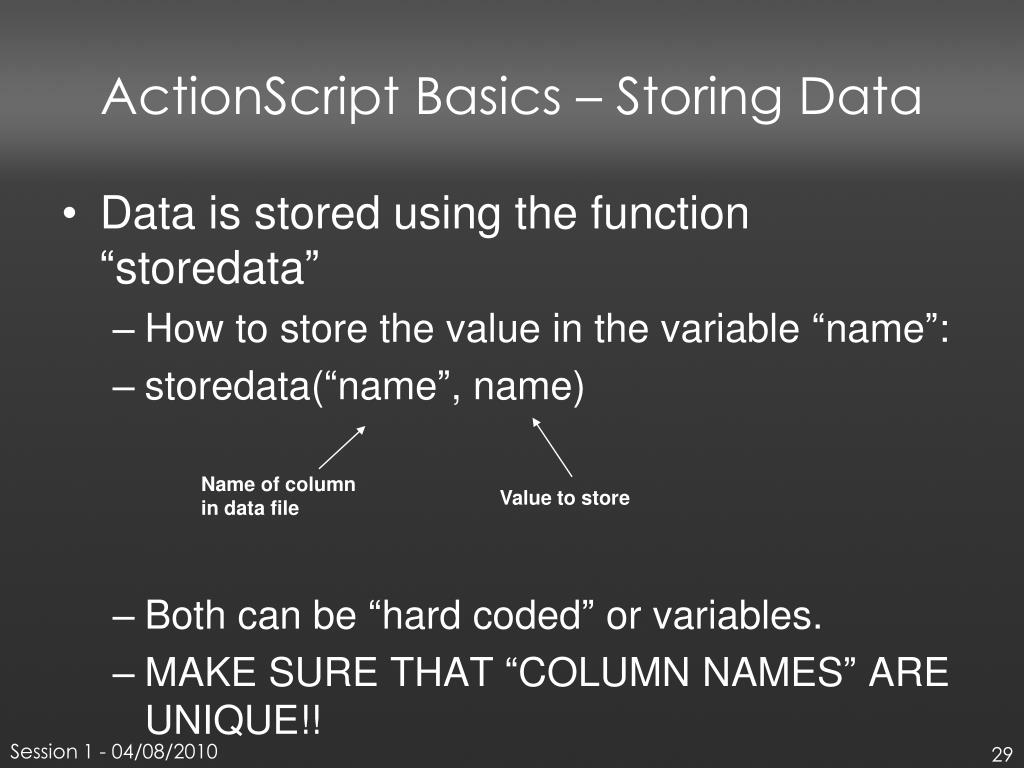

  29. ActionScript Basics – Storing Data • Data is stored using the function “storedata” • How to store the value in the variable “name”: • storedata(“name”, name) • Both can be “hard coded” or variables. • MAKE SURE THAT “COLUMN NAMES” ARE UNIQUE!! Name of column in data file Value to store Session 1 - 04/08/2010

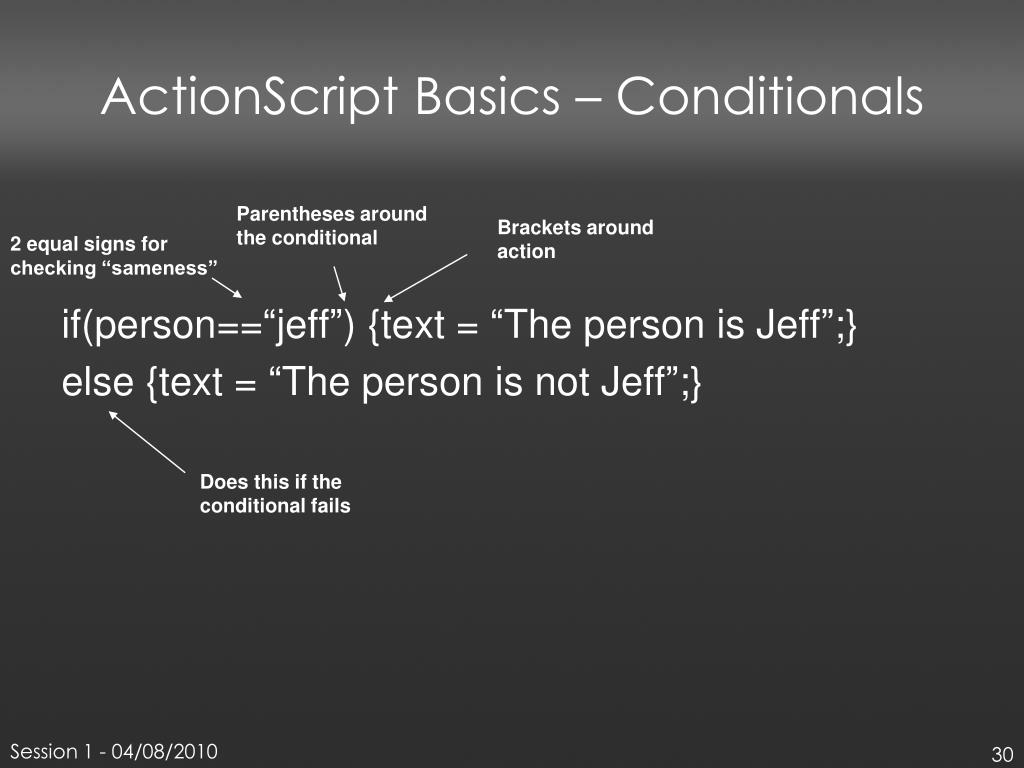

  30. ActionScript Basics – Conditionals if(person==“jeff”) {text = “The person is Jeff”;} else {text = “The person is not Jeff”;} Parentheses around the conditional Brackets around action 2 equal signs for checking “sameness” Does this if the conditional fails Session 1 - 04/08/2010

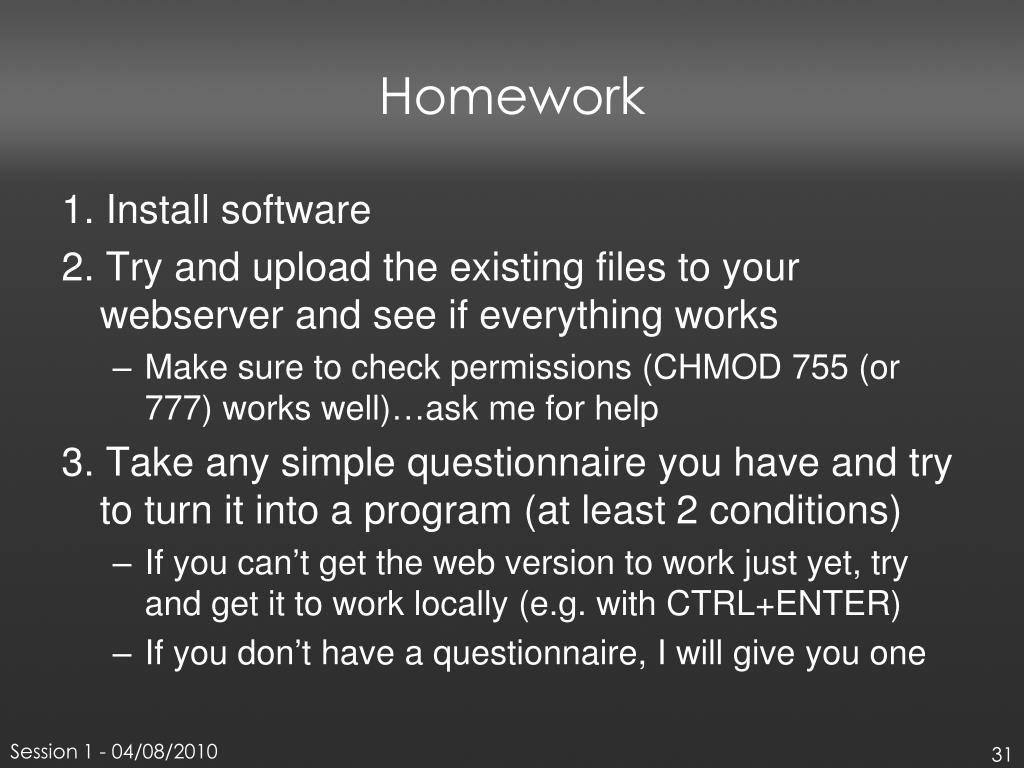

  31. Homework 1. Install software 2. Try and upload the existing files to your webserver and see if everything works • Make sure to check permissions (CHMOD 755 (or 777) works well)…ask me for help 3. Take any simple questionnaire you have and try to turn it into a program (at least 2 conditions) • If you can’t get the web version to work just yet, try and get it to work locally (e.g. with CTRL+ENTER) • If you don’t have a questionnaire, I will give you one Session 1 - 04/08/2010

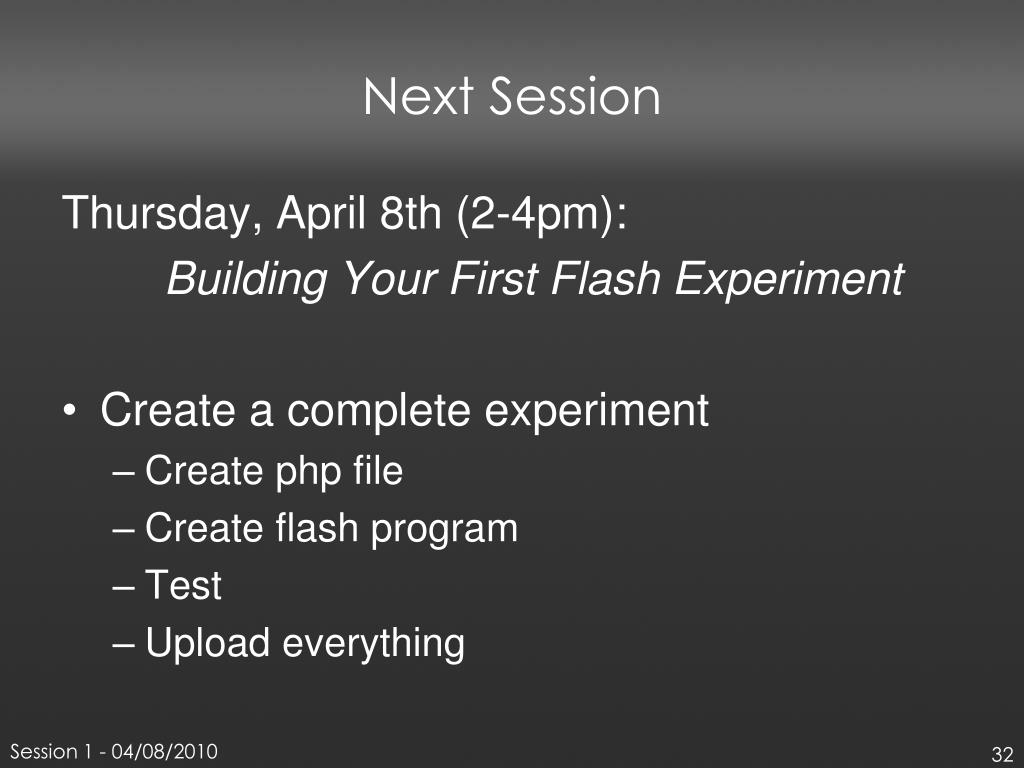

  32. Next Session Thursday, April 8th (2-4pm): Building Your First Flash Experiment • Create a complete experiment • Create php file • Create flash program • Test • Upload everything Session 1 - 04/08/2010
