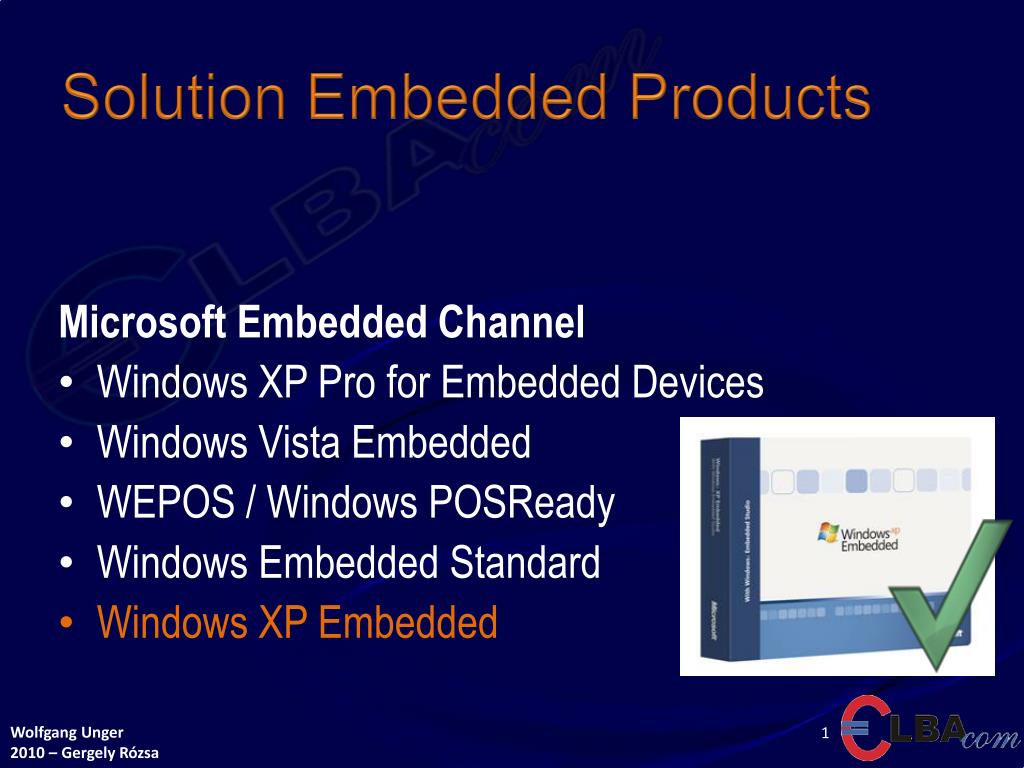

  1. Solution Embedded Products Microsoft Embedded Channel Windows XP Pro for Embedded Devices Windows Vista Embedded WEPOS / Windows POSReady Windows Embedded Standard Windows XP Embedded

  2. XP Embedded – Tools Installation • Installation Procedure • Disc 1 (X10-50442) • Install Tools • Install Microsoft SQL Desktop Edition • InstallComponent Database • Disc 2 (X10-50443) • ContainsComponent Database • Disc 3 (X10-50444) • Upgrade Database to SP2 • Upgrade Tools to SP2 • FP2007 Installation (X13-14119) • Upgrade Database to FP2007 • Upgrade Tools to FP2007 • Update Rollup 1.0 (X13-82297) • Import Components to Database • Service Pack 3 (Xxx-xxxxx) • Import Components to Database

  3. Solution Embedded Products Microsoft Embedded Channel Windows XP Pro for Embedded Devices Windows Vista Embedded Windows Embedded POSReady Windows Embedded Standard

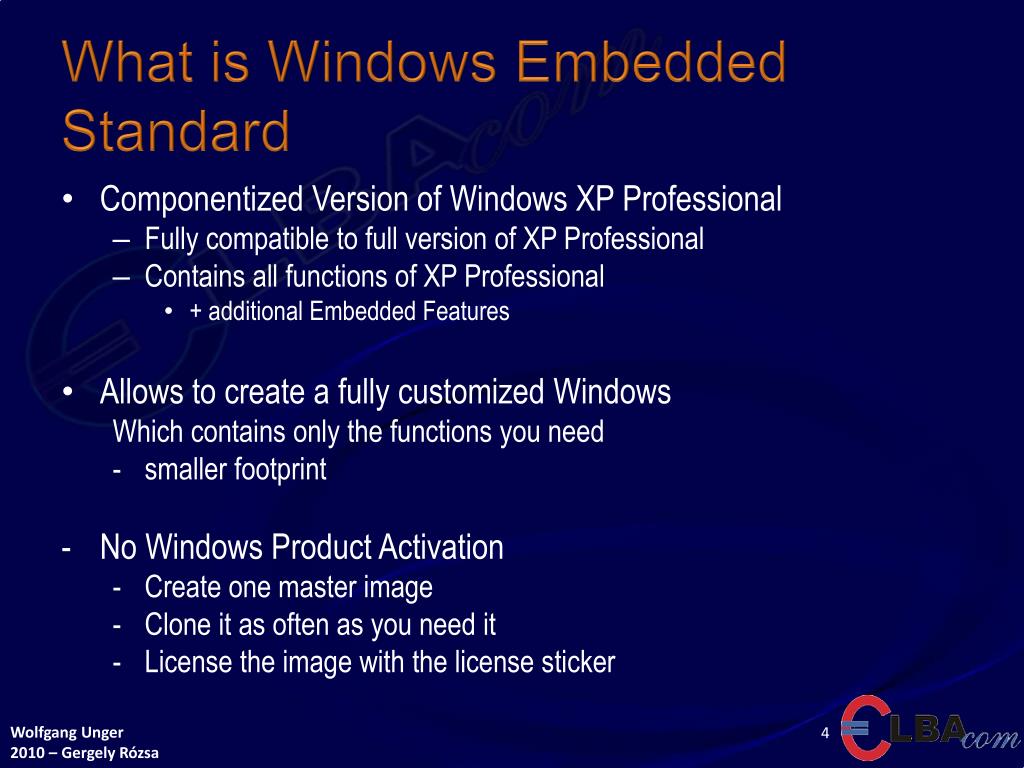

  4. Whatis Windows Embedded Standard • Componentized Version of Windows XP Professional • Fullycompatibletofullversion of XP Professional • Contains all functions of XP Professional • + additional Embedded Features • Allowstocreate a fullycustomized Windows Whichcontainsonlythefunctionsyouneed • smallerfootprint • No Windows ProductActivation • Create onemasterimage • Cloneitasoftenasyouneedit • Licensetheimagewiththelicensesticker

  5. Windows Embedded Standard 5 4 3 2 1 Cost Flexibility Knowledge • Based on Windows XP Embedded technology • Easier Setup • Single Setup DVD • Oneinstalls all • Tools equalto XP Embedded • Target Designer • Component Designer • Configurationfilesarecompatible • YoucanimportXPeslxfilestoWES Target Designer

  6. New Features in Windows Embedded Standard Microsoft Silverlight (3.0) .NET Framework 3.5 (4.0) RDP 6.1 (7.0) Power Shell 2.0 Windows Installer 4.5 WSDAPI Network Access Protection Sysprep SCCM Operating System Deployment (OSD) XP Support Tools On-ScreenKeyboard Etc..

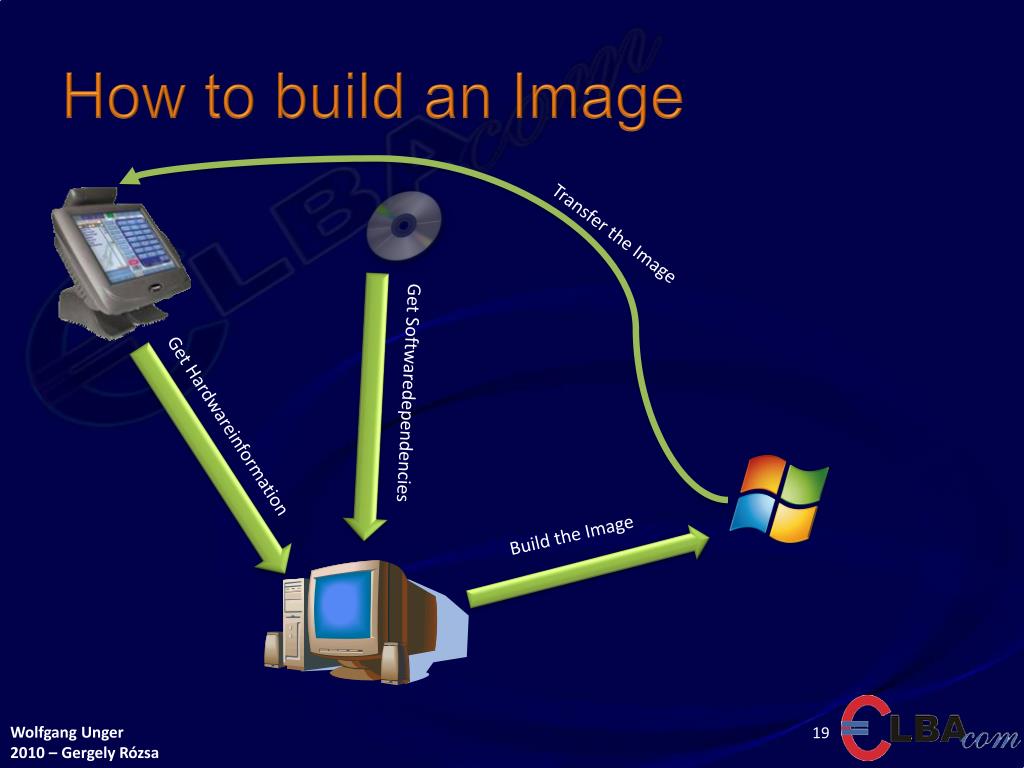

  7. Howtobuild an Image Transfer the Image GetSoftwaredependencies Get Hardwareinformation Buildthe Image

  8. Windows Embedded Studio Target Designer Component Designer Database Manager Target Analyzer TAP.EXE

  9. Windows Embedded Studio • Target Designer • Tool to build your XP Embedded / WES Image • Add theneededcomponentstoyourconfiguration • Dependency Check • Buildthe Image

  10. Target Designer Componentlist • Contains all availablecomoponents in thecomponentdatabase • Bold Items • Marco Components

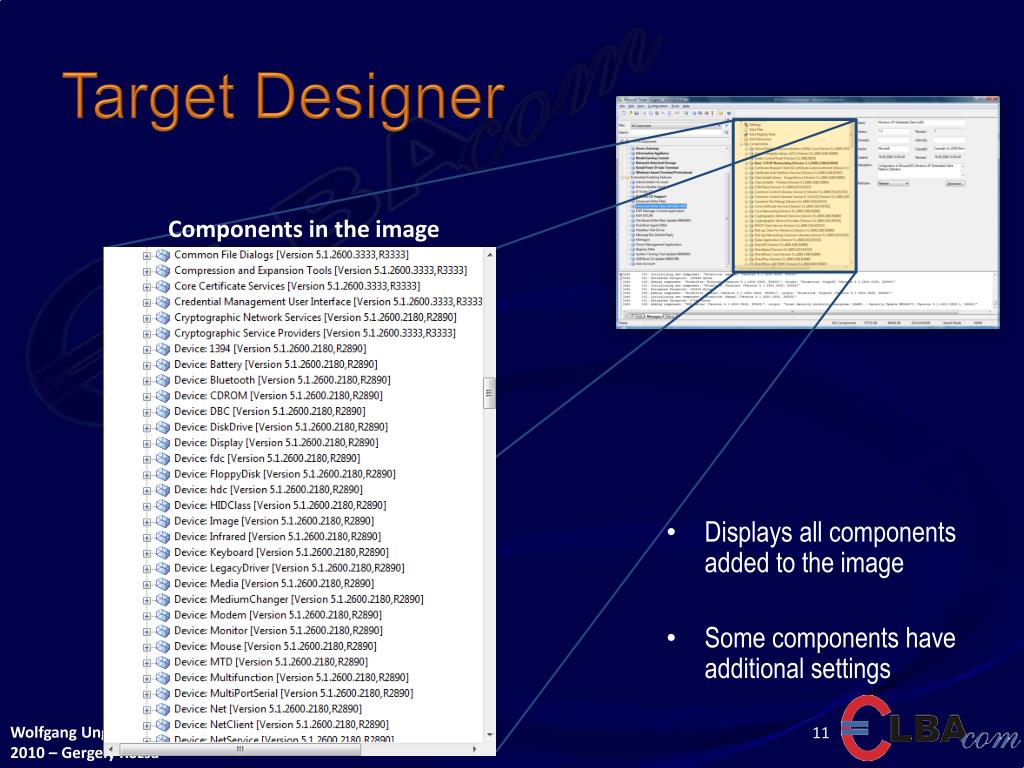

  11. Target Designer Components in theimage Displays all componentsaddedtotheimage Somecomponentshave additional settings

  12. Target Designer Componentsettings

  13. Target Designer • Dependency Check • Checks formissingdependencies • Automaticallyaddmissingcomponents • Removesunneededcomponents

  14. Windows Embedded Studio Target Designer Component Designer Database Manager Target Analyzer TAP.EXE

  15. Component Designer • Create components • Drivers • Applications • Macrocomponents • Import • INF Files • PMQ Files (TAP Output)

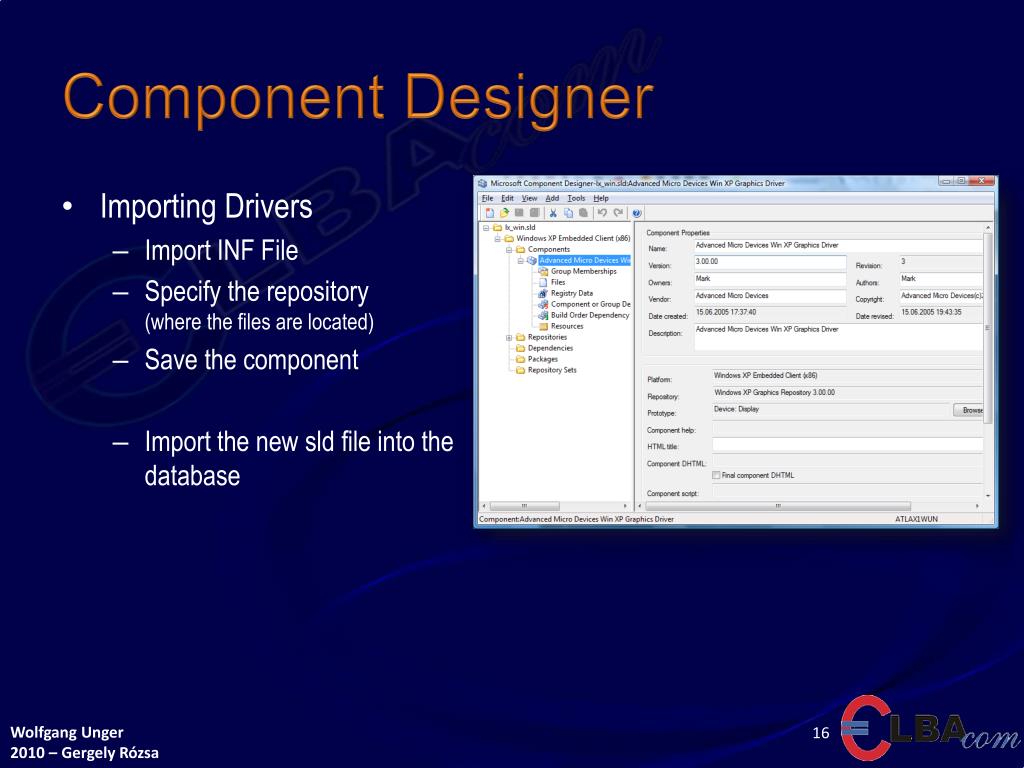

  16. Component Designer • Importing Drivers • Import INF File • Specifytherepository(wherethefilesarelocated) • Save thecomponent • Import thenewsldfileintothedatabase

  17. Windows Embedded Studio Target Designer Component Designer Database Manager Target Analyzer TAP.EXE

  18. Component Database Manager • Usedto • Change thecomponentdatabaselocation • Import components • View installedcomponents • Delete components

  19. Howtobuild an Image Transfer the Image GetSoftwaredependencies Get Hardwareinformation Buildthe Image

  20. Windows Embedded Studio Target Designer Component Designer Database Manager Target Analyzer TAP.EXE

  21. Target Analyzer Probe • TA.EXE – 16 Bit Version • Runs under DOS • Enumeratesonlydevicesrecognizedby BIOS • TAP.EXE – 32 Bit Version • Runs under Windows (Windows XP, Windows PE) • Enumerates all devicesrecognizedby Windows • Getsdevicesfromregistry

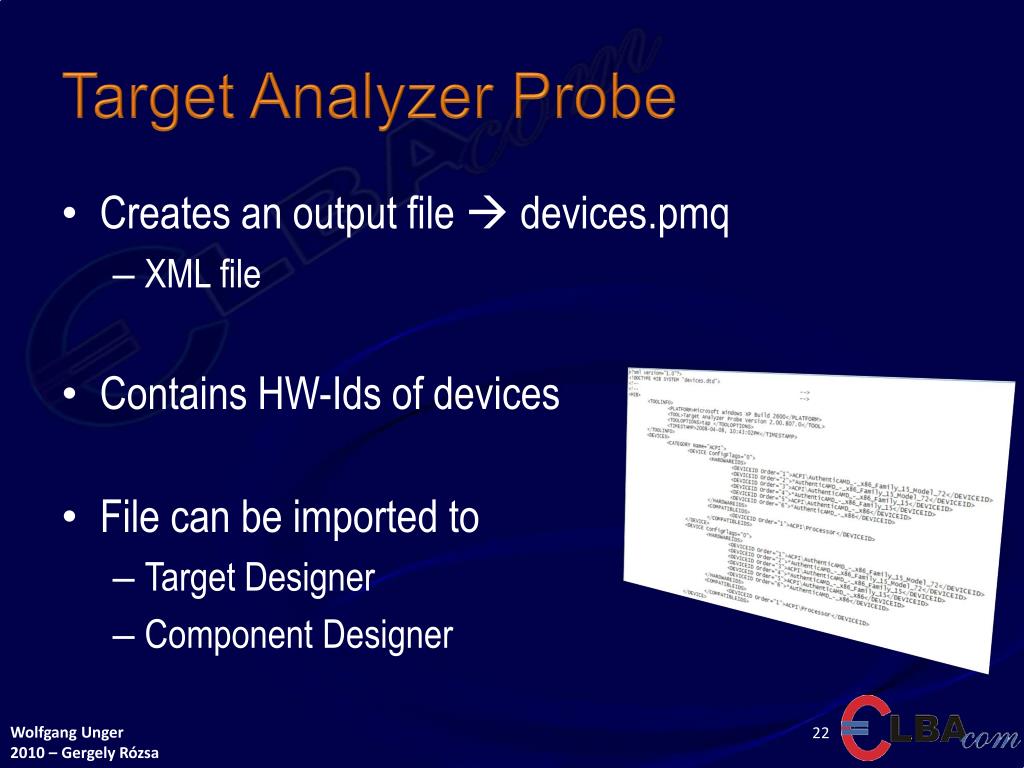

  22. Target Analyzer Probe • Creates an outputfile devices.pmq • XML file • Contains HW-Idsofdevices • File canbeimportedto • Target Designer • Component Designer

  23. Howtobuild an Image Transfer the Image GetSoftwaredependencies Get Hardwareinformation Buildthe Image

  24. Dependency Walker http://www.dependencywalker.com Lists all dependenciesof an executable Create a filter in Target Designer tosearchfortheneededfiles

  25. Tools Windows Sysinternals http://www.sysinternals.com *) Process Monitor won‘trun on XPe – useFilemonandRegmoninstead • Process Monitor * • Filemon • Regmon

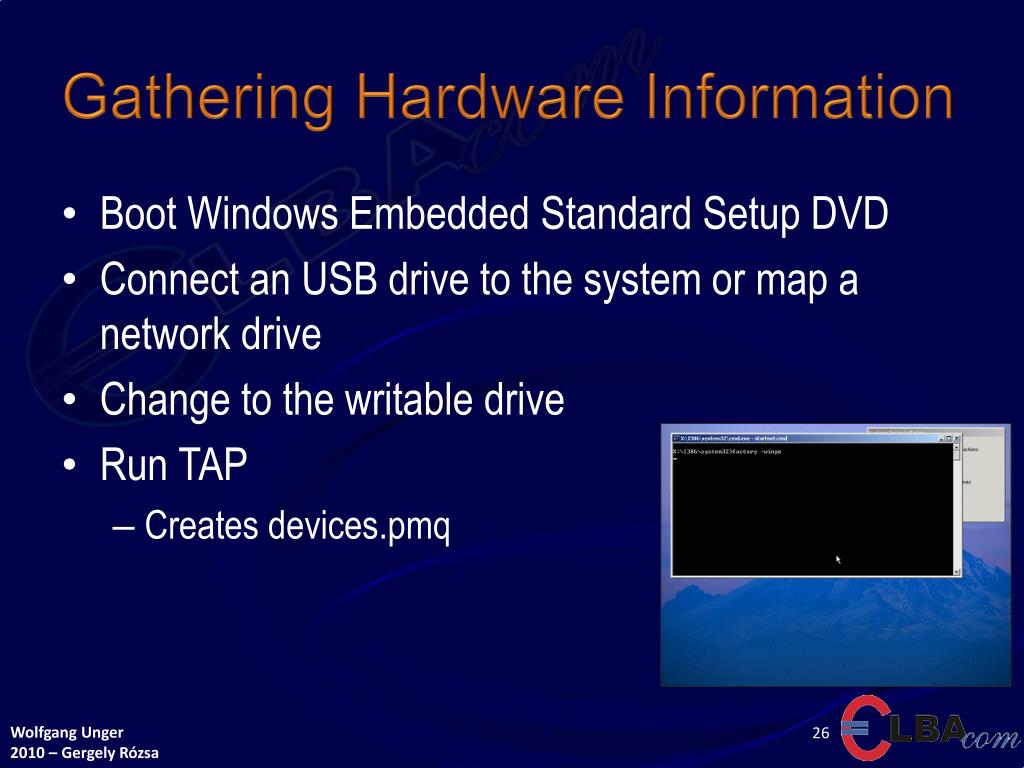

  26. Gathering Hardware Information • Boot Windows Embedded Standard Setup DVD • Connect an USB drivetothesystemormap a networkdrive • Change tothewritabledrive • Run TAP • Creates devices.pmq

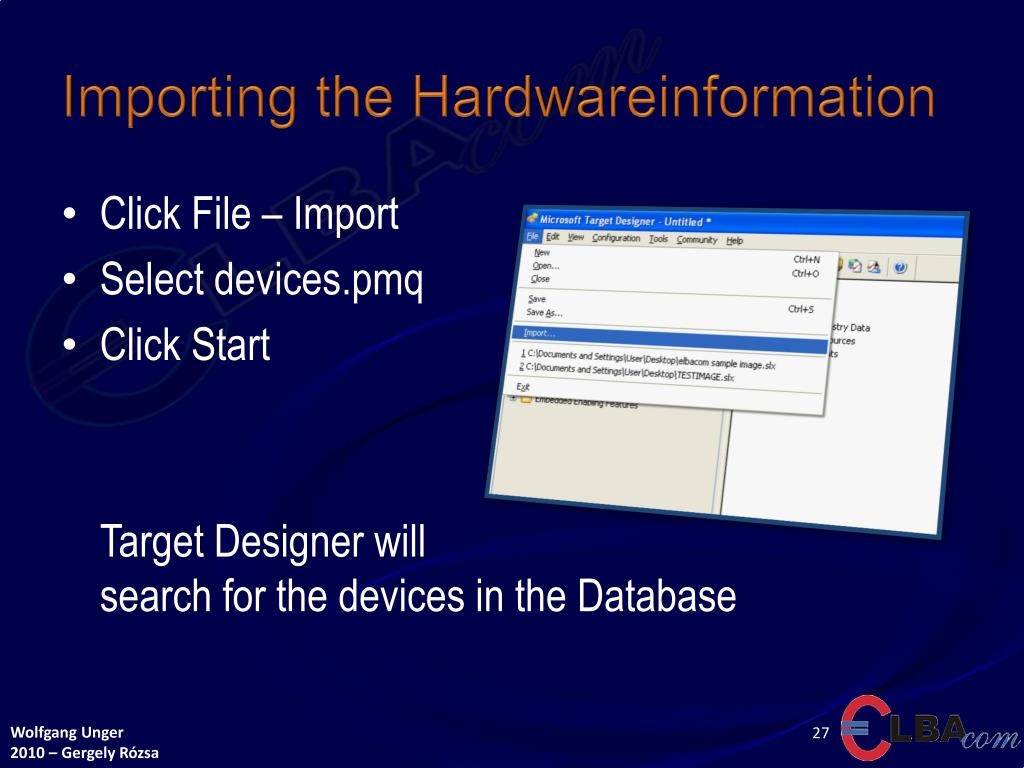

  27. Importingthe Hardwareinformation Click File – Import Select devices.pmq Click Start Target Designer willsearch for thedevices in the Database

  28. Addingcomponents • Add Components • Enterprise Features • Minlogon Sample Macro • RunningDependency Check

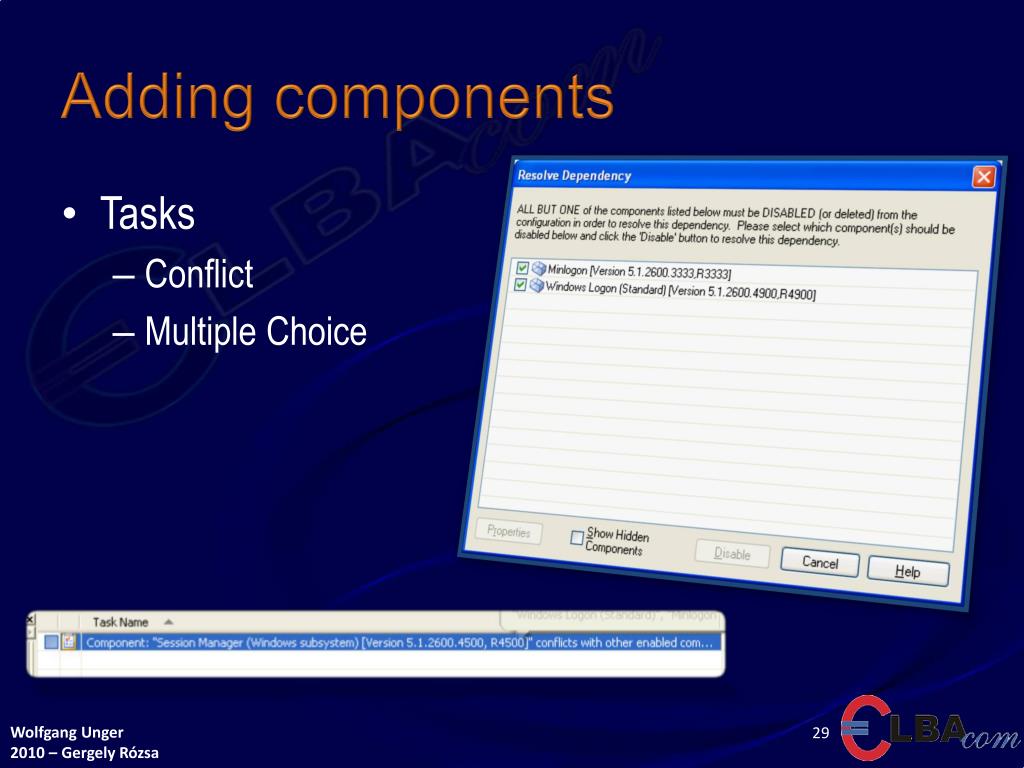

  29. Addingcomponents • Tasks • Conflict • Multiple Choice

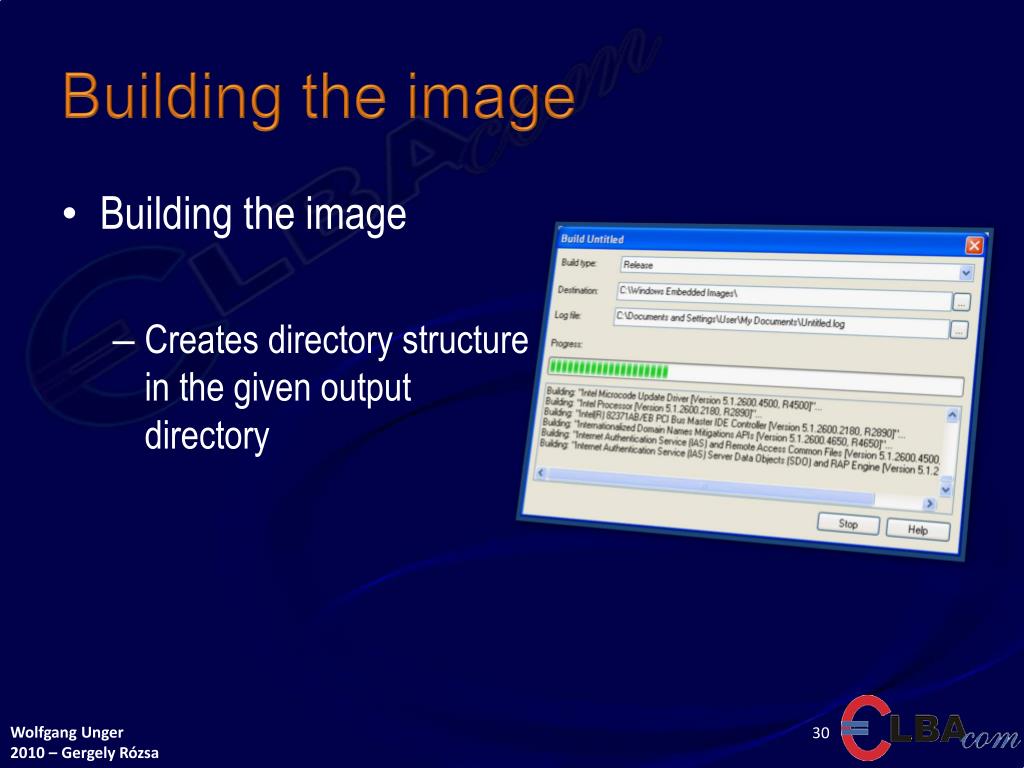

  30. Buildingtheimage • Buildingtheimage • Createsdirectorystructurein thegivenoutputdirectory

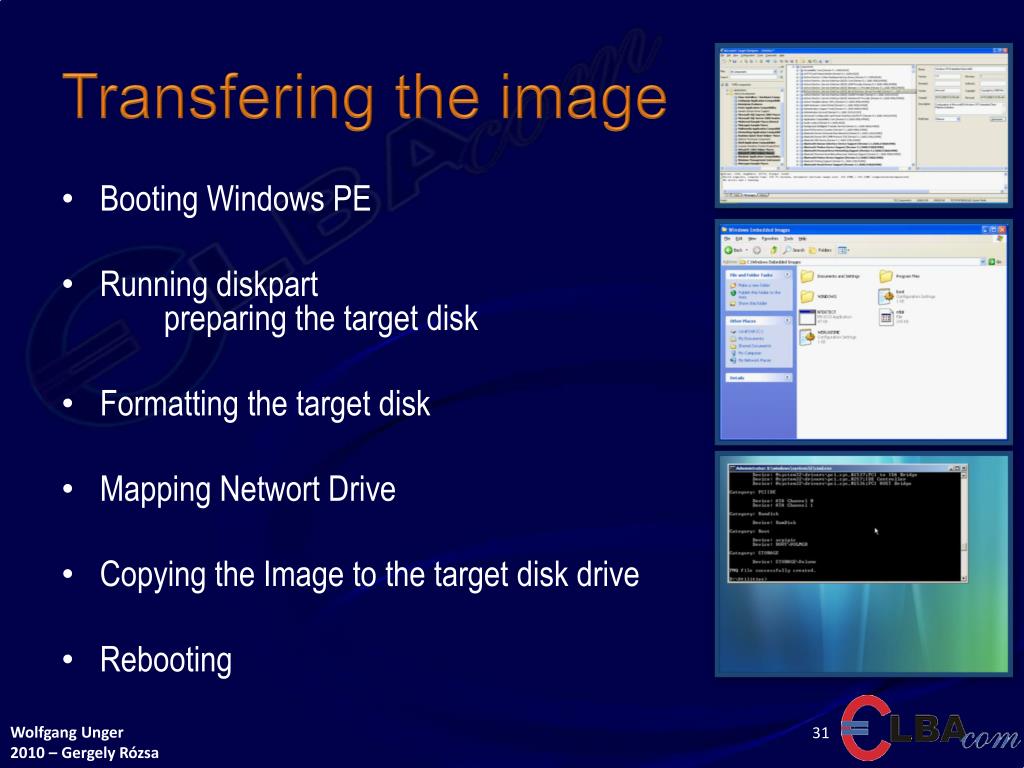

  31. Transferingtheimage Booting Windows PE Runningdiskpartpreparingthetargetdisk Formattingthetargetdisk Mapping Networt Drive Copyingthe Image tothetargetdiskdrive Rebooting

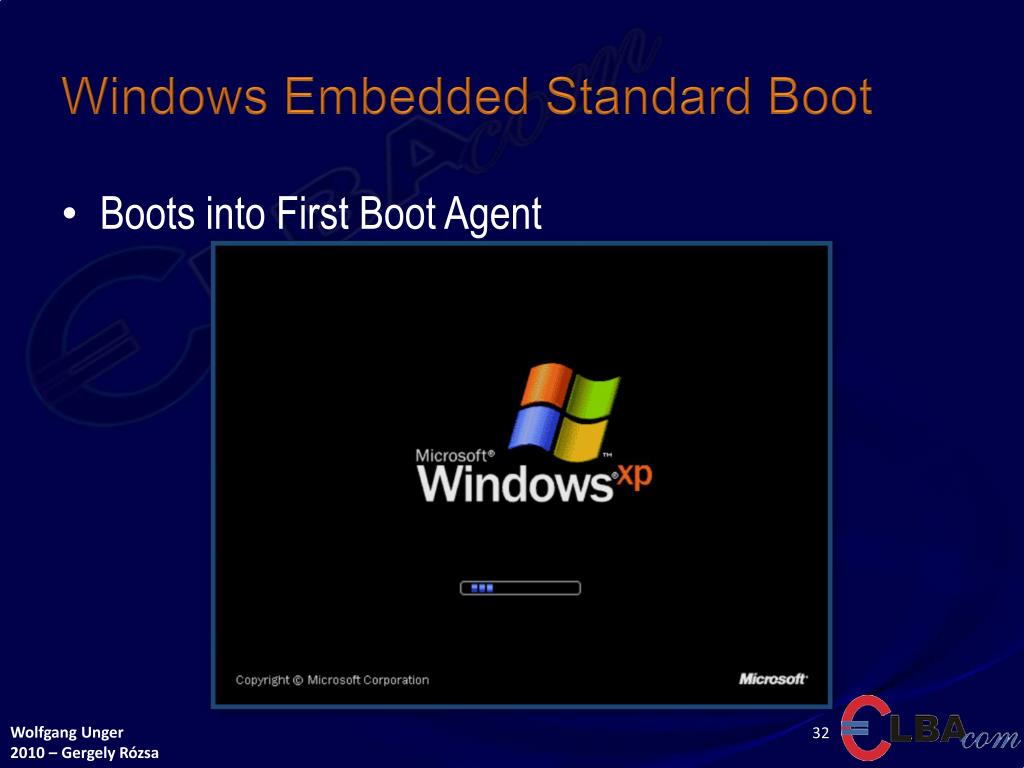

  32. Windows Embedded Standard Boot Boots into First Boot Agent

  33. First Boot Agent Initial configurationoftheimage createsuseraccounts installsPnPdevices component / fileregistration installationofapplications(RunOnce, .NET 2.0)

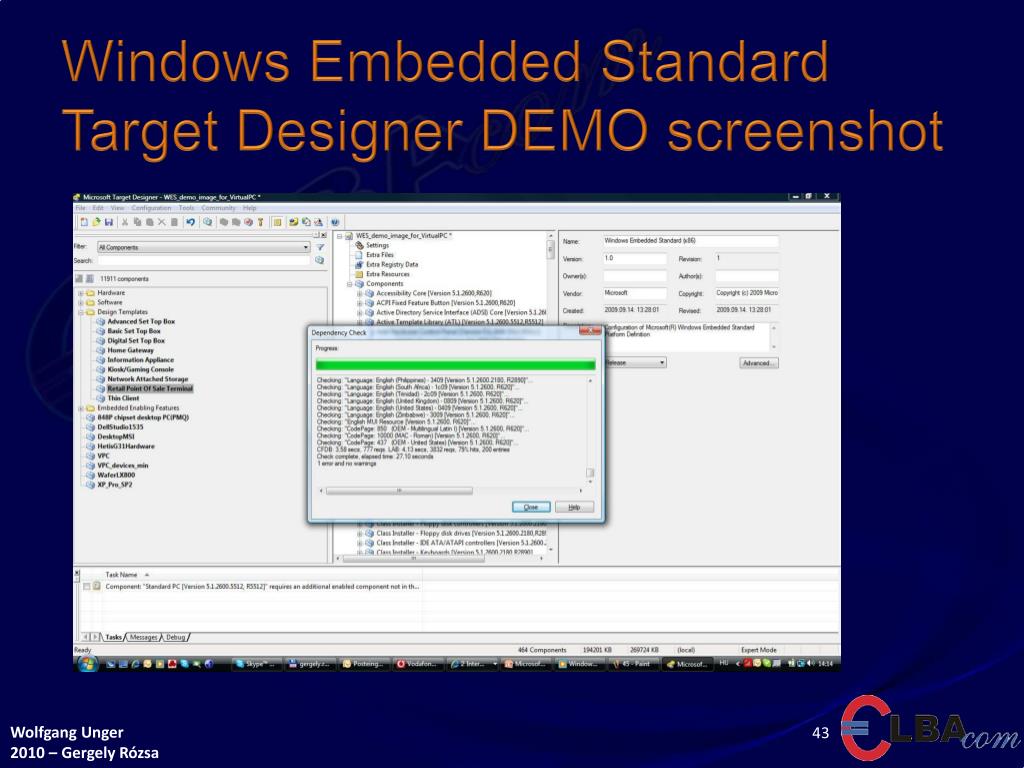

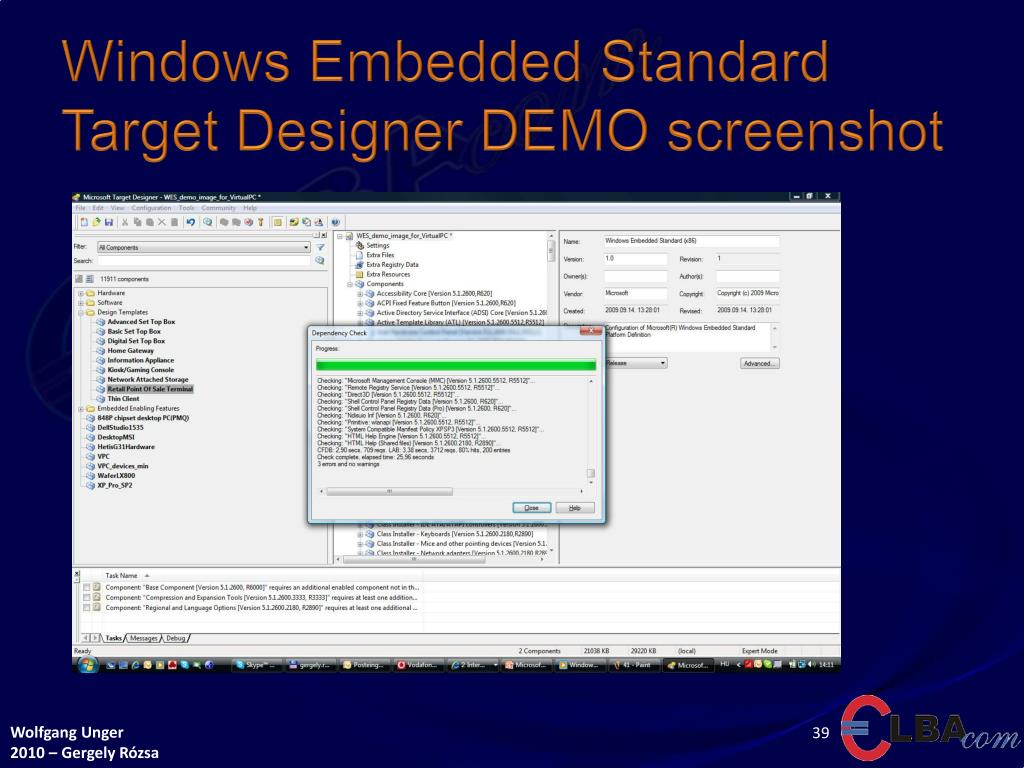

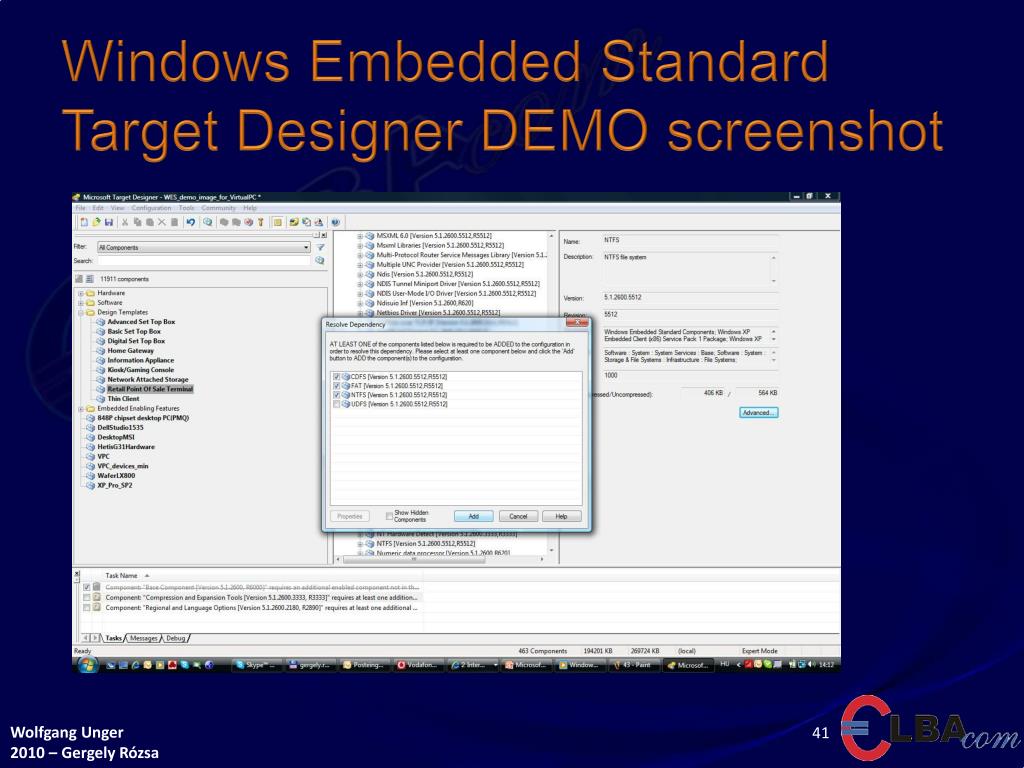

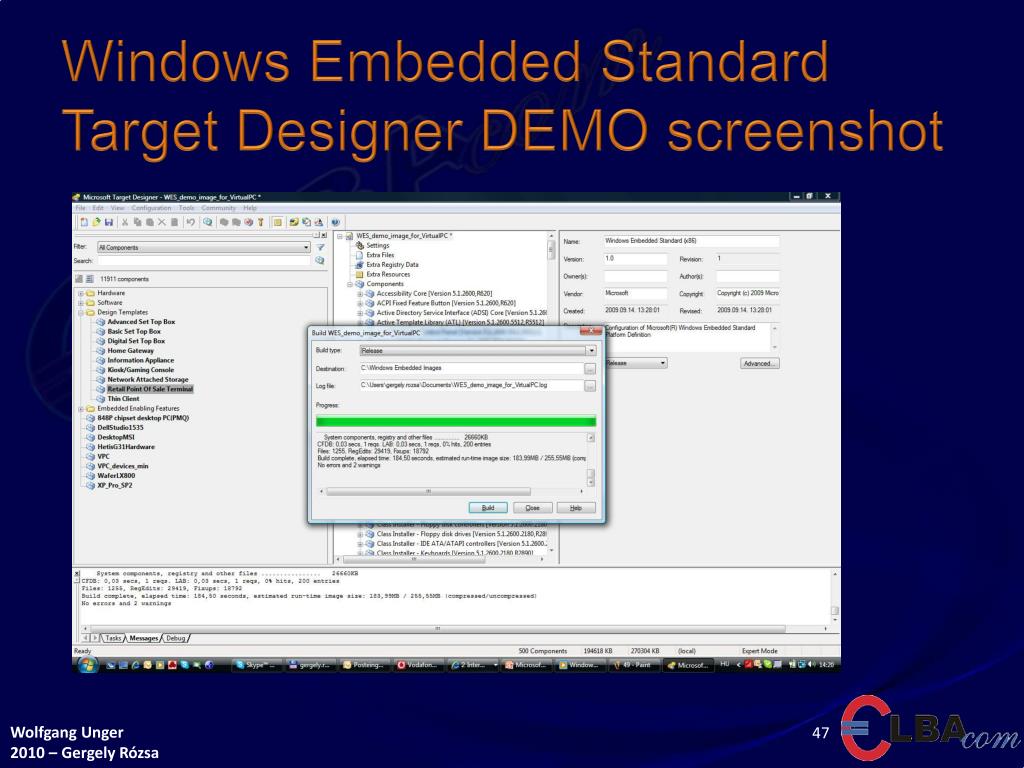

  34. Windows Embedded Standard Target Designer DEMO screenshot

  35. Windows Embedded Standard Target Designer DEMO screenshot

  36. Windows Embedded Standard Target Designer DEMO screenshot

  37. Windows Embedded Standard Target Designer DEMO screenshot

  38. Windows Embedded Standard Target Designer DEMO screenshot

  39. Windows Embedded Standard Target Designer DEMO screenshot

  40. Windows Embedded Standard Target Designer DEMO screenshot

  41. Windows Embedded Standard Target Designer DEMO screenshot

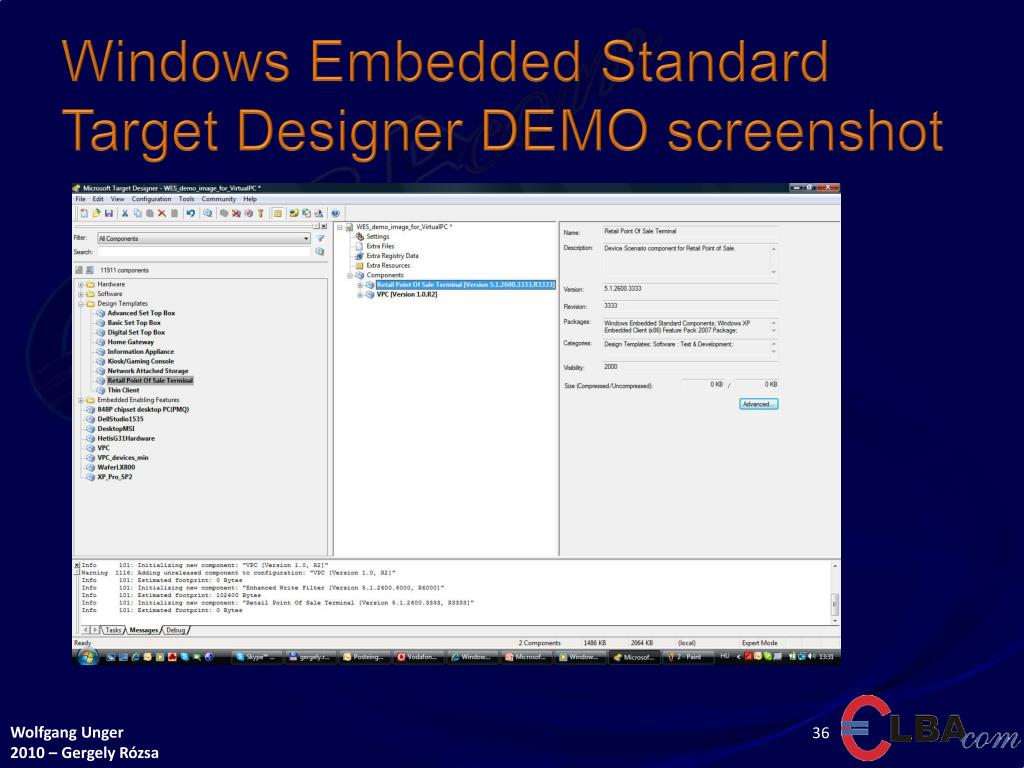

  42. Windows Embedded Standard Target Designer DEMO screenshot

  43. Windows Embedded Standard Target Designer DEMO screenshot

  44. Windows Embedded Standard Target Designer DEMO screenshot

  45. Windows Embedded Standard Target Designer DEMO screenshot

  46. Windows Embedded Standard Target Designer DEMO screenshot

  47. Windows Embedded Standard Target Designer DEMO screenshot

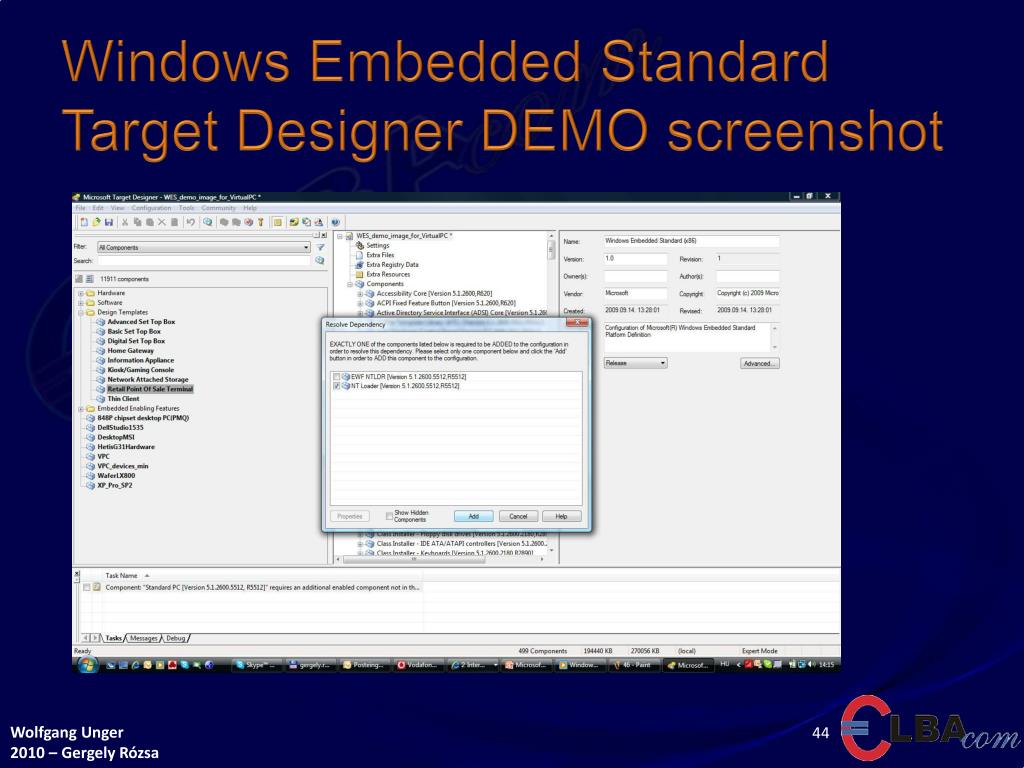

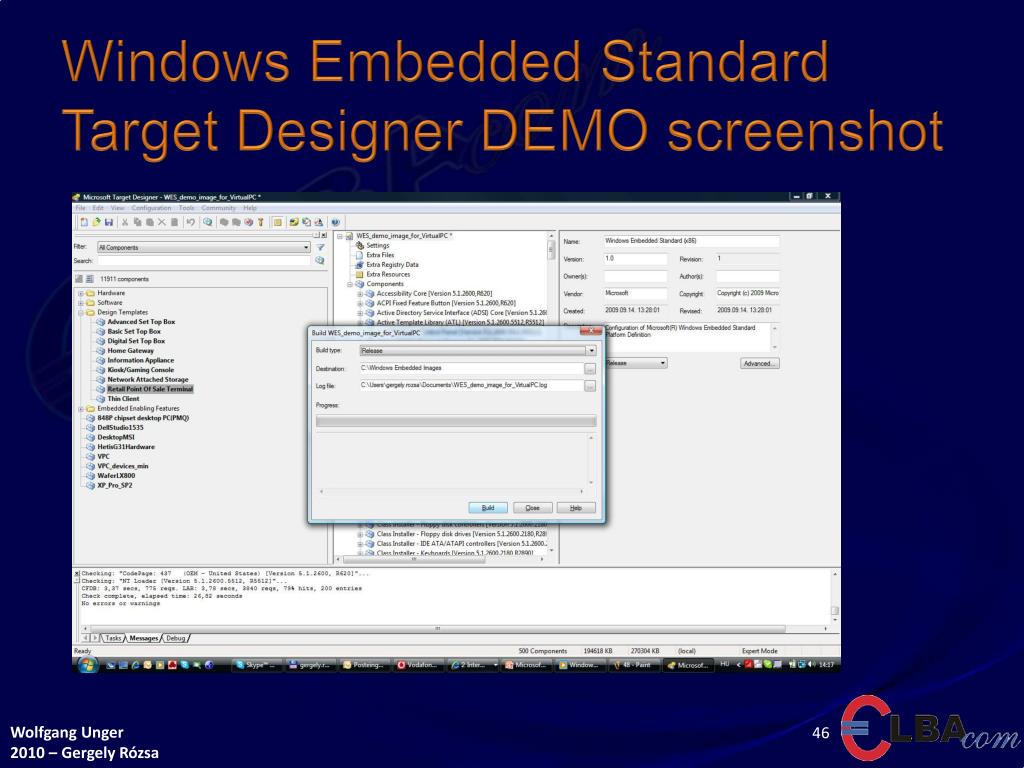

  48. Windows Embedded Standard Target Designer DEMO screenshot

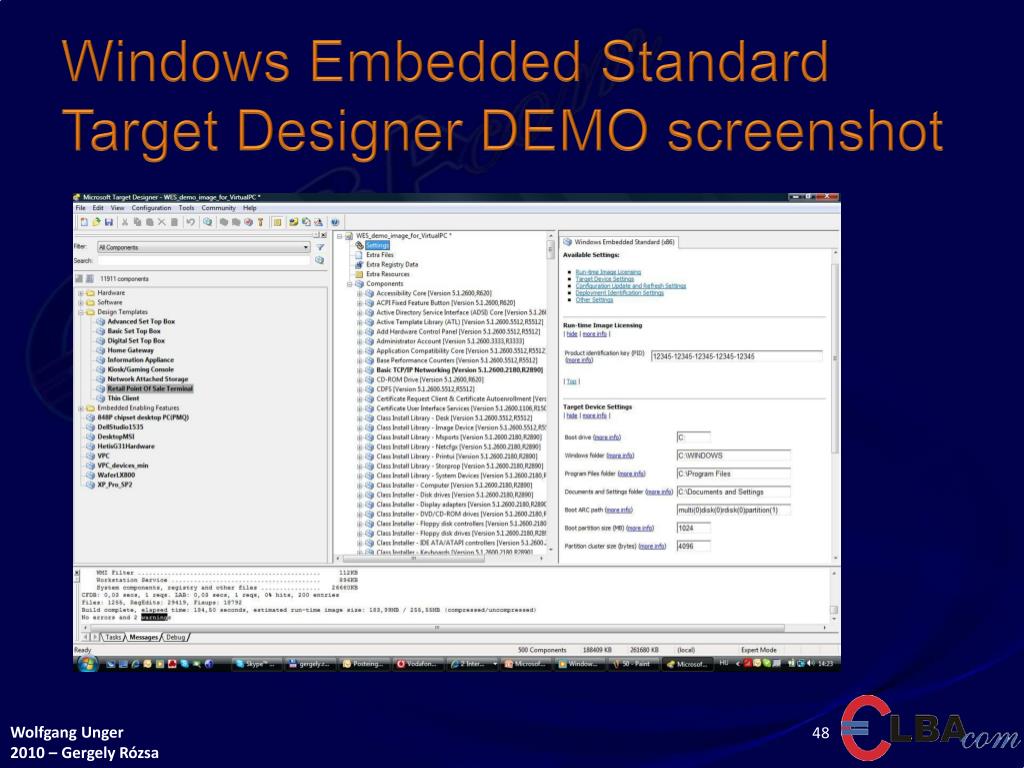

  49. Windows Embedded Standard Target Designer DEMO screenshot

  50. Windows Embedded Standard Target Designer DEMO screenshot
