  1. It’s a Gas

  2. GAS LAWS Mr. Trotts 2/14/2011

  3. Lesson Objectives • You will be able to: • Name and describe 5 characteristics of gases • Identify three differences between ideal gases and real gases. • Define the term “STP” • List 4 units for pressure measurement • Explain and describe the relationship between temperature and pressure of gases, according to Charles’ Law. • Explain and describe the relationship between volume and pressure of gases, according to Boyle’s Law. • Explain how temperature, pressure, and volume of gases are all related according to the combined gas law. • Solve mathematic problems about Charles’ Law, Boyle’s Law, and the combined gas law.

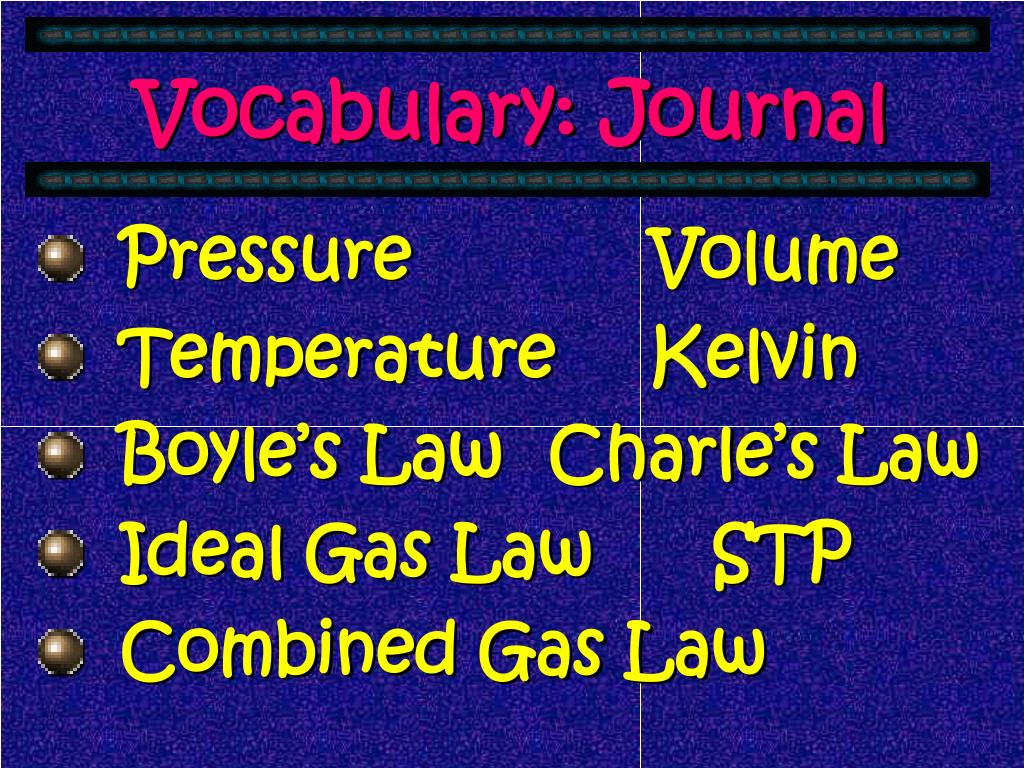

  4. Vocabulary: Journal • Pressure Volume • Temperature Kelvin • Boyle’s Law Charle’s Law • Ideal Gas Law STP • Combined Gas Law

  5. Test questions: journal • Describe the 5 characteristics of gases • Compare the 3 real and ideal characteristics of gases

  6. What are Characteristics of a GAS? E X P A N D A B L E Diffusible... Compressible Fluid Low Density

  7. In the REAL WORLD: Gases are fat. (they have mass) Gases hog the sofa. (they havevolume) Gases are pushy and have an attitude toward other gases.(they exert forces on each other) In an IDEAL WORLD: Gases are skinny. (they have no mass) Gases make themselves invisible. (they have no volume) Gases are notconfrontational. (they do not interact… elastic collisions) : Gas Laws Assumptions Image Source: mtv.com

  8. IT’S A GAS… • Daily grade: • name those 5 characteristics given 2 slide ago. • What were the 3 differences between a real gas (what is really happening) and an ideal gas (assumptions used to make gas laws work)

  9. IT’S A GAS… • List the physical characteristics of gases • Describe the kinetic molecular theory (KMT) • List the 3 assumption of the KMT

  10. The Nature of Gases • Gases have some interesting characteristics that have fascinated scientists for 300 years. • The first gas to be studied was air & it was a long time before it was discovered that air was actually a mixture of particles rather than a single gas.

  11. The Nature of Gases • But this realization did not make the study of gas behavior more difficult. • Although air is a mixture of several different gases, it behaves much the same as any single gas. • Regardless of their chemical identity, gases tend to exhibit similar physical behaviors

  12. The Nature of Gases • Gas particles can be monatomic (Ne), diatomic (N2), or polyatomic (CH4) – but they all have these characteristics in common: 1) Gases have mass. 2) Gases are compressible. 3) Gases fill their containers. 4) Gases diffuse 5) Gases exert pressure. 6) Pressure is dependent on Temp.

  13. Kinetic Molecular Theory • There is a theory that modern day chemist’s use to explain the behaviors and characteristics of gases - the Kinetic Molecular Theory of Matter. • The word kinetic refers to motion. • The word molecular refers to molecules

  14. Kinetic Molecular Theory • The theory states that the tiny particles in all forms of matter in all forms of matter are in constant motion. • This theory is used to explain the behaviors common among gases • There are 3 basic assumptions of the KMT as it applies to gases.

  15. KMT Assumption #1 • A gas is composed of small hard particles. • The particles have an insignificant volume and are relatively far apart from one another. • There is empty space between particles. • No attractive or repulsive forces between particles.

  16. KMT Assumption #2 • The particles in a gas move in constant random motion. • Particles move in straight paths and are completely independent of each of other • Particles path is only changed by colliding with another particle or the sides of its container.

  17. KMT Assumption #3 • All collisions a gas particle undergoes are perfectlyelastic. • No energy is lost from one particle to another, and the total kinetic energy remains constant.

  18. Compare the density of several gases at STP • Describe why gases are compressible • Describe the expansion of gases

  19. Gases have mass. • Gases seem to be weightless, but they are classified as matter, which means they have mass. • The density of a gas – the mass per unit of volume – is much less than the density of a liquid or solid, however.

  20. Gases have mass. • It’s this very low density that allows us to be able to walk through the room without concerning ourselves with air resistance. • Since it is so easy to “swim” across the room we don’t put much thought into the mass of a gas. • Really it is only noticeable if we have a large collection of gas in a container.

  21. The Kinetic-Molecular theory explanation of it is that we assume that gases are composed of a collection of particles. • You can’t see these particles directly, so they are very tiny, and to notice any mass you must weigh a collection of the particles. • It is usually necessary to have a mole or more of gas particles to have significant a significant change in mass.

  22. 2nd– Gases “R” squeezable • If you squeeze a gas, its volume can be reduced considerably • A gases low density allows for there to a lot of empty space between gas molecules.

  23. Gas particles have a high velocity, relative to their masses. • This gives them a lot of energy and movement. • The movement causes the gases to spread out, which leaves a lot of space between molecules. • That empty space can be compressed by pressure allowing gas particles less room to move around thus decreasing the volume.

  24. This empty space can be compressed simply by adding pressure. • We can use this ability of a gas to do work for us. • Think of a shocks on a car. You really are riding on a pillow of air. • A bump in the road compresses the gas in the shocks until the bump’s energy is absorbed.

  25. 3rd – Gases fill their containers • Gases expand until they take up as much room as they possibly can. • Gases spread out to fill containers until the concentration of gases is uniform throughout the entire space. • This is why that nowhere around you is there an absence of air.

  26. The Kinetic-Molecular theory alludes to this by the fact that these particles are in constant random motion. • Gases move in a straight line until it they collide with other particles or the sides of the container, which causes them to change directions until they collide with something else. • This bouncing off of everything around them spread the particles out until they are uniform throughout the entire container.

  27. If I opened up a bag of popcorn in front of the class you would soon be able to smell it in the back. • The popcorn smell is a high energy molecule or group of molecules that is in the gas state. • There are really two properties going on here: • - This property of gases spreading out until they have filled the room • - And the property of diffusion

  28. Explain why when adding air to a balloon it will stop at a certain volume, and then when adding more air gets bigger and stops at a new volume

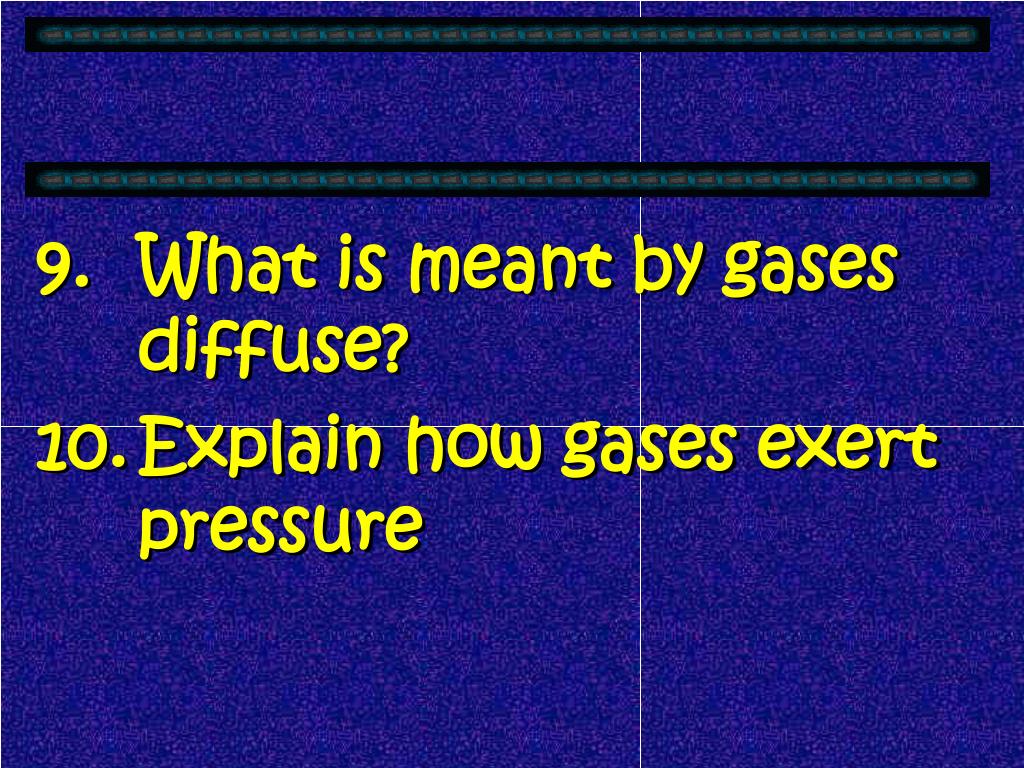

  29. What is meant by gases diffuse? • Explain how gases exert pressure

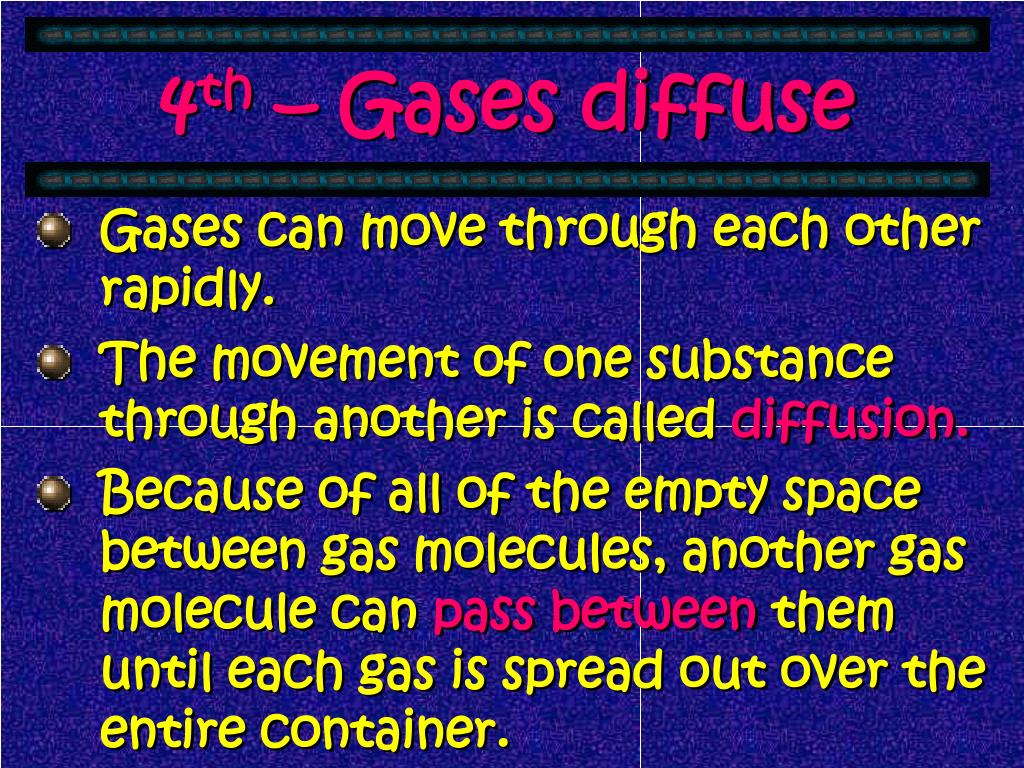

  30. 4th – Gases diffuse • Gases can move through each other rapidly. • The movement of one substance through another is called diffusion. • Because of all of the empty space between gas molecules, another gas molecule can pass between them until each gas is spread out over the entire container.

  31. The same logic from the observation that gases spread out applies here. • If the gases are in constant random motion the fact that they are moving and colliding with everything around them then they will mix with other gases uniformly. • This doesn’t happen at the same speeds for all gases though. • Some gases diffuse more rapidly then other gases based on their size and their energy.

  32. Diffusion explains why gases are able to spread out to fill their containers. • It’s why we can all breath oxygen anywhere in the room. • It also helps us avoid potential odoriferous problems.

  33. 5th – Gases exert pressure • Gas particles exert pressure by colliding with objects in their path. • The sum of all of the collisions makes up the pressure the gas exerts.

  34. The Kinetic-Molecular theory alludes to this by the fact that these particles are colliding with anything in their path. • Imagine a gas in a container as a room of hard rubber balls. • The collisions of the balls bouncing around exert a force on the object that with which they collide. • The definition of a pressure is a force per unit area – so the total of all of the tiny collisions makes up the pressure exerted by the gas.

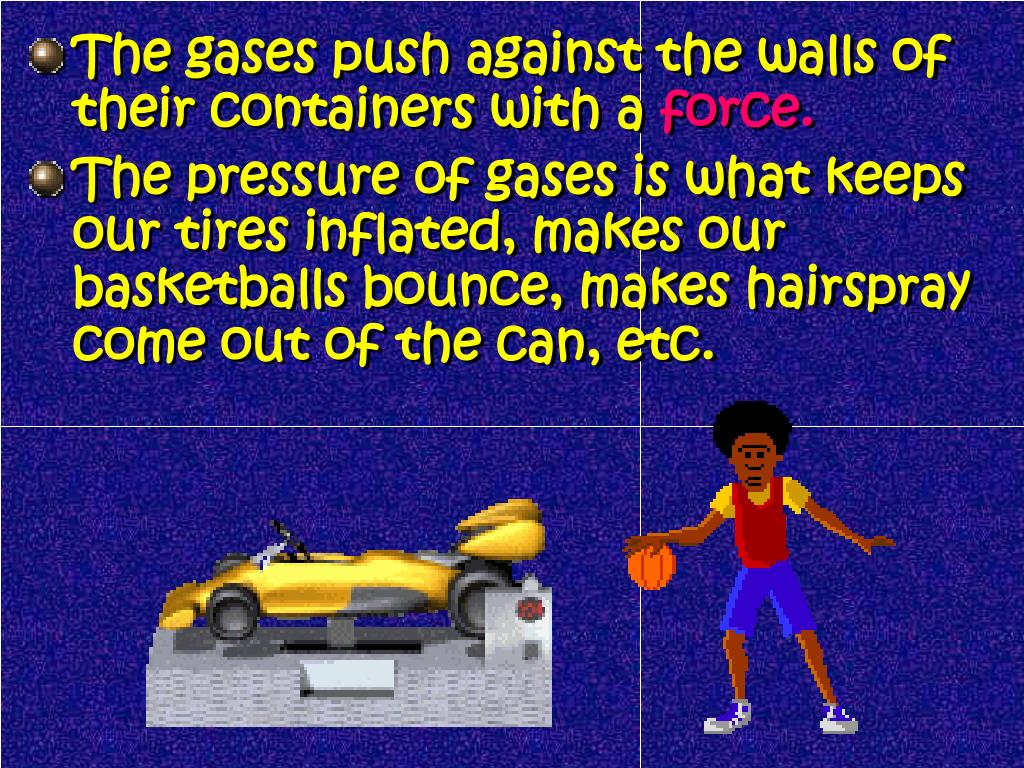

  35. The gases push against the walls of their containers with a force. • The pressure of gases is what keeps our tires inflated, makes our basketballs bounce, makes hairspray come out of the can, etc.

  36. Desribe what happens to the gases in a fixed volume container as the temperature is increased • Give examples

  37. 6th – Pressure depends on Temp • The higher the temperature of a gas -the higher the pressure that the gas exerts • The reverse of that is true as well, a the temperature of a gas decreases – the pressure decreases. • Think about the pressure of a set of tires on a car

  38. Today’s temp: 35°F Pressure Gauge

  39. Today’s temp: 85°F Pressure Gauge

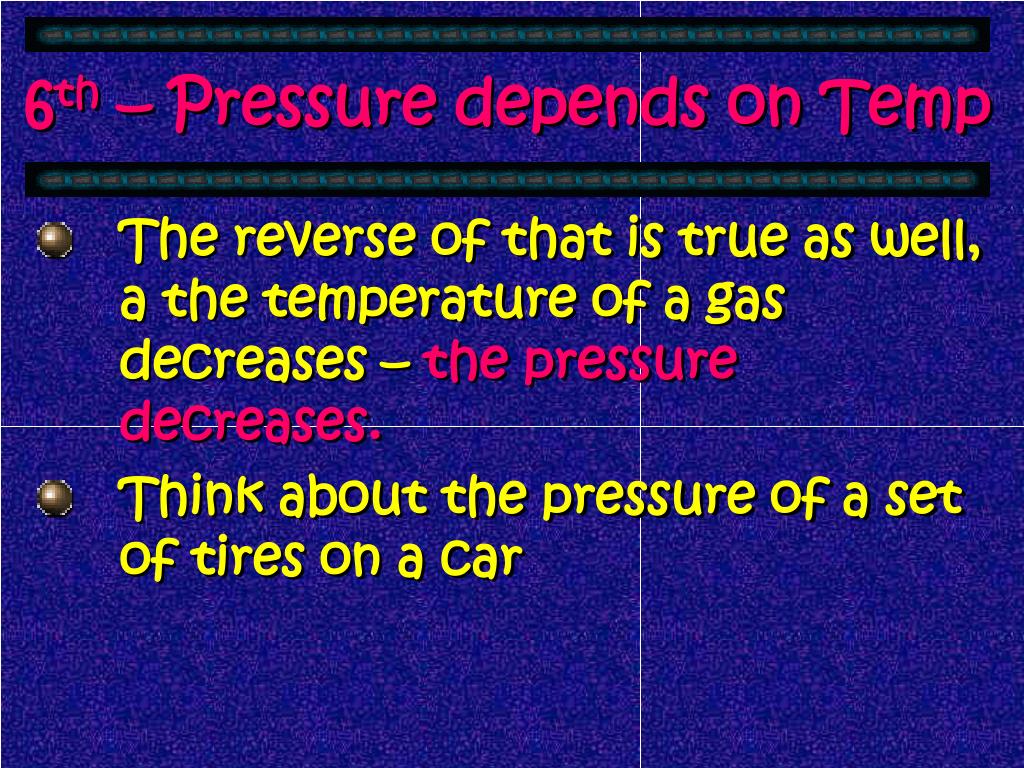

  40. 6th – Pressure depends on Temp • The reverse of that is true as well, a the temperature of a gas decreases – the pressure decreases. • Think about the pressure of a set of tires on a car

  41. Do you recall the definition of temperature? • the average kinetic energy of the particles that make up an object • The higher the temperature the more the energy • The more the energy the more impacts the gases administer • The more the impacts or collisions the more the pressure exerted.

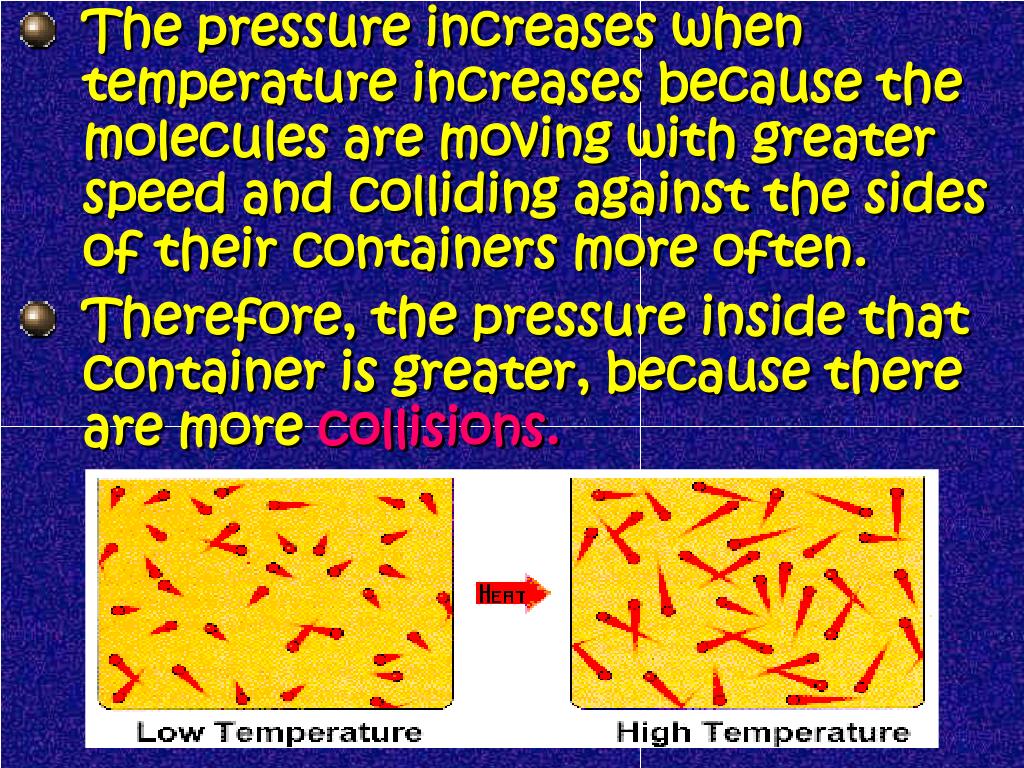

  42. The pressure increases when temperature increases because the molecules are moving with greater speed and colliding against the sides of their containers more often. • Therefore, the pressure inside that container is greater, because there are more collisions.

  43. 13. What variables effect the characteristics of gases? • Describe these variables • What is STP?

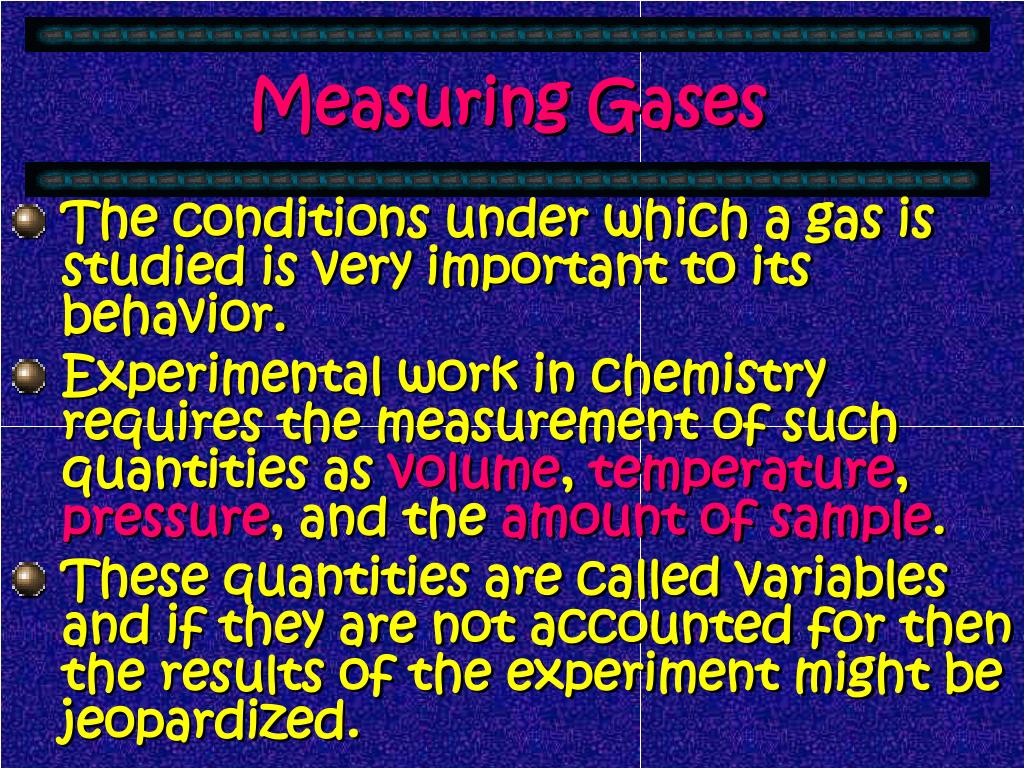

  44. Measuring Gases • The conditions under which a gas is studied is very important to its behavior. • Experimental work in chemistry requires the measurement of such quantities as volume, temperature, pressure, and the amount of sample. • These quantities are called variables and if they are not accounted for then the results of the experiment might be jeopardized.

  45. Gas variables • In order to describe a gas sample completely and then make predictions about its behavior under changed conditions, it is important to deal with the values of: 1) amount of gas 2) volume 3) temperature 4) pressure

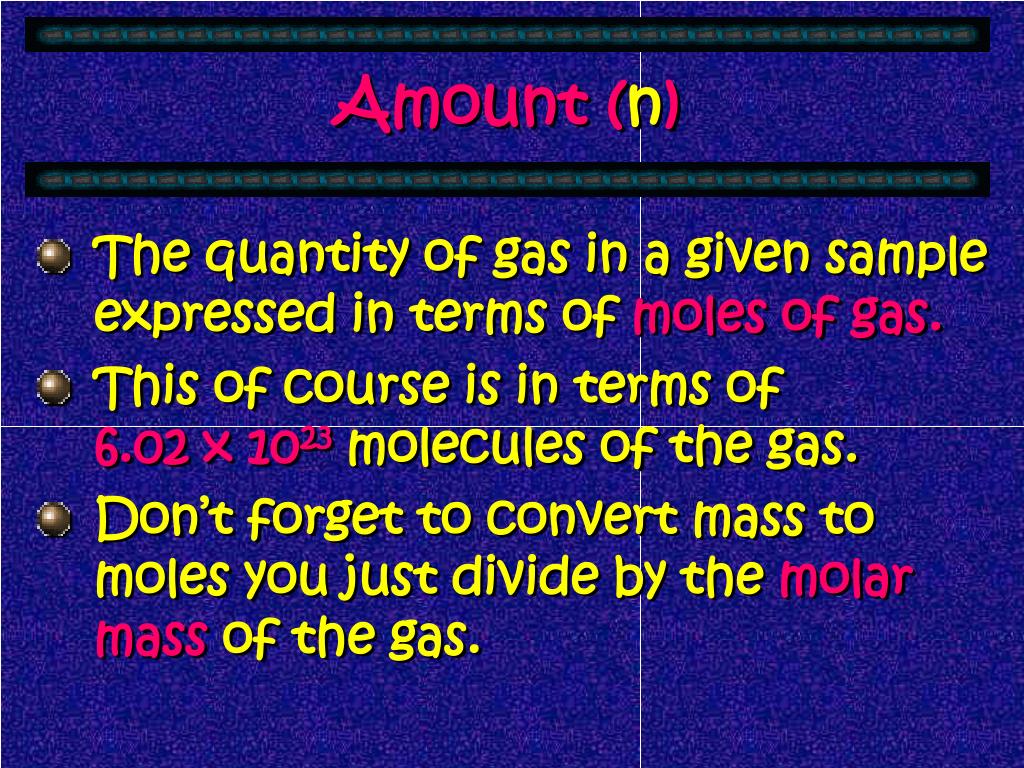

  46. Amount (n) • The quantity of gas in a given sample expressed in terms of moles of gas. • This of course is in terms of 6.02 x 1023 molecules of the gas. • Don’t forget to convert mass to moles you just divide by the molar mass of the gas.

  47. Volume (V) • The volume of the gas is simply the volume of the container it is contained in. • The metric unit of volume is the liter (L) • There might also be problems that use cubic meters as the unit for volume. • - 1 L = 1 dm3

  48. Temperature (T) • The temperature of a gas is generally measured with a thermometer in Celsius. • All calculations involving gases should be made after converting the Celsius to Kelvin temperature. Kelvin = C° + 273
