  1. Maximum a Posterior Presented by 陳燦輝

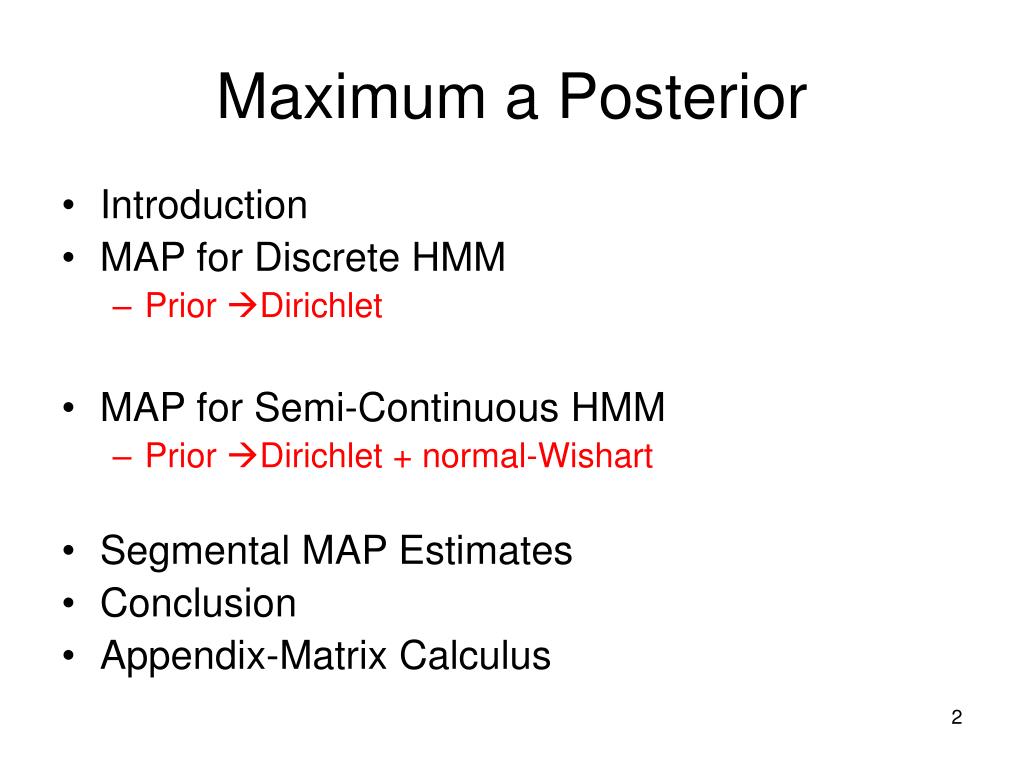

  2. Maximum a Posterior • Introduction • MAP for Discrete HMM • Prior Dirichlet • MAP for Semi-Continuous HMM • Prior Dirichlet + normal-Wishart • Segmental MAP Estimates • Conclusion • Appendix-Matrix Calculus

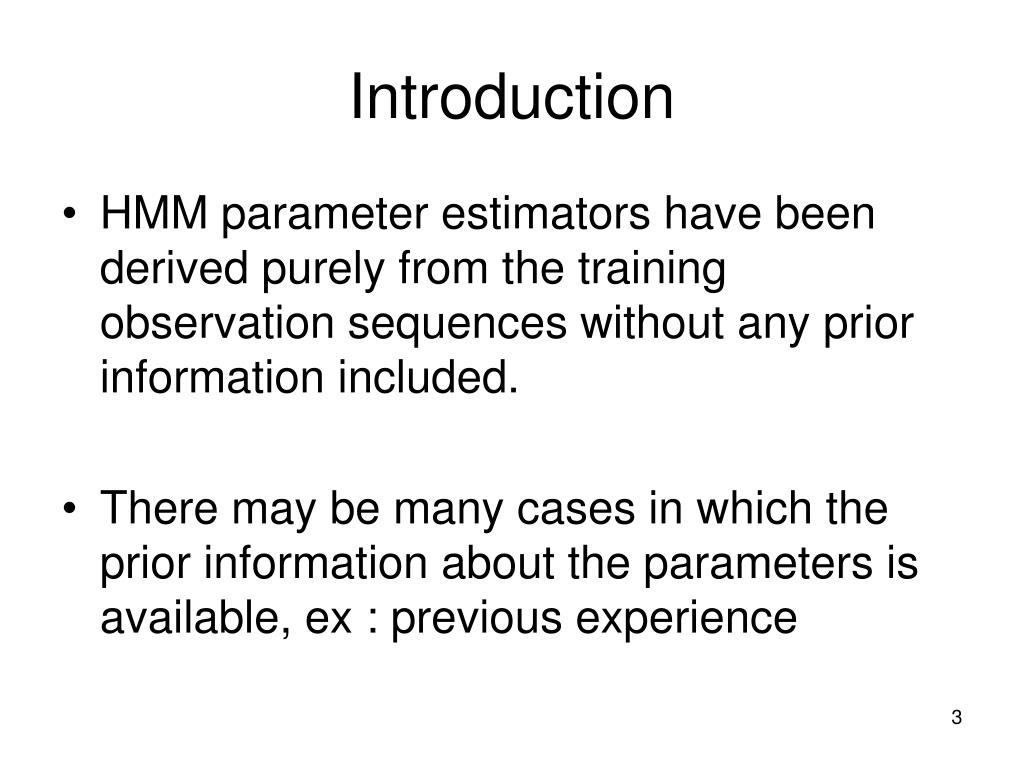

  3. Introduction • HMM parameter estimators have been derived purely from the training observation sequences without any prior information included. • There may be many cases in which the prior information about the parameters is available, ex : previous experience

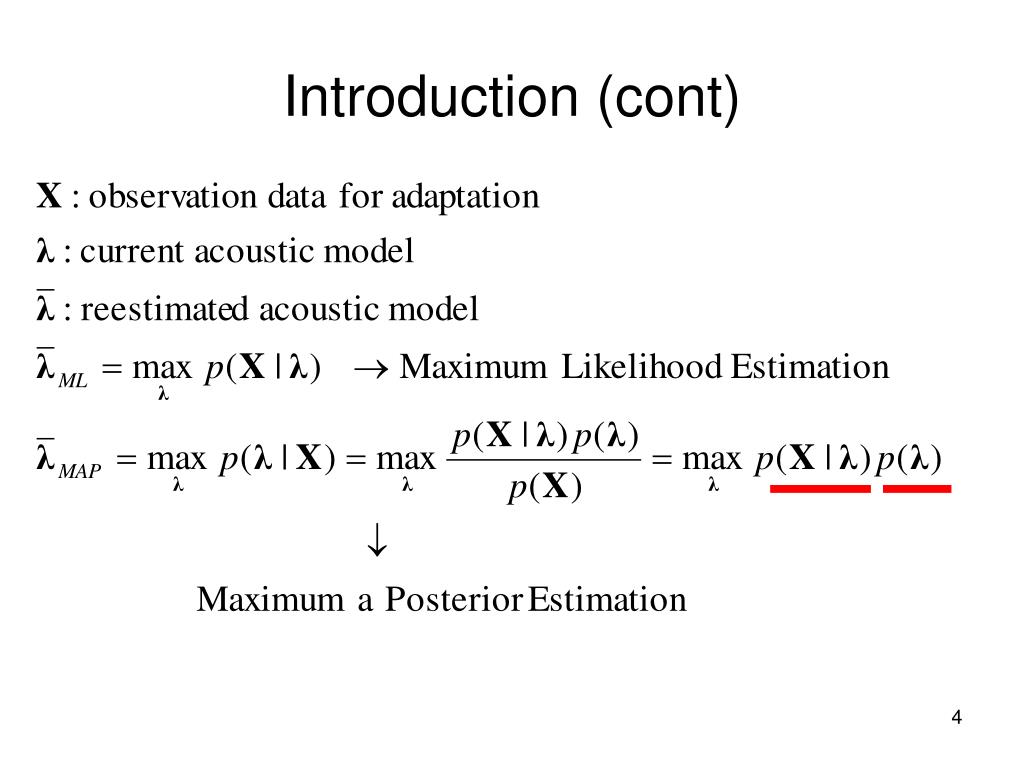

  4. Introduction (cont)

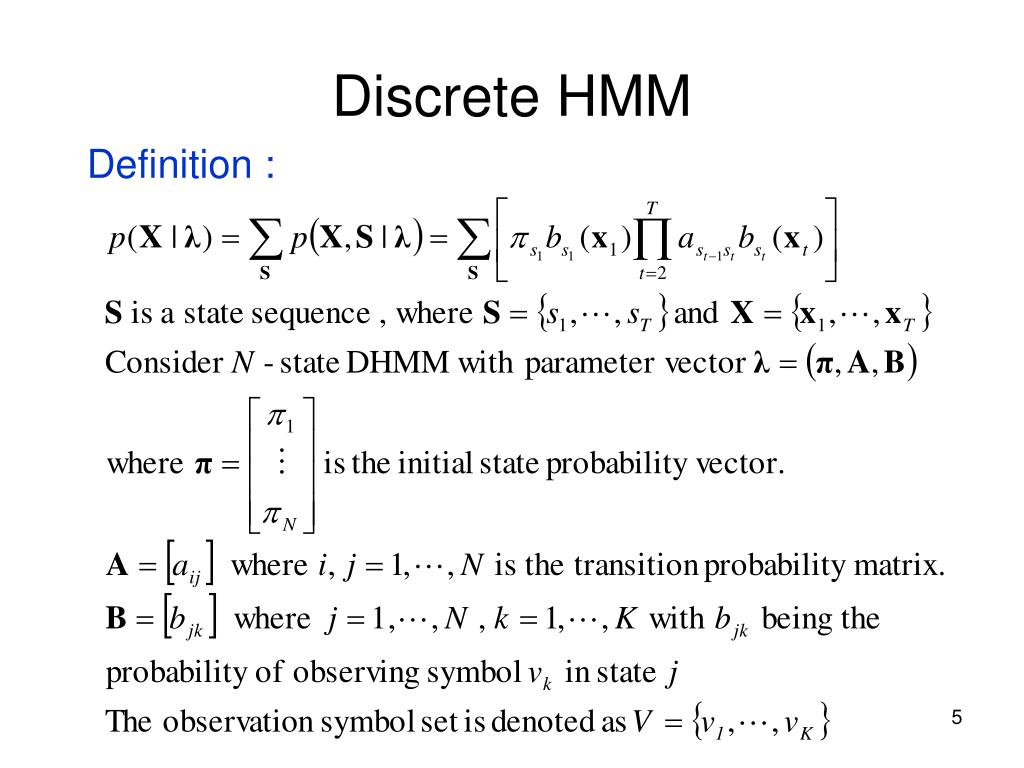

  5. Discrete HMM Definition :

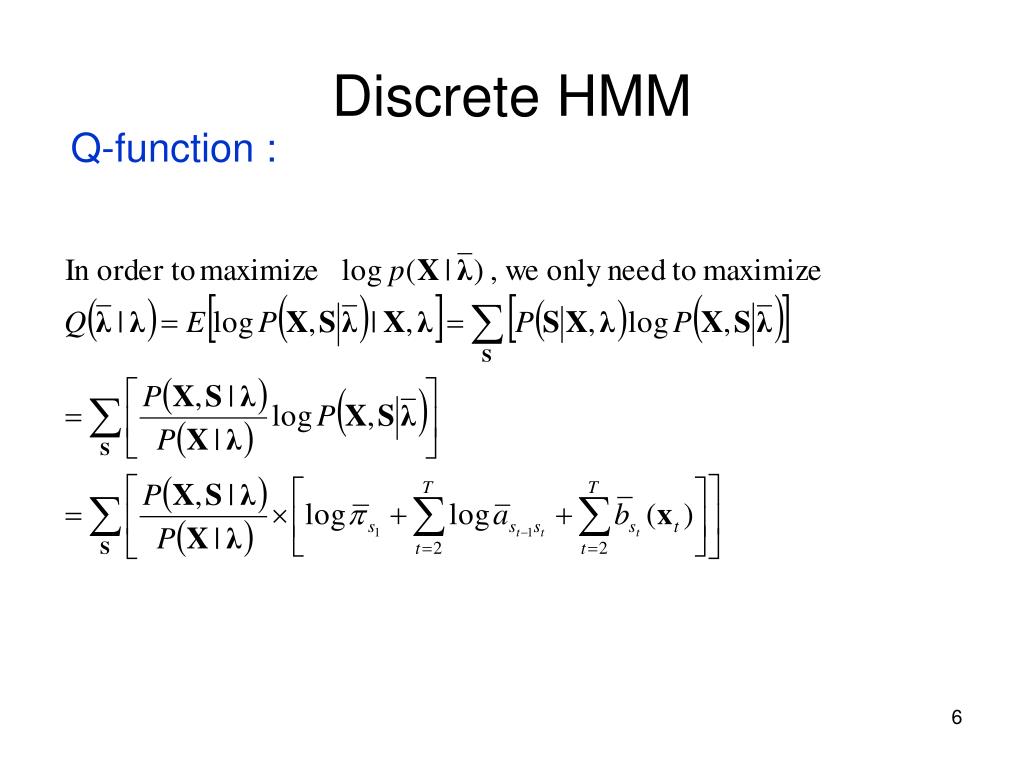

  6. Discrete HMM Q-function :

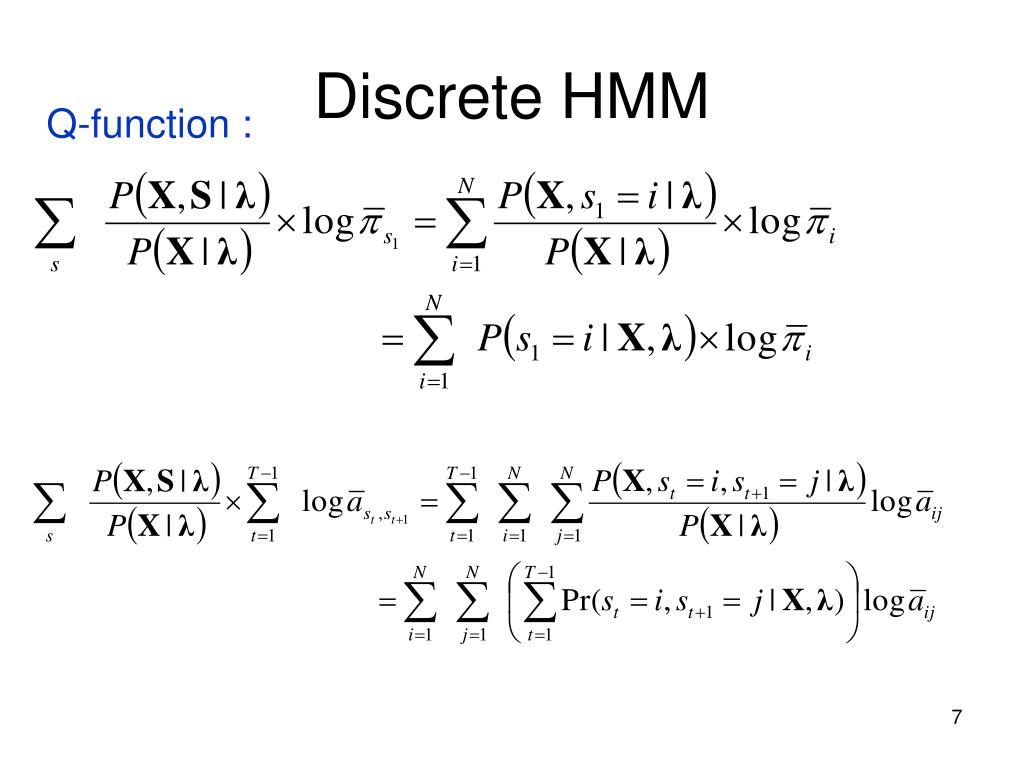

  7. Discrete HMM Q-function :

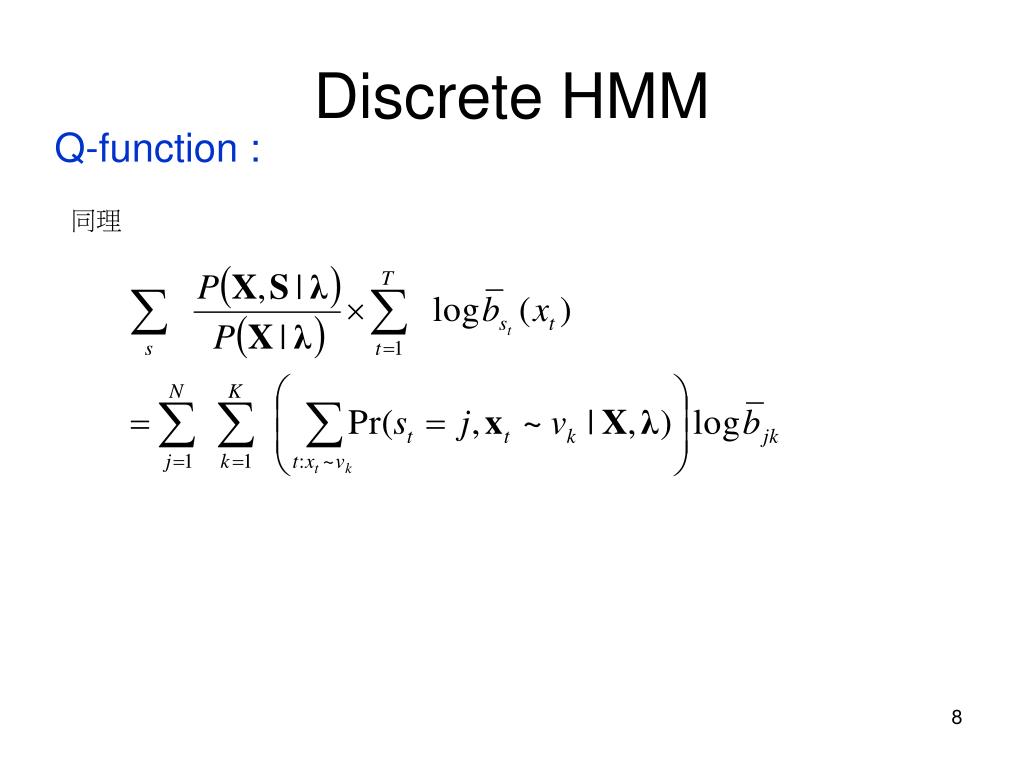

  8. Discrete HMM Q-function : 同理

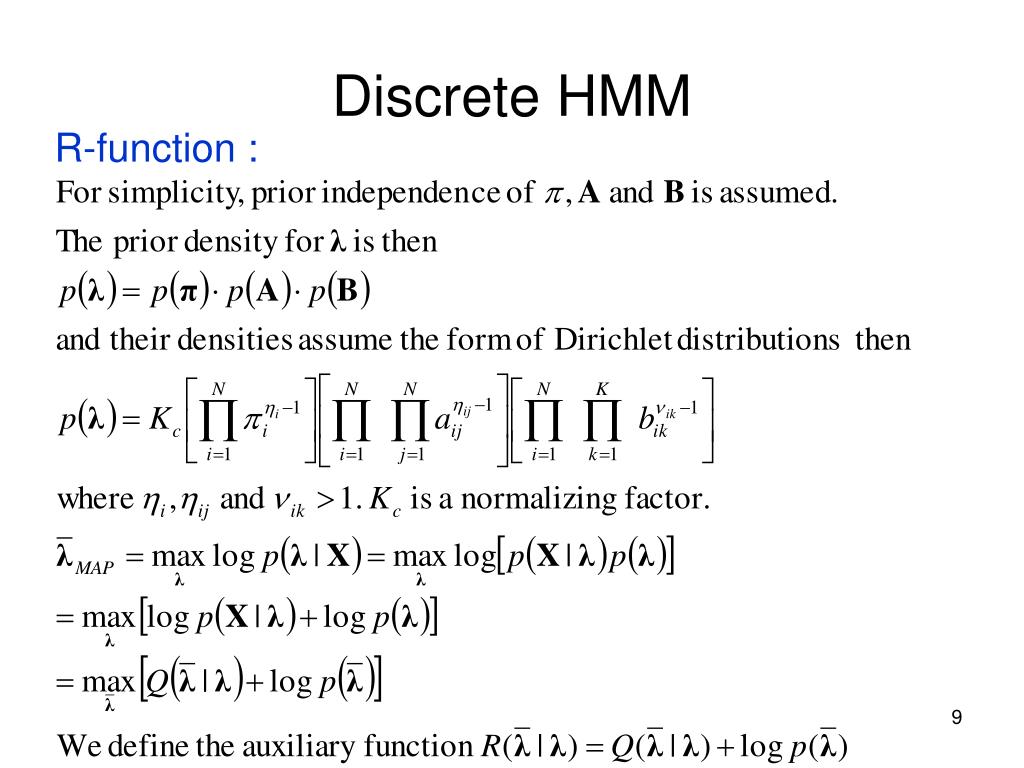

  9. Discrete HMM R-function :

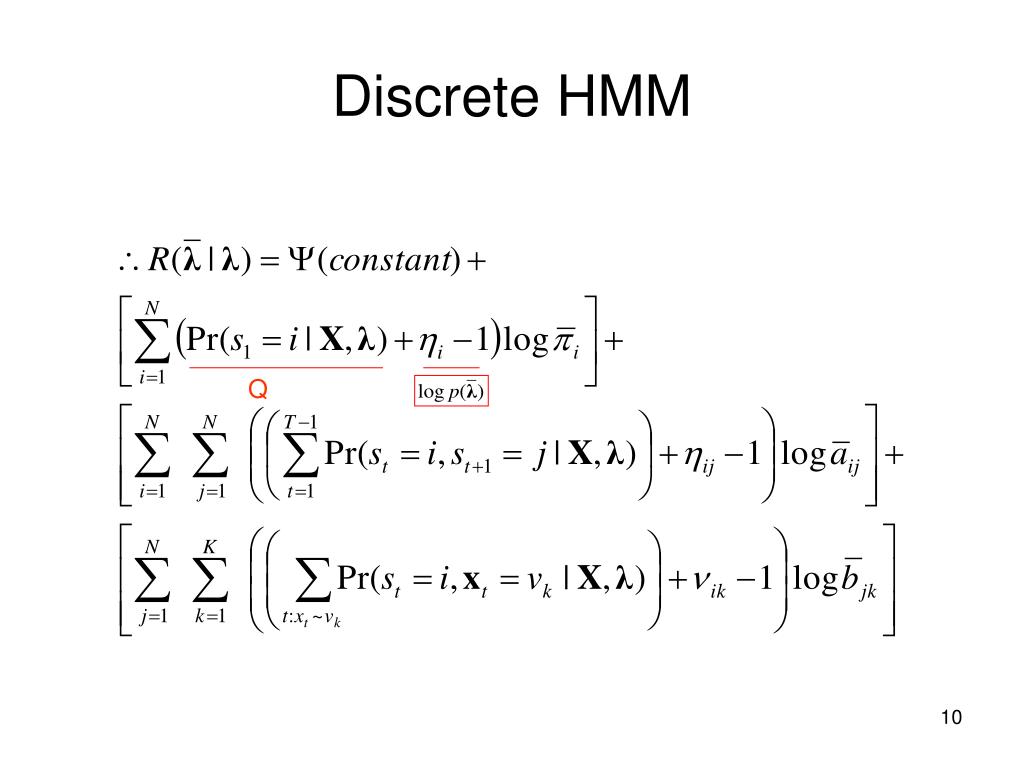

  10. Discrete HMM Q

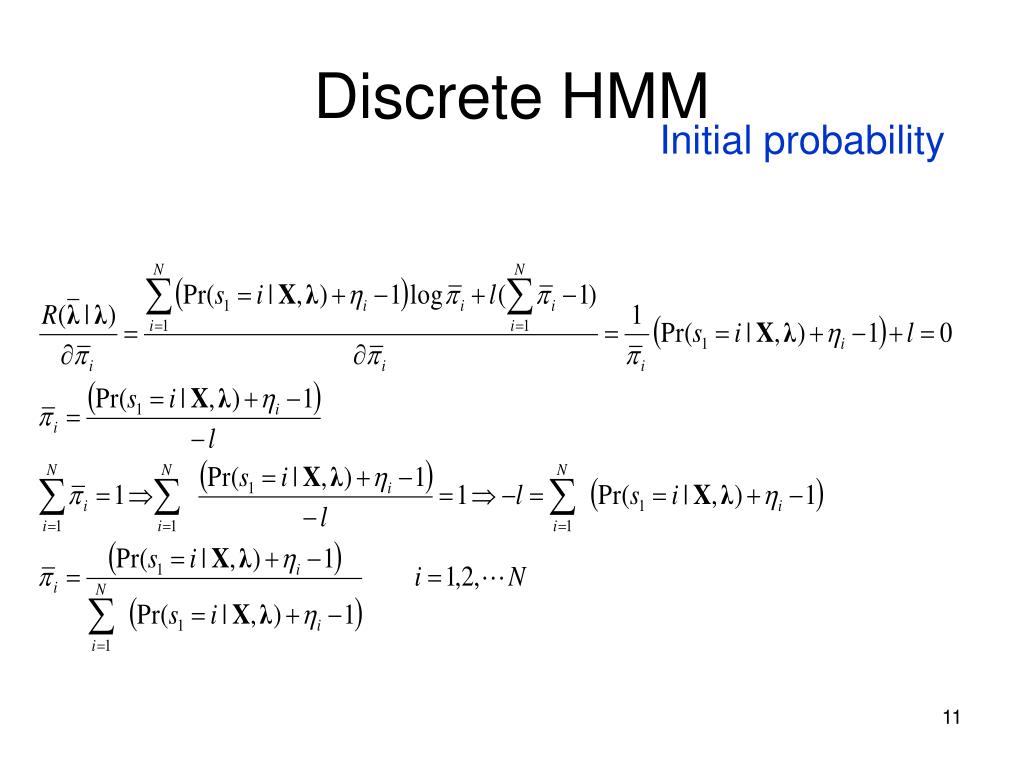

  11. Discrete HMM Initial probability

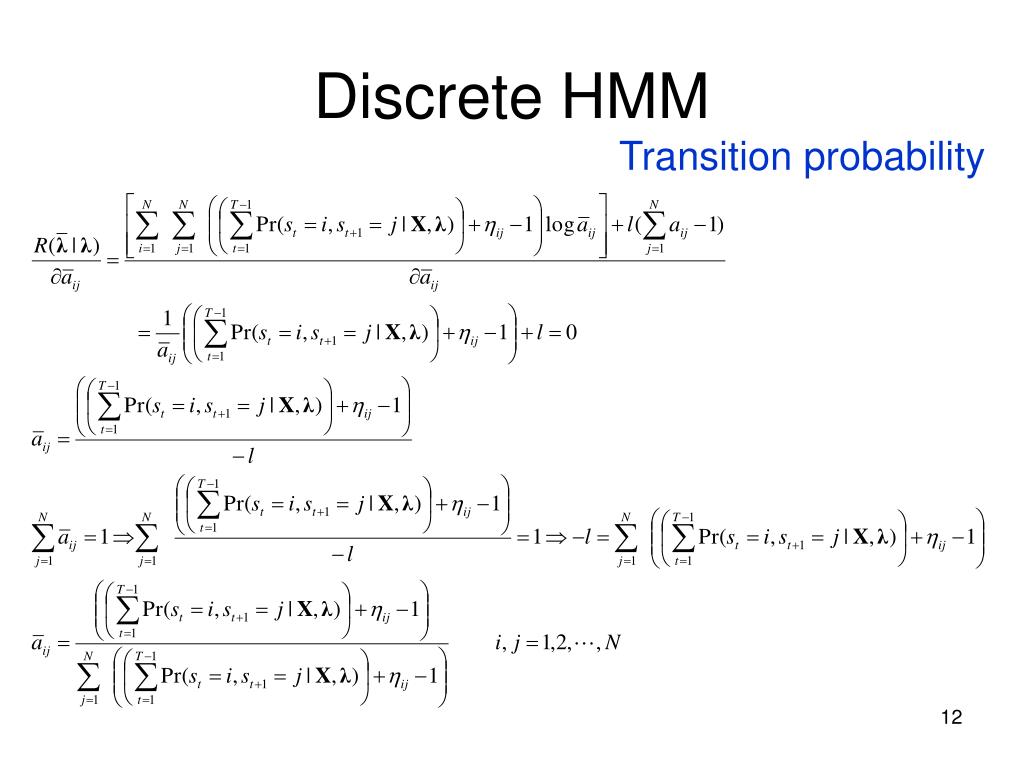

  12. Discrete HMM Transition probability

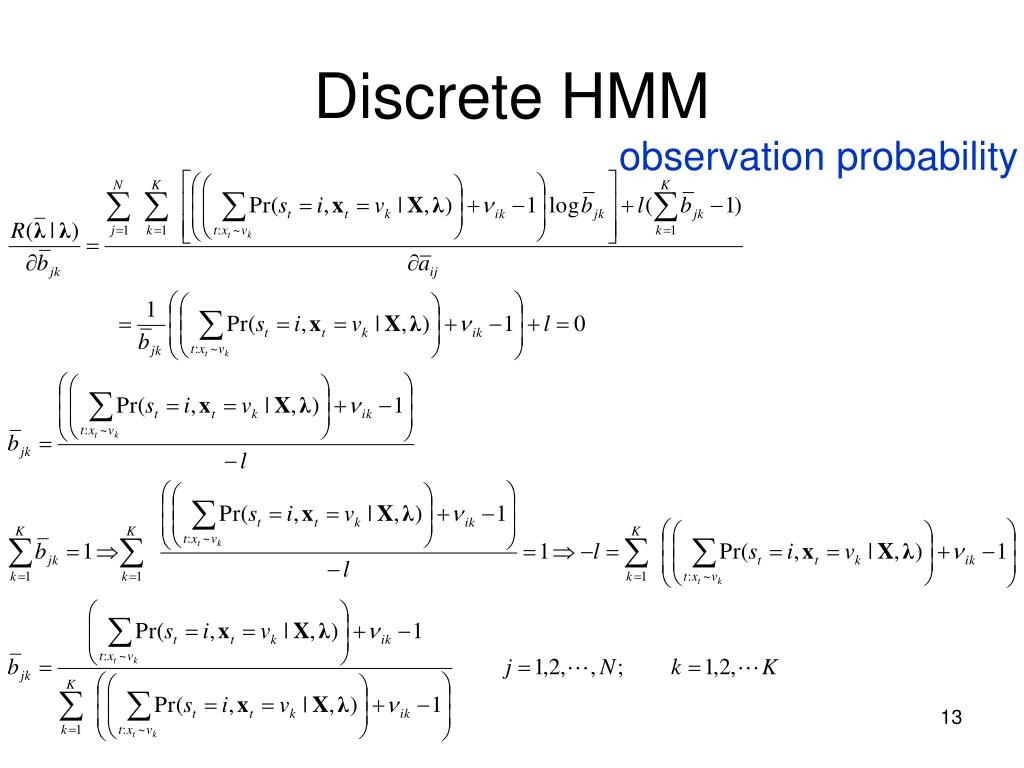

  13. Discrete HMM observation probability

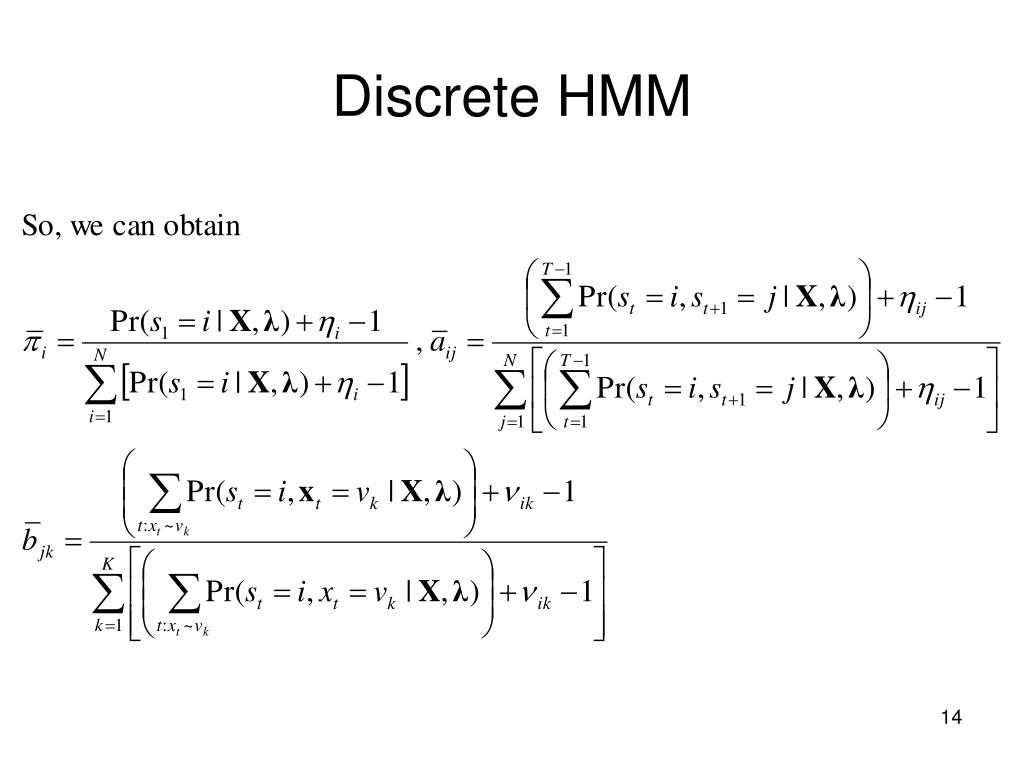

  14. Discrete HMM

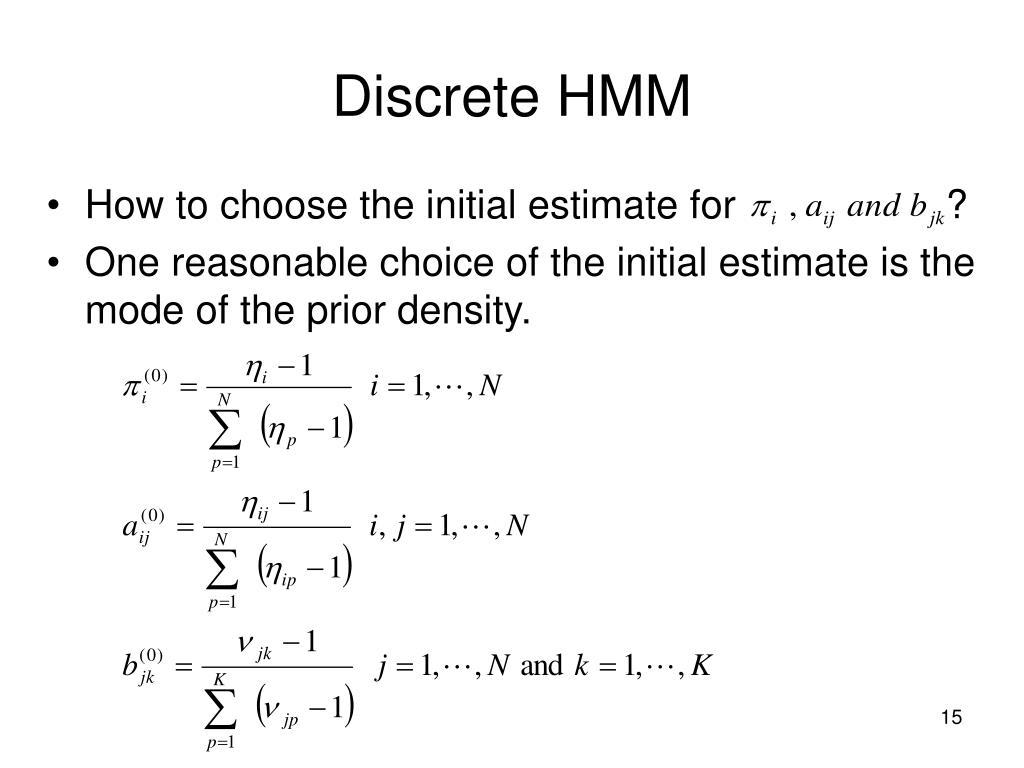

  15. Discrete HMM • How to choose the initial estimate for ? • One reasonable choice of the initial estimate is the mode of the prior density.

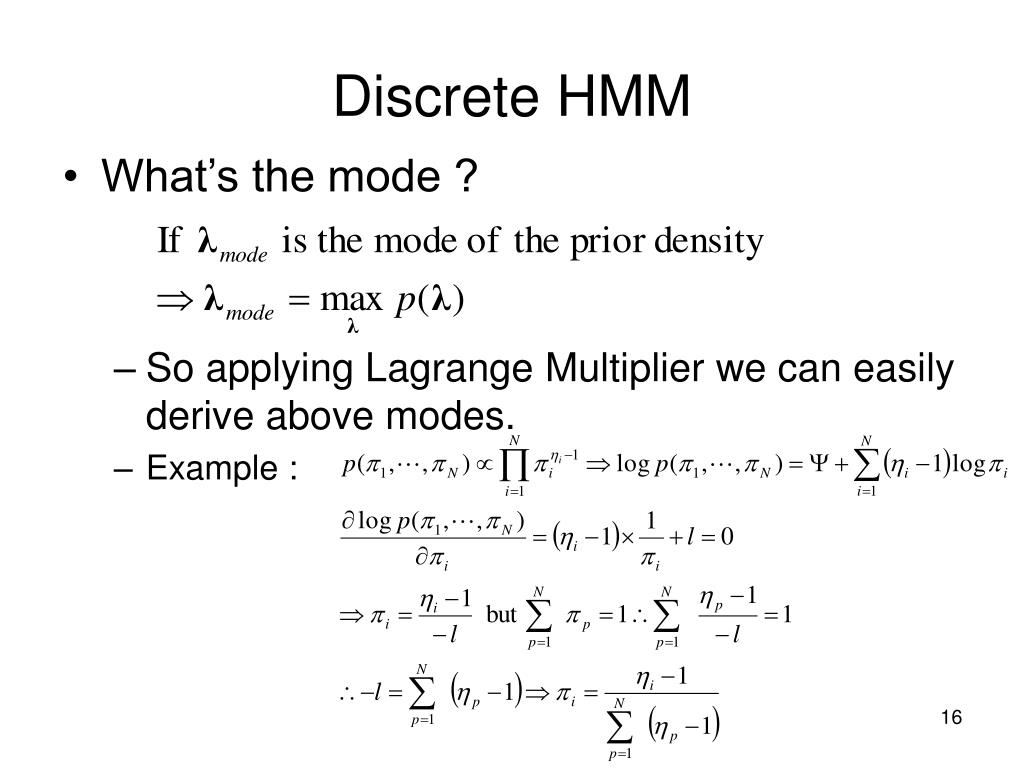

  16. Discrete HMM • What’s the mode ? • So applying Lagrange Multiplier we can easily derive above modes. • Example :

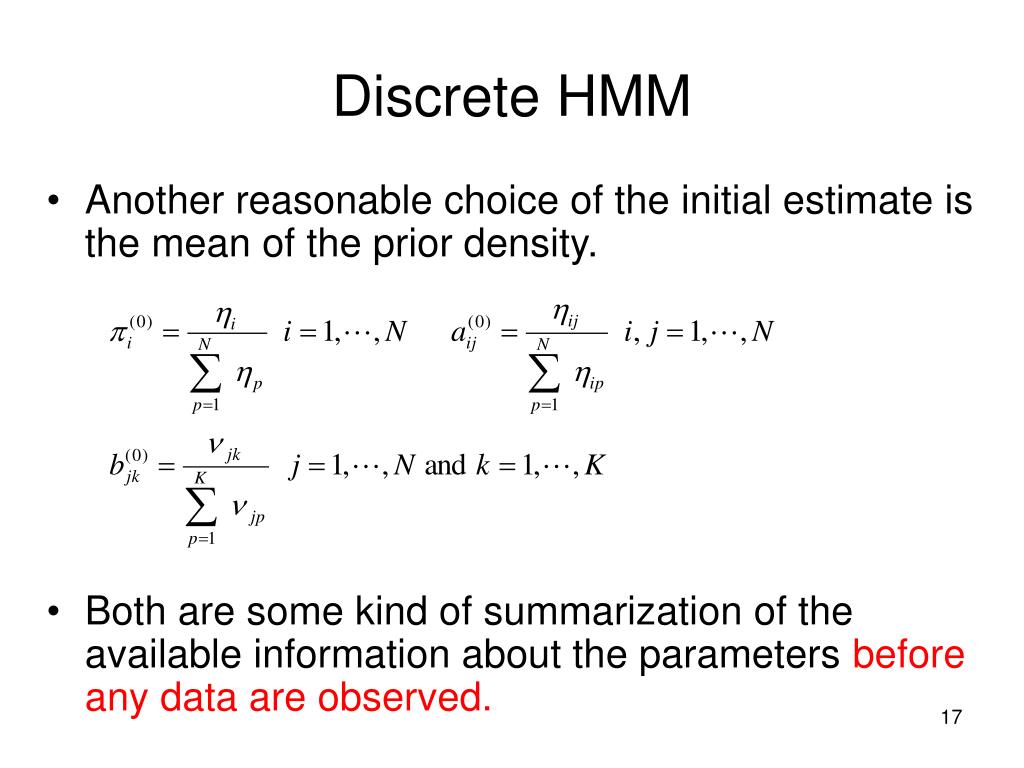

  17. Discrete HMM • Another reasonable choice of the initial estimate is the mean of the prior density. • Both are some kind of summarization of the available information about the parameters before any data are observed.

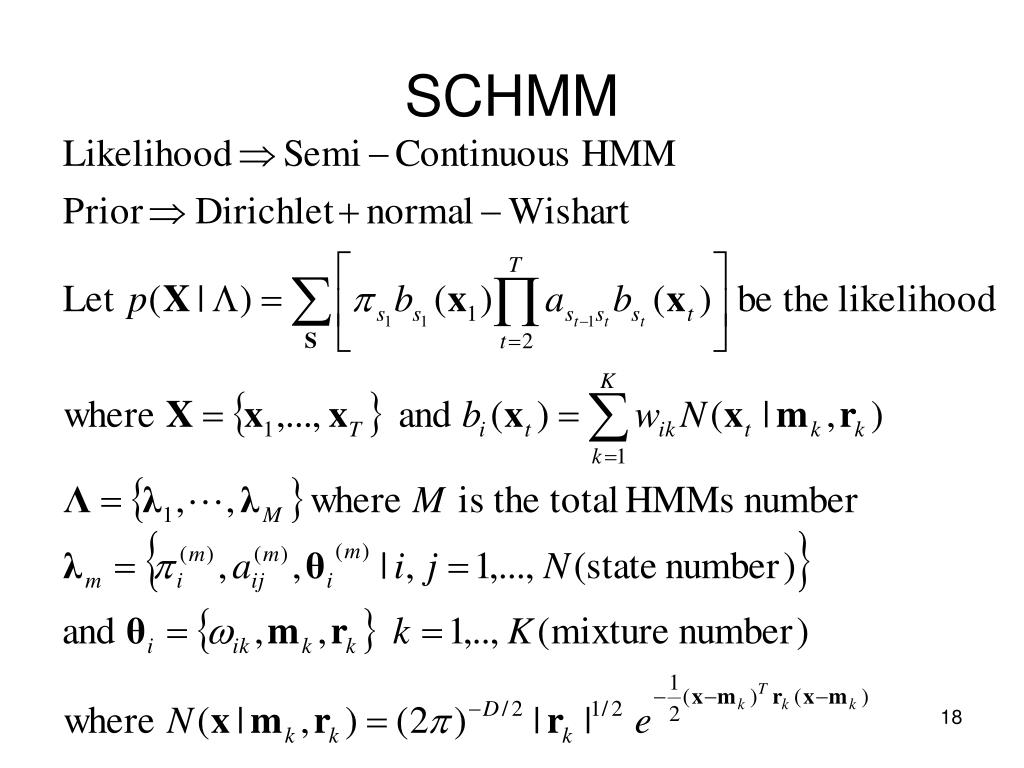

  18. SCHMM

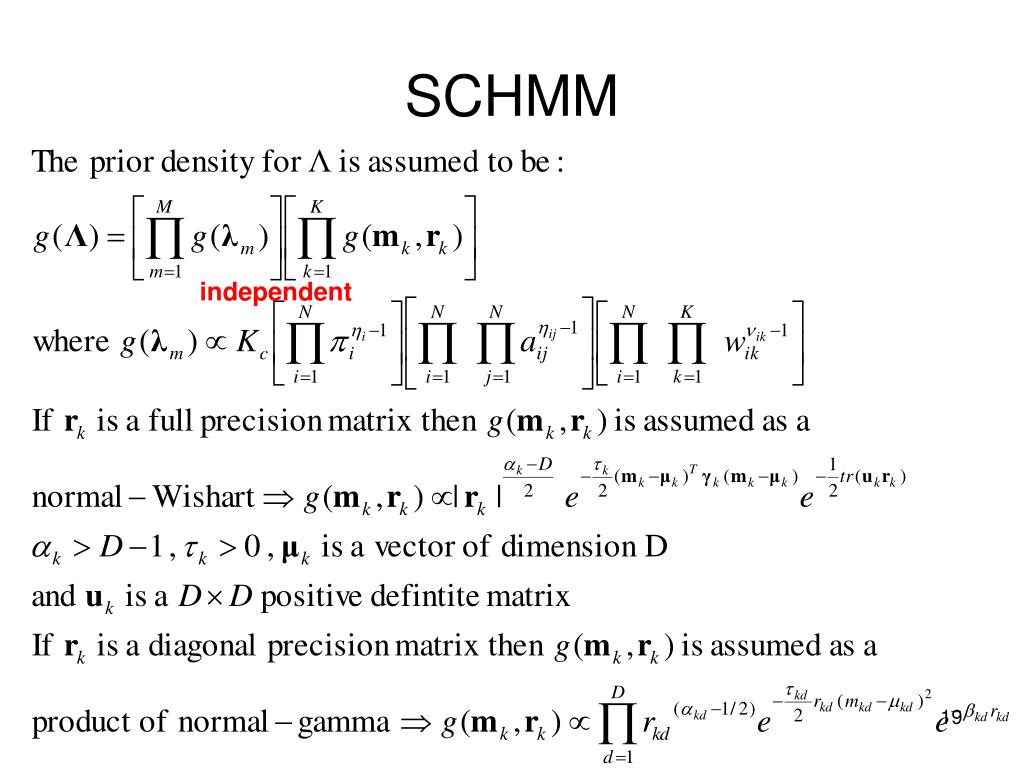

  19. SCHMM independent

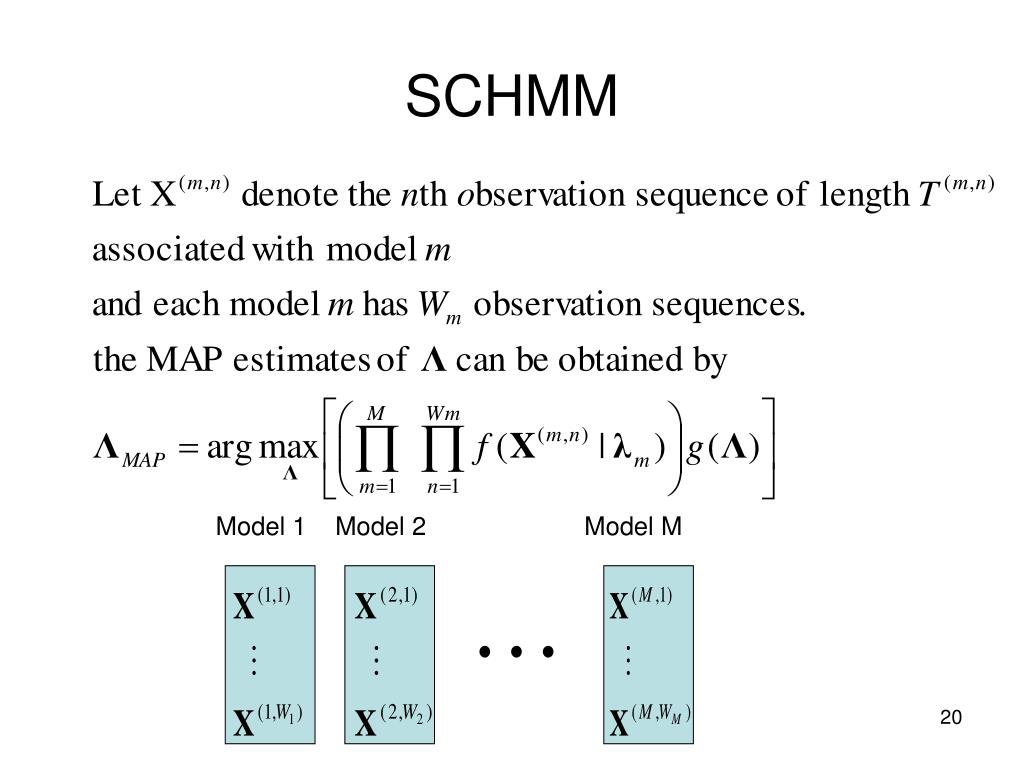

  20. Model 1 Model 2 Model M SCHMM

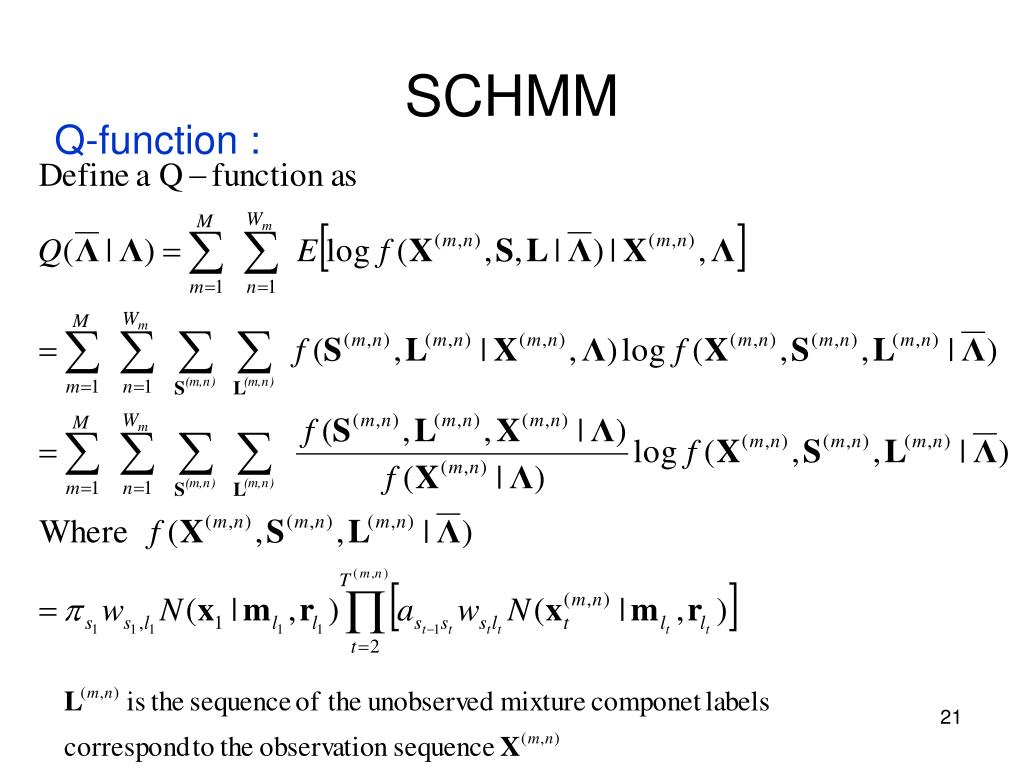

  21. SCHMM Q-function :

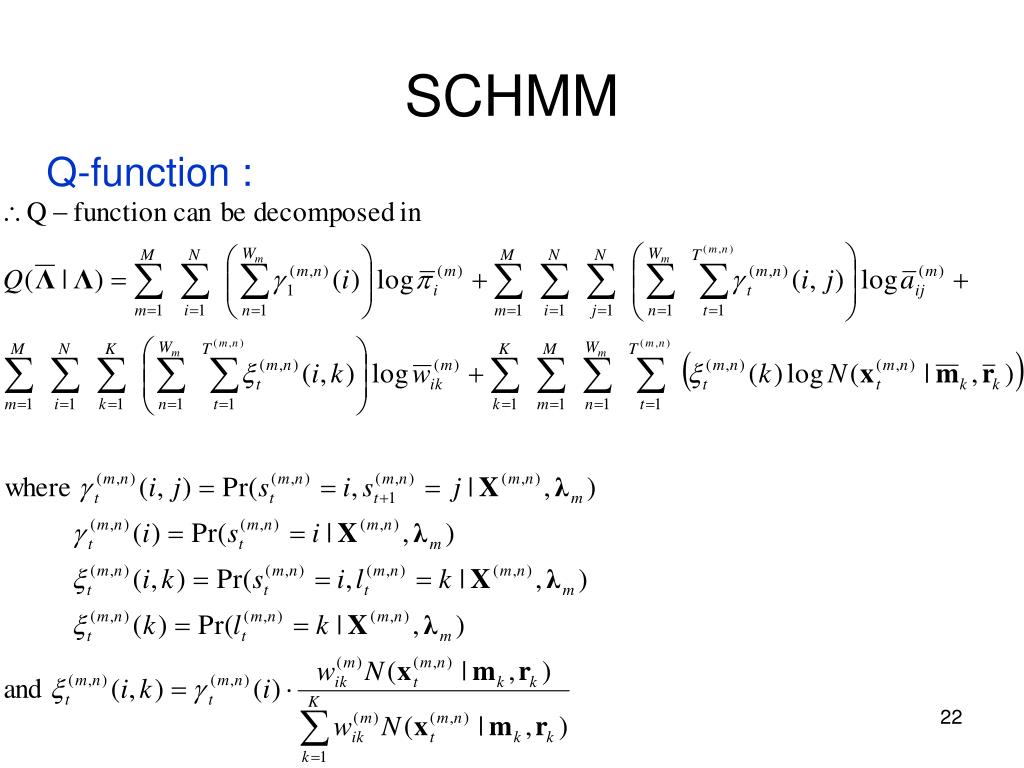

  22. SCHMM Q-function :

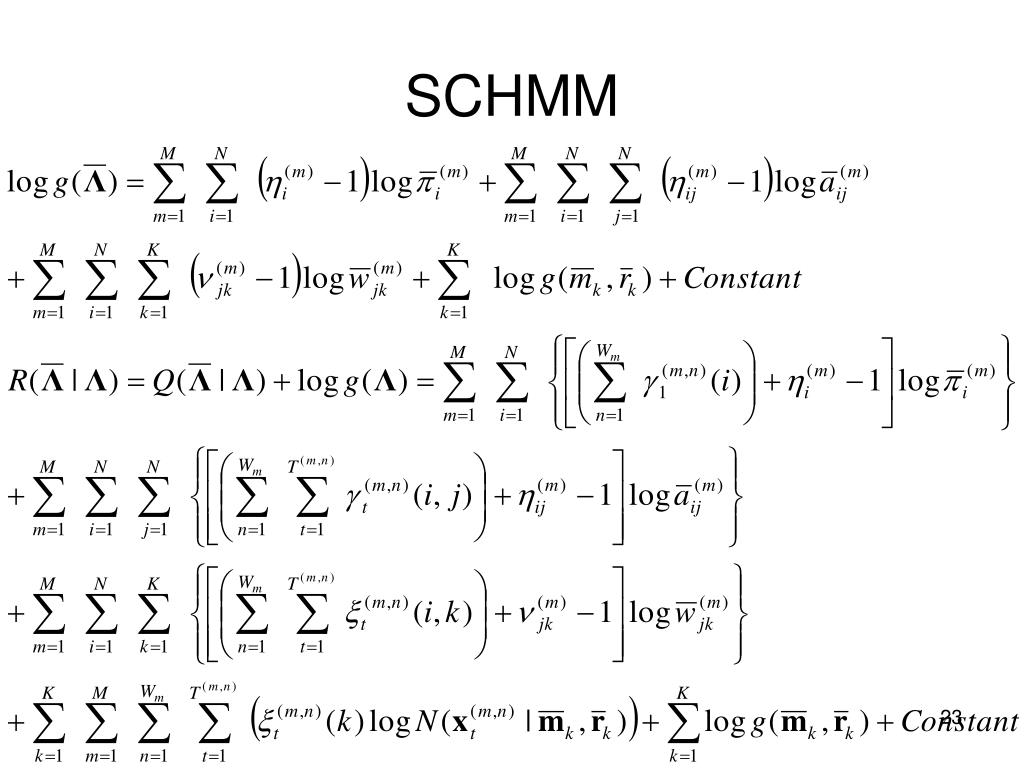

  23. SCHMM

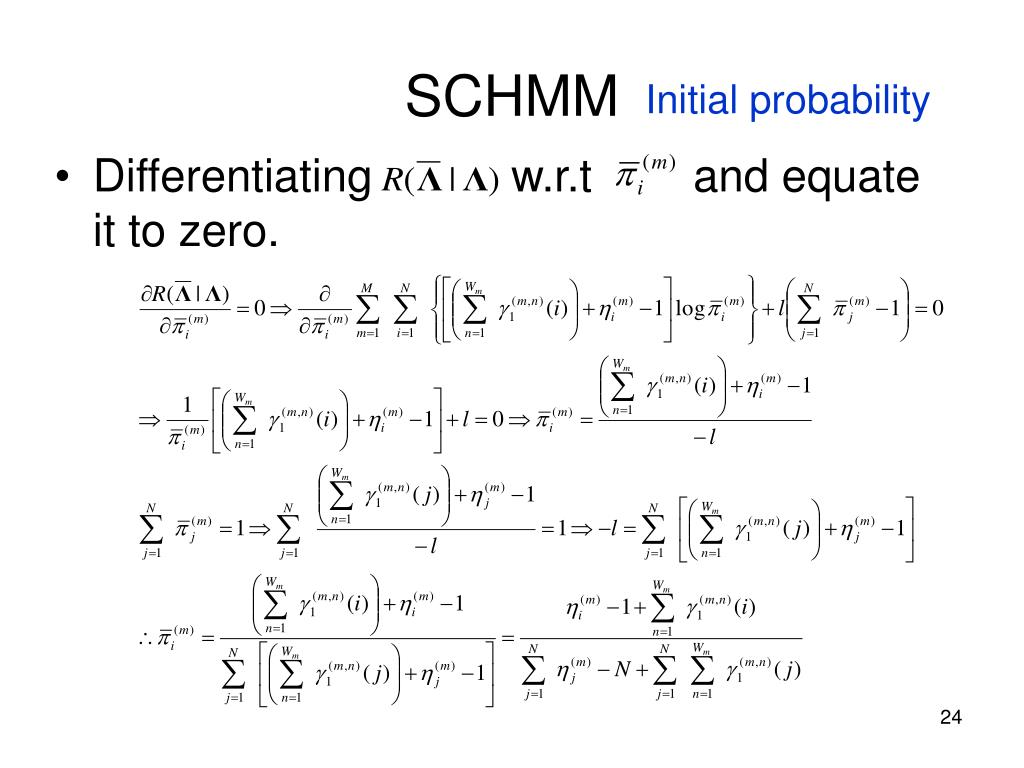

  24. SCHMM Initial probability • Differentiating w.r.t and equate it to zero.

  25. SCHMM Transition probability • Differentiating w.r.t and equate it to zero.

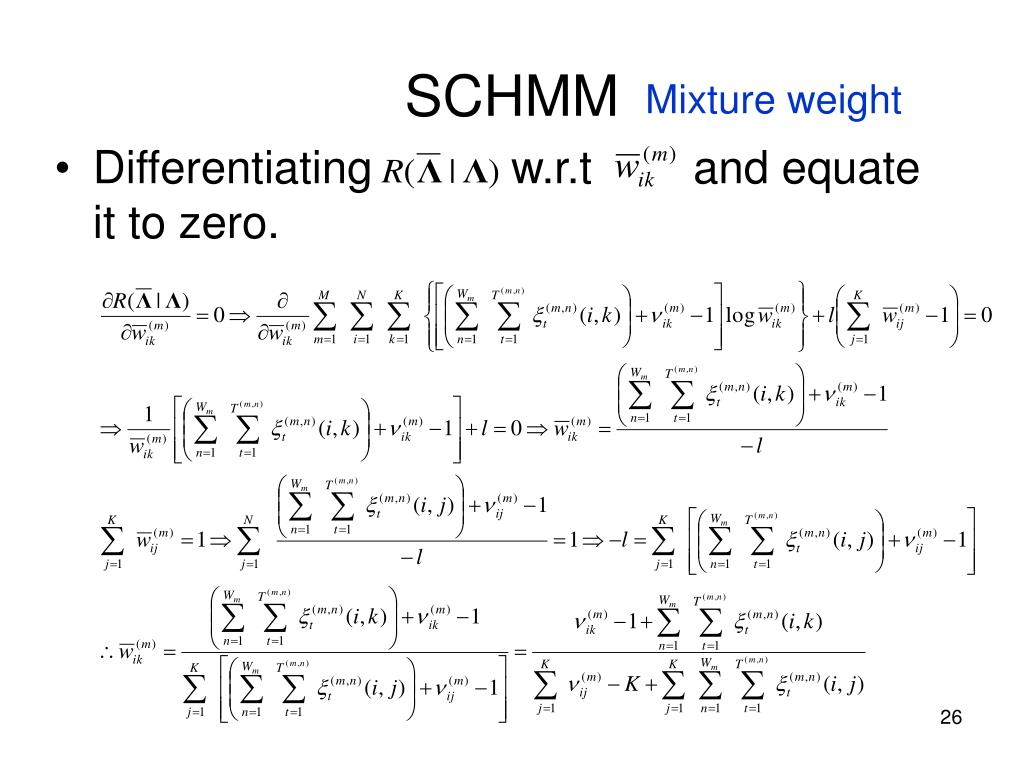

  26. SCHMM Mixture weight • Differentiating w.r.t and equate it to zero.

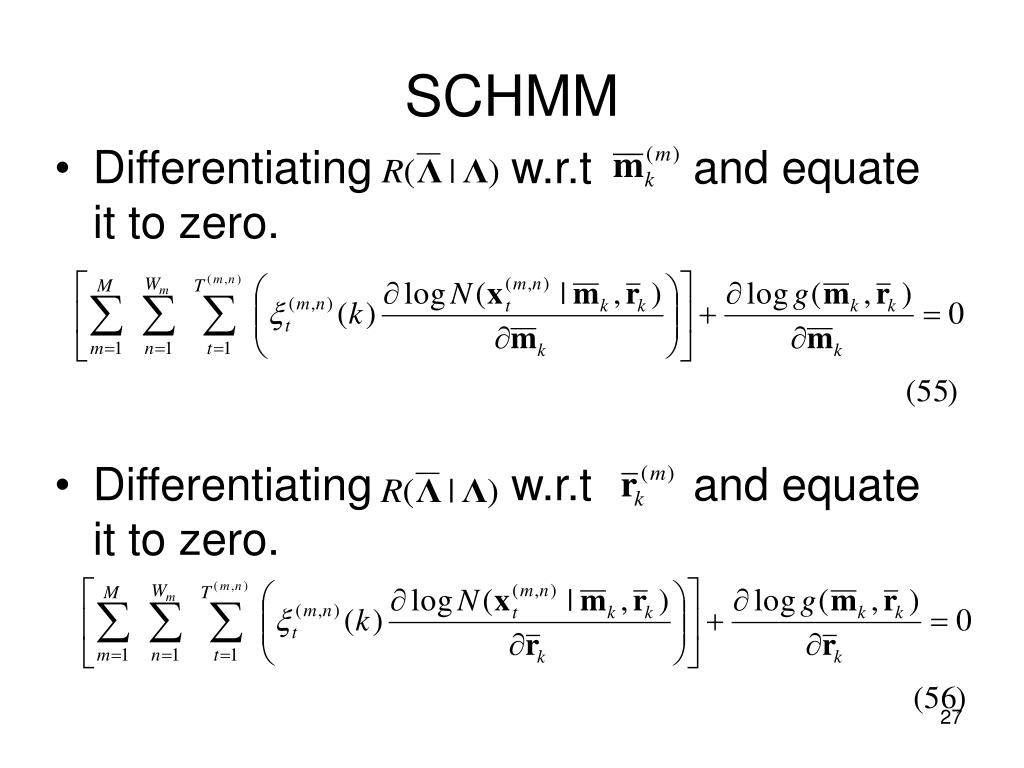

  27. SCHMM • Differentiating w.r.t and equate it to zero. • Differentiating w.r.t and equate it to zero.

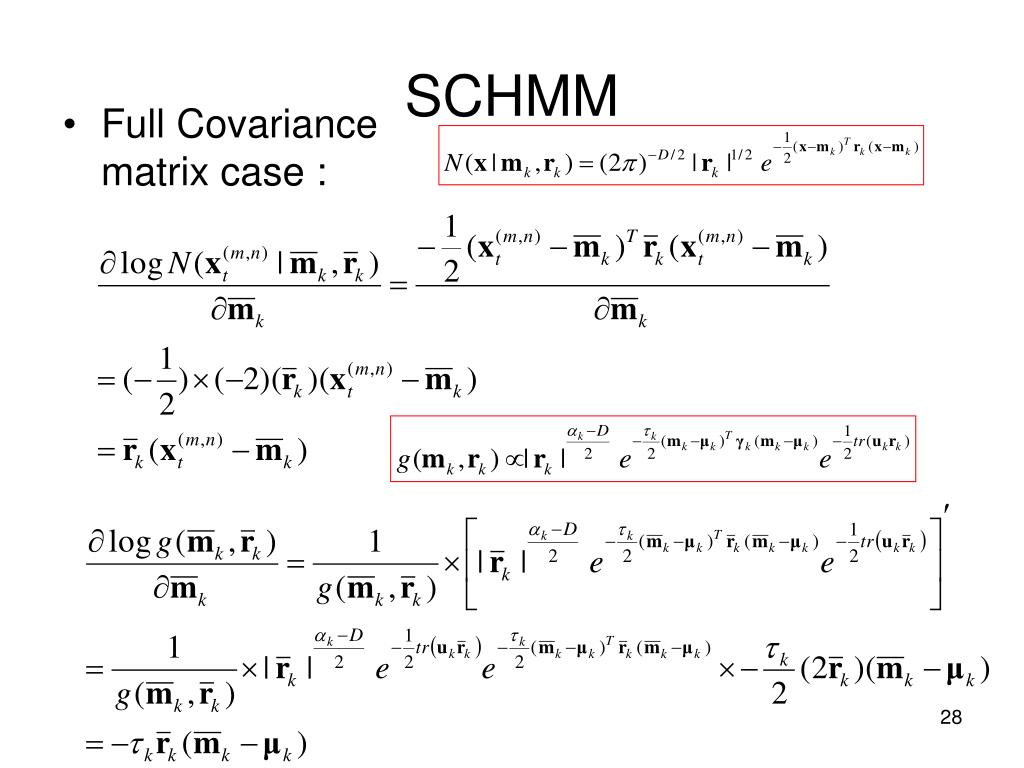

  28. SCHMM • Full Covariance matrix case :

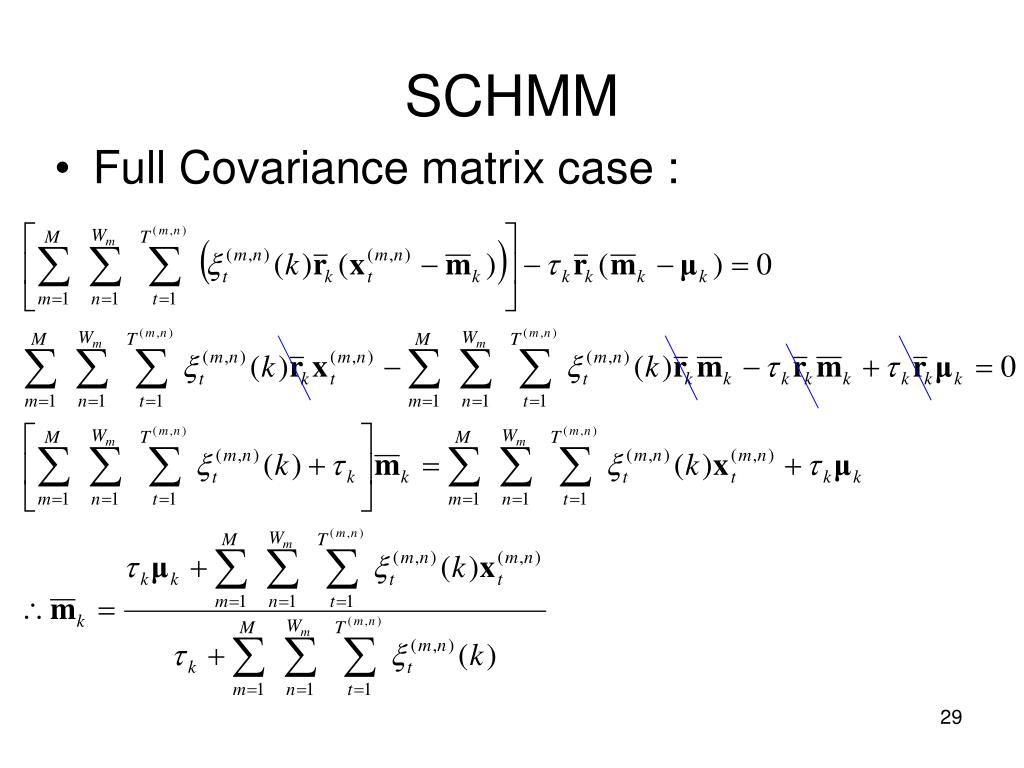

  29. SCHMM • Full Covariance matrix case :

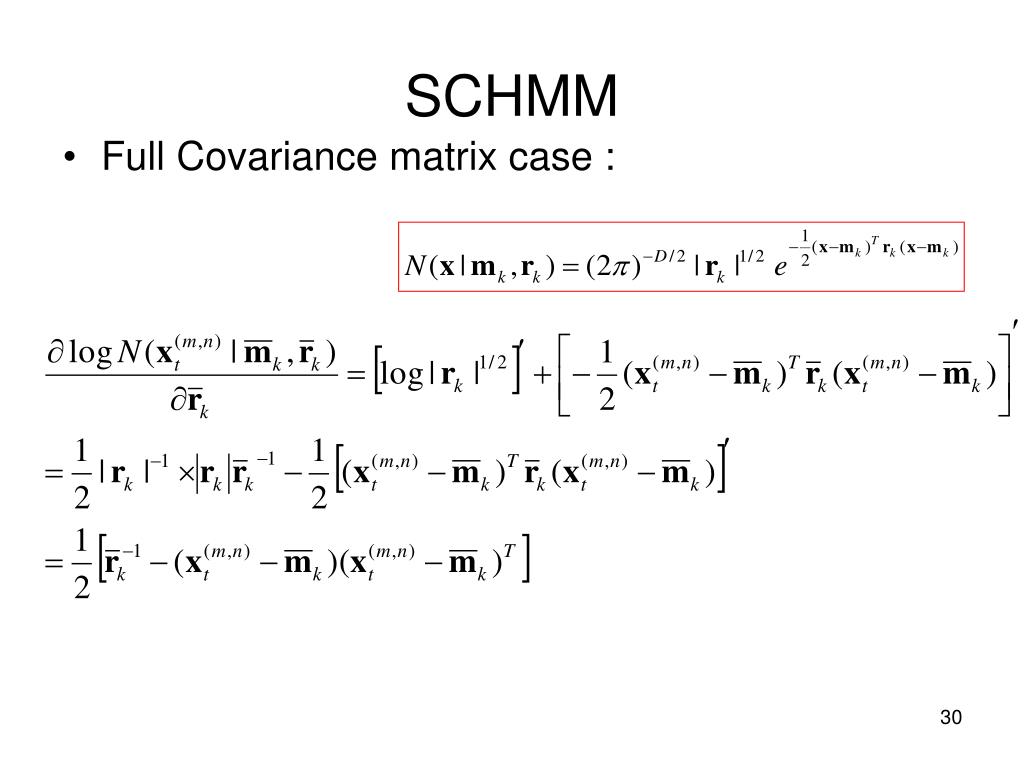

  30. SCHMM • Full Covariance matrix case :

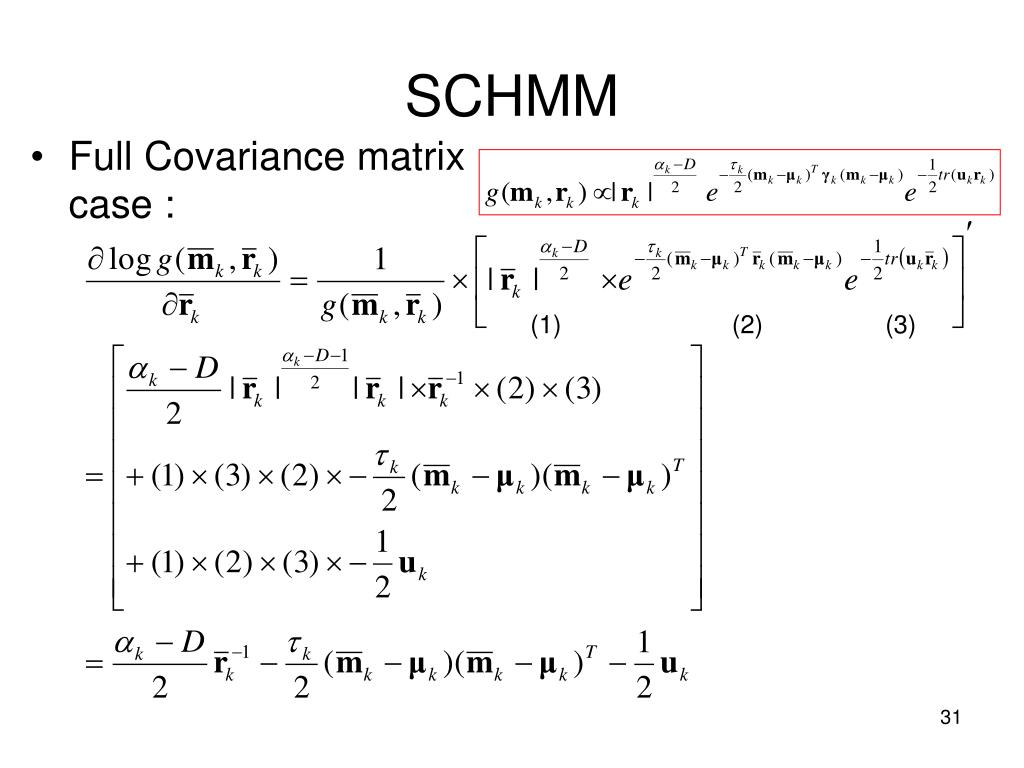

  31. SCHMM • Full Covariance matrix case : (1) (2) (3)

  32. SCHMM • Full Covariance matrix case :

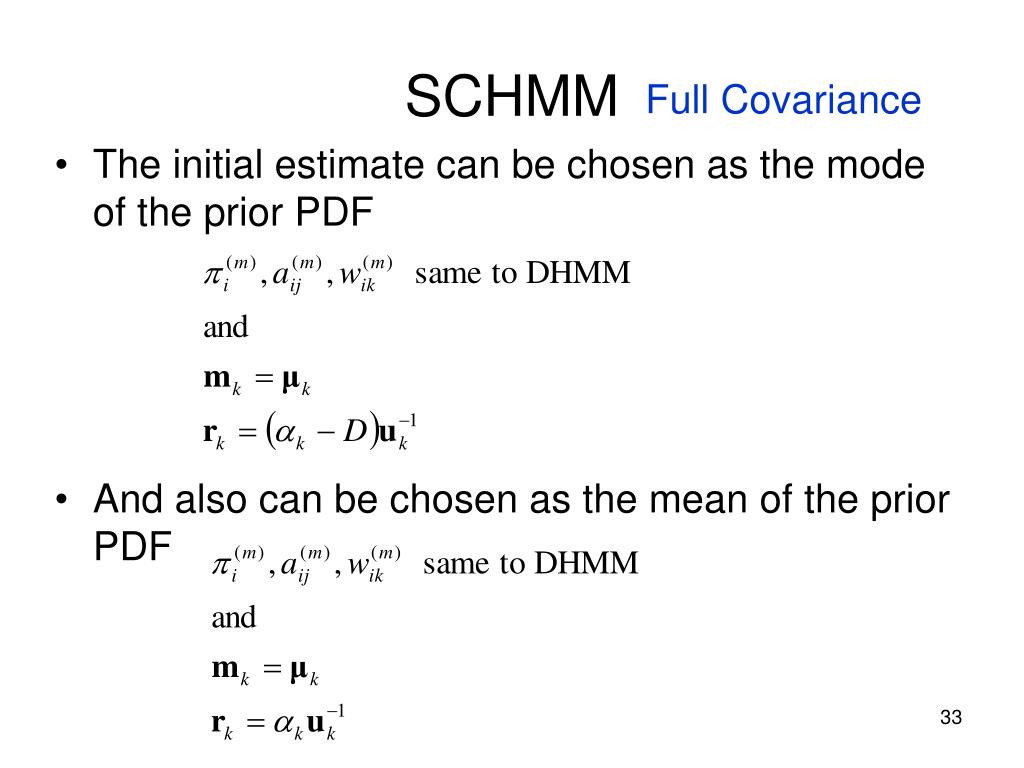

  33. SCHMM Full Covariance • The initial estimate can be chosen as the mode of the prior PDF • And also can be chosen as the mean of the prior PDF

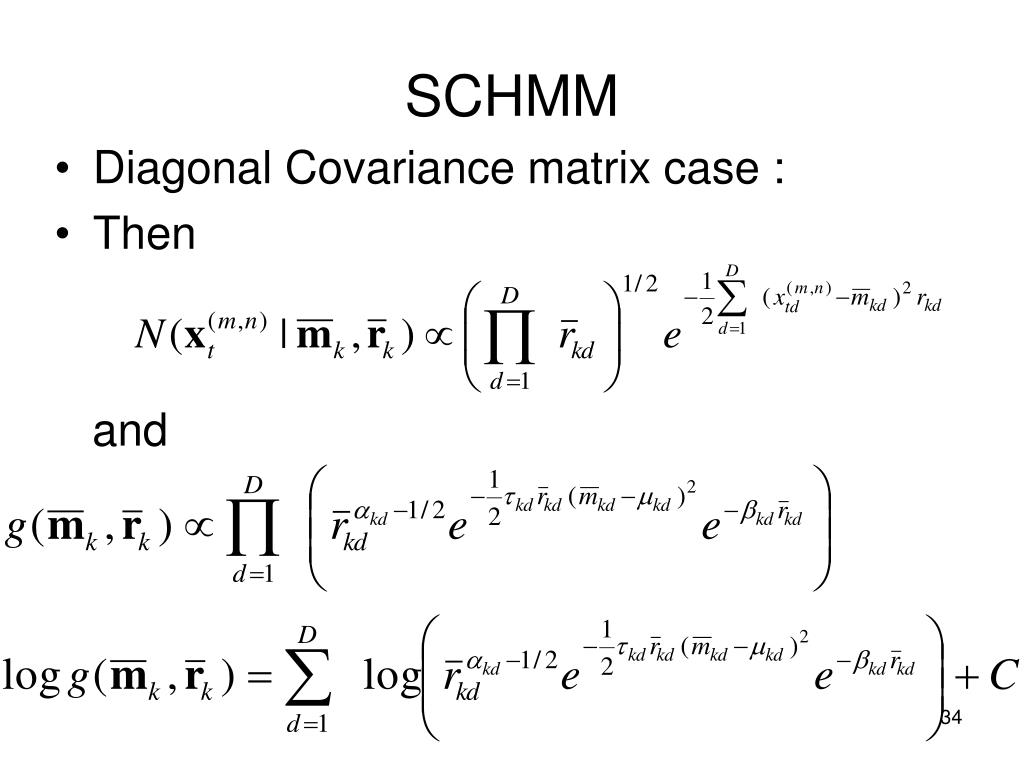

  34. SCHMM • Diagonal Covariance matrix case : • Then and

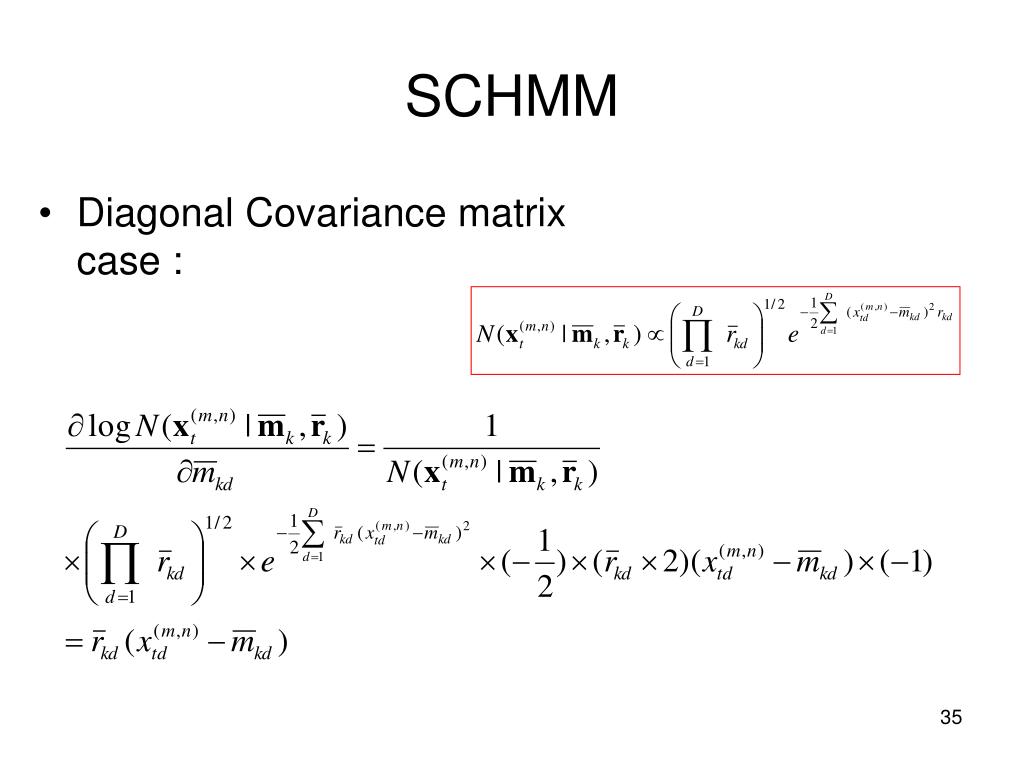

  35. SCHMM • Diagonal Covariance matrix case :

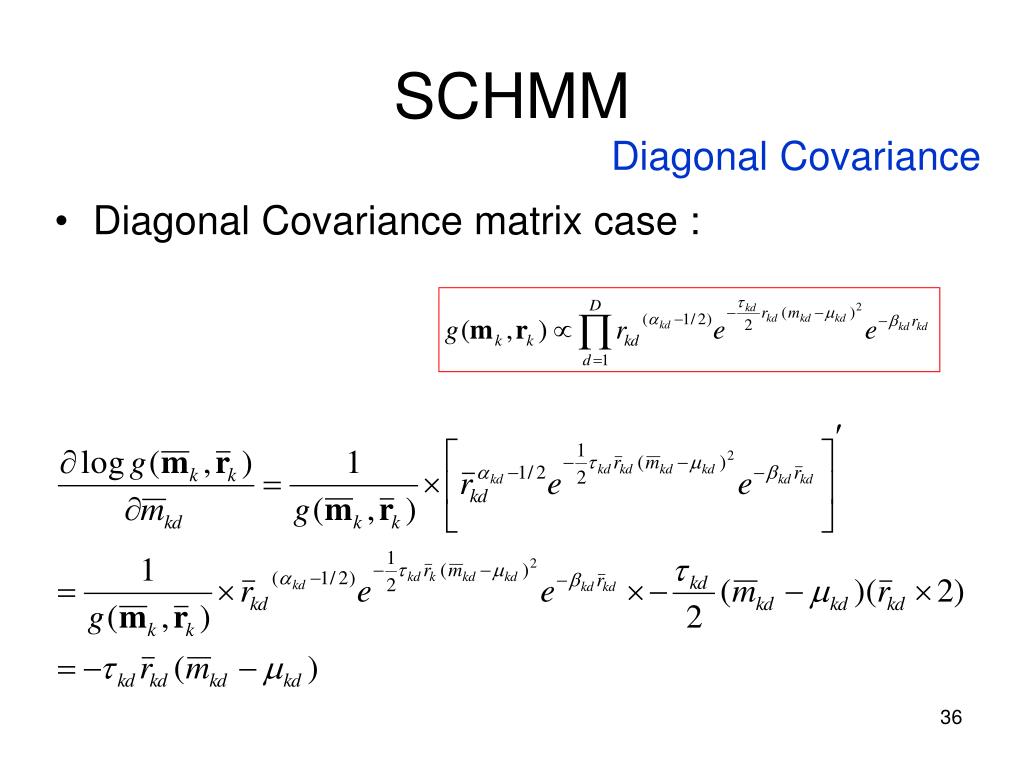

  36. SCHMM Diagonal Covariance • Diagonal Covariance matrix case :

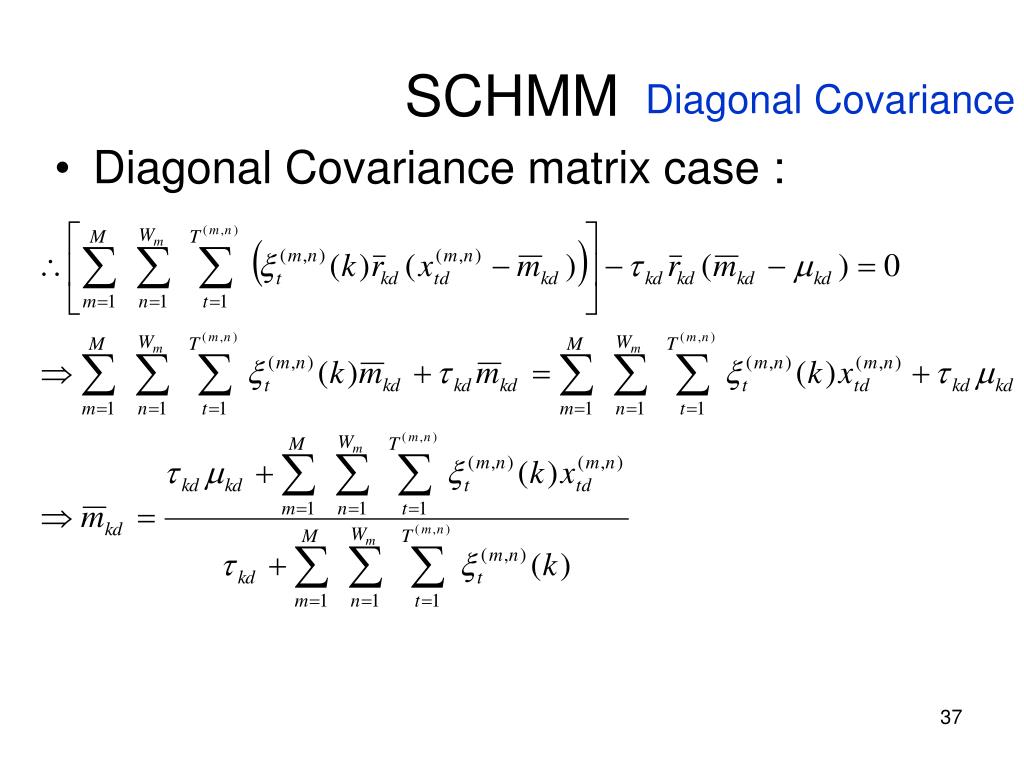

  37. SCHMM Diagonal Covariance • Diagonal Covariance matrix case :

  38. SCHMM • Diagonal Covariance matrix case :

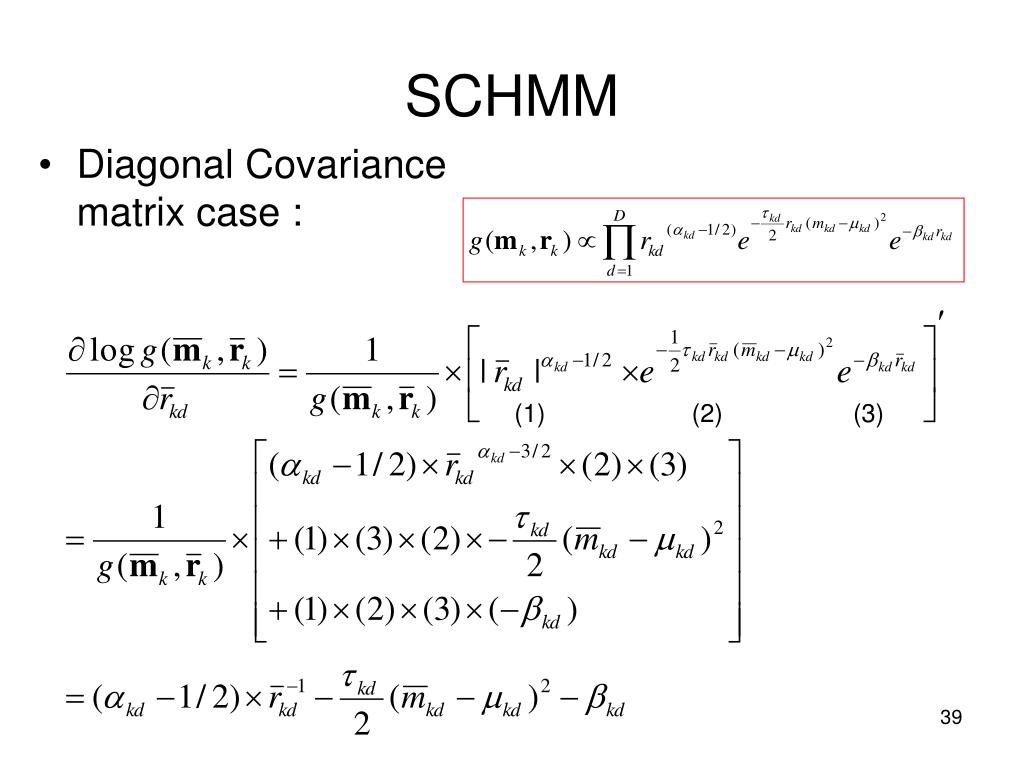

  39. SCHMM • Diagonal Covariance matrix case : (1) (2) (3)

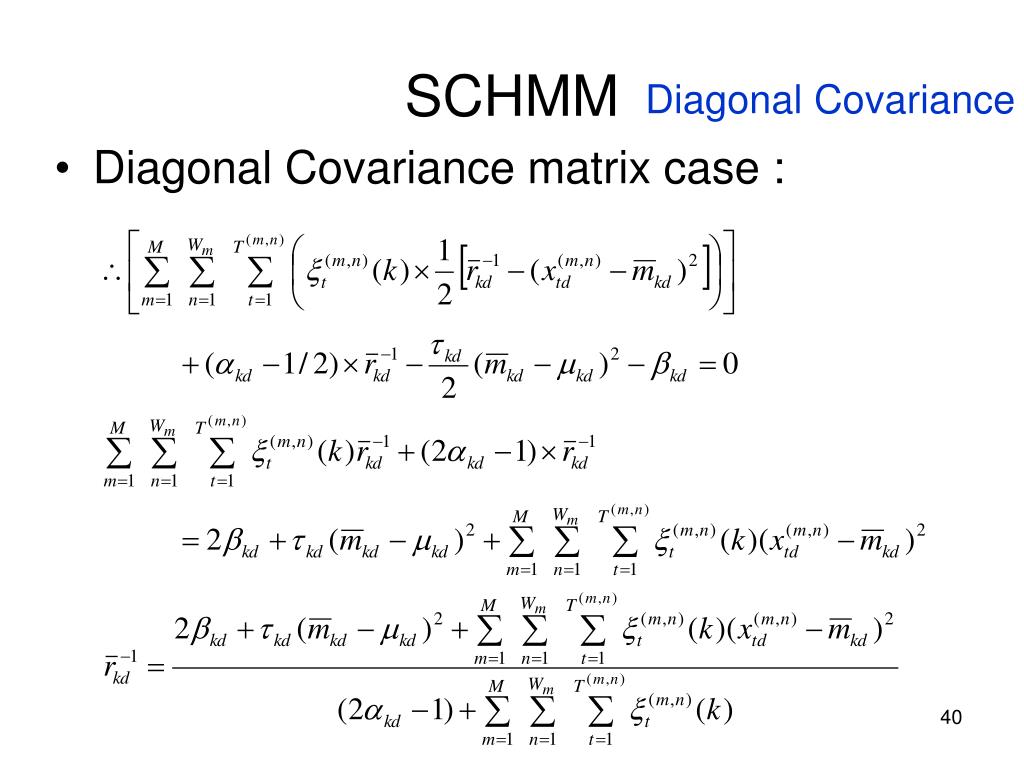

  40. SCHMM Diagonal Covariance • Diagonal Covariance matrix case :

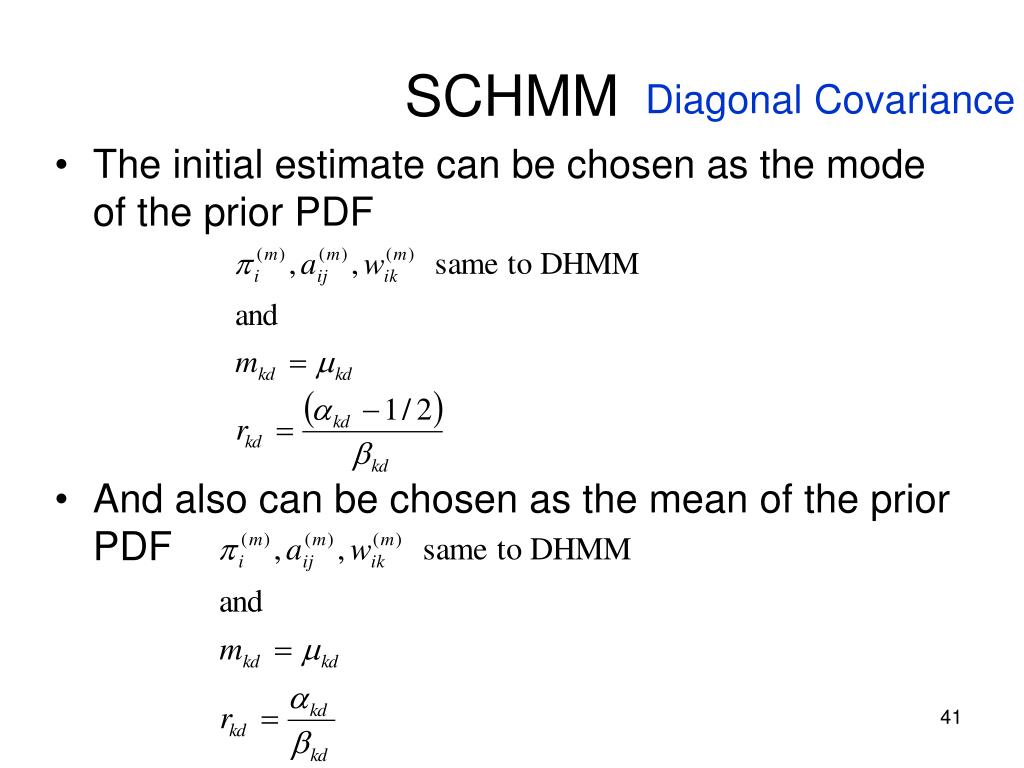

  41. SCHMM Diagonal Covariance • The initial estimate can be chosen as the mode of the prior PDF • And also can be chosen as the mean of the prior PDF

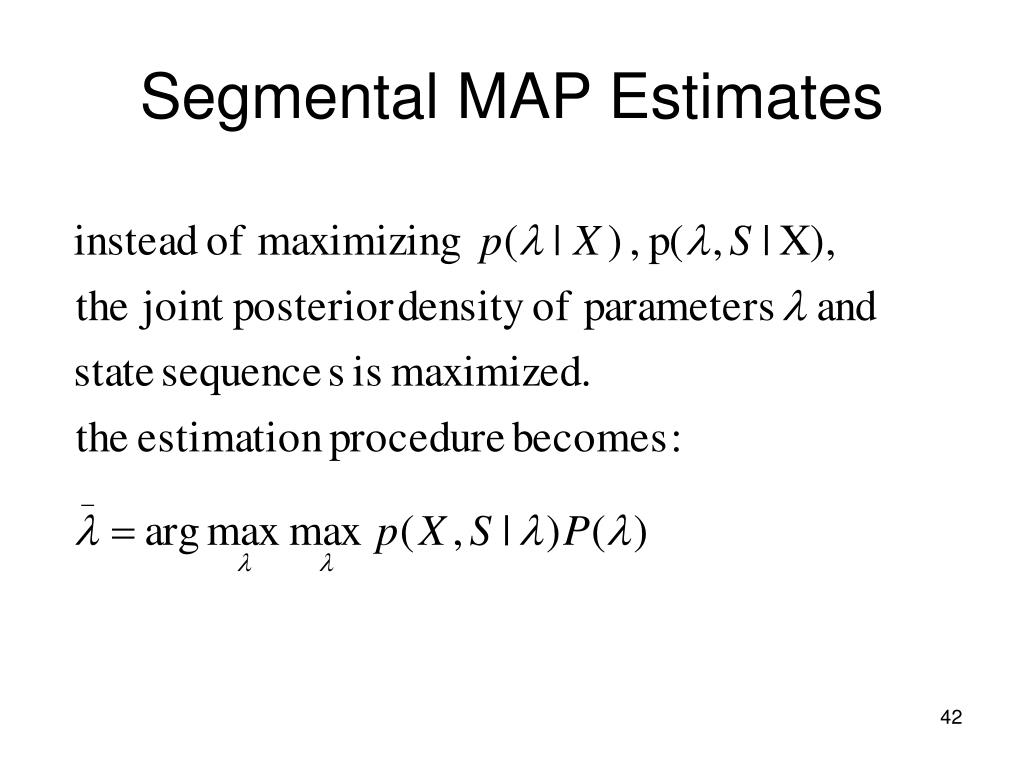

  42. Segmental MAP Estimates

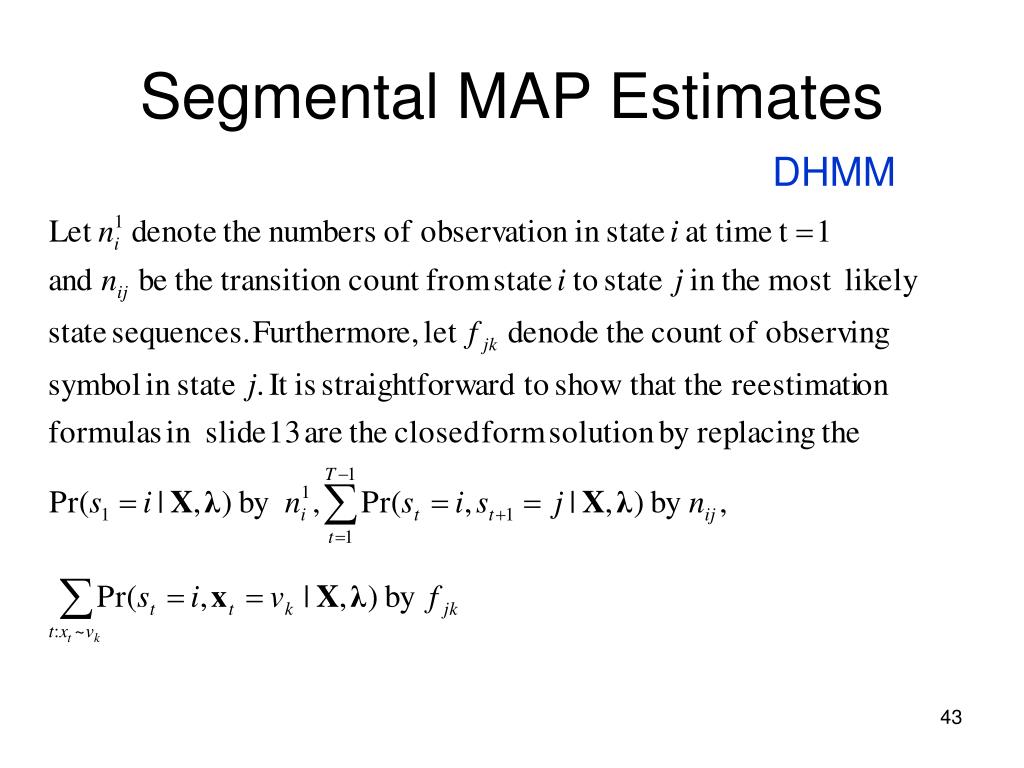

  43. Segmental MAP Estimates DHMM

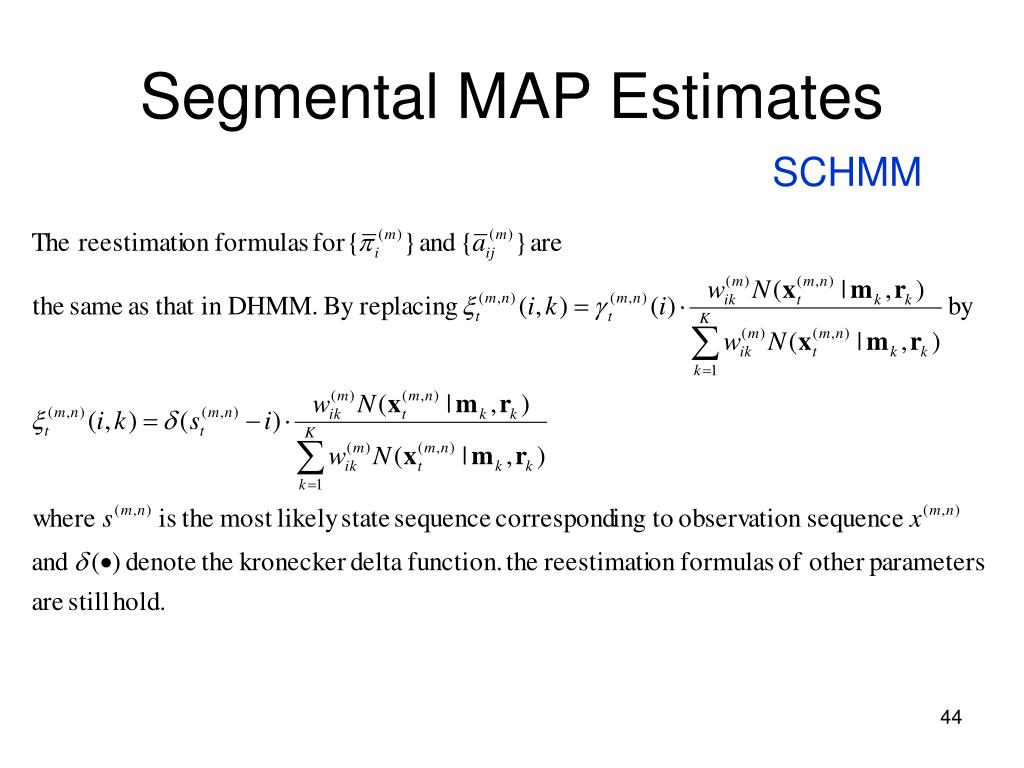

  44. Segmental MAP Estimates SCHMM

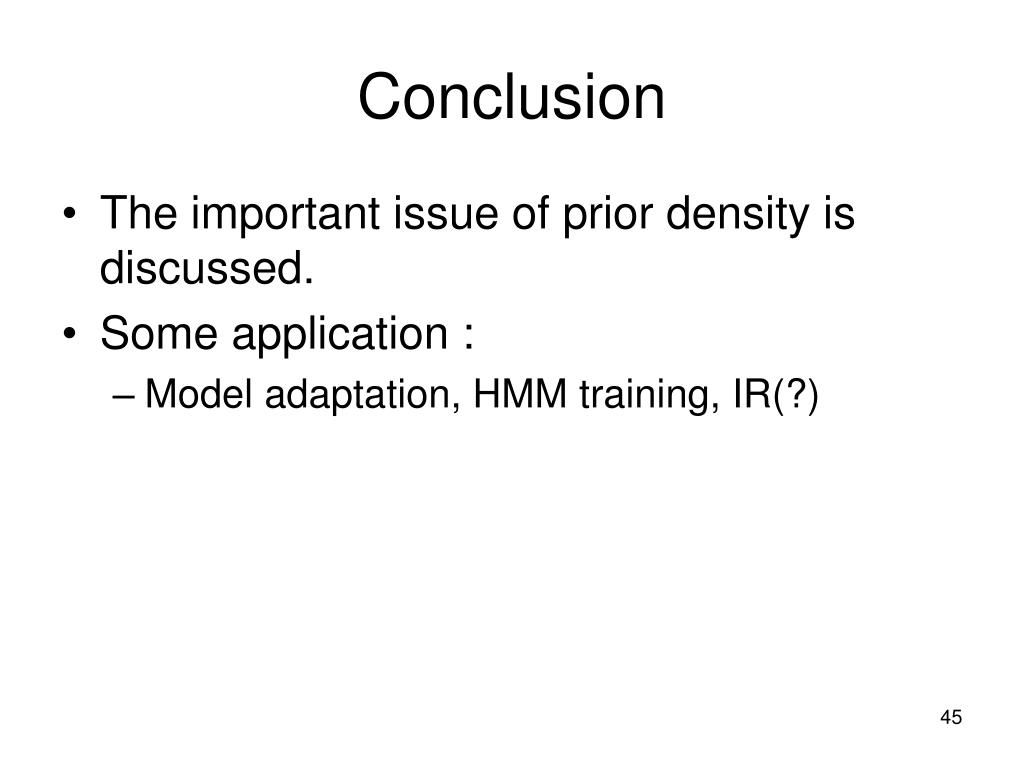

  45. Conclusion • The important issue of prior density is discussed. • Some application : • Model adaptation, HMM training, IR(?)

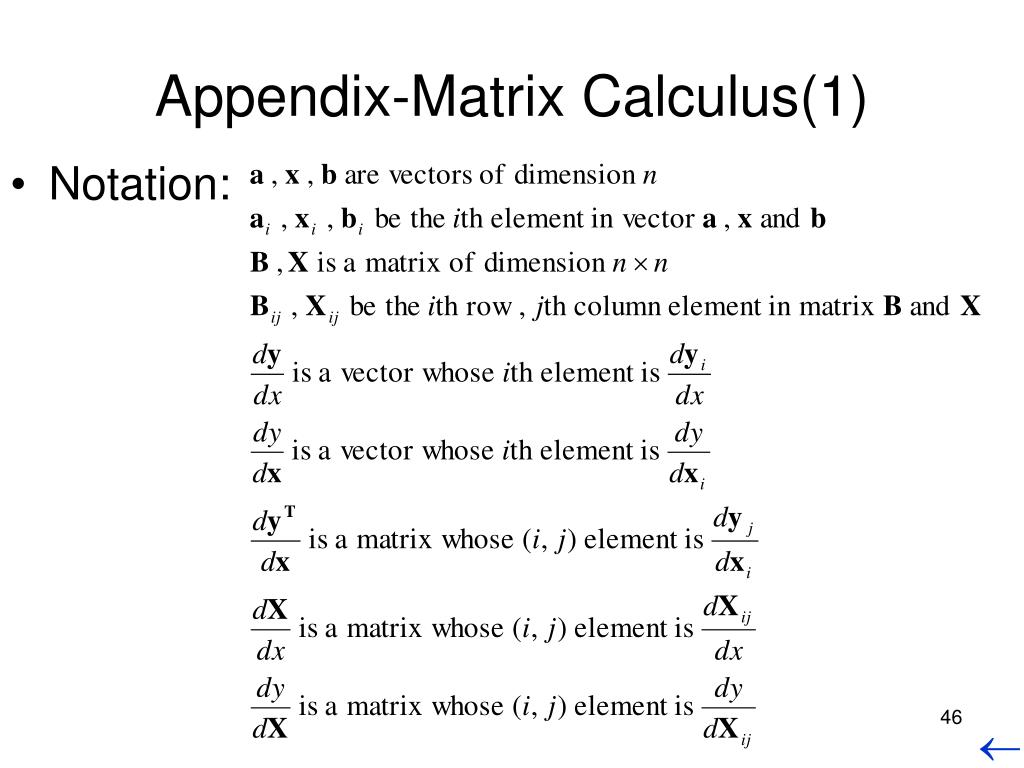

  46. Appendix-Matrix Calculus(1) • Notation:

  47. Appendix-Matrix Calculus(2) • Properties 1: • proof • Properties 1— Extension: • proof

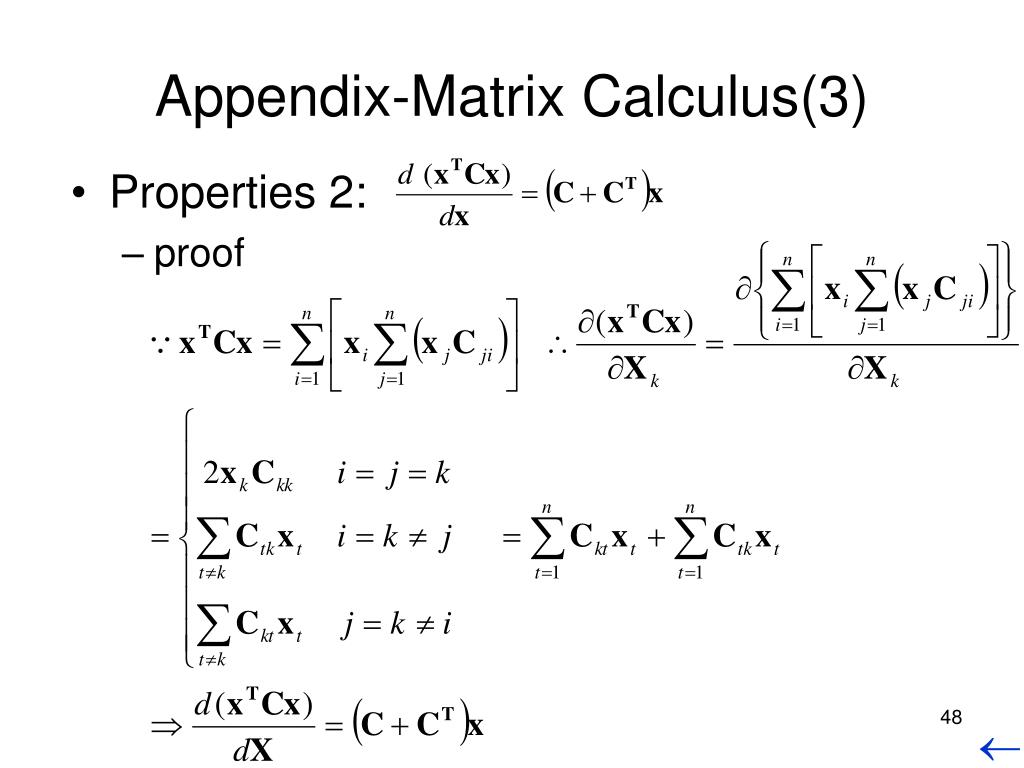

  48. Appendix-Matrix Calculus(3) • Properties 2: • proof

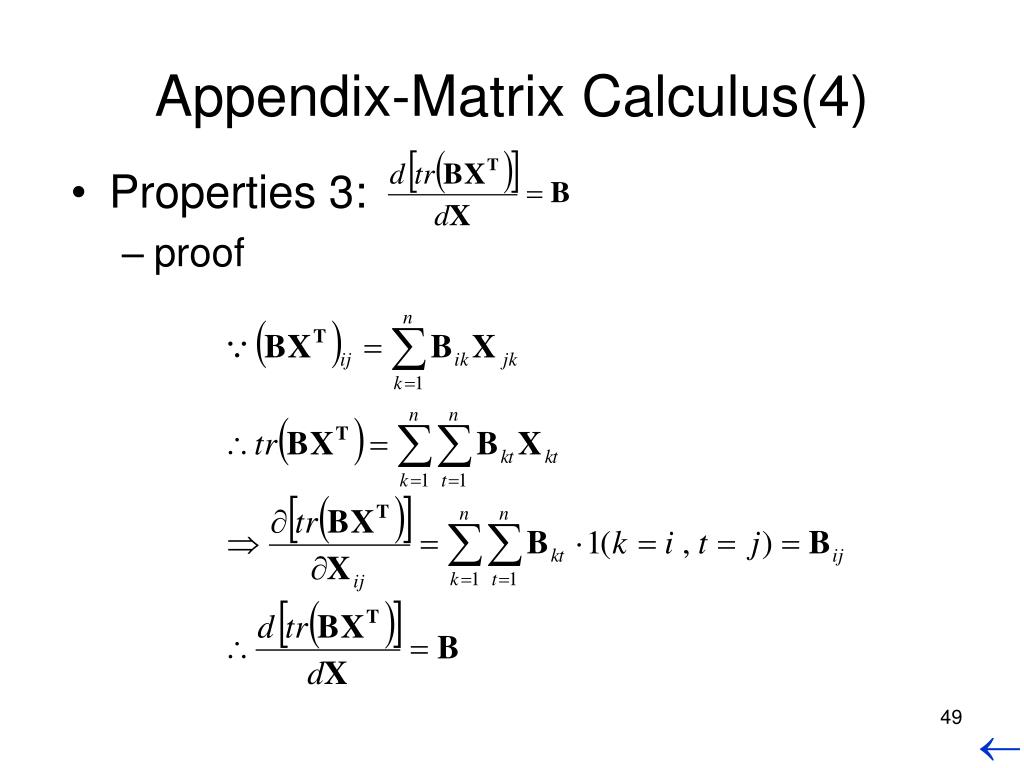

  49. Appendix-Matrix Calculus(4) • Properties 3: • proof

  50. Appendix-Matrix Calculus(5) • Properties 4: • proof
