  1. FZU Computing Centre Jan Švec Institute of Physics of the AS CR, v.v.i. 29.8.2011

  2. FZU Computing Centre • Computing center is an independent part of the Department of Networking and Computing Techniques. Members of the team lead by J. Chudoba from the Department of Experimental Particle Physics: T. Kouba, J. Švec, J. Uhlířová, M. Eliáš, J. Kundrát. • Operation is strongly supported by some members of the Department of detector development and data processing lead by M. Lokajíček: J. Horký, L. Fiala.

  3. FZU Computing Centre • HEP experiments • D0 experiment, Fermilab (USA) • LHC experiments ATLAS, ALICE (CERN) • STAR experiment, BNL (USA) • Solid state physics • Astroparticle physics • Pierre Auger Observatory (Argentina)

  4. FZU Computing Centre

  5. History: 2002 • 34 HP LP1000 • 2x 1.3 GHz Pentium 3 • 1 GB RAM • First 1 TB of disks • “Terminal room”

  6. History: 2004 • A real data center • 200 kVA UPS • 380 kVA diesel • 2x 56 kW CRACs • 67 HP DL140 • 3.06 GHz Prescotts • 10 TB disk storage

  7. 2007 18 HP BL460c 12 HP BL465c History: 2006 - 2007 • 2006 • 36 HP BL35p • 6 HP BL20p

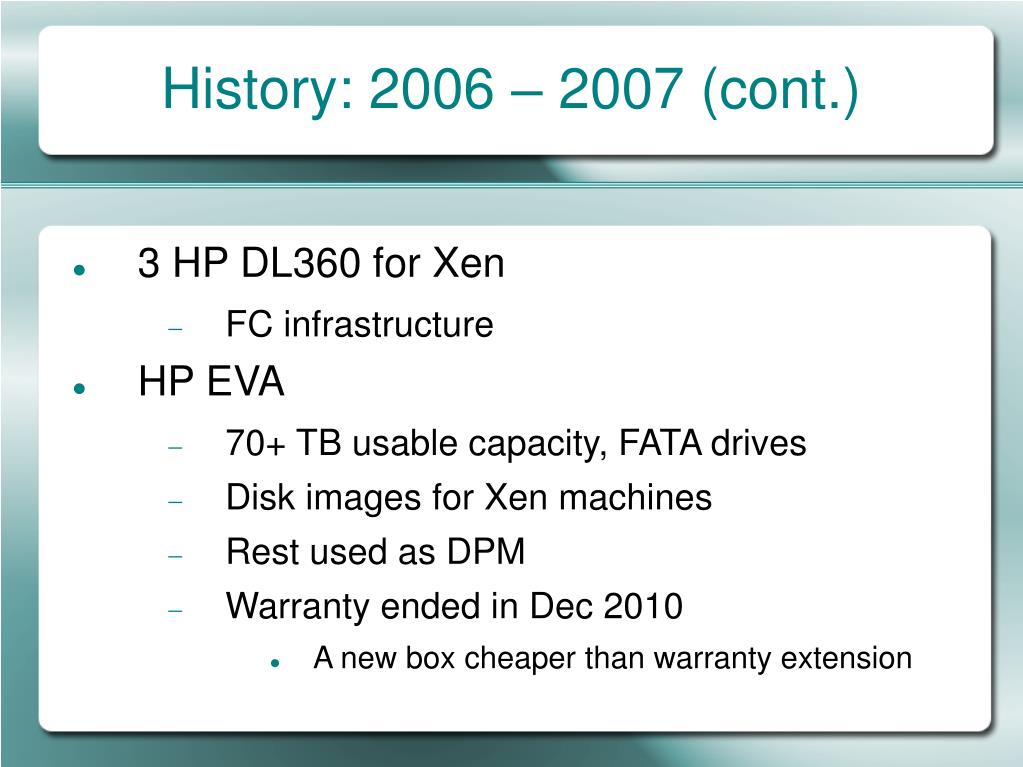

  8. History: 2006 – 2007 (cont.) • 3 HP DL360 for Xen • FC infrastructure • HP EVA • 70+ TB usable capacity, FATA drives • Disk images for Xen machines • Rest used as DPM • Warranty ended in Dec 2010 • A new box cheaper than warranty extension

  9. History: 2008 • 84x IBM iDataPlex node dx340 • 2x Xeon E5440 => 8 cores • 20x Altix XE 310 twins (40 hosts) • 2x Xeon E5420 => 8 cores • 3x Overland Ultamus 4800 (48TB raw each) SAN • Tape library NEO 8000 • 2x VIA based NFS storage • First decommissioning of computing nodes • 2002's HP LP1000r

  10. History: 2009 • 65x IBM iDataPlex dx360M2 nodes • 2x Xeon E5520 with HT => 16 Cores • 9x Altix XE 340 twins (18 hosts) • 2x Xeon E5520 without HT => 8 cores • All water cooled • 3x Nexsan SataBeast (84TB raw each) SAN • 3x Atom-based storage nodes • Wrong idea, WD15EADS-00P8B0 are just weird

  11. History: 2009 • SGI Altix ICE 8200 • Solid state physics • 512 cores (128 x E5420 2.5G) • 1TB RAM • Infiniband • 6TB disk array (Infiniband) • Torque/Maui, OpenMPI

  12. Cooling 2009 • 2009: New water cooling infrastructure • STULZ CLO 781A 2x 88 kW • Additional ceiling for hot-cold air separation

  13. History: 2010 • 26x IBM iDataPlex dx360M3 nodes • 2x Xeon X5650 with HT => 24 Cores • Bull Optima 1500 – HP EVA replacement • 8x Supermicro SC847E16 + 847E16-RJBOD • DPM pool nodes • 1,3PB • Second decommissioning of computing nodes • 2004's HP DL140 • 8 IBM dx340 swapped for dx360M3

  14. Network facilities • External connectivity delivered by CESNET, a GEANT stakeholder • 10Gb to public Internet • 1Gb to FZK (Karlsruhe) • 10Gb connection demuxed to several dedicated 1Gb lines • FNAL, BNL, ASGC, Czech Tier-3s,... • 10G internal network • Few machines still on 1G switches → LACP

  15. 2011: Current Procurements • Estimates: • Worker nodes, approx. 5500 HEPSPEC06 • 800TB disk storage • Water cooled rack + water cooled back doors • Another NFS fileserver

  16. Overall performance growth

  17. Current numbers • 275 WNs HEP, 76 WNs solid state physics • 3000 cores HEP, 560 cores solid state physics • Torque & Maui • 2PB on disk servers (DPM or NFSv3)

  18. Questions? Q & A
