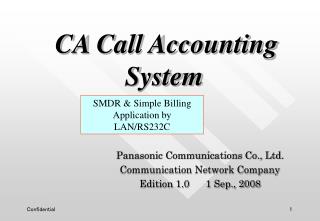

  1. CA Call Accounting System Panasonic Communications Co., Ltd. Communication Network Company Edition 1.0 1 Sep., 2008 SMDR & Simple Billing Application by LAN/RS232C

  2. Index 1. System Connection Diagram 2. Install CA Call Accounting System 3. Ｓｅｔ-up CA Call Accounting System 4. SMDR by Web Browser 5. Simple Billing Feature 6. Other features 7. Notice 8. Requirement of PC Spec.

  3. TDA, TDE or NCP by RS-232C (only 1 system) “CA Call Accounting” Software install into 1 Web Server PC IP address: 192.168.0.10 Web Server PC IP address: 192.168.0.10 RS232C TDA 1. System Connection Diagram TDE SMDR is shown by web browser URL http://192.168.0.10:5050/DEFAULT.ASPX LAN TDE and NCP by LAN up to 8 systems NCP TDA does not support the protocol of SMDR TDE

  4. 2. Install “CA Call Account System” into Web server PC -1/2 Start by double click Microsoft .NET Framework Installation UltiDev Cassini Web Server Explorer Installation Packed in installer “Call Account System” Installation 1/2 In case of some application is necessary (like “Microsoft .NET Framework”) to be installed in Web Server PC, its installation is started by web access (Microsoft up-date) automatically. UltiDev Cassini Web Server for ASP.NET 2.0 Installation Packed in installer

  5. 2. Install “CA Call Account System” into Web server PC -2/2 “Call Account System” Installation 2/2

  6. 3. Set-up “CA Call Account System” for RS-232C connection PBX System SMDR SMDR Format: Type A (without call charge information) only 1. Select RS232C 2. Press “Modify” button 3. SMDR Type A

  7. 3. Set-up “CA Call Account System” for LAN connection PBX System SMDR Options SMDR Format: Type A (without call charge information) only 1. Select LAN 2. Press “Add” button “Port” & “SMDR Password” are matched to SMDR LAN setting of PBX System 3. NOTE: TDE & NCP only TDA does not support the protocol of SMDR

  8. URL http://192.168.0.10:5050/DEFAULT.ASPX 192.168.0.10: Web Server PC IP address 5050: port of IP connection 4. SMDR by Web Browser - 1/2 URL for Web Client: Web Browser (Internet Explorer recommend) Default Username: admin Password: admin

  9. 4. SMDR by Web Browser - 2/2 Call Type All Incoming No Answer Call Incoming Answer Call PBX Outgoing Call All Others 0: (PBX1) 1: (PBX2) Press “Search” SMDR

  10. 5. Simple Billing Feature - 1/3 EXT.(room)101 total cost EXT.(room)101 call detail

  11. 5. Simple Billing Feature - 2/3 Call Charge Settings Other Settings Go to next page Currency & Decimal place setting

  12. 5. Simple Billing Feature - 3/3 Help screen Charge Table Please refer detail setting by Help file Unit Charge Flat Charge Duration Unit Charge Duration Unit Charge Duration Flat Charge Flat Charge Duration

  13. 6. Other Features (Emergency Call Alert) In case of Assigned Emergency Number is recorded on SMDR, Emergency Call Alert screen is pop-up. Pop-up Emergency Call Alert Setting Screen Emergency Number Assignment This feature is on Web Server PC side.

  14. 6. Other Features (Wake-up Call Alert) In case of No Answer is recorded against Timed Reminder on SMDR, Wake-up Call Alert screen is pop-up. Pop-up Timed Reminder/No Answer Wake-up Call Alert Setting Screen This feature is on Web Server PC side.

  15. 7. Notice Call history (SMDR) of PBX is saved in Web Server PC Side. Web client user can see the call history through Web browser. SMDR type assigned in PBX has to be "Type A (without call charge information)". SMDR date format (like MM-DD-YY) assigned in PBX and this server has to be same. Charge rate and currency has to be assigned before connecting PBX. Charge is calculated when call information is sent from PBX. Call Accounting System is Free up to June 2009.

  16. 8. Requirements of PC Spec. Call Accounting Web Server Minimum Recommend CPU 1.0GHz Intel Pentium/Celeron processor or comparable CPU Intel Core2 Duo /3.2GHz Pentium/Celeron processor or comparable CPU RAM 256MB (1024MB for Windows VISTA) 2048MB(2GB) Microsoft Windows VISTA Windows XP Professional Windows Server2003 Standard Edition Microsoft Windows VISTA Windows XP Professional Windows Server2003 Standard Edition OS Storage (HDD) 1.5GB available space 10GB available space Interface 10 Base-T, RS232C 100 Base-T, RS232C * Video Resolution: 1028 x 768 Call Accounting Web Client (Web Browsing Side) Minimum Recommend CPU 1.0GHz Intel Pentium/Celeron processor or comparable CPU Intel Core2 Duo /3.2GHz Pentium/Celeron processor or comparable CPU RAM 256MB (1024MB for Windows VISTA) 2048MB(2GB) Windows XP Home Edition Windows XP Professional Microsoft Windows VISTA Windows XP Home Edition Windows XP Professional Microsoft Windows VISTA OS Storage (HDD) 1.5GB available space 10GB available space Interface 10 Base-T 100 Base-T * Video Resolution: 1028 x 768

  17. SMDR & Simple Billing Application by LAN/RS232C Thank you very much !
