Manual Valve Applications Dealers In India

"Rotork Soldo Control ES Hazardous area limit switch box, dedicated to manual valve applications. Explosion proof enclosure, matching the Ex d IIC T6 standards, produced in both copper free aluminum and 316 stainless steel materials, covering the most demanding application in hostile environments. The Easy switch box takes advantage of two magnetic sensors, providing the electrical feedback to the control room. An easy to mount magnetic target operates the switches.<br><br>For any Enquiry Call Us: 91-11-2201-4325, For Bulk Order Email at : Enquiry@ytcindia.com, Our Website :- www.ytcindia.com"<br>

ytcindia
Télécharger la présentation

Manual Valve Applications Dealers In India

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

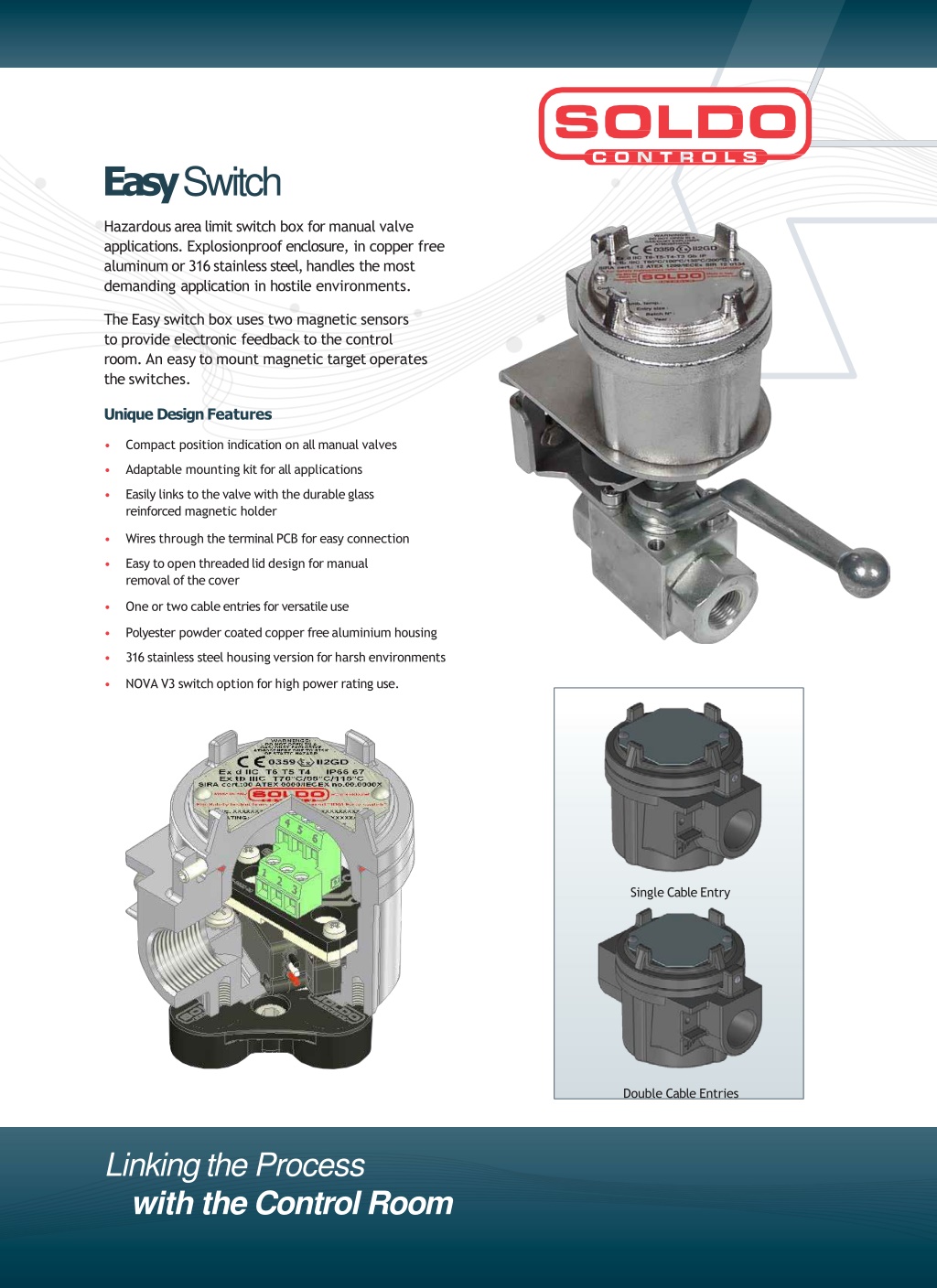

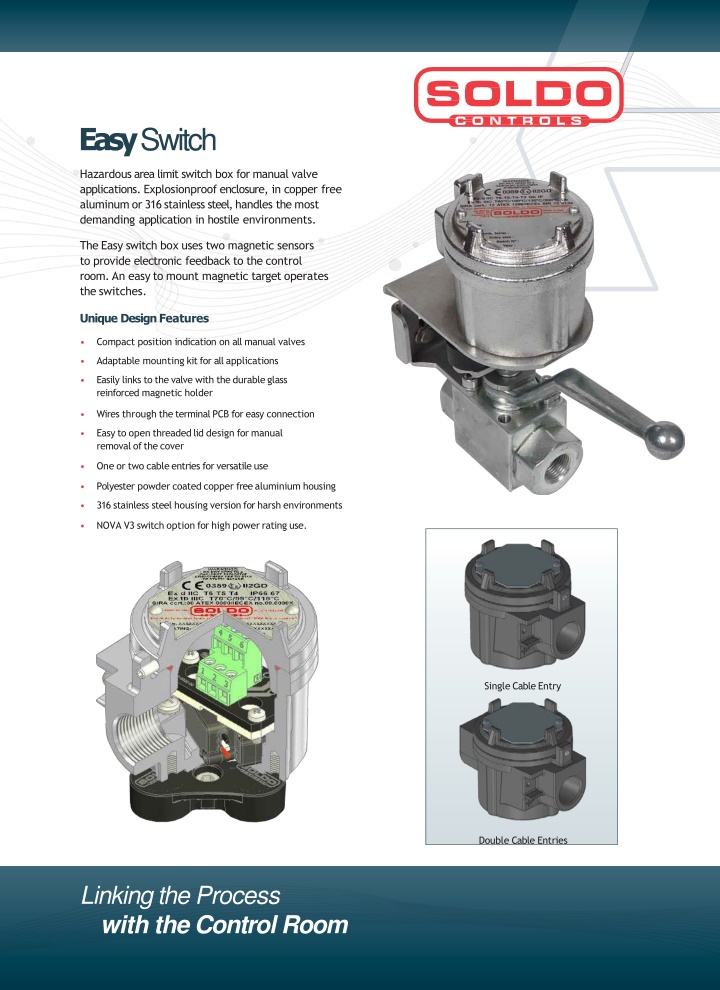

  1. EasySwitch • Hazardousarealimit switch boxformanualvalve applications.Explosionproofenclosure,incopper free aluminumor316stainlesssteel,handlesthe most demandingapplicationinhostileenvironments. • TheEasyswitchboxusestwomagneticsensorstoprovideelectronic feedback to the control room.Aneasytomountmagnetictargetoperates theswitches. • UniqueDesignFeatures • Compactpositionindicationonallmanualvalves • Adaptablemounting kit forallapplications • Easilylinkstothevalvewiththedurableglass reinforced magneticholder • Wiresthroughtheterminal PCBforeasyconnection • Easytoopenthreadedliddesignformanual removalofthecover • Oneortwocableentriesforversatileuse • Polyesterpowdercoatedcopperfreealuminiumhousing • 316stainlesssteelhousingversionforharshenvironments • NOVAV3switchoptionforhighpowerratinguse. SingleCableEntry DoubleCableEntries Linkingthe Process withtheControlRoom

  2. ProductSpecification Certifications ATEX,IECEx,EAC,INMETRO ExII2GD ExdIICT6/T5/T4Gb ExtbIIICT85/T100/T120°CDb Ta=-65°C≤Ta≤ 105 °C SILrating: uptoSIL2approvalonrequest UL: ClassI,Division1and2,GroupsA,B,CandD ClassII,Division1GroupsE,FandG ClassIIDivision2,GroupsFandG Protectionrating IP66/67 IP66/68(15metersfor70hours) CableEntryOptions Standard–Singlecableentry Optional–Twocable entries forthe followingdimensions: -M20x1,5 -1/2”NPT • SwitchSelection: • NOVA V3N1 • Tobechosenwithfollowingrequirements: • Hermeticallysealedproximityswitch • Highpowerloop: • Ratingupto5A@250VAC- 5A@28VDC • Temperature range: -50to+105°C • NOVA V3N3 • Hermeticallysealedproximityswitch • Goldplatedcontacts • Ratingupto1A@250VAC- 1A@30VDC • Temperature range: -50to+105°C • REEDC4 • Hermeticallysealedproximityreedswitch • Inert gascontact chamber • Ratingupto1A@24VDC • Temperaturerange:-60to+105°C DimensionalData 84(3.31)DOUBLE CABLEENTRY 42(1.65) 38(1.50) 63(2.48) ØA MAGNETCARRIER 1.8 (0.07) 2.88(73.1)SINGLECABLEENTRY Ø48(1.89) 8.0 (0.32) MAGNET TARGETS 51.8(2.04) 11.5 (0.45) Contactfactory for bracketinformation (4)M5x0.8-6H 25(1.0) TargetPositions

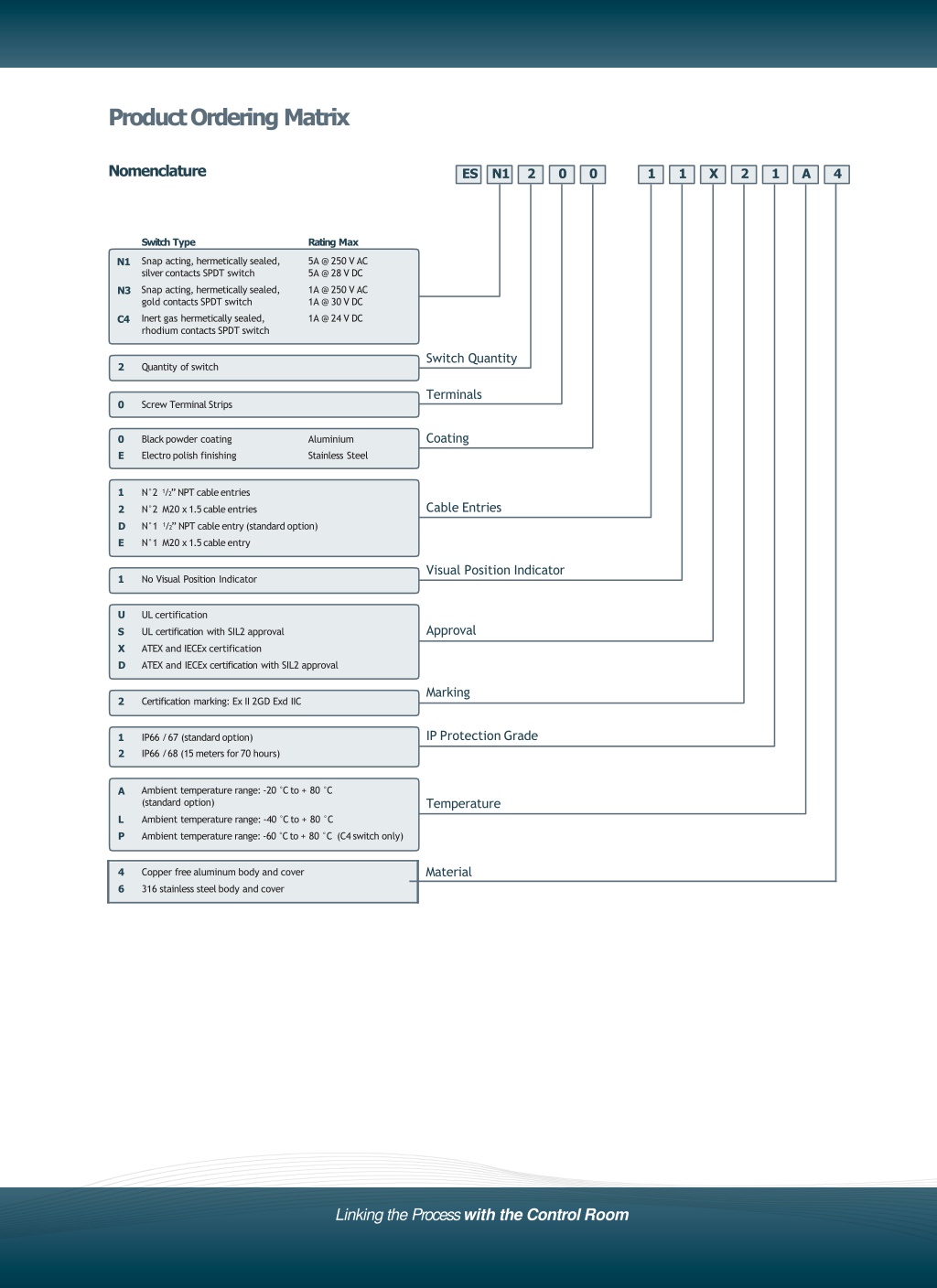

  3. ProductOrderingMatrix Nomenclature ESN1200 11X21A4 LinkingtheProcesswiththe ControlRoom

  4. Europe SoldoSRL 60,ViaMonteBaldo25015 DesenzanoDelGarda Brescia, Italy Tel: +390309991309 Fax: +3903091419779 Email:sales@soldo.net USA SoldoUSALLC 3920Westpoint Blvd. Winston-Salem NC27103 Tel: +1(336) 6593400 Fax: +1(336) 6599323 Email:sales@soldousa.com www.soldo.net PUB109-006-00 IssueDate11/14 Aspartofaprocessofon-goingproductdevelopment,Soldoreservestherightto amendandchangespecificationswithoutpriornotice.Publisheddatamaybesubjecttochange.Fortheverylatestversionrelease,visit our websiteatwww.soldo.net ThenameSoldo®isaregisteredtrademark. Soldo recognizesallregistered trademarks.Published andproduced inthe UK bySoldo. POWSH1014
