Introduction to trigonometry

This section covers the basics of trigonometry, specifically focusing on calculating the lengths of sides in right triangles using trigonometric ratios. By introducing sine, cosine, and tangent functions, students will learn to determine the side lengths given one side and one acute angle. With practical examples and calculator evaluations, learners will explore how to use trigonometric definitions effectively. The use of mnemonics like "SohCahToa" will aid in remembering ratios while developing problem-solving skills through assignments and exercises.

yuki
Télécharger la présentation

Introduction to trigonometry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

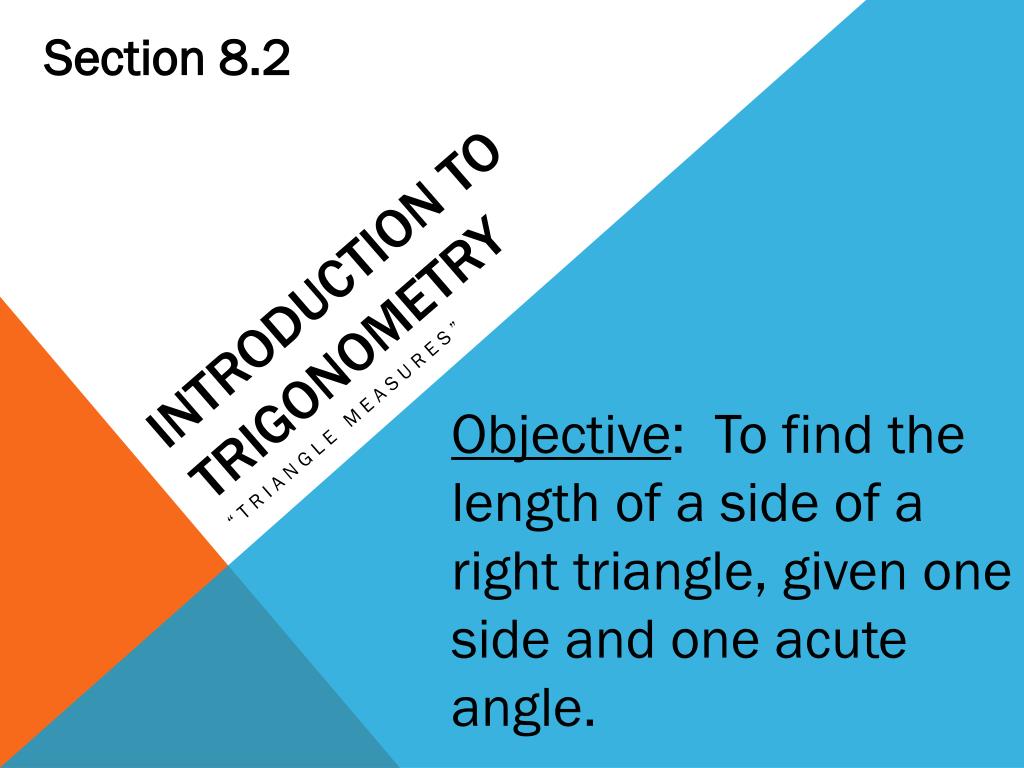

  1. Section 8.2 Introduction to trigonometry “triAngle Measures” Objective: To find the length of a side of a right triangle, given one side and one acute angle.

  2. Recall… Make a guess…. 60° Find the value of x. 10 x 55° Now make a conjecture about the value of y in the figure. 10 y Trigonometry will help us find the length of a side of a right triangle when we are given only one side and one acute angle.

  3. Evaluate each function on a calculator. a. sin 30° c. tan 30 ° b. cos 30 ° 0.87 0.58 0.5 What do these numbers mean? Where do they come from?

  4. Trig definitions 10 5 30 sin (angle) = tan (angle) = cos (angle) =

  5. Trig definitions 6 3 30 sin (angle) = tan (angle) = cos (angle) =

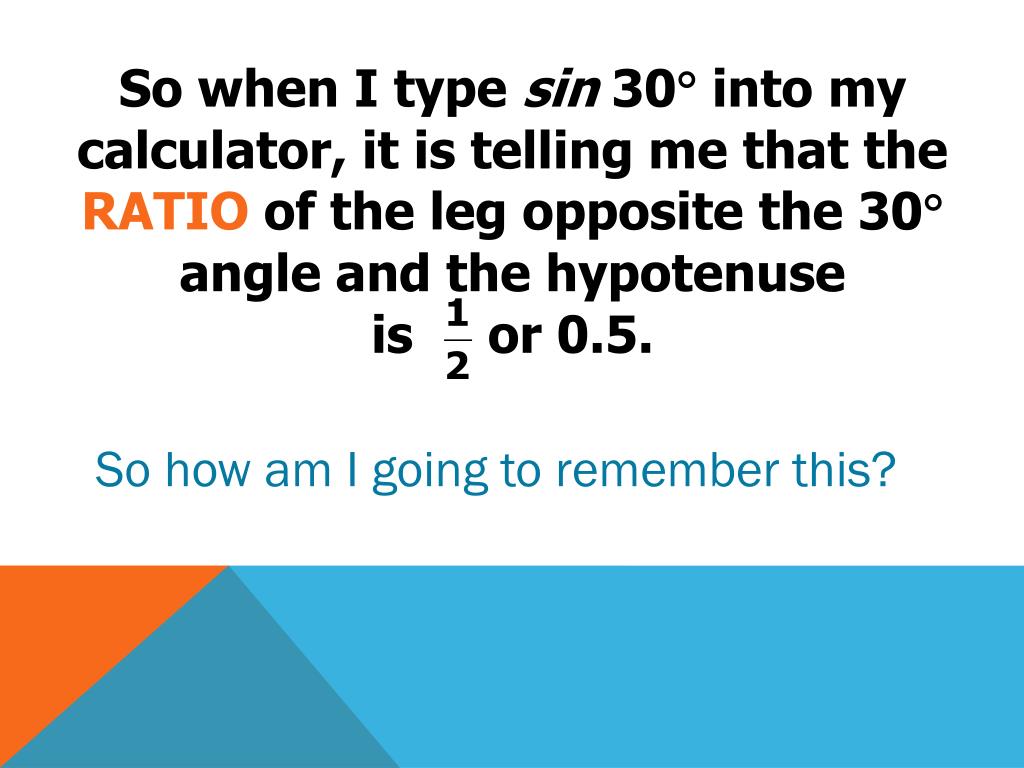

  6. So when I type sin 30 into my calculator, it is telling me that the RATIO of the leg opposite the 30 angle and the hypotenuse is or 0.5. So how am I going to remember this?

  7. D J A C E N T P P O S I T E I N E O S I N E Y P O T E N U S E Y P O T E N U S E A N G E N T P P O S I T E D J A C E N T SohCahToa Aaaahh!

  8. Handbook page 18

  9. Here’s what you need to be able to do: • Given the right triangle shown, state the ratio for the sine, cosine and tangent of A and B. B 6 10 A

  10. 18 37° 2. Find the value of x in each triangle. a. b. x 43° x 4.1

  11. Now use trigonometry to find the actual value of y, rounded to the nearest hundredth. 55° 10 y

  12. Assignment WS: Intro to Trig Ratios: 1-19
