  1. DDoS in Cloud Computing B. Cha

  2. Agenda • DDoS Attacks • DDoS Model in Cloud Computing • Problem Definition • DDoS Solution 1 • DDoS in aspect of Cloud Computing Manager • DDoS Attack • DDoS Target • Detection in aspect of Cloud Computing Manager • Attack Detection • Intrusion Detection

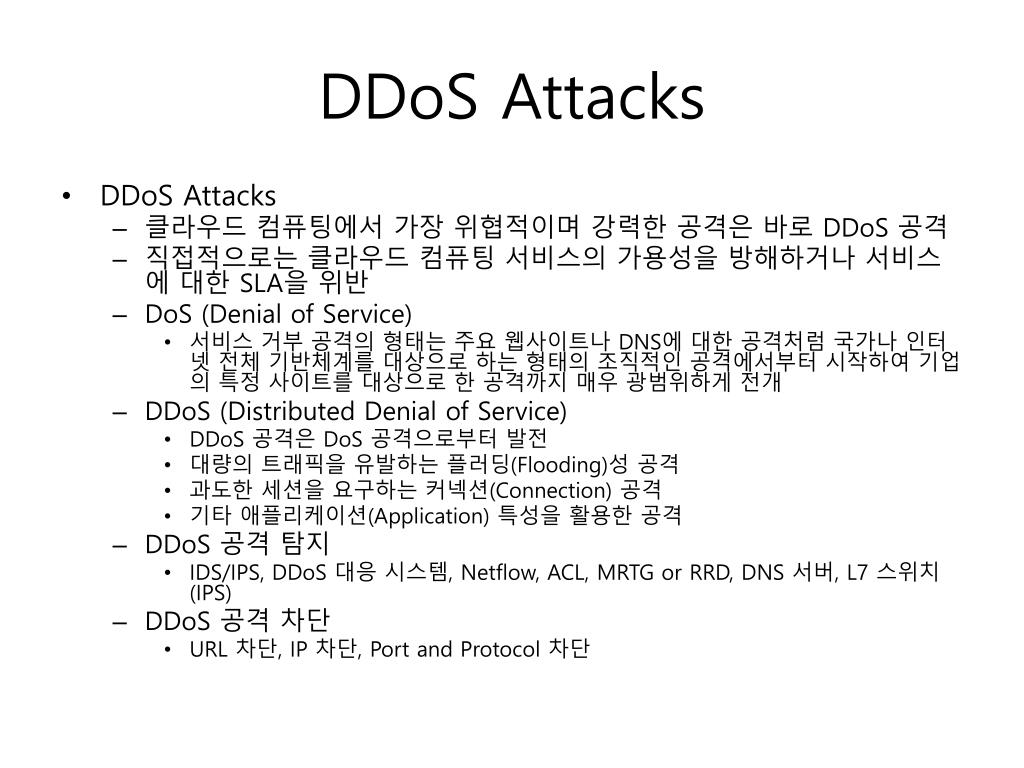

  3. DDoS Attacks • DDoS Attacks • 클라우드 컴퓨팅에서 가장 위협적이며 강력한 공격은 바로 DDoS공격 • 직접적으로는 클라우드 컴퓨팅 서비스의 가용성을 방해하거나 서비스에 대한 SLA을 위반 • DoS (Denial of Service) • 서비스 거부 공격의 형태는 주요 웹사이트나 DNS에 대한 공격처럼 국가나 인터넷 전체 기반체계를 대상으로 하는 형태의 조직적인 공격에서부터 시작하여 기업의 특정 사이트를 대상으로 한 공격까지 매우 광범위하게 전개 • DDoS (Distributed Denial of Service) • DDoS공격은 DoS공격으로부터 발전 • 대량의 트래픽을 유발하는 플러딩(Flooding)성 공격 • 과도한 세션을 요구하는 커넥션(Connection) 공격 • 기타 애플리케이션(Application) 특성을 활용한 공격 • DDoS공격 탐지 • IDS/IPS, DDoS대응 시스템, Netflow, ACL, MRTG orRRD, DNS 서버, L7 스위치(IPS) • DDoS공격 차단 • URL 차단, IP 차단, Port and Protocol 차단

  4. DDoS Model in Cloud Computing • Assumption • Cloud Computing Environment • Cloud 1, Cloud 2, Manager of Cloud 1, and Malicious Client Computing Clusters Manager Access Cloud Computing Access Malicious Client

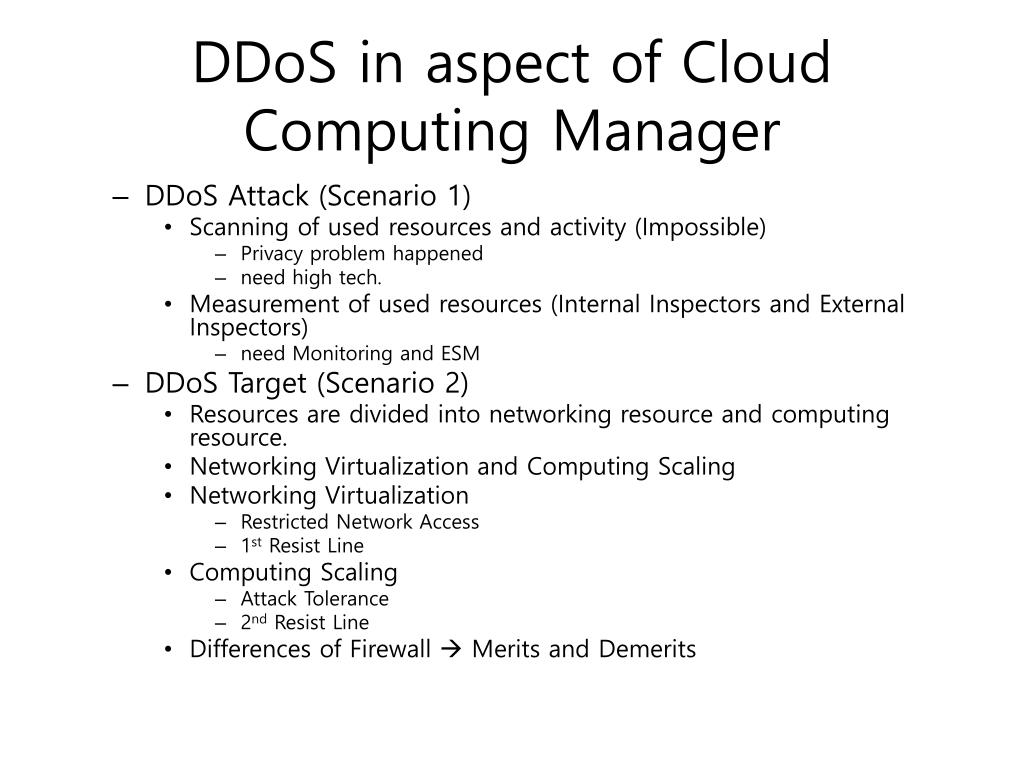

  5. DDoS in aspect of Cloud Computing Manager • DDoS Attack (Scenario 1) • Scanning of used resources and activity (Impossible) • Privacy problem happened • need high tech. • Measurement of used resources (Internal Inspectors and External Inspectors) • need Monitoring and ESM • DDoS Target (Scenario 2) • Resources are divided into networking resource and computing resource. • Networking Virtualization and Computing Scaling • Networking Virtualization • Restricted Network Access • 1st Resist Line • Computing Scaling • Attack Tolerance • 2nd Resist Line • Differences of Firewall  Merits and Demerits

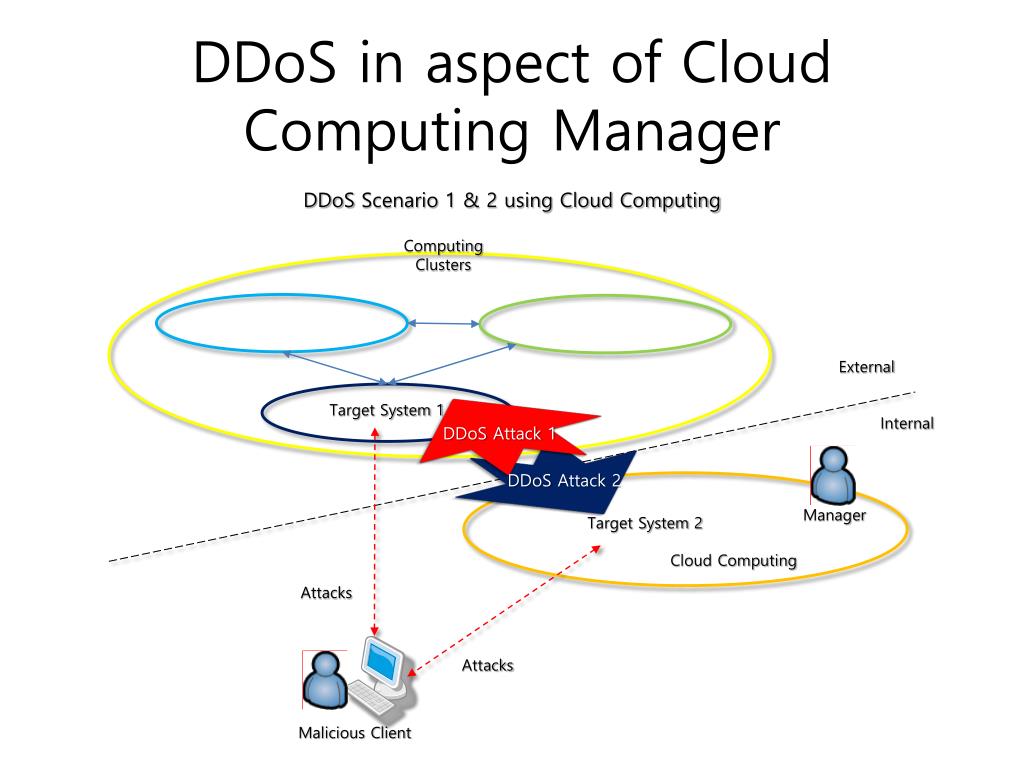

  6. DDoS in aspect of Cloud Computing Manager DDoS Scenario1 & 2 using Cloud Computing Computing Clusters External Target System 1 Internal DDoS Attack 1 DDoS Attack 2 Manager Target System 2 Cloud Computing Attacks Attacks Malicious Client

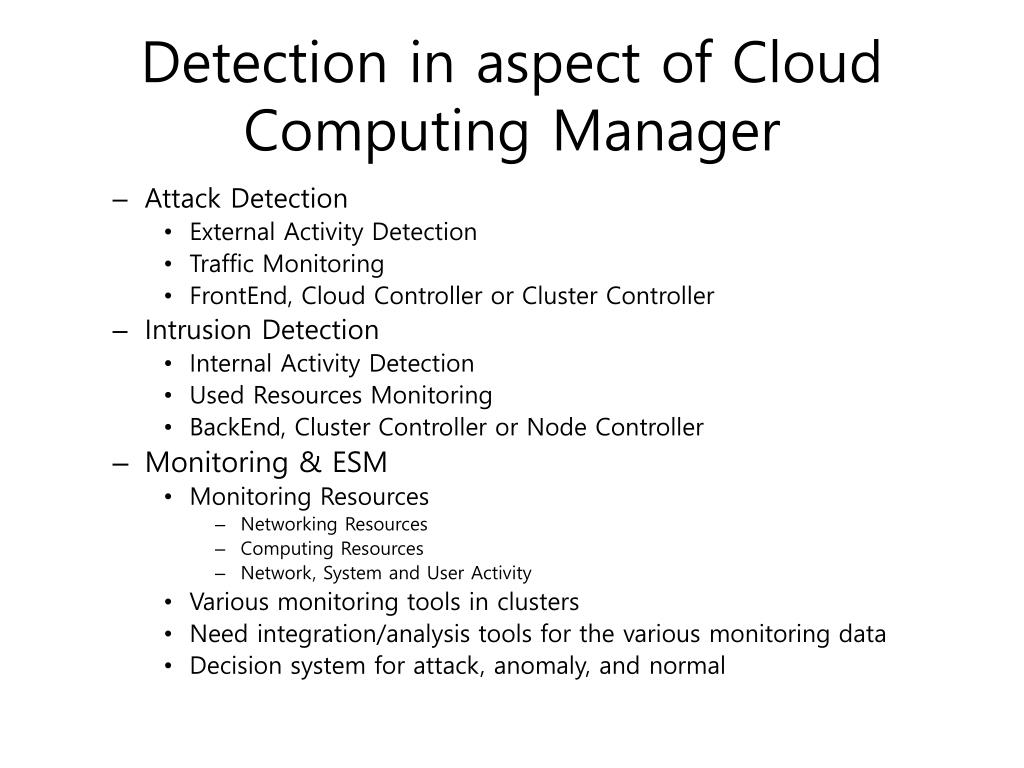

  7. Detection in aspect of Cloud Computing Manager • Attack Detection • External Activity Detection • Traffic Monitoring • FrontEnd, Cloud Controller or Cluster Controller • Intrusion Detection • Internal Activity Detection • Used Resources Monitoring • BackEnd, Cluster Controller or Node Controller • Monitoring & ESM • Monitoring Resources • Networking Resources • Computing Resources • Network, System and User Activity • Various monitoring tools in clusters • Need integration/analysis tools for the various monitoring data • Decision system for attack, anomaly, and normal

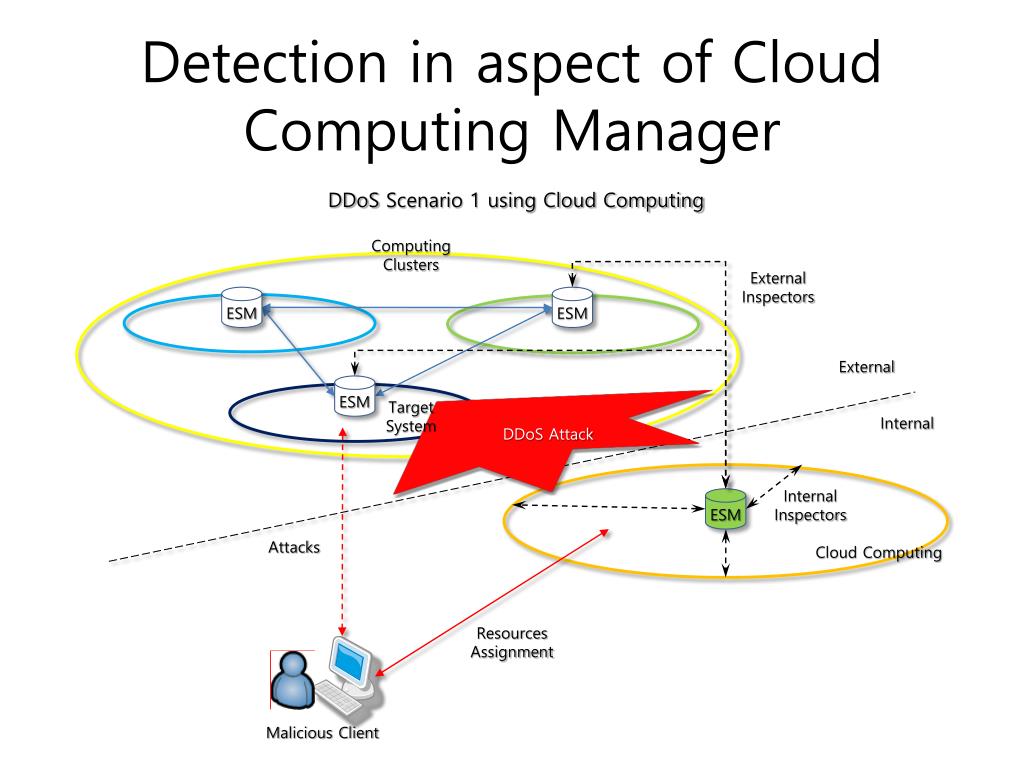

  8. Detection in aspect of Cloud Computing Manager DDoS Scenario 1 using Cloud Computing Computing Clusters External Inspectors ESM ESM External ESM Target System Internal DDoS Attack Internal Inspectors ESM Attacks Cloud Computing Resources Assignment Malicious Client
