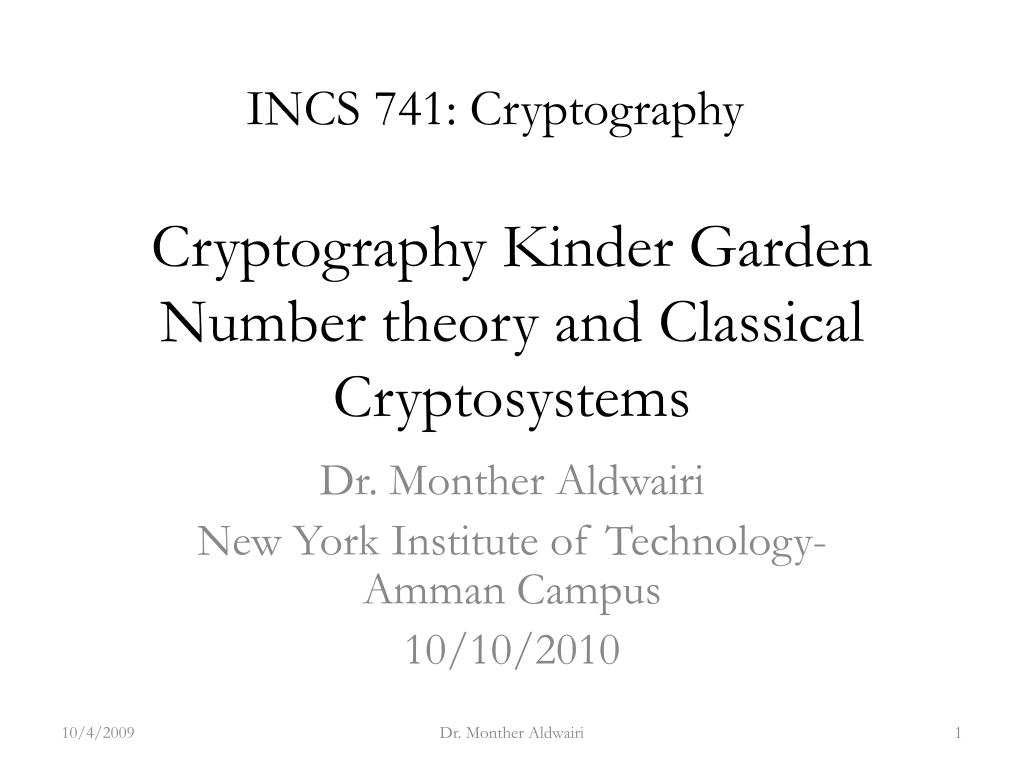

  1. INCS 741: Cryptography Cryptography Kinder GardenNumber theory and Classical Cryptosystems Dr. Monther Aldwairi New York Institute of Technology- Amman Campus 10/10/2010 Dr. Monther Aldwairi

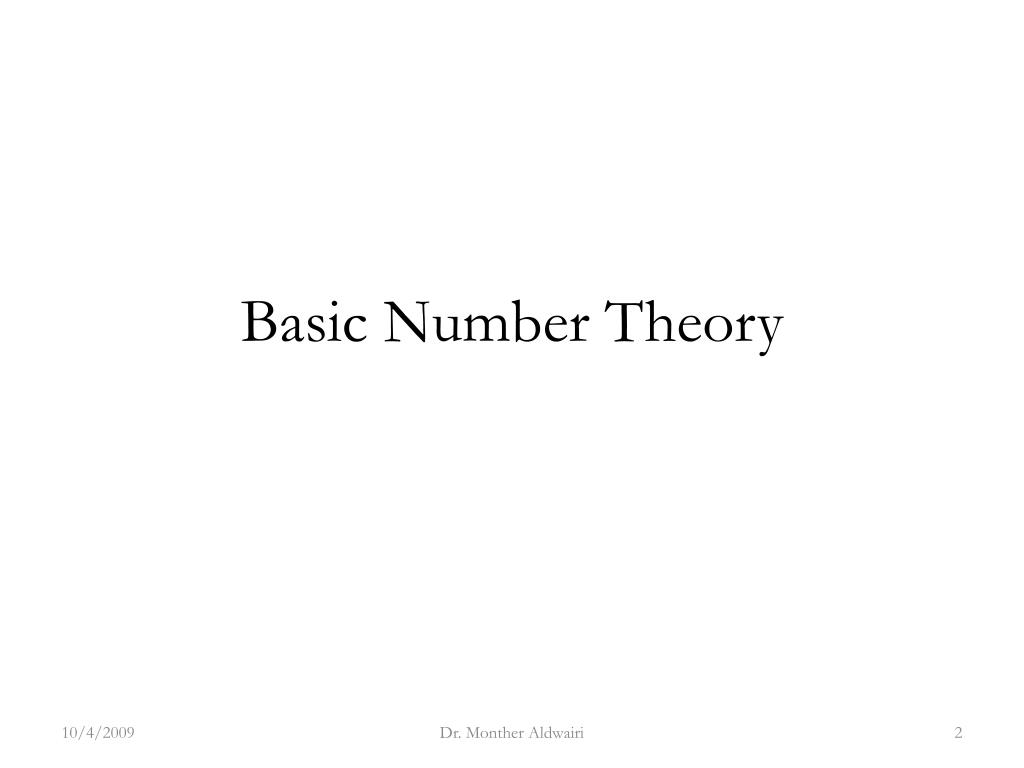

  2. Basic Number Theory Dr. Monther Aldwairi

  3. Divisibly Definition Let a and b be integers with a≠0 a divides b if there is an integer q such that b=aq a divides b is denoted bya|b, Proposition • For every a≠0, a|0, a|aand 1|b • If a|b and b|c, then a|c • If a|b and a|c, then a|(sb+tc) for all integers s, t. Dr. Monther Aldwairi

  4. Prime Numbers Definition A number a >1is a prime number if it is only divisible by 1 and itself. Examples: 2, 3, 5, 7, 11, 13 • Numbers that are not prime are composites = (ab) Theorem Every positive integer can be expressed as a unique multiplication of prime numbers raised to different powers Example 504=23327 Corollary Assuming p is prime, Ifp|abc…z then p must divide one of the factors a, b, c, …, z Dr. Monther Aldwairi

  5. Greatest Common Divisor (GCD) Definition The greatest common divisor of a and b is the largest positive integer dividing both a and b and is denoted by gcd(a,b) Examples: gcd(12,15)=3, gcd(13,7)=1 • a and b are relatively prime if the gcd(a,b) =1 Euclidean Algorithm Suppose a>b a =q1b + r1 b =q2r1 + r2 r1=q3r2 + r3 ,until rk-1=qk+1rk ,then gcd(a,b)=rk Dr. Monther Aldwairi

  6. Congruence Modulo operation 6 mod 4 = 2 or 6 ≡ 2 (mod 4) read 6 is congruent to 2 mod 4 Definition Let a, r, m ∈ Ζ (where Ζ is a set of all integers) and m≠0. a ≡ r (mod m), if m|(a – r) m is called the modulus. r is called the remainder • In other words, a and r differ by multiple of m a = q · m + r 0 ≤ r < m Dr. Monther Aldwairi

  7. Congruence /cont. Propositions • a ≡ a (mod m) • a ≡ 0 (mod m) if and only if m|a • a ≡ r (mod m) if and only if r ≡ a (mod m) • If a ≡ r and r ≡ c (mod m), then a ≡ c (mod m) Examples 12 ≡ 7 mod 5 9 ≡ 3 (mod 6) if and only if 3 ≡ 9 (mod 6) 14 ≡ 8 and 8 ≡ 2 (mod 6), then 14 ≡ 2 (mod m) Dr. Monther Aldwairi

  8. Modular Arithmetic Work on the set of integers mod m, denoted as Zm ={0,1,2,…, m-1} and perform addition, subtraction and multiplication with congruencies Proposition Let a,b,c,d,m ∈ Ζ with m≠0. and suppose a ≡ b (mod m), and c ≡ d (mod m), then a+c ≡ b+d (mod m), a ‒ c ≡ b ‒ d (mod m), ac ≡ bd (mod m) If the result of addition or multiplication is larger than m‒ 1 take the Modula Example: m = 9  Ζ9 = {0, 1, 2, 3, 4, 5, 6, 7, 8} 6 + 8 = 14 ≡ 5 mod 9 6 × 8 = 48 ≡ 3 mod 9 Dr. Monther Aldwairi

  9. Modular Arithmetic Properties Zm 1. The additive identity is 0: a + 0 = a 2. The additive inverse of a is -a = m – a s.t. a + (-a) ≡ 0 mod m 3. Addition is closed i.e if a, b ∈ Ζmthen a + b ∈ Ζm 4. Addition is commutative a + b = b + a 5. Addition is associative (a + b) + c = a + (b + c) 6. Multiplicative identity is 1: a × 1 ≡ a mod m 7. The multiplicative inverse of a exists if gcd(a, m) = 1 and denoted as a-1s.t. a-1 × a ≡ 1 mod m 8. Multiplication is closed i.e if a, b ∈ Ζmthen a × b ∈ Ζm 9. Multiplication is commutative a × b = b × a 10. Multiplication is associative (a × b) × c = a × (b × c) Dr. Monther Aldwairi

  10. Division If a and m are relatively prime we can divide both sides of the congruence by a. If gcd(a,m) =1 then their exist a multiplicative inverse for a mod m denoted as a-1. Example: What does the division 4/5 mod 7 mean? 4/5 mod 7 ≡ 4 × 5-1 mod 7 Does 5-1 mod 7 exist ? It exists because gcd(5,7) = 1. 5-1 mod 7 = 3 therefore, 4/5 mod 7= 4 × 3 = 12 mod 7 ≡ 5 mod 7 Dr. Monther Aldwairi

  11. Linear Equations Proposition Let a,b,c,m ∈ Ζ with m≠0 If ab ≡ ac (mod m), Then b ≡ c (mod m) only if gcd(a,m)=1 Example: Solve 2x+11 ≡ 5 (mod 15) 2x ≡ ‒6(mod 15) gcd(2,15)=1 then division is allowed x ≡ ‒ 3 ≡ 12(mod 15) Dr. Monther Aldwairi

  12. Exponentiation Proposition The modulo operation can be applied whenever we want (a + b) mod m = [(a mod m) + (b mod m) ] mod m (a × b) mod m = [(a mod m) × (b mod m) ] mod m Exponentiation Example Example: 38 mod 7 = ? 38 mod 7 = 6561 mod 7 = 2 since 6561 = 937 × 7 + 2. Or 38 = 34 × 34 = 32 × 32 × 32 × 32 38 mod 7 = [(32 mod 7)×(32 mod 7)×(32 mod 7)×(32 mod 7)] mod 7 38 mod 7 = 2 × 2 × 2 × 2 mod 7 = 16 mod 7 = 2 Dr. Monther Aldwairi

  13. Substitution Ciphers Monoalphabetic Ciphers Classical Crypto Systems Dr. Monther Aldwairi

  14. Conventions plaintext in lowercase and CIPHERTEXT in caps Letters of the alphabet and assigned number as follows Spaces and punctuation are omitted Makes decryption easier Gives information about the structure of the message Spaces would dominate the leter fequency counts Dr. Monther Aldwairi

  15. Shift Cipher • Shift each letter by k places, k is the key Let P = C = K= Ζ26and x ∈ P, y ∈ C, k ∈ K Encryption: y=Ek(x) = x + k mod 26. Decryption: x=Dk(y) = x ‒ k mod 26. • When k = 3 the shift cipher is called Caesar Cipher. • Example Let the key k = 3 Plaintext : x = A T T A C K = (0, 19, 19, 0, 2, 10). Ciphertext : y = (0+3 mod 26, 19+3 mod 26, …) y = (3, 22, 22, 3, 5, 13) = D W W D F N Dr. Monther Aldwairi

  16. Attacks on Shift Cipher • Known plaintext, chosen plain text or ciphertext easily break the Shift Cipher • Ciphertext only; Eve has two choice • Exhaustive search, only 25 possible keys • Frequency count if the message is long enough • In english e is by far the most common letter, then T,A,R,N,I,O, S. Dr. Monther Aldwairi

  17. Affine Cipher • The key k = (α, β) and α, β ∈ Ζ26 • Assume gcd(α,26)=1 • α∈ {1, 3, 5, 7, 9, 11, 15, 17, 19, 21, 23, 25} • Encryption: Ek(x) = y = α · x + β (mod 26). • Example: k = (α, β) = (3, 2) y = 3x +2 Plaintext : X = A T T A C K = (0, 19, 19, 0, 2, 10). Ciphertext : Y = (3×0 + 2 mod 26, 3×19+2 mod 26, …) Y = (2, 7, 7, 2, 8, 6) = C H H C I G • Decryption: Dk(y) = x = α -1(y – β) (mod 26). Dr. Monther Aldwairi

  18. Attacks on Affine Cipher • 12 choice of α and 26 choices for β 312keys. • Ciphertext only: exhaustive search or frequency analysis • Known plaintext: two letters in the plaintext and corresponding ciphertext letters would suffice to find the key. Example : plaintext: IF=(8, 5) and ciphertext PQ=(15, 16) 8 · α + β ≡ 15 mod 26 5 · α + β ≡ 16 mod 26 ⇒ α = 17 and β = 9 • Chosen plaintext ab y1 = α · 0 + β  y2= α+ β • Chosen ciphertext AB yields the decryption function Dr. Monther Aldwairi

  19. Frequency Count Cryptanalysis • key concept - monoalphabetic substitution ciphers do not change relative letter frequencies • calculate letter frequencies for ciphertext compare counts/plots against known values Dr. Monther Aldwairi

  20. English Letters Frequencies Dr. Monther Aldwairi

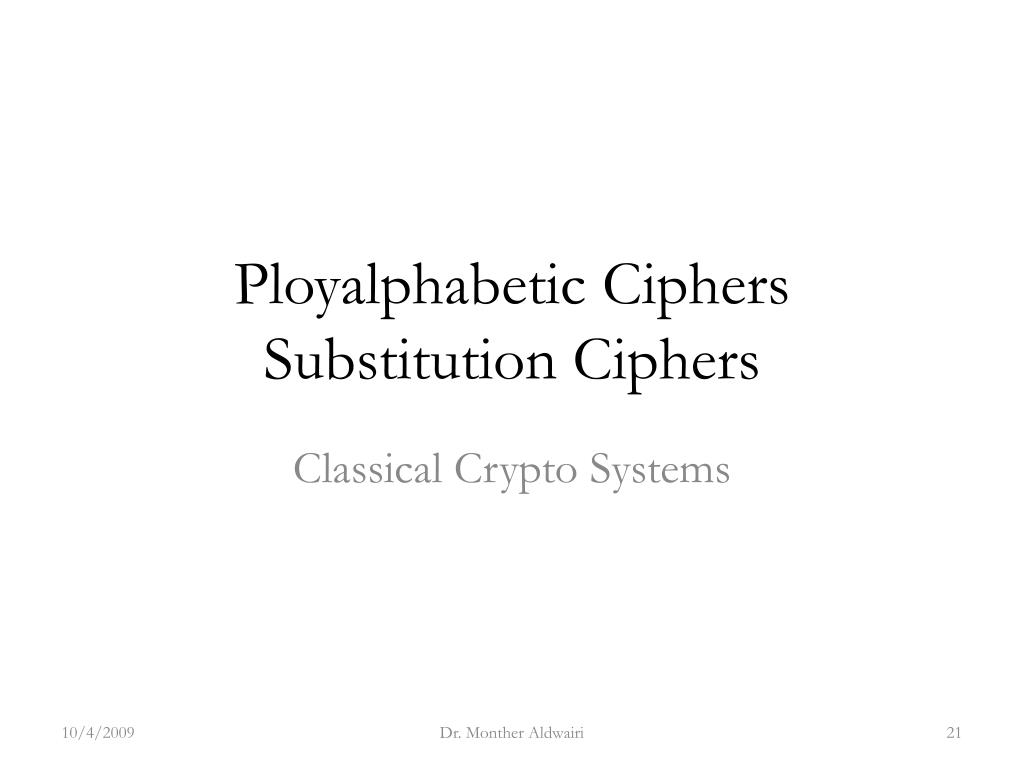

  21. Ployalphabetic CiphersSubstitution Ciphers Classical Crypto Systems Dr. Monther Aldwairi

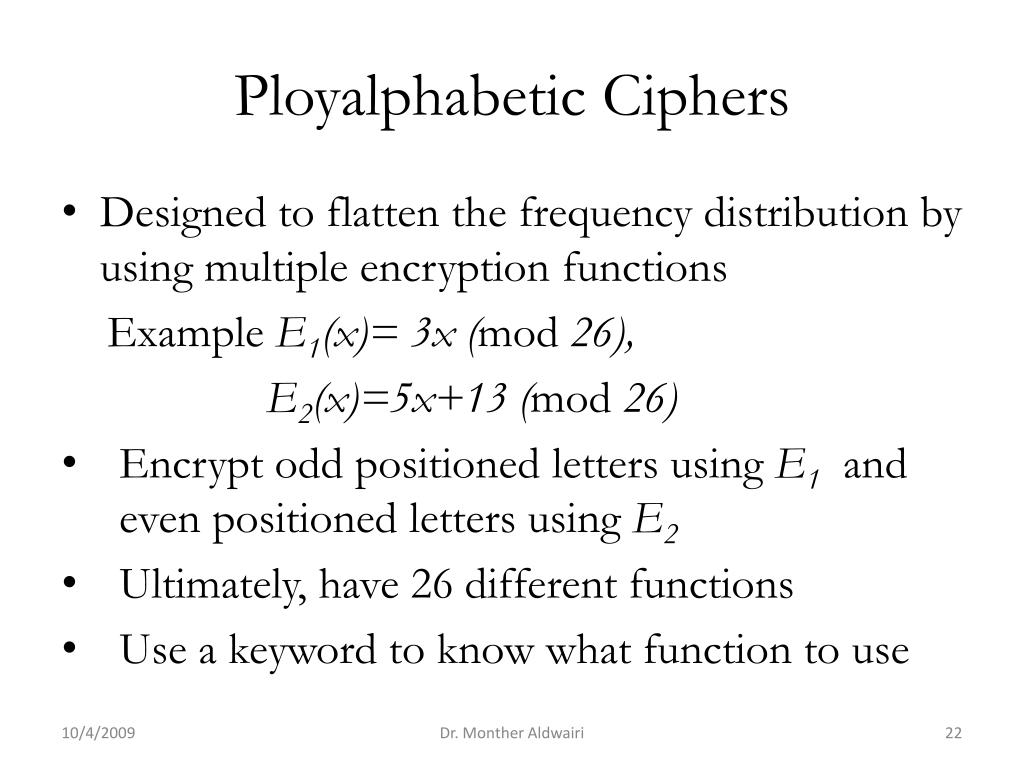

  22. Ployalphabetic Ciphers • Designed to flatten the frequency distribution by using multiple encryption functions Example E1(x)= 3x (mod 26), E2(x)=5x+13 (mod 26) • Encrypt odd positioned letters using E1 and even positioned letters using E2 • Ultimately, have 26 different functions • Use a keyword to know what function to use Dr. Monther Aldwairi

  23. Vigenère Cipher • Multiple caesar ciphers • Use a key to select which alphabet is used for each letter of the message • key is multiple letters long K= k1 k2 ... Kd • write the plaintext out • write the keyword repeated above it with numeral values • use each key letter as a caesar cipher key • encrypt the corresponding plaintext letter • keyword deceptive (3,4,2,4,15,19,8,21,4) k: deceptivedeceptivedeceptive p: wearediscoveredsaveyourself c: ZICVTWQNGRZGVTWAVZHCQYGLMGJ Dr. Monther Aldwairi

  24. Dr. Monther Aldwairi

  25. Attacks on Vigenère Cipher • Chosen plaintext will easily yield the key • Try aaaaaaa…. • With enough known plaintext k=y-x • Chosen ciphertext try AAAAA… results in key negative • Known ciphertext only • Find the key length • Find the key Dr. Monther Aldwairi

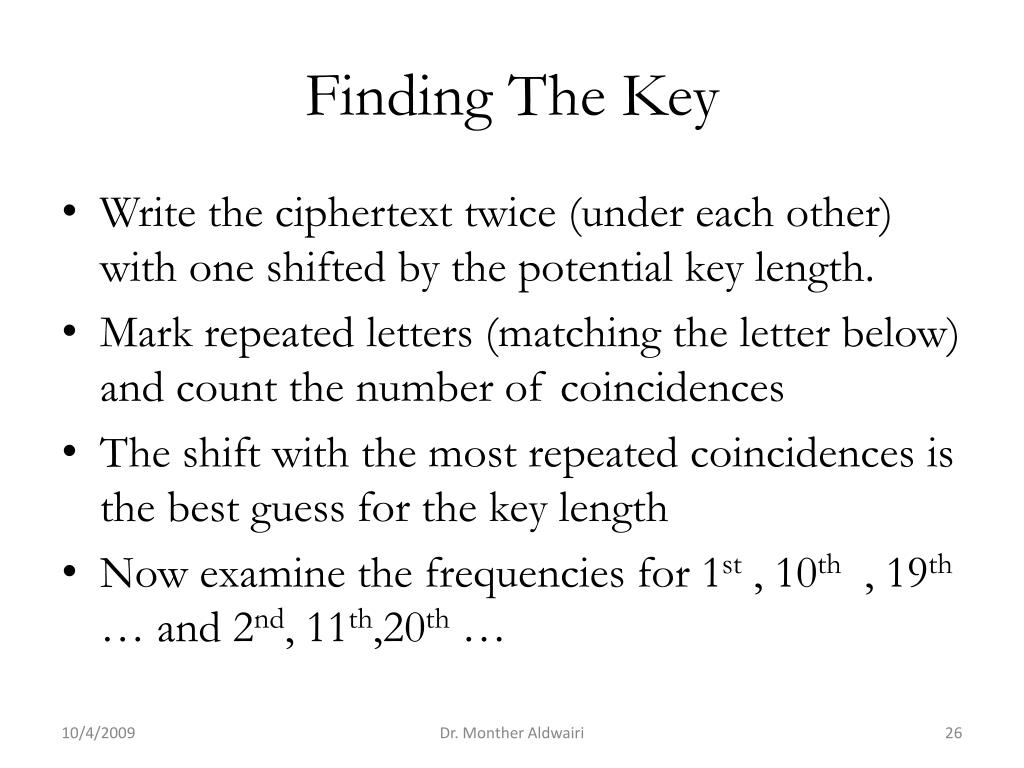

  26. Finding The Key • Write the ciphertext twice (under each other) with one shifted by the potential key length. • Mark repeated letters (matching the letter below) and count the number of coincidences • The shift with the most repeated coincidences is the best guess for the key length • Now examine the frequencies for 1st , 10th , 19th … and 2nd, 11th,20th … Dr. Monther Aldwairi

  27. Shift Shift of 4 ZICVTWQNGRZGVTWAVZHCQYGLMGJ ZICVTWQNGRZGVTWAVZHCQYGLMGJ 2 Shift 9 ZICVTWQNGRZGVTWAVZHCQYGLMGJ ZICVTWQNGRZGVTWAVZHCQYGLMGJ 3 Dr. Monther Aldwairi

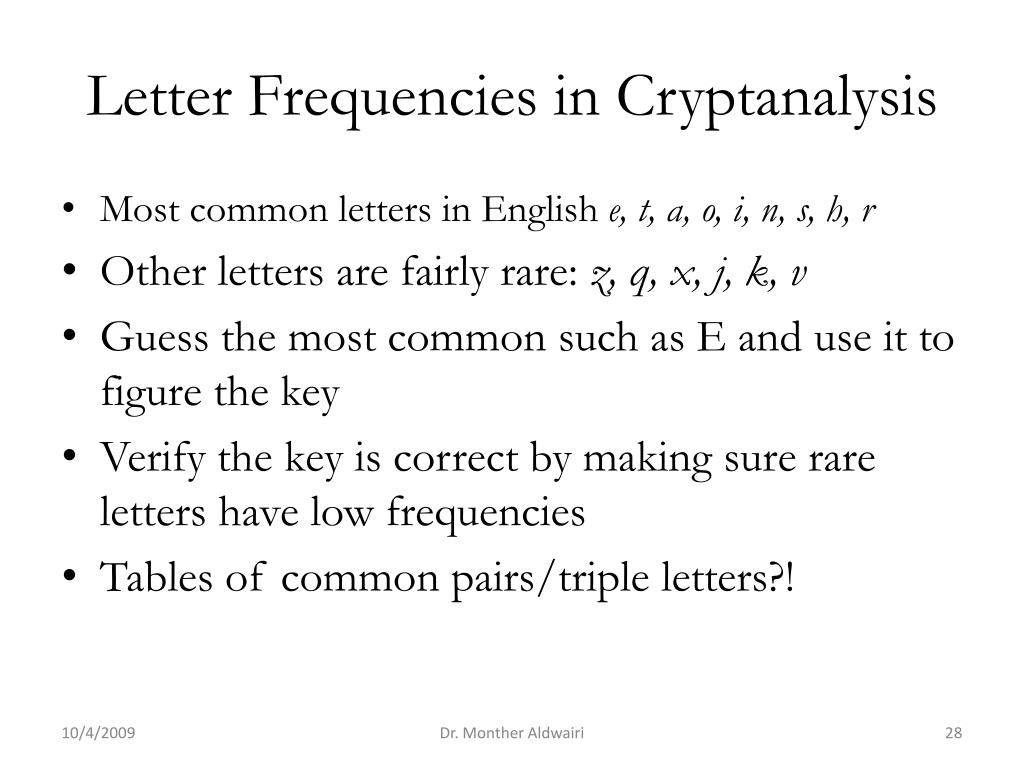

  28. Letter Frequencies in Cryptanalysis • Most common letters in English e, t, a, o, i, n, s, h, r • Other letters are fairly rare: z, q, x, j, k, v • Guess the most common such as E and use it to figure the key • Verify the key is correct by making sure rare letters have low frequencies • Tables of common pairs/triple letters?! Dr. Monther Aldwairi

  29. Letter Pairs Tables • Entry 12 in row WR column means that combination appears 12 times • Entry 14 in N row and W column means NW appears 14 times Dr. Monther Aldwairi

  30. Letter Pairs (Digrams) • Most common was W, B, R, S, I  W=e • The vowels a, i, o tend to avoid each other • S, I, P • 80% of letters that precede n are vowels (WSIP) • R, A • The letter h often appears before e and rarely after it • N=h • Most common combination is th • B=t • Continue the analysis Dr. Monther Aldwairi

  31. Transportation Ciphers • An encryption in which the letters of the plaintext are rearranged. • Columnar Transportation as an example • The plaintext are arranged into n rows • The resulting ciphertext is formed by traversing the columns x1 x4 x7 x2 x1… • Use key to rearrange columns Dr. Monther Aldwairi

  32. Block Ciphers • In Stream ciphers every letter plaintext corresponds to a letter in CIPHERTEXT such as shift and Affine • Block ciphers encrypt a block of letters to overcome this problem. • DES operates on 64 bit and AES on 128 bit blocks • Electronic Codebook (ECB) mode converts a block of plaintext to a block of CIPHERTEXT independently and at onetime. • Cipher Block Chaining (CBC) and Cipher Feedback (CFB) modes use feedback from cipher block to encrypt subsequent blocks. Dr. Monther Aldwairi

  33. Playfair Cipher /Key • The key is a word with repeated letters removed • Schoolbus Scholbu • A 5 × 5 matrix based on the key is constructed with the remaining alphabets with( i and j) treated as one letter. Dr. Monther Aldwairi

  34. Playfair Cipher/Ek(x) • Remove spaces and divide plaintext into groups of two letters. • If double letters insert x and regroup • Add extra x to complete the last group?! • dinner is ready  dinx ne risr ea dy • If both letters fall in the same row, replace each with letter to right • “ea" becomes“BD“ • If both letters fall in the same column, replace each with the letter below it • “dy" encrypts as “KO“ • Otherwise each letter is replaced by the one in its row in the column of the other letter of the pair • “di" encrypts as “AK“ Dr. Monther Aldwairi

  35. Playfair Cipher Security • Susceptible to frequency count attacks • Count common digrams! 26 × 26 = 676 digrams table • Corresponds to the English most common digrams such as: th, he, an , in, re, es • Each letter has only 5 possible corresponding ciphertext letters (4 in row and one below) • Common pairs XY and YX giveup corners of rectangles with er and re (most common digrams) Dr. Monther Aldwairi

  36. Hill Cipher/Ek(x) Example: Let n=3 and the key is an n × n matrix whose entries are integers in Ζ26. and the plaintext be ABC = (0, 1, 2) then the encryption operation is a vector-matrix multiplication  AXW Dr. Monther Aldwairi

  37. Hill Cipher/Dk(y) In order to decrypt we need the inverse of key matrix M, which is Multiple the encrypted text by the inverse N  ABC Dr. Monther Aldwairi

  38. Matrix Inverse in mod m For a matrix M to have in Inverse mod m. gdc(Determinant(M), m) = 1 ? Dr. Monther Aldwairi

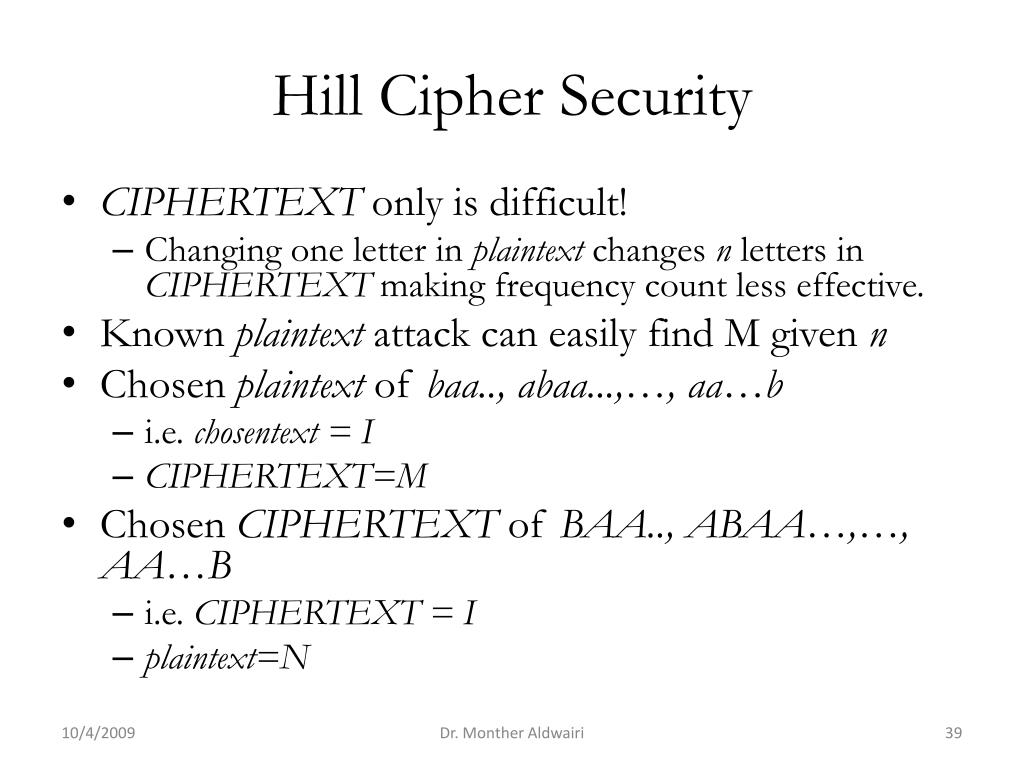

  39. Hill Cipher Security • CIPHERTEXT only is difficult! • Changing one letter in plaintext changes n letters in CIPHERTEXT making frequency count less effective. • Known plaintext attack can easily find M given n • Chosen plaintext of baa.., abaa...,…, aa…b • i.e. chosentext = I • CIPHERTEXT=M • Chosen CIPHERTEXT of BAA.., ABAA…,…, AA…B • i.e. CIPHERTEXT= I • plaintext=N Dr. Monther Aldwairi

  40. Shannon Properties of a Good Cryptosystem • Diffusion • Changing one character in plaintext results in several ciphertext changing and visa versa. • Hill Cipher has that property • Confusion • The key doesn’t relate in a simple way to ciphertext. Each character of the ciphertext should depend on several parts of the key. • In Hill Cipher one character in ciphertext depends on a key matrix column Dr. Monther Aldwairi

  41. One-Time Pads • Unbreakable cryptosystem! • Represent the message as binary (ASCII) • Ek(x)=K+x mod 2 • Ek(x)=K x • Decryption uses the same key Dk(y)=K y • Key is used once and discarded • Unbreakable for a ciphertext only attack. • Known plain and cipher texts reveal the one time key only. Which is never used again Dr. Monther Aldwairi

  42. One-Time Pad Issues • Keys generation and exchange • Long and expensive to transmit • Pseudo random number generators are not secure • One way functions such as DES and SHA • xj=f(s+j) for j =1,2,3… • bjis the least significant bit of xj. Dr. Monther Aldwairi

  43. One-Time Pad Issues • Keys generation and exchange • Long and expensive to transmit • Pseudo random number generators are not secure • One way functions such as DES and SHA • xj=f(s+j) for j =1,2,3… • bjis the least significant bit of xj. Dr. Monther Aldwairi
