  1. PS2 Lattice Considerations PS2 Meeting, 14-March 07 Wolfgang Bartmann

  2. Outline • Input values • Output • Calculation • Results and comparison of the cell structures • Results for the ring • Conclusion

  3. Input Values (1) Regarding one half of the ring… Cells: # arc cells # empty cells (no dipoles in the long straight section) # dipoles per arc cell (nb) Straight Sections: ss1 = 1.2 m …before quadrupoles (FODO: 1.3m) ss2 = 0.5 m …between dipoles ss3 = 1.0 m …between quadrupoles (Doublet, Triplet)

  4. Input Values (2) Magnets: • Ekin = 50 GeV and B = 1.8 T define the bending values: 200 dipoles (nd,std) with 3 m length (ld,std) these values are used for scaling the: • # dipoles: nd = (# arc cells - 1) · 2 · nb …4 halfcells for dispersion • dipole length: ld = ld,std· nd,std / nd • the standard values for the quadrupoles are:lqu,std = 1.75 m and kstd = 0.094 m-2, which are used to scale: • k • lqu = lqu,std· k/ kstd

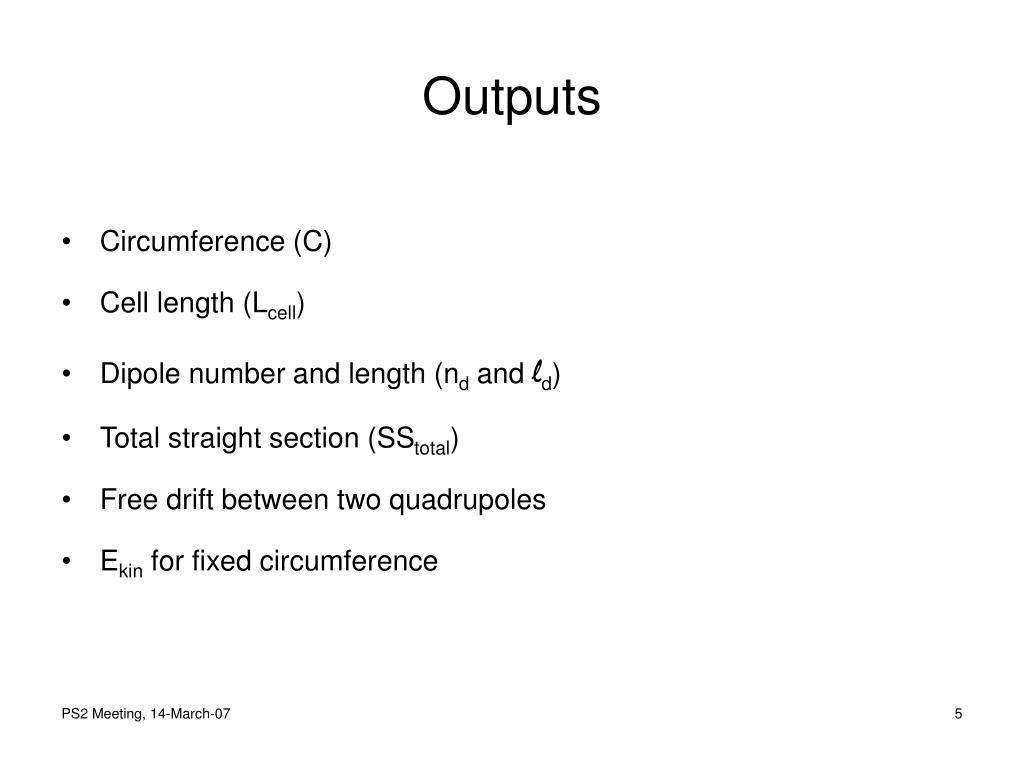

  5. Outputs • Circumference (C) • Cell length (Lcell) • Dipole number and length (nd and ld) • Total straight section (SStotal) • Free drift between two quadrupoles • Ekin for fixed circumference

  6. Calculation • # arc cells and nb determine the dipoles’ length and number • a fixed k sets the quadrupole length from these values, the cell length, the circumference, the total straight section and the free drift are obtained Ekin is calculated for a fixed circumference (1256.6m): Cfix and Lcell define the total arc length total arc length times the “cell fill factor” gives ρ with B = 1.8 T Ekin

  7. ss2 ss2 ss1 ss1 Results: FODO • provides smallest cell length and circumference • free drift space: 8 - 11.5 m • largest bending power per cell higher energies feasible • converse behaviour of βx and βy offers good possibilities to apply correctors FODO: nb = 6, ld = 2.94 m, lqu = 1.49 m

  8. ss2 ss2 ss1 ss1 ss3 Results: Doublet • 10% larger circumference than FODO • large free drift spaces: 16 – 22.5 m • 10% larger total straight section than FODO • about 12% lower kinetic energy for identical circumference • steem, asymmetric slopes of β Doublet: nb = 6, ld = 2.94 m, lqu = 2.42 m

  9. ss1 ss1 ss3 Results: Triplet • 22% longer than FODO in circumference • large free drift: 22.5 m • 22% longer total straight section than FODO • weak bending power per cell about 26% lower kinetic energy feasible • small β in the dipoles reduces magnet apertures ss2 ss2 Triplet: nb = 6, ld = 2.94 m, lqu = 1.86 m

  10. Results for the ring

  11. Conclusion • within a certain celltype (FODO, Doublet, Triplet), the circumference remains almost the same even if the magnet parameters (ld, nd)are changed • a variation of ld and nd will affect the cell length, the total straight section and the free drift • the Doublet and Triplet cells provide a remarkably larger free drift between two quadrupoles than the FODO cell • the bending power per cell, illustrated as Ekin for a fixed circumference, is determined by the cell type and depends hardly on the magnet parameters • the FODO structure has the largest bending power per cell
